Leadshine 220V AC servo motor ACM4001L2H-60-B NEMA16 frame max 5000 rpm and 0.954 Nm torque use together with L5-100-T drive

Notice:

We only supply genuine Leadshine servo motor drive with reasonable price, if your budget is limit, please contact our service man online and he she will recommend you the low price other supplier.

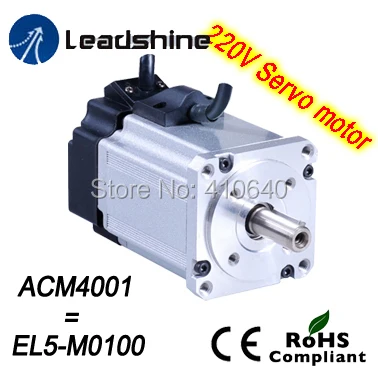

 Leadshine 220V AC servo motor ACM4001L2H-60-B NEMA16

Remarks:

The ACM4001L2H-60-B is same as EL5-M0100-1-16.

The following description is based on El5-M0100-1-16.

You will receive the model : ACM4001L2H-60-B.

The EL5-M (ACMXXXX) series high voltage brushless AC servo motors provide applications with high torque density to attain high acceleration capability and faster positioning.  They are available in metric frame sizes from 40 mm to 130 mm.  A wide variety of options are available for customization to meet your application needs - encoders, brakes, shafts, connectors, environmental, etc. Standard modes have standard cabling options for direct connection to the EL5-D (L5-XXXX)drives.

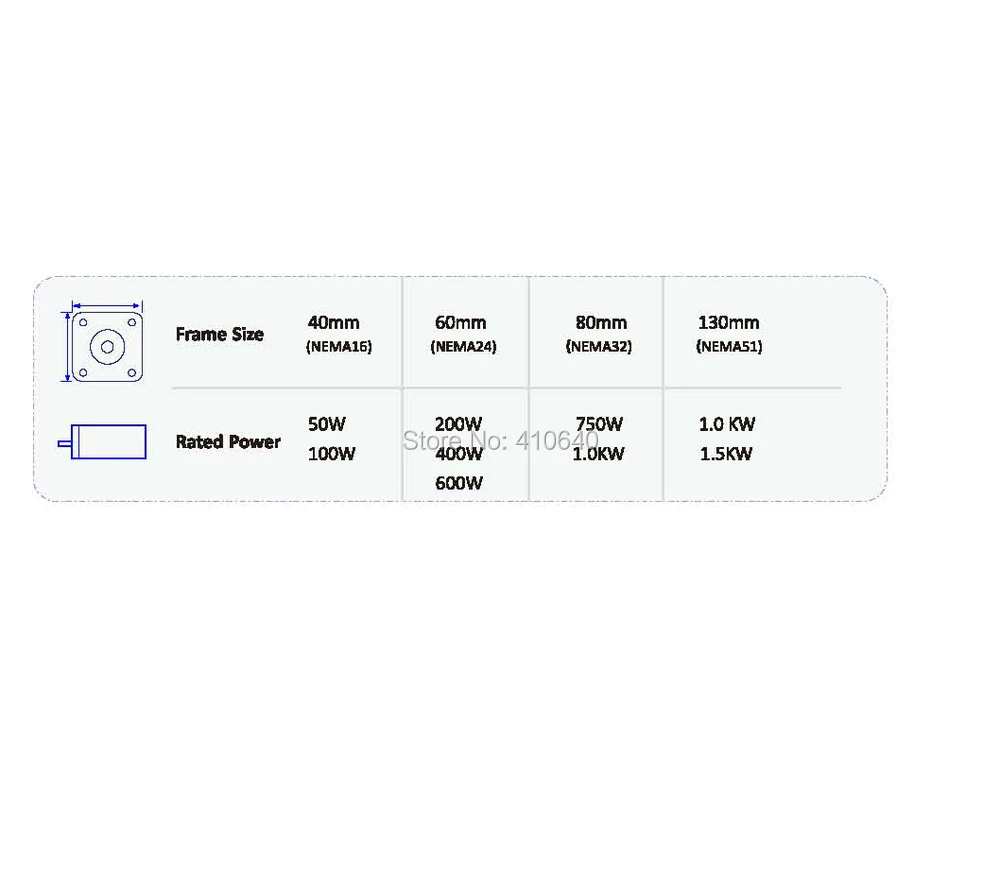

Frame and power overview:

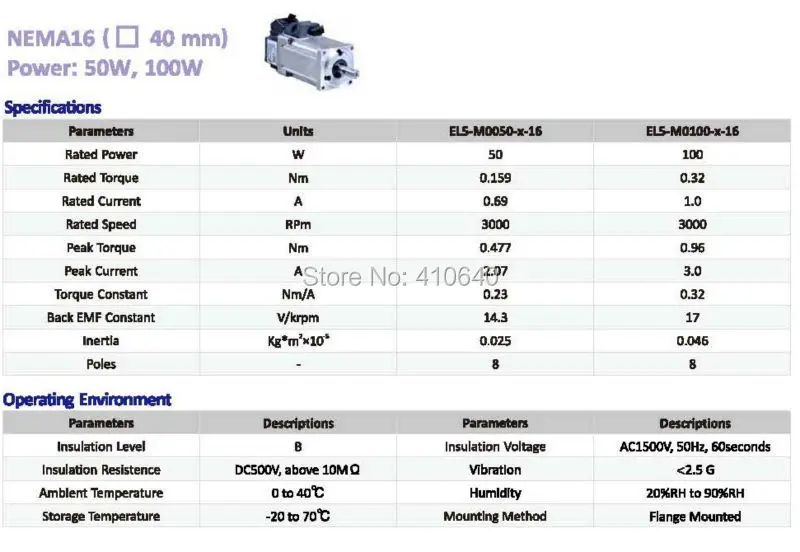

Specification:

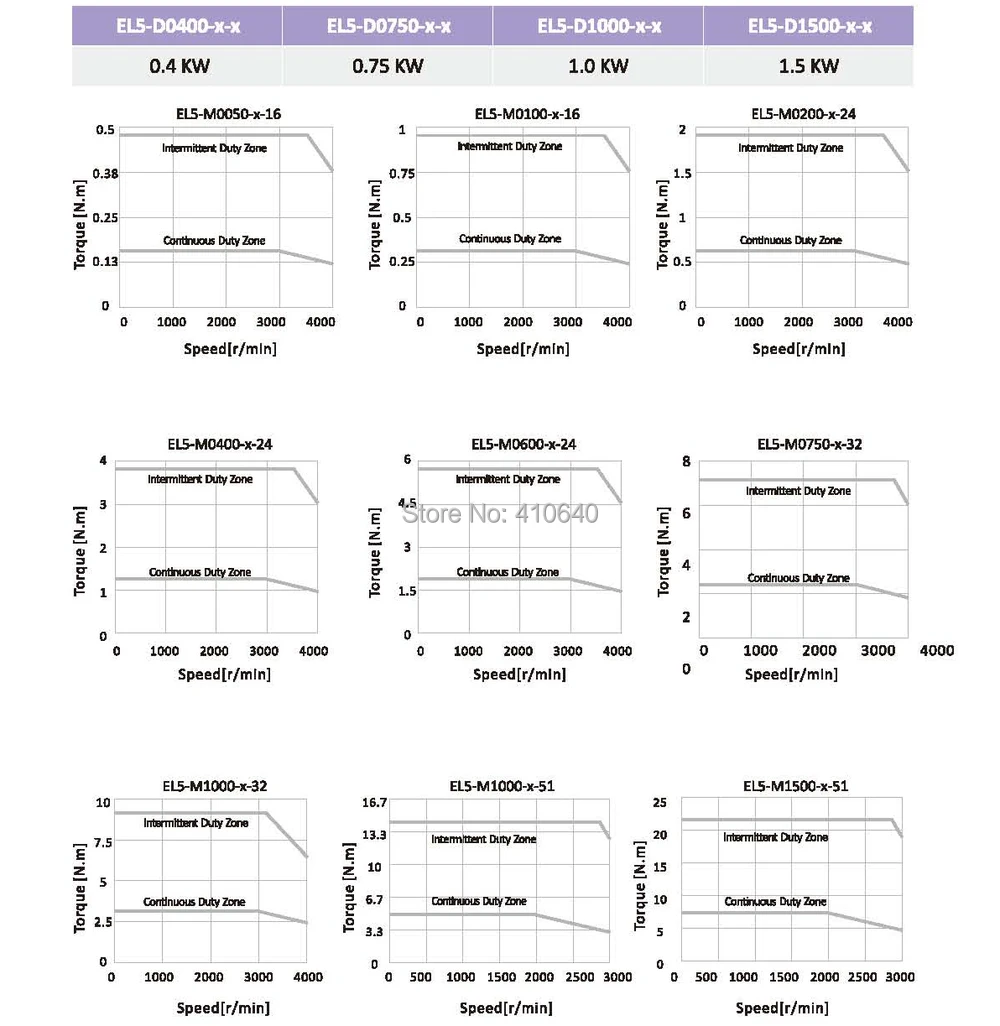

Speed torque curve:

Encoder cable:

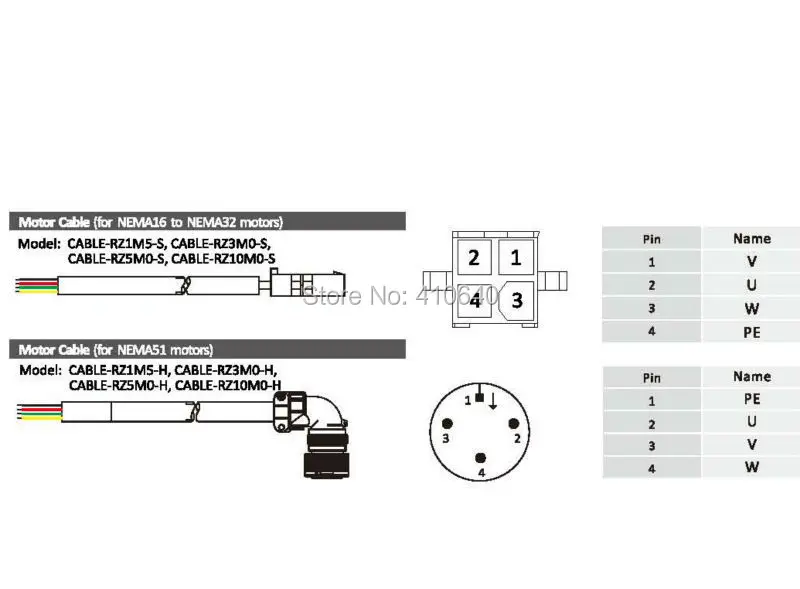

Motor cable:

Mechanical information:

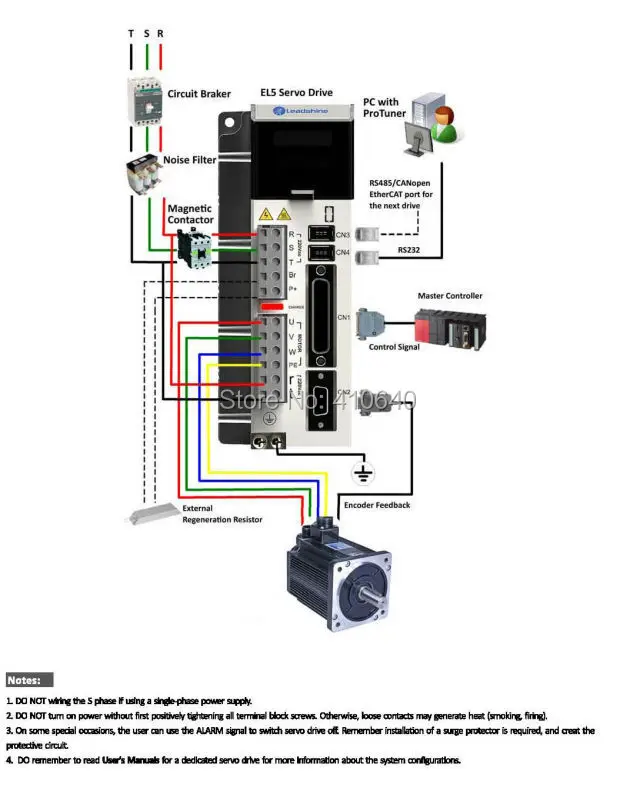

How to connect to EL5-D (L5-) series servo drive:
