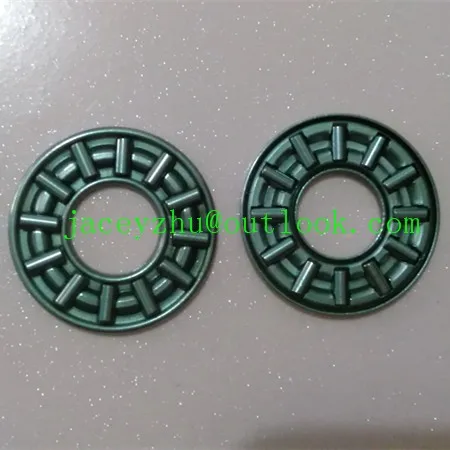

Thrust Needle Roller Bearing
Never opened ... Never Used
You are bidding on brand new thrust needle roller bearing, the product detail is in the below:
shaft diameter bearing type bounday dimensions(mm) basic load rating(N) limiting speed(rpm) weight (mm) current type Dc1 Dc Dw dynamic static grease oil (g) 4 AXK 0414 TN 4 14 2 4100 7900 14000 5500 0.7 5 AXK 0515 TN 5 15 2 4000 8500 13000 4800 0.8 6 AXK 0619 TN 6 19 2 6000 12000 12000 4200 1 8 AXK 0821 TN 8 21 2 7100 13500 11000 4000 2 10 AXK 1024 10 24 2 7800 24000 9500 3600 3 12 AXK 1226 12 26 2 8200 26700 7200 3200 3 15 AXK 1528 15 28 2 9500 33000 6500 3000 4 17 AXK 1730 17 30 2 10200 36500 5500 2800 4 20 AXK 2035 20 35 2 11000 43000 5000 2600 5 25 AXK 2542 25 42 2 12500 538000 4500 2300 7 30 AXK 3047 30 47 2 14000 656000 4100 2100 8 35 AXK 3552 35 52 2 15500 770000 3700 2000 10 40 AXK 4060 40 60 3 25000 1100000 3200 1900 16 45 AXK 4565 45 65 3 25800 1250000 3000 1700 18 50 AXK 5070 50 70 3 27600 1370000 2800 1600 20 55 AXK 5578 55 78 3 35000 1950000 2600 1500 28 60 AXK 6085 60 85 3 38600 2400000 2500 1100 33 65 AXK 6590 65 90 3 41000 2580000 2400 1000 35 70 AXK 7095 70 95 4 50000 2670000 2100 950 60 75 AXK 75100 75 100 4 51000 2750000 1900 900 61 80 AXK 80105 80 105 4 52400 2850000 1800 870 63 85 AXK 85110 85 110 4 54000 3000000 1700 850 67 90 AXK 90120 90 120 4 66000 4100000 1580 800 86 100 AXK 100135 100 135 4 76000 5570000 1400 770 104 110 AXK 110145 110 145 4 82000 6000000 1300 740 122 120 AXK 120155 120 155 4 84800 6620000 1200 700 131 130 AXK 130170 130 170 5 110000 9300000 1100 660 205 140 AXK 140180 140 180 5 115000 9100000 1000 620 219 150 AXK 150190 150 190 5 118000 9600000 950 580 232 160 AXK 160200 160 200 5 125000 10000000 900 500 246
Thrust needle roller bearing, series AXK, AXW, AX, TC, NTB
Thrust parallel roller bearing, series 811,812,893,874,894.
The thrust needle roller bearing or thrust parallel roller bearing is such a manner that the needles (rollers) with cage are set up in the space between rollway and collar and the cage reliably guides and clamps a lot of rolling bodies. There is a little difference among the rolling bodies in the same set. The thrust needle roller bearing or thrust parallel roller bearing is the one only supporting the axial load in one direction. It is used as the bearing allocation having the good rigidity and the axial small space.

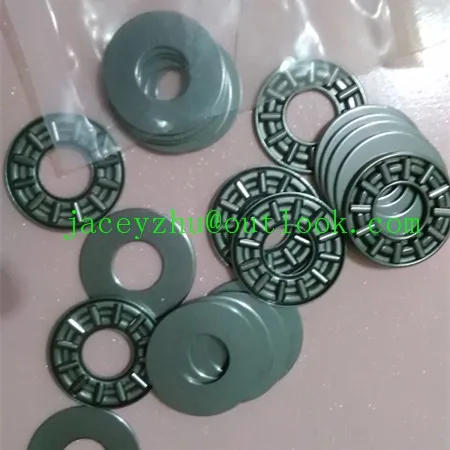

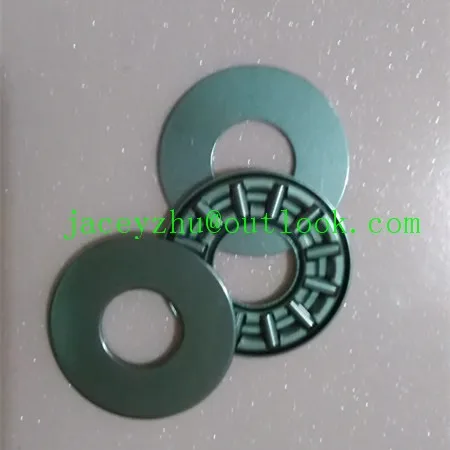

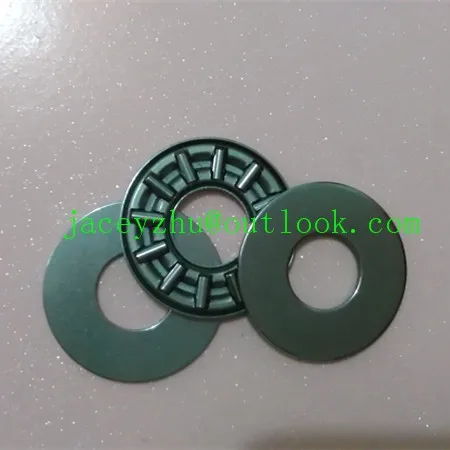

Thrust collar, shaft ring and seat ring
Thrust collar, series AS, LS, GS, WS, ZS, TRA, TRB, TRC, TRD
Series AS thrust collar is punched with the high quality steel spring plate in thickness of 1mm and quenched and polished. When the surface of the adjacent parts can not be acted as rollway, although it has a good rigidity, Series AS collar shall play its full action.
Series GS, WS LS thrust collars are made of bearing steel with the quenching process, the outer surface of GS seat ring and the inner surface of WS shaft ring are ground, series LS thrust collar is an economic product with machining the outer and inter surfaces.
As for series ZS thrust collar, when it is required for assembly to set up the bearing as bidirectional location. The series ZS collar can be used as axial location or seat hole location.
International bidders/Buyers -Please Note: we ship worldwide, the import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying. These charges are normally collected by the delivering freight (shipping) company or when you pick the item up -do not confuse them for additional shipping charges.
As a professional needle bearing products supplier with many years experiences,we could offer many kinds of good quality needle bearings. We are open to all sincere buyers, for further information, welcome to make inquiry, thank you for taking time to read our information!
Wholesale and retail
(to save expense, the batch goods could be delivered by sea or by air)
