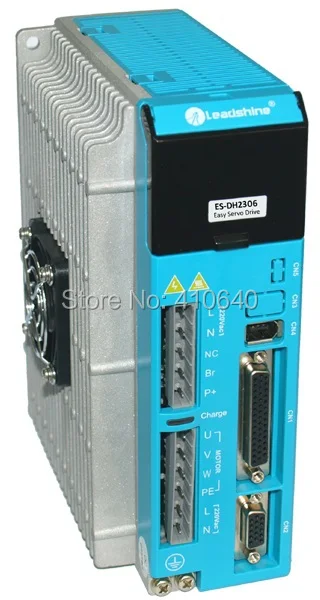

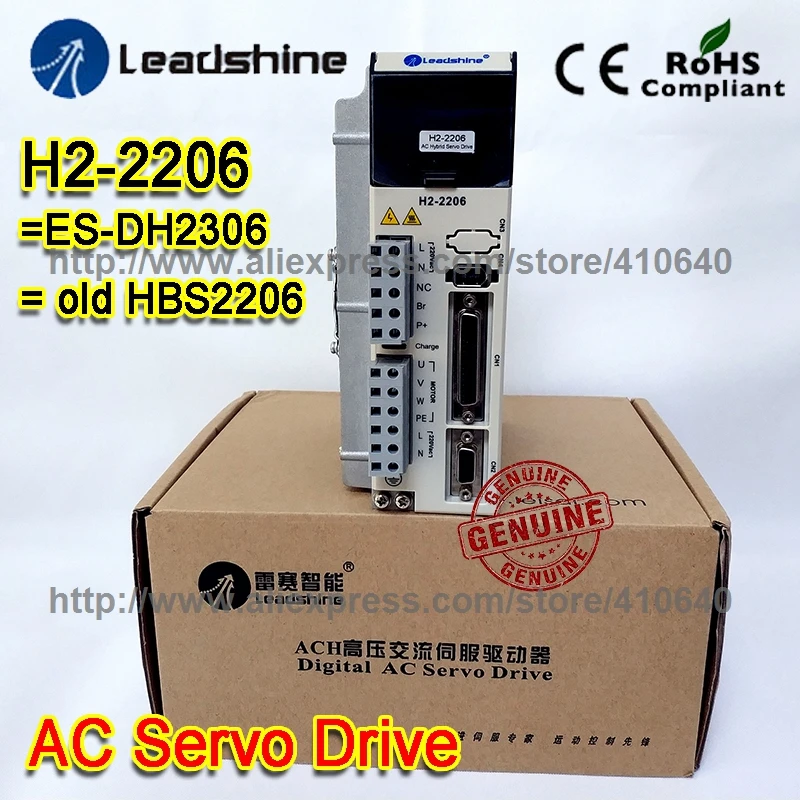

HBS2206 Easy Servo Drive ( ES-DH2306)
+
863HBM80H-1000 Easy Servo Motor (ES-MH33480)
Notice:
HBS2206 (Chinese market version) = ES-DH2306 (Outsea market version)
863HBM80H( Chinese market version )=ES-MH33480 (Outsea market version)

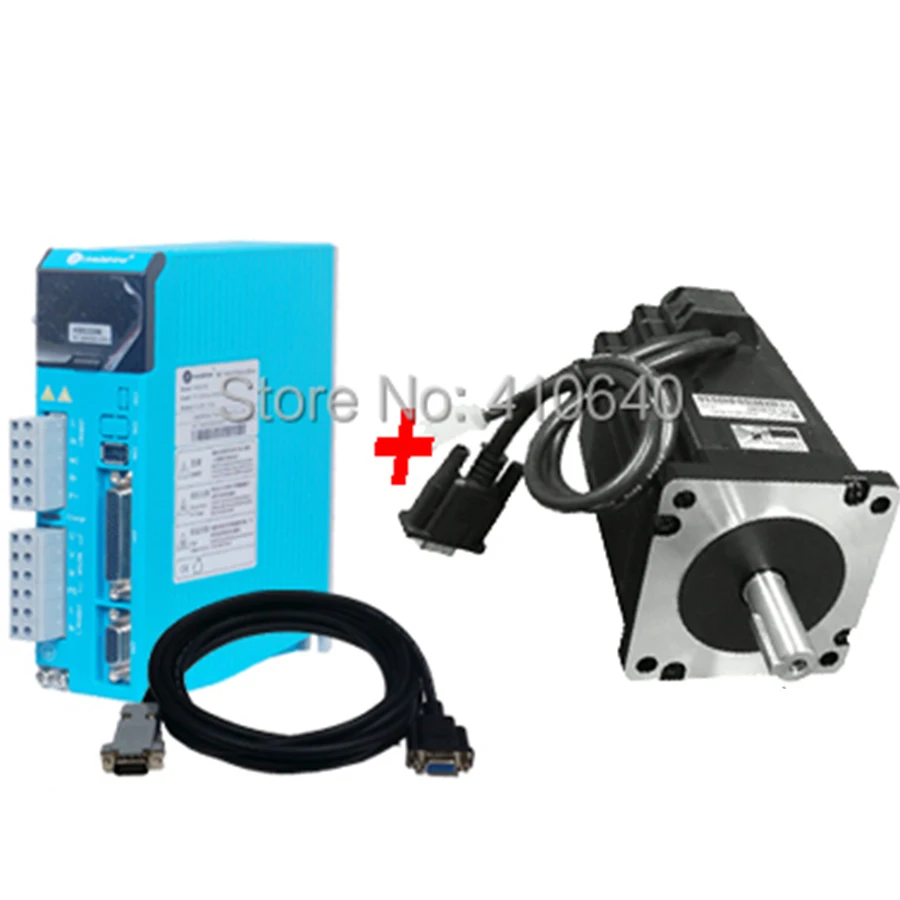

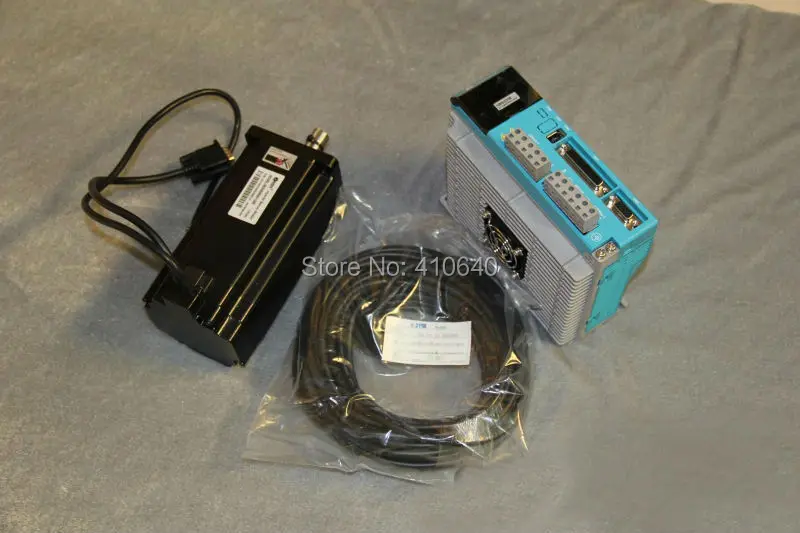

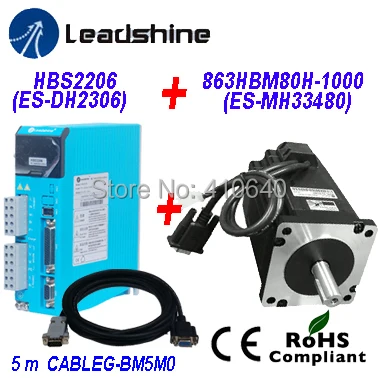

This is set sales, 1 piece include:
1: HBS2206 Easy Servo Drive: 1 piece
2: 863HBM80H-1000 Easy Servo Motor : 1 piece
3: Encoder cable CABLEG-BM5M0: 1 piece (5 meters)
Notice:
1: The default delivery mehod is based on free shipping by Registered Post Service.
2: Becuase there is the dlivery cost of fluctuation of the DHL,UPS, Fedex or TNT, if you are in need of these faster service, please contact our online consultant, and will offer you lowest cost for these express
3: If you are in need of other products with different model, please contact our online sales, will offer you best price and lowest delivery cost--based on GENUINE products.

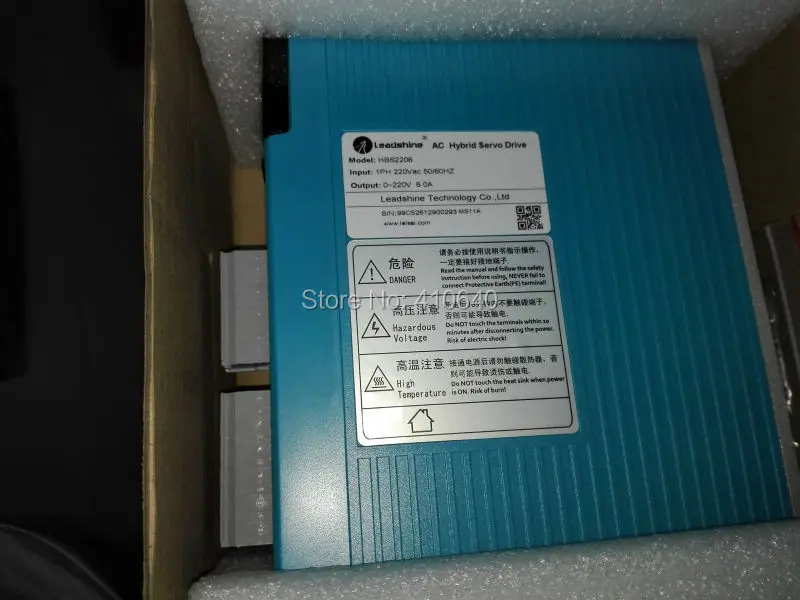

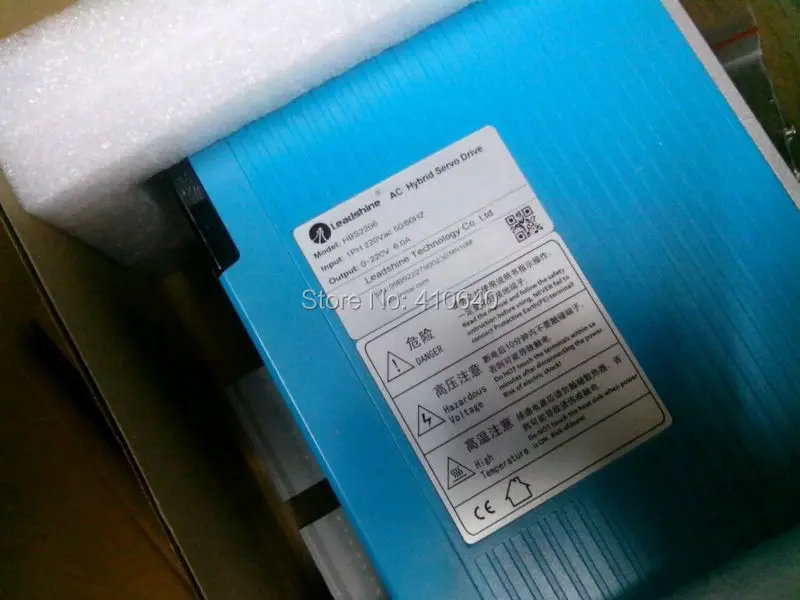

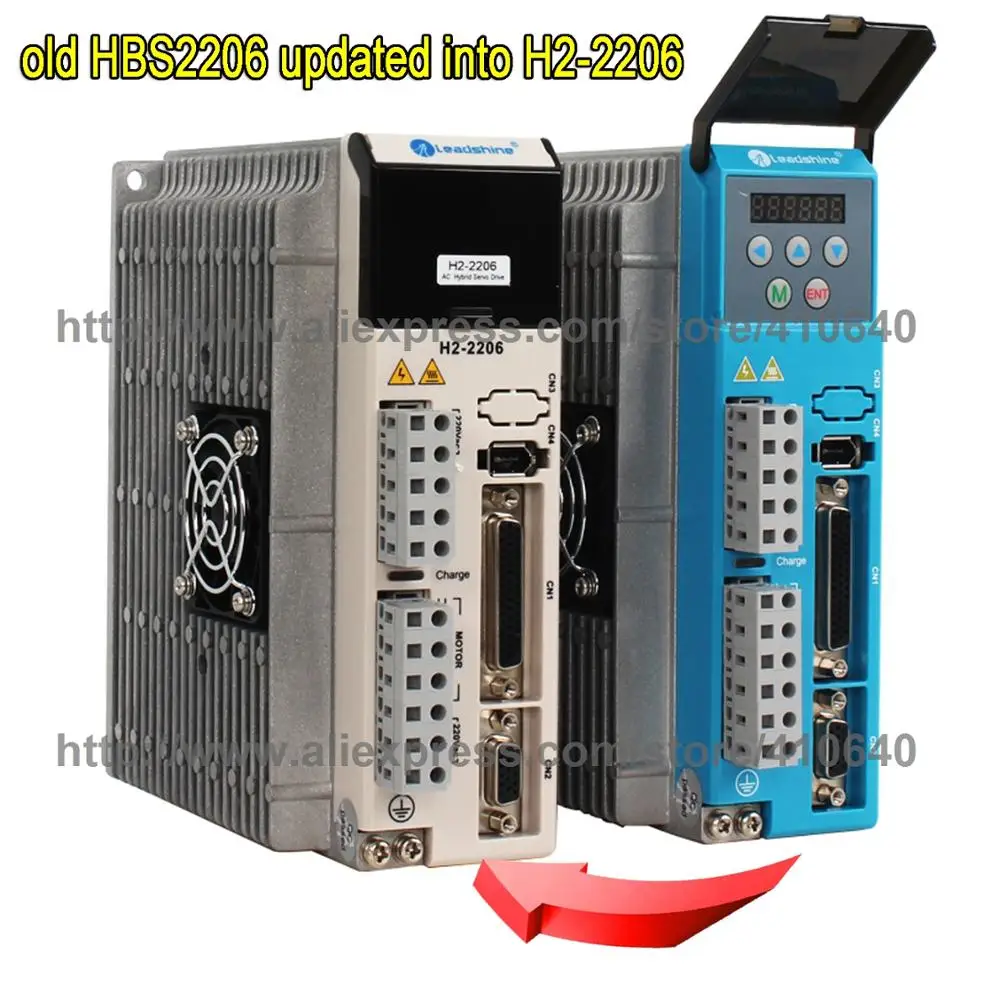

1: HBS2206:
By applying servo control on easy servo motors (stepper motors with encoders), Leadshine HBS2206 easy servo drive combines features of both open loop stepper drives and brushless AC servo drives. It takes step and direction control commands, direct 220/230 VAC input voltage, and outputs load-based current up to 6.0A. It is capable of powering 3-phase easy servo motors of NEMA 34/42, closing the position loop, and eliminating position tracking errors in real time.
Similar to brushless AC servo drives, an HBS2206 easy servo drive can take encoder feedback from driven high voltage easy servo motors and close the position loop to eliminate possibility of lose of movement synchronization. Therefore, the position loop between the motor and drive is fully closed and "lose of step" in open loop stepper systems is totally eliminated. The HBS2206 easy servo drive adopts advanced control algorithm and just outputs "just enough" to the driven motor to to meet the torque requirement. So, easy servo systems driven by HBS2206 can response and accelerate much faster than open loop stepper systems in high precision and with extra low heating, extra smooth, much higher torque and speeds.
Compared with conventional brushless servo systems, easy servo / closed loop systems powered by HBS2206 servo drive can output much higher low to medium speed torque (1-2000 RPM). There is no overshooting, no hunting, and zero settling time. Also, no tuning and plug-and-play for almost all applications makes HBS2206 powered easy servo/closed loop systems give advantages over conventional brushless servo systems.
The HBS2206 easy servo drive takes direct HBS2206 voltage input without the need of a VDC power supply. Each drive has a built-in LED panel to allow easy custom configuration, fine tuning, and motion real time status monitoring. In addition, HBS2206 can be easily configured as an open loop stepper drive to power three phase stepper motors.
Features:
Stepper based servo control for stepper motors with encoders
Step & direct, or CW/CCW control
Closed position loop for no loss of steps
150 - 230 VAC input voltage
Load based output current of 0.50 - 6.00 A
default 200KHz input frequency; 500Khz optional
Quick response and acceleration
No torque reservation
Extra low drive motor heating & noise
No hunting, no overshooting, almost zero settling time
No tuning & "plug-and-play" for almost all applications
No power supply for direct AC input

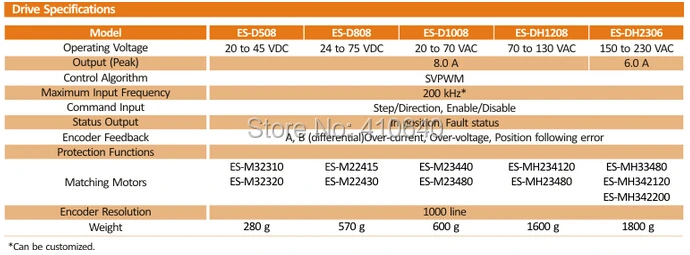

Specifications
Model: HBS2206
Phase: 3
Control Mode: Step & Direction
Max Input Frequency: 200KHz
Encoder Feedback: Yes. Fully close the loop between the drive and drive motor
Input Voltage Range: 150 - 240 VAC
Peak Current: 6.00 A
Software Cofig Resolution Range: 200 - 102,400 (increased by 200)
Default Step Resolution: 4000
Default Holding Current Percentage: 20 %
Communication Type: RS232
Pulse enabled at: Rising edge
Isolation Resistance: 500M Ohm
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temporature: 0-50°C
Humidity: 40–95% RH
Operating Temporature: 0-70°C
Vibration: 5.9 m/s2 Max
Storage Temperature: -20-65°C
Specification: 6.69 X 5.51 X 2.76 Inches
Weight: 3.96 lbs

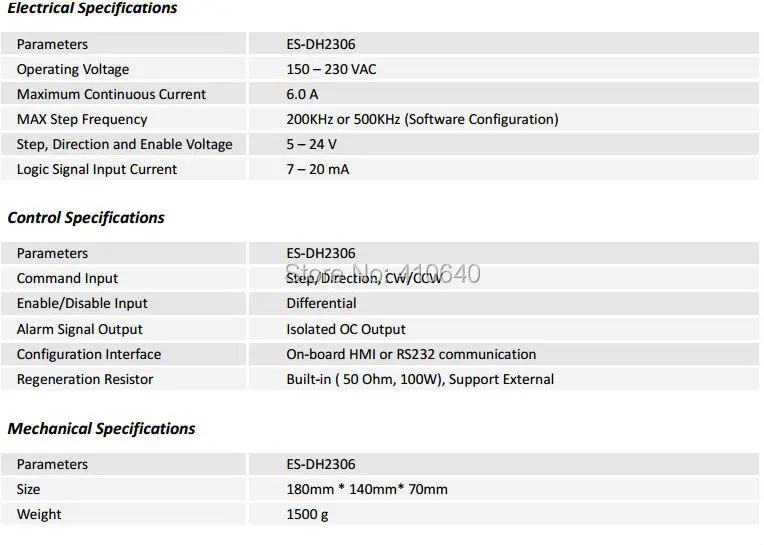

Electrical Specifications (Tj = 25oC/77oF)

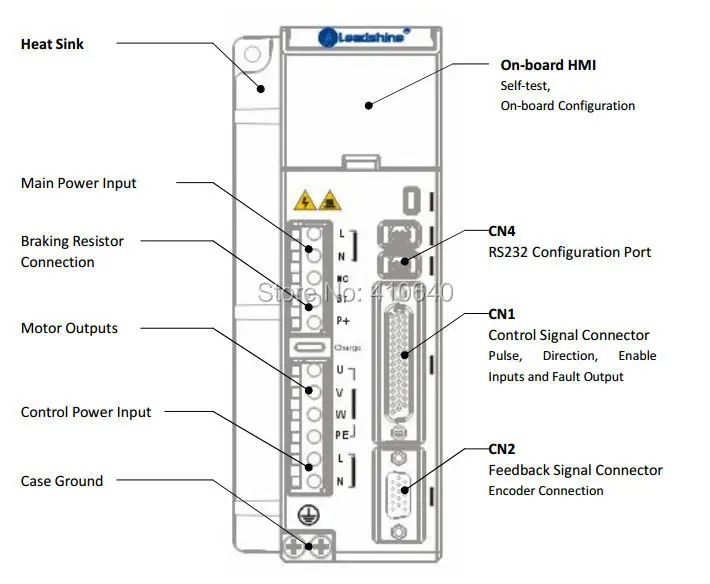

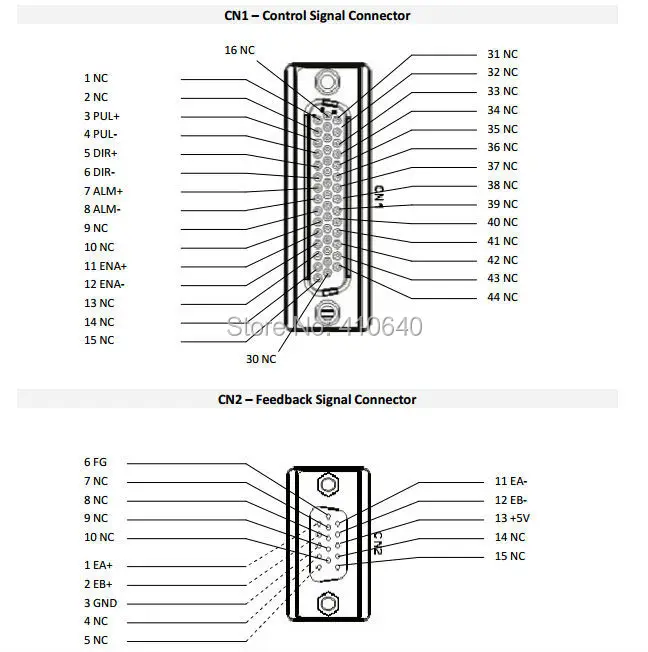

Connector and Interface

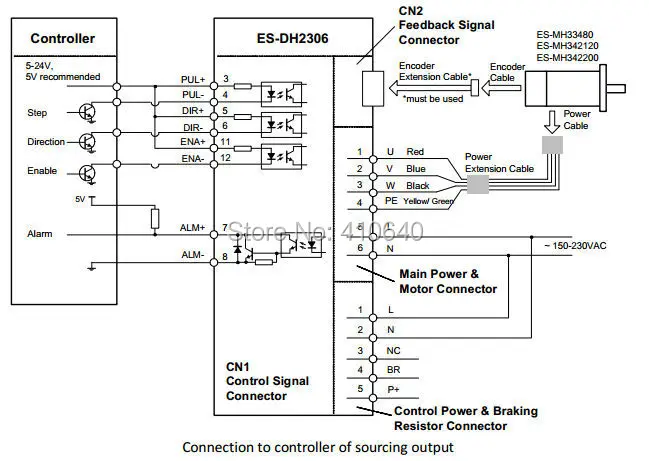

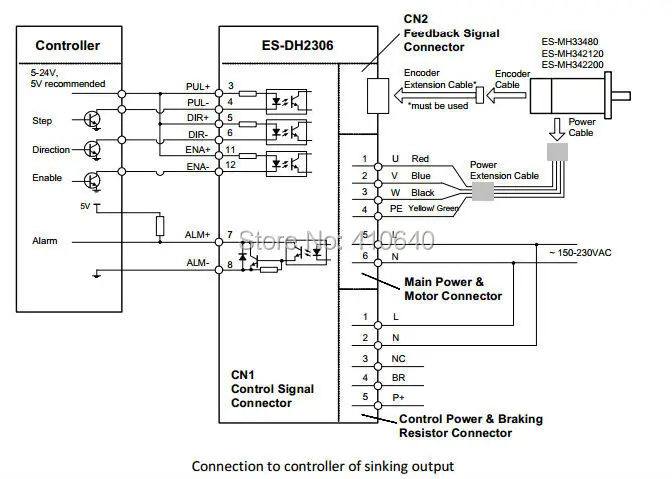

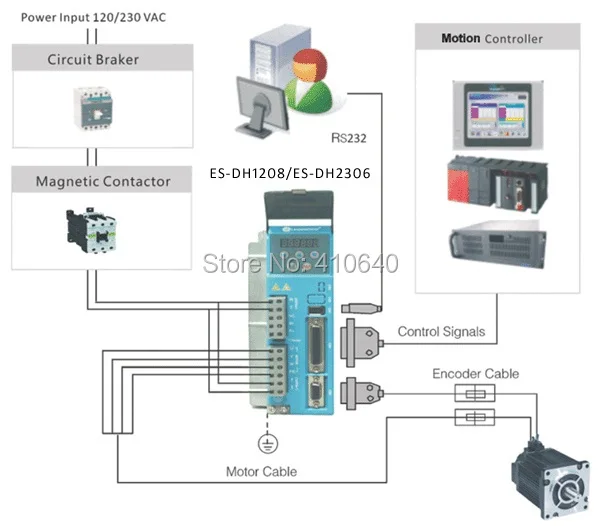

Typical Connection
Mechanical Specification

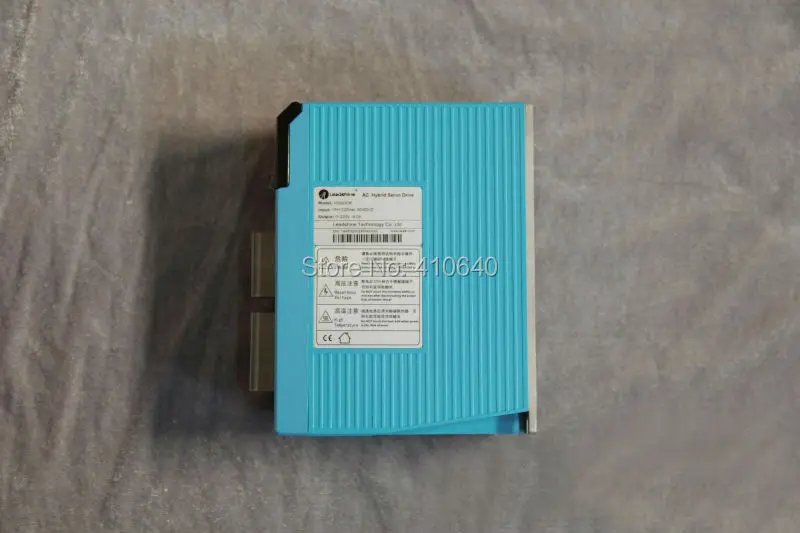

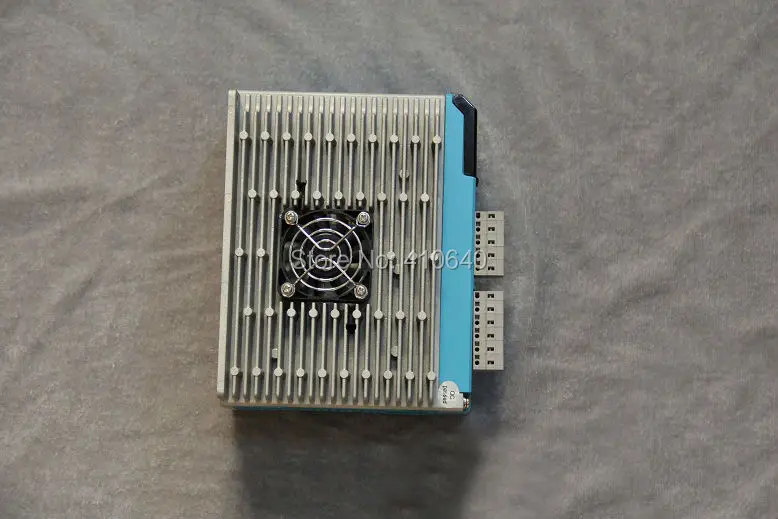

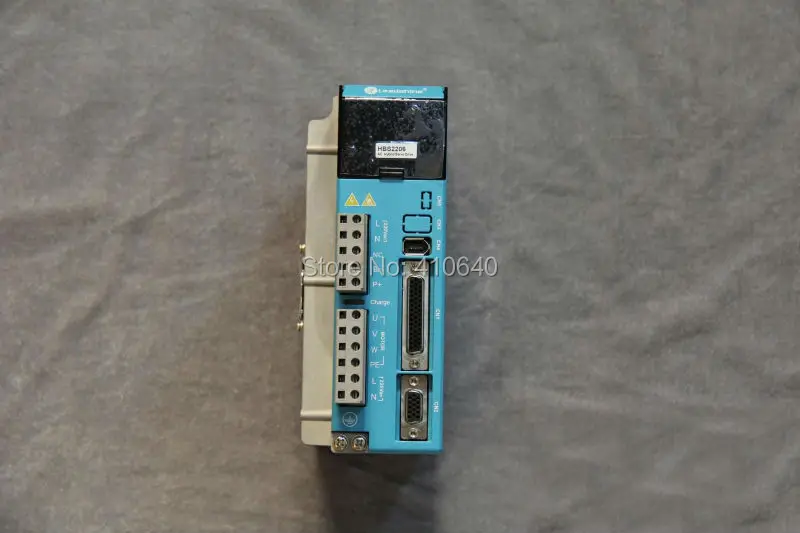

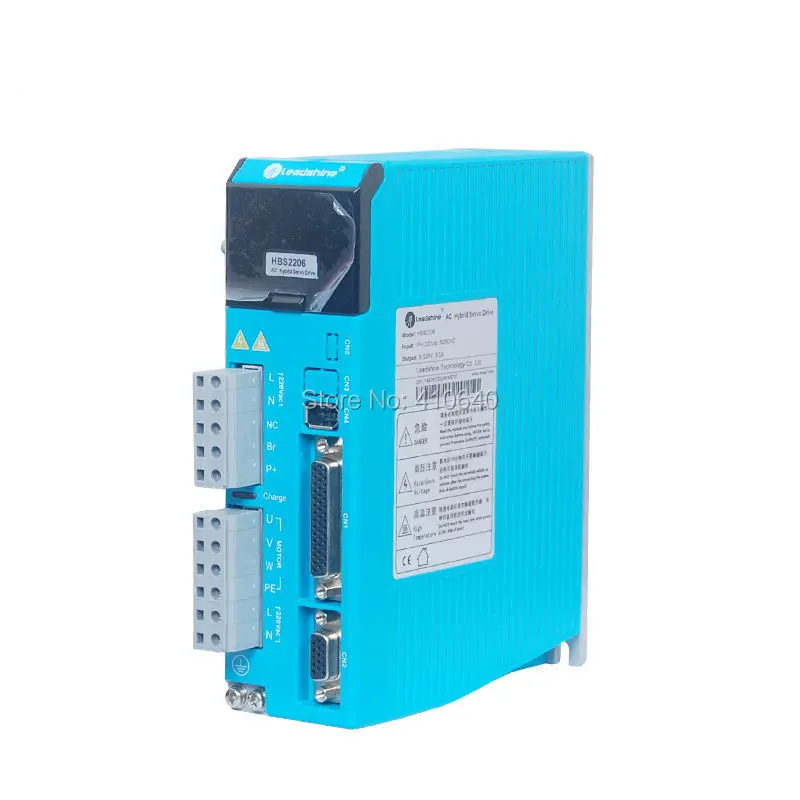

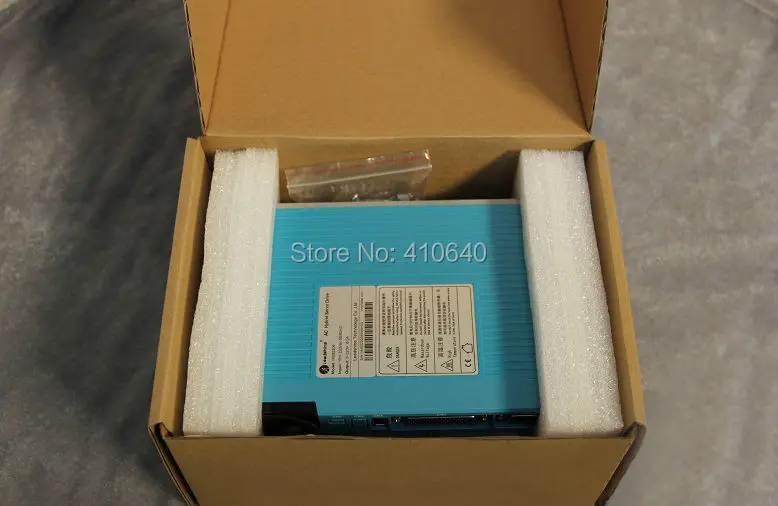

Real Photo
Matching Easy Servo Motor
863HBM70H-1000
863HBM80H-1000
863HBM70H-BZ-1000
1103HBM120H-1000
1103HBM200H-1000

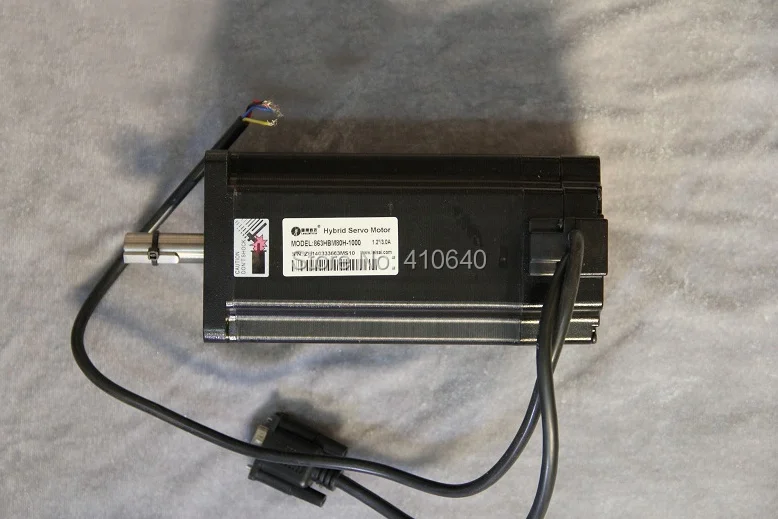

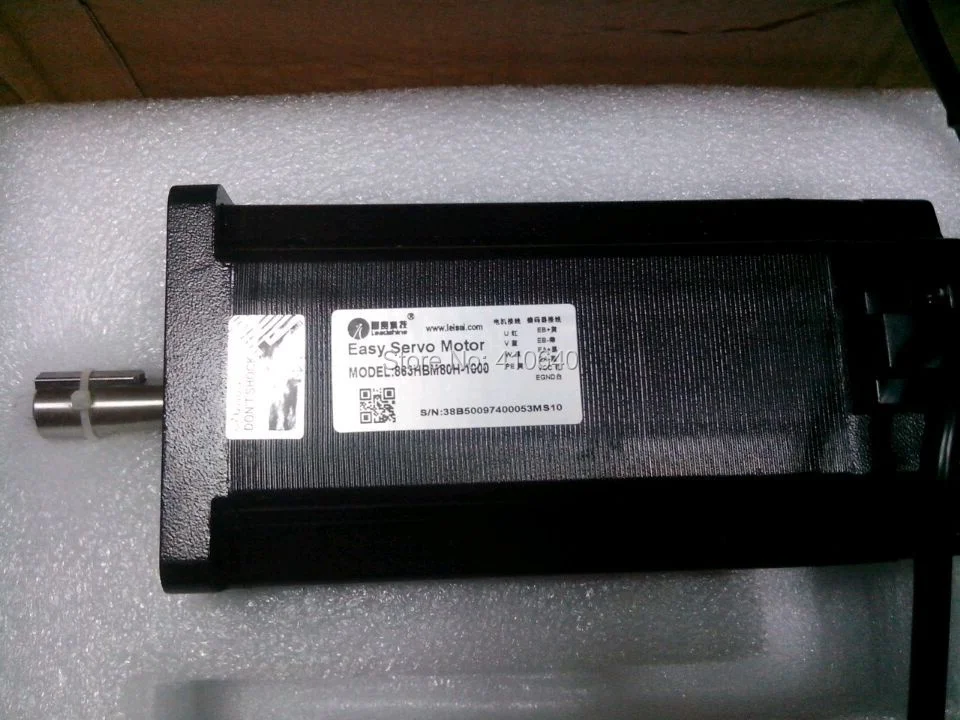

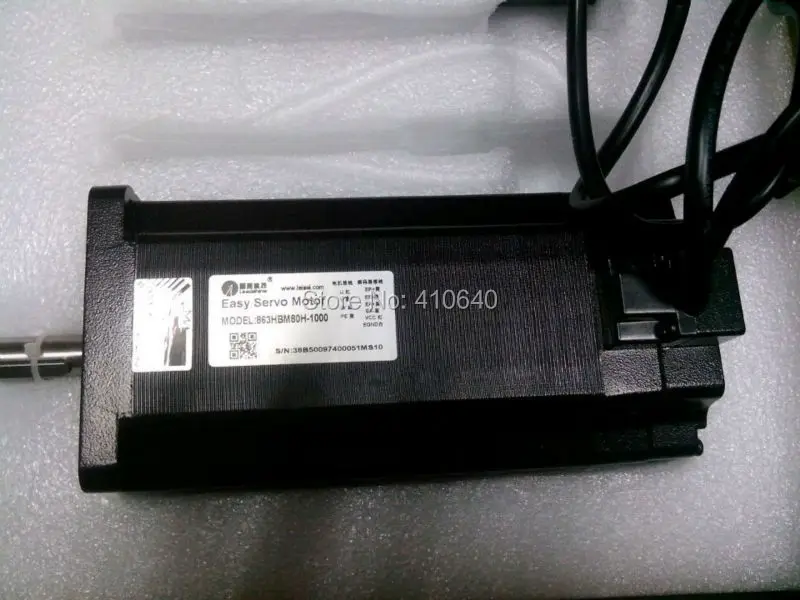

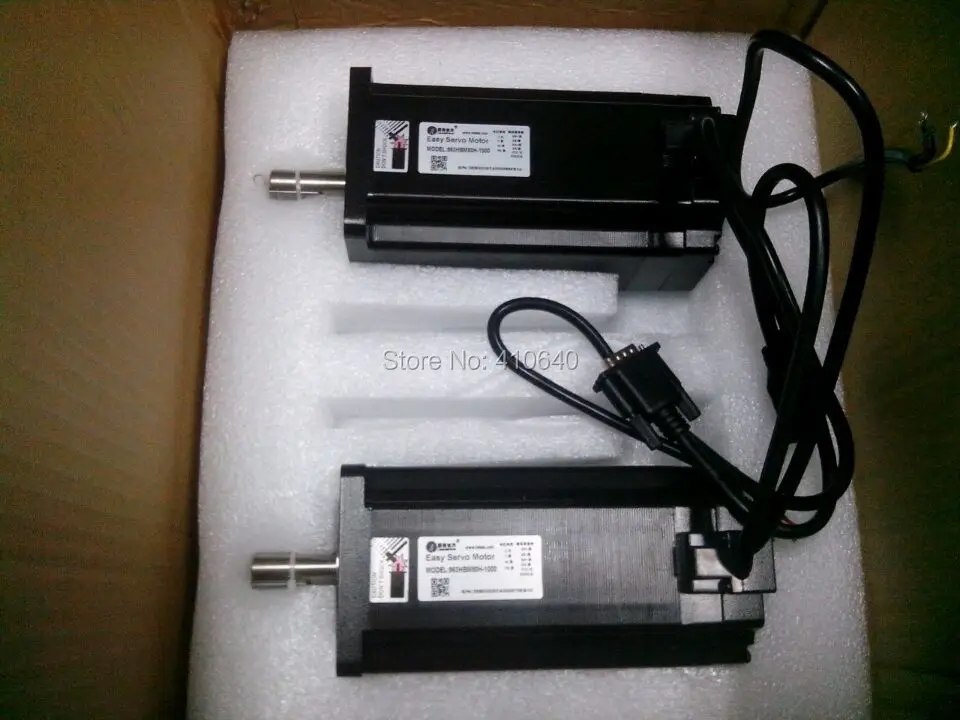

2: 863HBM80H-1000
The Leadshine 863HBM80H-1000 easy servo motor is a 1,133 oz-in (8.0 N.m) 3-phase NEMA 34 stepper motor with 1,000-line incremental encoder (A , B channels). It is specially designed to be for powered by 220/230 VAC input high voltage easy servo drives.
When driven by Leadshine high voltage easy servo drives (closed loop stepper drives), the position loop between 863HBM80H-1000 and the drive is closed. You will never get stall or loss of steps, often seen in open loop stepper systems. Because there is no torque resolution needed like in open loop stepper systems, you can much better high-speed performance than open loop stepper systems by increasing up to 30%.
With the advanced features of no loss of steps, high torque, no power supply, no overshooting, and plug-and-play setup, the combination of of 863HBM80H-1000 and companion easy servo drive is ideal solution for upgrading open loop stepper systems, or replace expensive / hard to configure traditional brushless servo systems. It has been widely used in many industrial applications such as CNC router, CNC mills, CNC laser, CNC lathe, plasma, textile equipment.
Features:
Designed for driving by 220/230 easy servo drives or stepper drives
2-Phase NEMA 34 frame size
1,133 oz-in (8.0 Nm) holding torque
Speed range: 0-3,000 RPM
Integrated 1,000-line incremental encoder with A, B channels
Strong 0.551 inch (14 mm) shaft
High precision
Quiet movement and low motor heating & noise
Specifications:
Model: 863HBM80H-1000 = ES-MH33480
Frame Size: NEMA 34
Phase: 3
Step Angle: 1.2°
Holding Torque: 8.0 Nm (1133 Oz-in)
Number of Leads: 3
Encoder Resolution: 1,000 Line
Shaft Size: 0.551 inch (14.000 mm)
Targeted Input Voltage : 220/230 VAC
Phase Current: 3.0 A
Inductance: 18.33 mH
Resistance: 2.34 Ohm
Rotor Inertia: 0.0564 oz-in-sec2
Length: 6.81 inch (173 mm)
Weight: 12.33 lbs (5.6 kg)

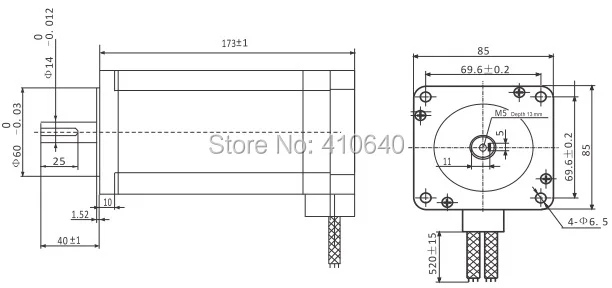

Mechanical Specifications (unit: mm)
Notice:
1: The default delivery mehod is based on free shipping by Registered Post Service.
2: Becuase there is the dlivery cost of fluctuation of the DHL,UPS, Fedex or TNT, if you are in need of these faster service, please contact our online consultant, and will offer you lowest cost for these express
3: If you are in need of other products with different model, please contact our online sales, will offer you best price and lowest delivery cost--based on GENUINE products.

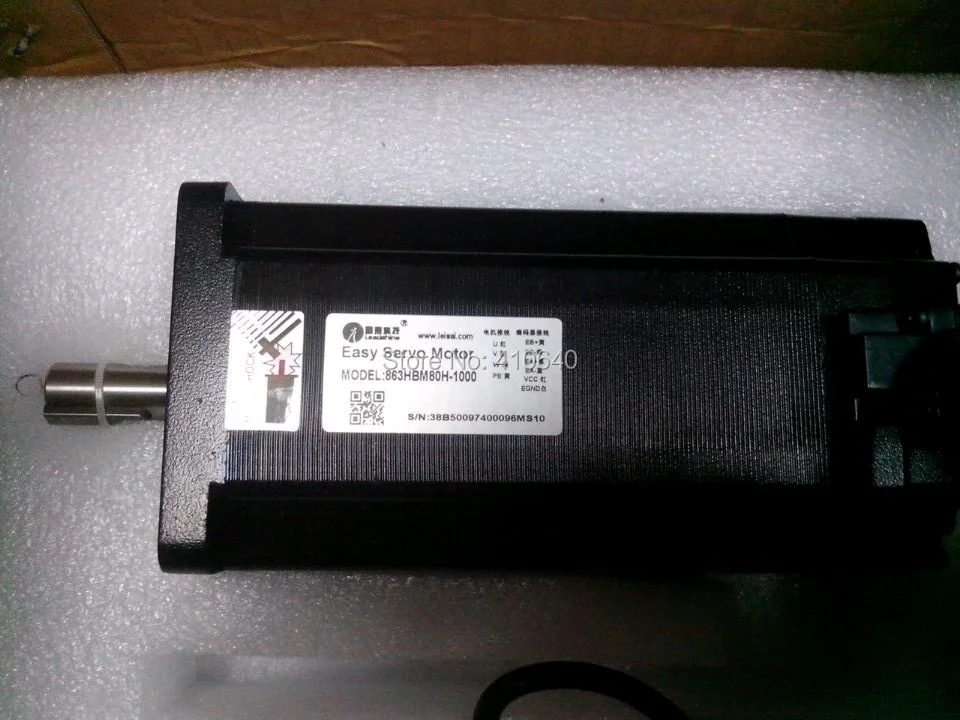

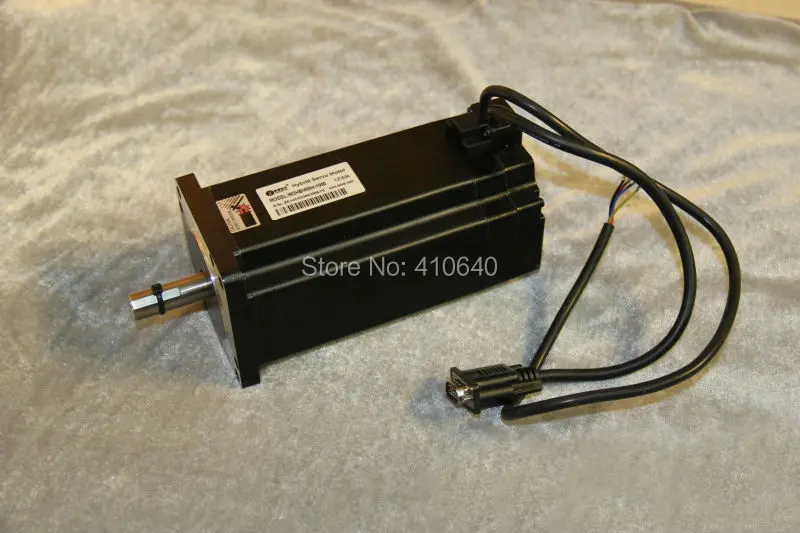

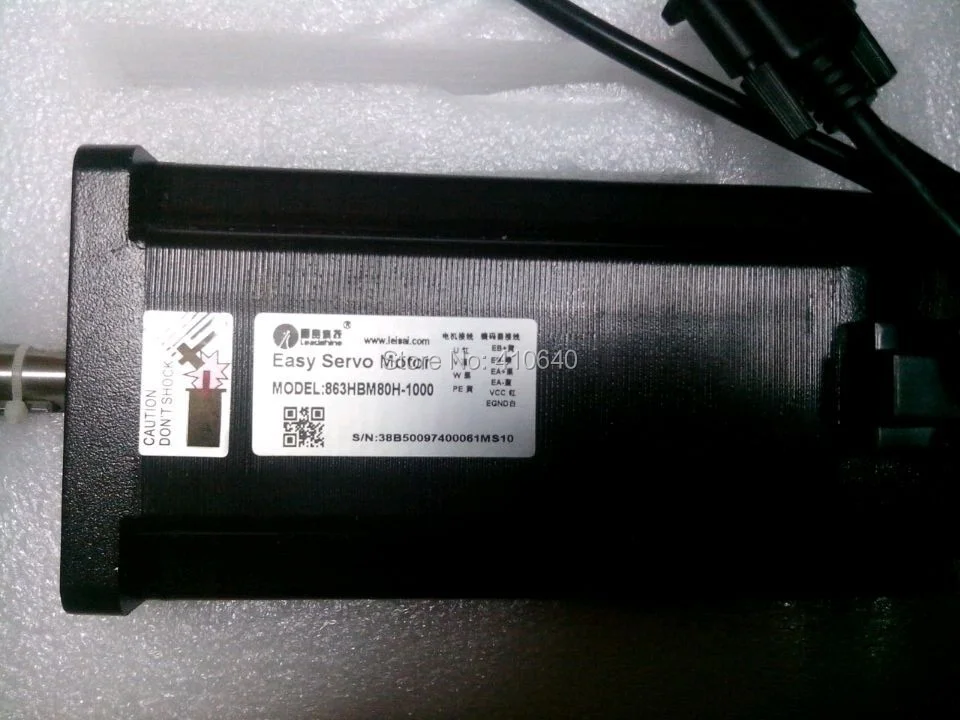

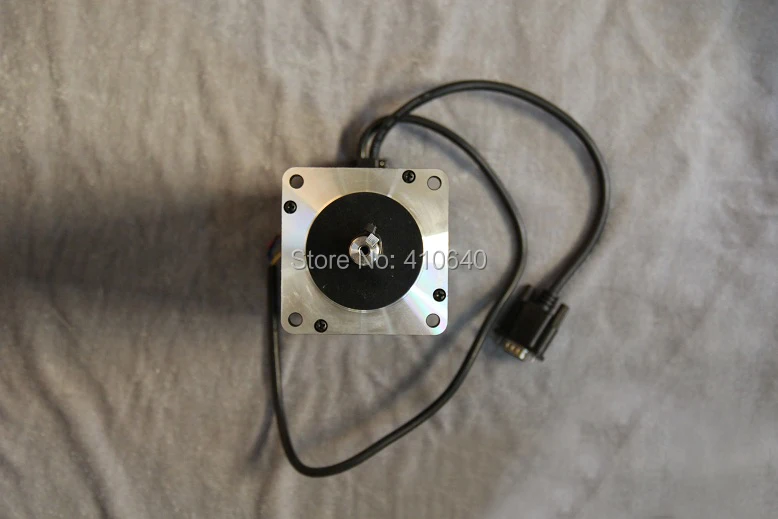

Real photo
