Набор продаж Leadshine DCM50207D 120 Вт Servo Двигатель с DCS810 сервопривод (80VDC 20A) и RS232 тюнинг кабель

Notice:

We only supply genuine Leadshine servo motor drive with reasonable price, if your budget is limit, please contact our service man online and he she will recommend you the low price other supplier.

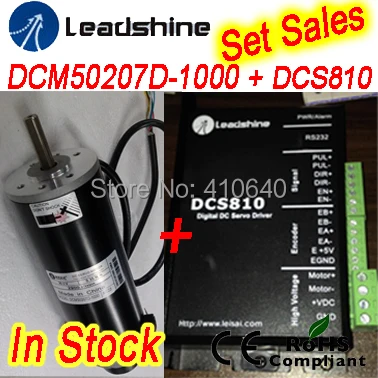

DCM50207D-1000 + DCS 810 + RS232 tuning cable





1 set include:

1> One DCS810 80VDC/20A brushed servo drive

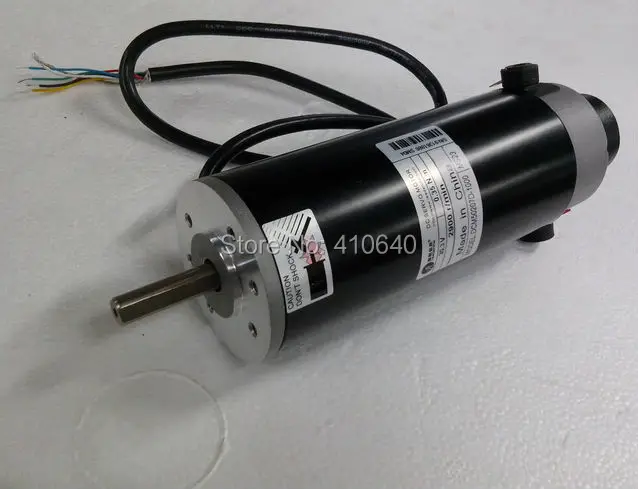

2> One DCM50207D-1000 brushed servo motor with 4,000 CPR (1,000-line) incremental encoder

3>RS232 tuning cable

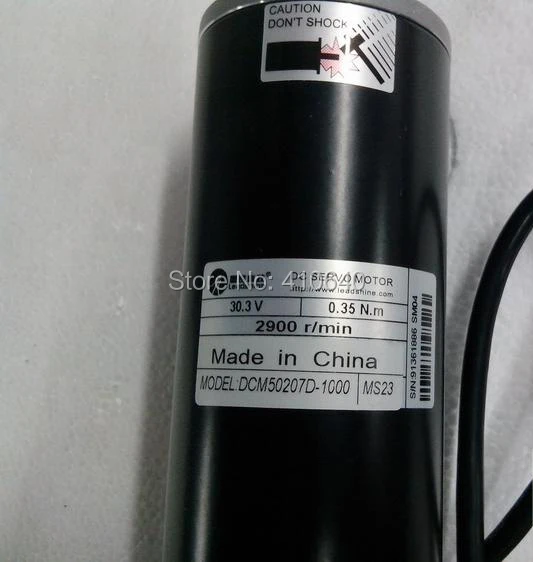

Leadshine DCM50207 is  a high quality 54mm DC brush servo motors with a 1,000-line differential-ended encoder. The motors are ideal for cost sensitive applications. Built with high quality materials, it moves very quietly and smoothly with high precision and very little motor heating. It has been widely implemented in many OEM applications.



Feature:

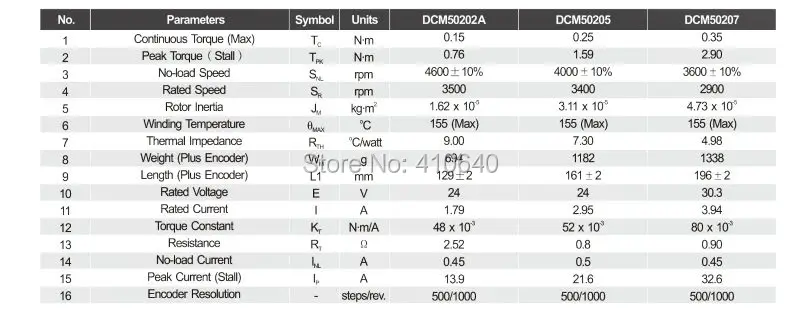

Specification In Table:

Wiring:

Connection Table for Single-ended Encoder

Pin

Colour

Connection (DCS303, DCS810/DCS810S)

1

Blue

Channel B (EB/EB+)

2

Yellow

Channel A (EA/EA+)

3

Red

VCC (E+5V/E+5V)

4

Black

Ground (EGND/EGND)

5

Green

Index/NC (NC/NC)

Connection Table for Differential Encoder

Pin

Colour

Connection ( DCS810)

1

Black

Channel A+ (EA+)

2

Blue

Channel A- (EA-)

3

Yellow

Channel B+ (EB+)

4

Green

Channel B- (EB-)

5

Red

VCC (E+5V)

6

White

Ground (EGND)

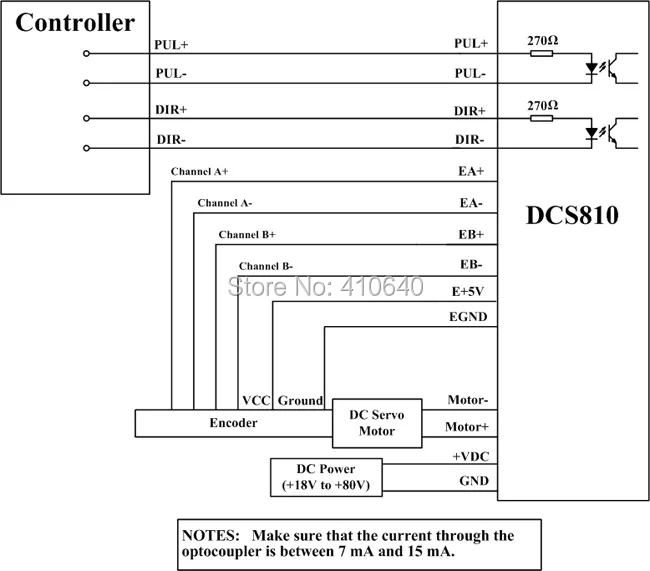

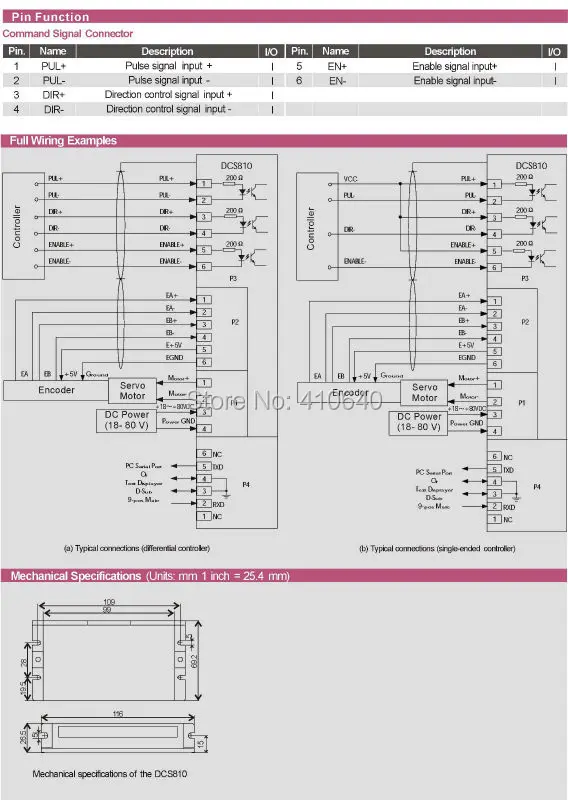

Typical Connection:

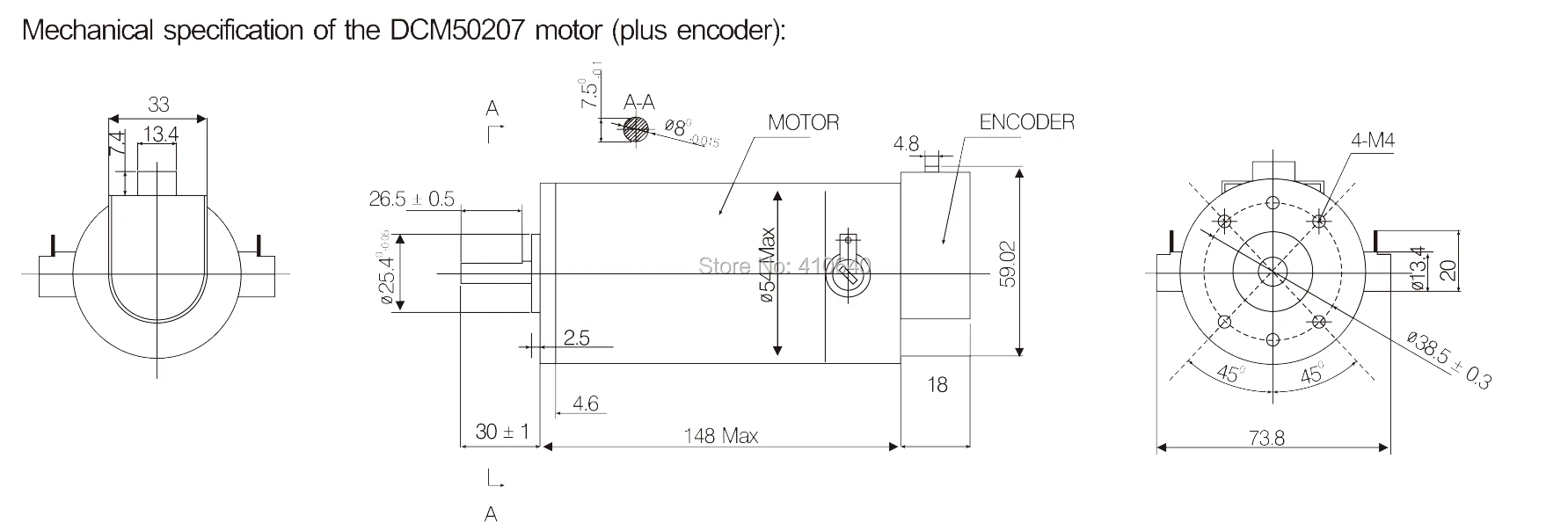

Mechanical:

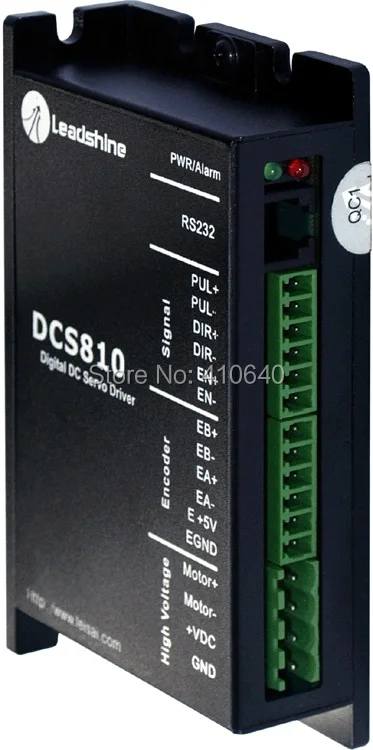

Matching Servo Drive:

DCS810S

DCS810

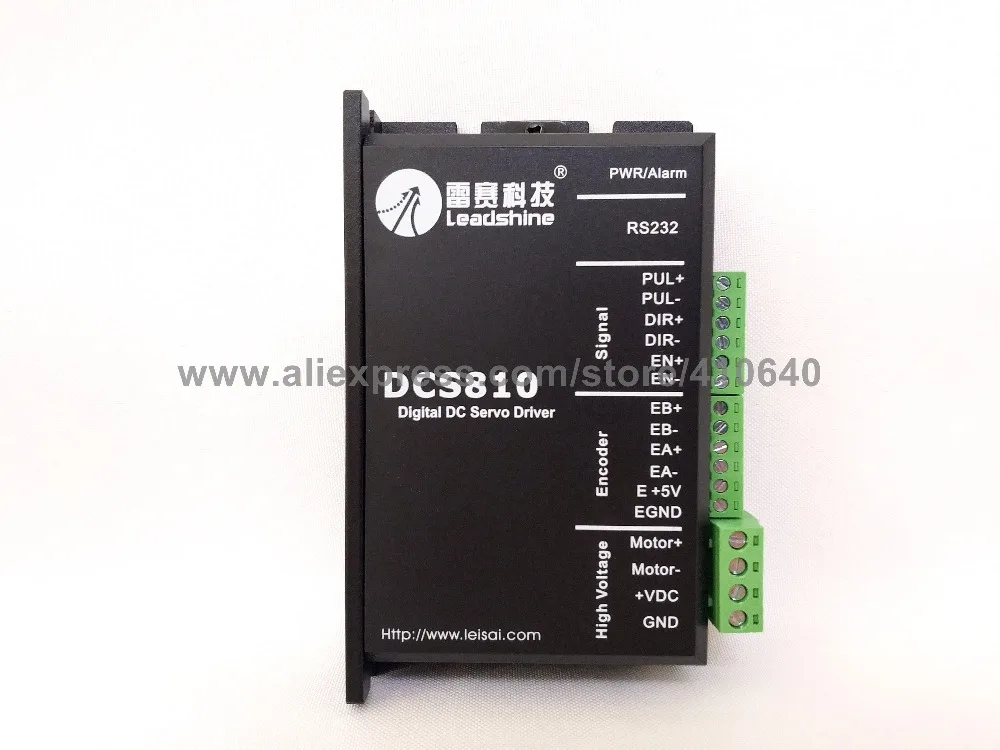

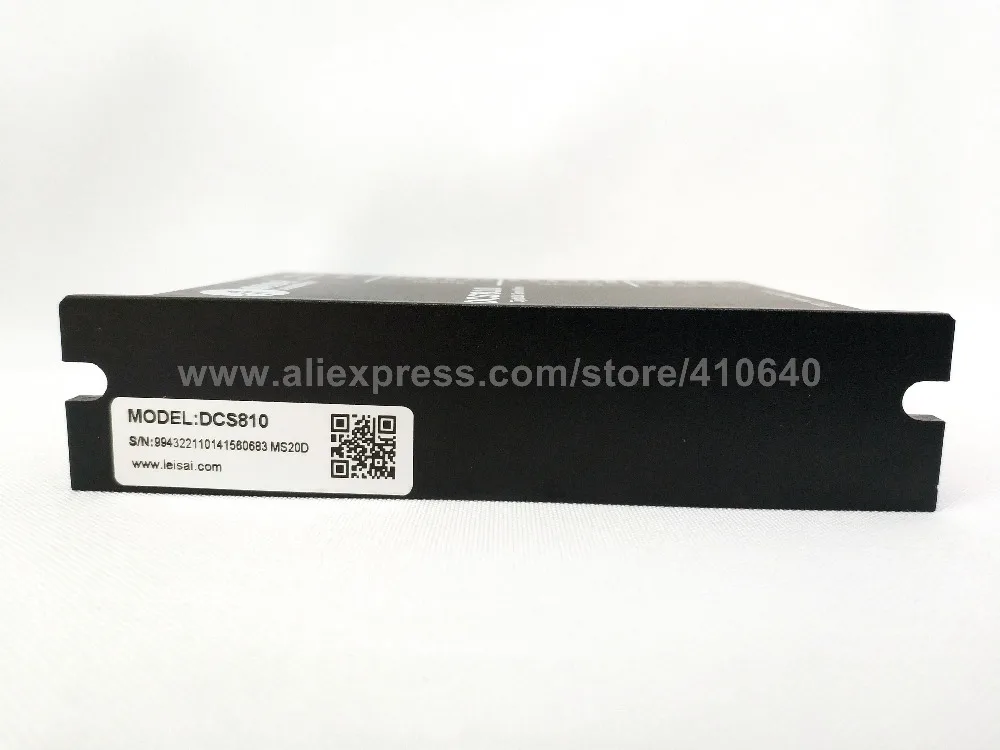

Real Photo:
