Подлинный бесщеточный Серводвигатель постоянного тока Leadshine BLM57050 NEMA 23 50 Вт со встроенным инкрементным кодировщиком 4000 PPR
11 211,14₽
13 094,85₽ -13%
Промокод: 97OMM8IBKQB9 получите скидку 76.78₽ на заказ от 230.35₽
В наличии!
Svit SensoPlan by Trumsense Official Store - Надежность 96%
Более 6435 подписчиков, дата открытия магазина 11.03.2012
- Положительные оценки: 98% (121)
- Соответствие описанию: 96%
- Отвечает на сообщения: 96%
- Скорость отправки: 94%
Последнее обновление: 05.02.2022
Notice:
We only supply genuine Leadshine servo motor drive with reasonable price, if your budget is limit, please contact our service man online and he she will recommend you the low price other supplier.

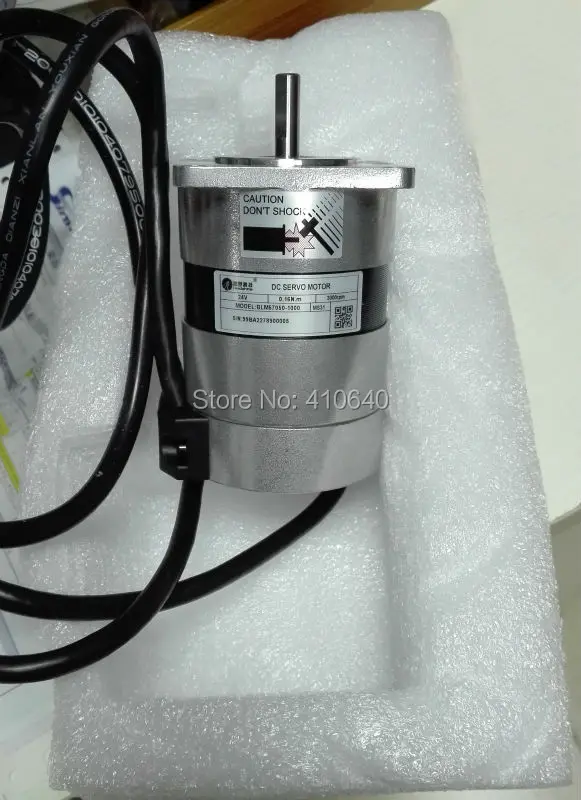

BLM57050-1000 Brushless DC servo motor
Built with high quality materials, Leadshine BLM57050 is a 50W brushless DC servo motor at industrial quality. The standard model is integrated with a 4,000 PPR (1000-line) incremental encoder. It can provide smooth movement with low noise and motor heating in your motion control system.
When driven by Leadshine ACS series servo drives, it can output the high torque you need at continuous speed from 1 rpm to 3000 rpm. It is a flange mounted motor, and mounting is compatible with NEMA23 stepper motors. At the cost even lower than many stepper systems on the market, this solution is ideal to upgrade your system from steppers to servos, or from brushed DC servos to brushless servos. It can offer AC-servo-like performance, such as high speed, high precision, low motor noise and low heating performance, while at the cost of normal stepper systems.
Features:
NEMA 23 frame size
4000 CPR (1000-line) increamental
50 W rated power
24 VDC rated voltage
22.7 oz-in rated torque / 68 oz-in peak
3000 RPM rated speed / 4000 peak
0.250-inch shaft
A, B signals
Quick acceleration
Accuracy to 1 count
High accuracy; smooth movement; quiet movement
Specifications:
Model: BLM57050-1000
Frame Size: NEMA 23
Shaft Size: 0.250-inch
Continuous Torque: 22.7 Oz-In
Peak Torque: 68 Oz-In
Rated Power: 50 Watts
Rated Speed: 3000 RPM
Peak Speed: 4000 RPM
Rated Voltage: 24 VDC
Rated Current: 3.0 A
Peak Current: 9.0 A
Encoder Resolution: 4000 CPR
Back EMF: 5.55 V/kRPM
Torque Constant: 7.49 oz-in / A
Inductance: 2.2 mH
Resistance: 0.88 Ohm
Rotor Inertia: 0.001062 oz-in-sec2
Pole Pairs: 2
Shaft Size: 0.250 Inch
Winding connection: Delta
Hall Sensor: 120 degree
Radial Play: 0.025 mm
Axial Play: 0.025 mm@460g
Radial Load: 75N@20mm from the flange
Axial Load: 15N
Isolation Level: B
Isolation resistance: 100M ohms
Isolation Strength: 500VDC for one minute
Length: 3.15 inches
Weight: 1.10 lbs

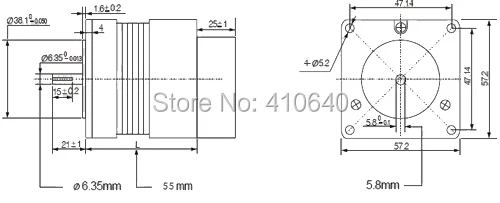

Mechanical Specifications (unit: mm):
Matching Servo Drive:
ACS306
ACS606
ACS806
Manual:
Please contact online sales to get
