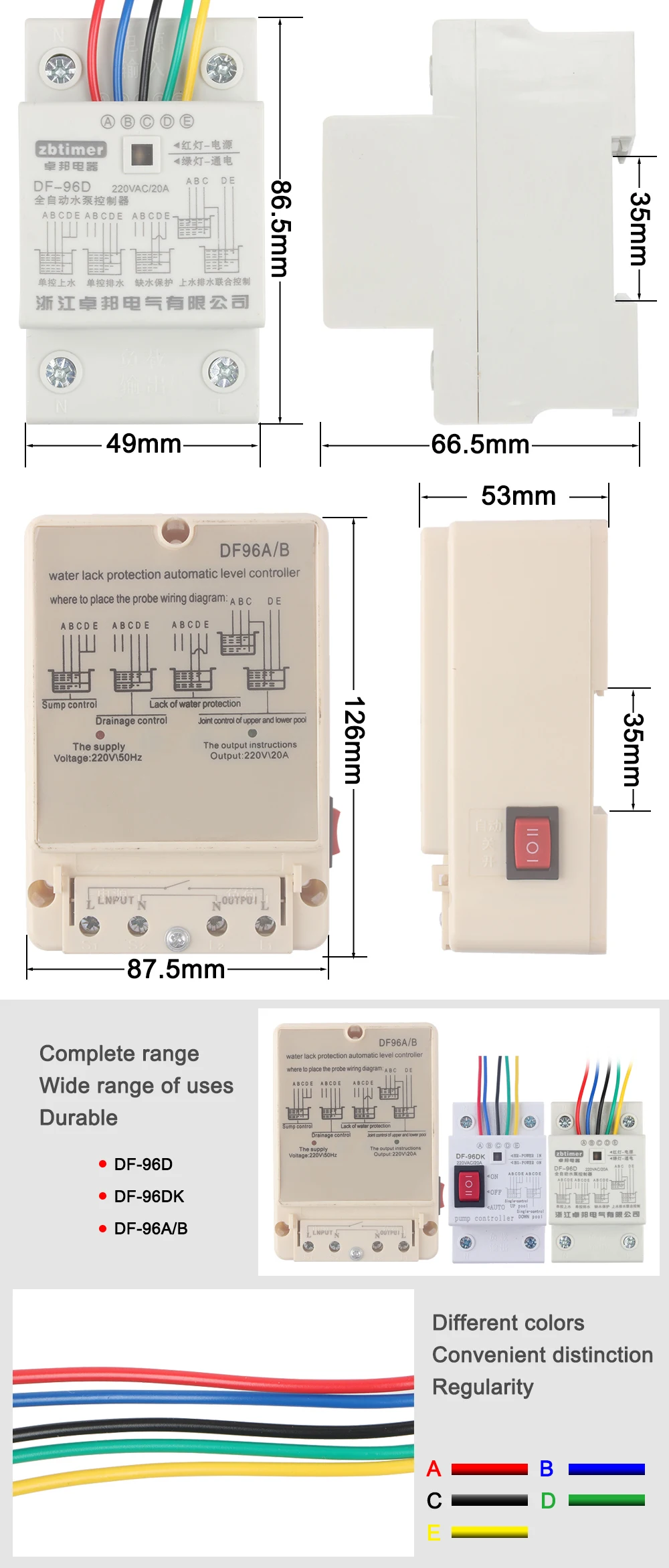

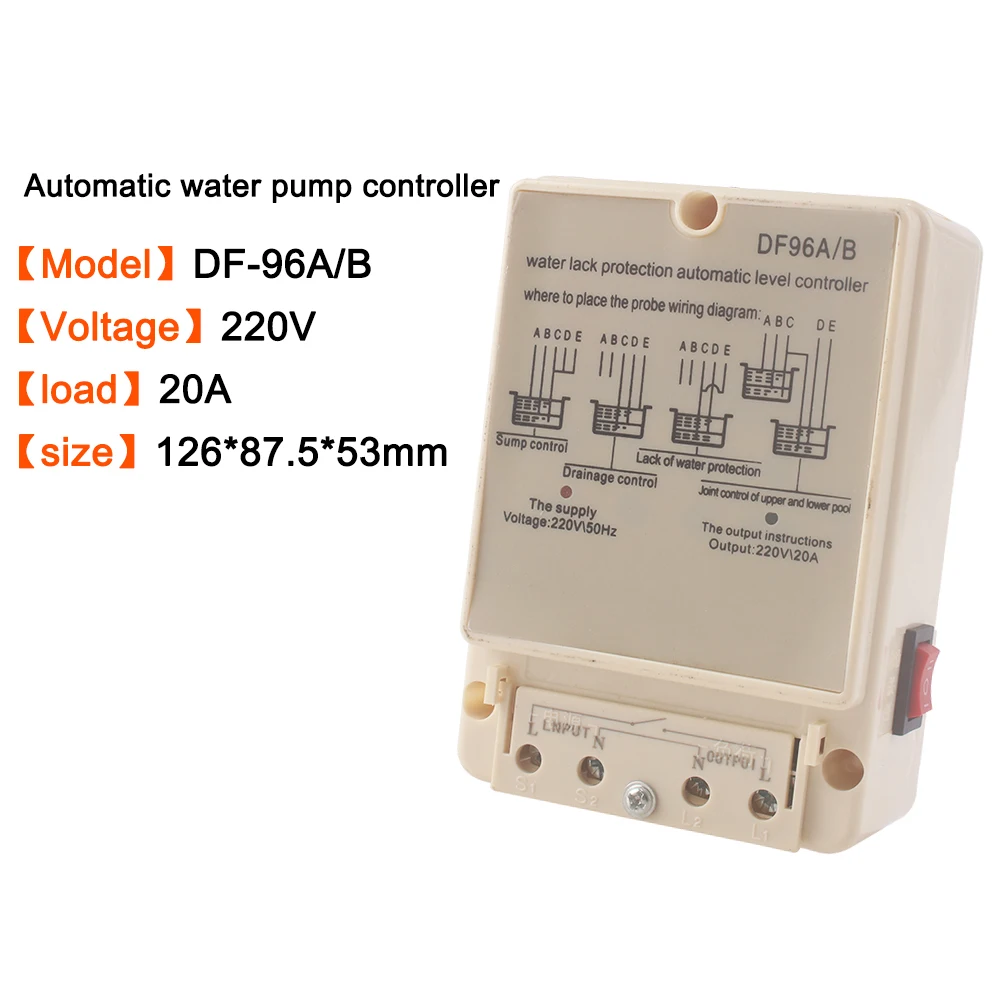

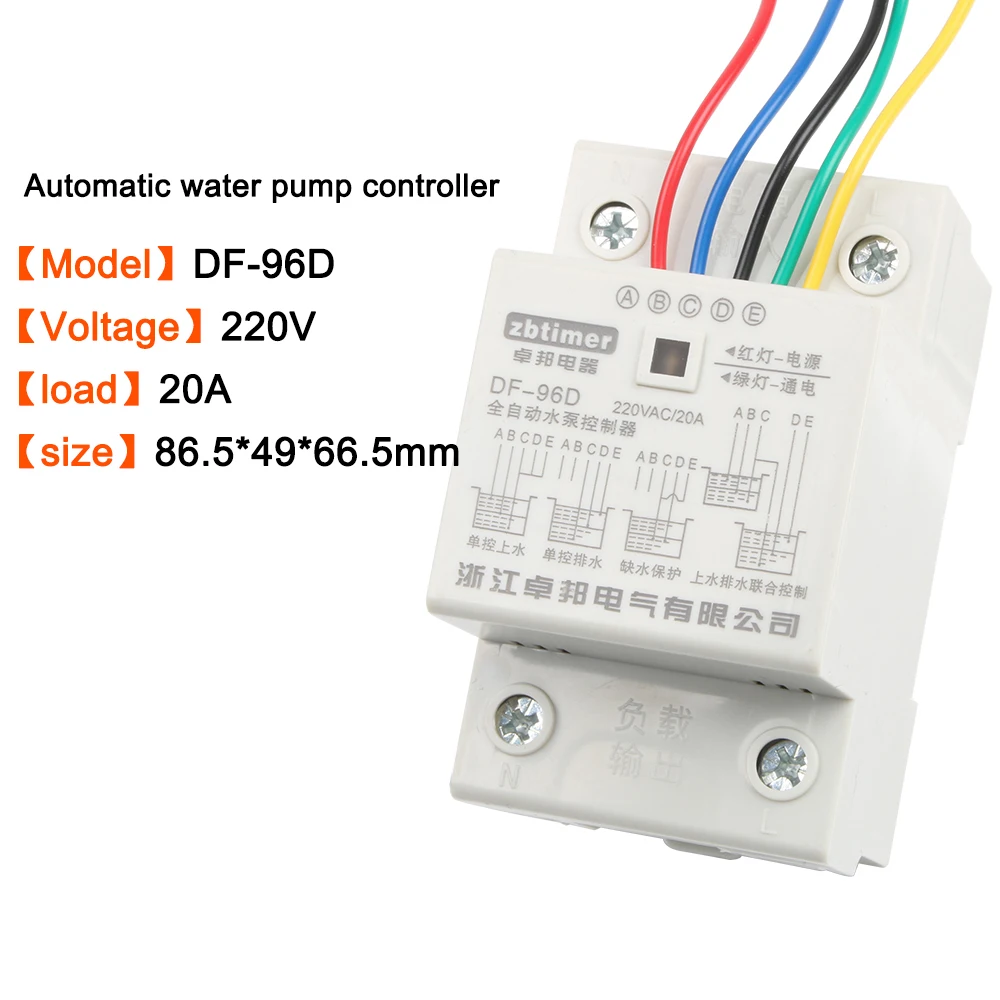

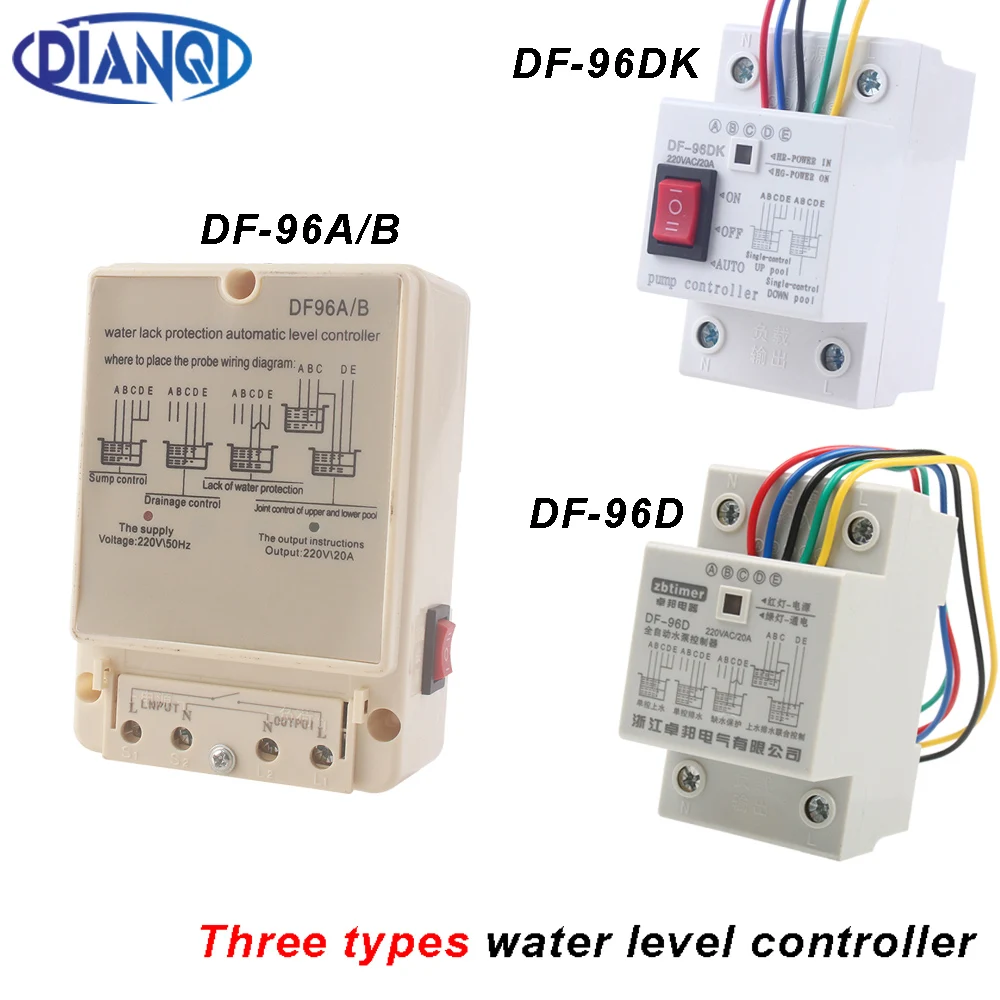

Автоматический регулятор уровня воды DIANQI DF-96B DF96D DF96DK, контроллер насоса, цистерна, автоматический выключатель жидкости, 220 В

Note:

According to product options !!!We send products according to the product options you selected.

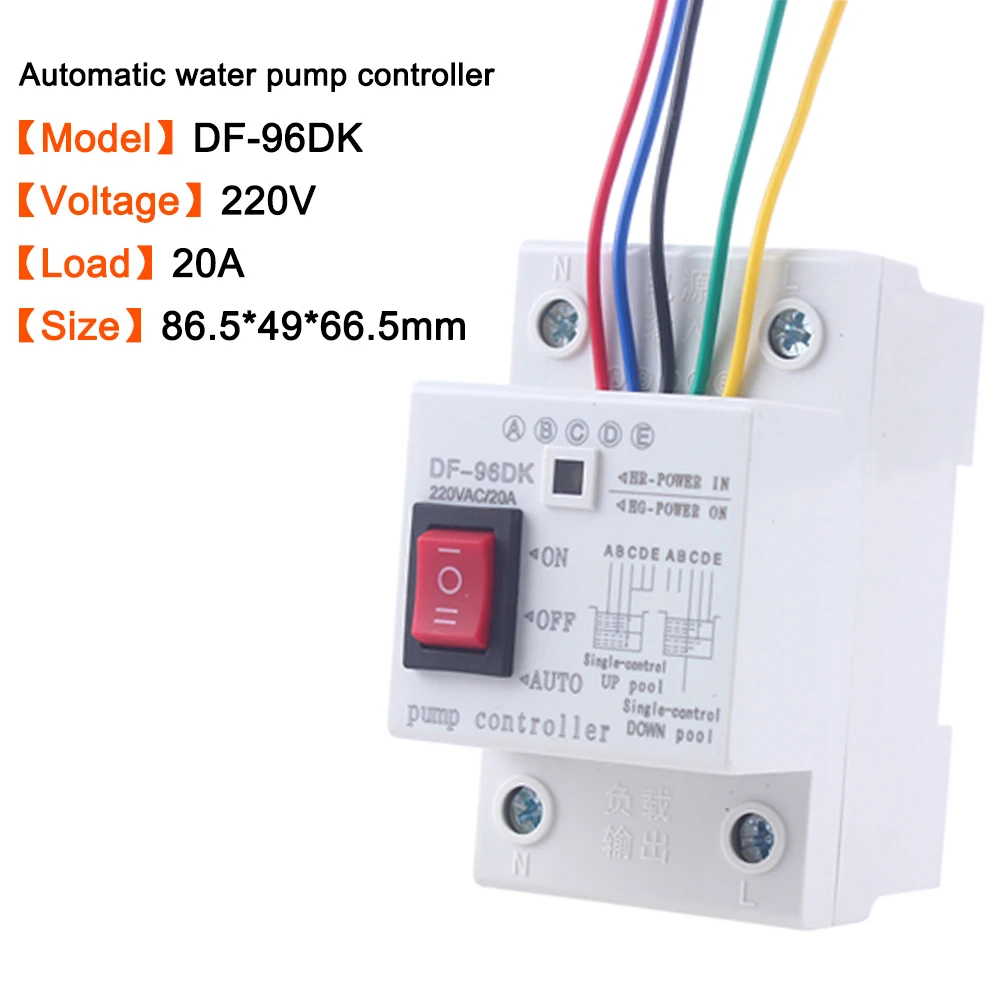

This meter beside black button is for Manual or automatic conversion

This product uses the integrated circuit, combined with the high-rise buildings, the sink (water tower) is designed to enhance the level classification has joint control under the sink, sink drainage and water protection and other functions, can automatically tank water, drainage, and effective pool water level to prevent water overflow or pump idling high damage, is an industrial, household products are applicable. Very suitable for urban, rural, school, where mining enterprises and domestic water wells - Well Water Project, is widely used in printing and dyeing, chemical, food, beverage, wine, sugar and other industries.

Function and purpose

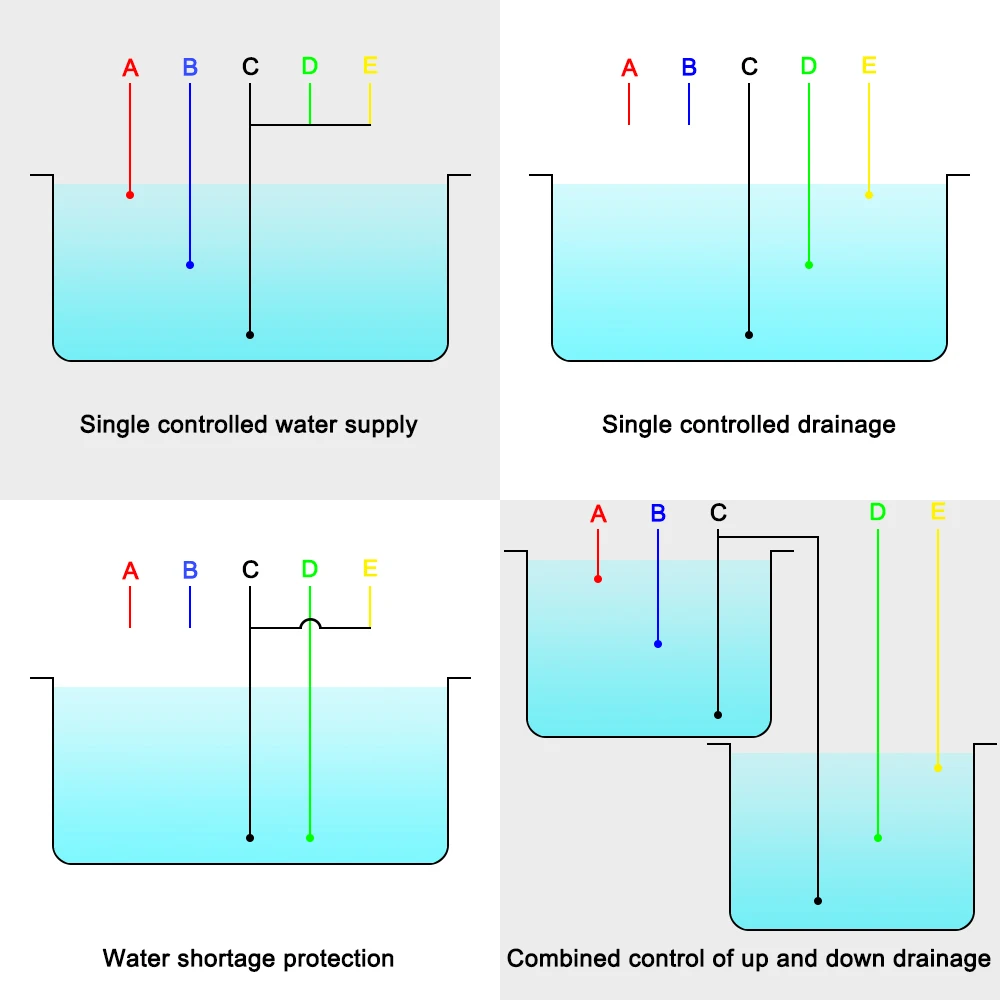

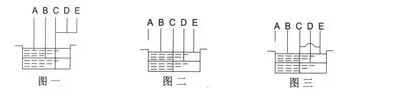

(a) pool control head installation instructions installed on single control chart shown in figure 1:

A (meridian) - for the pool (towers) upper level control points, the water level rising to point A water level, water contact with the probe, the water controller automatically in the pump;

B (blue line) - to pool (tower) on the lower level control points, the water level drops to below point B water level, water away from the probe contact, water level controller automatically open pump, pool water filling.

C (black) - for the pool (towers) ground, in a pool of low and at the bottom of the pool;

D (green line), E (yellow line) and received a C.

(2) under the single control pools (i.e., drainage pool) probe installation instructions to install diagram as shown in figure 2:

E - for the next pool upper level control points, the water rose to E water level, water contact with the probe, the water level controller automatically open pump, water drainage; If no drainage, E don't pick up;

D - pool under the lower limit for liquid level control, water level, water table has dropped down to the point D contact with the control head out of water, water level controller automatically close pump, pool stop drainage;

C - ground to sink, put to sink low contact with the bottom part;

A and B don't pick up.

(3) the water shortage protection probe installation instructions to install diagram as shown in figure 3:

C, D points to sink lower limit water level control points, the water table has dropped down to the lower limit water level, C and D one probe in contact with the water from the water level controller relay action immediately, to cut off the output, water pump stop working;

E and C points short answer;

A and B don't pick up.
