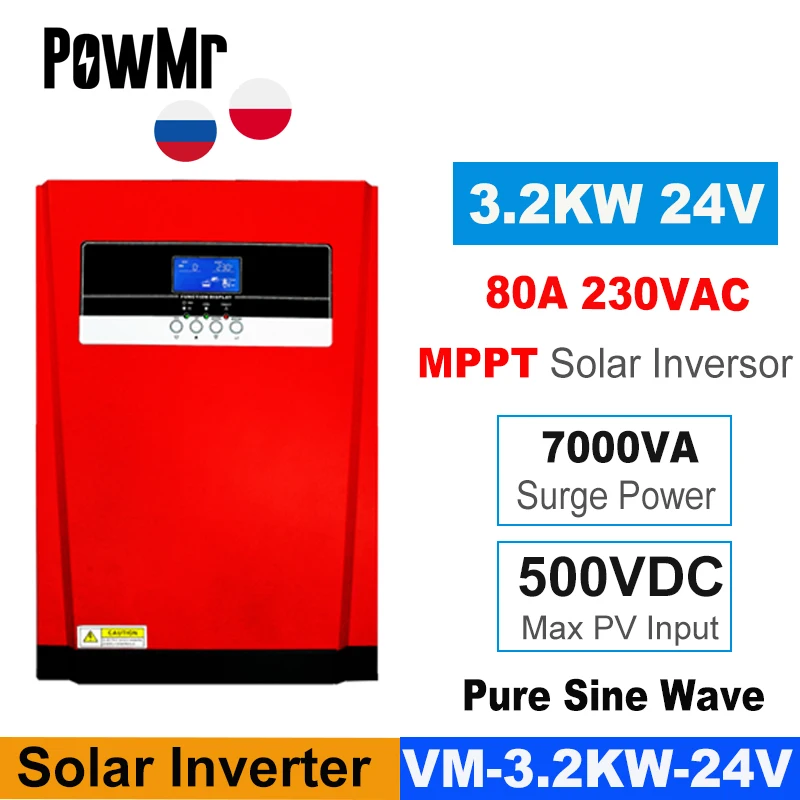

PowMr All-In-One Hybrid Solar Inverter Pure Sine Wave 3200W MPPT 80A Solar Panel Charger 24VDC And AC Charger For Max 4000W 500V
Notice:
This is a wide voltage hybrid inverter.The Minimum Of MPPT Operating Voltage Should Be 150V To Make Sure That The Device Start Working.and 360V Is The Best.Please note！
Overview:

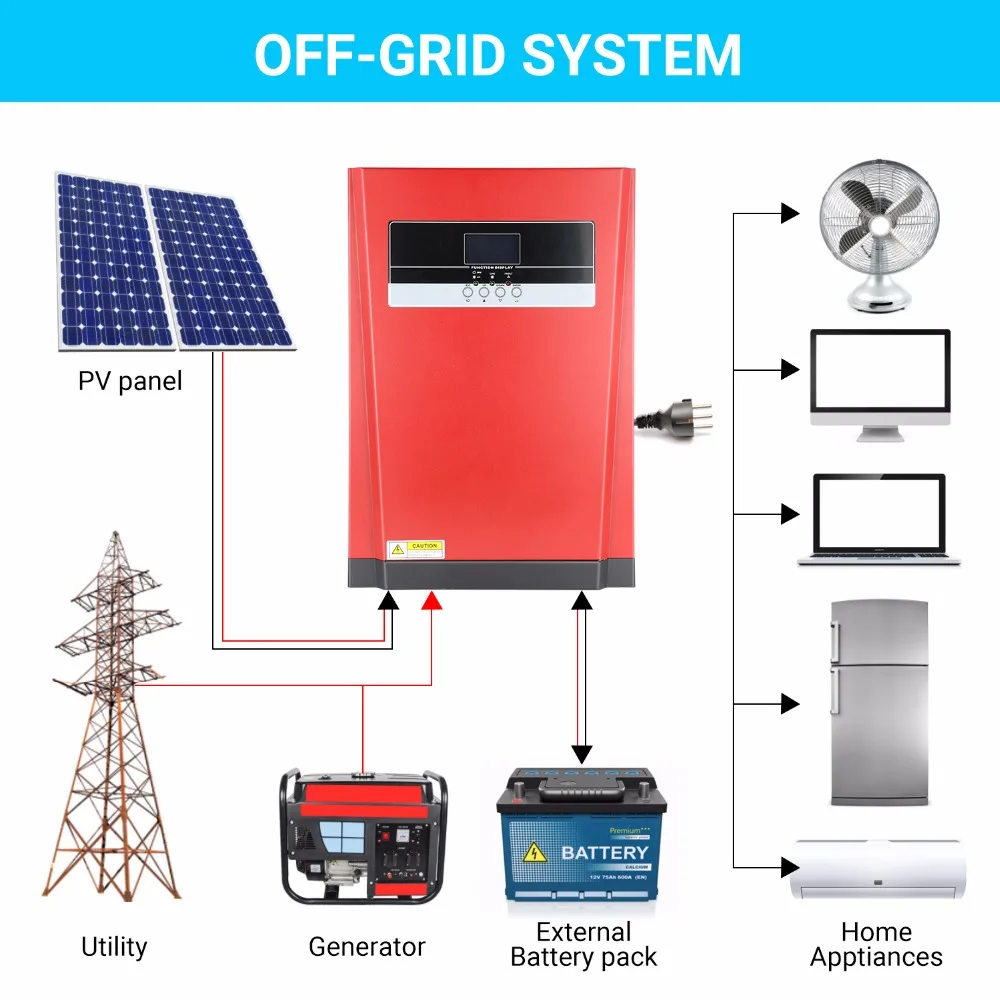

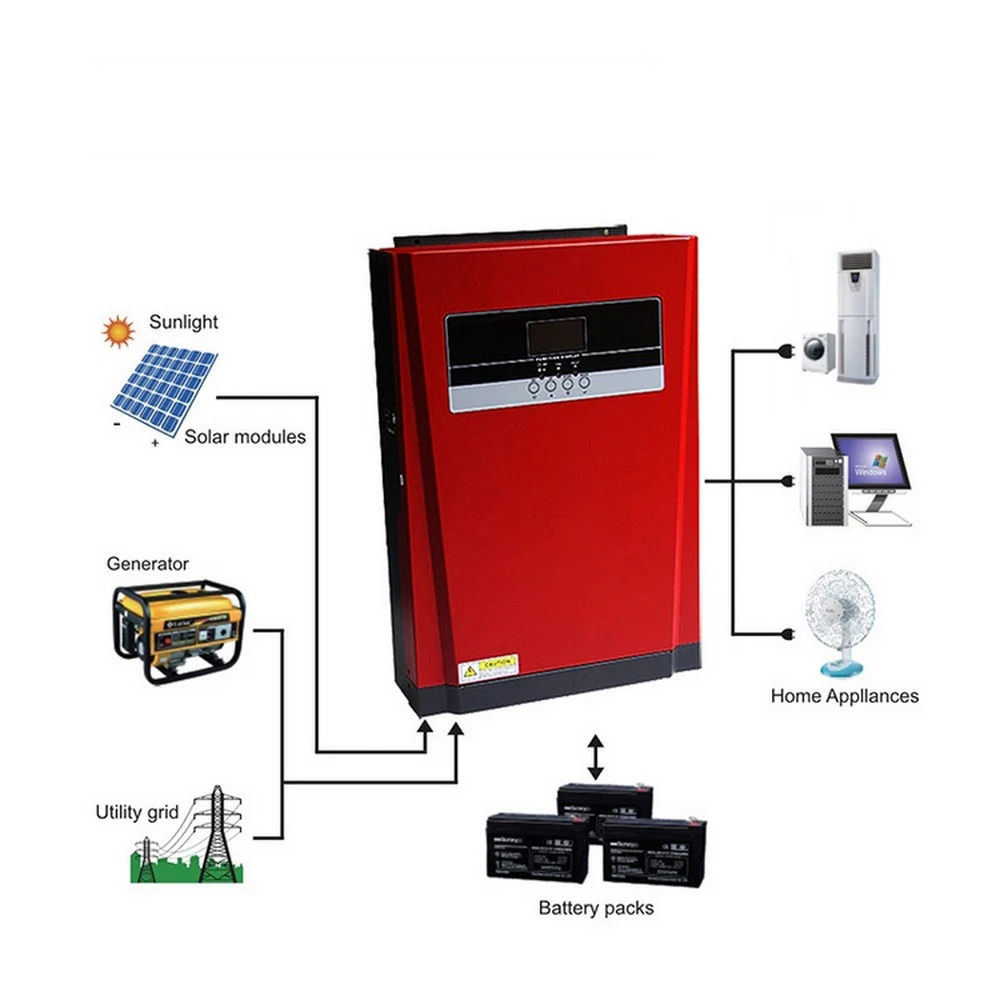

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications
>>Features
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Battery Voltage:24Vdc(Not necessary,Generate power from PV directly to supply load ,even without battery)
AC Charger Input :230VAC 80A
Solar Charger Input:4000W/5000W 500V MPPT
Inverter:3200W Pure Sine Wave 230VAC 50Hz/60Hz

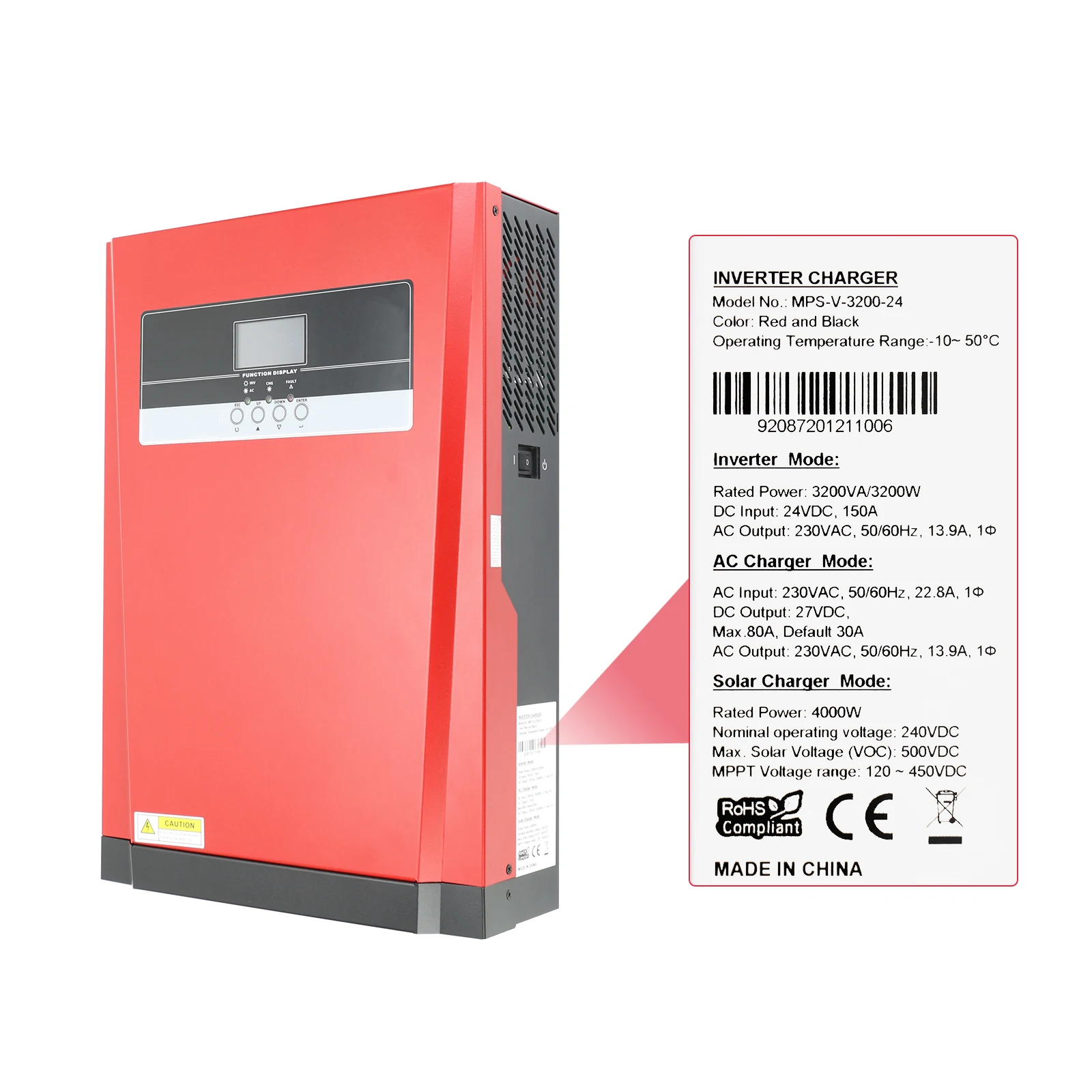

>>Specification
Model Name
VM-3KVA
VM-5KVA
Rated Power
3200VA/3200W
5000VA/5000W
Input
Voltage
Selectable Voltage Range
170-280 VAC (For Personal Computers)
90-280 VAC(For Home Appliances)
Frequency Range
50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt mode)
230VAC plusmn 5%
Surge Power
6400VA
10000VA
Efficiency(Peak)PV to INV
97%
Efficiency(Peak)Battery to INV
94%
Transfer Time
10 ms(For Personal Computers);20 ms(For Home Appliance)
Waveform
Pure sine wave
BATTERY@AC CHARGER
Battery Voltage
24VDC
48VDC
Float Charging Voltage
27VDC
54VDC
Ovrecharge Protection
33VDC
63VDC
Maximum Charge Current
80A
60A
SOLAR CHARGER
Maximum PV Array Power
4000W
5000W
MPPT Range@Operating Voltage
120~450VDC
Maximum PV Array Open Circuit Voltage
500VDC
Maximum Charging Current
80A
Maximum Efficiency
98%
PHYSICAL

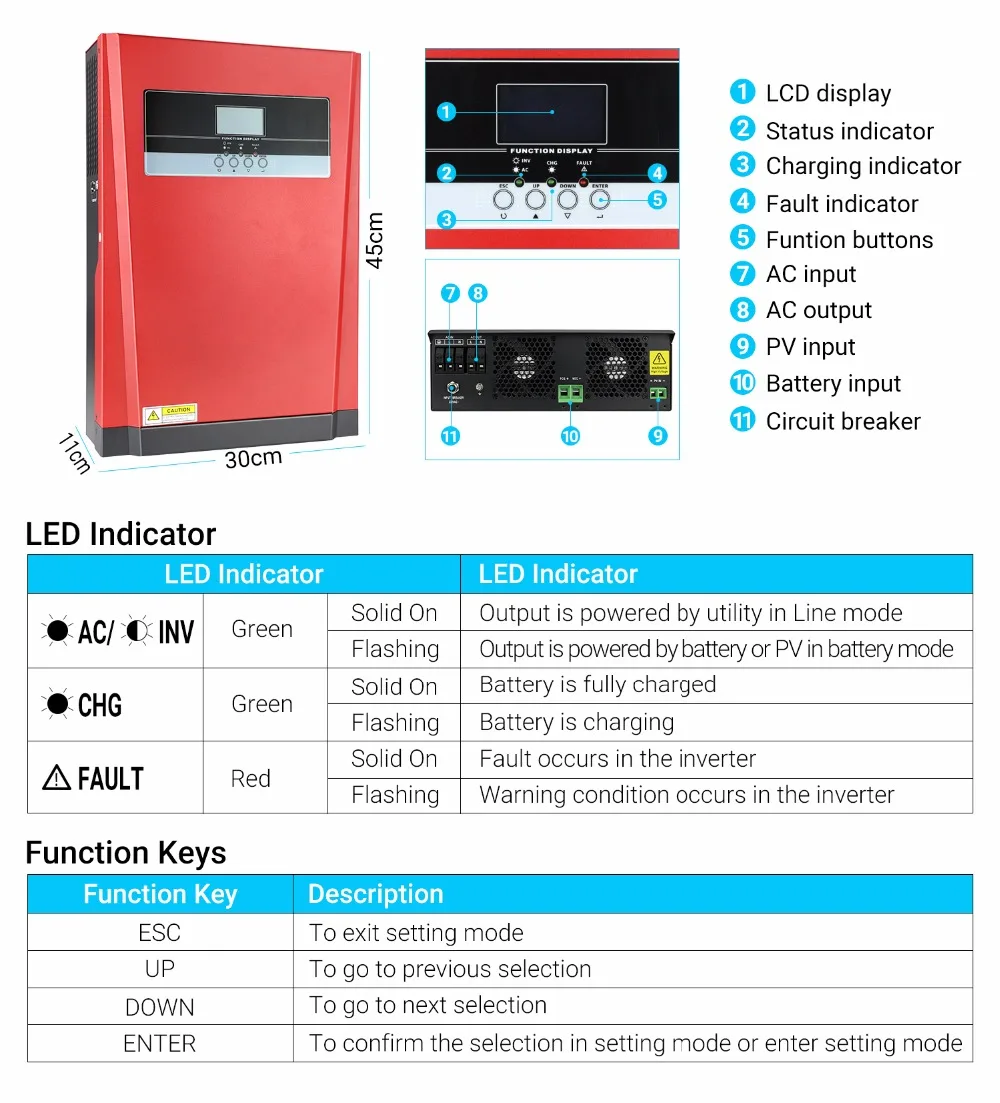

Dimension, D x W x H (mm)
100x300x440
Net Weight
9
10
Communication Interface
USB/RS232/WIFI
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operating Temperature
-10degC to 50degC
Storage Temperature
-15degC to 60degC

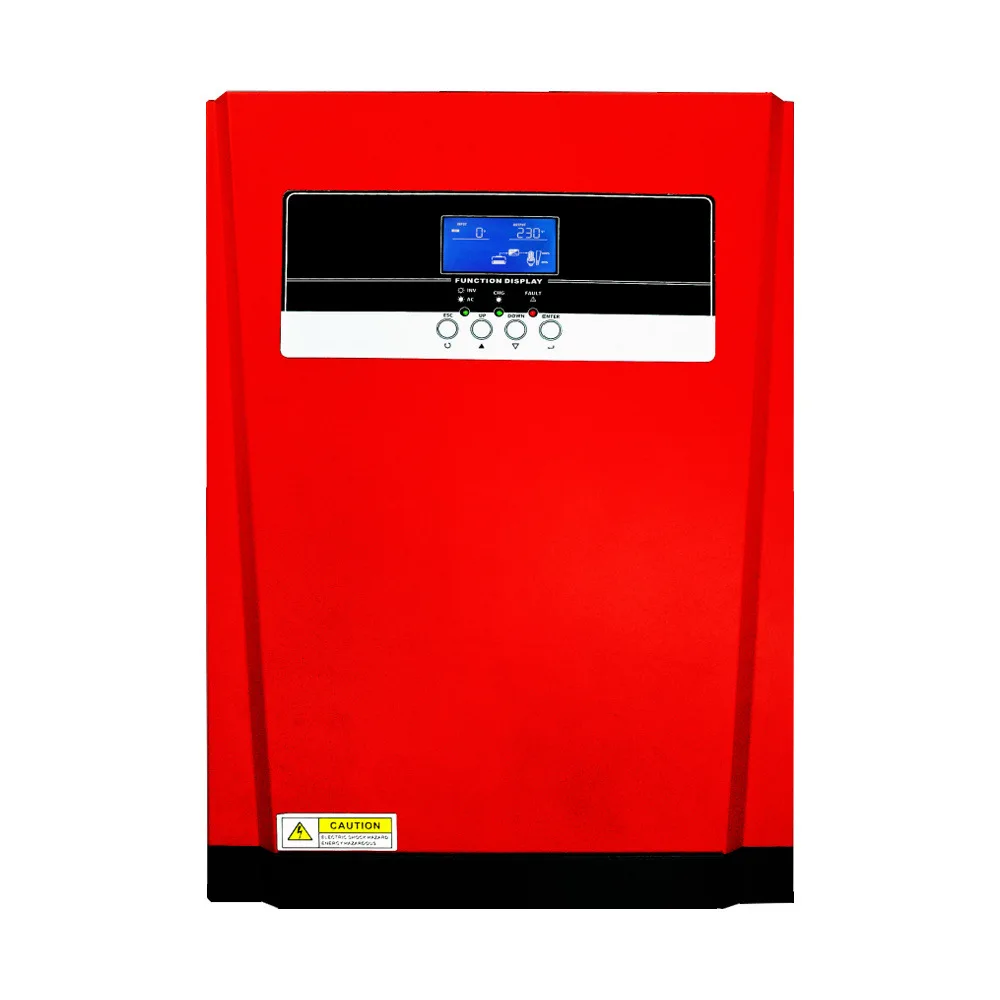

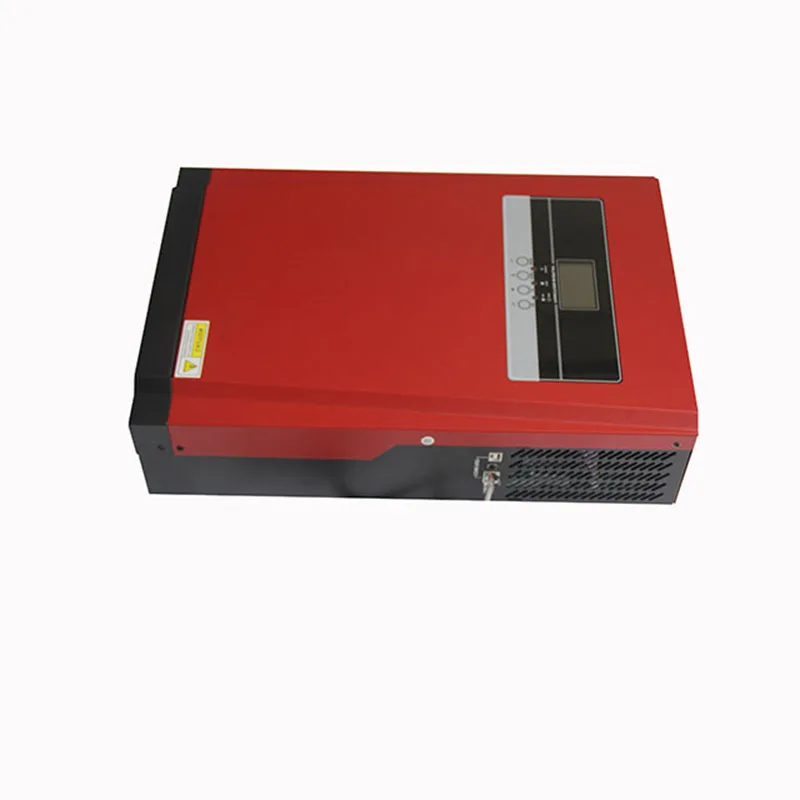

>>Product Show>>Product Show
