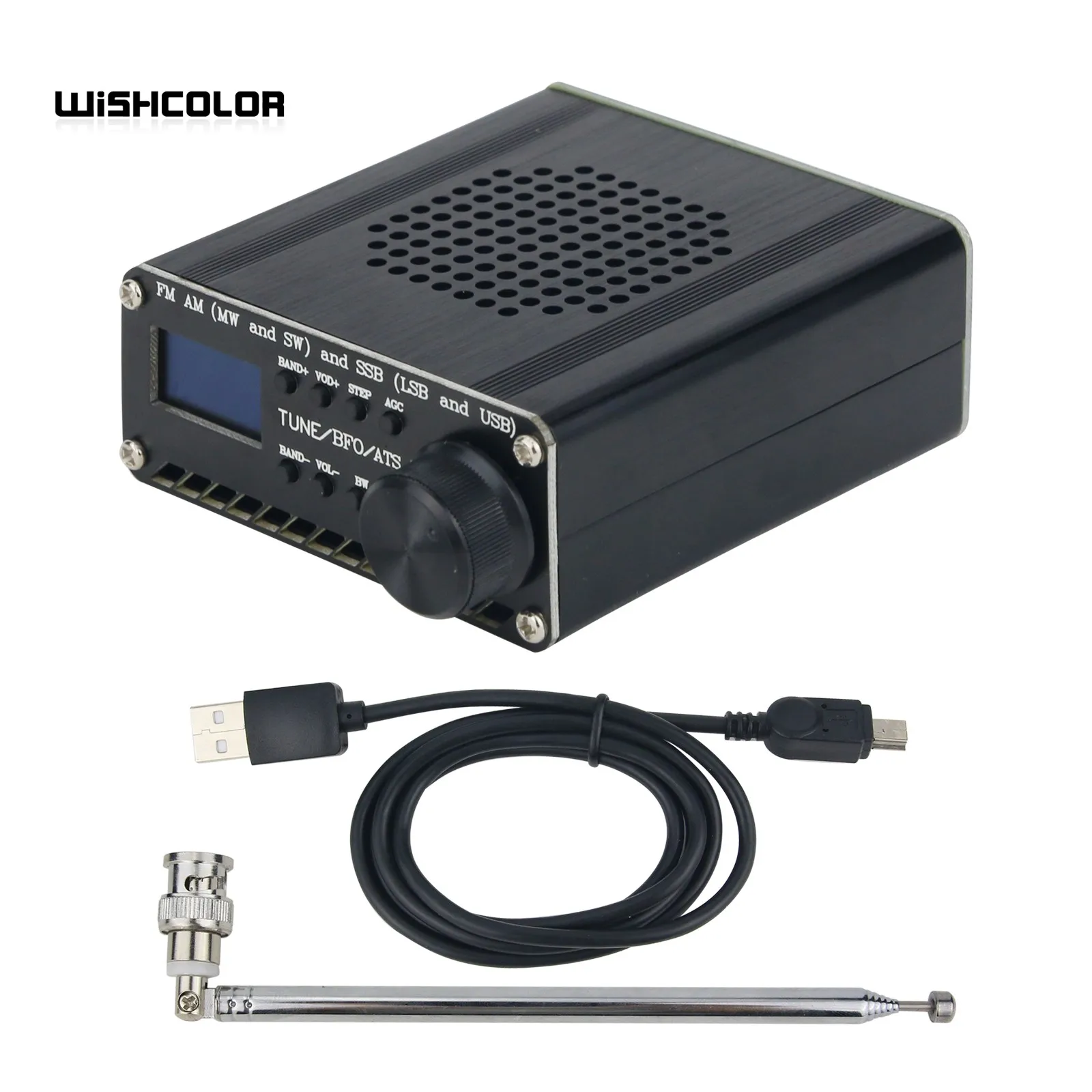

HamGeek ATS-20 SI4732, все диапазоны радиоприемника FM AM (MW SW) SSB (LSB и USB) с литиевой батареей + антенной + динамиком + чехол

SI4732 All Band Radio Receiver FM AM (MW And SW) SSB (LSB And USB) w/ Shell Antenna Built-in Battery

Video:

https://www.youtube.com/watch?v=r2ViDgUzEzI

Attention:

It is forbidden to squeeze the knob vigorously, otherwise it is easy to damage the encoder.

Electrical Parameters:

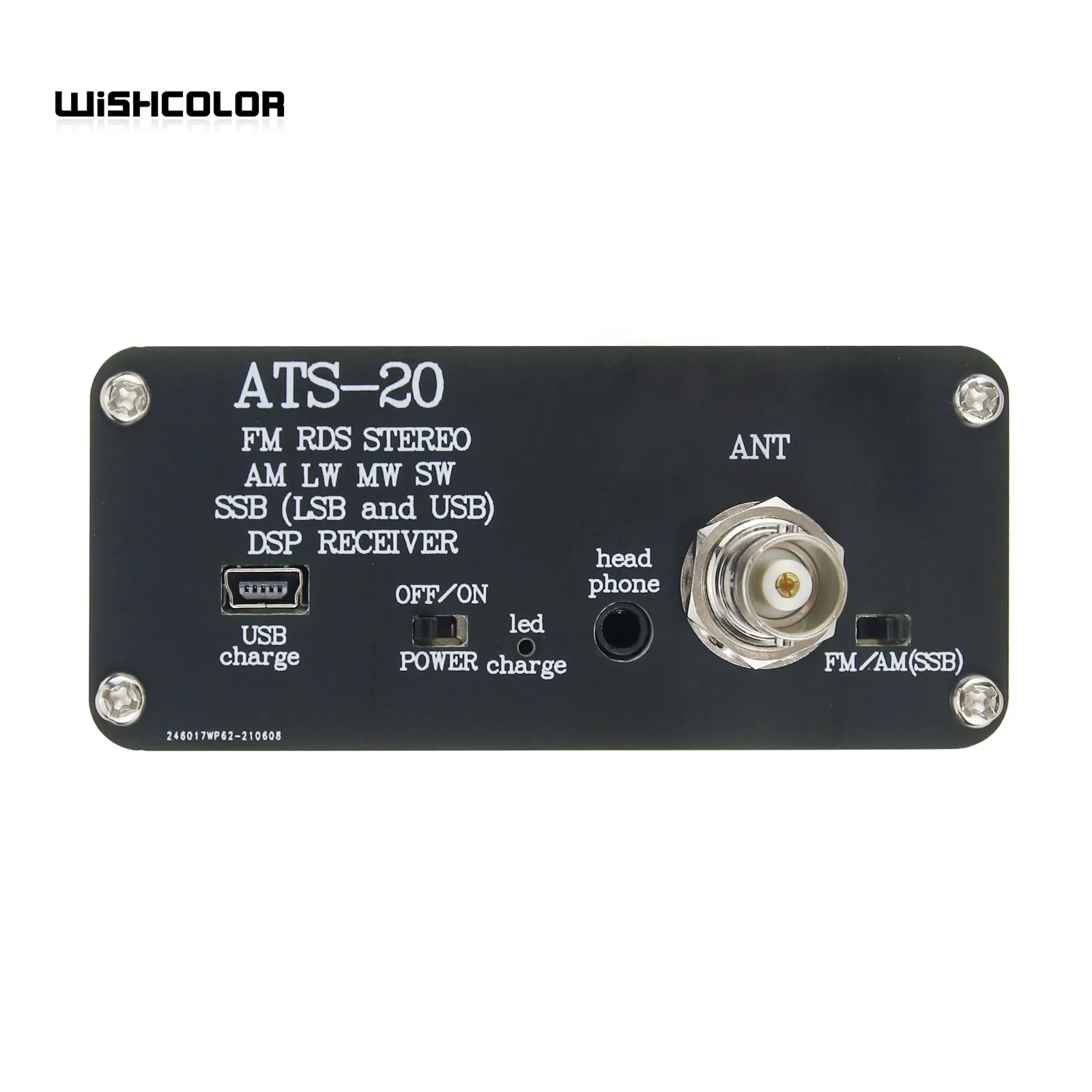

- Use a 3.6v lithium battery

- Support USB charging

- Audio output supports headset 3.5MM

- Support 8-ohm speaker 1W output

- FM supports earphone antenna

- Antenna interface uses BNC

- The PCB retains the SI4735 package, users can replace the chip by themselves, and the software is compatible

- Size: 88*88*38mm

Features of This Sketch:

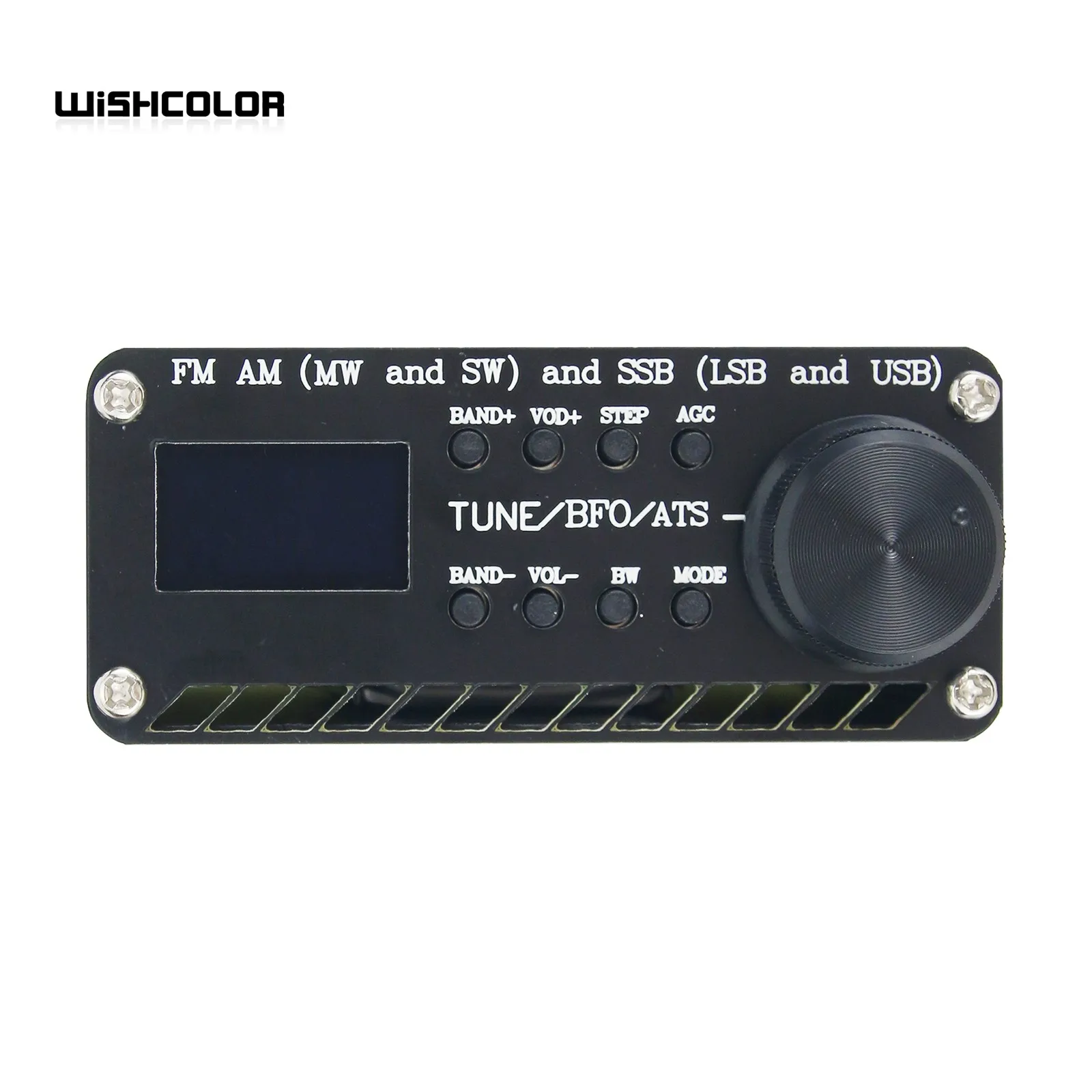

1) FM, AM (MW and SW) and SSB (LSB and USB);

2) Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz;

3) 22 commercial and ham radio bands pre-configured;

4) BFO Control;

5) Frequency step switch (1, 5 and 10KHz).

Attention:

- If you modify the parameters, please refer to the actual product.

Package Included:

- 1 x Set of Radio Receiver

Note:

- It is assembled and ready to use.
