Диагностический кабель с интерфейсом OBD2 для VW Audi Seat Skoda

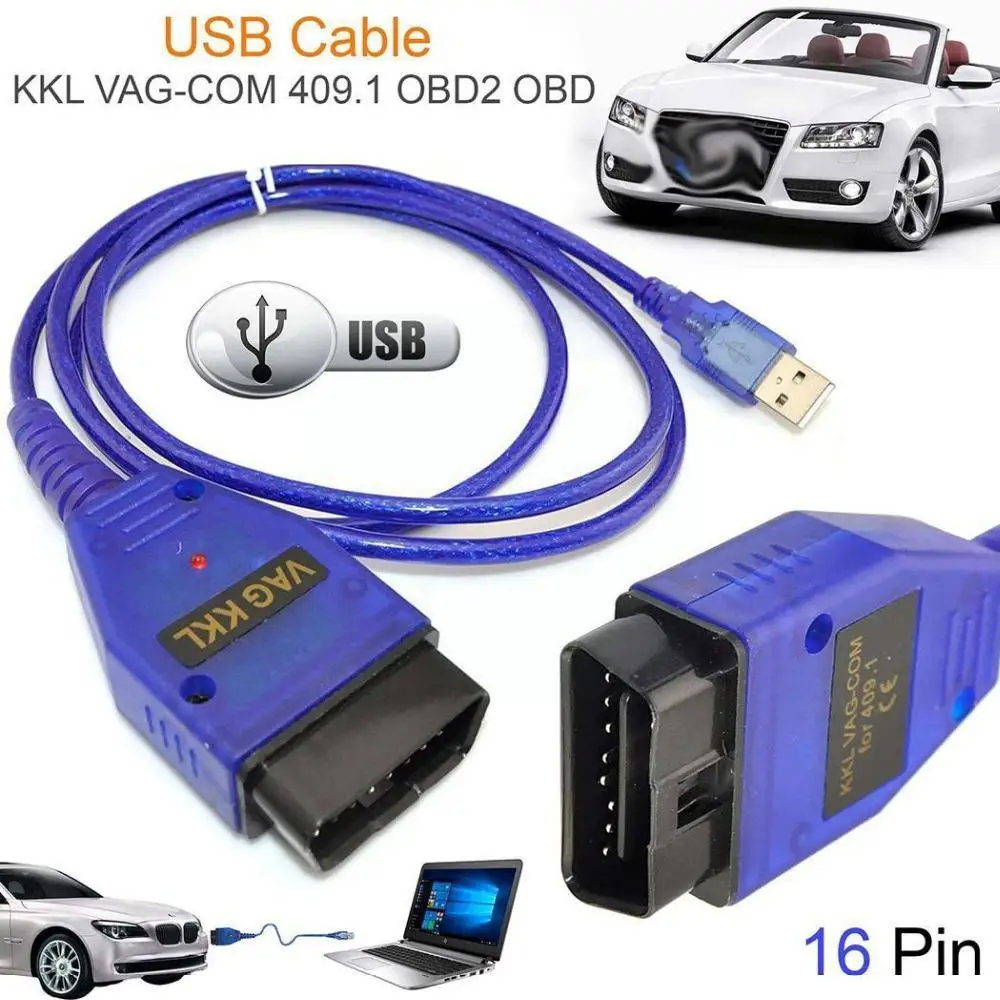

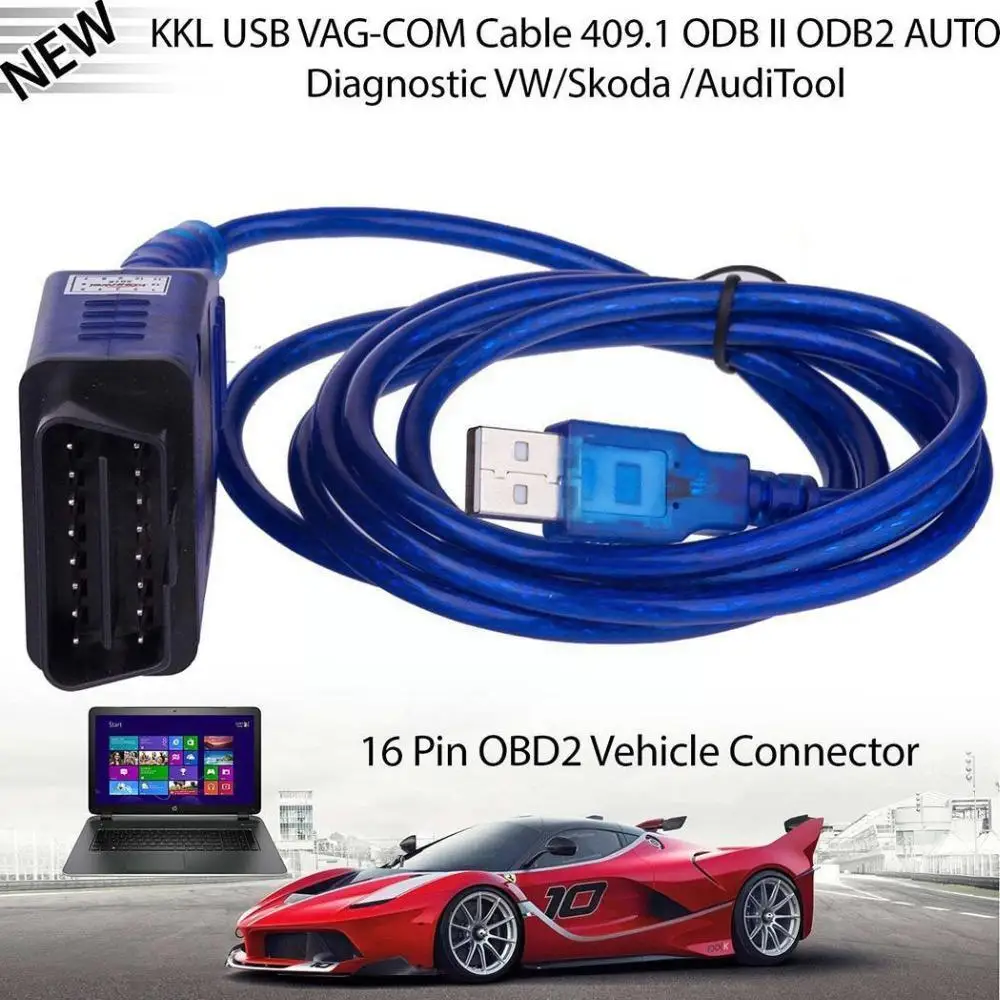

VAG-COM 409.1 Vag Com USB 409Com vag 409.1 kkl OBD2 Diagnostic Cable Scanner Interface For VW Audi Seat Volkswagen Skoda

VAG OBDII KKL USB COM 409.1 interface VAG 409.1

Operating System: XP

Support year 1996-2009

Supporting car: k-line

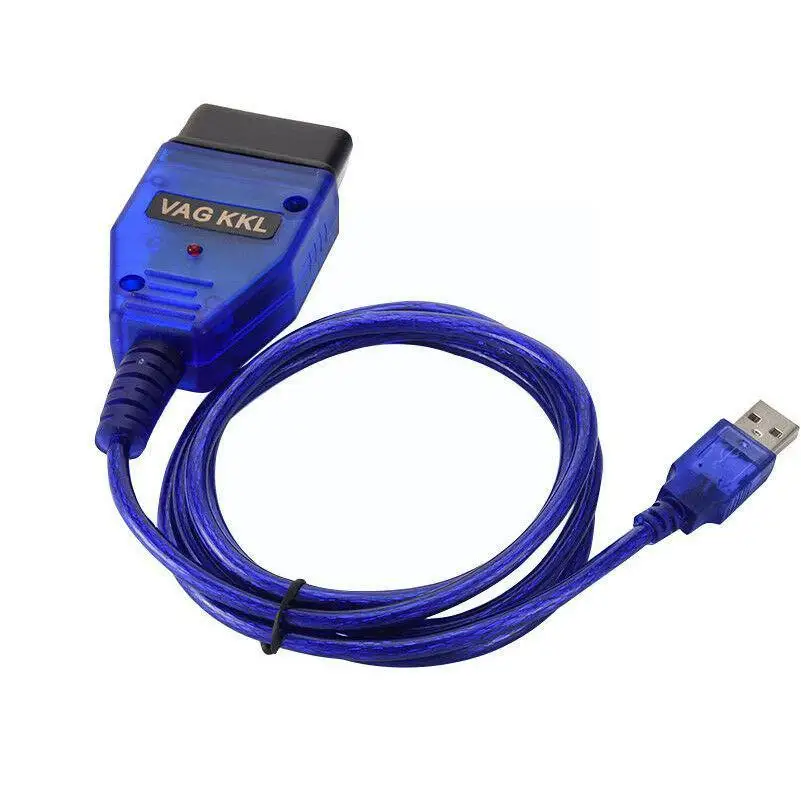

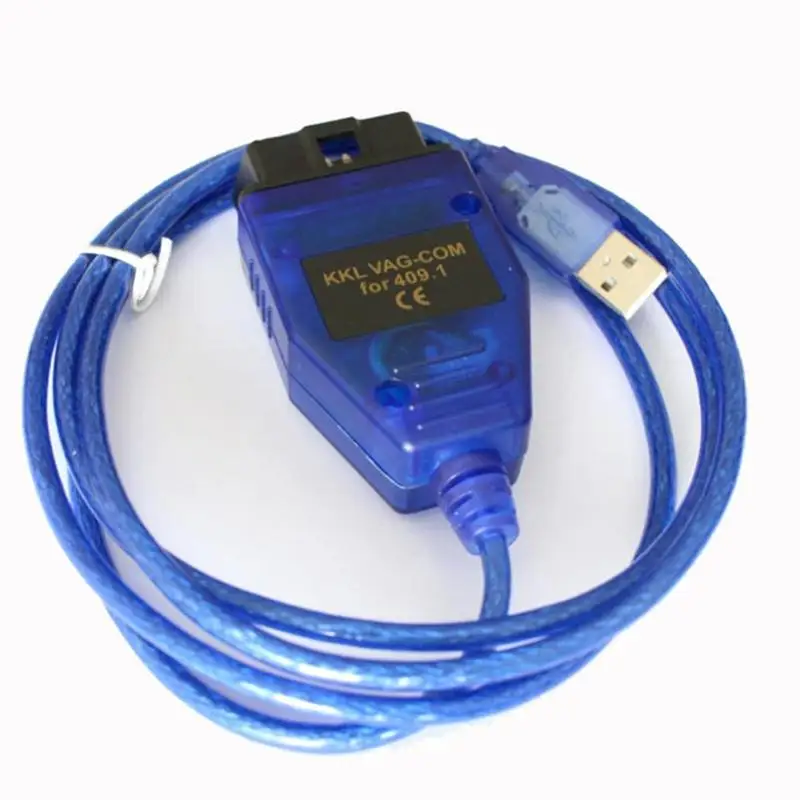

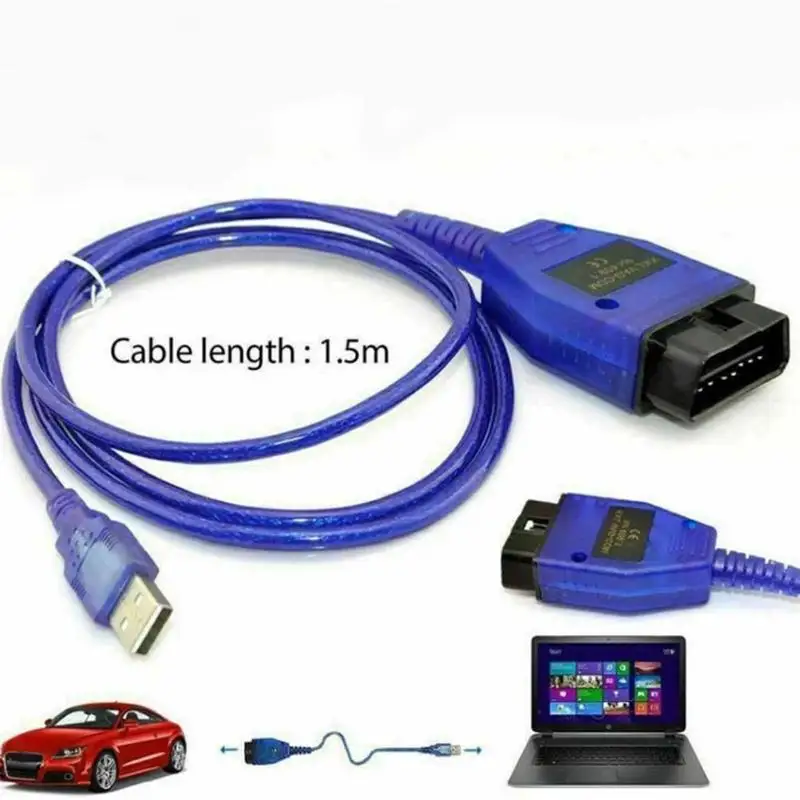

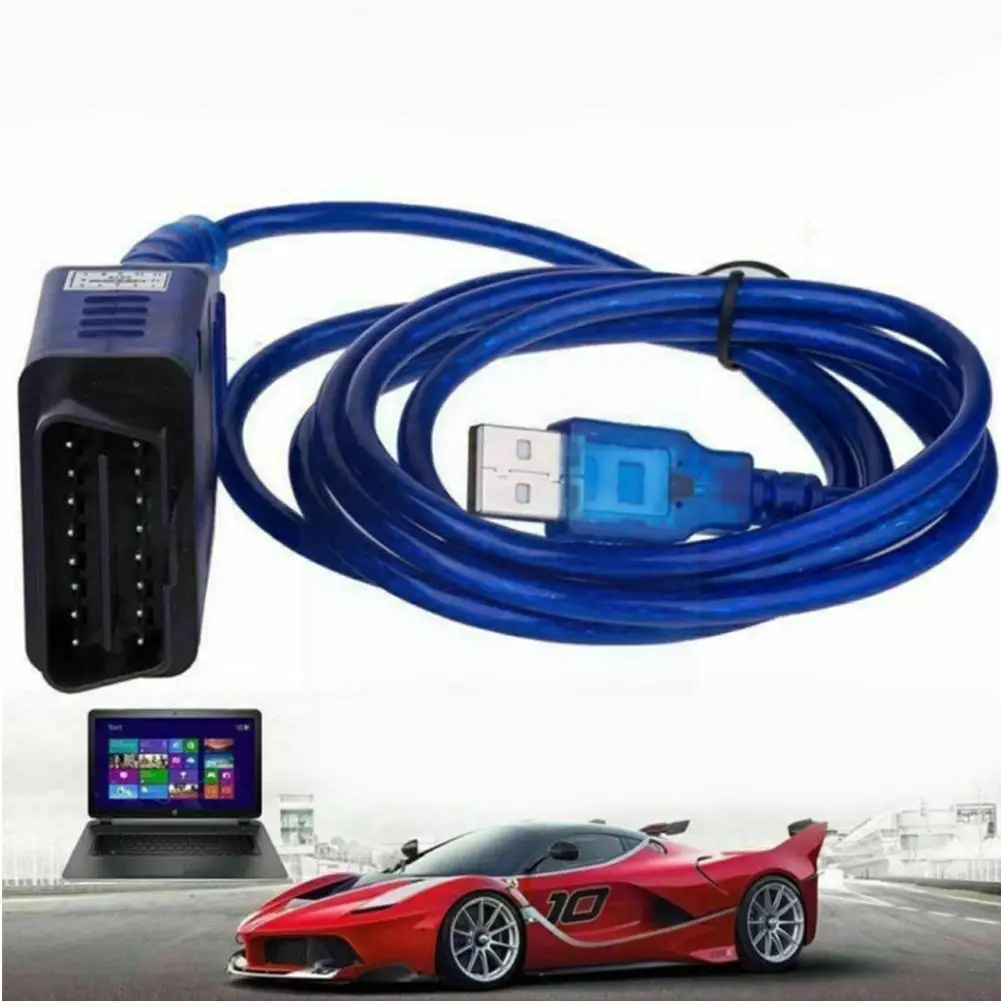

1.VAG409 description

Main function: Vag-Com USB interface line

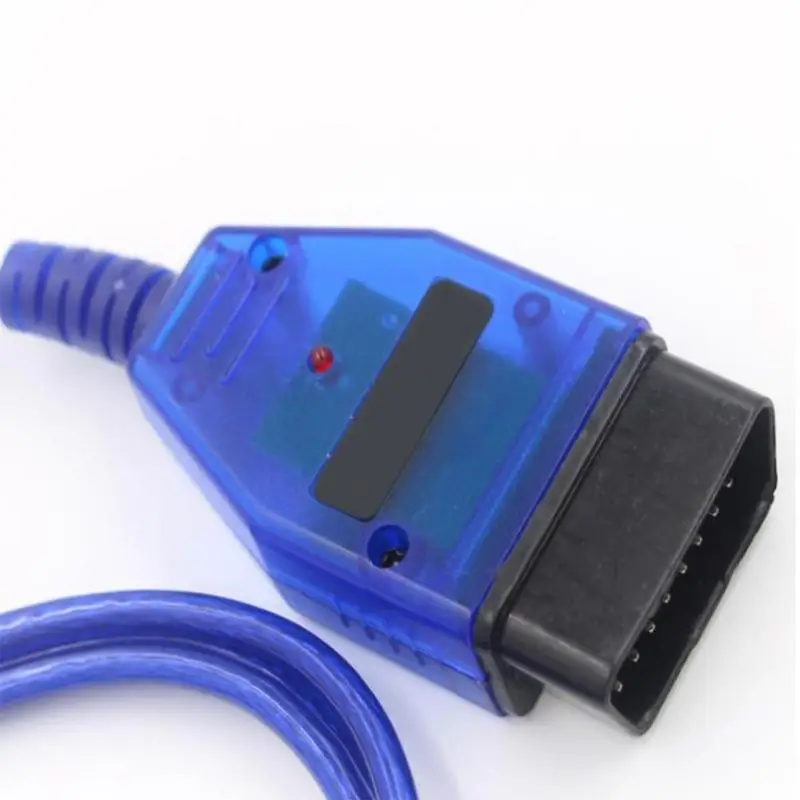

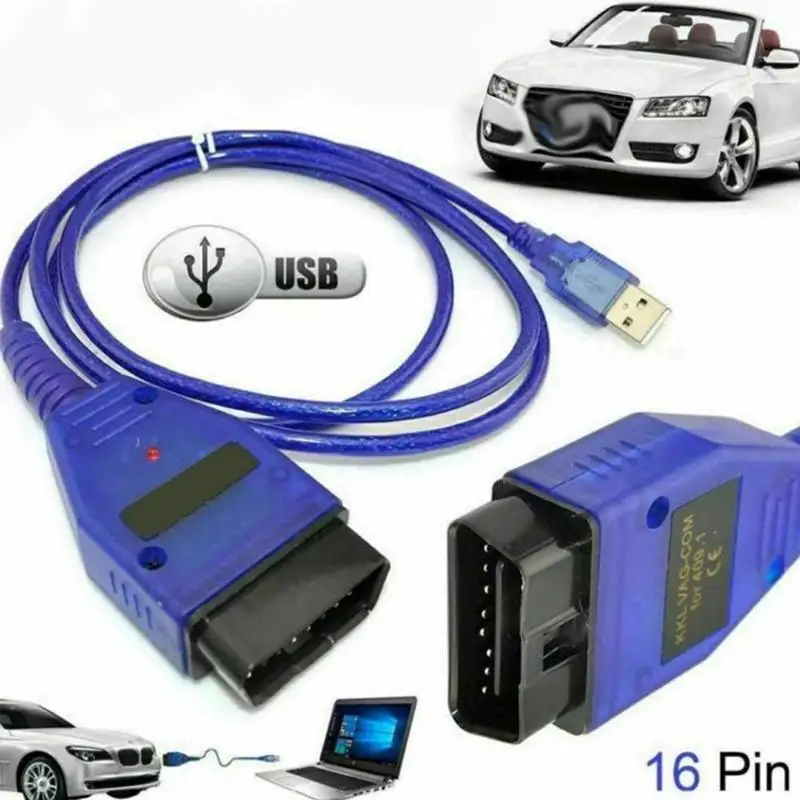

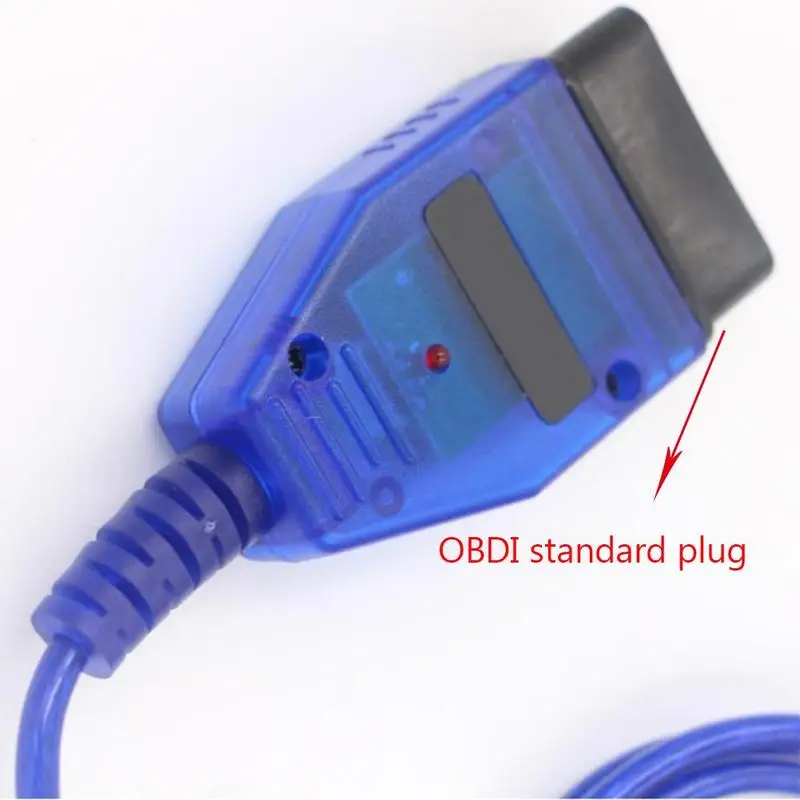

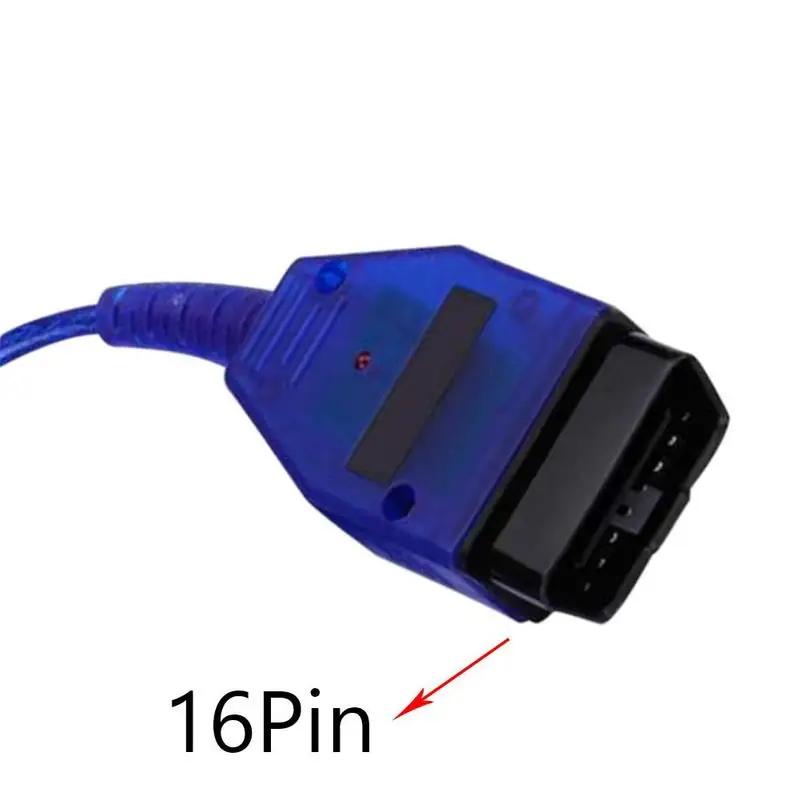

OBDII plug: 16-pin J1962 male (for cars).

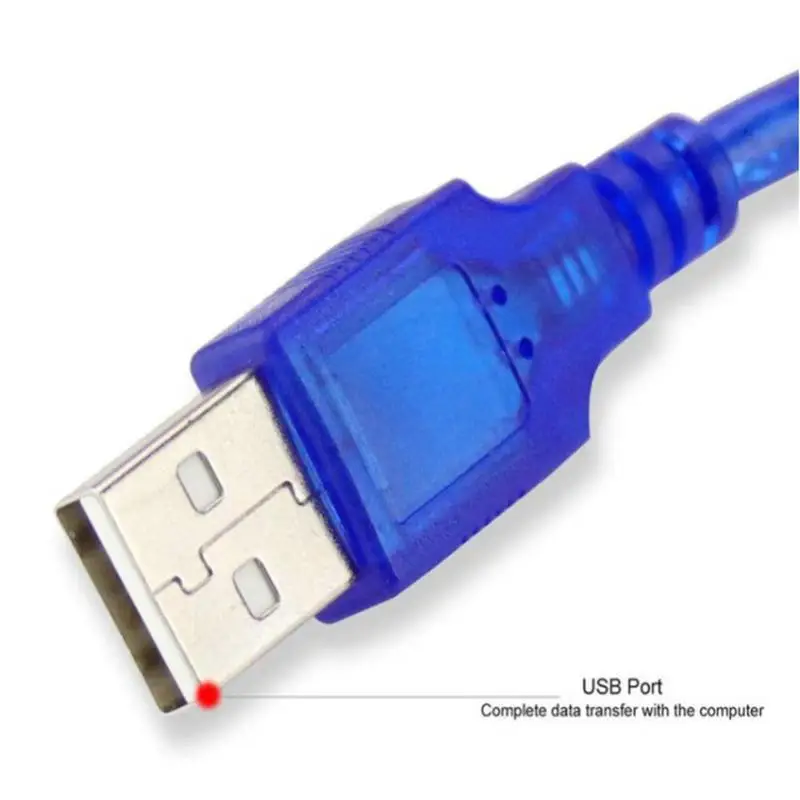

Allow USB port

Compatible software: Windows 98SE / ME / 2000 / NT and XP.

Support terminal (K) bus communication

Terminal (L) lights up to wake up the car computer system (ECU) engine control unit

It has 3 different protocols with the same OBD2 connector, including ISO/KWP, VPW, PMW.

Please refer to your car's user manual, or contact your local car dealer or mechanic to find out if your car is compatible with this product.

Compatible vehicles: Volkswagen, a-u-d-i, Skoda, seat

2.VAG409 supports vehicles

Compatible: A-2 / A-3 / A-4 Cabriolet / A-6 / A-8 / S-2 / S-3 / T-T

Incompatible: 80/100/200 / A-3 (8P) / A-4 (B7) / A-6 (C6 / 4F) / A-8 / A-8L (D3 / 4E) / Q7

3. Seat model:

Compatible: a-lhambra / a-ltea / a-rosa / c-ordoba / i-biza / i-nca / l-eon MK 1 / l-eon M-K 2 / t-oledo.

Incompatible: al-tea (5P) / l-eon (1P) / t-oledo (5P).

3 Skoda:

Compatible: f-abia / f-elicia / o-ctavia MK 1 / o-ctavia MK 2 / s-uperb.

Incompatible: o-ctavia (1Z)

4 Quality:

Compatible: b-eetle / b-ora / c-addy / c-orrado / g-olf MK2 / g-olf MK3 / g-olf MK4 / j-etta MK3 / j-etta MK4 / Lupo / p-assat MK3 / p bottle MK4 / p-olo MK3 / p-olo MK4 / t-oran / t-ouareg / t-ransporter T3 / t-ransporter T4 / T-ransporter T5.

Incompatible: c-addy (2K) / g-olf MK5 (1K) / g-olf Plus / j-etta MK5 (1K). / P-assat MK5 (B6)/ p-assat MK6 (B6)/Putton/

3.VAG409 specifications

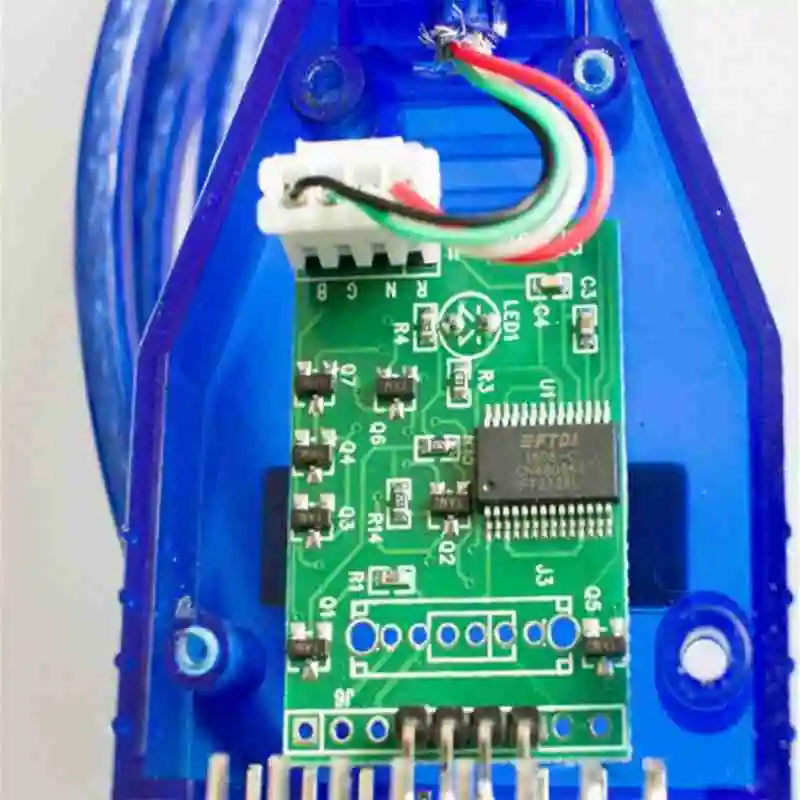

Chip type: CH3401

Catalog reference: automotive parts, cable error codes, VAG-COM, OBD2 cables.

4 Other functions

Also supports ISO9141 protocol

No need for DC power or backup power, just connect it to car and computer

Applicable to most Volkswagen and a-u-d-i models sold worldwide from 1998 to this year

If your car uses bus protocol systems such as VPW, PWM or CAN bus, the CVFG-A11 cable will not work

The K/L diagnostic interface cable can be used for ISO/KWP (Keyword Protocol) released after 1996.

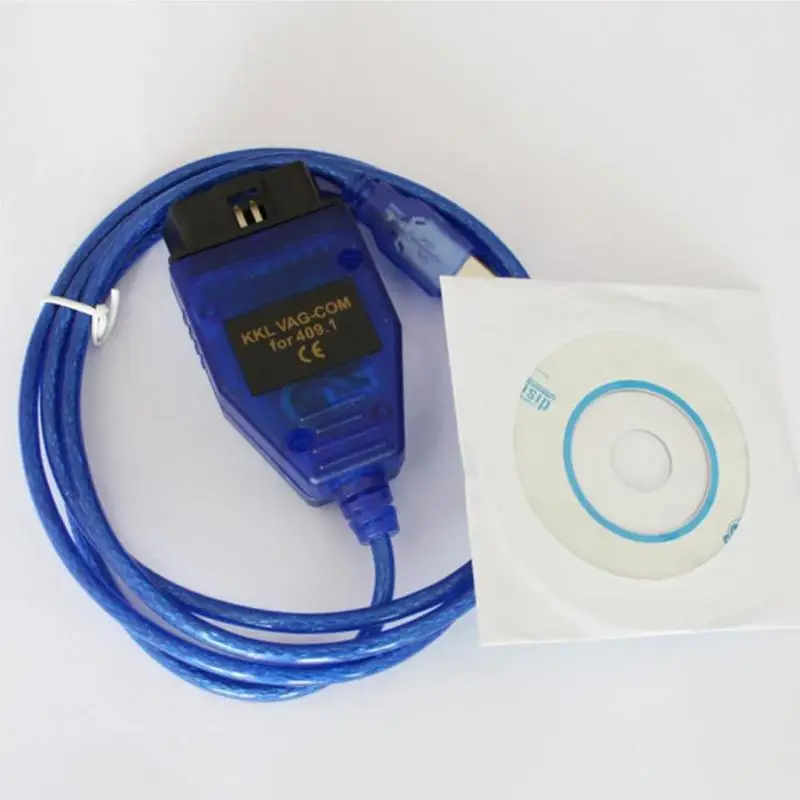

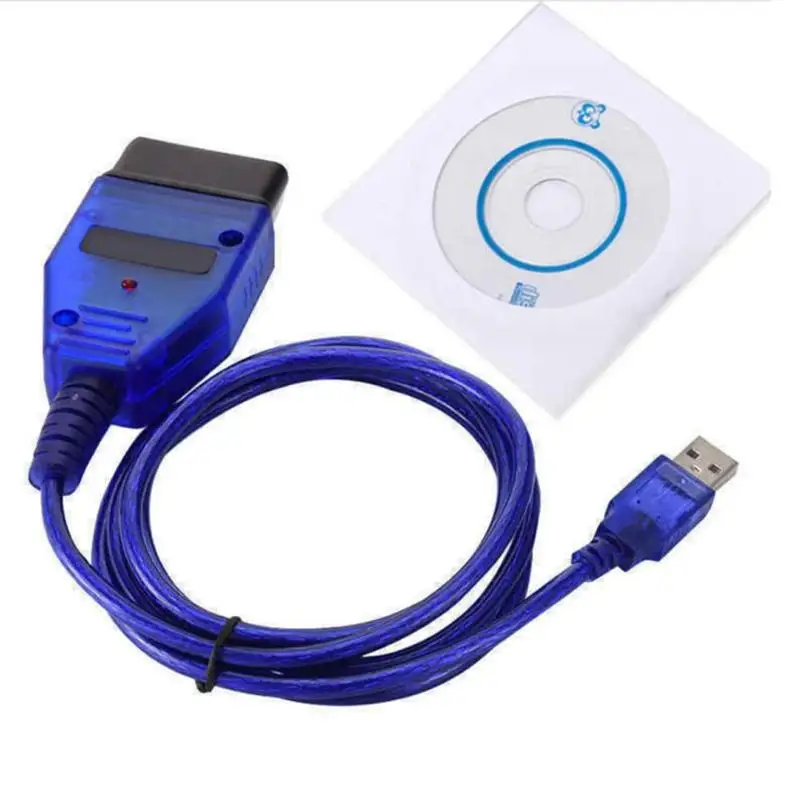

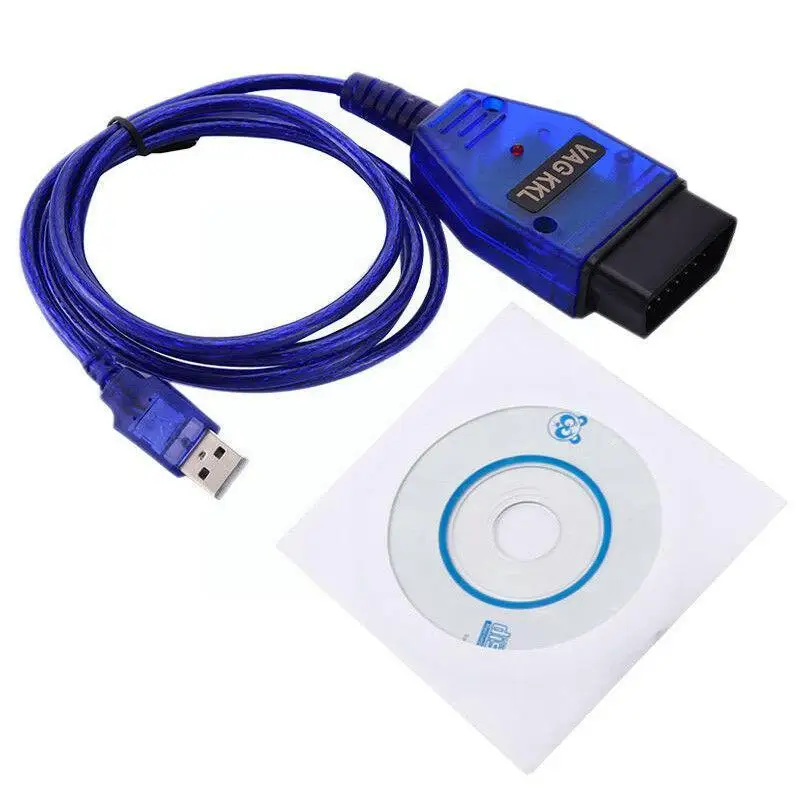

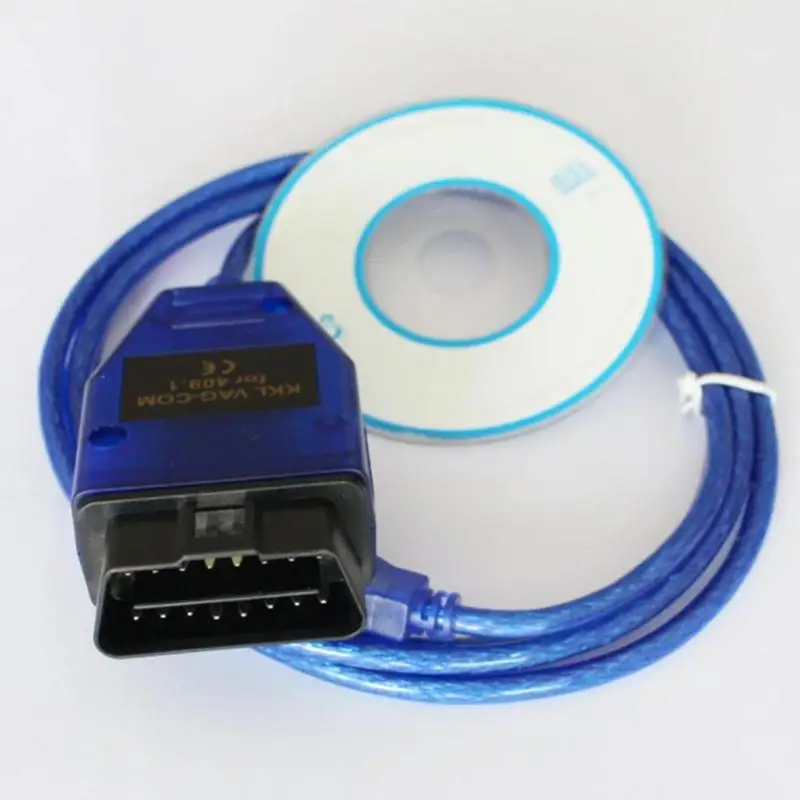

The package includes:

1 x VAG409.1 cable

1 optical drive
