Считыватель кодов ELM327 Bluetooth V1.5 с двойной печатной платой, чип PIC18F25K80, OBD2, ELM 327 V2.1 V1.5, диагностический инструмент для IOS, Android, Windows

Attention:

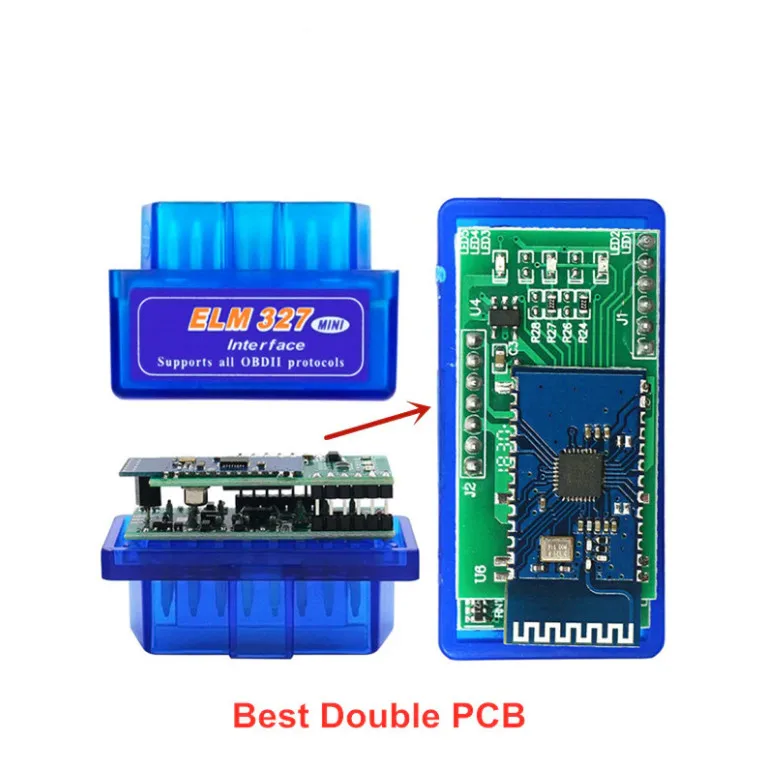

2PCB Board With PIC18F25K80 Chip 4mHz, Bluetooth module 16mHz.

1PCB Board with PIC18F25K80 Chip 4mHz, Bluetooth Chip 24mHz.

Both model supports commands ATAL and ATPPS

Please Pay Attention:

1.This one ONLY works with gasoline car .It can NOT work with diesel car.

2. It works with almost any brands of gasoline car.

3. ELM327 SW: V2.1, HW: V1.5. Which just supports 7 Kinds of obd2 protocols

4. It can not support IOS, please notice.

Description:

1. Software Version :V2.1,Hardware Version :V1.5

2. Works with all OBD-II compliant vehicles

3. Suitable APP(Can Scan the QR code to download)

Window:ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.

IOS:Auto Doctor, Mini OBDII

Android:Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.

4. ELM327 password :1234 or 0000 . WIFI Version ELM327 NO password.

BT ELM327--------Android phone working

WIFI ELM327------IOS&Android phone working

5.Samsung and xiaomi phone do not have stable connections, it blocks strange connectors,thanks for your understanding!

ELM 327 V2.1 Specifications:

Model name: ELM327 OBD2 bluetooth

Type: code readers & scan tools

Output protocol: bluetooth

Color: black & white

Material : plastic

Voltage: 12V

Current: 45mA

Wave frequency: 38400Hz

Applicable scope: 5-10m / 16.4-32.8ft

Item size: 4.8 * 2.5 * 3.5cm / 1.89 * 0.98 * 1.37in

Item weight: 23g / 0.81oz

Package size: 8.8 * 8.8 * 4cm / 3.4 * 3.4 * 1.5in

Package weight: 48g / 1.69oz

ELM327 Mini V1.5 Support 10 OBDii protocols:

1.sae j1850 pwm (41.6kbaud)

2.sae j1850 vpw (10.4kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

10.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

*default settings(user adjustable)

PCB Board:

Supported Protocols:

ELM327 V2.1 Features:

1. Works on Android/ Symbian/Windows. Please use Android system V4.1 to V4.3 version. No Support IOS

2. Bluetooth Passwords: 1234

3. Latest Version SW: V2.1.HW: V1.5.

4. This one CAN'T support for Diesel or Trucks and it can't be used on IOS system.

5. Latest sw version supports most of OBDII protocols.

Supported Car list:

(only support 12V Gasoline car , diesel car not supported )

1.American car support car after 1998 year

2.European car support car after 2000 year

3.Asian car support car after 2002, (Japan&Korea&China&so on)

4.Russian cars support after 2012 year (For VAZ/UAZ/GAZ car)

Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data, including:

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13.Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17.Fuel System status

18.Fuel Pressure

19.Many others.

CD Software included:

Scantool_net113win (Full Version)

EasyOBDII V2.2 (Free Version)

OBD2Spy (Demo Version)

ScanMaster-ELM (Demo Version)

WOBDCRAZY (Demo Version)

How to check if my car is suitable for this ELM327 Wi-fi scanner?

Our ELM327 WIFI V1.5 is suitable for all OBD2/ OBDII vehicles, normally newer than 2009's cars will have no problems. OBD2 standard range for reference: USA car makes should be after 1996; EU Based Car Makes after 2004; Asia Car Makes after 2007

1. America Car List: (include Brazil)

Need standard obd2 , and releasefrom 2000 years to now

Fit for Chrysler ,Fit forFord ,Fit for GM ,Fit for Jeep

2. Europe Car List:

Need standard obd2 , and releasefrom 2003 years to now

Fit for Alfa Romeo ,Fit for SAAB ,Fit for Acura ,Fit for Opel, Fit for Audi ,Fit for Seat ,Fit for Peugeot ,

Fit for Bentley ,Fit for Skoda ,Fit for Daewoo, Fit for Benz ,Fit for Daihatsu ,Fit for Land Rover

Fit for BMW ,Fit for Vauxhall ,Fit for Citroen, Fit for Volvo ,Fit for Fiat ,Fit for VW ,Fit forFord ,Fit for Jaguar

Renault cars need after 2009 years,

Does not support Renault / Dacia Logan , Clio.

3. Asia Car List: (include Australia)

Japanese car Need standard obd2 , and releasefrom 2006 years to now

Fit for KIA ,Fit for Isuzu ,Fit forHonda ,Fit for Mitsubishi, Fit for Hyundai ,Fit for Dacia ,Fit for Lexus ,Fit for Mazda

Fit for Nissan ,Fit for Subaru ,Fit for Suzuki, Fit for Toyota

Chinese car Need standard obd2 , and release from 2011 years to now

Fit for BYD, Fit for Chery, Fit for Geely, Fit for Great Wall, Fit for Karry

Notice :No OBD2 ELM327 can work for all cars, If the device does not fit for your car, please try to test on another newly car.

FAQ:

Q: What is the version of the ELM327?

A: It’s Hardware V1.5with PIC18F25K80 chip,supports ALL OBD2 protocols(10 protocols), especially J1850 J1939 Protocols for Japanese Cars and American Cars, other elm327 only 7 or 9 protocols

Q:How many language of this device software?

A:Scanmaster support language: Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish

Q:Does it supports Russian Language?

A:Yes,but you must download the APP which is Russian language by yourself.

Q:Does it supports WIFI and iOS?

A:No,it only supports bluetooth android torque and windows XP/WIN7 32bits

Q:Does Hardware V1.5 better than V2.1?

A:Yes,Hardware V1.5 is more stable than V2.1 ,also from many buyer feedback,V1.5 supports more protocols and car brand .

Q:Does this device works diesel car or truck?

A:No,it works only gasoline cars ,supports most OBDII Standard protocols.

Q:How can i know if this device works my car or not ?

A:this ELM327 works most gasoline car brand model,but we can not sure if your car supported,we have no test each car .You can buy one to test. (If you dont sure and also do not want to buy one to try ,please do not buy ,we do not want any negative feedback about no supports your car else ! thanks in advance .)

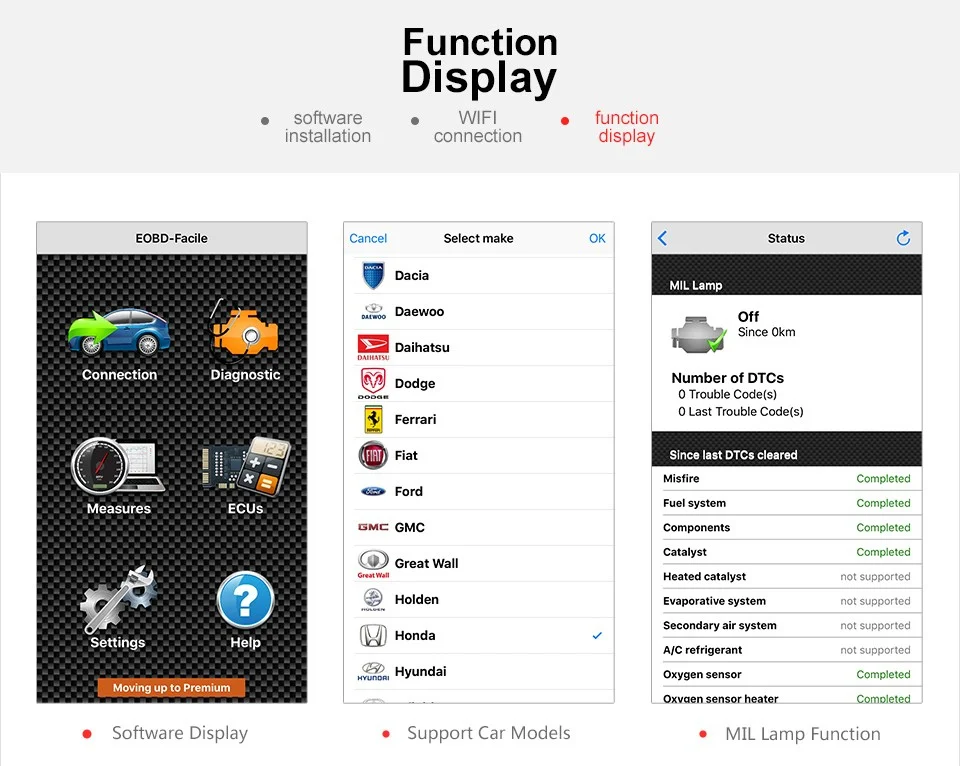

Q:How is the step for Run software on android phone?

A:Open your android phone software--Setting--Connecting Type--OBD2 Adapter Setting--Bluetooth--Choose Bluetooth Device--OBDII.

Q:My android phone connect to my old ELM327 before ,do i need delete previous informations?

A:Yes,please delete all old informations ,so make sure you can connect your new ELM327.

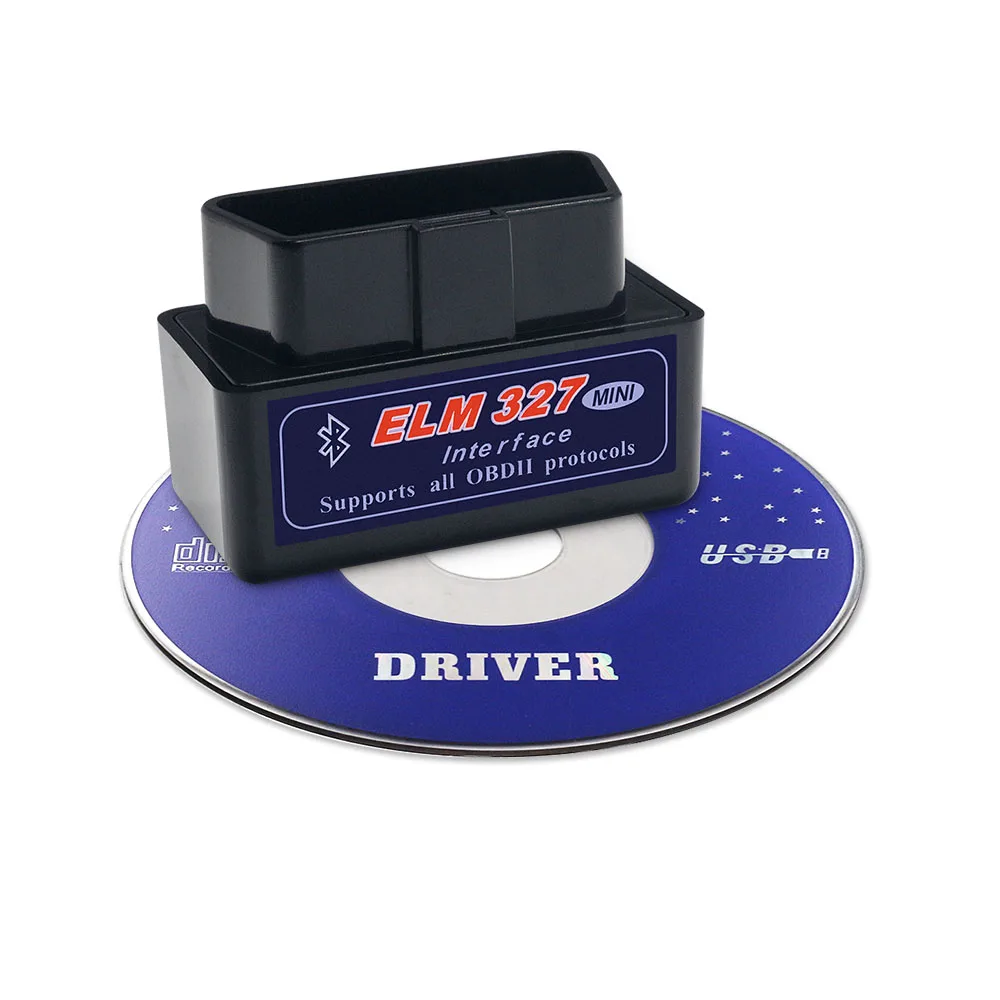

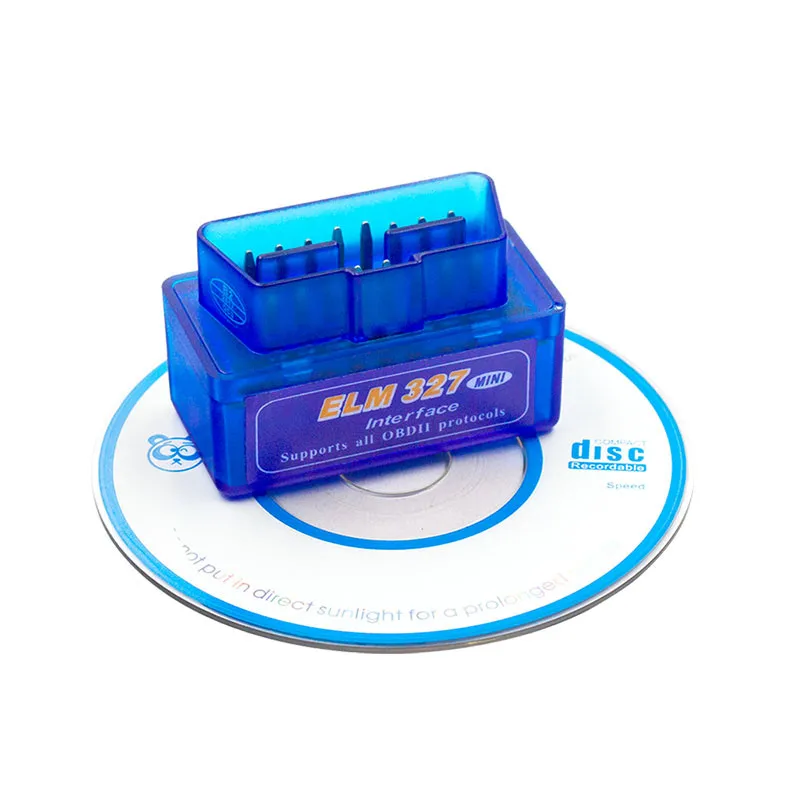

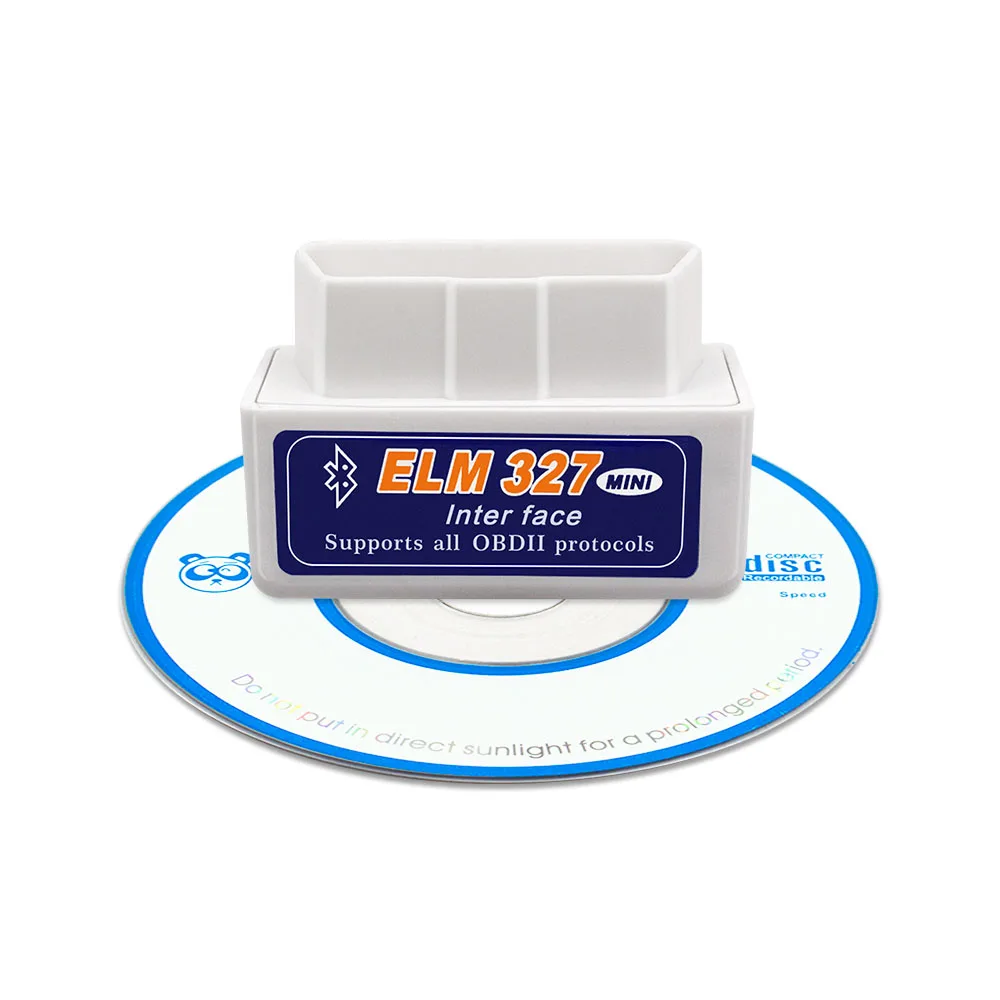

1pc x ELM327 Scan Tool Interface

1pc x CD driver

Android Torque Phone Display
