Introduction

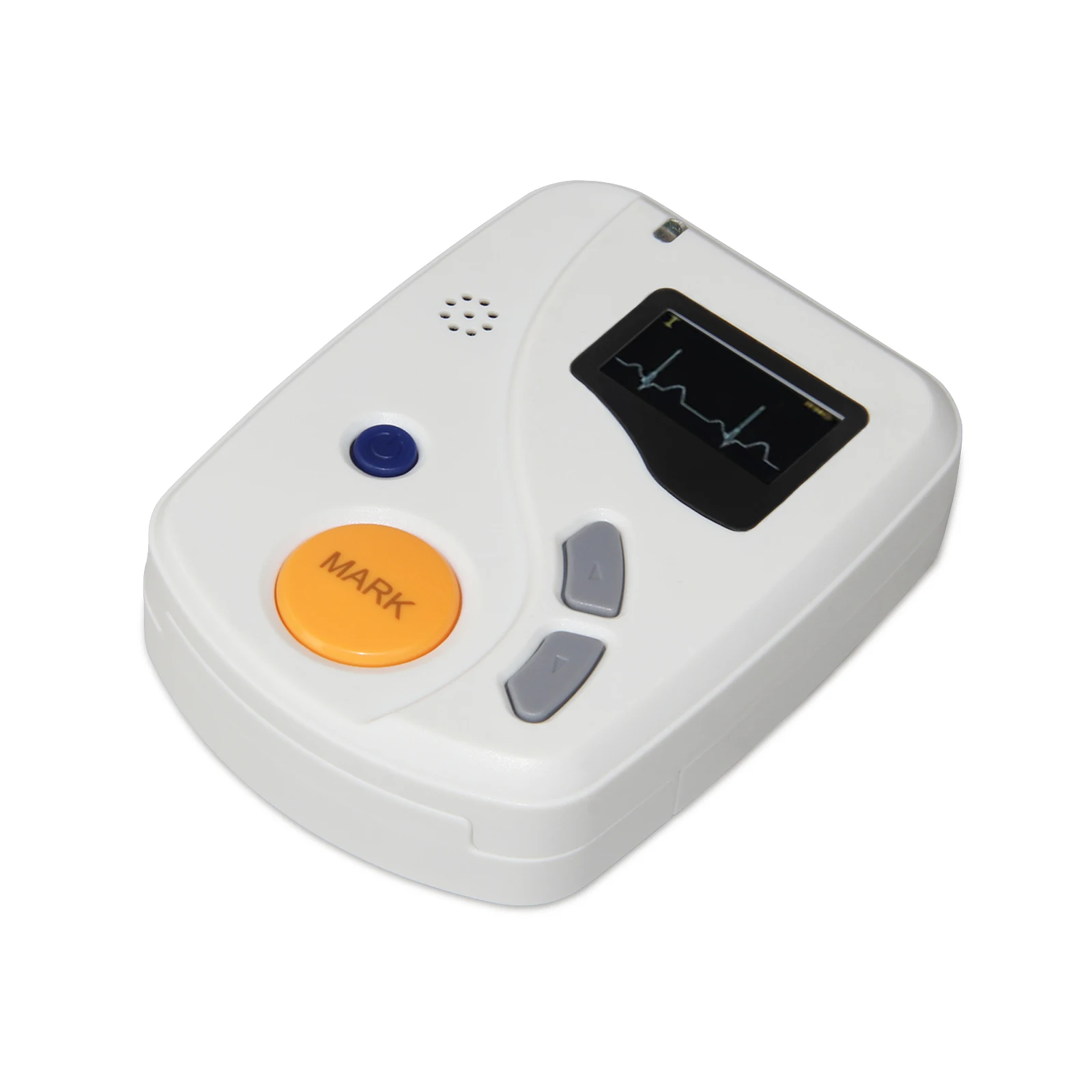

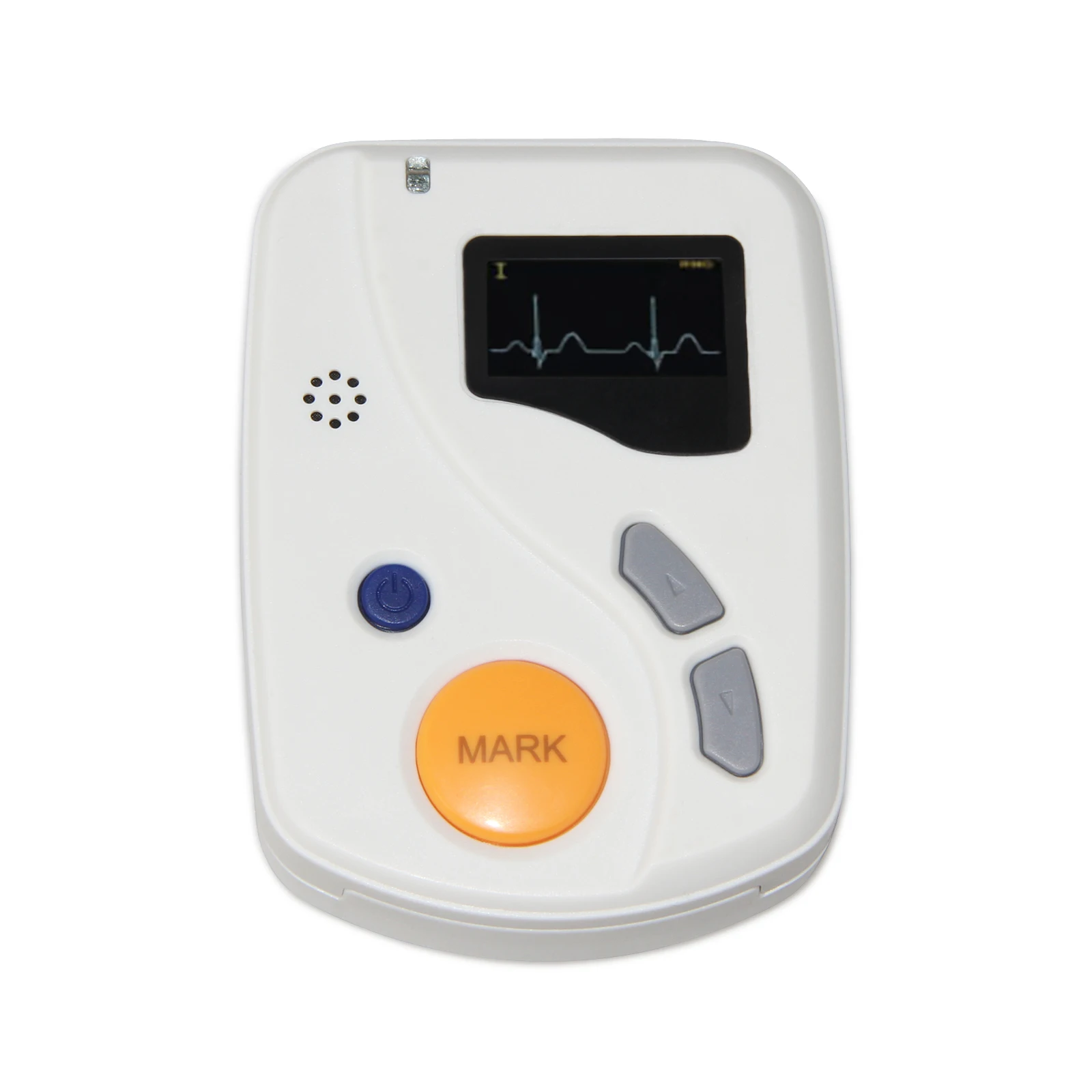

Dynamic ECG Systems adopt 12-lead system of international standard, which can continuously record ECG waveform for 48-hour (high energy battery) and analyze ECG waveform by the PC software. It is applicable for use in medical institution and community.
Function1)Adopt 12-lead system of international standard, continuously record ECG waveform up to 48-hour.2)Sync analysis for 12-lead, and any channels can be selected as the main analysis channel, which ensures that QRS waveform can be found accurately, and no distortion.3)With more than 10 templates(such as atrial premature beat, ventricular premature beat, long interval, atrial fibrillation, etc.) and many user-defined modules, which can almost distinguish any kind of pathologic waveforms.4)Flexible atrial fibrillation analysis, which ensures that physicians can use the whole or segmented AUTO/manual analysis, more accurate in atrial fibrillation analysis.5)All pacemakers(such as AAI, VVI, DDD etc.) can be analyzed by the powerful pacemaker analysis function. 6)Single or full-lead ECG in any time bucket can be reviewed by the fast review analysis function.7)With analysis functions for 5-minute, 1-hour and whole heart rate variability.8)One-key print, convenient and fast to print the reports.9)The death risk in patients with myocardial infarction can be predicted by the "HRT" analysis function.10)“T-Wave alternation” is an important index to predict the malignant arrhythmia and sudden cardiac death.11)With QTD(QT dispersion), VCG(vector cardiogram), VLP(ventricular late potential) and TVCG(time vector cardiogram) analysis modules, more valuable in analysis report.

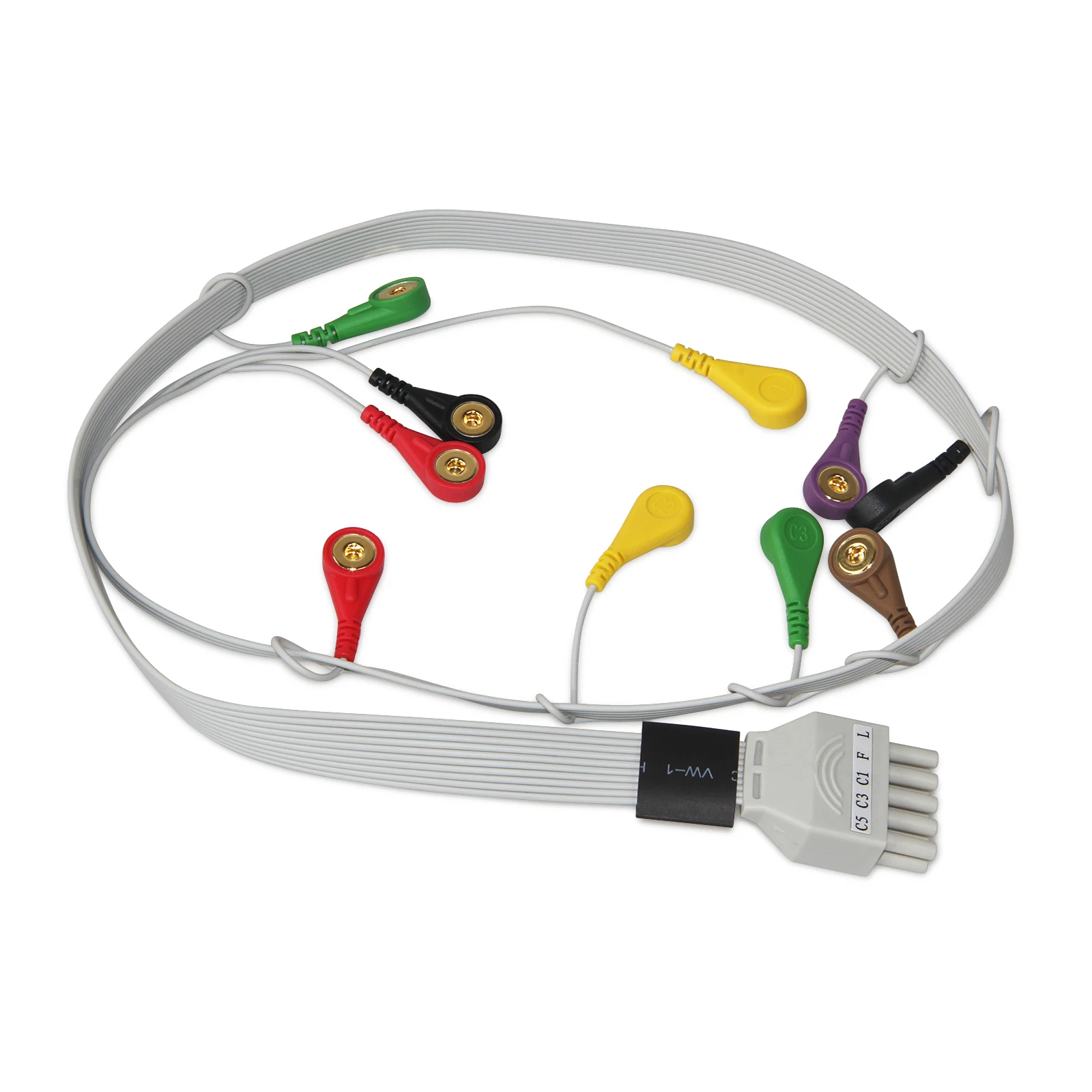

PerformanceLead: standard 12-leadPower supply: one “AAA” alkaline batteryInterface: USB2.0Sampling frequency: 200HzInput impedance: ≥10MΩCMR: ≥60dBGain accuracy: At all possible gain settings, the maximum amplitude error of the output is ±10%Gain stability: One minute after energizing the device, the gain change in stable ambient conditions shall not exceed 3% over a 24h period.System noise: ≤50µVp-pMultichannel crosstalk: ≤0.2mVFrequency response: The amplitude response to sinusoidal signals within the frequency range 0.05Hz to 40Hz shall be between the +3dB to -3dB of the response at 5 Hz.Minimum measure signal: 50 µVTiming accuracy: the overall error during 24h shall not exceed 30s.
