Plan 1: DAC board only, No USB input and bluetooth input
Plan 2: DAC board + XMOS XU208 with FPGA chip, SITIME oscillators imported from USA
Plan 3: DAC baord + Amanero USB
Plan 4: DAC board + XMOS XU208 + CSR8675 bluetooth 5.0 module
Plan 5: DAC baord + Amanero USB + CSR8675 bluetooth 5.0 module

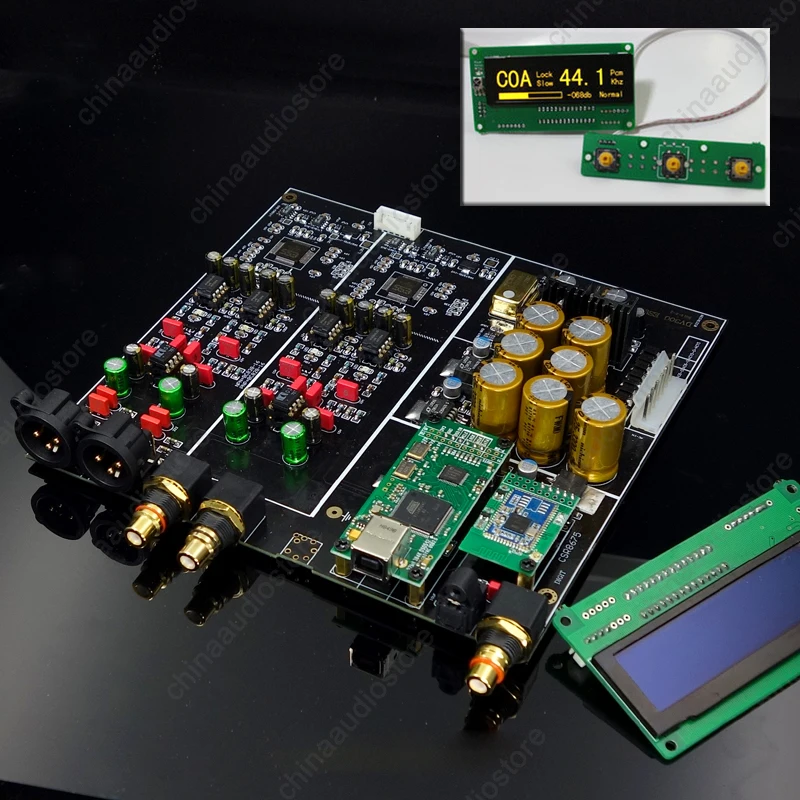

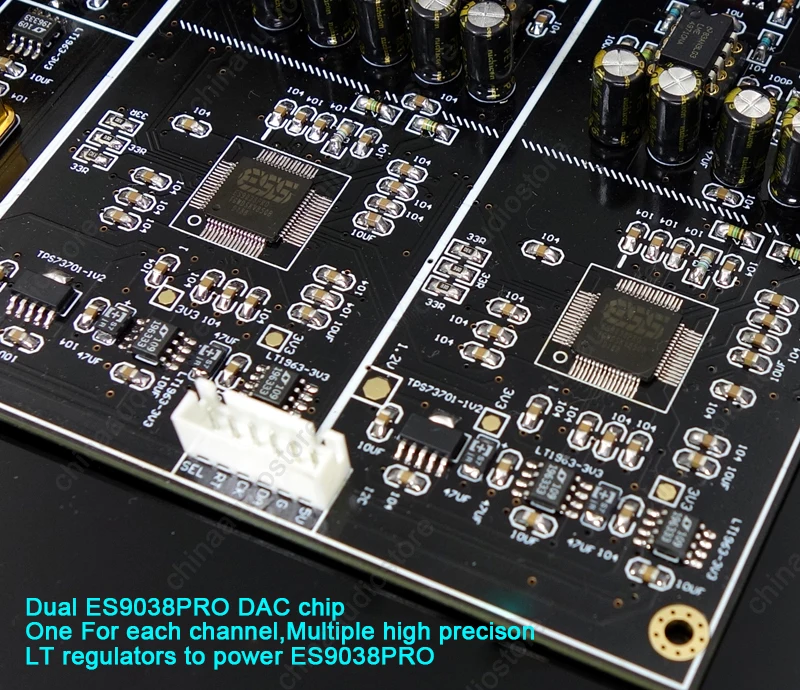

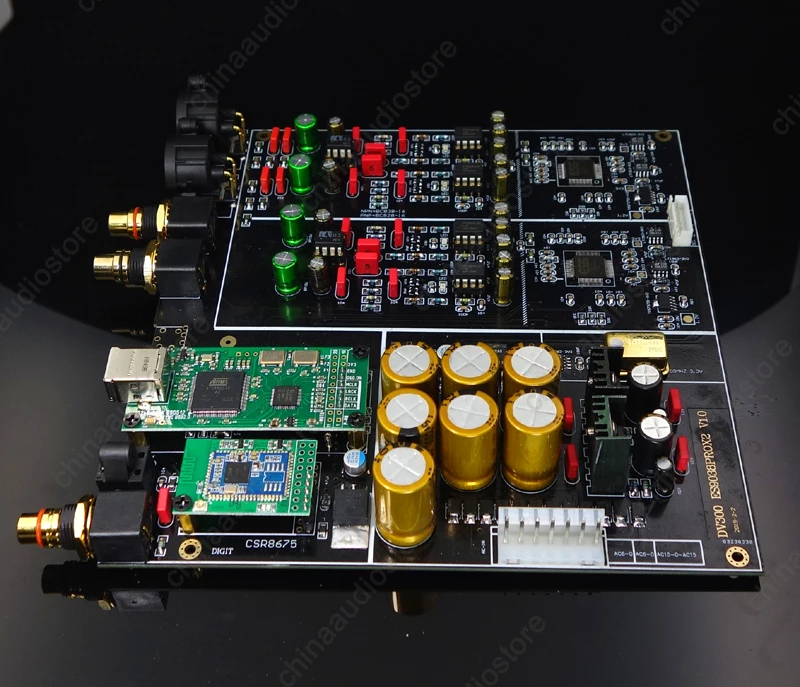

Up for sale is an ES9038PRO ultimate DAC based on two ES9038PRO high perfromance DAC chip, One for each channel thus increditable dynamic and rich details, ES9038PRO DAC chip is one of the best / newest DAC chip on market, It is successor of ES9028 DAC with some improvements, It is like a monster with the newest technologe and excellent performance, Ultra high resolution with more details and great dynamic. There are up to 8 channels of DAC, Four of them are paralled connected for mono application,Thus very good dynamic and separation.
Default opamps are six NE5534, Can be upgraded to four OPA1612& two MUSES03 ,Or four OPA1612 and two LME49710, Just contact for pricing
We have enclosure and power transformers for sale, Pls contact us if you need

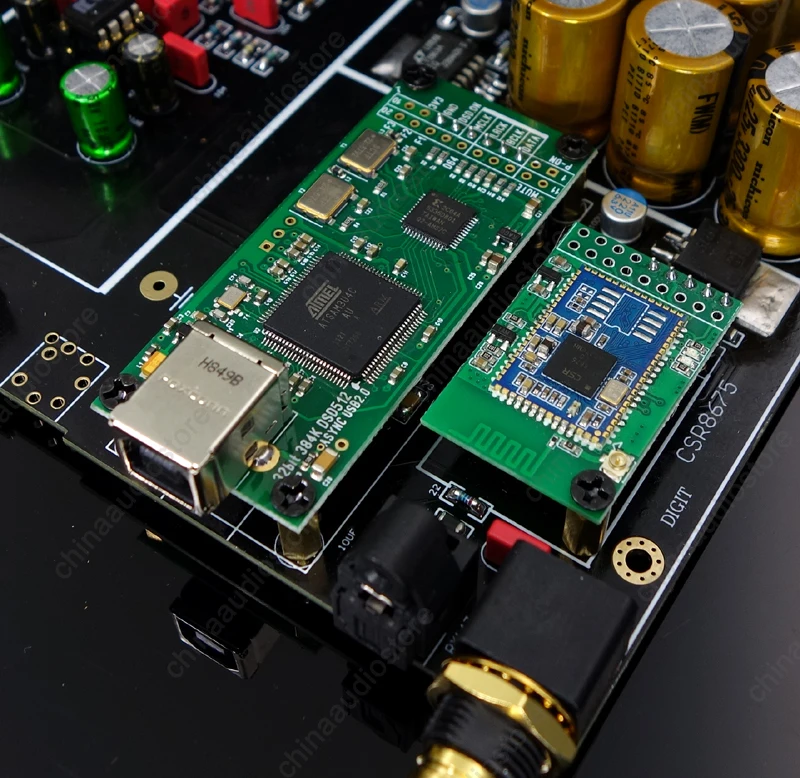

Optional USB input include XMOS U8 or XU208, Amanero USB module
Optional bluetooth 5.0 module support APTX-HD CD grade audio
The DAC is based on ES9038PRO which is the latest product from ESS,8 channels are parallel connected for one channel,It is under soft control with MCU to maximize the performanc
The DAC is under control of MCU with software, Support coaxial/optical and USB input source selection , Changeable internal digital filter, Memory of power-off, Remote control.
Coaxial input support DSD64 DOP.

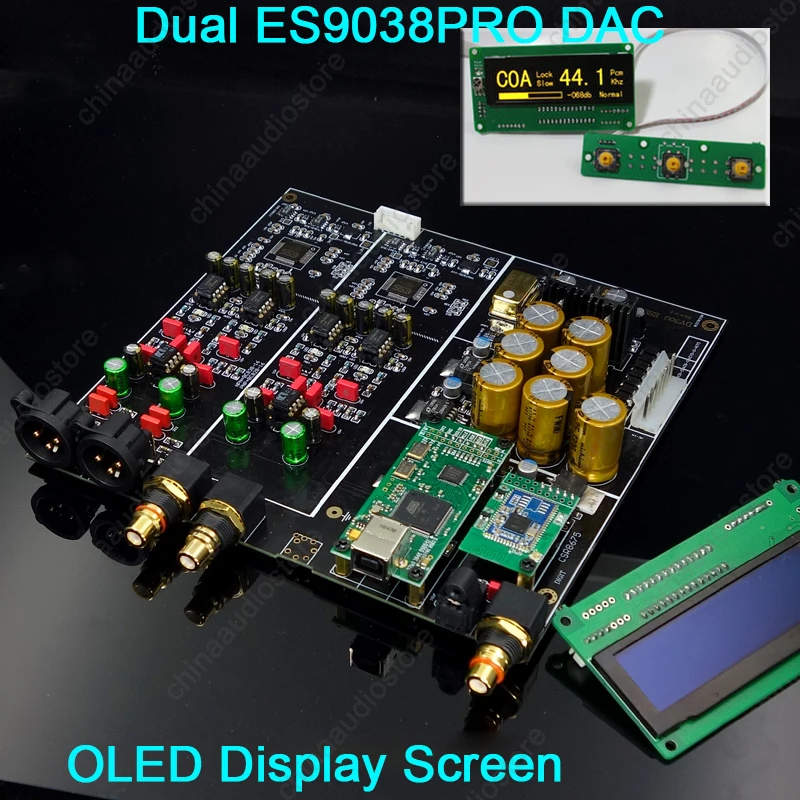

3.12 inches large OLED display screen
Gold plated RCA input / output jacks with great signal transmit.
0.1ppm high percision TCXO with temperature compensation, Didecated power supply, Provide accurate clock for DAC chip
LPF and output stage use six pcs single opamps,Default opamps is NE5534, Can be upgrade to better opamp.
All components are in audio grade for better sound representation,LT1963 High precision regulator,Nichicon filter capacitor, WIMA decoupling capacitor,MMA0204 resistor imported from Germany, Gold plated RCA connector with low contacting resistance, Gold plate Neutrick XLR jack etc.
Preserved installation position for 3.5mm headphone jack
Power supply: AC (15V-16V) -0-(15V-16V) AC (6-8)V, AC (6-8)V
PCB size: 178(W) * 182mm(D)
Input: coaxial/optical, USB / bluetooth input is optional
Output: RCA, XLR balanced output
Frequency response:20hz to 20KhzS/N ratio: <-120DB
Total harmonic distortion: <0.002%
Amanero USB input compatible with Windows XP/7/8/8.1/10
XMOS XU208 ompatible with Windows XP/7/8/8.1/10, And Mac OS 10.6 or newer, Support most Android devices with OTG support but NOT ALL
USB driver will be send after purchase
One dual ES9038PRO ultimate DAC board.
