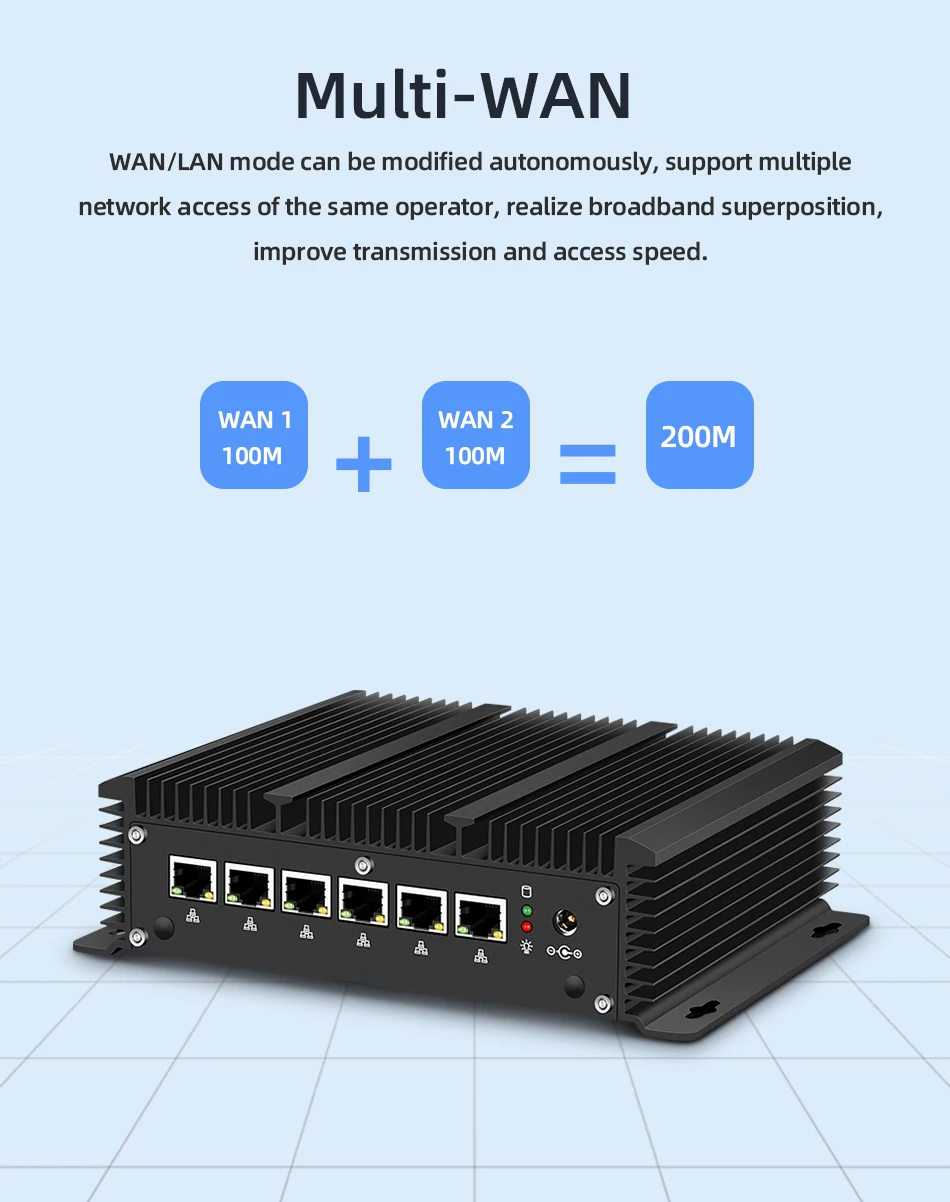

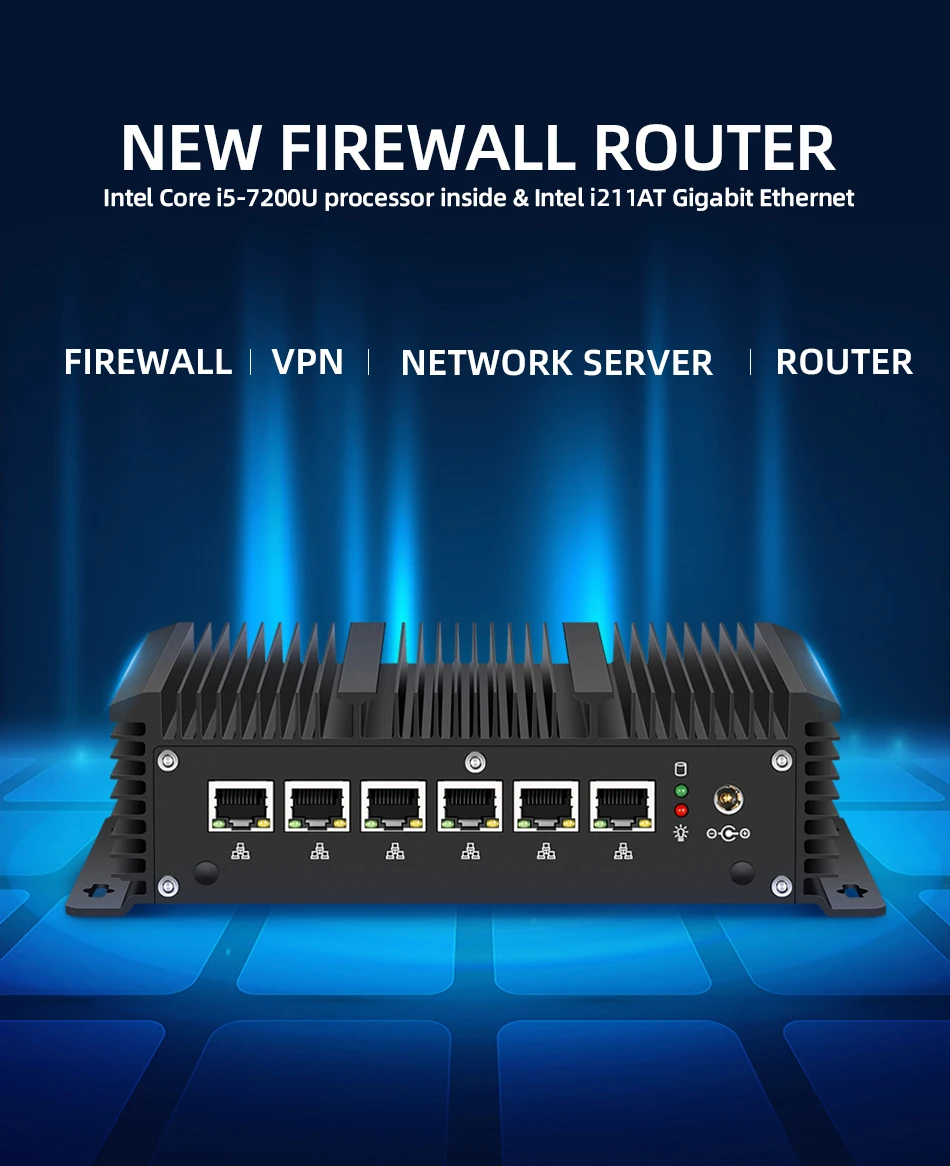

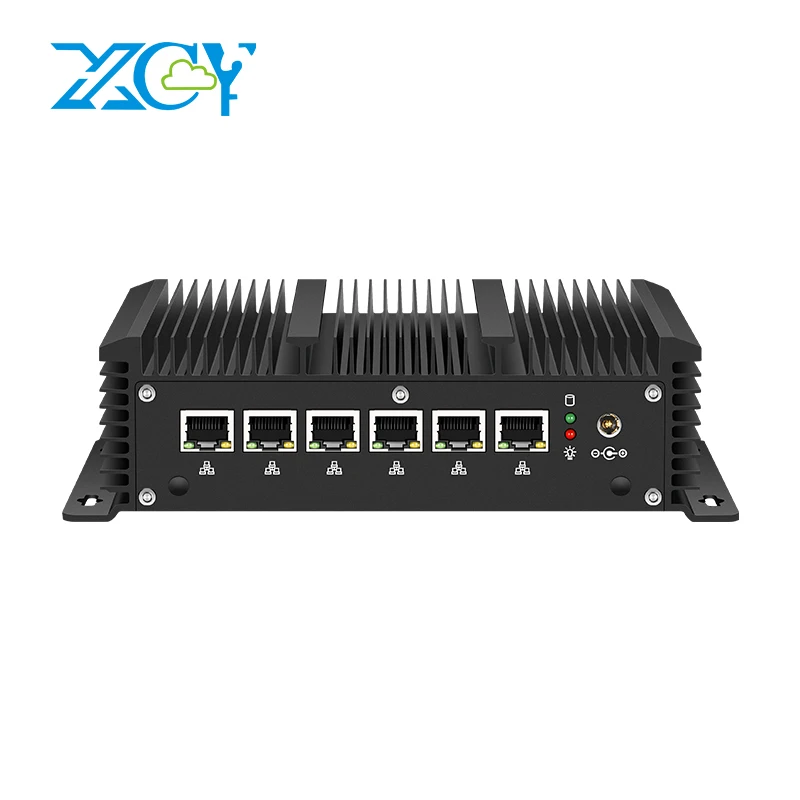

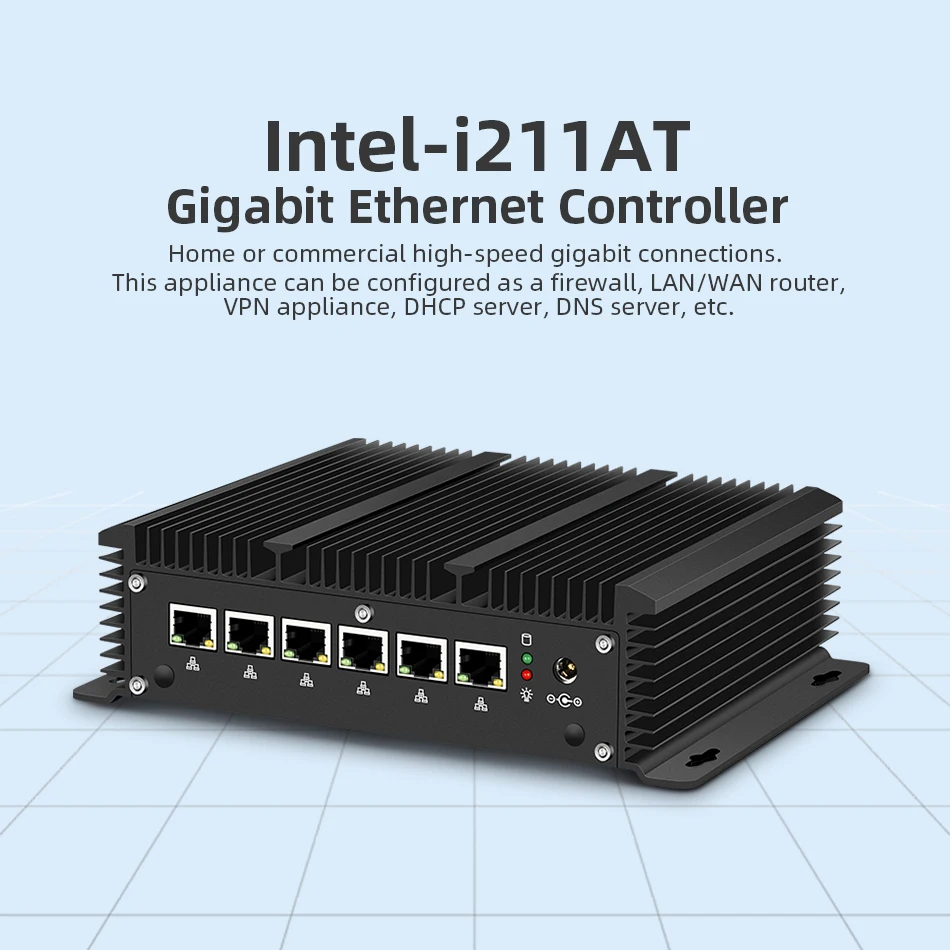

XCY X44 Series Mini PC Firewall Appliance, support configured as a firewall, LAN/WAN router, VPN appliance, DHCP/DNS server.
Common Use Case:
SMB to Medium Sized Networks; Small to Medium Sized Branch Office; Managed Service Providers (MSP) / Managed ;Security Service Provider (MSSP) On-Premises Appliance; Home or Commercial High-Speed Gigabit Connections; Multiple VPN Connections.
About Wi-Fi & LTE modules:
Mini PC with Wi-Fi installed, but price exclude 3G/4G LTE module and SIM card, buyer need pre-install LTE module, please contact us.
rocessors
Intel Celeron 2955U (2 core 2 threads, 2M Cache, 1.40 GHz , TDP:15W)
Intel Celeron 3865U (2 core 2 threads, 2M Cache, 1.80 GHz , TDP:15W)
Intel Celeron 3965U (2 core 2 threads, 2M Cache, 2.20 GHz , TDP:15W)
Intel Celeron J1900 (4 core 4 threads, 2M Cache,2.00 GHz up to 2.42 GHz,TDP: 10W)
Intel Pentium 4417U (2 core 4 threads, 2M Cache, 2.30 GHz, TDP:15W)
Intel Pentium 5405U (2 core 4 threads, 2M Cache, 2.30 GHz, TDP:15W)
Intel Core i3 7100U (2 core 4 threads,3M Cache,2.40 GHz , TDP:15W)
Intel Core i5 7200U (2 core 4 threads,3M Cache,2.50 GHz up to 3.10 GHz,TDP: 15W)
Intel Core i3 8145U (2 core 4 threads, 4M Cache, 2.10 GHz,up to 3.90 GHz, TDP: 15W)
Intel Core i5 8265U (4 core 8 threads, 6M Cache, 1.60 GHz up to 3.90 GHz, TDP: 15W)
BIOS
American
Graphics Card
Integrated
Memory Type
Pentium 5405U/ i3-8145U/i5-8365U use SODIMM DDR4 2133/2666MHz
Celeron 2955U/3865U/3965U/J1900/Pentium4417U,i3-7100U/i5-7200U use SODIMM DDR3L 1066/1333/1600MHz

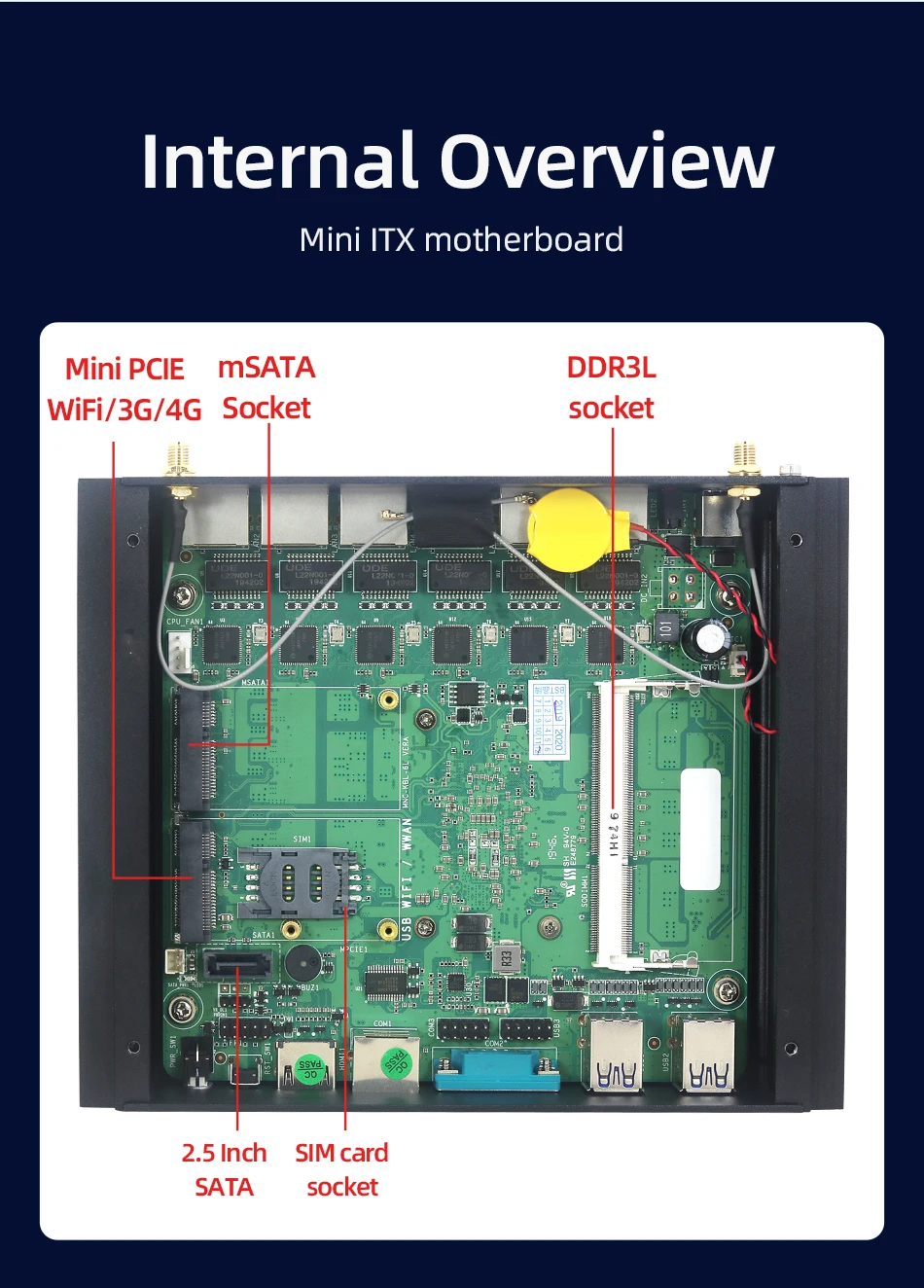

Storage
1x mSATA SSD socket ( Bundles install this type SSD)
1x SATA 2.5 inch HDD (highest data conversion rate SATA3.0)

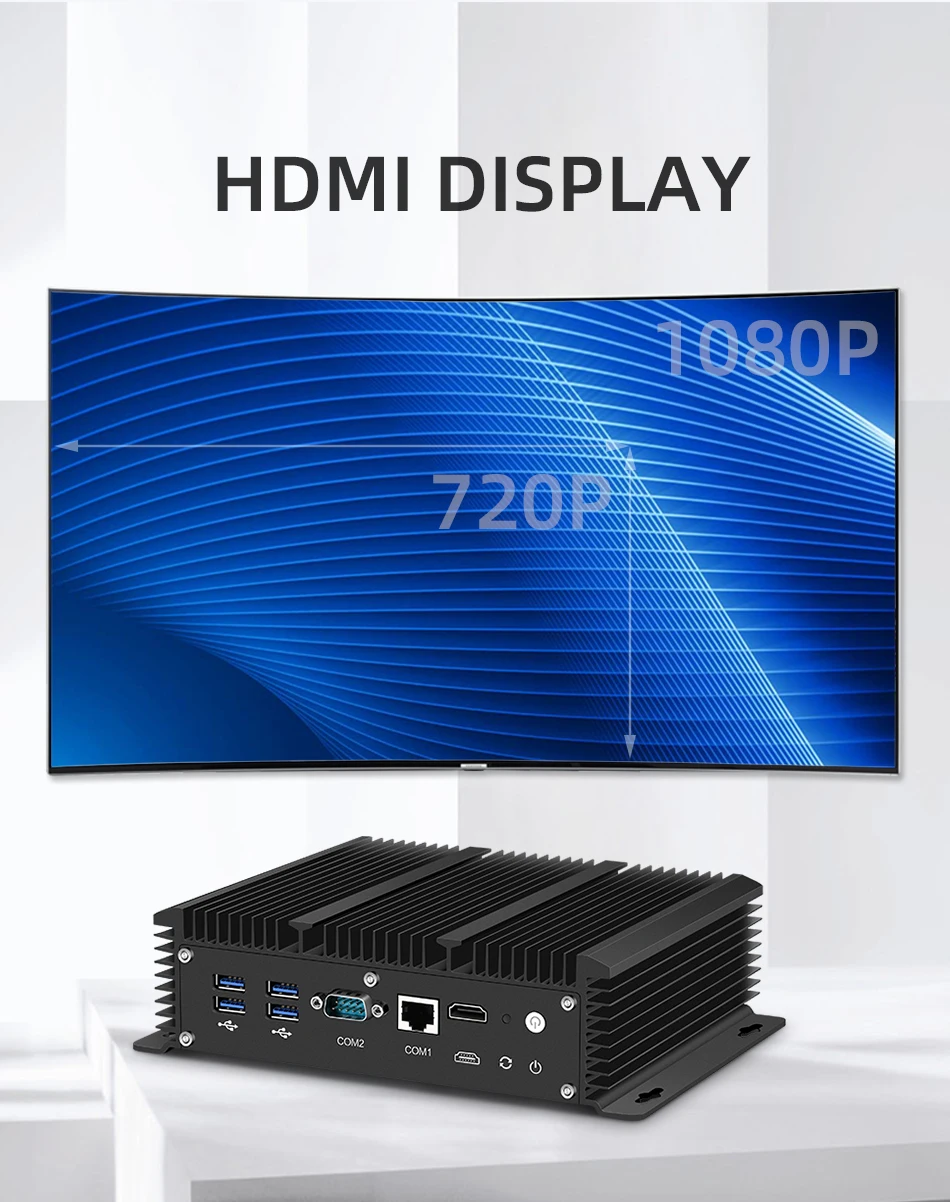

Display
1x HDMI
Max Resolution
1920x1080@60Hz(2955U/3865U/3965U/J1900/4417U)
4096*2304@24Hz (5405U/7100U/7200U/8145U/8265U)
Ethernet
6*10/100/1000 Mbps Intel 210at
Features
Supports Wake up on LAN, S5 RTC Wake Settings, PXE Boot, Restore on AC power loss.
WiFi Module
dual antennas,150M/300M,802.11.b/g/n

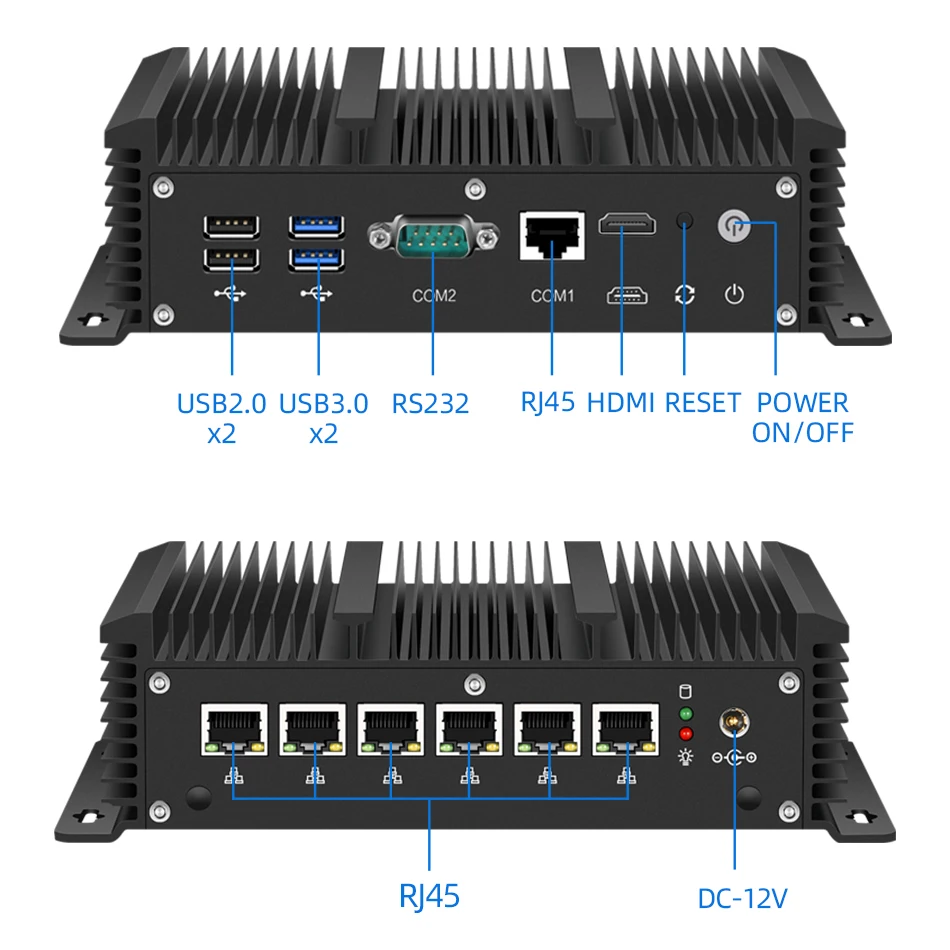

COM
1*RS232+1*RJ45
USB

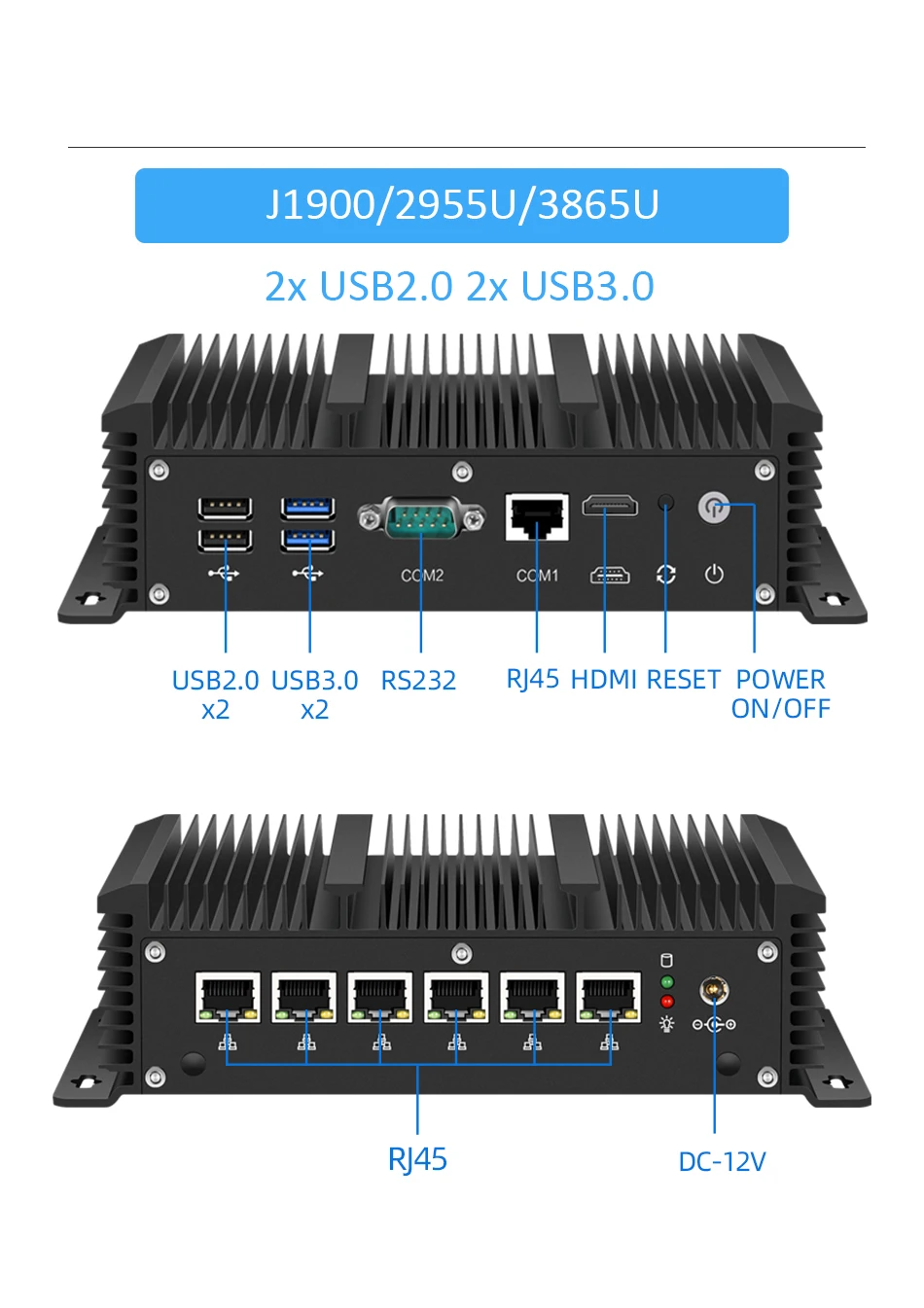

2*USB3.0+2*USB2.0(2955U/3865U/3965U/J1900/4417U/5405U)

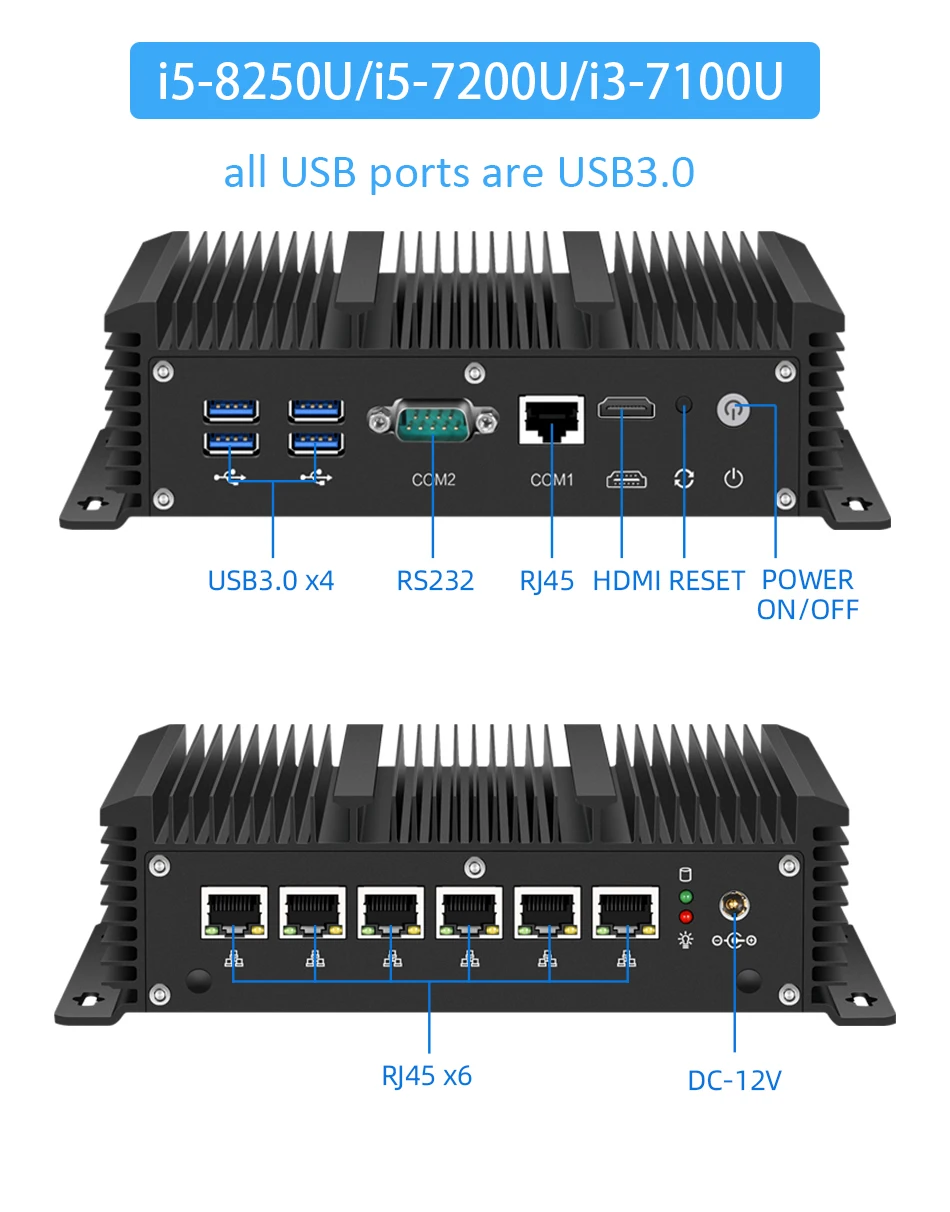

4* USB3.0 (7100U/7200U/8145U/8265U)

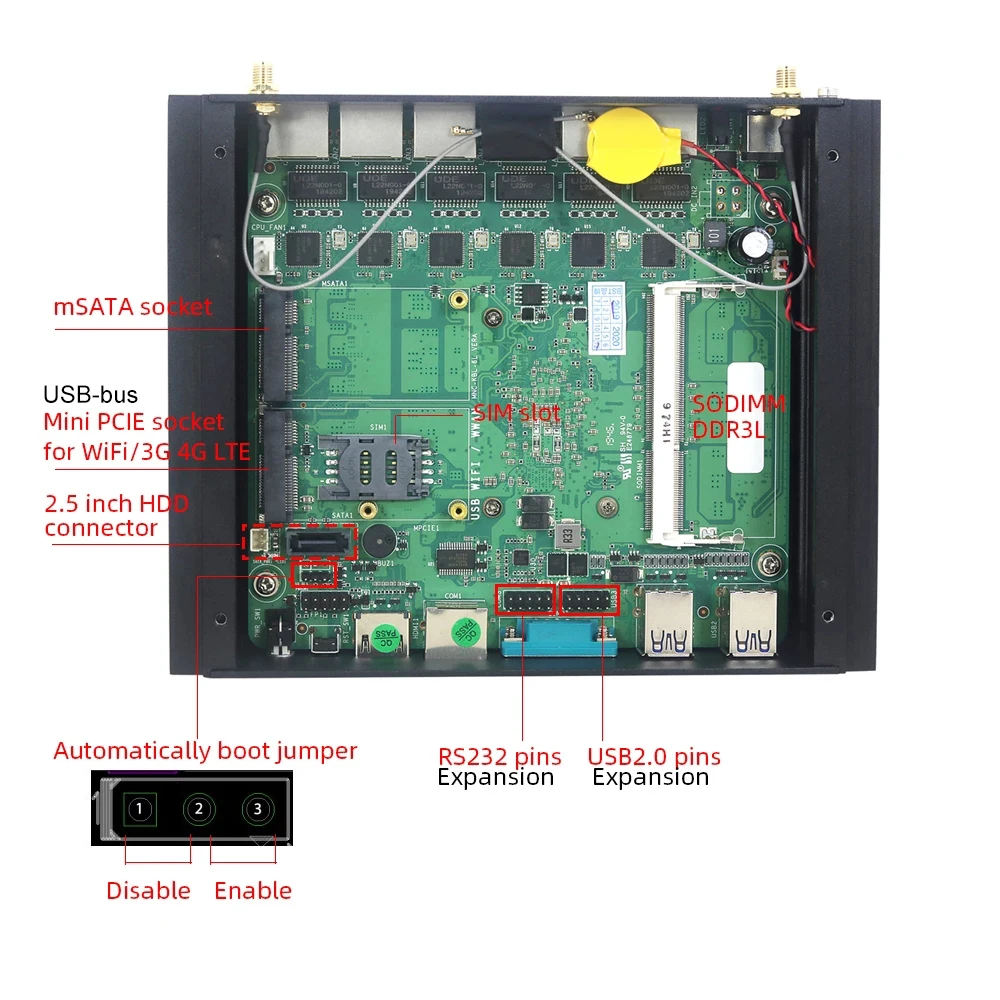

Extension
1* Full Height Mini PCIE socket for WIFI/3G/4G LTE
1* SIM card slot
Cooling System

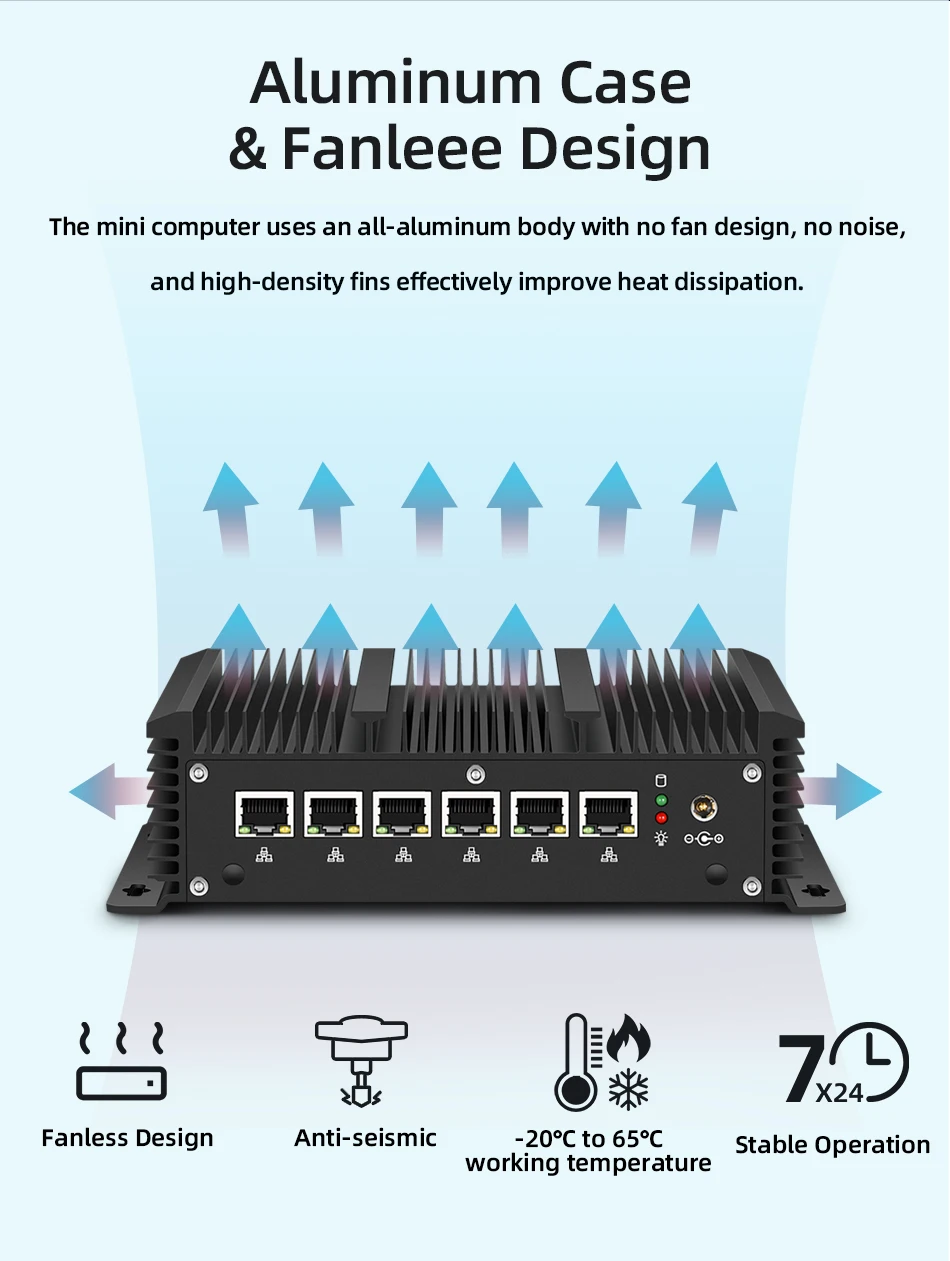

Fanless Passive Cooling with aluminum alloy chassis
OS Support

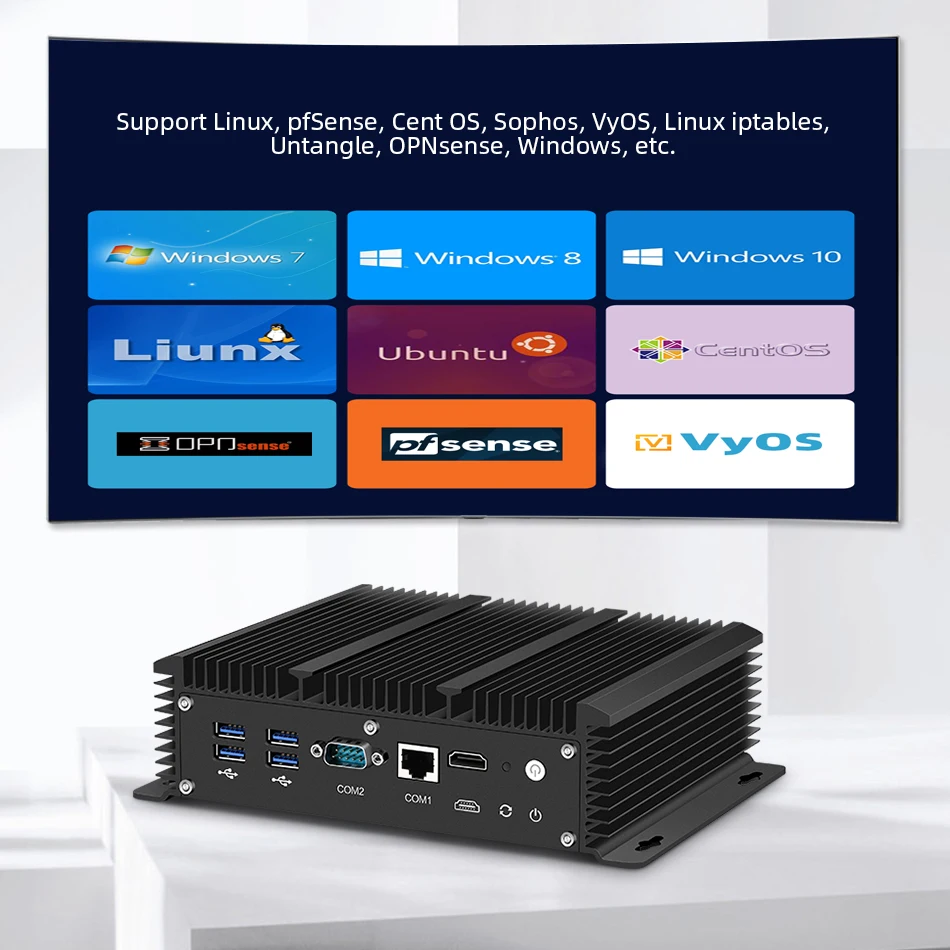

Linux/ ubuntu/ Centos/Windows/Pfsense/OPNsense/OpenWrt/SophOS...
Power Type
DC-IN5.5*2.5
Power Adapter
DC 12V5A/ 60W (AC TO DC, 100~ 240V)
Dimensions
209*149*54 mm
Weight
2.2KG
Operating temperature
-20℃~ 65℃
Operating humidity
5%-95% Relative humidity, no condensation
Package List
Mini PC x1
Power Cord x1 ( we send power plug type according to your address )
AC Adapter x1
SATA connection cable x1
User manual x1
