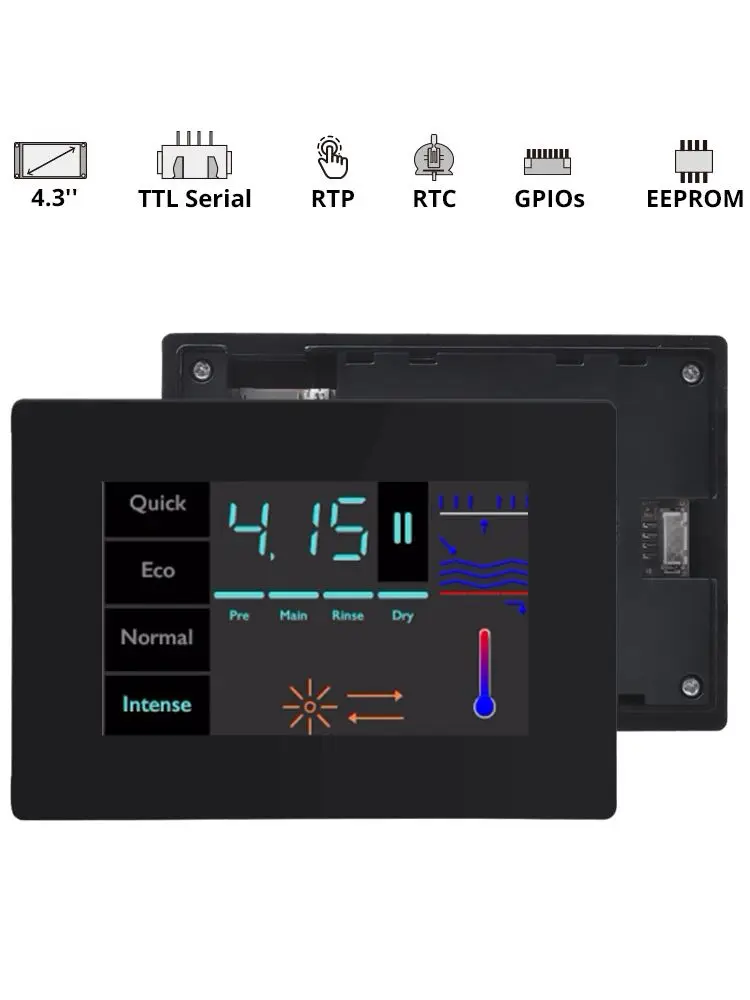

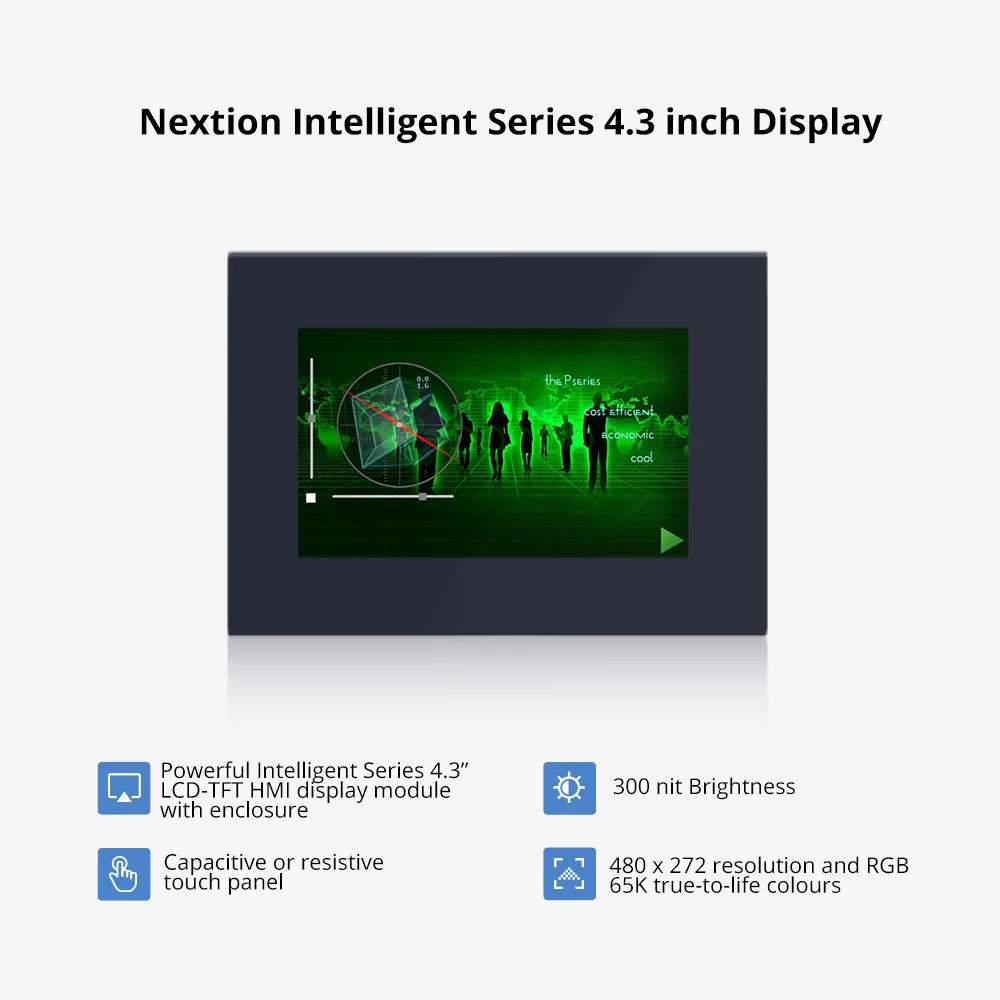

Интеллектуальные устройства Nextion P: NX4827P043-011R-YNX4827P043-011C-Y 4,3 дюймов, Резистивныйемкостный сенсорный экран с корпусом

Advantages this screens over the Enhanced Nextion K Series screens:

More powerful hardware in terms of MCU, flash storage and SRAMAbility to play audio, video and animation optionsSupports more advanced software features and functions such as transparent components, loading effects, drag and drop functionalities etc.

Compared to Basic T Series Nextion screen, this also has:

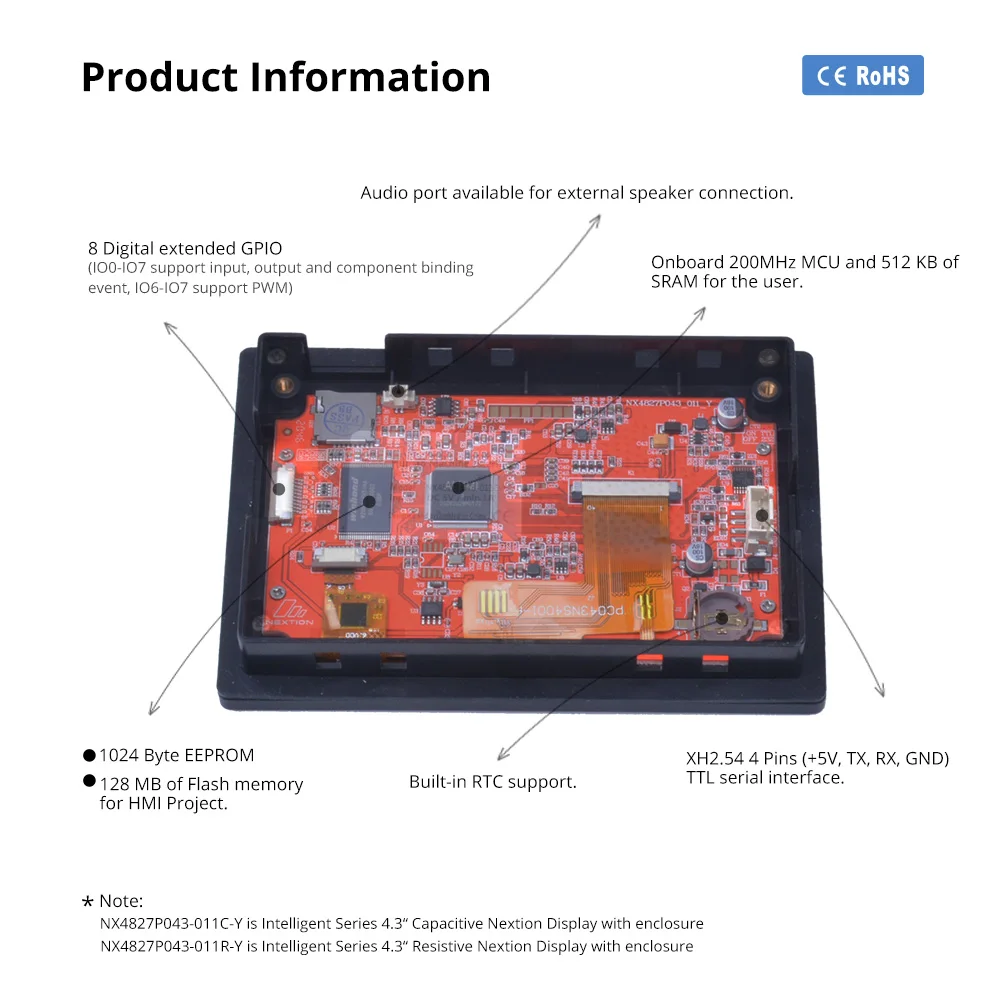

Built-in RTCData can be saved on flash memoryGPIO pins (1 PWM capable)Larger flash memory

Feature:

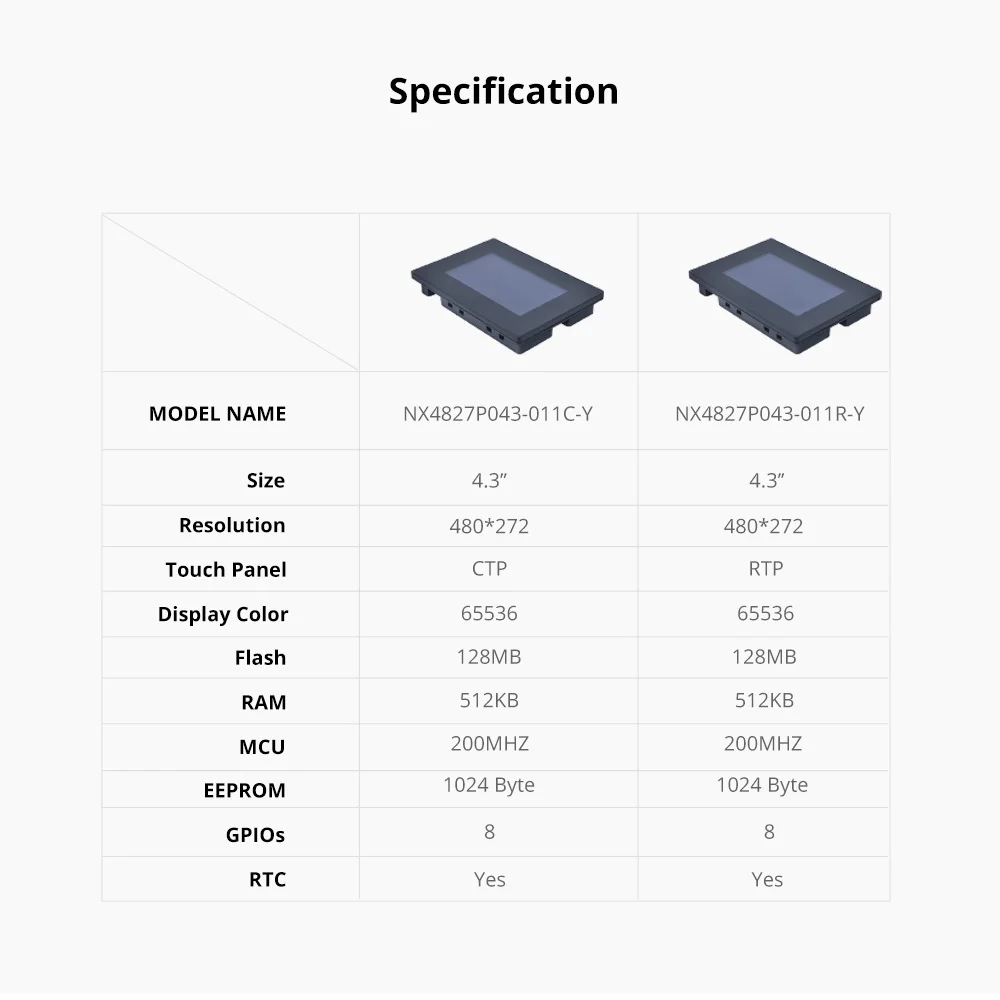

Compatible with Raspberry Pi A+, B+, Pi 2, Pi 3, ArduinoRGB 65K true to life colours Resistive TFT touchscreen128MB Flash memory for User Application Code and Data EEPROM: 1024 bytesRAM: 512 KBInstruction buffer: 1024 bytesInterface: XH2.54 4 pin TTL serial interfaceInput voltage: 4.7 - 7 V (5 V standard)Input current: 220mA (max brightness), 170mA (sleep mode). Recommended power: 5V minimum1ASpeaker: 0.5 watt rated capacity, Impedance of 16ΩScreen size: 4.3inchScreen resolution: 480*272 pixels Screen brightness: 300 cd/m^2,(0~300 nit, the interval of adjustment is 1%)Backlight lifetime (Average): >30,000 HoursOn board micro-SD card slot for program upgradation, FAT32. Suitable for up to 32GB SD cardMicro USB power supply plug Certificates: CE/EMC, RoHS

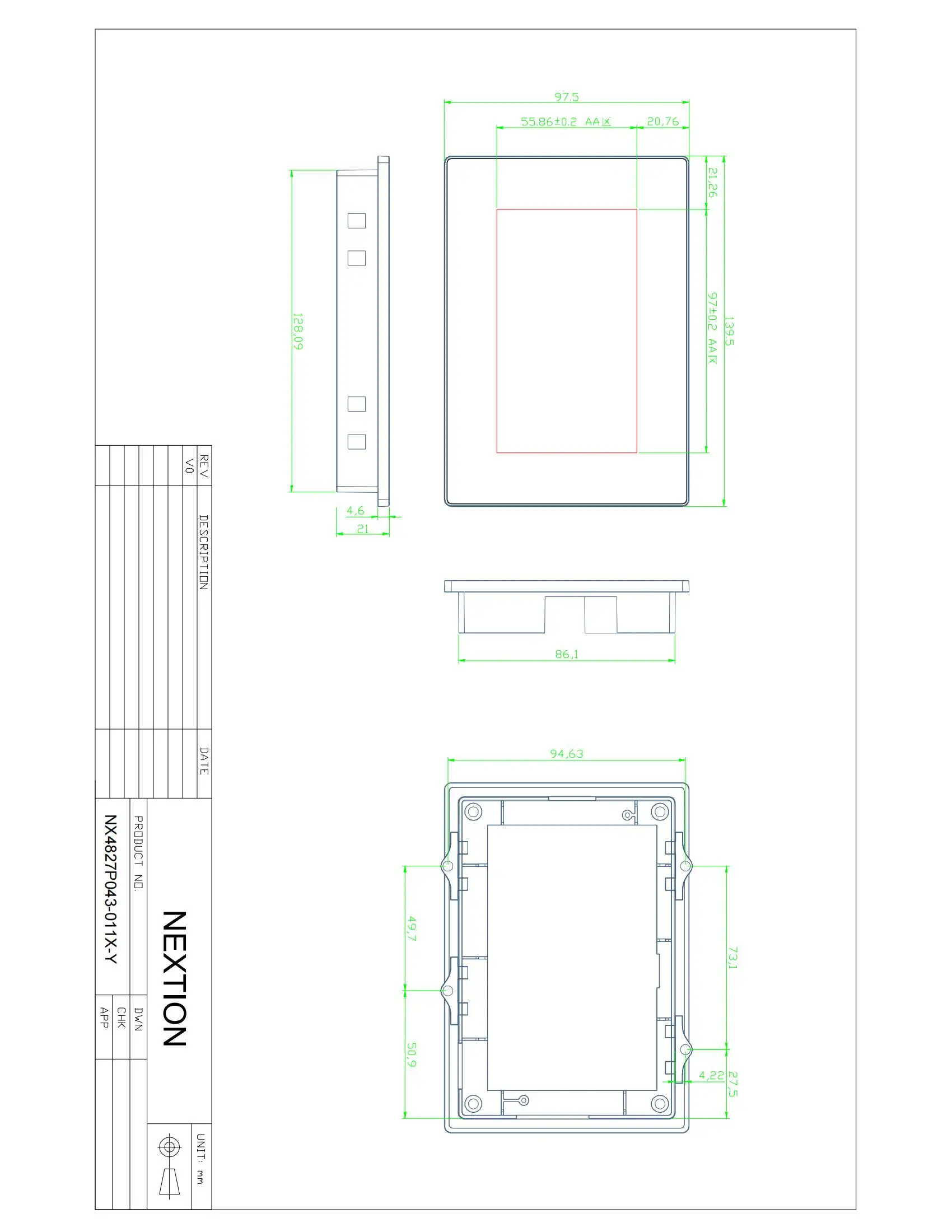

Dimension:

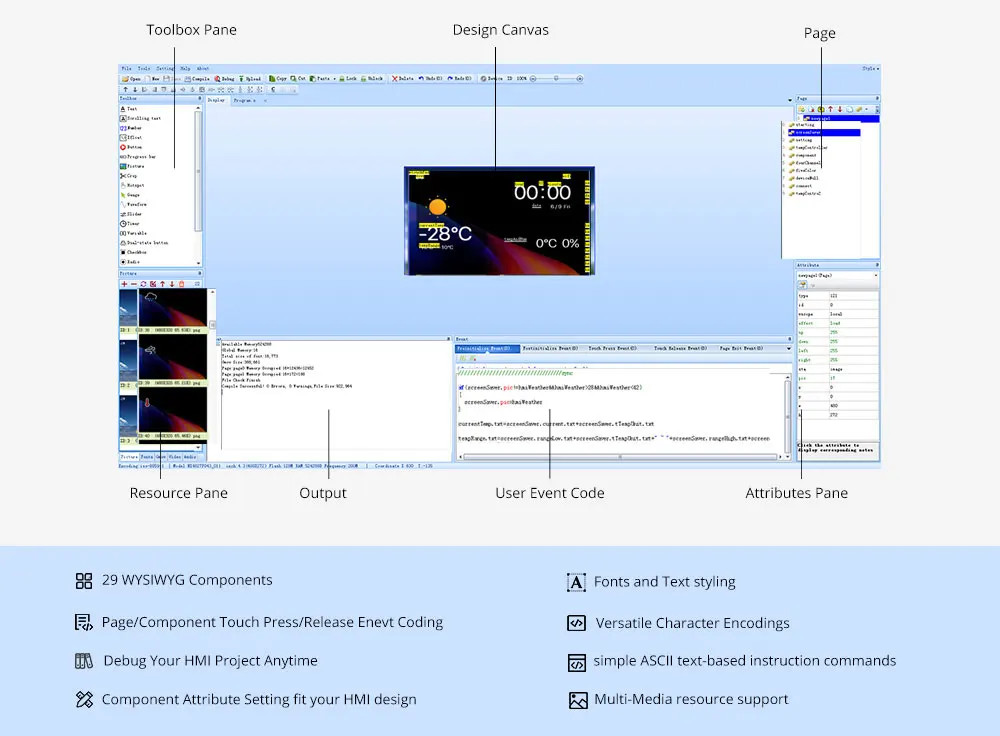

Nextion Editor

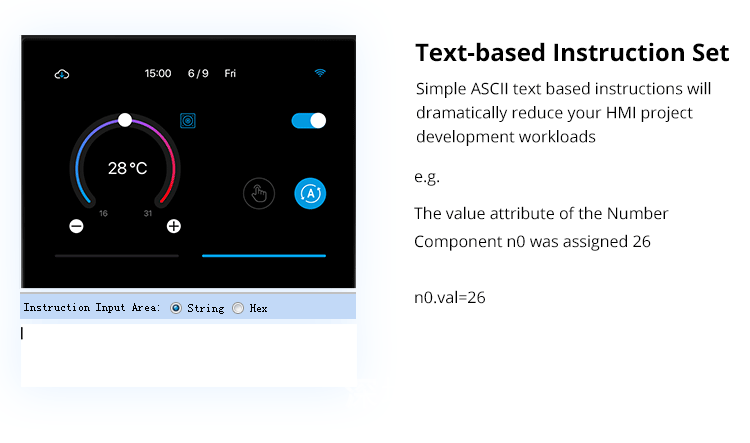

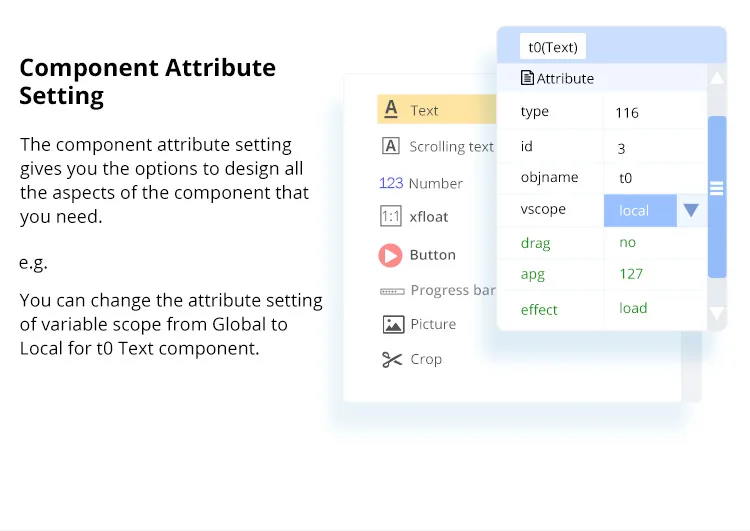

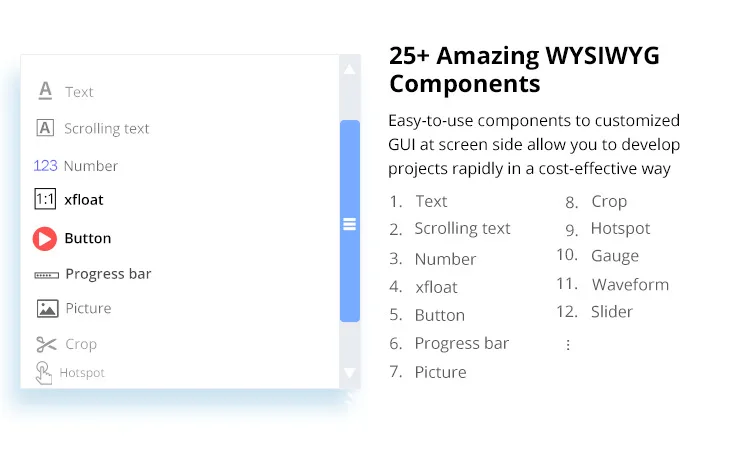

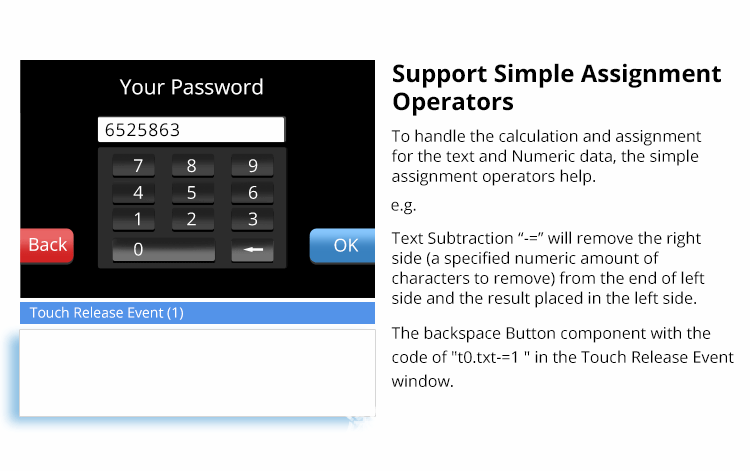

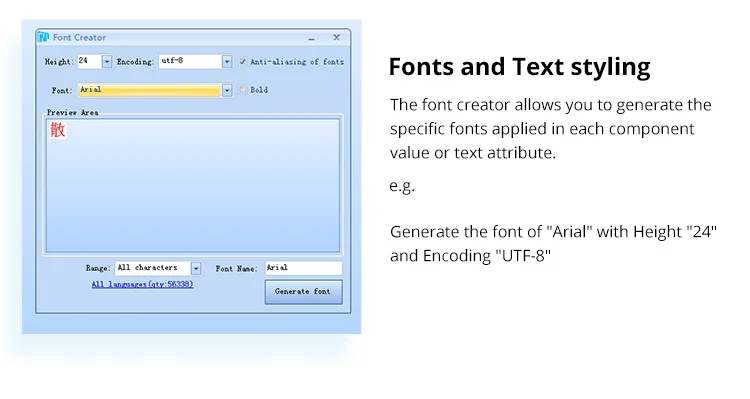

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.
