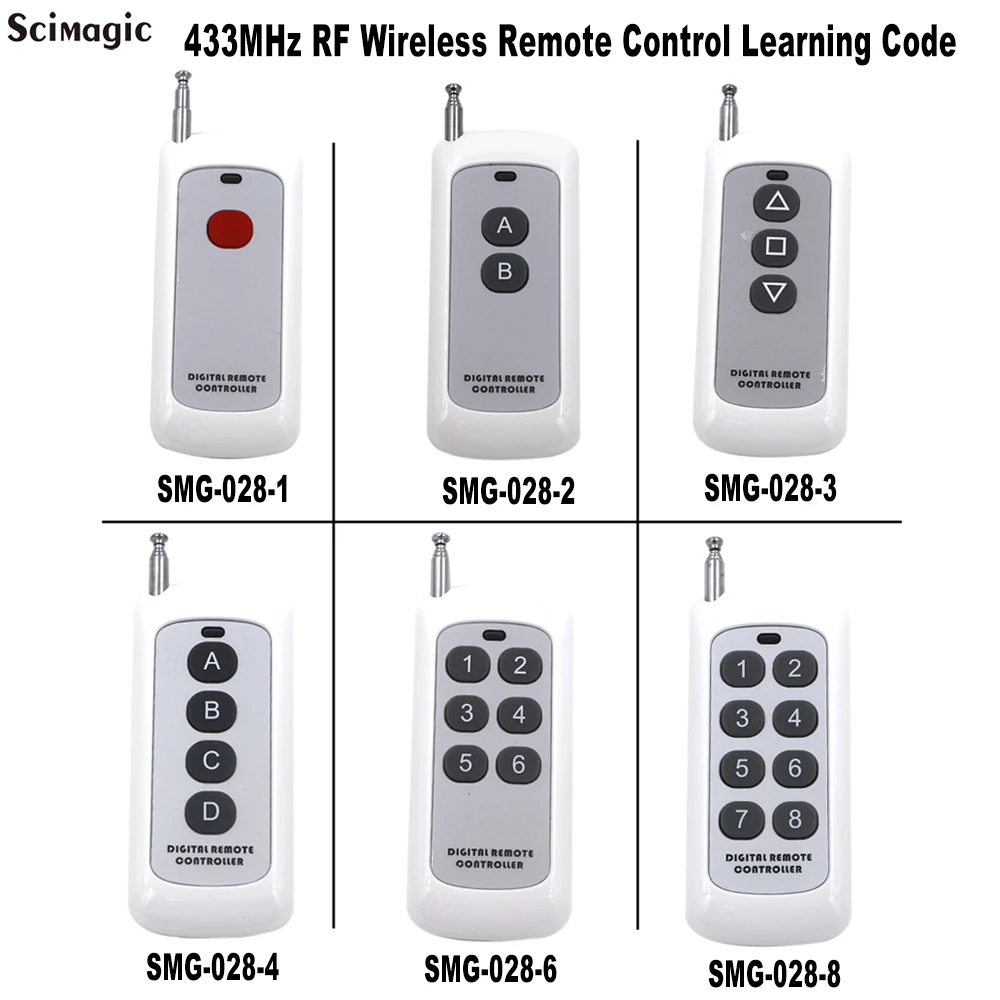

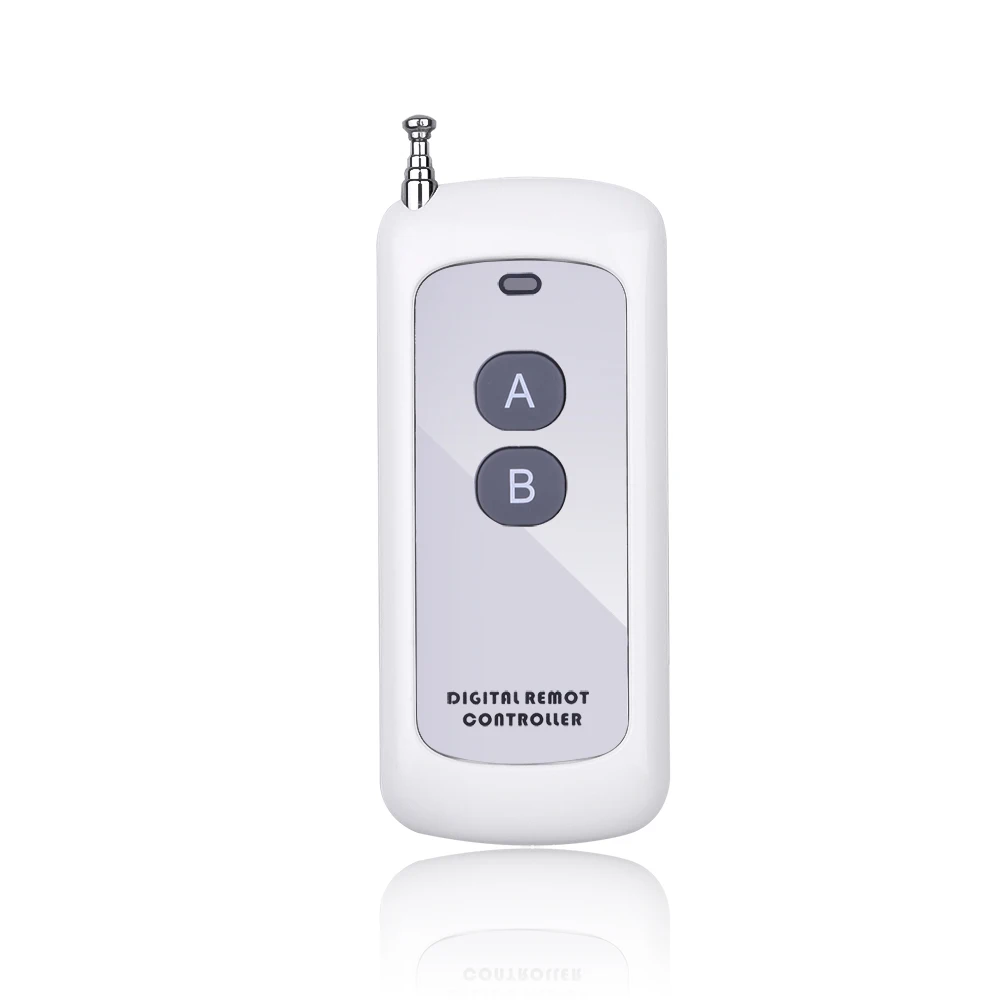

Antenna 1/2/3/4/6/8 buttons 433mhz Remote Control Long Range Wireless Presenter Controller RF Module Remote Control (learning code 1527)
Product Description
1. Working voltage: DC 12V2. Power Supply: One 23A/12V Battery3. Working current: ≤ 10mA4. Radiation power: ≤ 10mW5. Timing resistor: 4.7M6. Modulation mode: For ASK (Amplitude modulation)7. Working Frequency: 433mHz8. Transmission Distance: 1000m (It is the theory distance at the open field)9. Encoder type: learning code 152710. Size: 90×40×16mm11. Net Weight: 30g

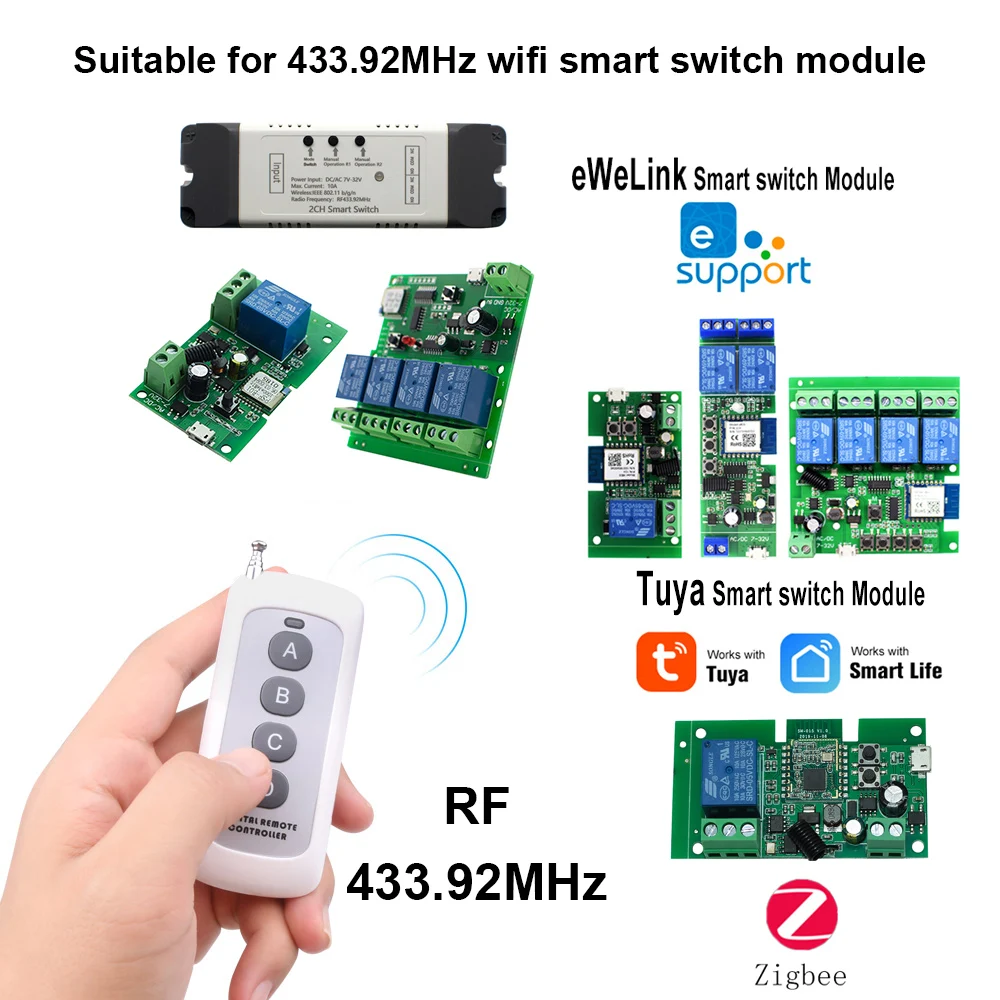

Work for wifi smart receiver module with RF function.
Work for Smart Life / Tuya Smart RF wifi smart receiver moduleWork for eWeLink RF wifi smart receiver moduleWork for Zigbee RF wifi smart receiver module
Feature:
1.Learning code encode, a good replacement for your current remote controllers.2.Remote Distance: about 150m (Theoretical value), Wireless coding technology, no direction, switch can be used even if across the walls,switch also not disturb each other.3.Can be applied to wide application areas, such as Vehicle central locking systems, Garage doors, Electronic gates, Electrical appliances, Car sunroofs, Heating systems, etc.4.Before buying, please confirm if the operating frequency, chip type and vibration resistance of your transmitter are in accordance with ours.
Package Included
1 x RF remote control (Battery is not included)1 x Remote control bracket
Pay attention:
This 433MHz transmitter only can be used with the learning code receiver, can not apply to the Rolling code receiver.This remote control only support the learning code (1527) of the receiver compatible with remote control using these chips: PT1527,EV1527, SCT527, HS1527, SCL1527, FP1527,EV1527
-
Encoder typeLearning code 1527
-
Modulation modeFor ASK (Amplitude modulation)
-
Name433.92mhz Remote control
-
Transmission Distance1000m Open field
-
Working voltageDC 12V 23A
-
Беспроводная связьРФ
-
Вес логистики0.060
-
Каждая упаковка1
-
Канал8
-
Минимальная единица измерения100000015
-
Название брендаScimagic-RC
-
НазначениеУниверсальный
-
Номер моделиLong Range Remote Control
-
Поддержка APPНет
-
Продано Вsell_by_piece
-
ПроисхождениеКитай
-
Размер логистики - высота (см)2
-
Размер логистики - длина (см)18
-
Размер логистики - ширина (см)12
-
СертификацияЕвропейский сертификат соответствия
-
УпаковкаДа
-
Частота433 МГц
