Лидер продаж! 4-осевой шаговый электродвигатель, 2-фазный шаговый Электродвигатель с приводом 4A 16 для подразделения TB6600 DD6600T4V2

Product Package:

1 x Stepper Motor Driver

Product Description:

DD6600T4V2 is a high sub-division two-phase step motor driver developed by many times’ optimization, which is suitable to drive the small and medium phase(the two or four phase current lower than 4A)hybrid step motor. Comparing with other driving mode, the new style bipolar constant current chopping driving technology enables the DD6600T4V1 output higher speed and power when you use the same motor. Its sub-division feature improves the motor operating accuracy, decreases the shaking and reduces the noise.

1.Features:

- High performance, low price- constant current chopping driving technology- Supply voltage 12~45VDC- high-speed optocoupler signal isolation input.- 150Khz chopping wave frequency- Subdivision accuracy : 1,1/2,1/4,1/8,1/16(choosable)- Input electrical signal TTL compatibility- Automatic current halving in rest- Easy to assemble in terms of appearance design- 4 axis stepper driver out- Maximum driving current4A- Could drive any two or four-phase hybrid stepping motor with 4A phase one time .

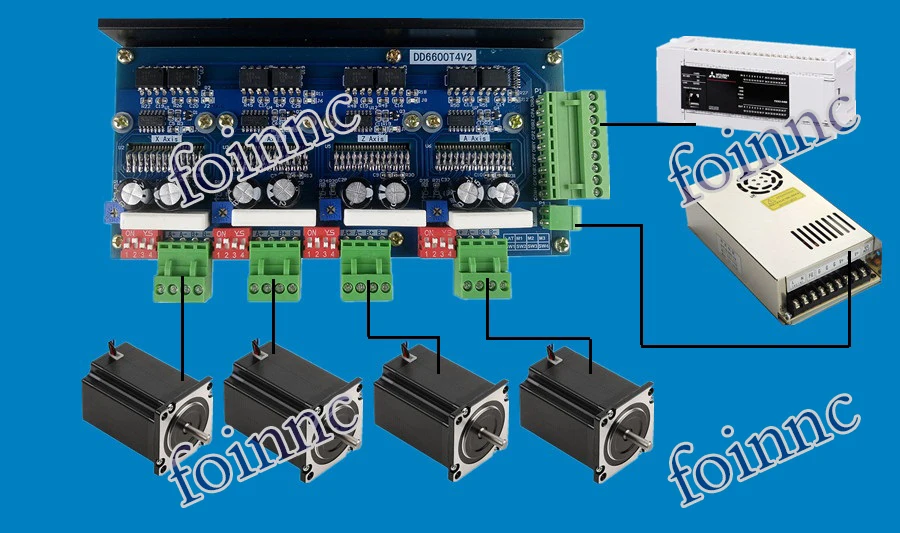

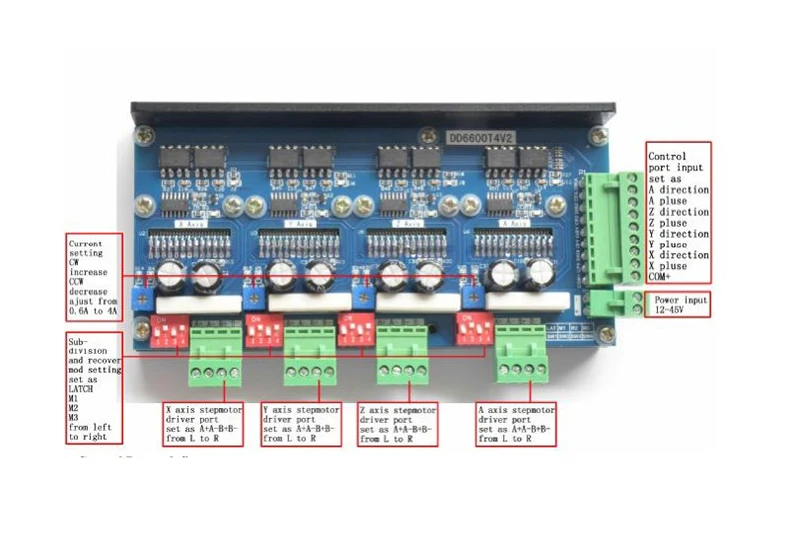

2.Product connection define and method
