VFD 0.75kw1.5kw2.2квт VF инвертор 220V однофазный вход 3-фазный 380V выходной преобразователь частоты

Dear buyer, please contact me if you need instructions.

Feature:

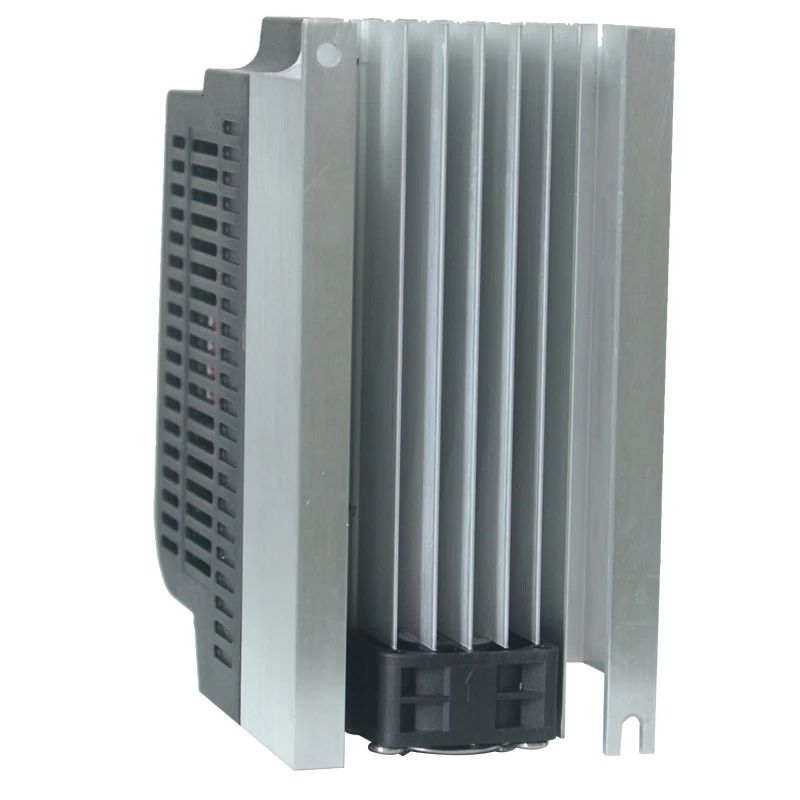

1. The frequency converter is 220v to 380v boost type, and the AC motor is controlled by changing the frequency of the motor's working power supply.2. Using high-quality core capacitors, chips and IGBT modules, stable performance and quality assurance.3. Adopts double‑layer board design, reasonable structure, safe, stable and reliable, and the failure rate is greatly reduced.4. Industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant and impact-resistant, and has good safety.5. Adopts all‑aluminum base heat sink, combined with imported powerful fan, super wind power, and good heat dissipation effect.

Function:1. The low frequency turns to short2. Non-inductive vector control3. Standard V/F control4. Multi-stage speed can be adjusted5. Built-in RS485 communication

Package List:

1 x Frequency Converter

1 x English, Russian, Spanish Electronic version of product manual (see customer service for request)

Note:

We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:

01 V/F control, vector control  and output torque control;02Built-in RS-485 communication interface03Compact size, easy to install;04With a speed potentiometer and external panel;05Built-in synchronous control and proportional synchronization control;0616 speed control modest,Can run automatically;07Can choice multiple running commands or frequency channel;08Can be achieve Part or all of the keys locked(Analog potentiometer unlock);09Relay normally open or closed and two high configuration output have 100 kinds of ways optional;106 digital opto-isolated inputs, 100 kinds of ways optional;113 analog input, 1 analog output channel;12Having textile pendulum frequency function, It can be widely applications for many kinds of textileequipment;13Built-in user timer / counter;14Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,pressure and tension.15At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brakefunction,instead foreign inverter application on freight elevator and crane.
