Низковольтный индукционный нагревательный модуль Zvs 1000 Вт, драйвер Flyback, Diy нагреватель M5i9

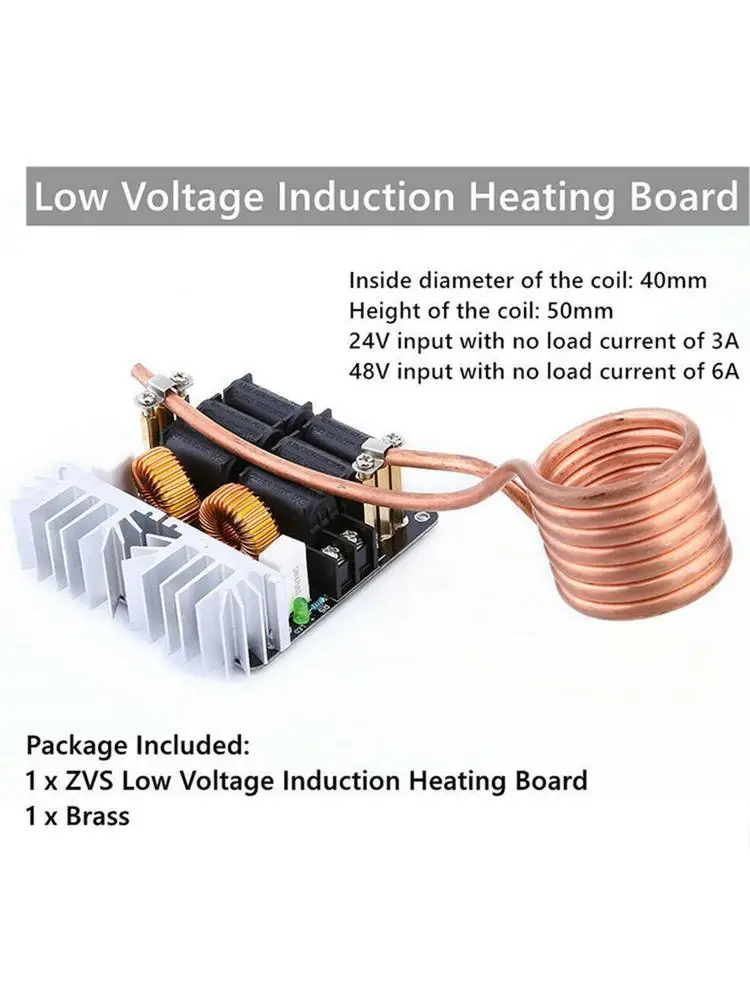

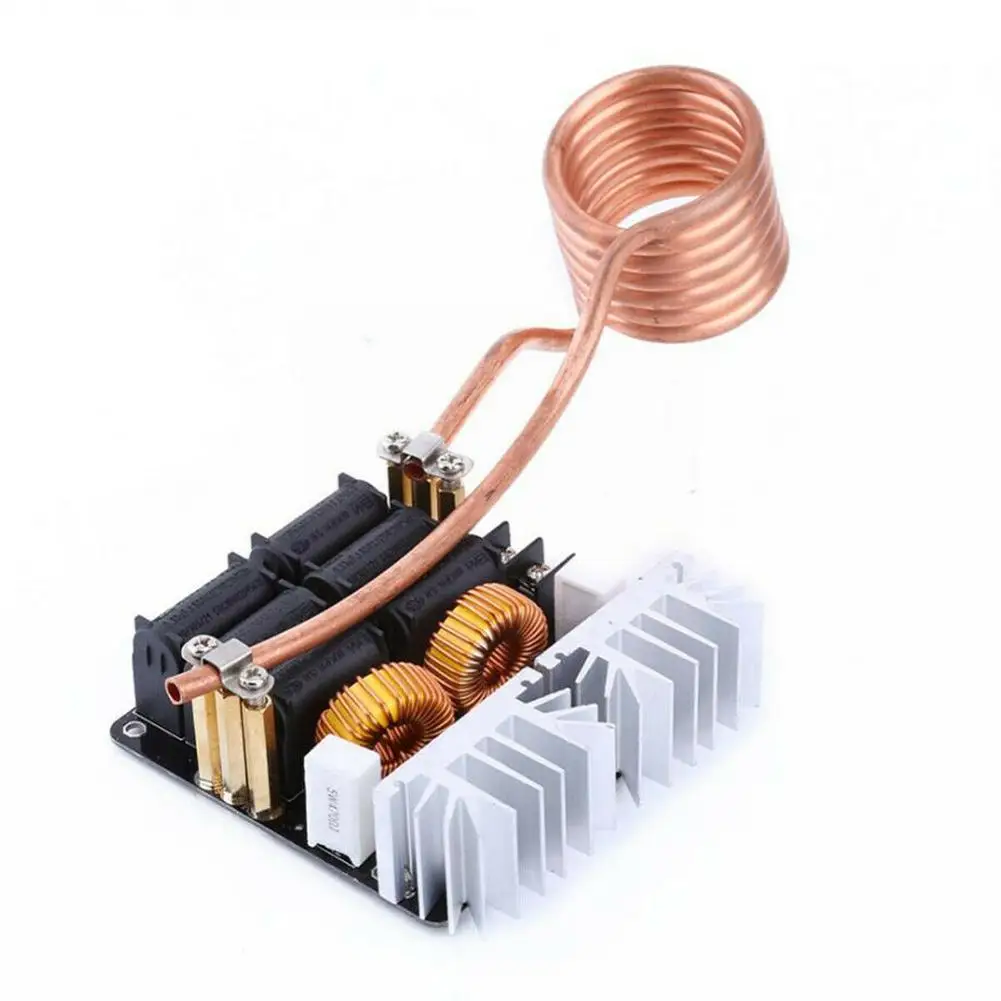

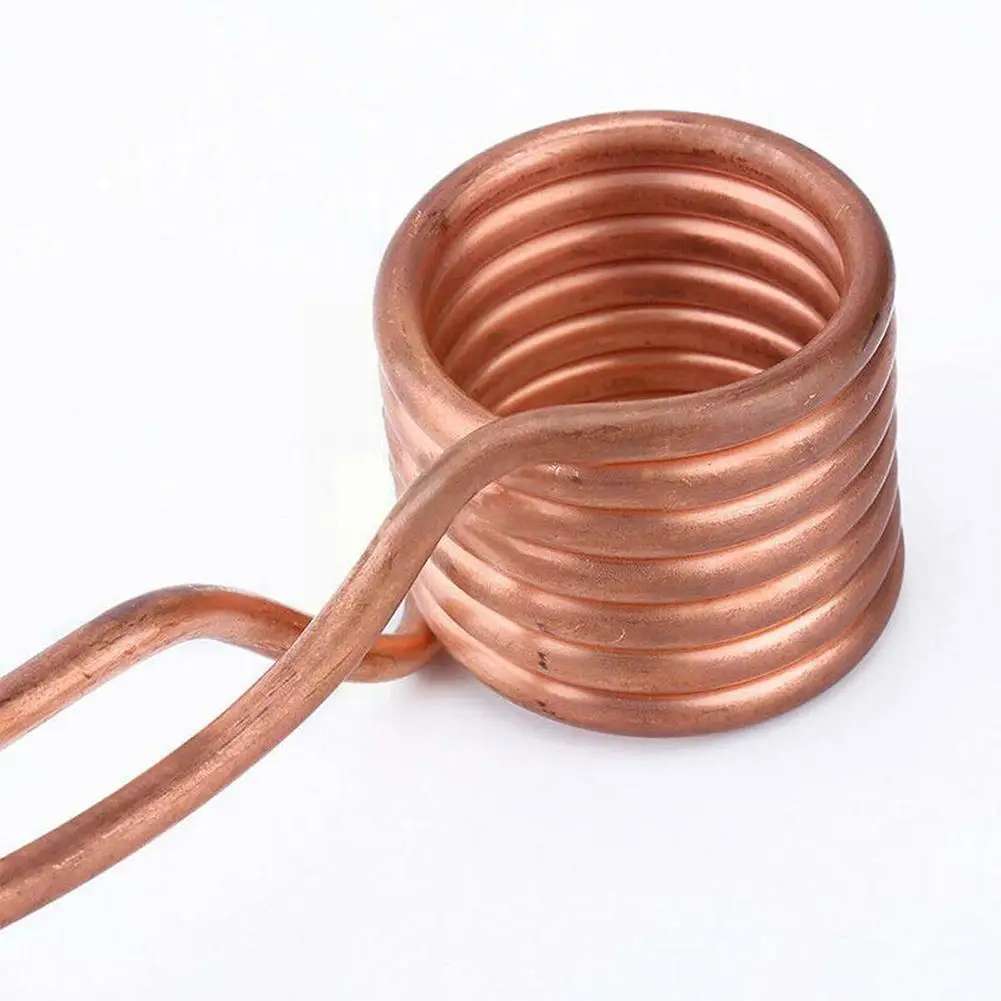

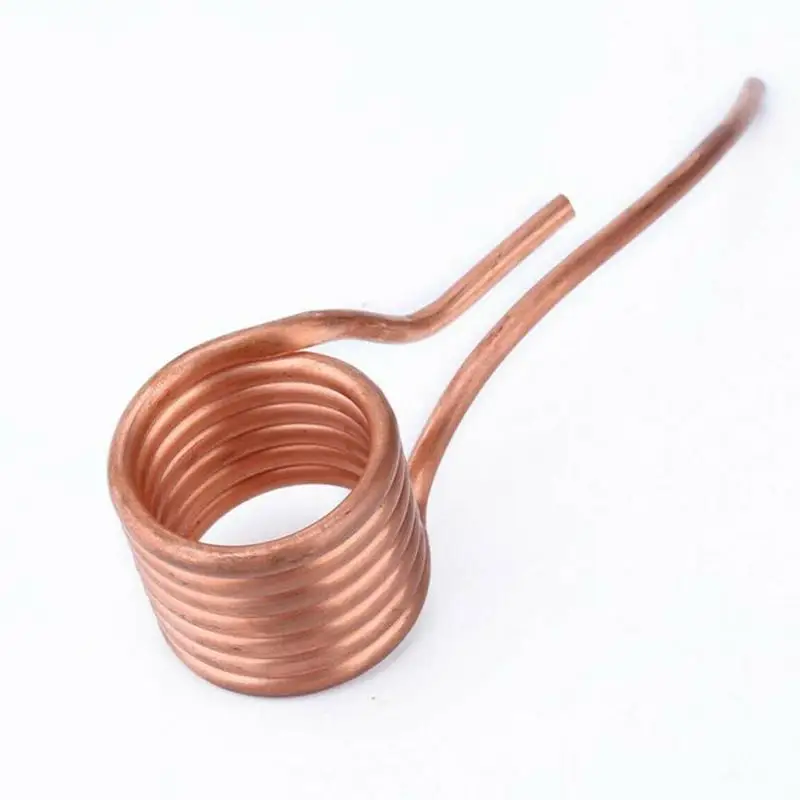

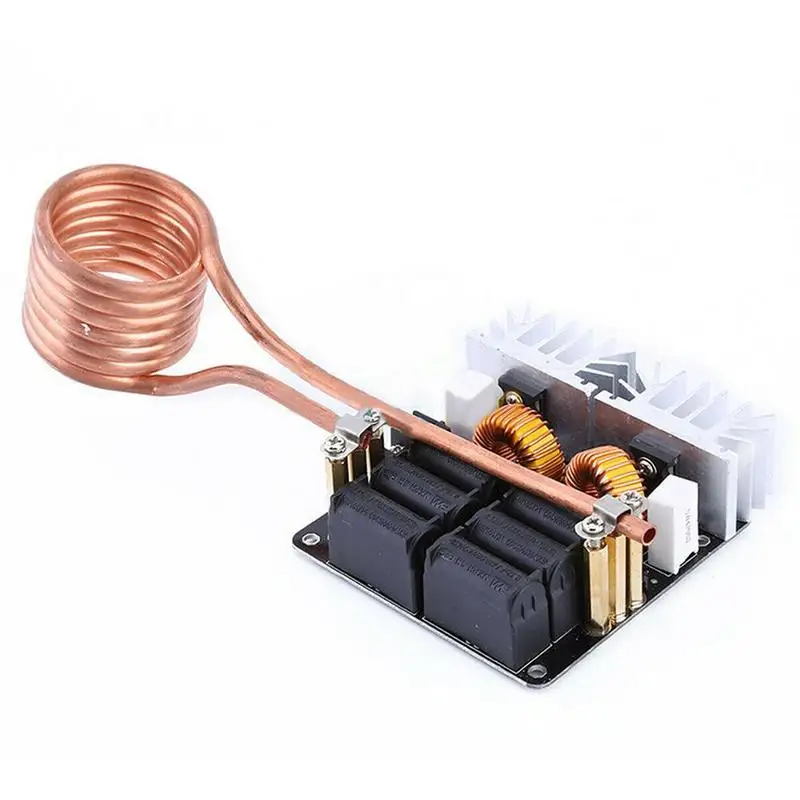

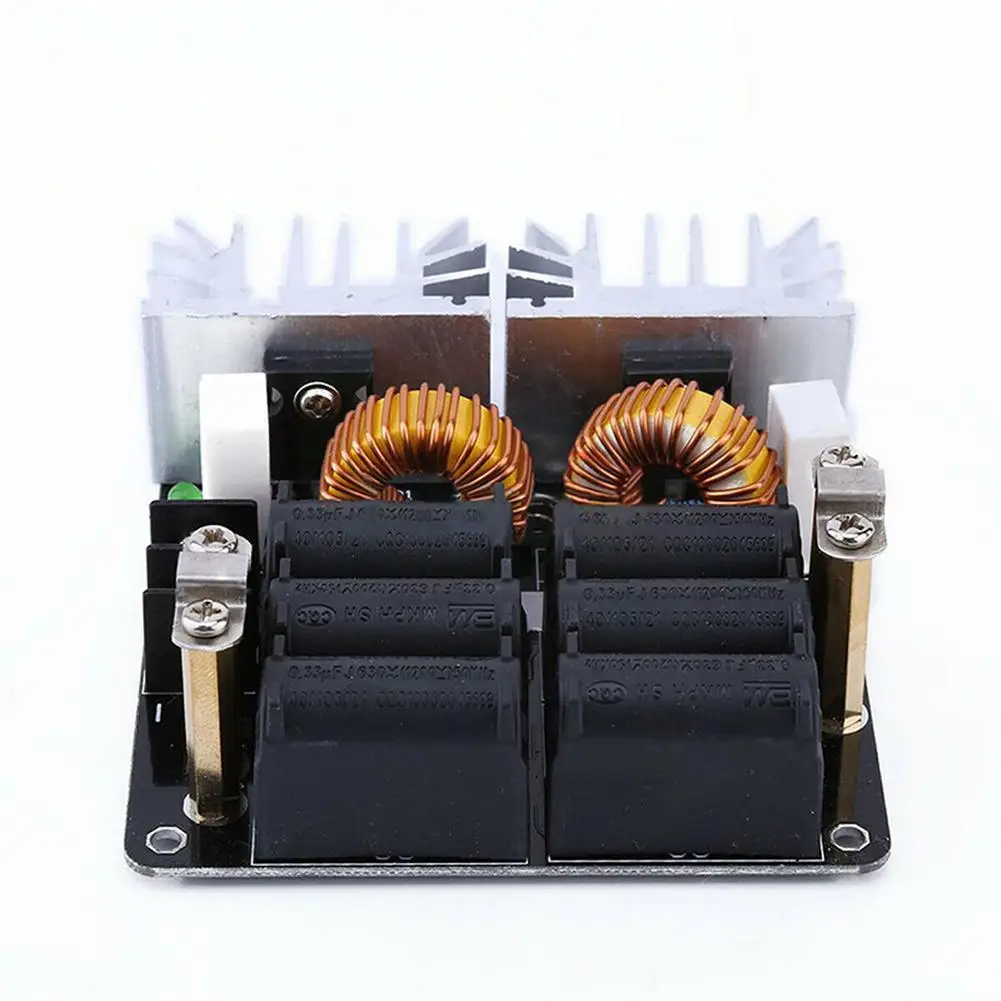

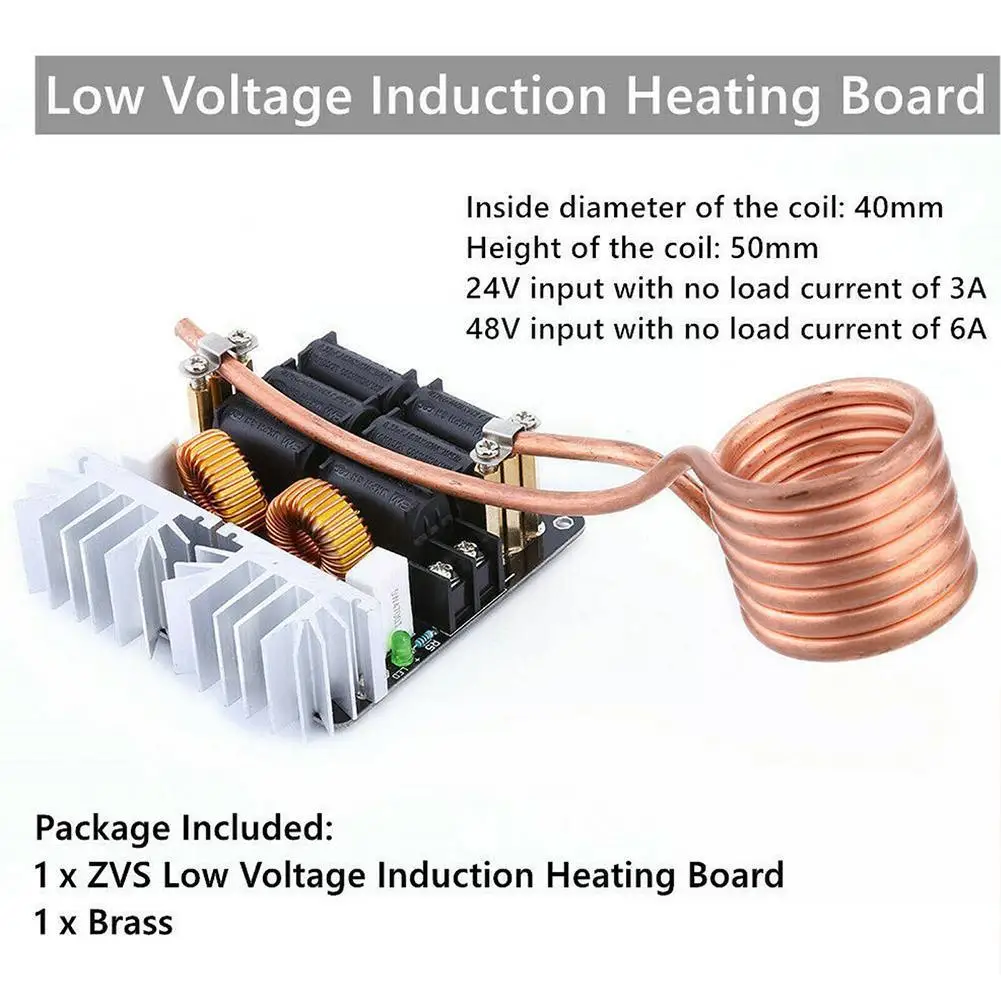

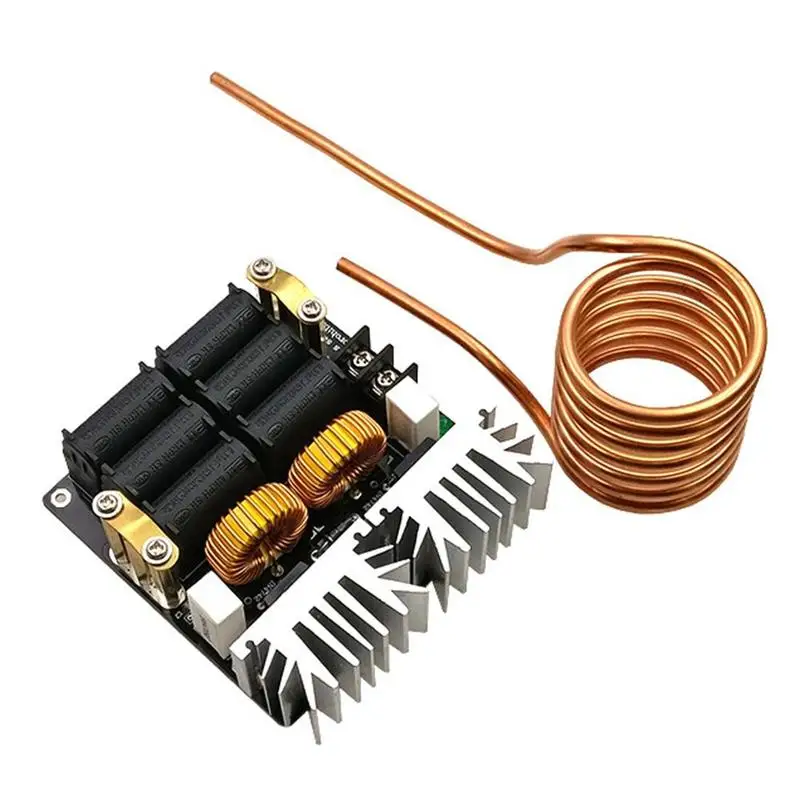

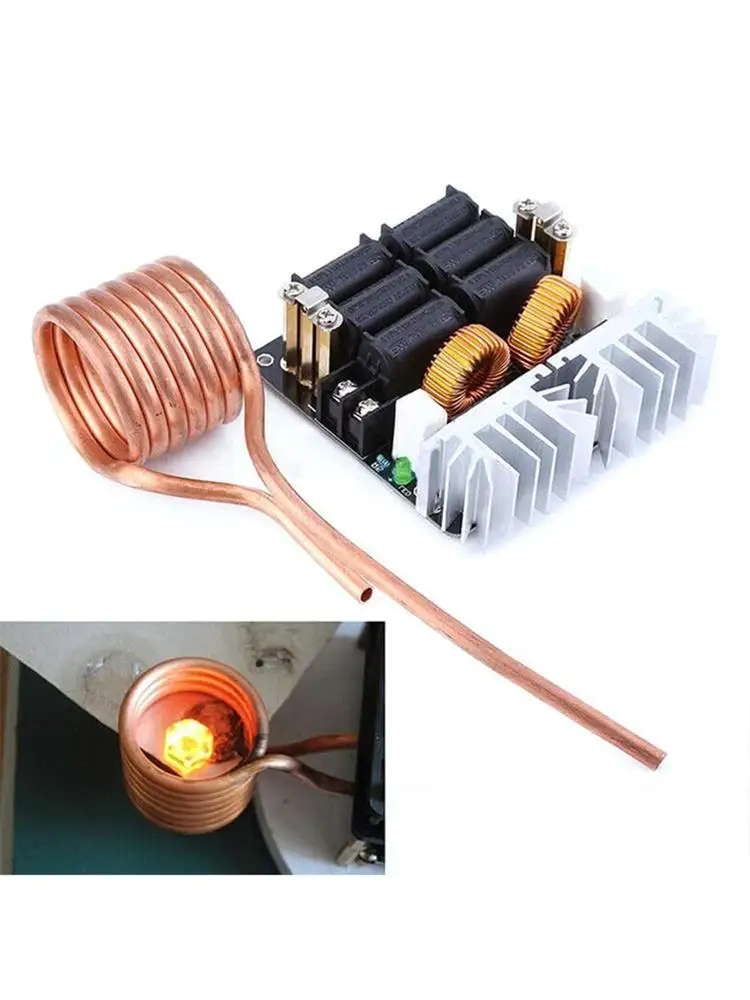

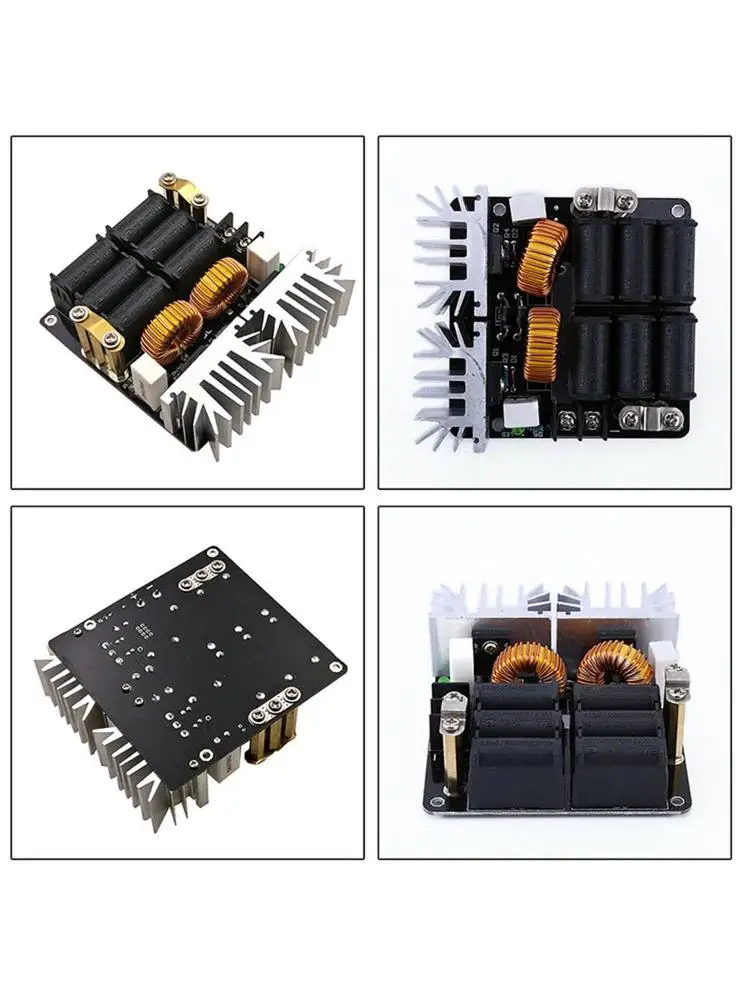

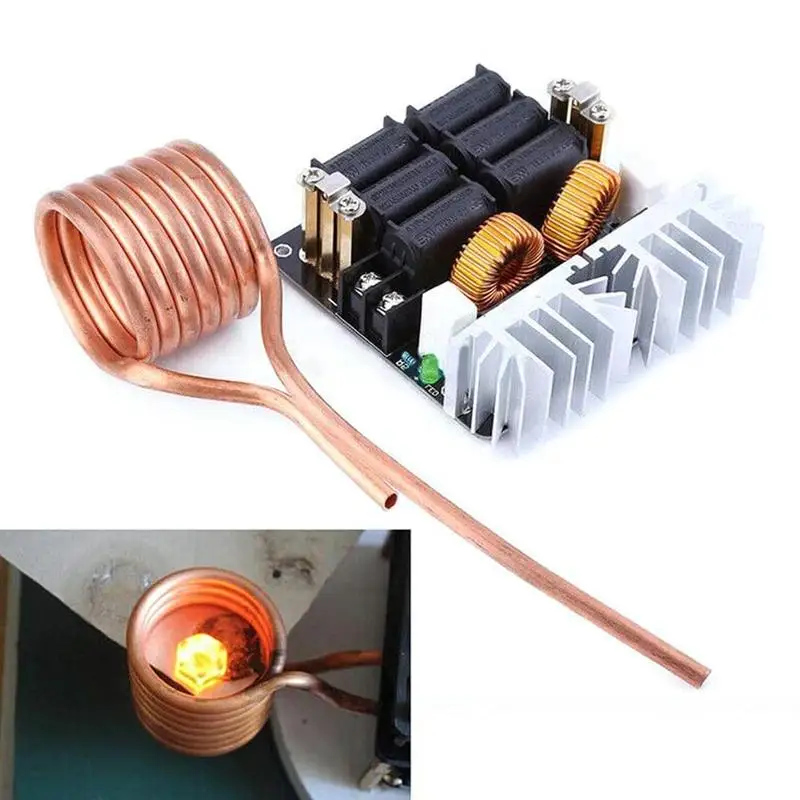

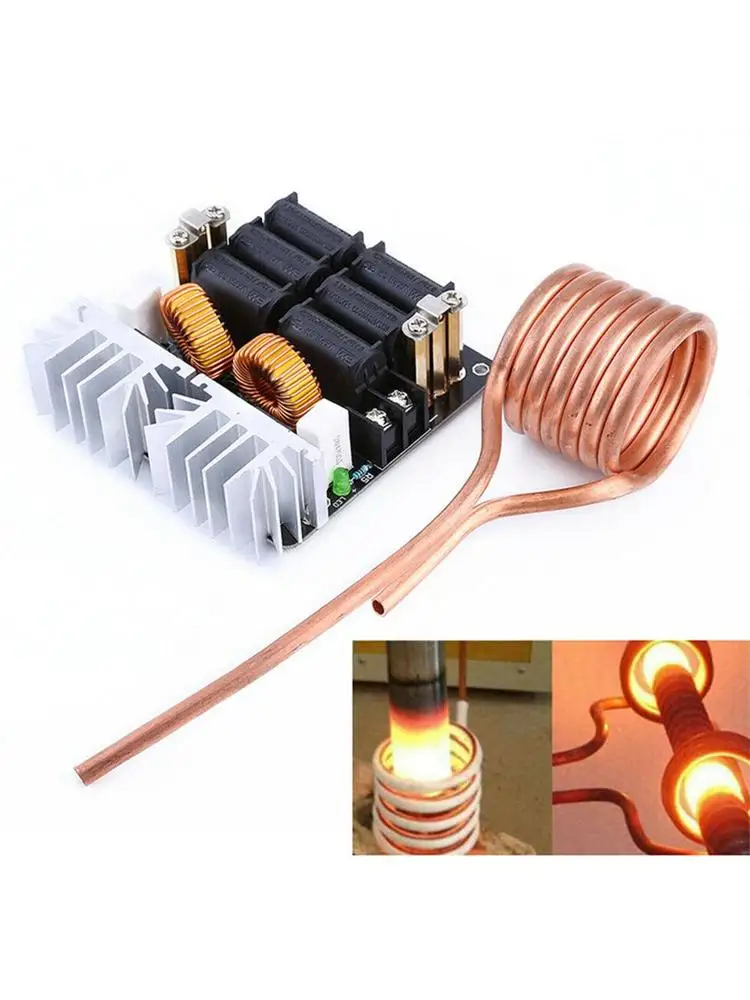

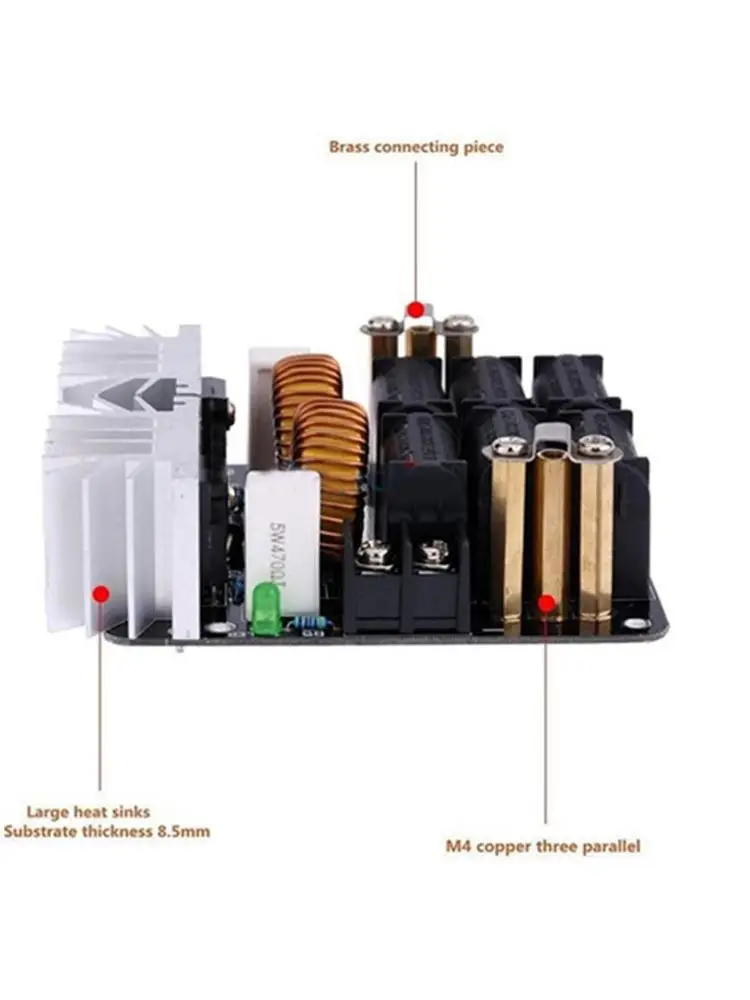

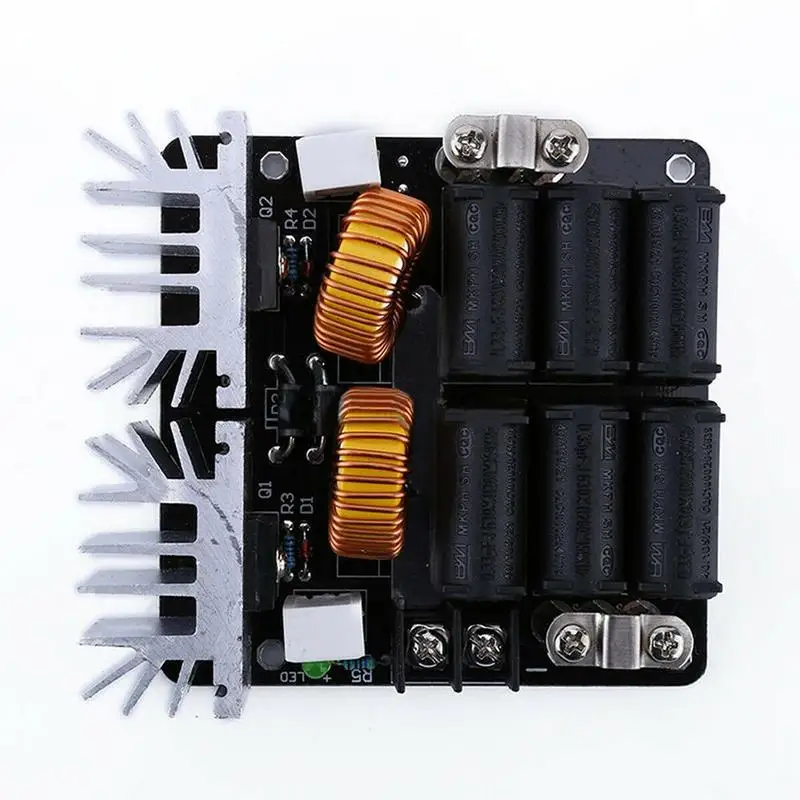

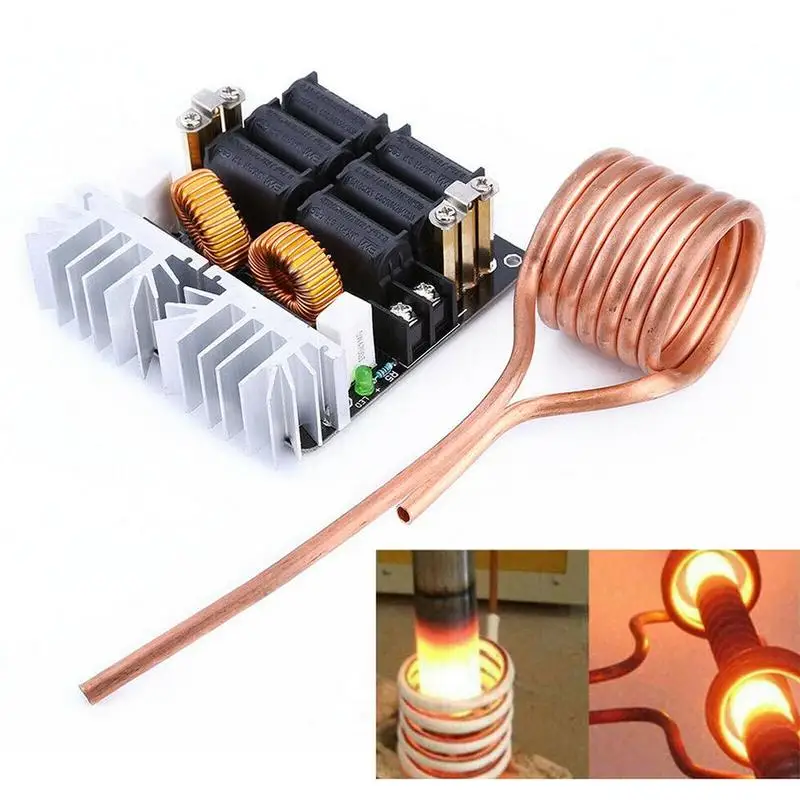

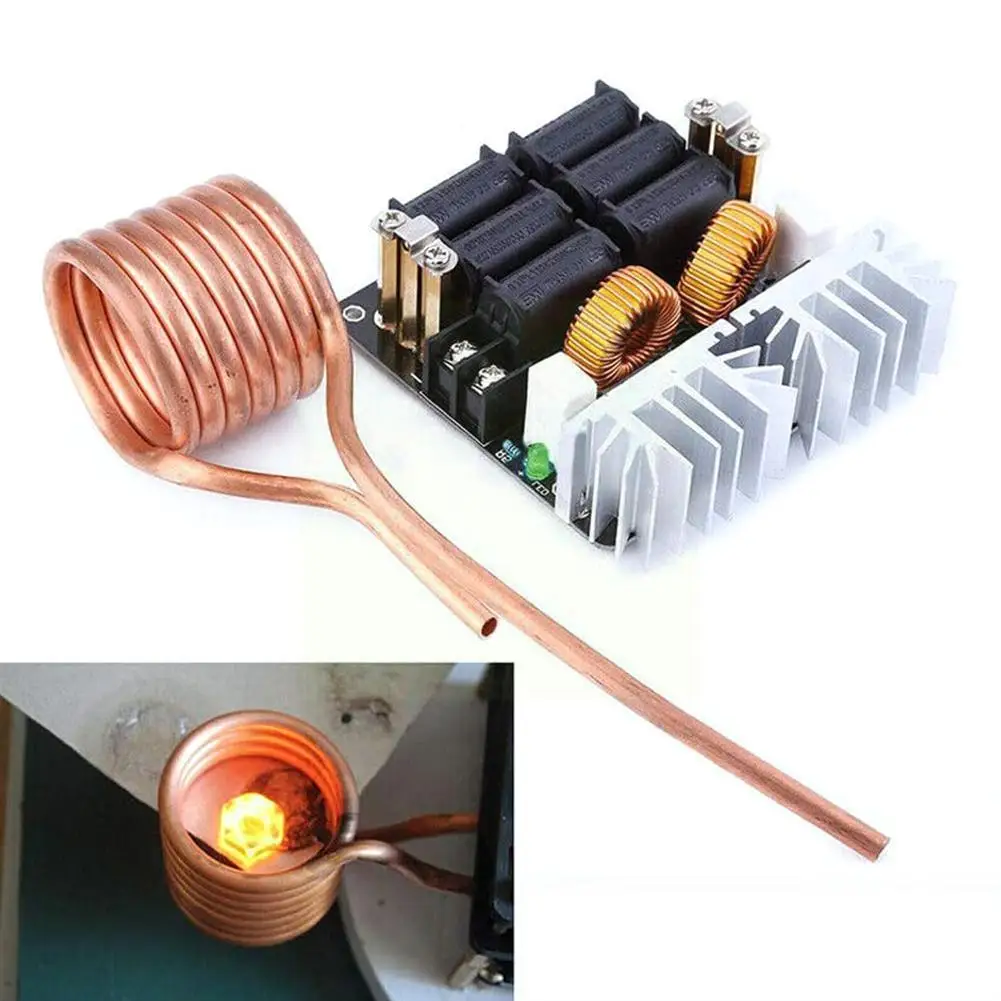

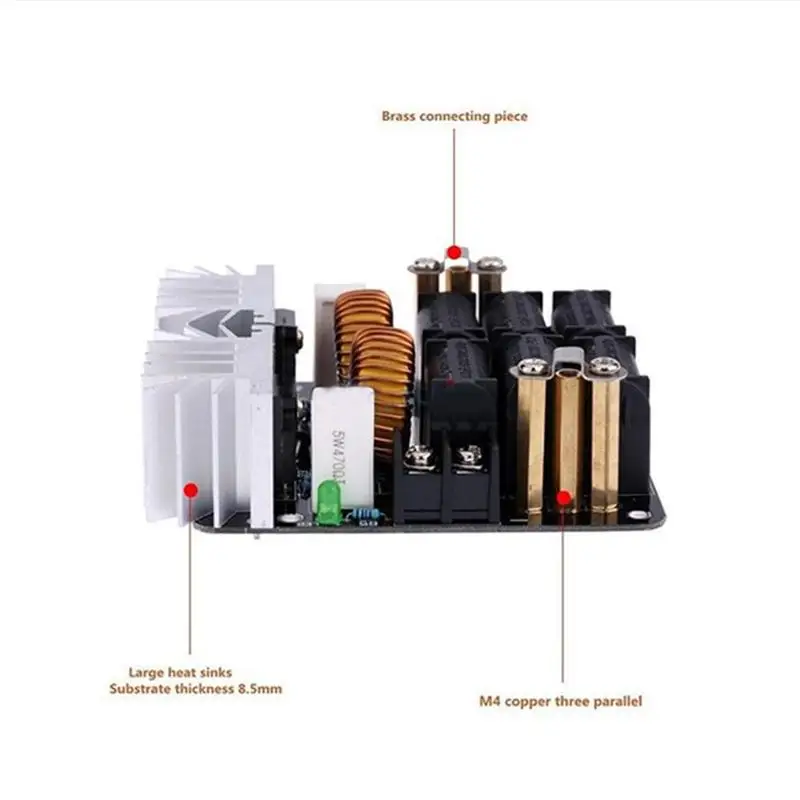

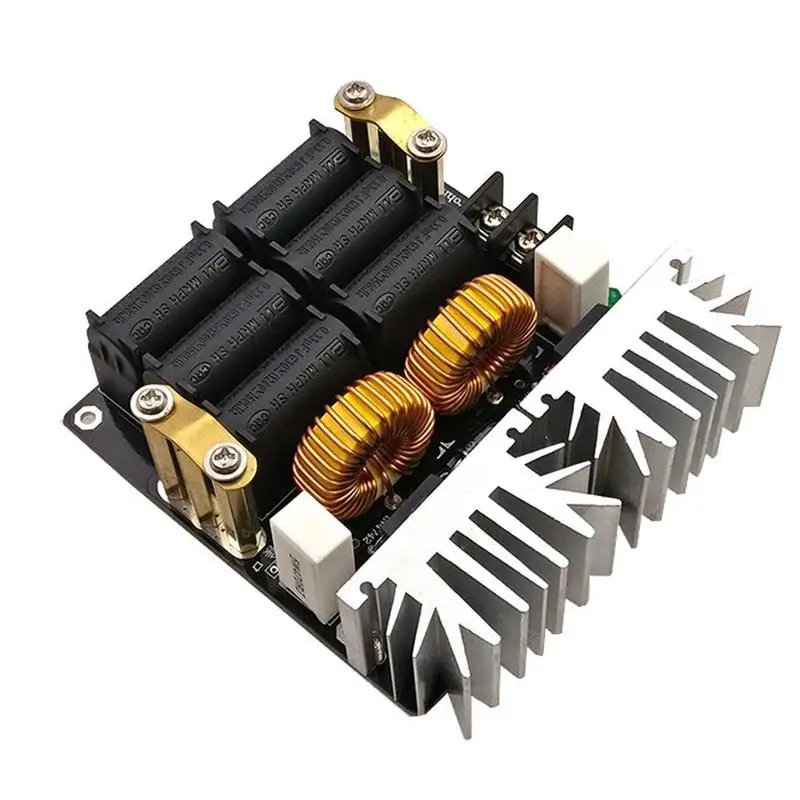

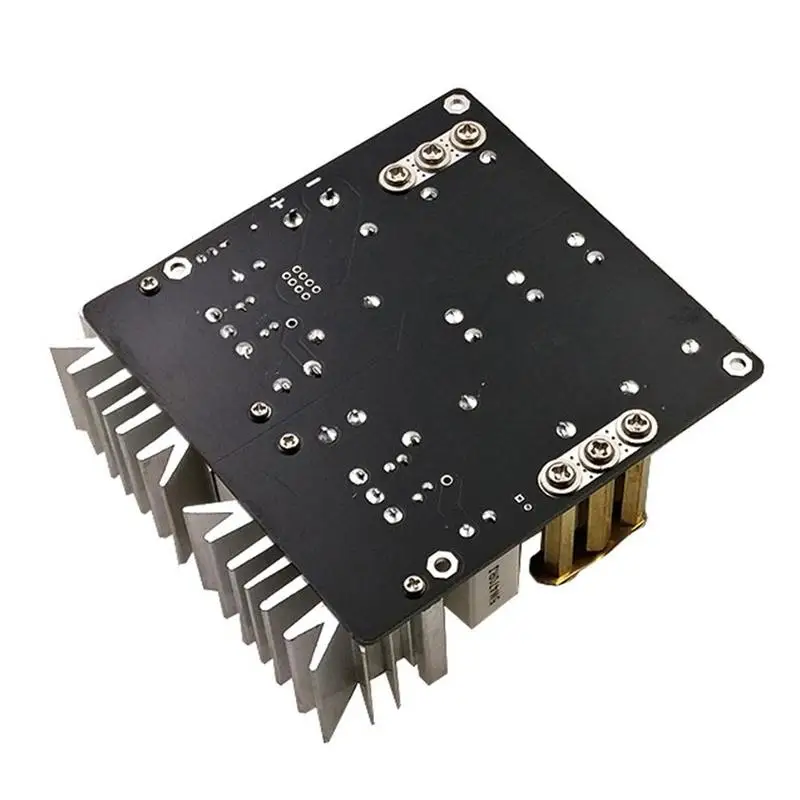

Description:Item type: toolThis section of induction heating using low-voltage DC power supply 12-48V.Maximum current 20A, maximum power 1000W.Tested 53V power supply when working properly.Because of its moderate power, can be used for small parts DIY players do hardening, annealing and other heat treatment.Also can be used with a graphite crucible melting gold, silver, copper, aluminum and other metals, uniform heating fast, very convenient.Inside diameter of the coil: approx. 40mm.Height of the coil: approx. 50mm.24V input with no load current of 3A.48V input with no load current of 6A.The higher the voltage, the greater the heating current when the same thing, the effect is better.But at the same time heat is also large, so to eradicate the actual situation to select the input voltage, the general use of the words 24V or 36V power supply is enough.It suits 12-36V power supply (not included).The coil accept 40mm crucible.Package includes:1 x ZVS low voltage induction heating board1 x brass coilNotes:Note:1: The kit contains a full set of driving circuit elements and brass2: Buyers need to bring their own power and cooling unit.3: The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool. 5: So the first will start switching power supply voltage reaches 12V above and then access the induction heating circuit.6: The volume of the object being heated inside the heating coil can not exceed 1/5 of the volume (if the heating cylinder, then heating coil diameter less than the diameter of 1/3), or it may be due to overload or burn out the power supply to the circuit.
