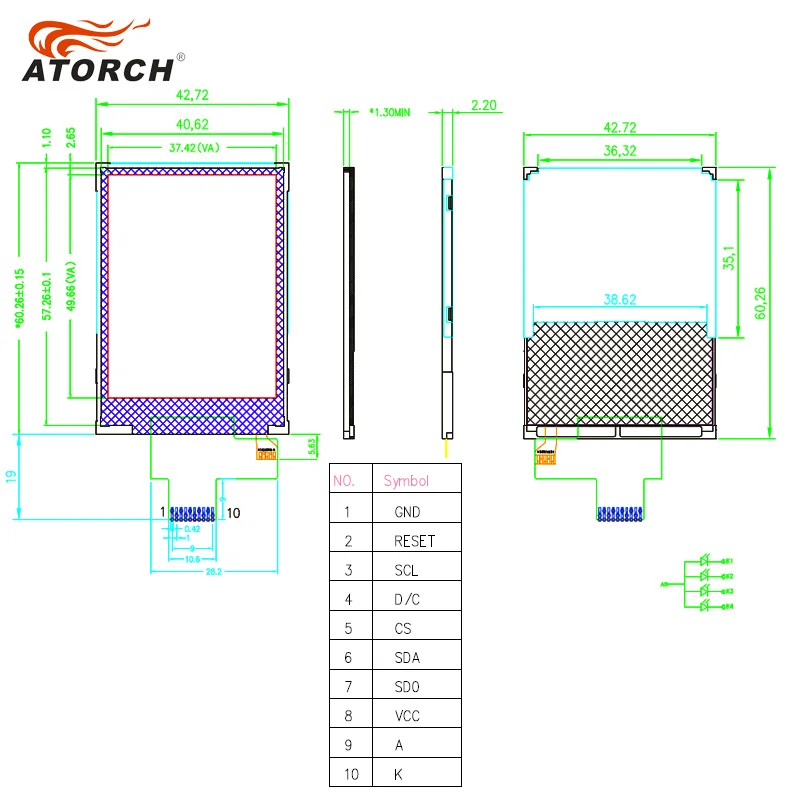

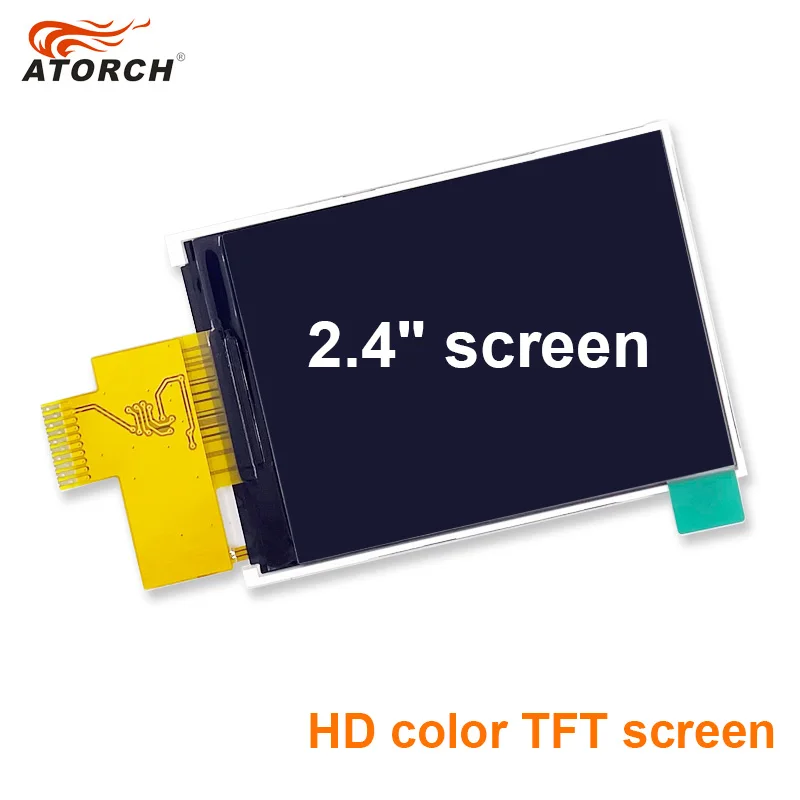

Цветной экран ATORCH 2,4 "TFT HD для DL2424P DL24M DT24

ST7789V код инициализации

ST7789VVoid Write_Spi_cmd (неподписанные данные char){Неподписанный char i;Set_SPI_CS(0);Udelay (200);Set_SPI_CLK(0);Set_SPI_SDI(0);Set_SPI_CLK(1);Для (i = 0;i<8;i + +){Set_SPI_CLK(0);Udelay (200);If (данные и 0x80)Set_SPI_SDI(1);ЕщеSet_SPI_SDI(0);Set_SPI_CLK(1);Udelay (200);Данные <= 1;}Set_SPI_CS(1);Udelay (200);} Void Write_Spi_date (неподписанные данные char){Неподписанный char i;Set_SPI_CS(0);Set_SPI_CLK(0);Set_SPI_SDI(1);Set_SPI_CLK(1);Для (i = 0;i<8;i + +){Set_SPI_CLK(0);Udelay (200);If (данные и 0x80)Set_SPI_SDI(1);ЕщеSet_SPI_SDI(0);Set_SPI_CLK(1);Udelay (200);Данные <= 1;}Set_SPI_CS(1);Udelay (200);}Void lcd_ext_mod_init(void){ Write_3Spi_cmd(0xCF);Write_3Spi_date (0x00);Write_3Spi_date (0xC1);Write_3Spi_date (0X30); Write_3Spi_cmd(0xED);Write_3Spi_date (0x64);Write_3Spi_date (0x03);Write_3Spi_date (0X12);Write_3Spi_date (0X81); Write_3Spi_cmd(0xE8);Write_3Spi_date (0x85);Write_3Spi_date (0x10);Write_3Spi_date (0x7A); Write_3Spi_cmd(0xCB);Write_3Spi_date (0x39);Write_3Spi_date (0x2C);Write_3Spi_date (0x00);Write_3Spi_date (0x34);Write_3Spi_date (0x02); Write_3Spi_cmd(0xF7);Write_3Spi_date (0x20); Write_3Spi_cmd(0xEA);Write_3Spi_date (0x00);Write_3Spi_date (0x00); Write_3Spi_cmd(0xB1);Write_3Spi_date (0x00);Write_3Spi_date (0x1A); Write_3Spi_cmd(0xB6);Write_3Spi_date (0x0A);Write_3Spi_date (0xA2); Write_3Spi_cmd(0xC0);Write_3Spi_date (0x1B); Write_3Spi_cmd(0xC1);Write_3Spi_date (0x01); Write_3Spi_cmd(0xC5);Write_3Spi_date (0x30);Write_3Spi_date (0x30); Write_3Spi_cmd(0xC7);Write_3Spi_date (0XB7); Write_3Spi_cmd(0x36);Write_3Spi_date (0xC8); Write_3Spi_cmd(0xF2);Write_3Spi_date (0x00); Write_3Spi_cmd(0x26);Write_3Spi_date (0x01); Write_3Spi_cmd(0xE0);Write_3Spi_date (0x0F);Write_3Spi_date (0x2A);Write_3Spi_date (0x28);Write_3Spi_date (0x08);Write_3Spi_date (0x0E);Write_3Spi_date (0x08);Write_3Spi_date (0x54);Write_3Spi_date (0XA9);Write_3Spi_date (0x43);Write_3Spi_date (0x0A);Write_3Spi_date (0x0F);Write_3Spi_date (0x00);Write_3Spi_date (0x00);Write_3Spi_date (0x00);Write_3Spi_date (0x00);Write_3Spi_cmd(0XE1);Write_3Spi_date (0x00);Write_3Spi_date (0x15);Write_3Spi_date (0x17);Write_3Spi_date (0x07);Write_3Spi_date (0x11);Write_3Spi_date (0x06);Write_3Spi_date (0x2B);Write_3Spi_date (0x56);Write_3Spi_date (0x3C);Write_3Spi_date (0x05);Write_3Spi_date (0x10);Write_3Spi_date (0x0F);Write_3Spi_date (0x3F);Write_3Spi_date (0x3F);Write_3Spi_date (0x0F); Write_3Spi_cmd(0x3a);Write_3Spi_date (0x66);Mdelay (20); Write_3Spi_cmd(0xb0); /Управление сигналом интерфейса RGB, режим синхронизации DE, полярность HSYNC VSYNC DOTCLK DEN, отображение пути через память или нетWrite_3Spi_date (0xCC);/DEN high enable , dotclk rising edge, HSYNC & VSYNC низкоуровневые часы.Mdelay (20); Write_3Spi_cmd(0xF6);/Настройка Endian, выбор интерфейса RGB/MPUWrite_3Spi_date (0x00);Write_3Spi_date (0x30);Write_3Spi_date (0x06); Write_3Spi_cmd(0x11); /выход из снаMdelay (12);Write_3Spi_cmd(0x29); /дисплей наWrite_3Spi_cmd(0x2c); /запись памяти
