В наличии SIM7080G SIMCOM LTE CAT-M NB-IoT Module конкурентоспособный с SIM868

in stock SIM7080G SIMCOM LTE CAT-M NB-IoT Module competitive with SIM868

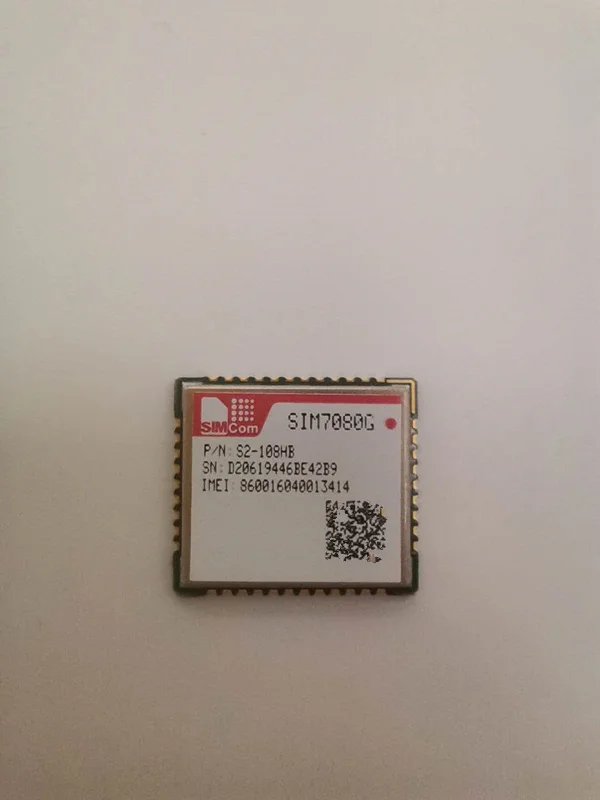

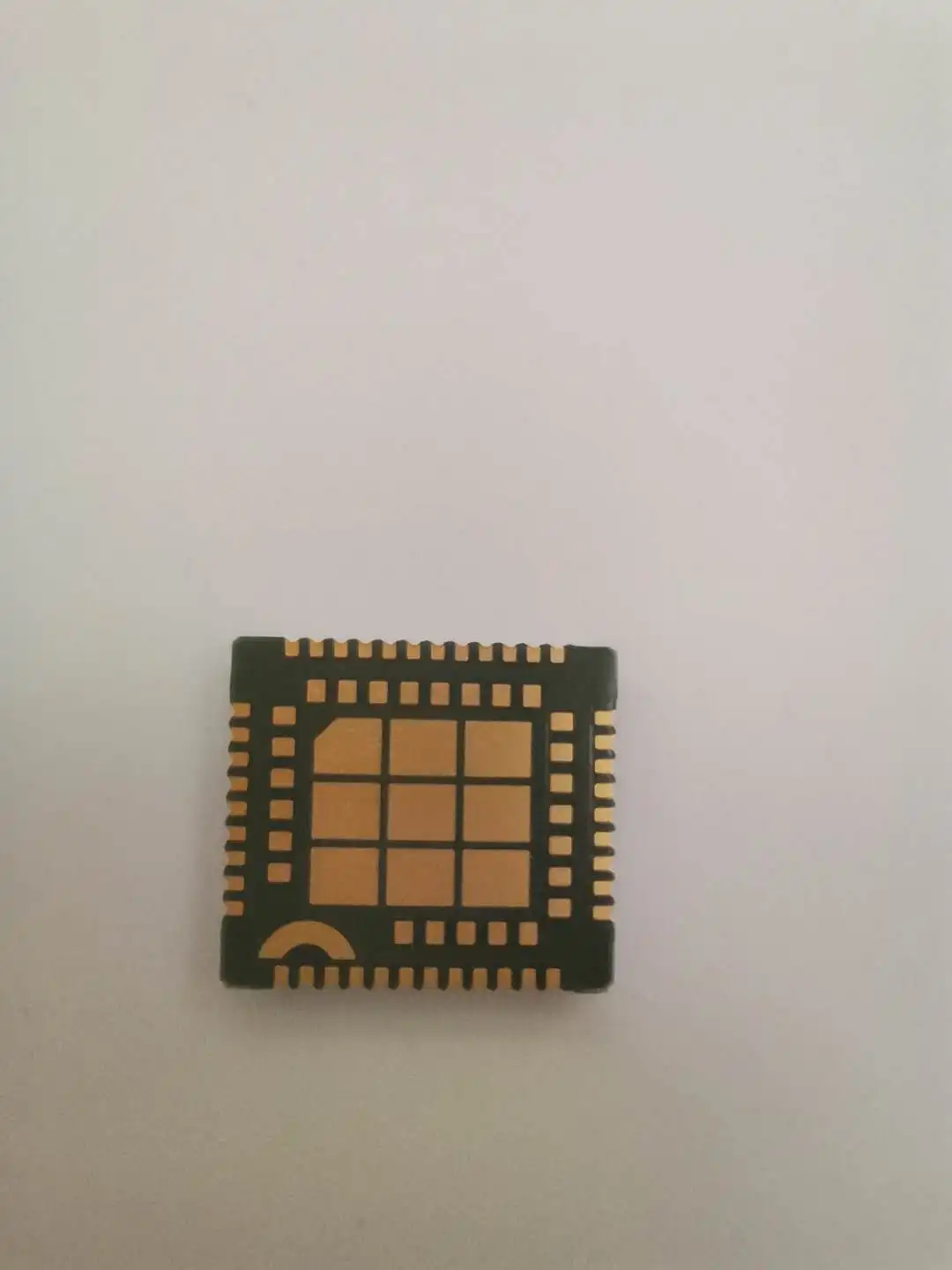

SIM7080G

CAT-M&NB-IoT ModuleThe SIM7080G is Multi-Band CAT-M and NB-IoT module solution in a SMT type .It has strong extension capability with rich interfaces including UART, GPIO, PCM, SPI, I2C etc. The module provides much flexibility and ease of integration for customer's application.It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, the SIM7080G module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring , E-health etc..

Product Advantages

• With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7080G can extend battery life to 10 years.• CAT-M, NB-IoT dual mode• The package of SIM7080G is compatible with SIM868

General FeaturesSupport Bands:CAT-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26 /B27/B28/B66/B85CAT-NB: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28 /B66/B71/B85LTE RF Power Class: 5 (Typ. 21dbm)Control Via AT CommandsSupply voltage range: 2.7V-4.8VOperation temperature: -40°C to +85°CDimensions: 17.6 X 15.7 X 2.4 mmWeight: 1.4g±0.2g DateCat-M: Uplink: 1119Kbps Downlink:589KbpsNB-IoT: Uplink: 150Kbps Downlink:136KbpsOther FeaturesTCP/UDPHTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTTAyla CloudFirmware update via USBFOTAEAT InterfacesUARTSIM cardPCM/I2S/SPII2CGPIOADCUSBEmbedded SIM (optional)ConsumptionPSM: 3.2uASleep: 0.6mA @PTW=40.96s eDRX=81.92s Idle: 10mA Certifications(plan)RoHS\REACH\JATE\Telec\Docomo\KDDI\Softbank\RCM\CE(RED)\GCF\Deutsche Telekom\FCC\PTCRB\AT&T\Verizon\T-Mobile\US Cellular\IC
