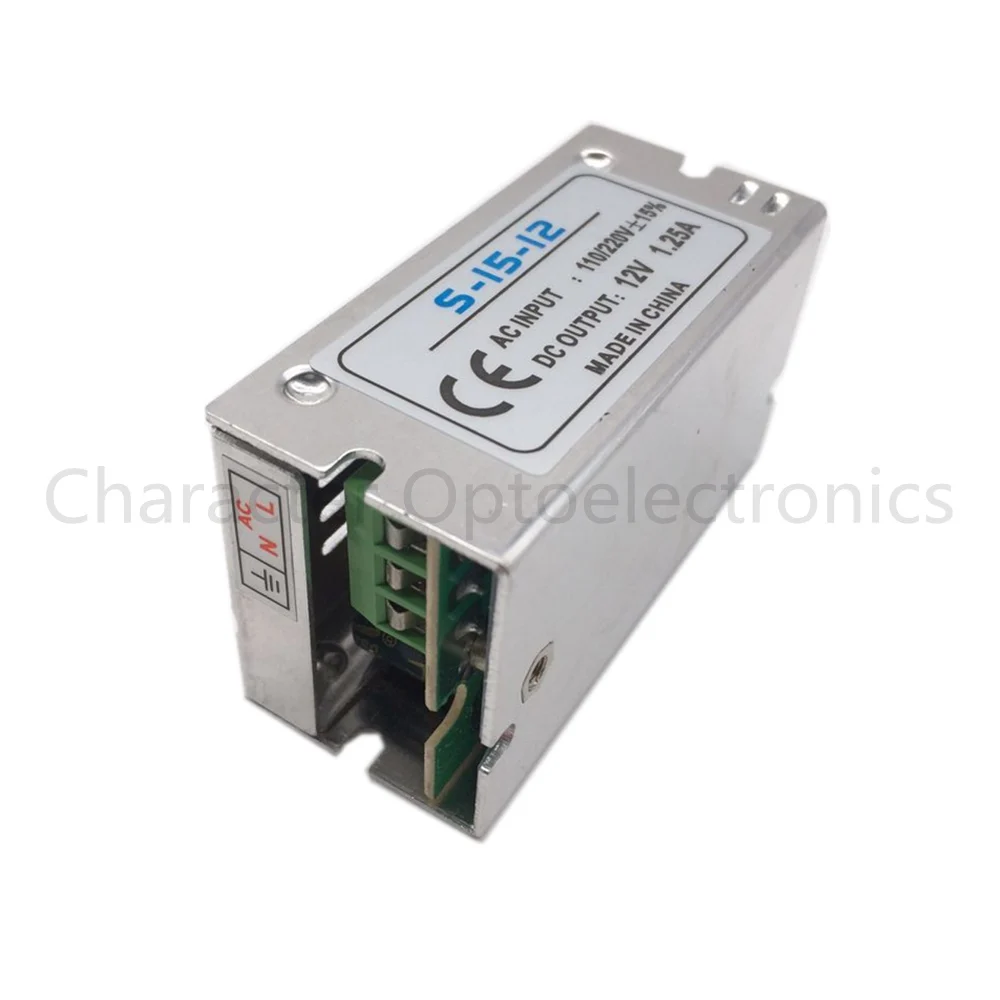

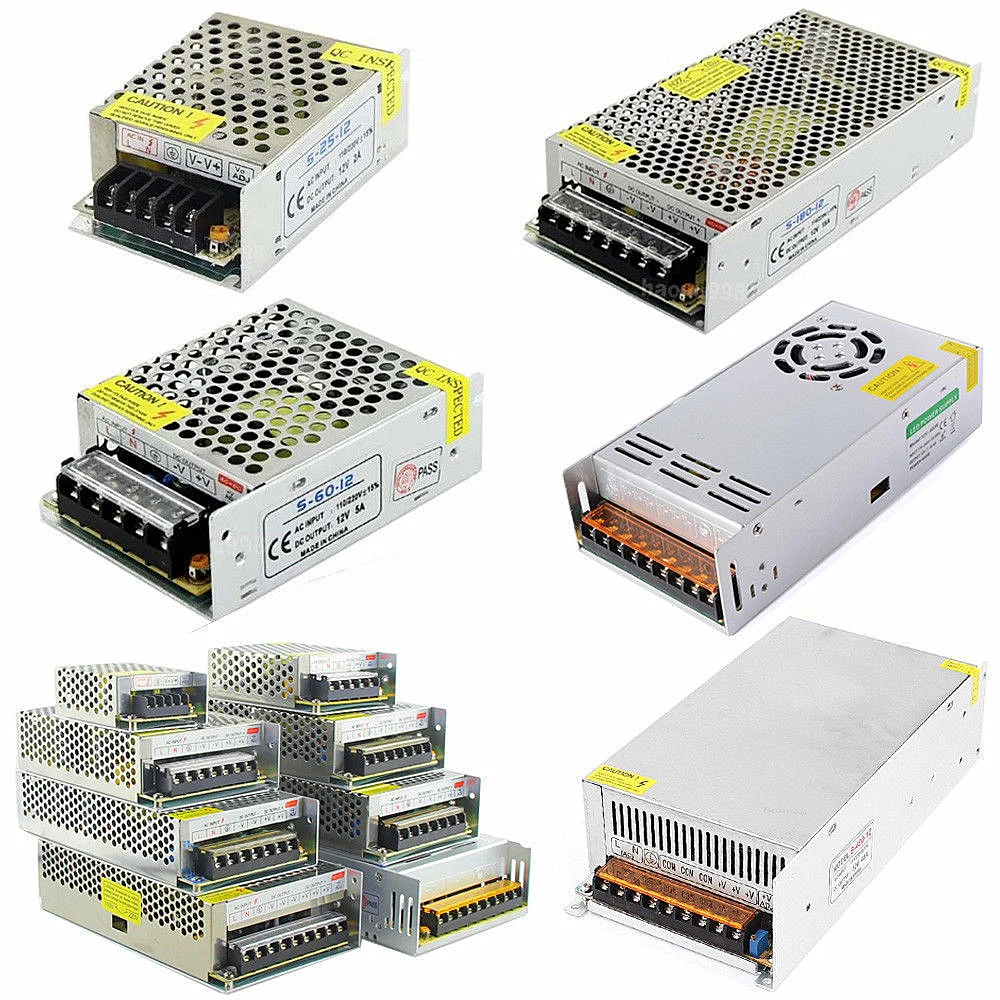

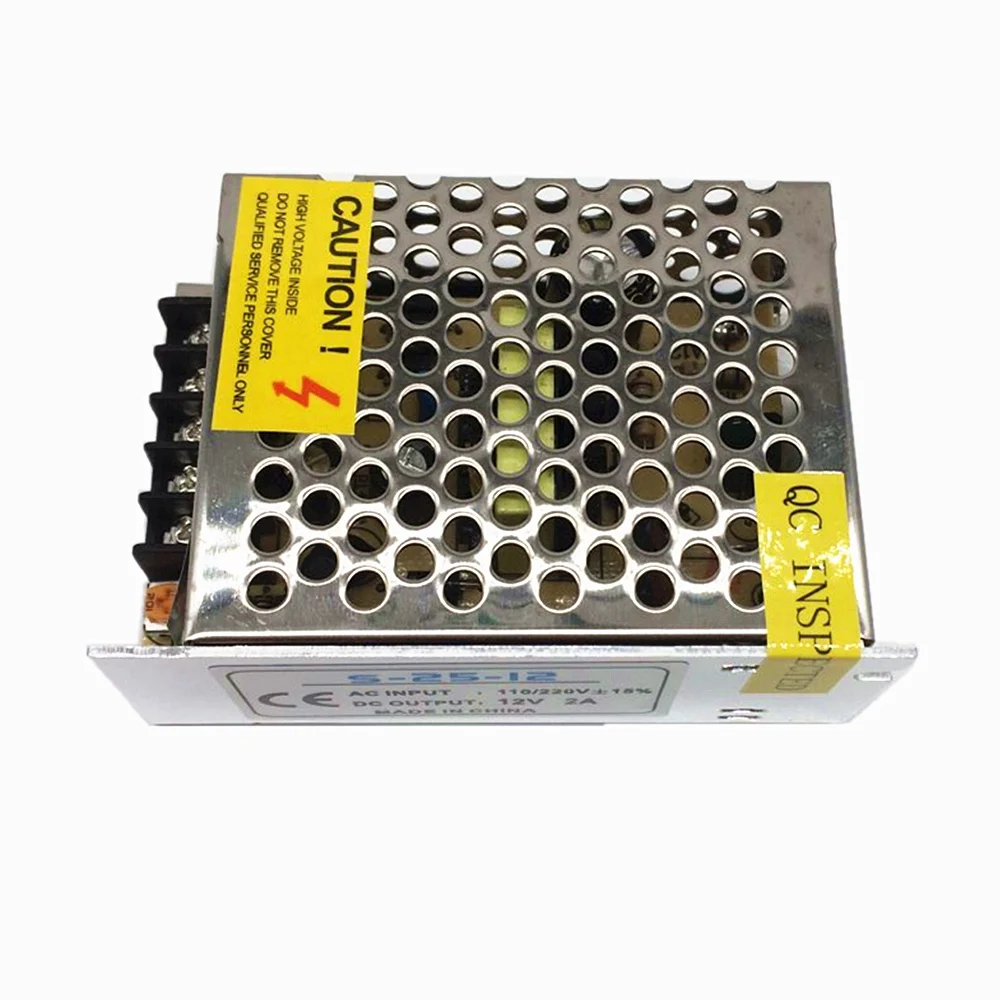

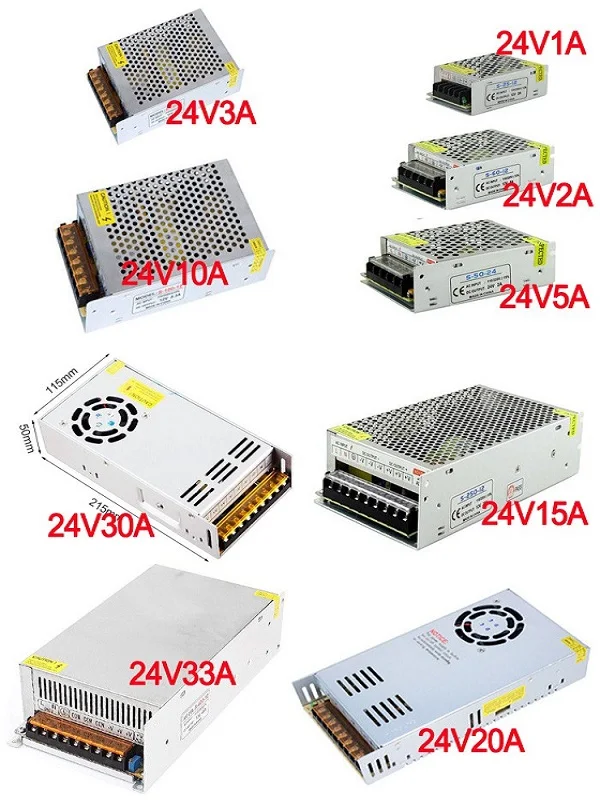

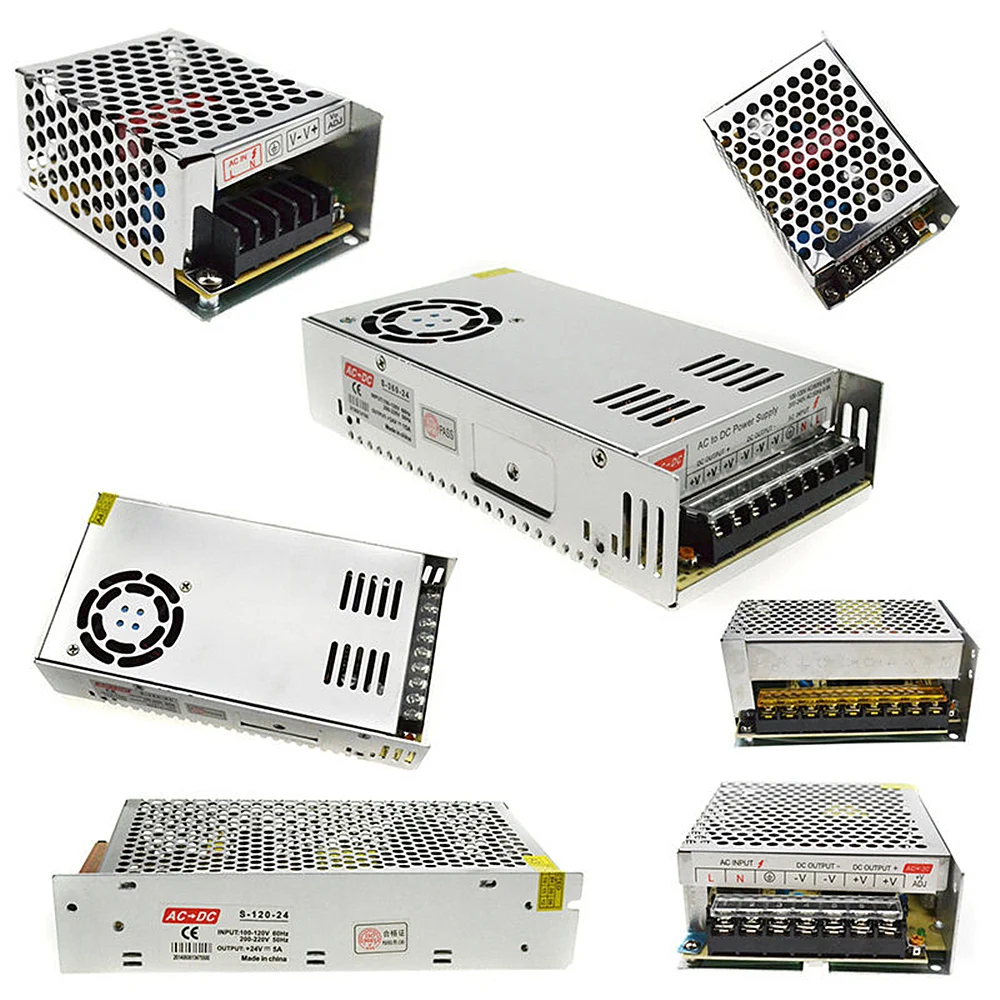

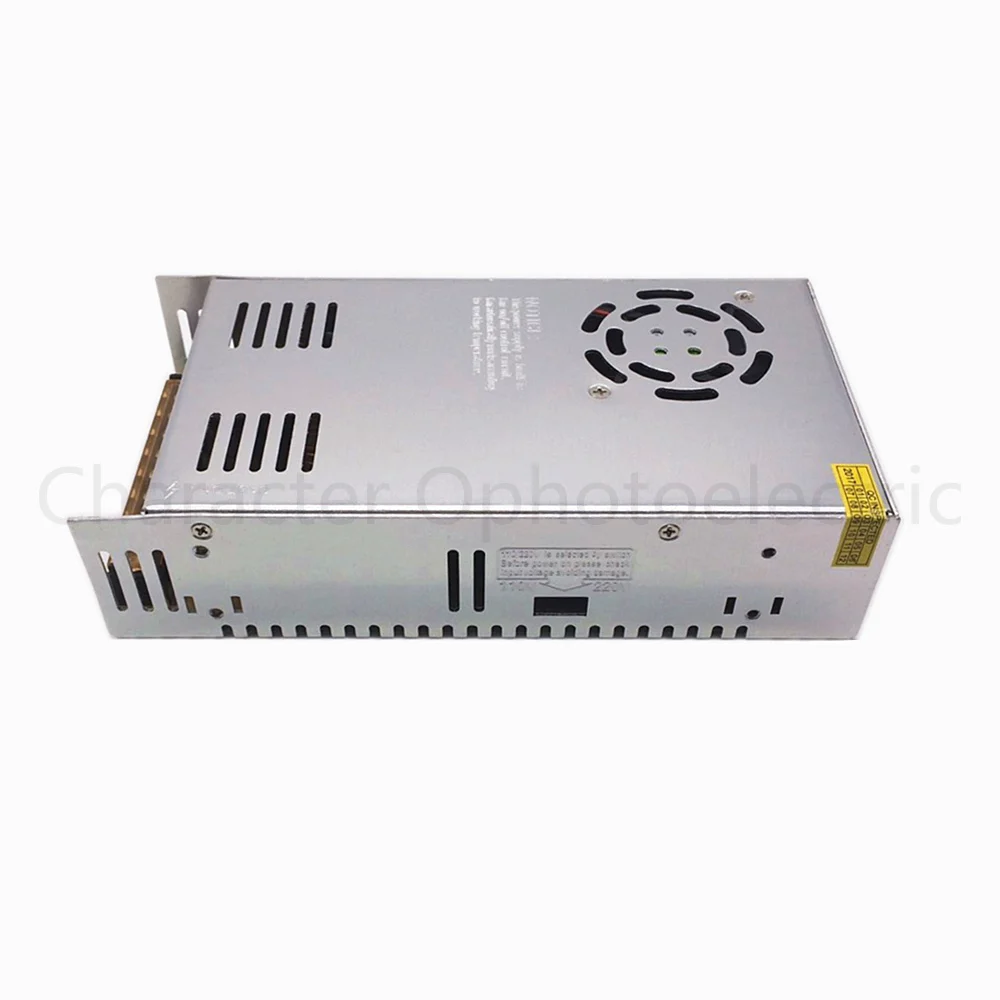

LED Power Adapter Lighting Transformer AC 100V-240V To DC 5V 12V 24V Switching Power Supply 1A 2A 3A 5A 10A 20A 30A LED Driver
Description:
DC 5V 12V 24V 1A 2A 3A 5A 8.5A 10A 12.5A 15A 20A 30A 40A Switching Power Supply Adapter
Power: 12W 24W 36W 60W 100W 120W 150W 180W 240W 360W 480W
Input Voltage: AC100V-265V
Output Voltage: DC5V 12V 24V
Output Current: 1A~40A
Shell Material: Metal case / Aluminum case
Safety Compliance: FCC / CE /Rohs
High price-effective, reliability with industry standards
Built-in over voltage, over current, and short circuit protection
Working Temperature: 0~40C
Storage Temperature: -20~60C
Ambient Humidity: 0~95% Non-Condensation
Features:
Built-in over voltage, over current, and short circuit protection
PWM design, make sure the stability and high efficiency of power supply.
Anti-jamming, passed EMC test, wave less than 20MV.
Constant voltage output, assume stable power supply for LED lightings to reach long lifetime
Typical Applications
LED Strip power supply
Security surveillance industry
Other industrial applications
Compatible with 3528, 2835 ,3014, 5050, 5630 ,5730 Led strip lights
Type (Output)
Size (LxWxH)
Intput Voltage (AC)
12V 1A 12W
70mm*40mm*30mm
85V-265V
12V 2A 24W
85mm*57mm*33mm
85V-265V
12V 3A 36W
85mm*58mm*38mm
85V-265V
12V 5A 60W
110mm*78mm*36mm
85V-265V
12V 8A 96W
160mm*98mm*42mm
85V-265V
12V 10A 120W
162mm*98mm*44mm
85V-265V
12V 12.5A 150W
198mm*98mm*43mm
85V-265V
12V 15A 180W
198mm*98mm*43mm
85V-265V
12V 20A 240W
200mm*100mm*44mm
110V/220V +/- 15%
12V 30A 360W
200mm*100mm*45mm
110V/220V +/- 15%
12V 40A 480W
215mm*115mm*50mm
110V/220V +/- 15%
12V 50A 600W
242mm*124mm*65mm
110V/220V +/- 15%
12V 60A 720W
245mm*125mm*68mm
110V/220V +/- 15%
24V 1A 24W
85mm*57mm*33mm
85V-265V
24V 2A 50W
85V-265V
24V 3A 72W
110mm*78mm*35mm
85V-265V
24V 5A 120W
158mm*98mm*40mm.
85V-265V
24V 10A 240W
198mm*98mm*40mm
85V-265V
24V 15A 360W
198mm*110mm*50mm
110V/220V +/- 15%
24V 20A 480W
198mm*110mm*50mm
110V/220V +/- 15%
24V 25A 600W
215mm*115mm*50mm
110V/220V +/- 15%
24V 30A 720W
215mm*115mm*50mm
110V/220V +/- 15%
24V 33A 792W
242mm*124mm*65mm
110V/220V +/- 15%
5V 2A 10W
70mm*40mm*30mm
85V-265V
5V 6A 40W
85mm*57mm*33mm
85V-265V
5V 10A 50W
110mm*78mm*36mm
85V-265V
5V 20A 50W
160mm*98mm*42mm
85V-265V
5V 30A 50W
162mm*98mm*44mm
85V-265V
5V 40A 200W
198mm*98mm*43mm
85V-265V
5V 50A 250W
200mm*100mm*44mm
85V-265V
5V 60A 300W
200mm*100mm*45mm
85V-265V
5V 72A 360W
215mm*115mm*50mm
110V/220V +/- 15%
