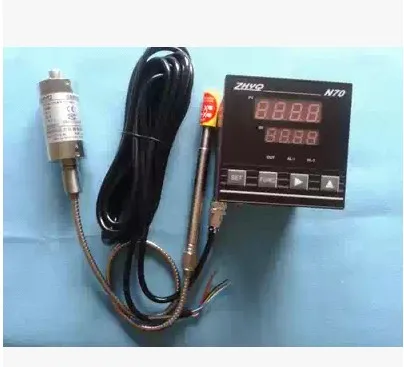

High Temperature Melt Pressure Transducer Pressure Sensors for Plastic Extruder 0-50Mpa and Indicator N70/N80/N90
1.Pressure Range : 0-50 Mpa ( 25Mpa-80 Mpa Optional,contact us before you order it,please.) 2.Output : 2 mV/V ( NOT 4-20mA or 0-10V output )
3.VDC : 10VDC4.Electric Connection : 5 Pins5.Process Connector : 1/2-20UNF or M14х1,5 or M22х1,5 (Please note)6.Pressure Display Type : N70/N80/N90 (Please note)
7.Accuracy:±1.0%FS
Model:PT124G-121
Description
PT124G-121 Series melt pressure transducers design for general pressure measurement during the
process of the plastic extruder machine. It can be utilized together with the N Series Intelligent Digital
Pressure Instrument. Zero & full span can be adjustable, amplify signal output can be connected with
PLC, with advantages of high precision and reliable pressure measuring and good quality and internal
80% calibration.
Application
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment
Measurement and Control all kinds of melt fluid
Feature
Stainless steel welding
Easy to install
Zero and span adjustable
Various amplified signals optional
Internal 80% shunt calibration
Good stability and anti-jamming capability
Excellent stability and repeatability
Specifications
N70/N80/N90 pressure description
N70/N80/N90 pressure indicator is a 1/8 DIN or ¼ DIN, panel-mount, dual 4-digit indicator, whichtakes the advantage of latest state-of-art technology and comes in small-size, light-weight and inlow-power. This pressure indicator has been specifically designed for use with mv/Volt outputtransducers from different famous manufacturers such as Dynisco, Gefran, ONEhalf20 and so on.This series indicator can match ZHYQ's melt pressure transducer also.
N70/N80/N90 Indicator Specification
N70/N80/N90 Indicator Panel description
