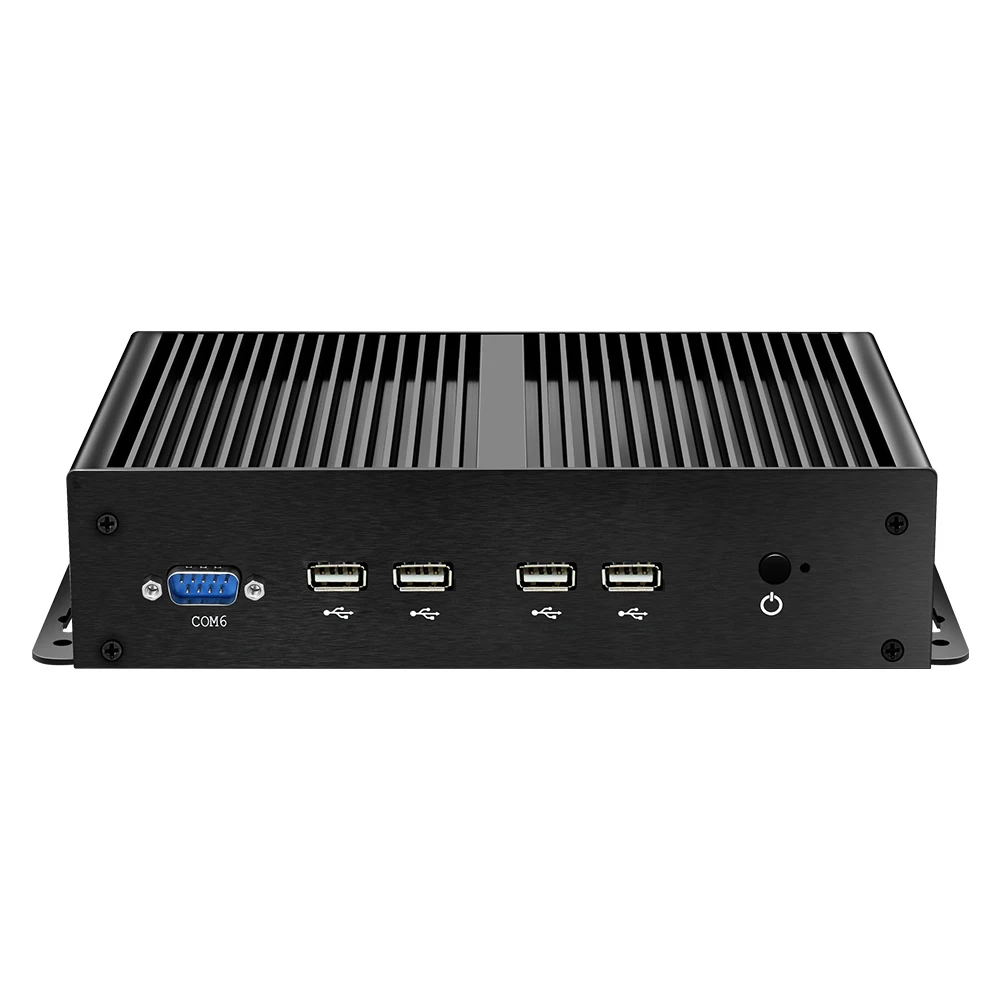

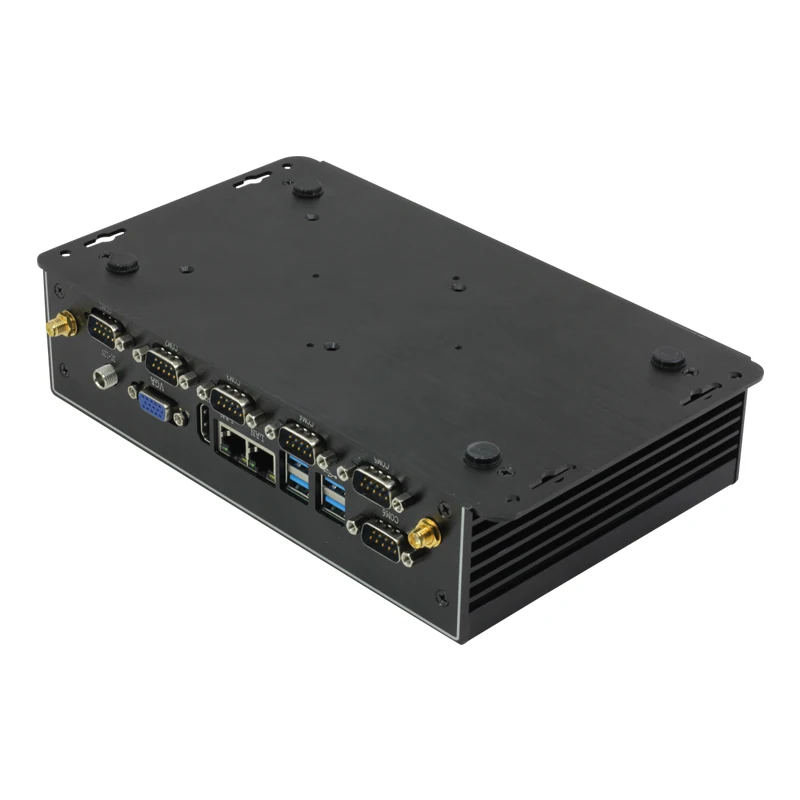

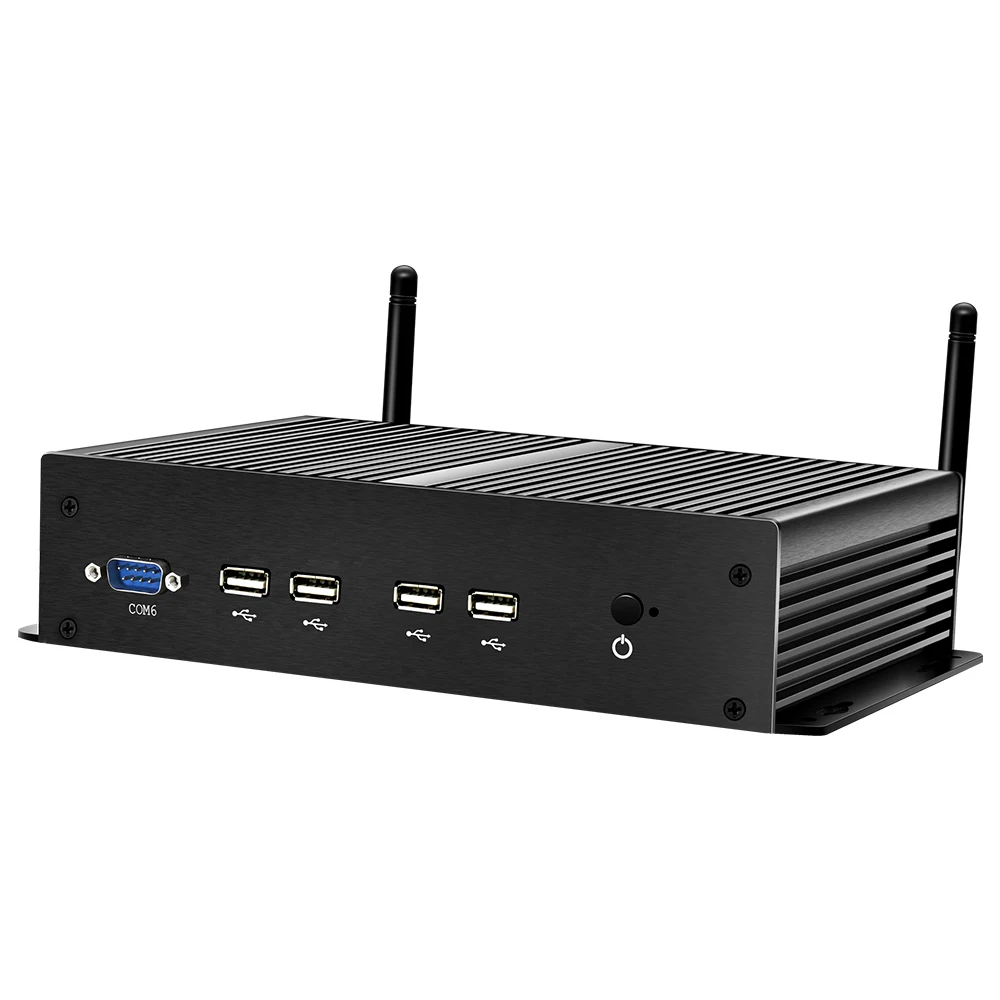

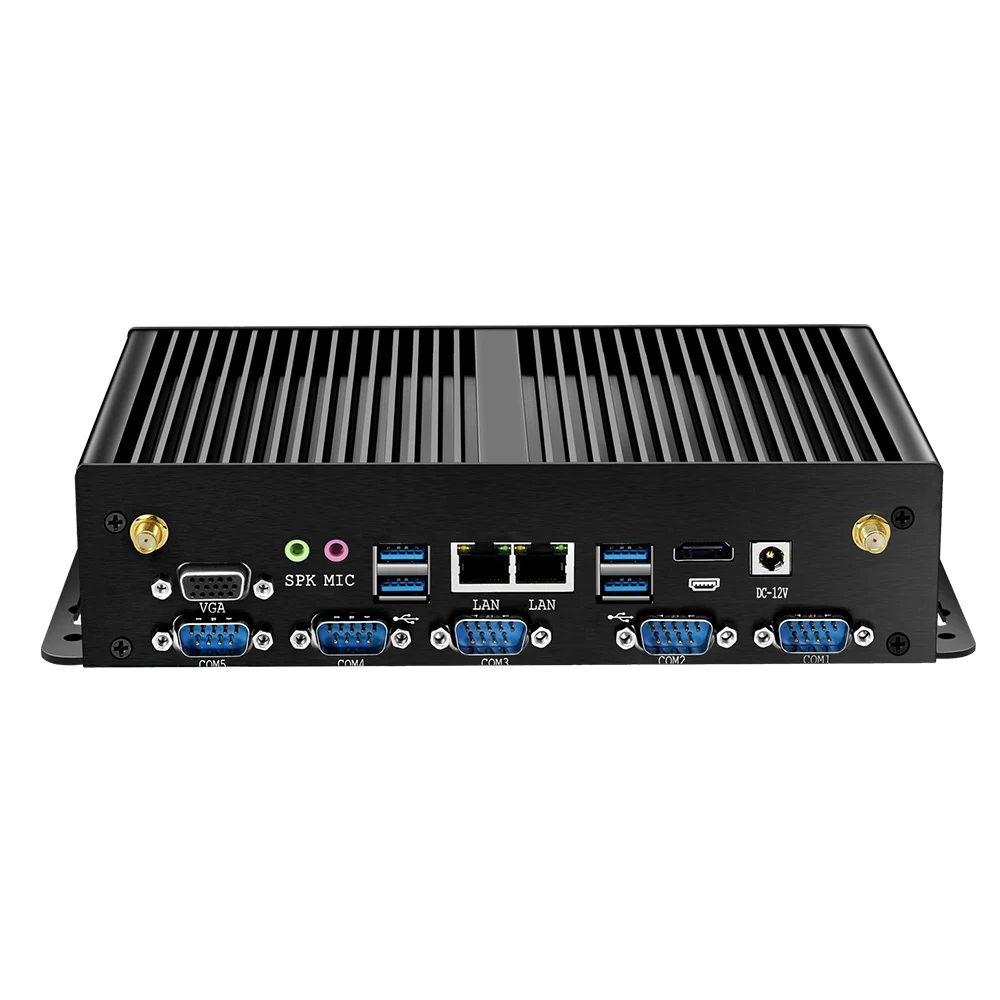

Безвентиляторный промышленный мини-ПК Intel Core i7 4500U J1900 6x RS232 RS485 двойной Ethernet HDMI VGA 4G LTE WiFi 8xusb Windows 10 Linux

Processors

Intel Core i5-4200U, 3M Cache, up to 2.60 GHz

Intel Core i7-4500U, 4M Cache, up to 3.00 GHz

Memory

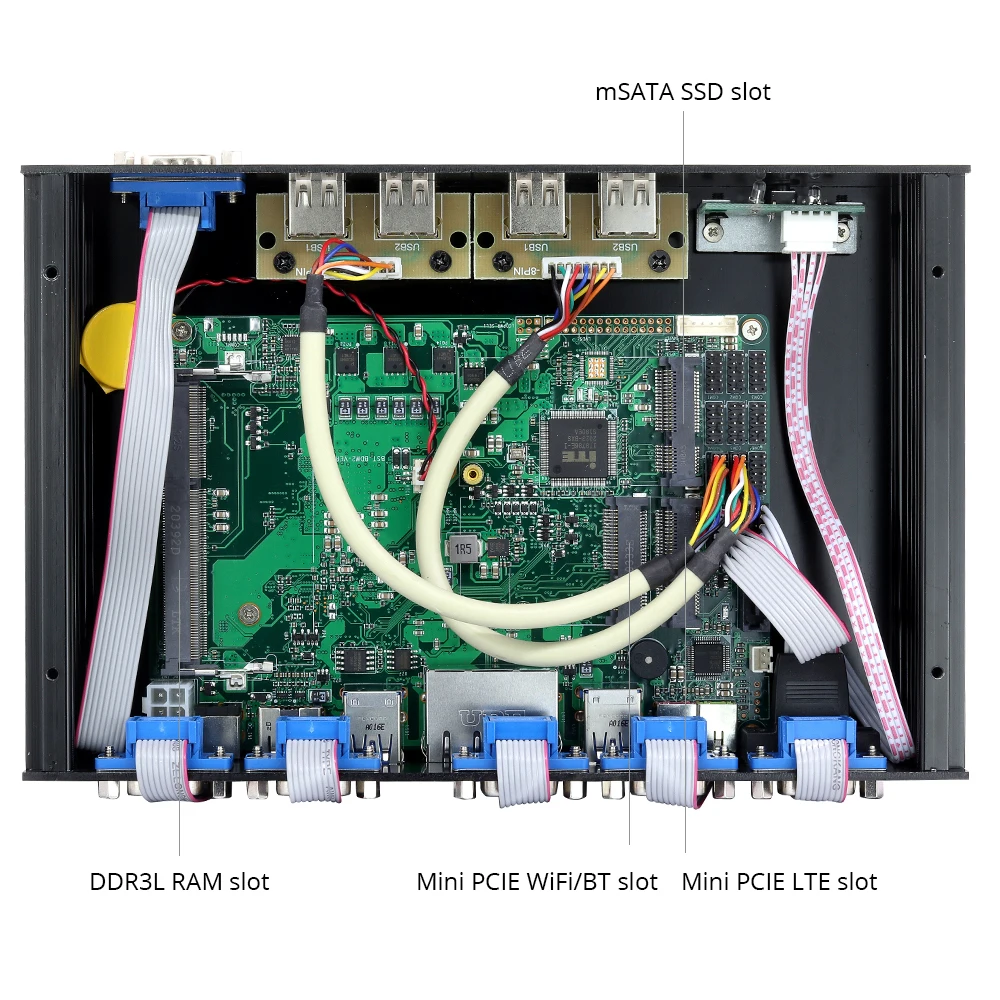

One memory slot, SODIMM DDR3L 1333/1600MHz

max support to 8GB

Storage

Support 1x mSATA SSD ( defaulted install this type hard drive )

Support 1x 2.5 inch SATA HDD/SSD

Graphics

Intel HD Graphics ( depends on CPU )

Network Interfaces

2x GbE RJ45 Intel i211

Expansion

1x Mini PCI-E for WiFi/Bluetooth module (half height size, Pice bus )

1x Mini PCI-E for 3G/4G module ( full height size, USB bus ), with 1x SIM card slot

OS Support

Windows 7/8/10, Linux, Ubuntu, CENTOS, Vxworks, WES7 WES8

USB Ports

4x USB3.0, 4x USB2.0

Display Port

1x VGA, 1x HDMI

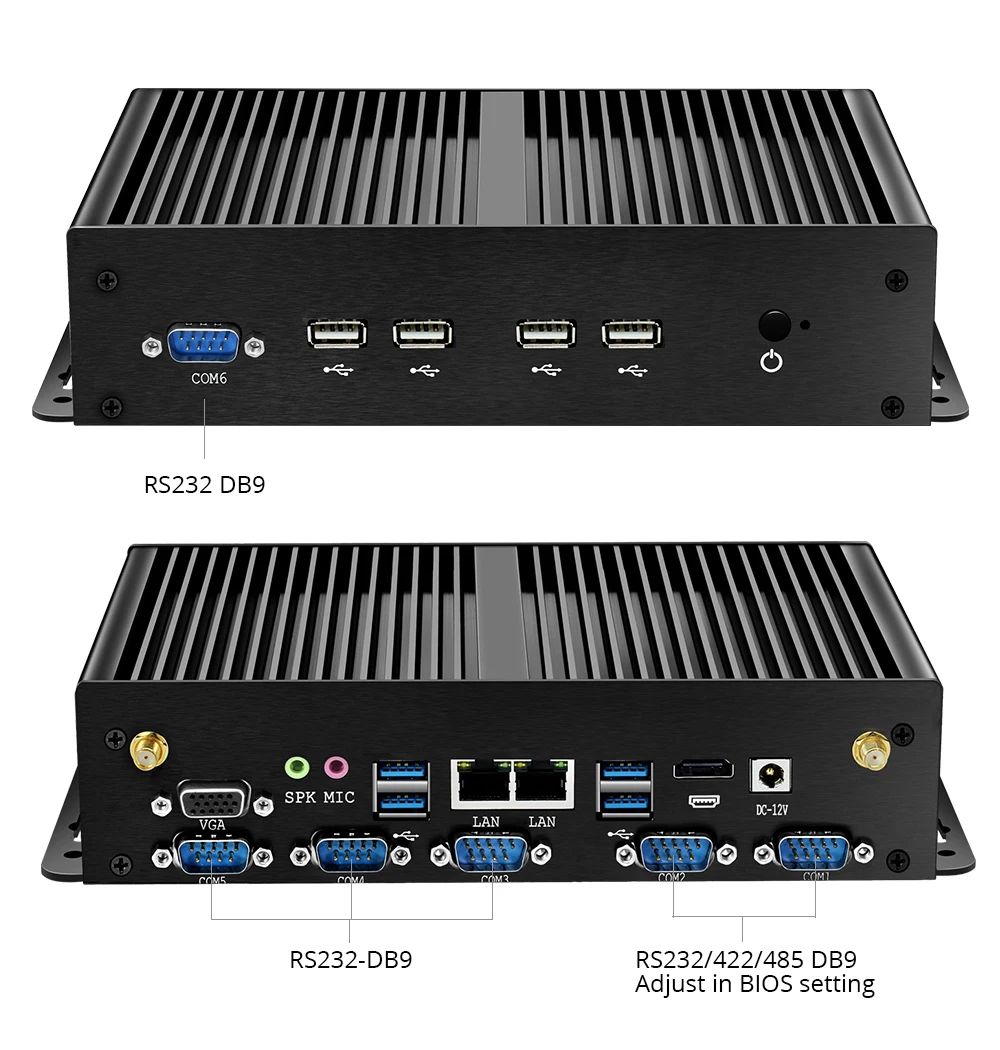

COM Ports

COM1 COM2: RS232, RS422, RS485

COM3 to COM6: RS232

Audio Ports

1x SPK, 1x MIC, 3.5mm jack, ALC662

Construction

Fanless passive cooling

Case

Aluminum Case

Dimension

235x137x55mm

Netweight

1.2Kg

Operating

Temperature

-20℃ to +60℃

RH

5%~90% @30℃，Non-condensing

Power Adapter

Input AC100-240V, Ouput DC12V-5A

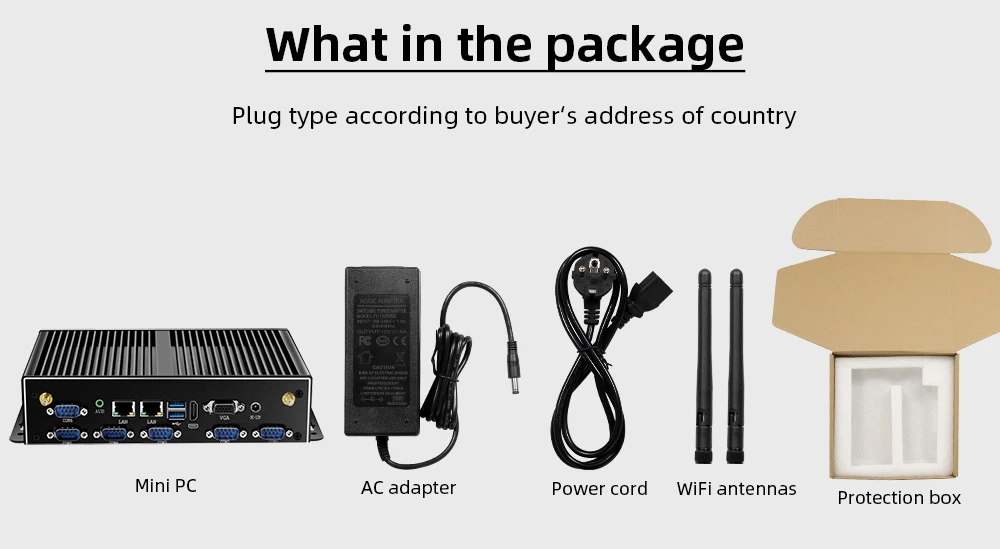

Package List

1x Mini PC X26A

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )

1x SATA cable

1x User manual
