2021 лазерный резак ROBOTEC Co2 130 Вт, 150 Вт, 260 Вт, 280 Вт, станок для резки нержавеющей сталилазерный резак для тонкого металла

2021 ROBOTEC Co2 Laser 130w 150w 260w 280w 300w Cutting Stainless Steel Machine /Thickness Thin Metal Laser Cutter

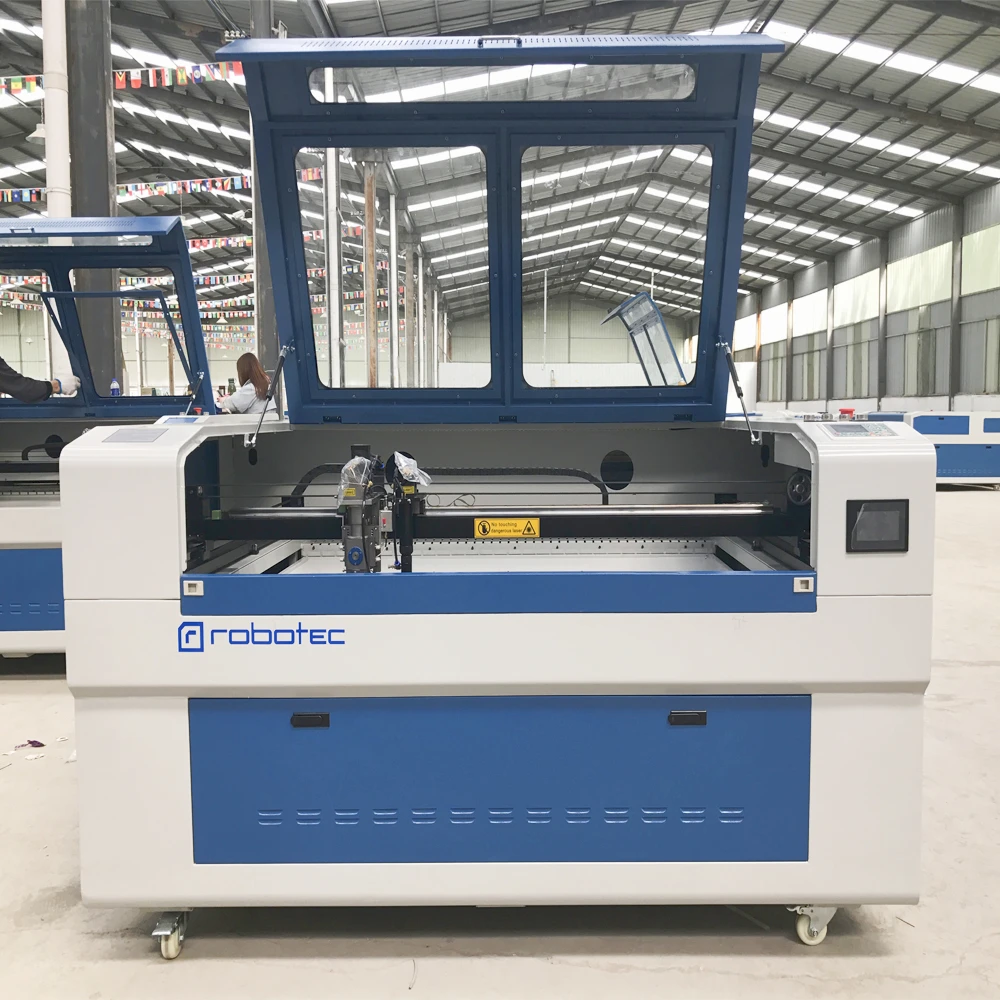

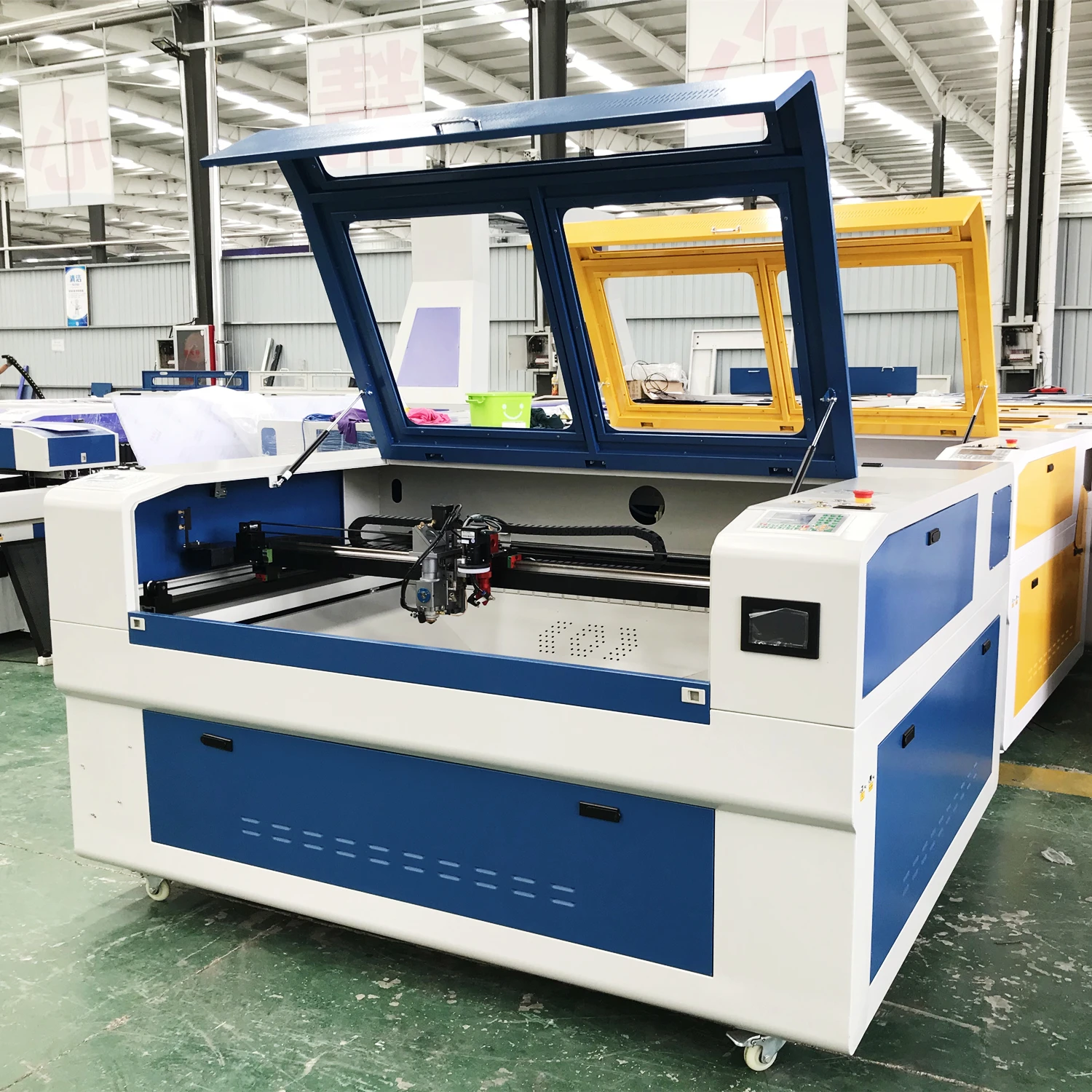

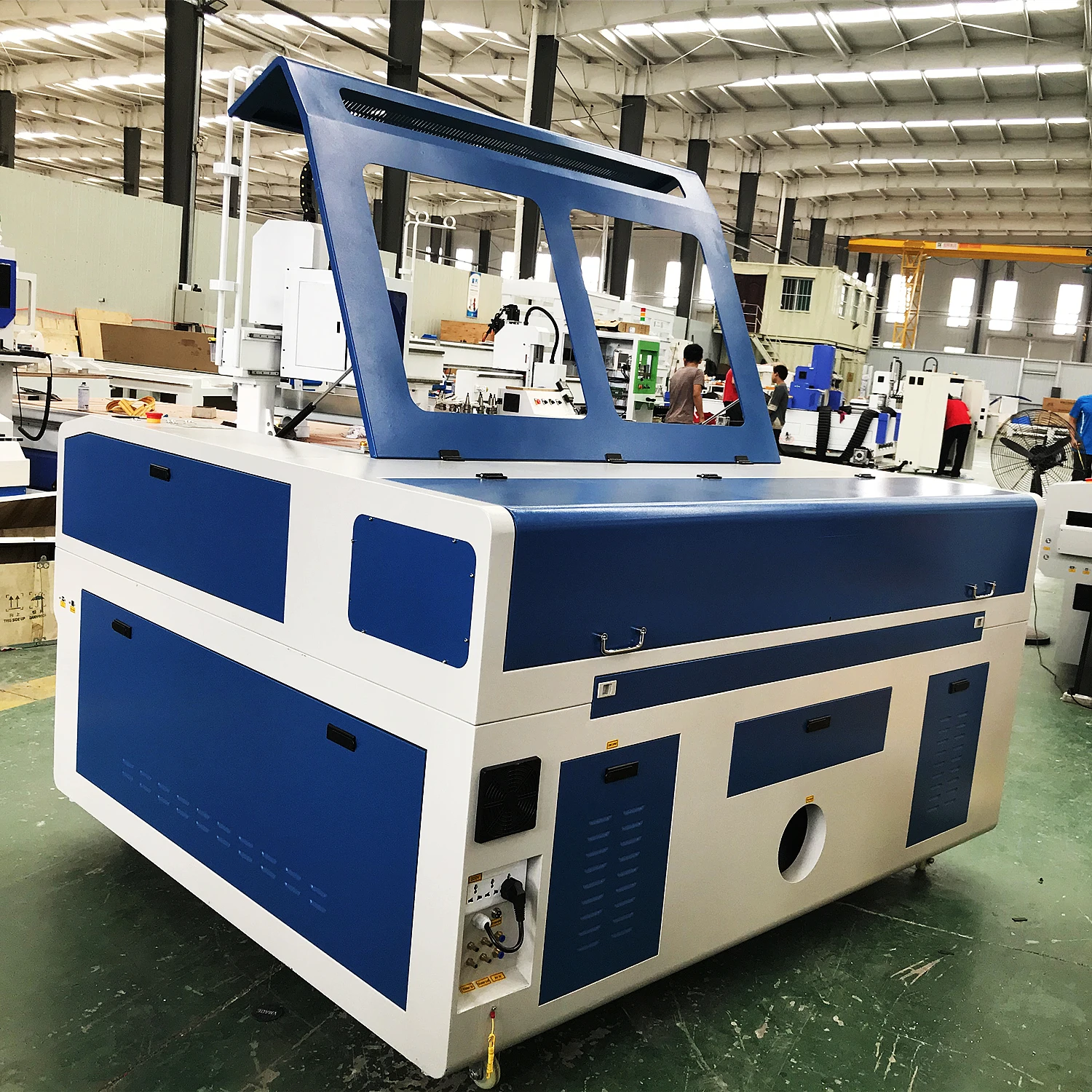

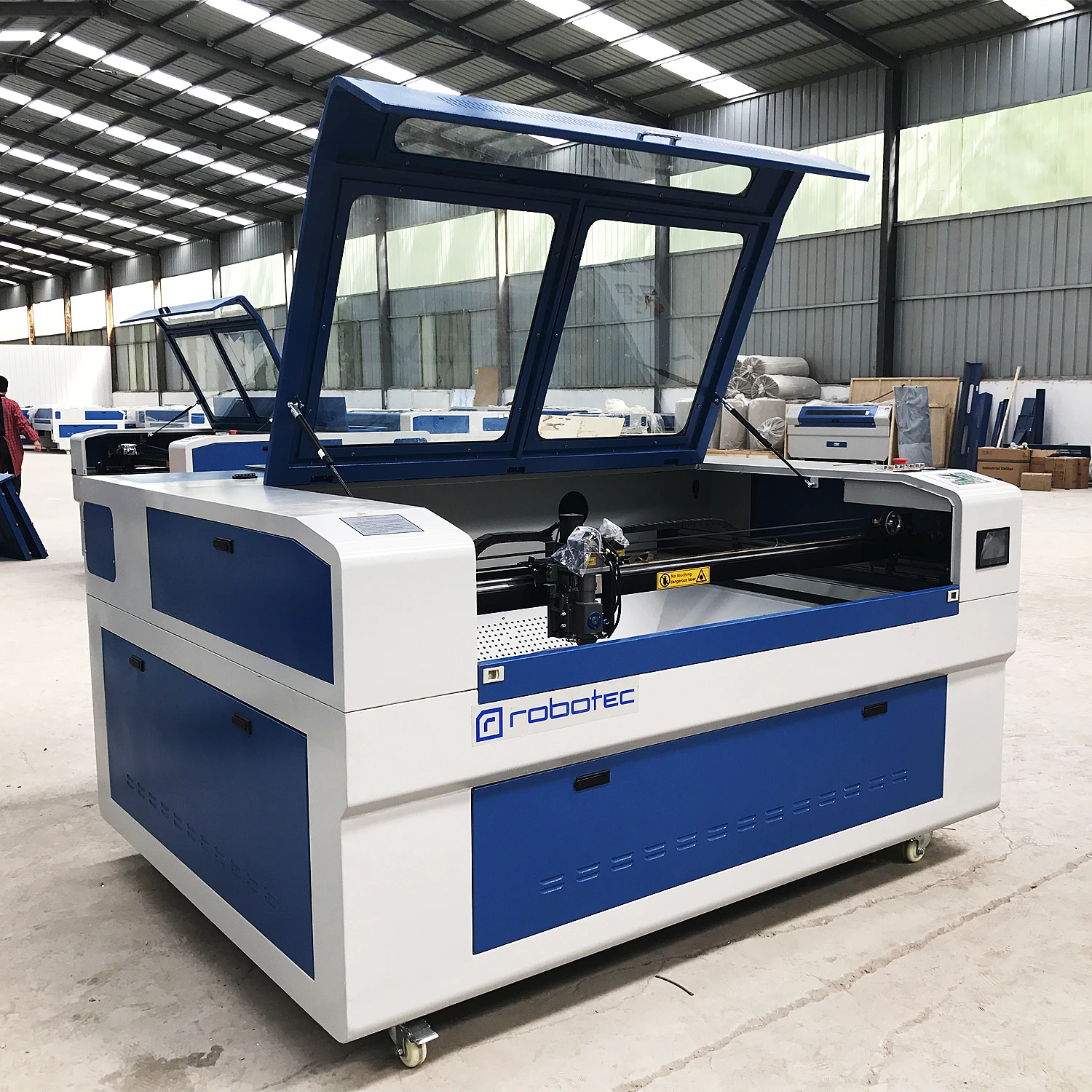

metal laser cutting machine pictures:

cnc metal laser cuttingmachine description:mtal laser cutting machine

Item  /  Model

RTJ-1390M

Cutting area

1300 x 900mm

Laser power

150W/180w/260w/280w

Laser type

CO2 sealed laser tube,water-cooled,10.6um

Engraving speed

0-60000mm/min

Cutting speed

0-40000mm/min

Laser Output

1-100%software setting

Resetting positioning accuracy

≤±0.01mm

Power supply

220V/50HZ (Optional 110V/60HZ)

Operating temperature

0 - 45°C

Operating humidity

5 - 95%

Min. shaping character

English 1.0 x 1.0mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

TAJIMA, CorelDraw, Photoshop, AutoCAD

Driving system

stepper motor

Cooling mode

Water-cooling and protection system

Equipment Dimensions

1990x1400x1470mm

Net Weight:

1550kg

Shipping Dimensions

2090 x 1500 x 1570mm

Optional Spare Parts

Up-down clump, Rotary System, Honeycomb table

Recommended Spare Parts

Laser Tube and Lens

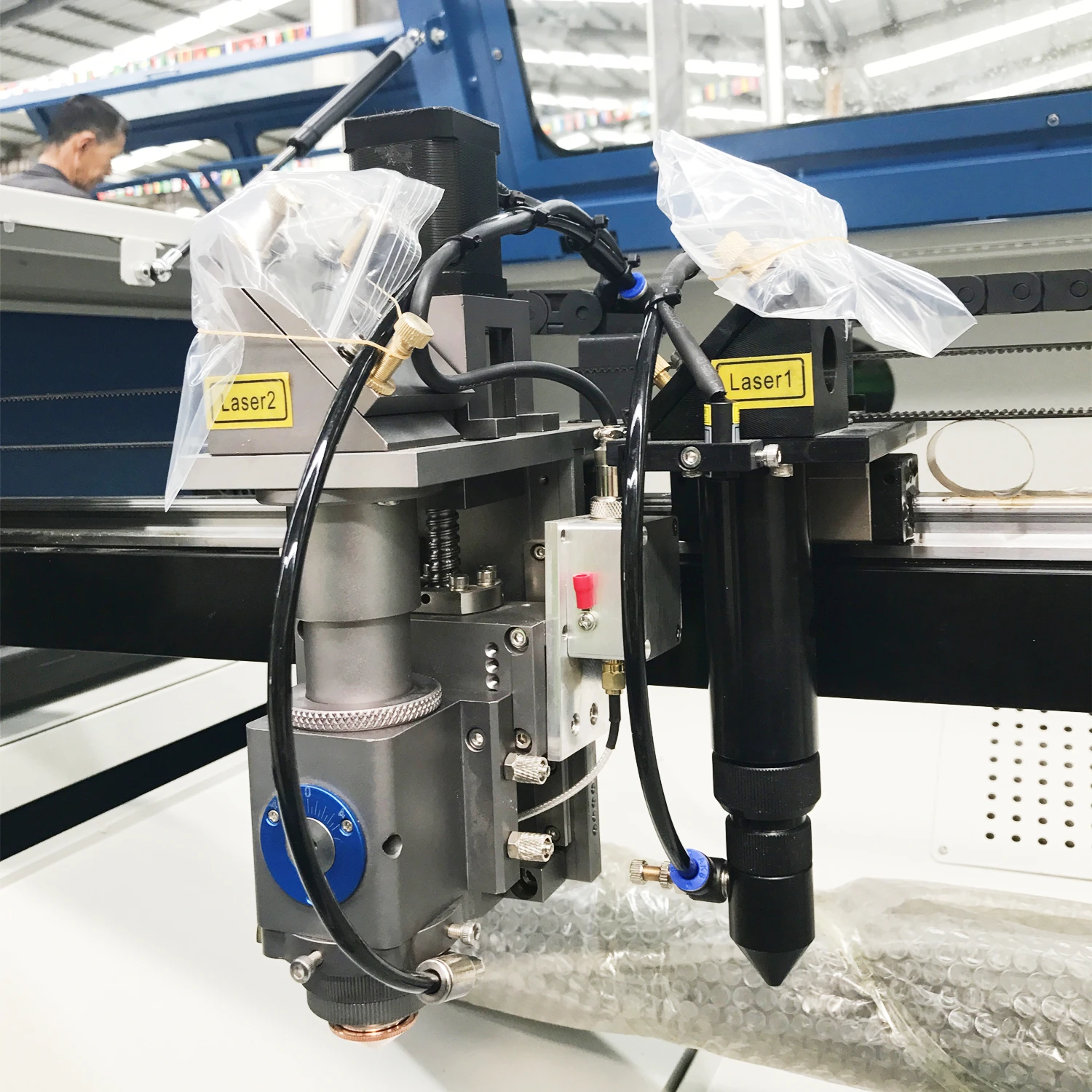

cnc metal laser cuttingmachine parts:

>>CNCmetal laser cuttingmachine features:

1.3mm Cold-rolled steel welded machine bed, strong and running stable.

2. Aluminium blade table: to process hard materials like acrylic, wood and so on.

3.Fireproof window,more security.

4.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service timeover 8500~10000 working hours.

5. Laser Power40W~180W, good quality and stable output to prolong the laser tube service time.

6.Singapore imported lens and mirrors. High transmittance, good focusing, reflecting effect.

7.Ruida or Leetro ControllerUSB interface, support online/offline working, English language system, adjustable cutting speed and power.

8. High accuracy stepper motors and drivers. Belt transmission.

9. TiwanHiwin Linear square guide rails, higher precision.

10. Laser engraving and cutting or Lasercut 8.0 software, user’s manual.

11. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removaltool, manual, CD, U disk, a focal length of stick.

12.Open style, the front and back of the machine is open which is possible for longer material, breakthroughthe limit of the workpiece length.

>>metal laser cuttingmachine Option Parts:

>>metal laser cuttingMachine Applicable Material:

Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,

embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.>>metal laser cuttingMachine Applicable Industry:

Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc.

CNC metal laser cuttingmachine samples:

1) Machine has been adjusted before delivery.2) English software, user manual and detailed installation & training Videos DVD3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair.

Life-time technical support.4) Machine spare parts and repair service is offered in lifetime.5) Free training is offered in the plant and free samples are available.6) 24 hours technical support by e-mail, calling or door-to-door service.7) Professional cnc router machine supplier with 10 years experiences.8) International quality certificate: CE, ISO9001

For offer the most suitable machine with favorable price, would you like to confirm below questions:1) What is your reuqested max working area, X:___mm, Y:___mm?2) What mainly job you do ? Only engrave, cut or both ?3) What kind are your materials, metal or non-metal, what are they?After your return comments, we will send you more information about the machine along price . Thanks
