W1209 -50-100C DC 12V Digital Temperature Controllear Thermostat Temperature Control Thermostat Switch Plate W1209 Case
Description:
100% brand new and high quality
Timely adjust the temperature, speed up the work process
Probe set, can accurately measure the temperature
Digital temperature display for easy temperature adjustment
Manually adjust the button, so that the temperature adjustment more quickly and accurately
Light instructions to facilitate the correct regulation of temperature, the temperature control within a reasonable range to prevent the occurrence of accidents
Static current: ≤35MA, attract current ≤65MA
Input voltage: DC 12V
Output power: 10A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 ~ 60℃, Humidity 20% ~ 85%

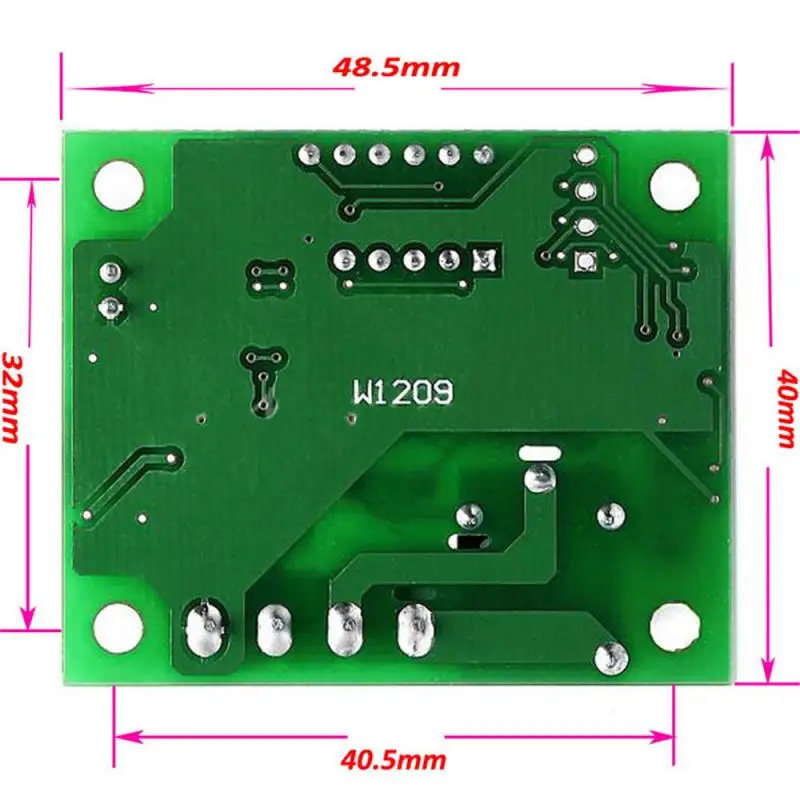

Dimensions: 48 x 40mm
Temperature control mode: ON / OFF
Temperature range: -50 ~ +110°C
Control accuracy: 0.1°C
Hysteresis accuracy: 0.1°C
Temperature measurement accuracy: 0.1°C
Refresh rate: 0.5S
Model: W1209 digital thermostat
Power: 35W
Use: instrument
High temperature protection: 0 ~ 110°C
Resolution : When temperature is 0.1°C, the resolution is -9.9~99.9, other temperature segment is 1°C
Specifications:
Adjust the temperature
Can accurately measure the temperature
Digital temperature display
Manually adjust the button
Adjustment more quickly and accurately
Light instructions to facilitate the correct regulation
Package Included:
1 x W1209 DC 12V Thermostat Temperature Control Thermometer
Notes:
Due to the difference between different monitors, the pictures may not reflect the actual color of the item.
Compare the detail sizes with yours, please allow 1-3cm error, due to manual measurement.
Please leaving a message before you give the bad feedback, if the products have some problems.
Thanks for your understandings.
-
Dimensions48 x 40mm
-
Environmental Requirements-10 -60℃, Humidity 20% -85%
-
High Temperature Protection0 -110°C
-
Input VoltageDC 12V
-
Measurement InputNTC (10K 0.5%) Waterproof Sensor
-
ModelW1209 digital thermostat
-
Output Power10A relay
-
Power35W
-
ResolutionWhen temperature is 0.1°C, the resolution is -9.9-99.9
-
Static Current≤35MA, attract current ≤65MA
-
SupportDropshipping
-
Temperature Control ModeON / OFF
-
Temperature Range-50 - +110°C
-
Вес логистики0.022
-
Каждая упаковка1
-
Минимальная единица измерения100000015
-
Название брендаcentechia
-
Номер моделиW1209
-
Продано Вsell_by_piece
-
ПроисхождениеКитай
-
Размер логистики - высота (см)1
-
Размер логистики - длина (см)10
-
Размер логистики - ширина (см)7
-
СертификацияNONE
-
Состояние сборкиГотовый к использованию
