100% Brand new and high quality
Rated Power:150W
Rated Voltage:12V

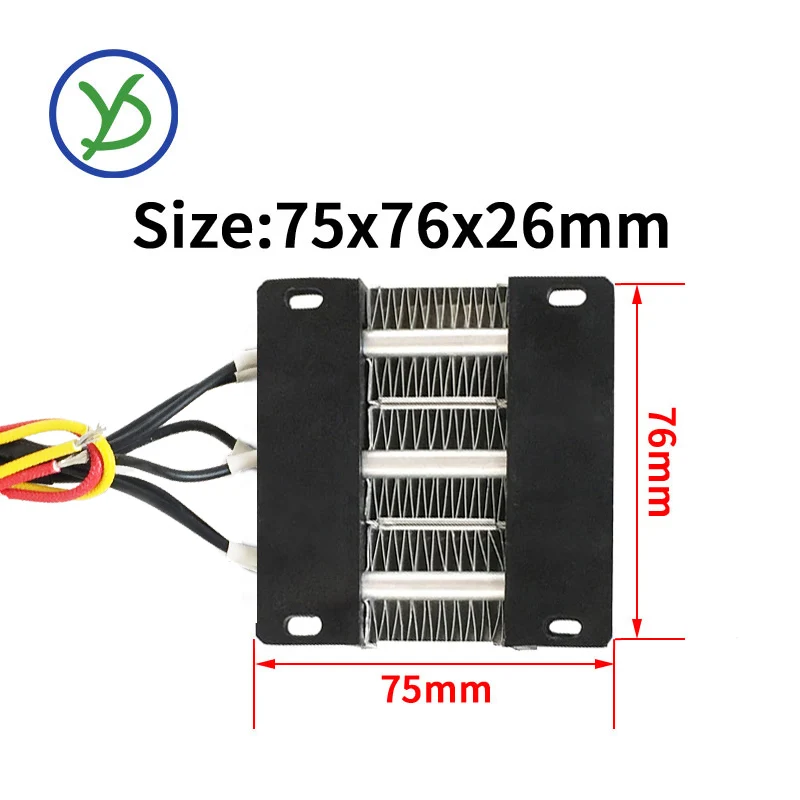

Dimension:75.5*76*26mm
consistance temperature: 200±10°C
Product Name

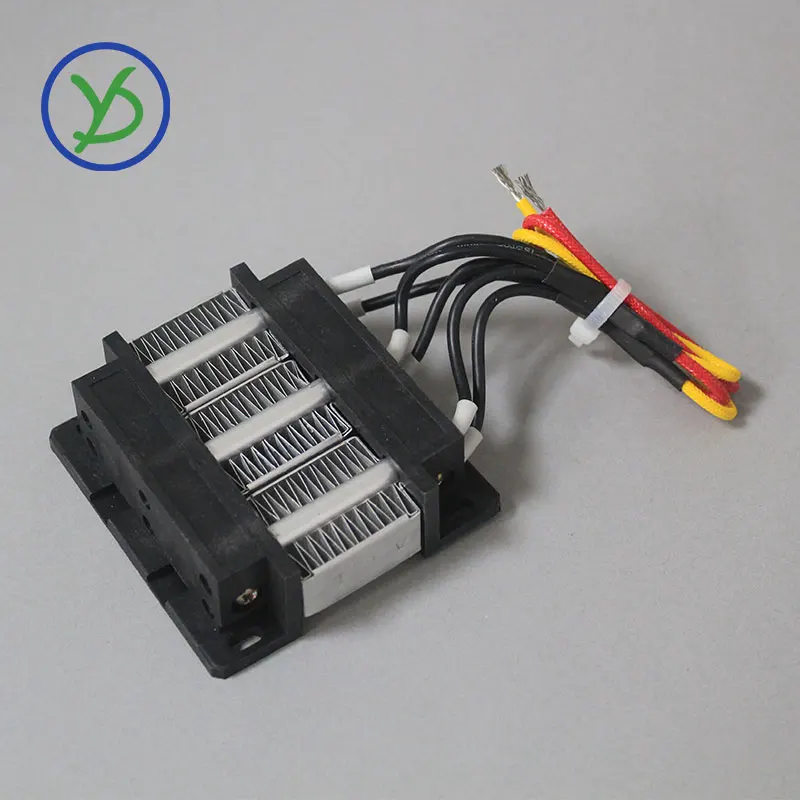

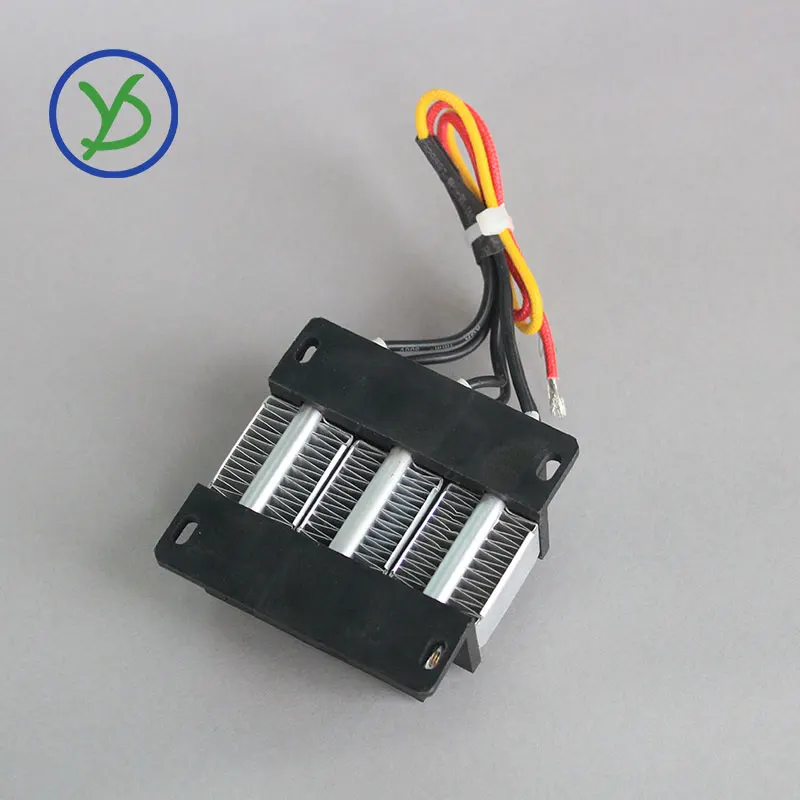

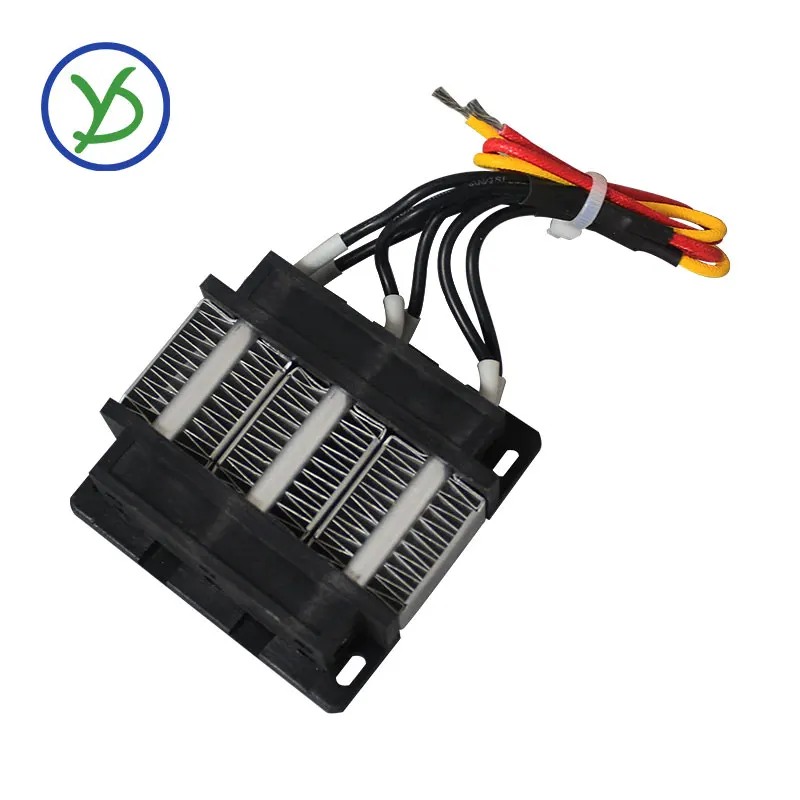

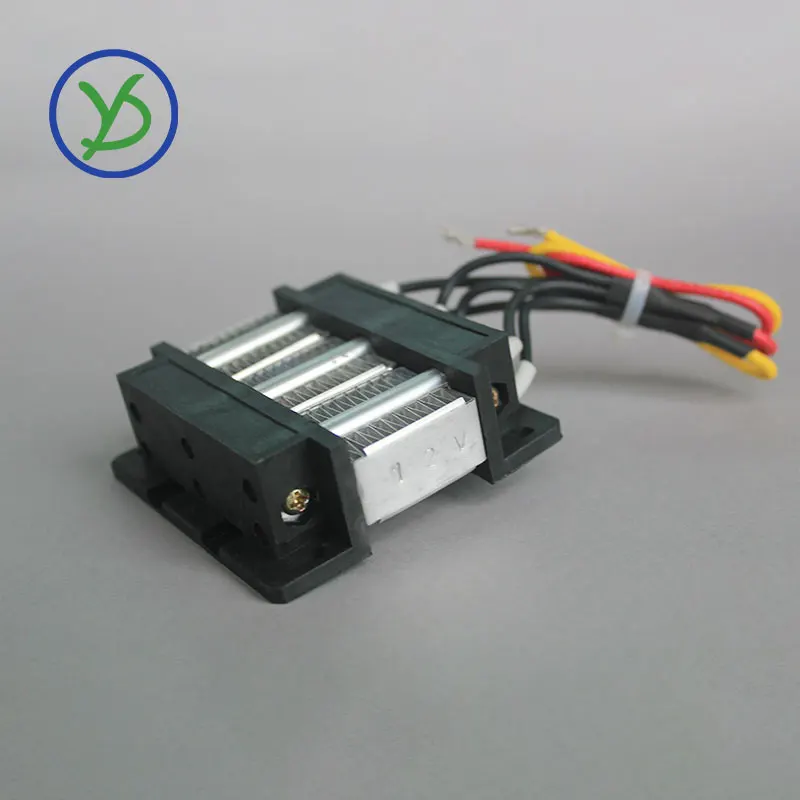

PTC air heater 12V 150W
Heat material
PTC Thermistor
Heat methods
Heat radiation by air flow

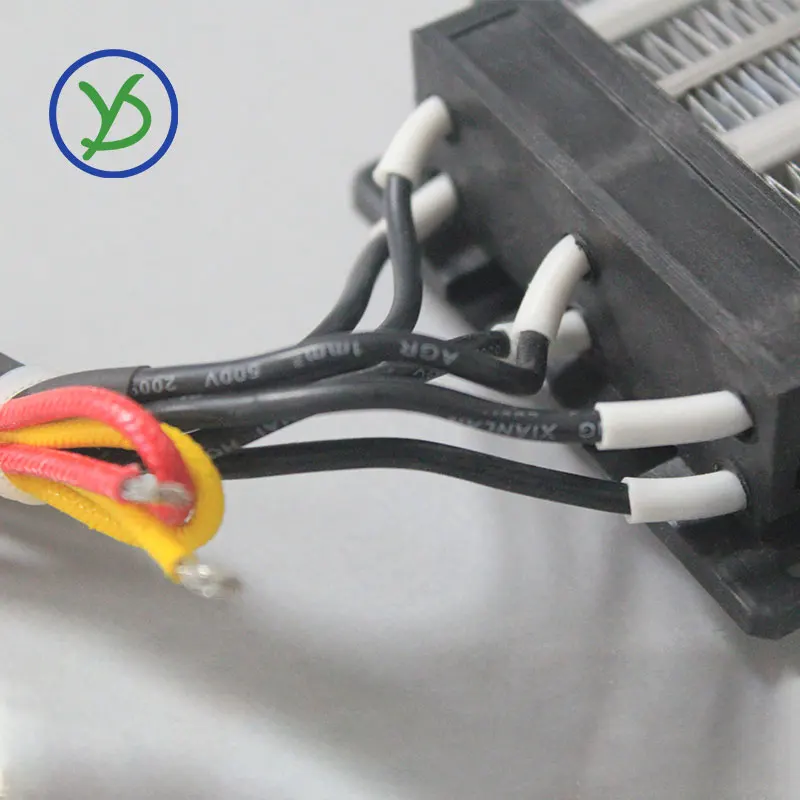

lead wire
Silicone high temperature line
the length of lead wires
200mm
the length of bare wires
10mm
Used
Air conditioning units / Electric Heater /Car / Equipment/ General electric appliance/Air curtain machine/Humidifier
Advantage:
Safety, surface insulation.
Heat up quickly, long service life.
self-control temperature
small sound
Specifications:
1, the power line does not distinguish between positive and negative, you can freely link power 12V.
2, when the heater is dry, low thermal efficiency, it is recommended to use with the fan.
3, can be placed under a wet environment, but can not be placed in water.
4, for the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
5, built-in 230 degrees Celsius heater chip, when dry the surface temperature of about 200 degrees Celsius, the fan blowing, the surface temperature of about 120 degrees Celsius.
6, both ends of the product wearing bracket (PA66 high temperature nylon)
7. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 50-60 degrees Celsius.
8, under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!
9, Life: about: 3--5 years.
Shanghai Yidu Electronic Co., Ltd is the professional manufacturer of PTC products. We are specializing in the production of PTC air heaters, PTC fan heaters and PTC liquid heaters.Our most popular products are the insulated air heaters.Widely used in new air conditioners, air conditioners, incubators, car assisted heating, ticket collection systems, beauty salons and all kinds of household appliances.
Packing Details : Packing, 50pcs/carton
Delivery Details : 1-3 days after order
Q: Are you trading company or manufacturer ?
A: We are professional PTC factory.
Q: Can you customize different requirements products?
A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.If you have another question,please send us your RFQ.
