product details
If you want English manual, please contact me
If you have any question, please contact me

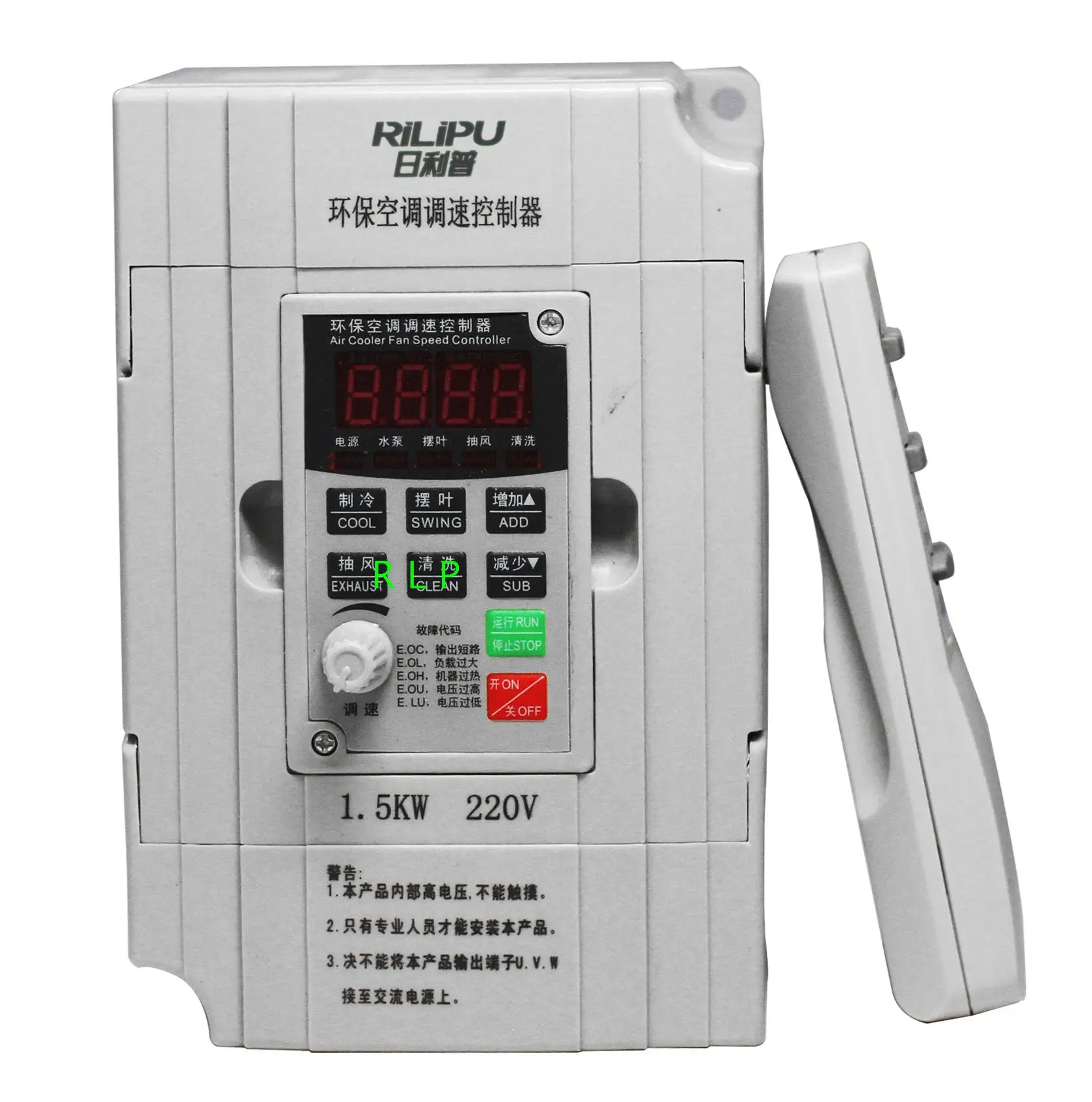

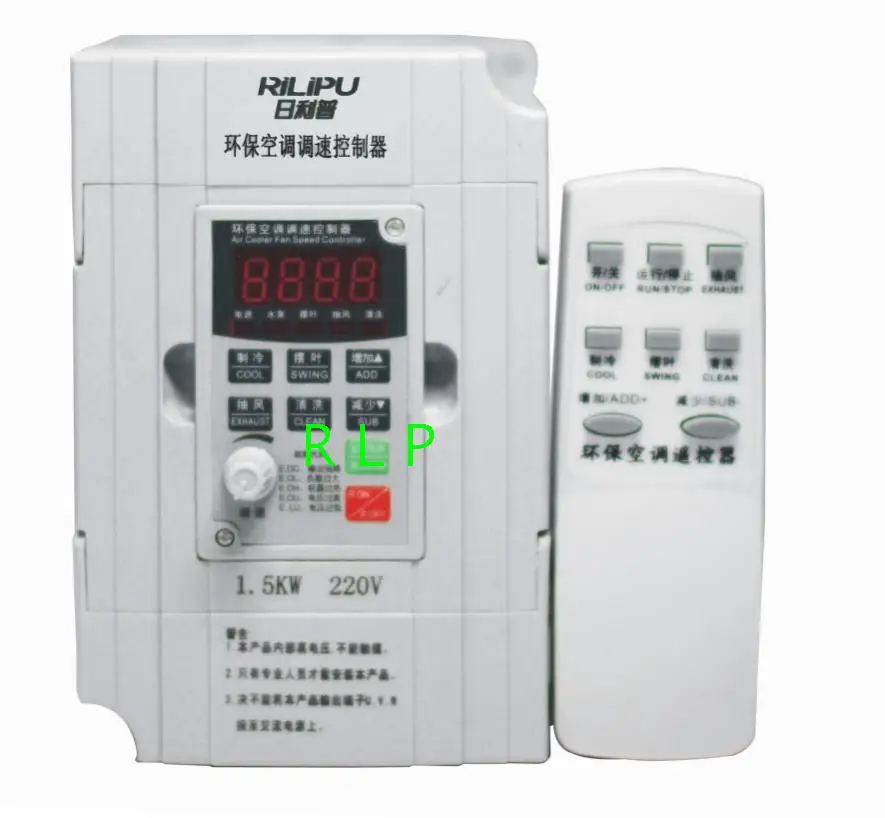

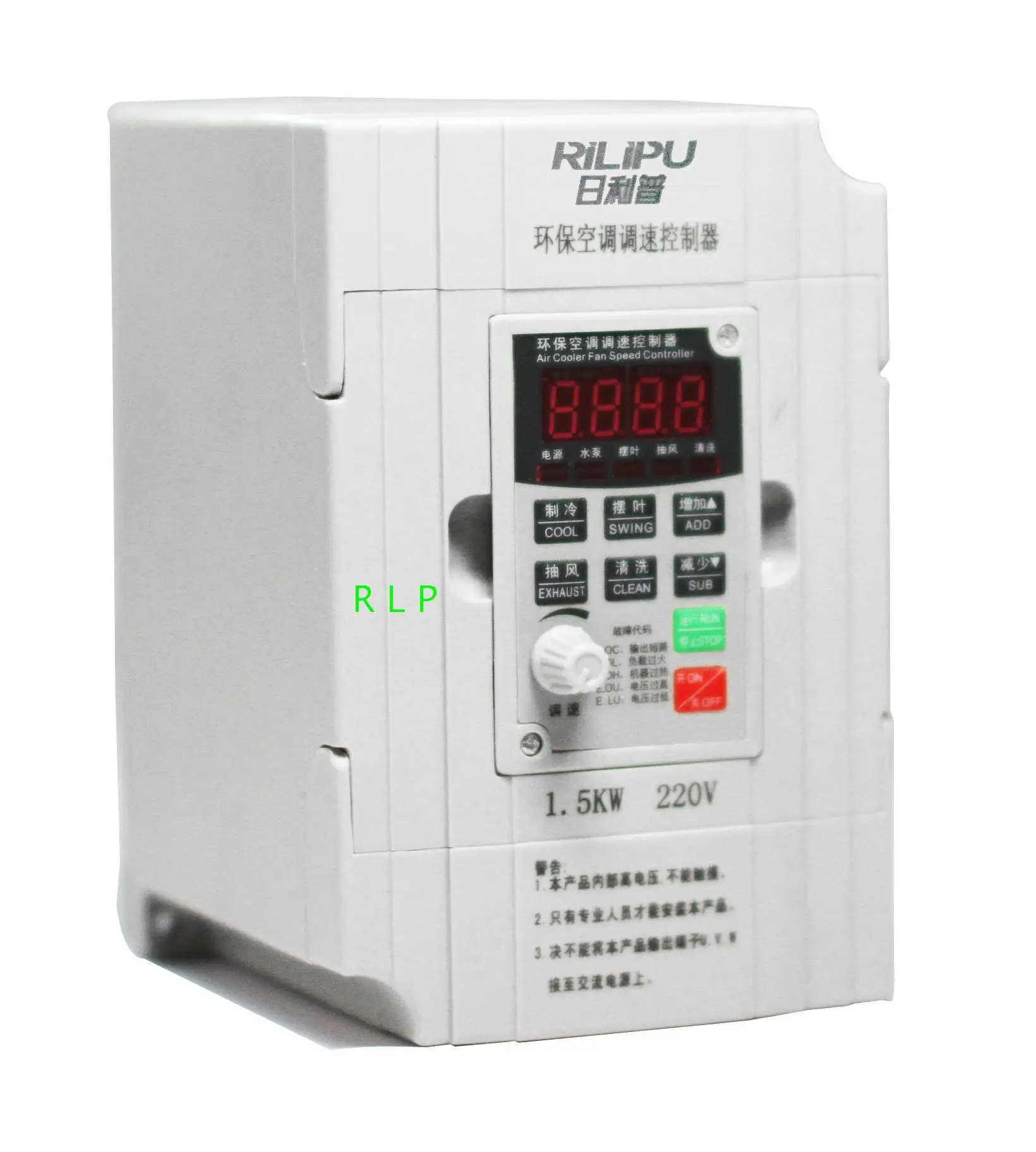

A, environmental protection air conditioning speed controller function description
1, speed range: 0HZ~50HZ (4 pole motor 0-1440).
2, can realize the cooling air exhaust, inversion.
3, can control the swing blade position, controlling the different wind direction.
4, can control the drainage motor, to achieve the cleaning effect.
B, instructions for use

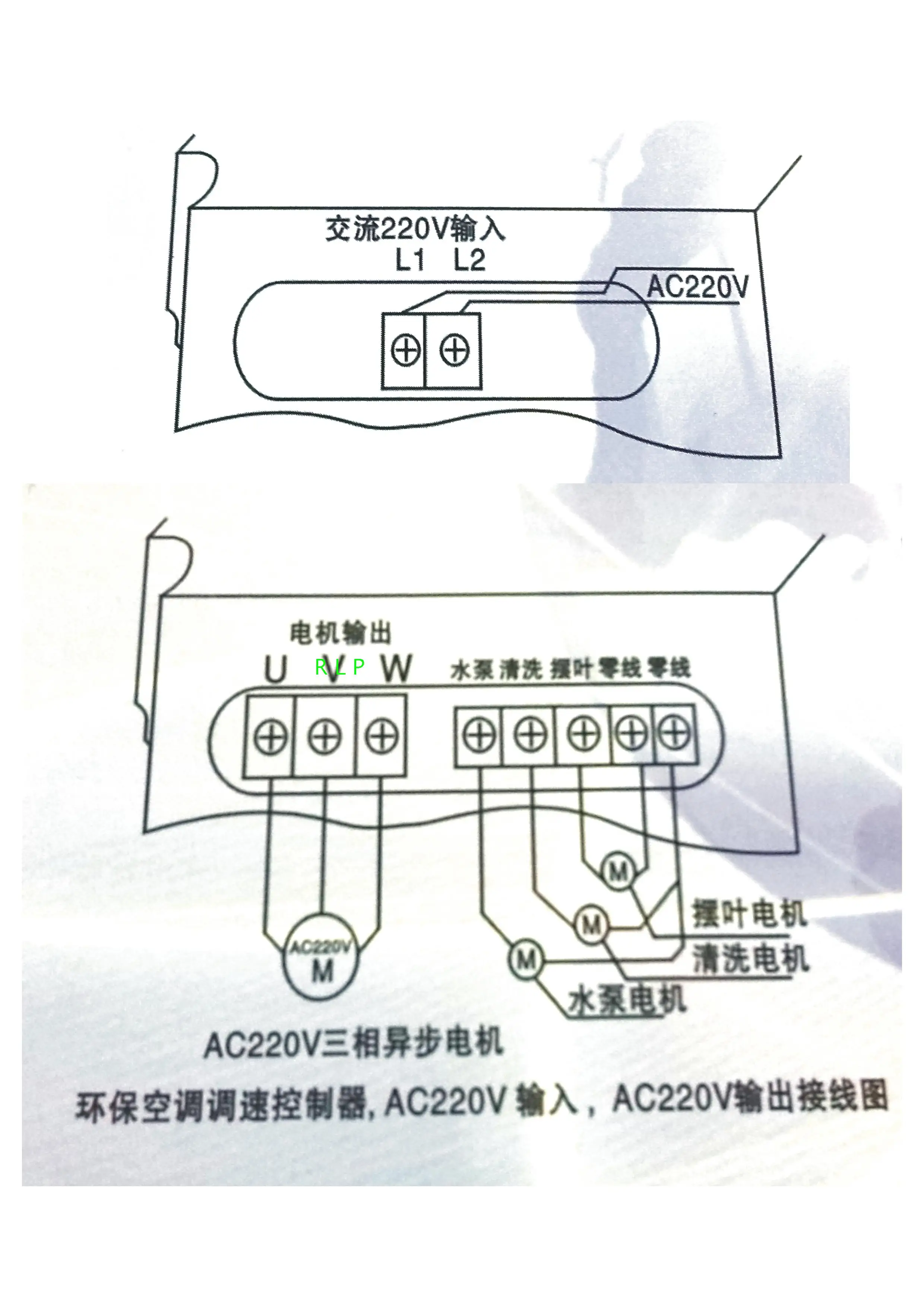

1, according to the correct wiring diagram wiring choose below, special attention should be paid to the motor output line and the power line can not be wrong, the zero line line voltage 380V controller must be AC220V.
2, then on line, electricity, and then press the key, the power lamp lit, but for other operations.
3, refrigeration operation of the motor is controlled by the key to set up to work, said.
4, a pendulum leaf motor controlled by the key to set up said, start work.
5, draft is controlled by the key to set up to work, said.
6, the drainage motor controlled by keys to set, light said to work.
7, environmental protection air conditioning power switch controlled by the speed controller.
8, the main motor run by control.
9, speed regulation by the keys, keys or control knob to achieve.
C, the protection function
1, over voltage protection; 2, low voltage protection; 3, instantaneous stop restart; 4, stall prevention; 5, output short circuit; software, hardware protection; 6, other functions; heat sink thermal protection.
