IP-камера Dahua Fisheye, 5 МП, 180 , 1,4 мм, со встроенным микрофоном
A Security Store - Надежность 99.75%
Более 1056 подписчиков, дата открытия магазина 08.06.2020
- Положительные оценки: 99% (319)
- Соответствие описанию: 100%
- Отвечает на сообщения: 100%
- Скорость отправки: 100%
Последнее обновление: 04.03.2022

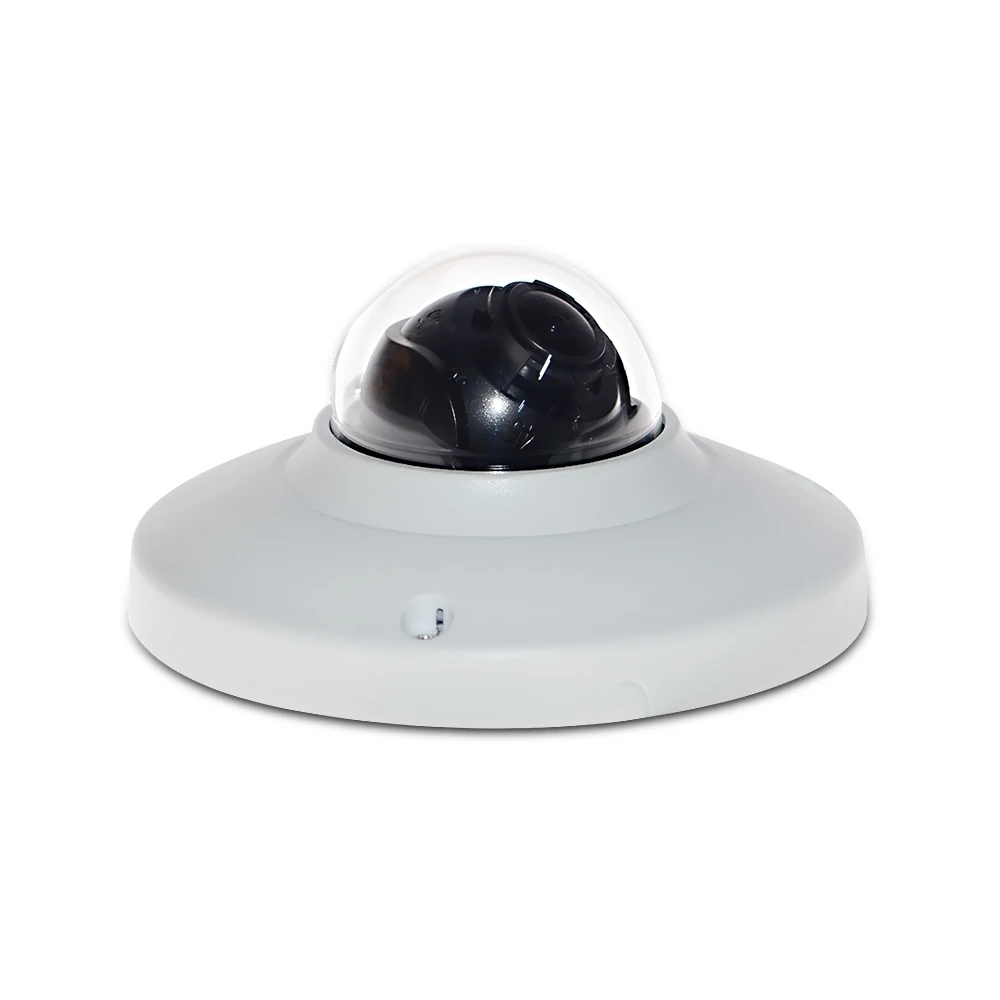

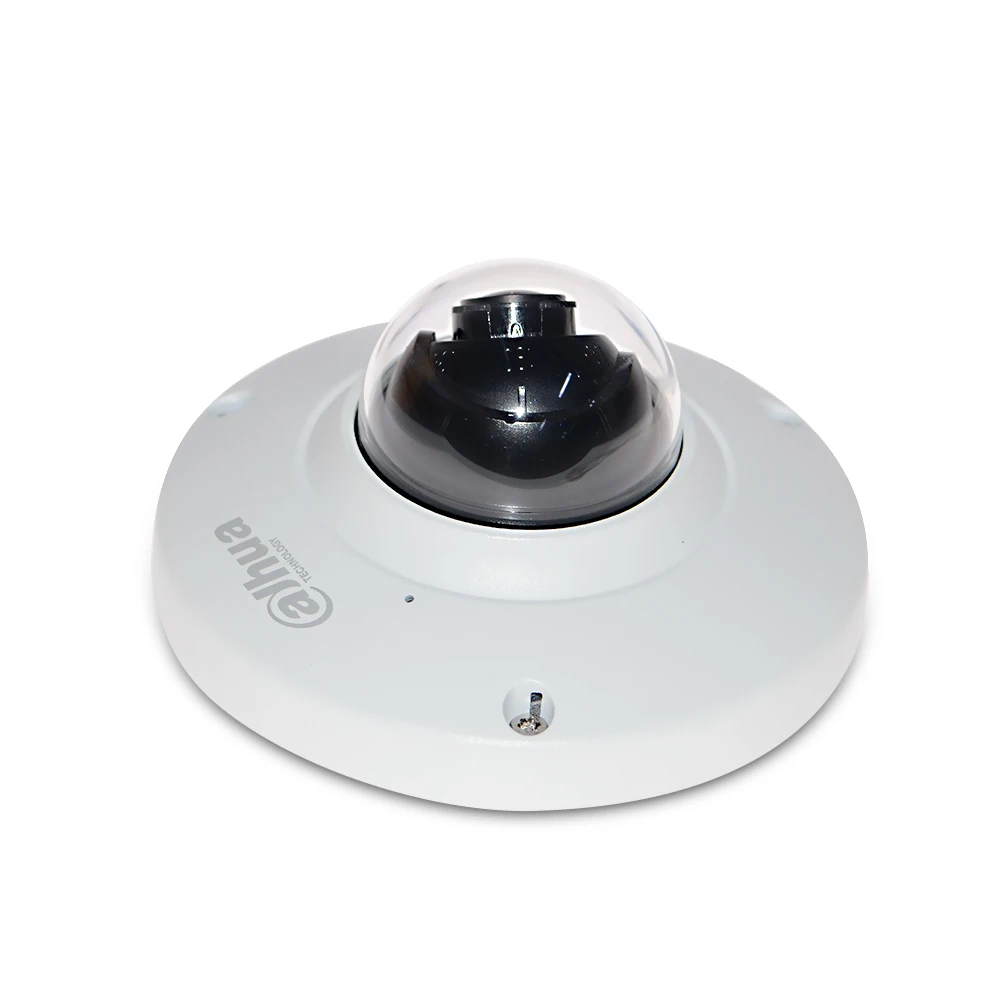

Dahua Fisheye 5MP 180° Network 1.4mm IP Camera IPC-EB5541 Built-in Mic CCTV H.265/H.264 Mini Camera IPC IP67 PoE WidSense
1. About camera :
This product is 100% original from Dahua ,it support firmware updating ! so please don't worry any quality problem.
2.About shipment :
If you canorder ≥ 4pcs cameras , we will try to send items via fast shipping for free .We will choose the best shipping method for your order according to our experience as different countries has different shipping rules .
3. Aboutwarehouse
we have oversea warehouse[ Spain-EU warehouse],[Russian warehouse],ship from these warehouse, won't have customs problem and customs fees
4. About Us
we are top agent of security system and more 10years experience in this market, with Proffesional after-sale service and suggestion.

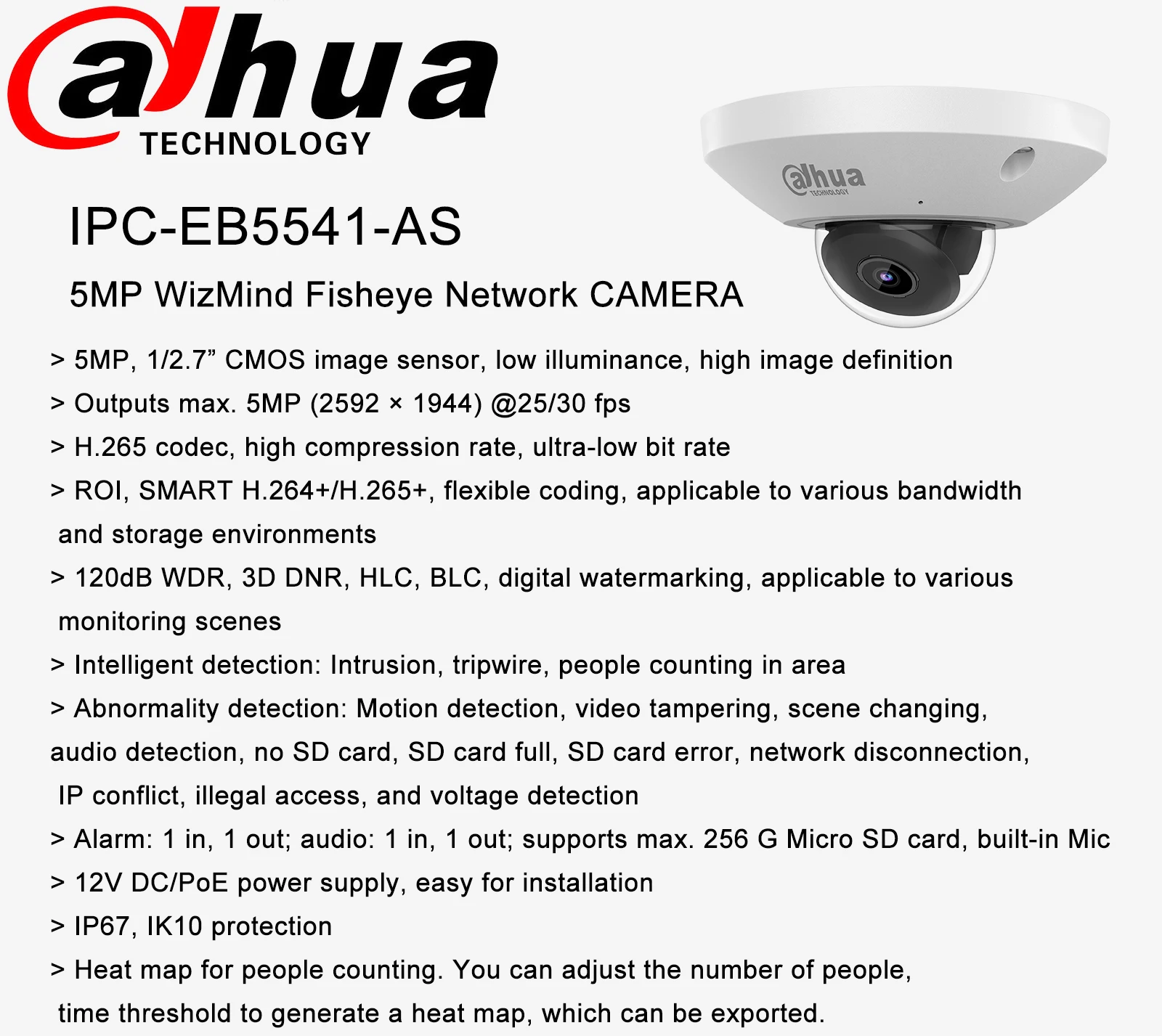

IPC-EB5541-AS
5MP WizMind Fisheye Network CAMERA
> 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
> Outputs max. 5MP (2592 × 1944) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire, people counting in area
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
> 12V DC/PoE power supply, easy for installation
> IP67, IK10 protection
> Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.
Technical Specification
Camera
Image Sensor:1/2.7”5Megapixel progressive CMOS
Max. Resolution:2592 (H) × 1944 (V)
ROM:128 MB
RAM:512 MB
Scanning System:Progressive
Electronic Shutter Speed:Auto/Manual 1/3 s–1/100,000 s
Min. Illumination:0.006 Lux@F2.0 (Color, 30IRE)
S/N Ratio:> 56 dB
Pan/Tilt/Rotation Range:Pan: 0°–355°Tilt: 0°–55°Rotation: 0°–360°
Lens
Lens Type:Fixed-focal
Mount Type:M12
Focal Length:1.4 mm
Max. Aperture:F2.0
Field of View:Horizontal: 180°Vertical: 180°Diagonal: 180°
Iris Type:Fixed
Close Focus Distance:0.2 m (0.7 ft)
DORI Distance:Detect:Observe:Recognize:Identify
:28 m
(91.9 ft):11.2 m
(36.7 ft):5.6 m
(18.4 ft):2.8 m
(9.2 ft)
Smart Event
Heat Map:Yes
Professional, intelligent
IVS (Perimeter Protection):Tripwire; intrusion
People Counting:Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas
Intelligent Search:Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression:H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec:Smart H.265+/ Smart H.264+
Video Frame Rate:Main stream (2592 × 1944 @1–25/30 fps)sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps)third stream (1280 × 720 @1–25/30 fps)
Stream Capability:3 streams
Resolution:5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control:CBR/VBR
Video Bit Rate:H.264: 3 kbps–8192 kbpsH.265: 3 kbps–8192 kbps
Day/Night:Color/B/W
BLC:Yes
HLC:Yes
WDR:120 dB
Scene Self-adaptation (SSA):Yes
White Balance:Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
-
AudioBuilt-in Mic
-
CasingMetal
-
CertificationsCE UL FCC
-
DetectSmart Detection
-
EncodingH.265&H.264 triple-stream
-
EthernetRJ45
-
Resolution125fps 5MP(2592*1944)
-
Resolution225/30fps 3MP(2048*1520)
-
Sensor1/2.7 5Megapixel progressive scan CMOS
-
TechWDR(120dB), 3DNR,AWB,AGC,BLC
-
Вес логистики1.700
-
Возможность подключенияIP / проводная сеть
-
Высокое разрешение5.0 Мегапикселей
-
габариты( д х ш х г)( мм)D149.8mm*47.7mm
-
Индивидуальное изготовлениеНет
-
Каждая упаковка1
-
Карты памятиНет
-
Мегапиксели5 МП
-
Минимальная единица измерения100000015
-
минимальная освещенность люкс0Lux/F2.8(IR on)
-
Название брендаDahua
-
Номер моделиIPC-EB5541-AS
-
Объектив (мм)Other(Other)
-
Особые характеристикиАнтивандальный
-
ПитаниеС POE
-
питания vDC12V, PoE (802.3af)(Class 0)
-
поддерживаемых мобильных системAndroid
-
Поддержка операционных системWindows 98
-
потребляемая мощность вт)<12W
-
Продано Вsell_by_piece
-
ПроисхождениеКитай
-
Размер логистики - высота (см)15
-
Размер логистики - длина (см)16
-
Размер логистики - ширина (см)16
-
Расстояние иК (m)Up to 10m(33ft)
-
СенсорCMOS
-
СертификацияЕвропейский сертификат соответствия
-
Сетевой интерфейсРазъем Ethernet RJ-45 10/100 Mб
-
СтильКупольная камера
-
ТехнологияИнфракрасный
-
ТипIP-камера
-
Угол обзора180 °
-
Умные домашние тапочки на платформеДругое
-
УстановкаПотолок
-
Формат сжатия видеоH.264
-
Хранения256GB
-
ЦветБелый
