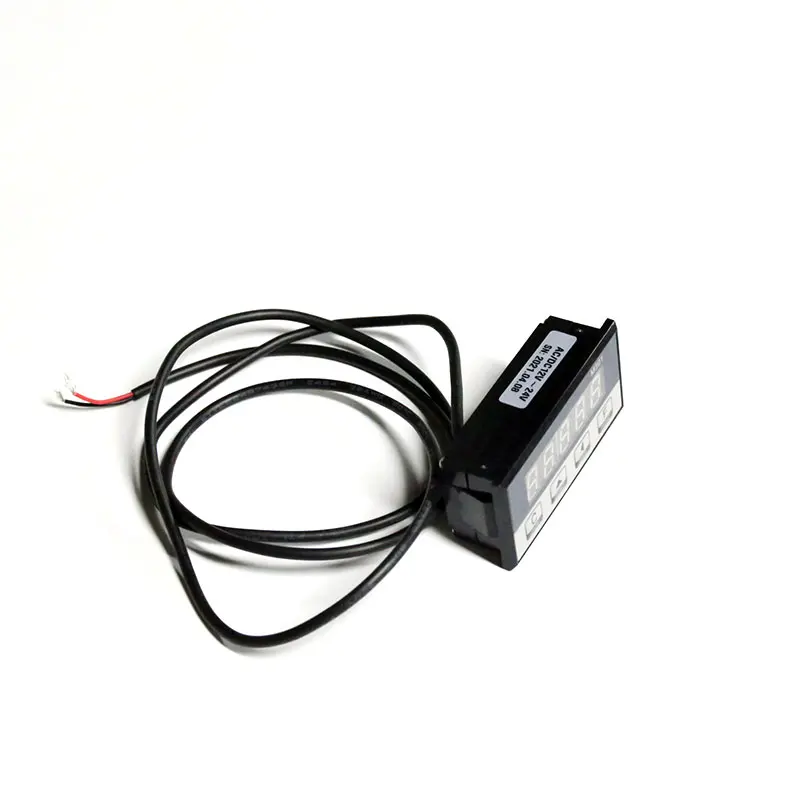

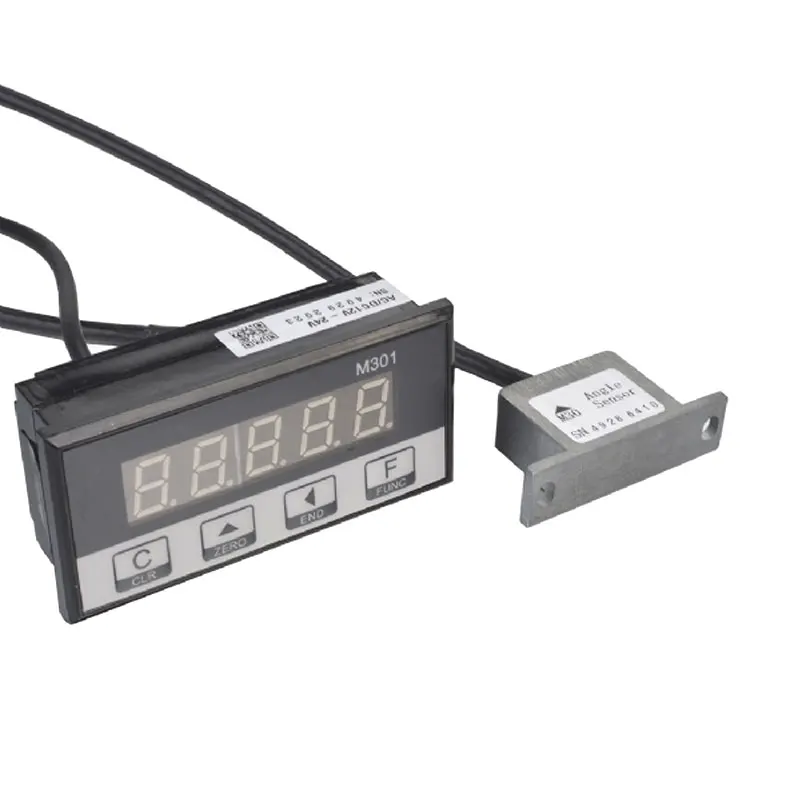

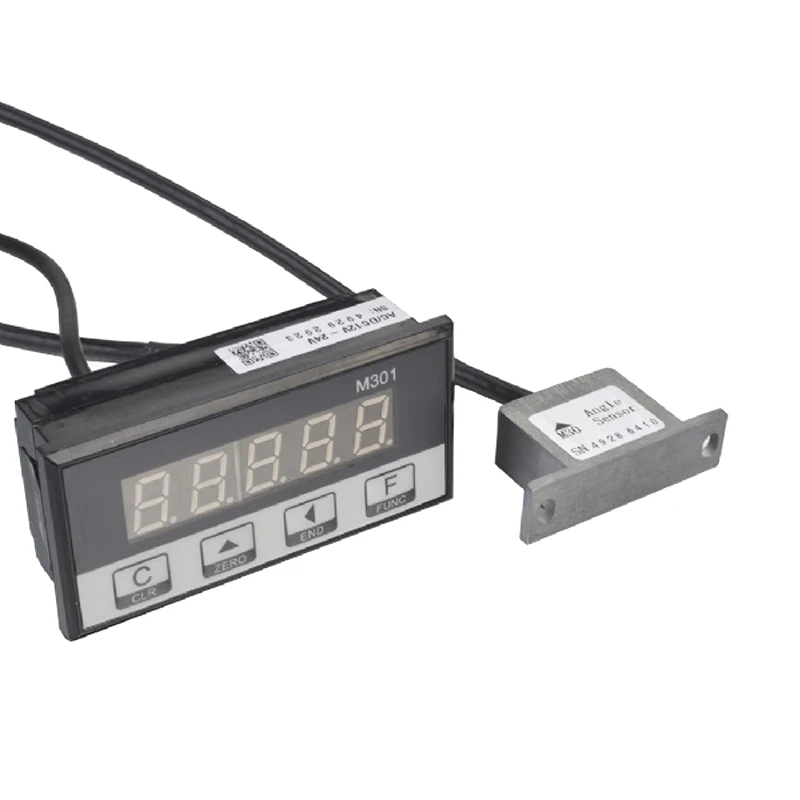

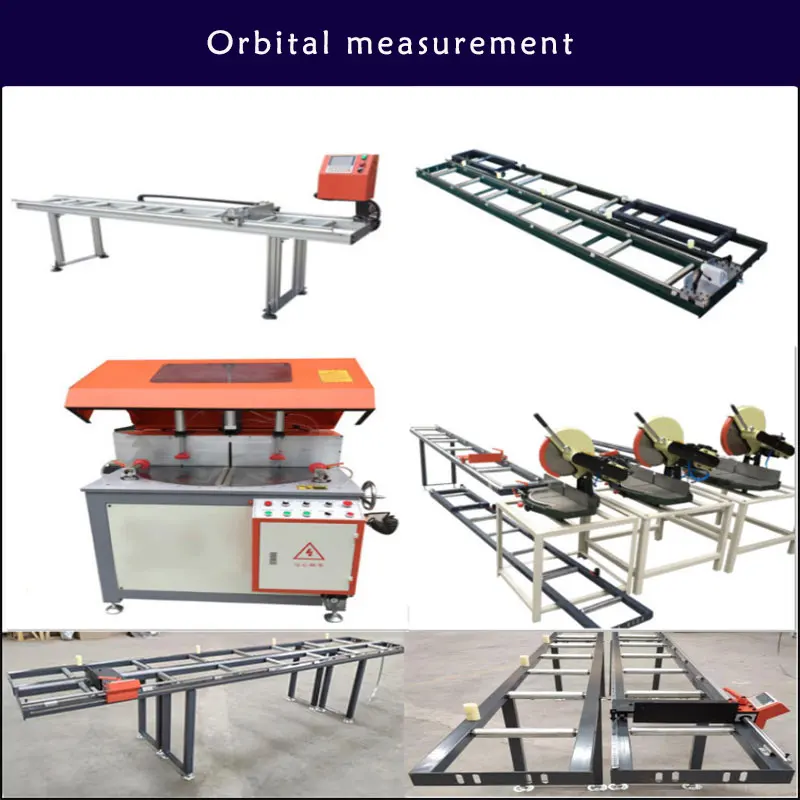

Цифровой угловой измеритель M301, магнитный датчик, считывание, предназначенный для деревообрабатывающих станков, магнитный сетчатый счетчик

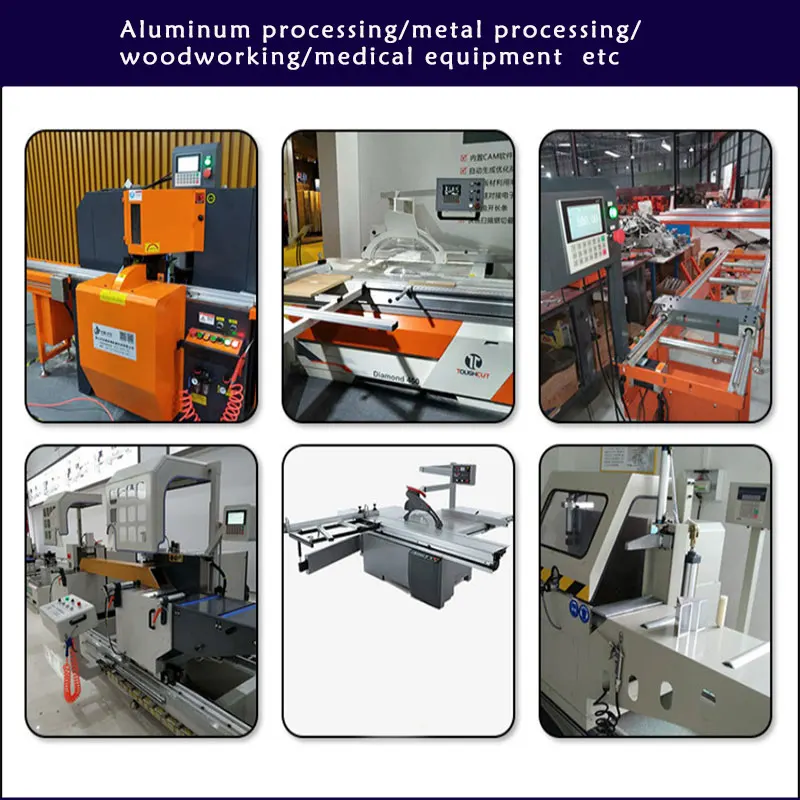

AngleDigital display meter M301 Magnetic sensorReadoutdedicated for woodworking Stone machinery Magnet grid counter

Removable and pluggable equipped with high-precision metal reading head, safe and fast

After the power is off, the measurement data is not lost

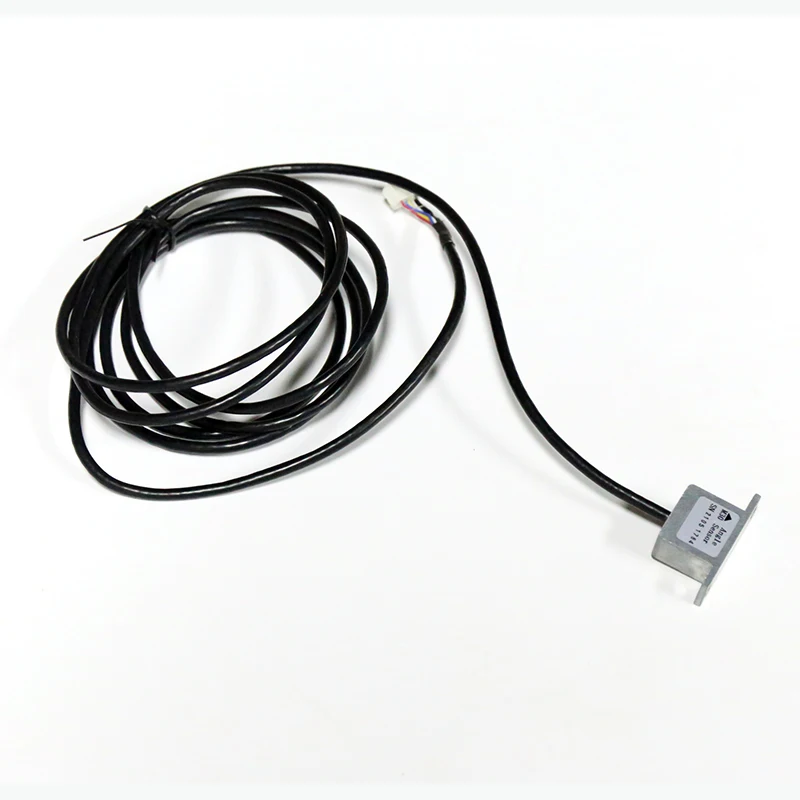

Direct measurement of angular displacement surface

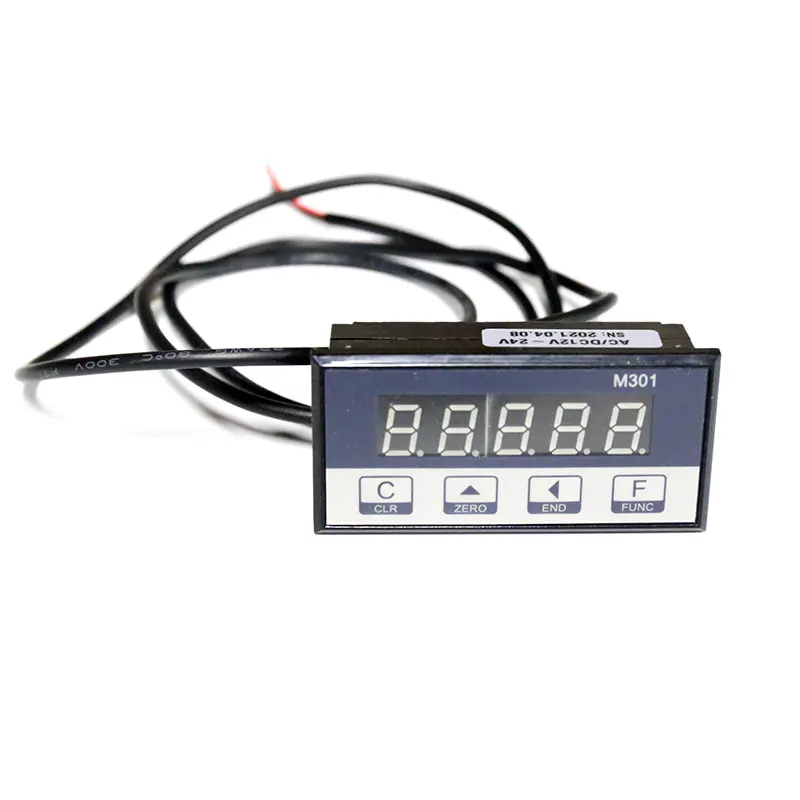

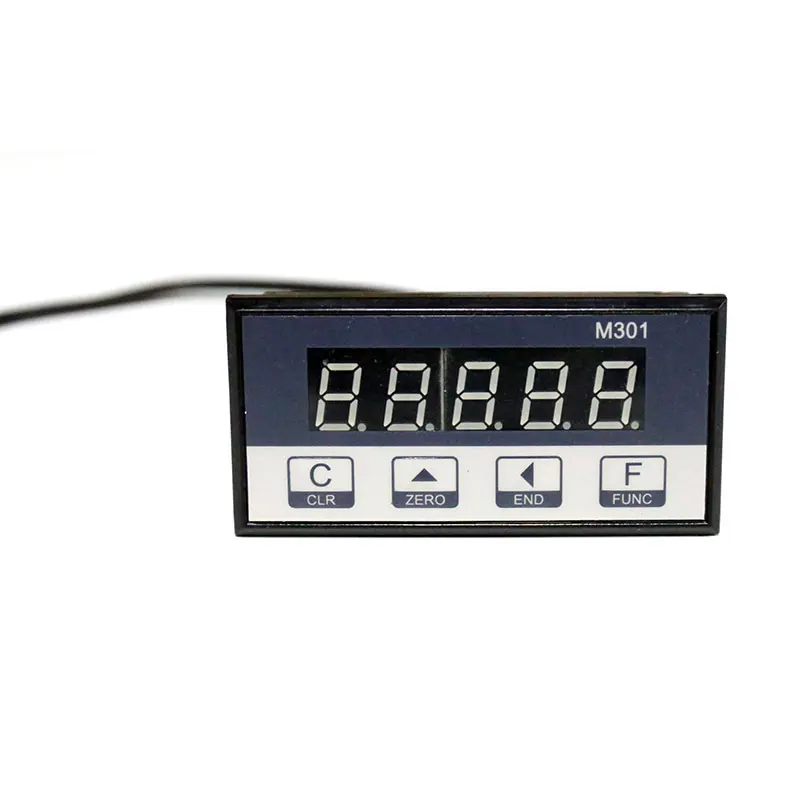

5-digit clear digital tube display

Measuring range: ±180 degrees

Automatically memorize the angle after power failure

Panel keys can be locked to avoid misoperation

Quick response to angle data l

Initial angle setting: 0 degreel

End angle setting: 45 degrees

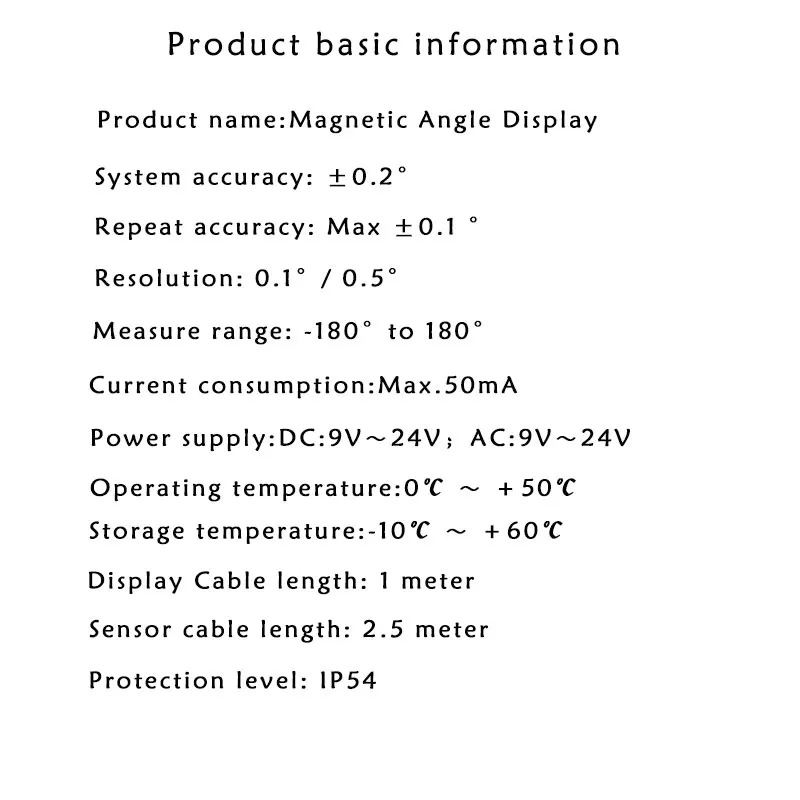

Product basic information:

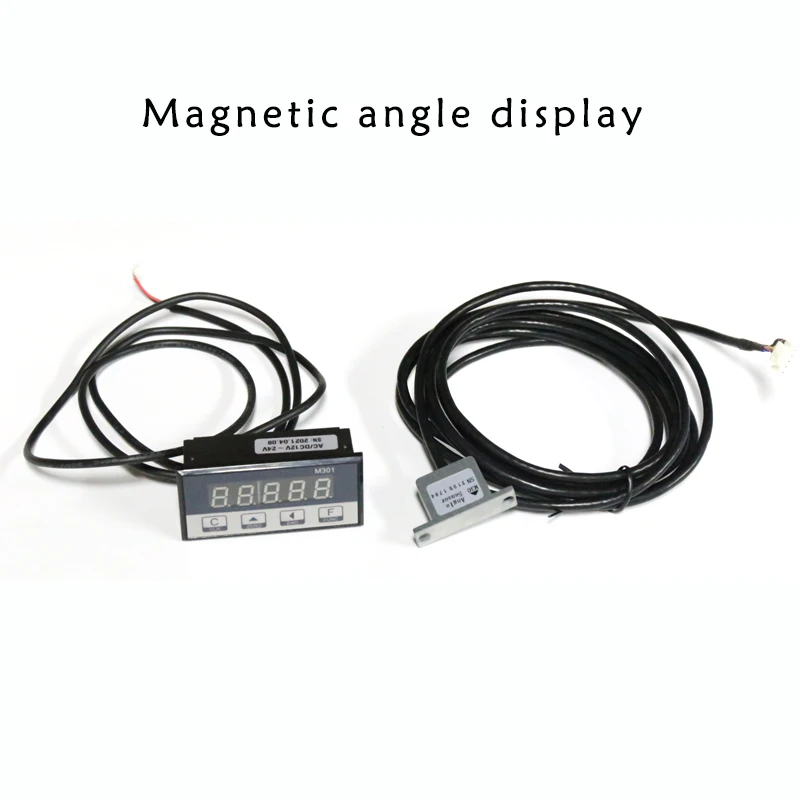

Product name:Magnetic Angle Display

System accuracy: ±0.2°

Repeat accuracy: Max ±0.1 °

Resolution: 0.1°/ 0.5°

Measure range: -180°to 180°

Current consumption:Max.50mA

Power supply:DC:9V～24V；AC:9V～24V

Operating temperature:0℃ ～ ＋50℃

storage temperature:-10℃ ～ ＋60℃

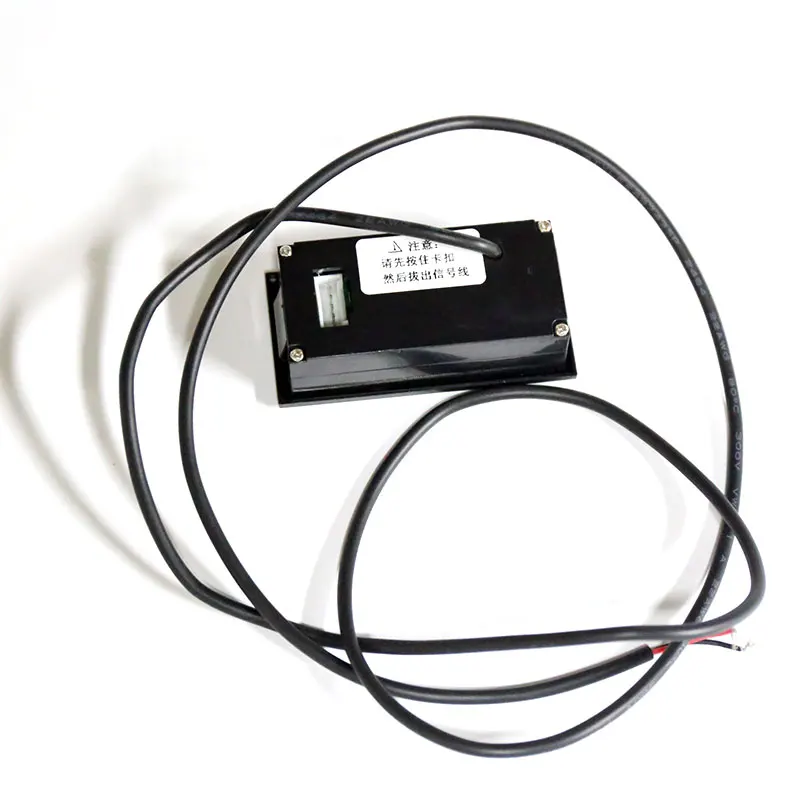

Display Cable length: 1 meter

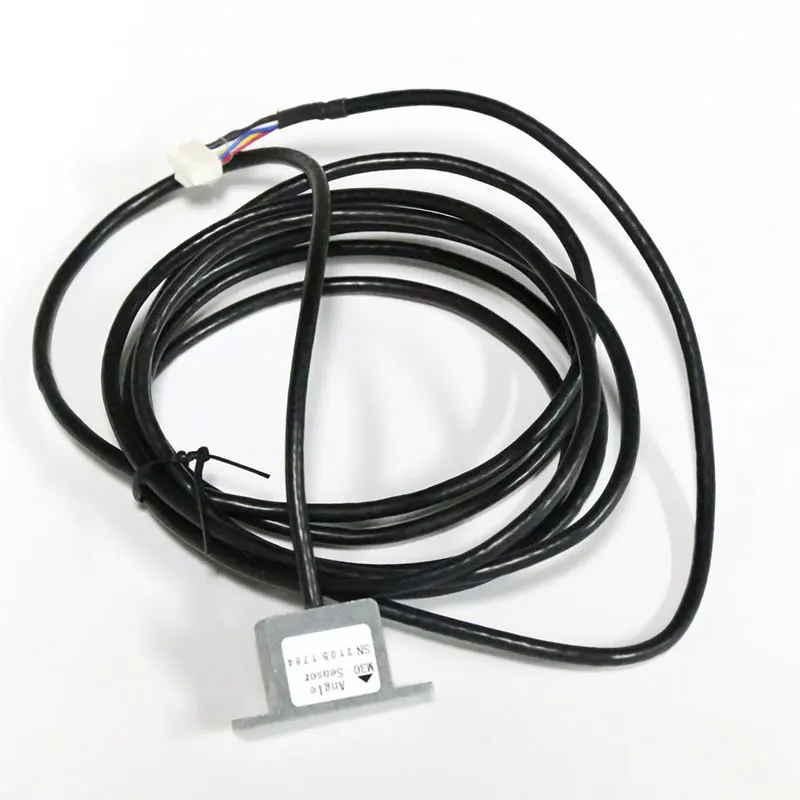

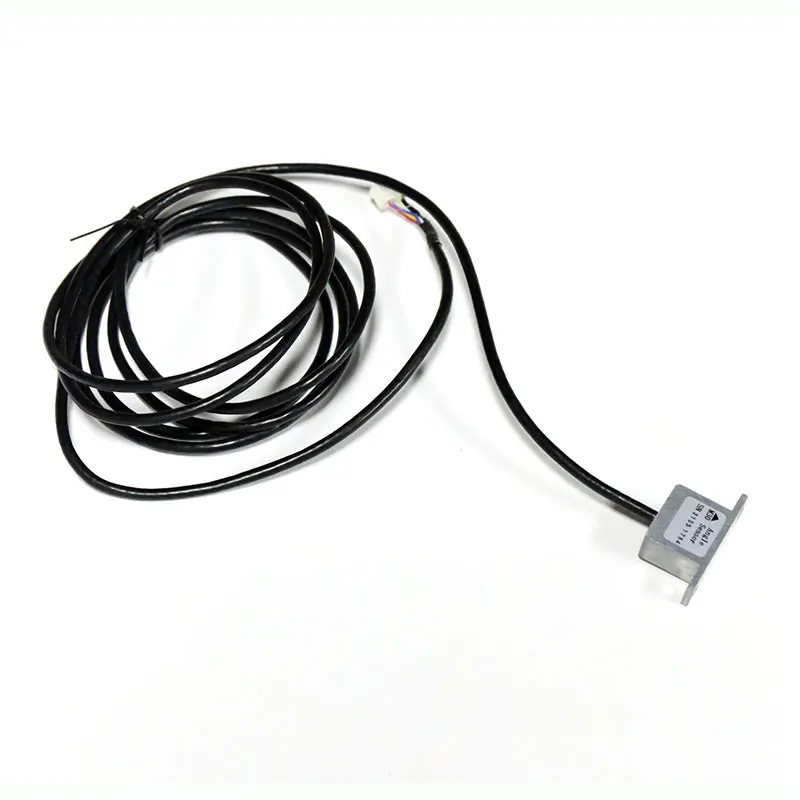

Sensor cable length: 2.5 meter

Protection level: IP54
