Тахометр 3 в 1 с индикатором температуры воды и масла, 300060008000 обмин

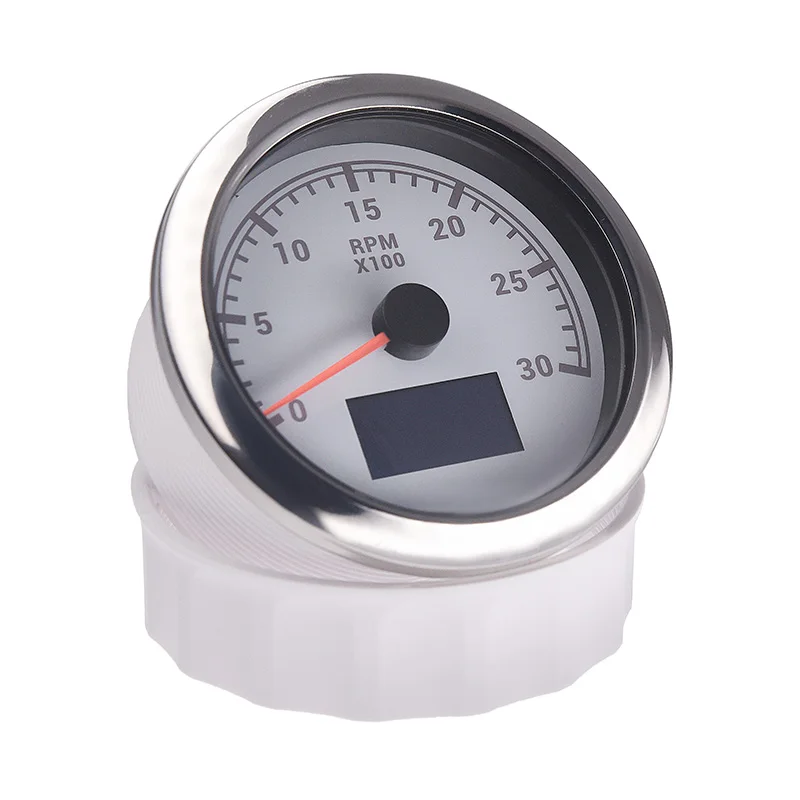

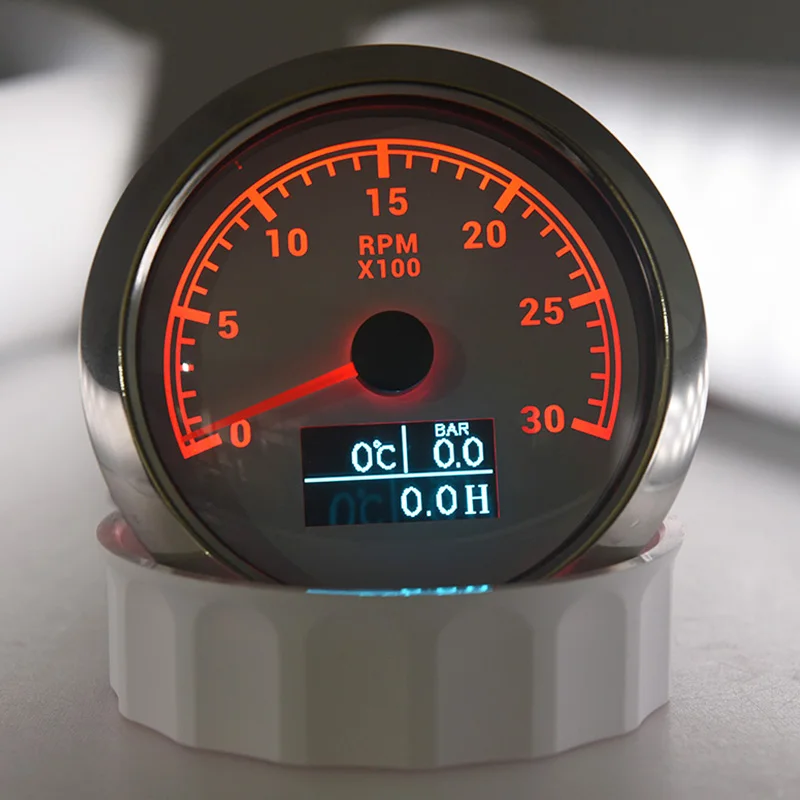

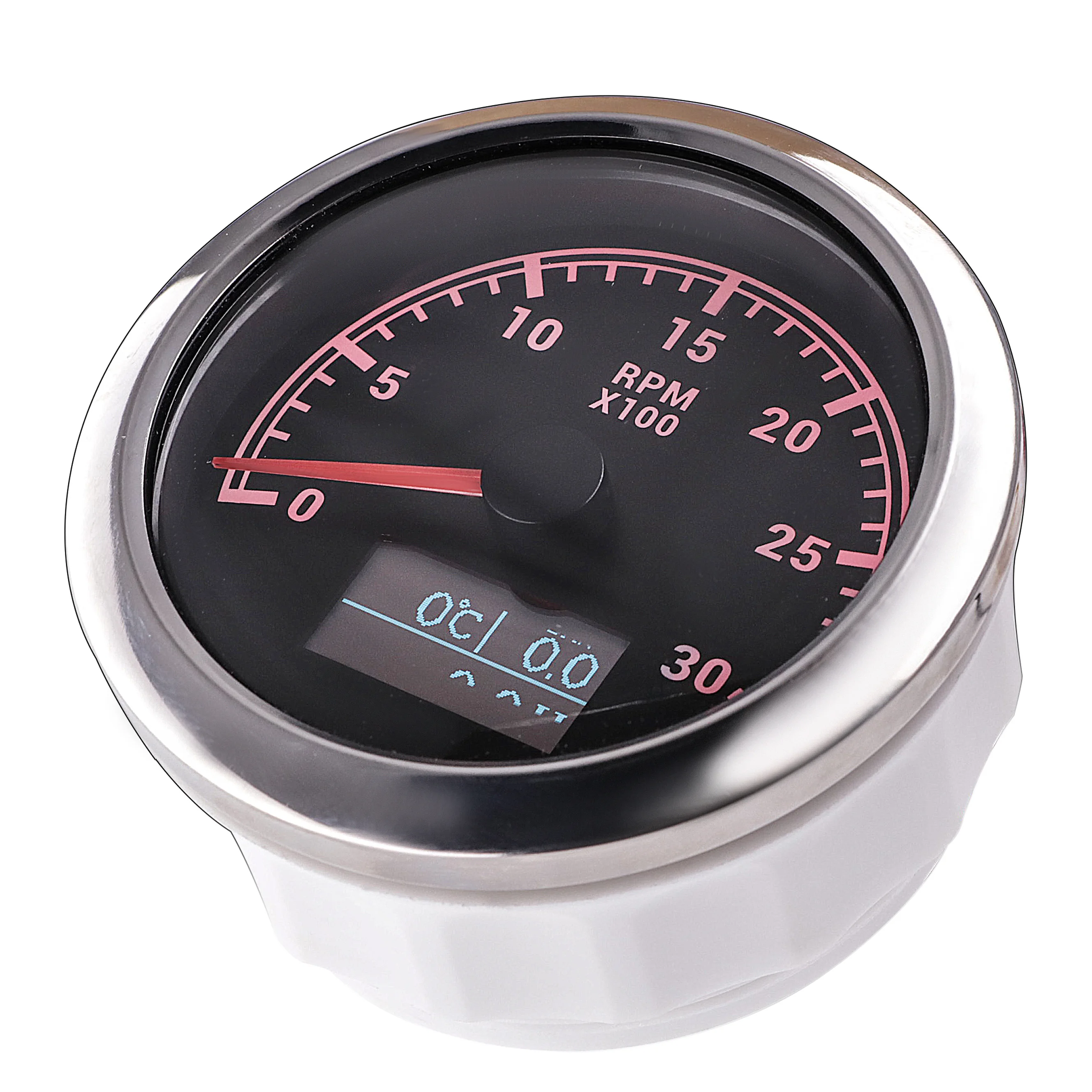

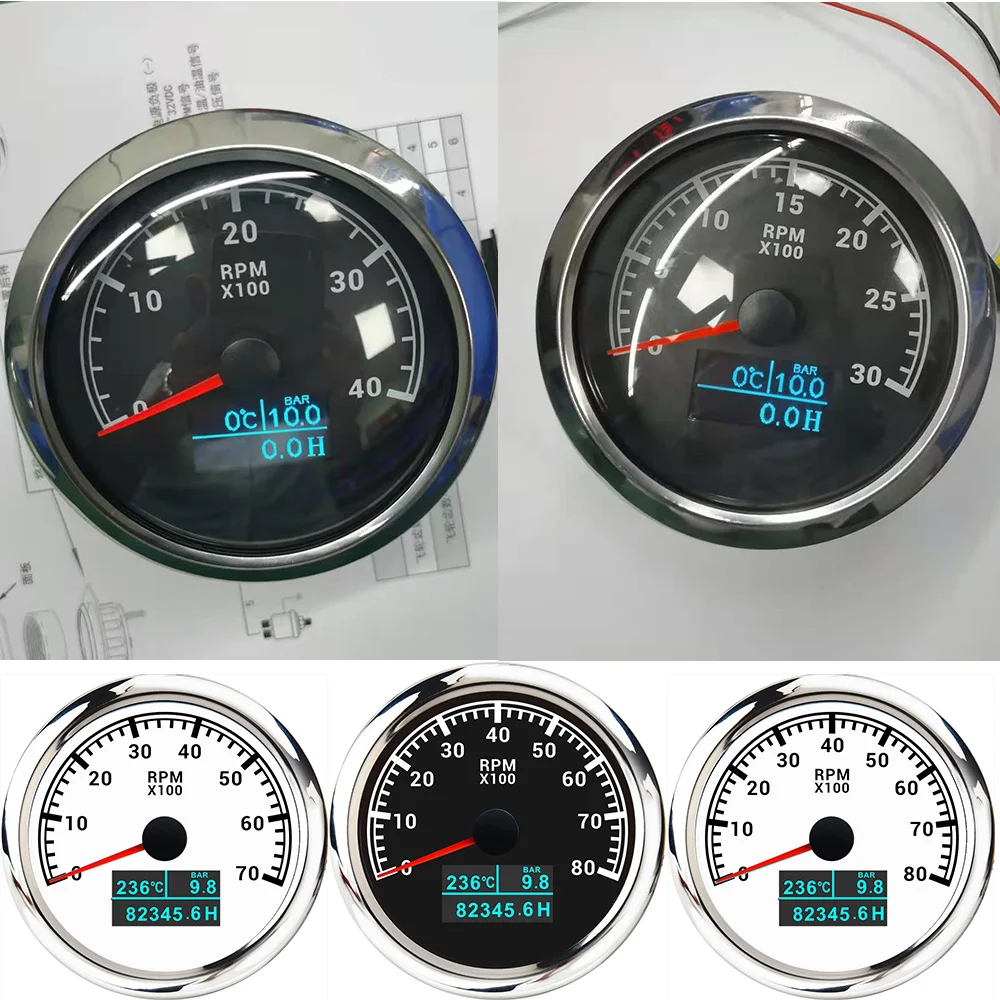

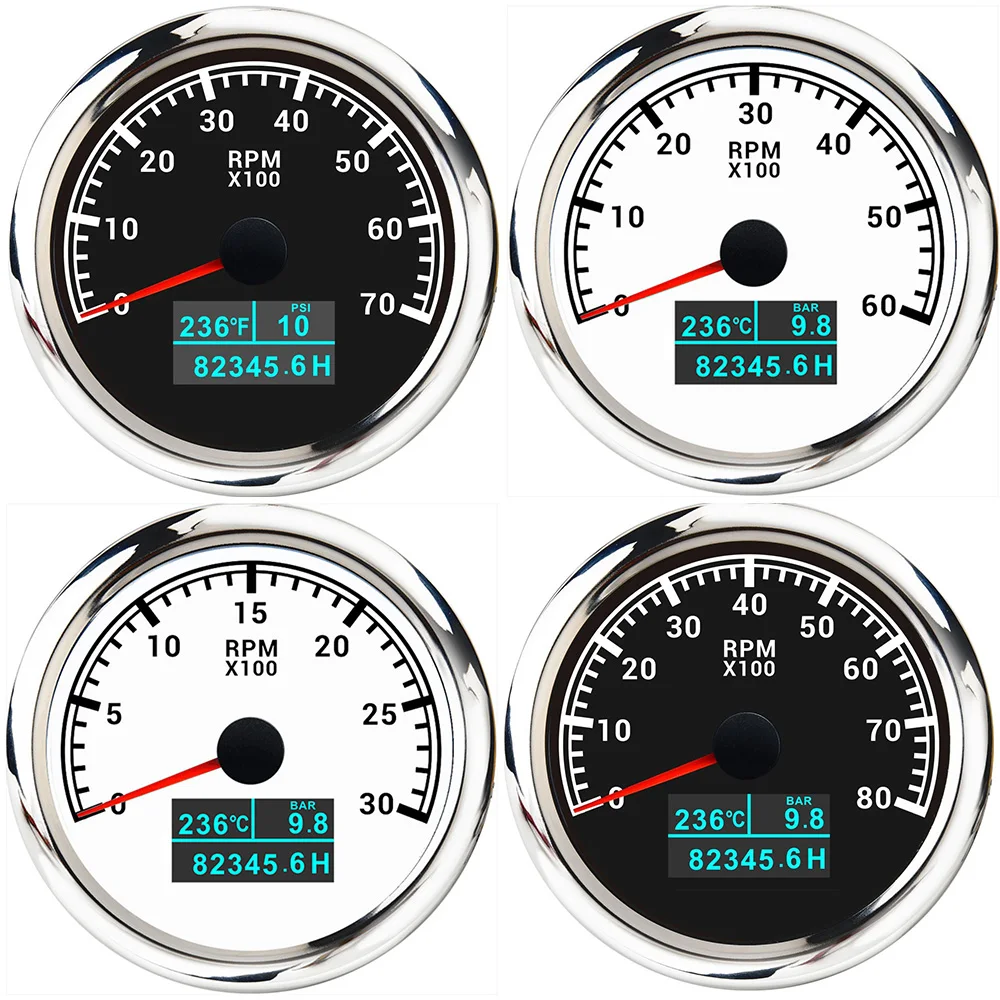

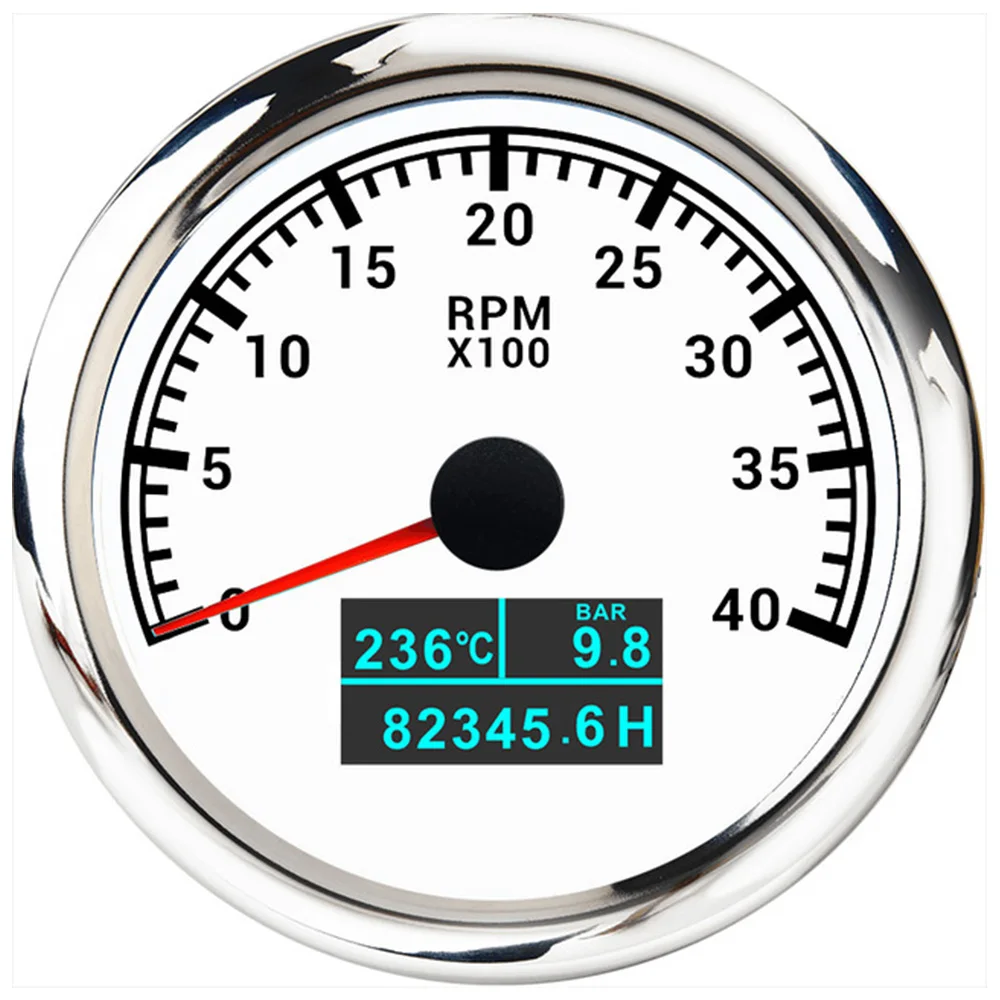

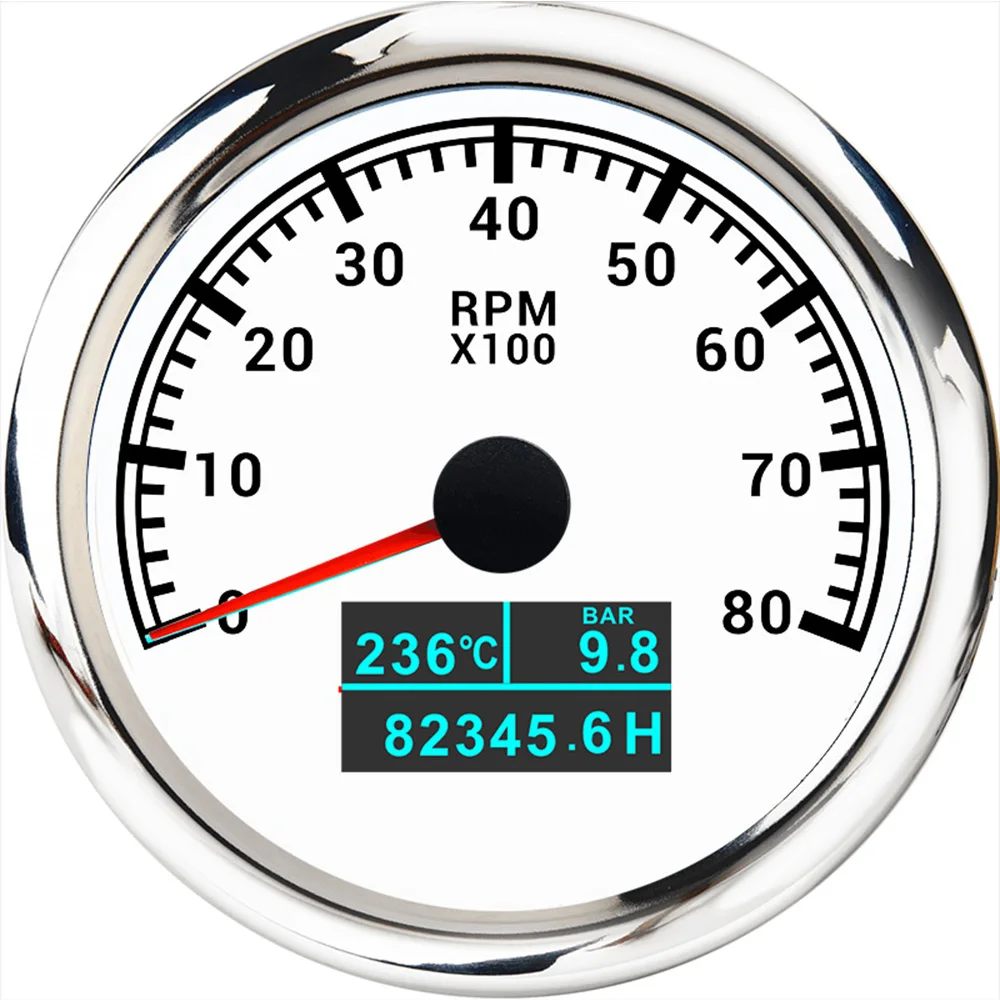

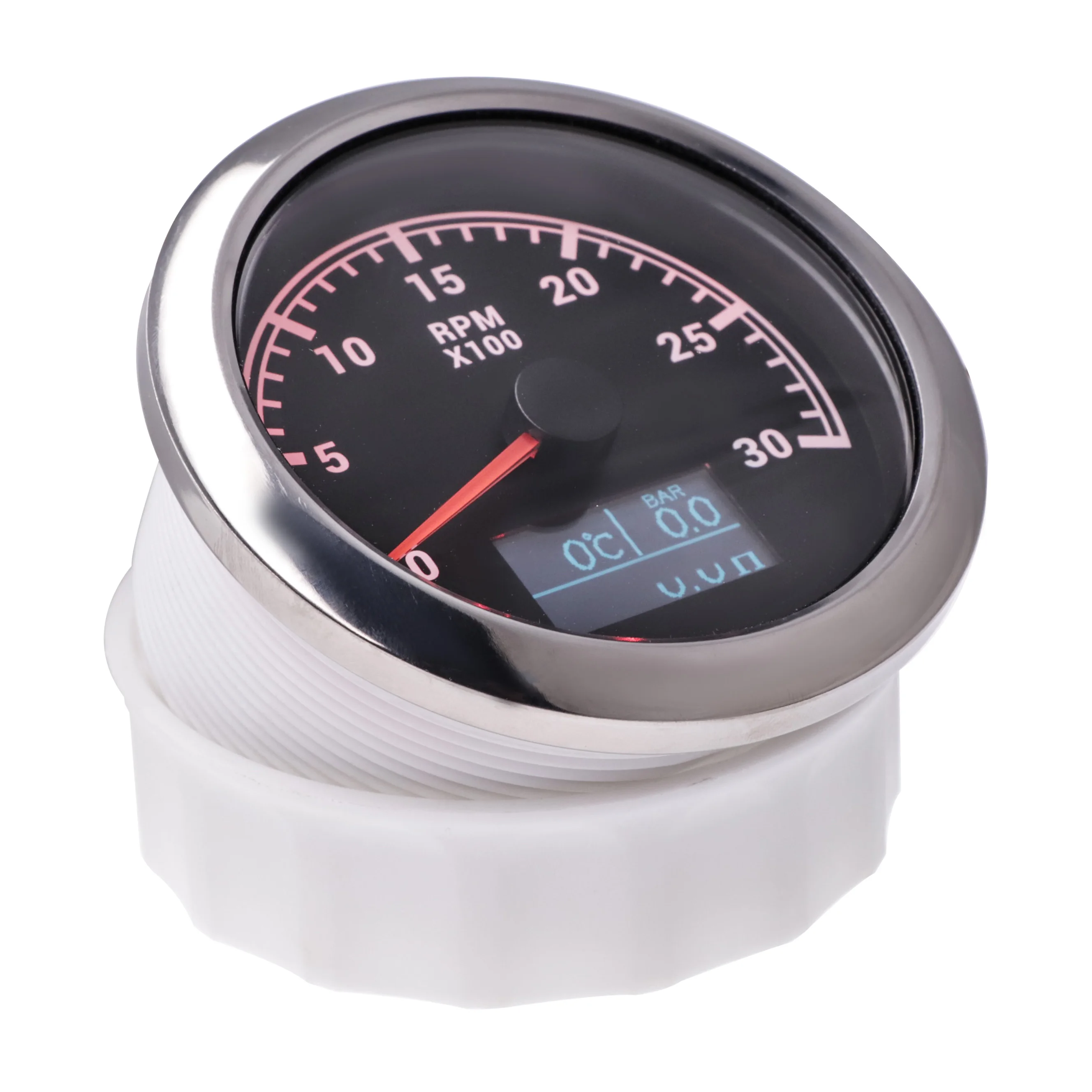

3000/6000/8000 RPM Tachometer With Water Temperature Oil Pressure Gauge Engine Total Hours 3 In 1 Tacho Meter for Marine Boat

Feature:

Engine Speed: 0-6000RPM,Water Temperature: 25-120℃Oil Pressure: 0.0-10.0barEngine Total Hours: 0.0-99999.9HAdjustable range of tachometer speed ratio: 1.0-360.0Pressure sensor: 10-184 OhmWater temperature Sensor: 301-22 Ohm

Instruction:

Working voltage: 9-32VDCWorking current: <120mAWorking temperature: -30-70℃Waterproof rating: IP67

Wiring:

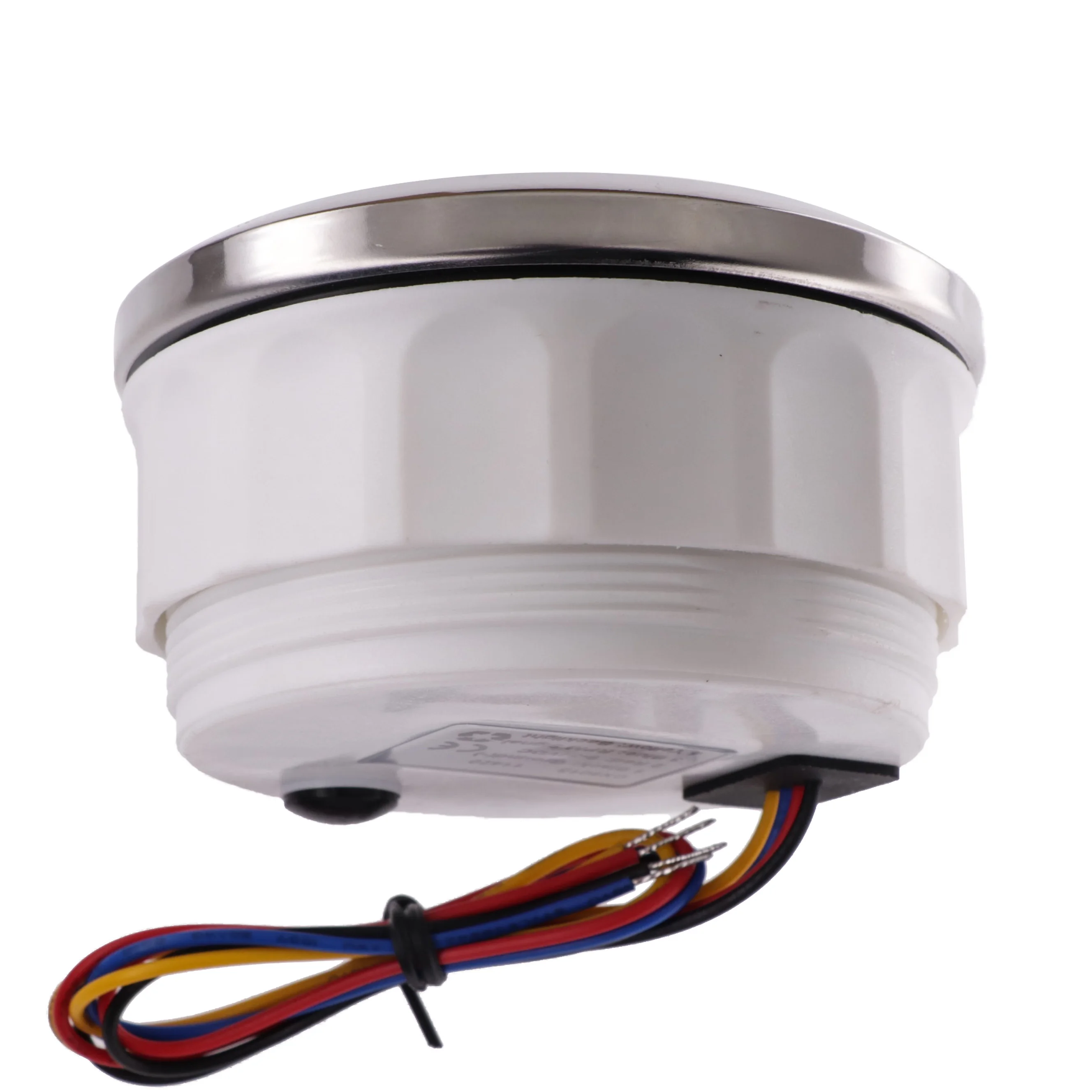

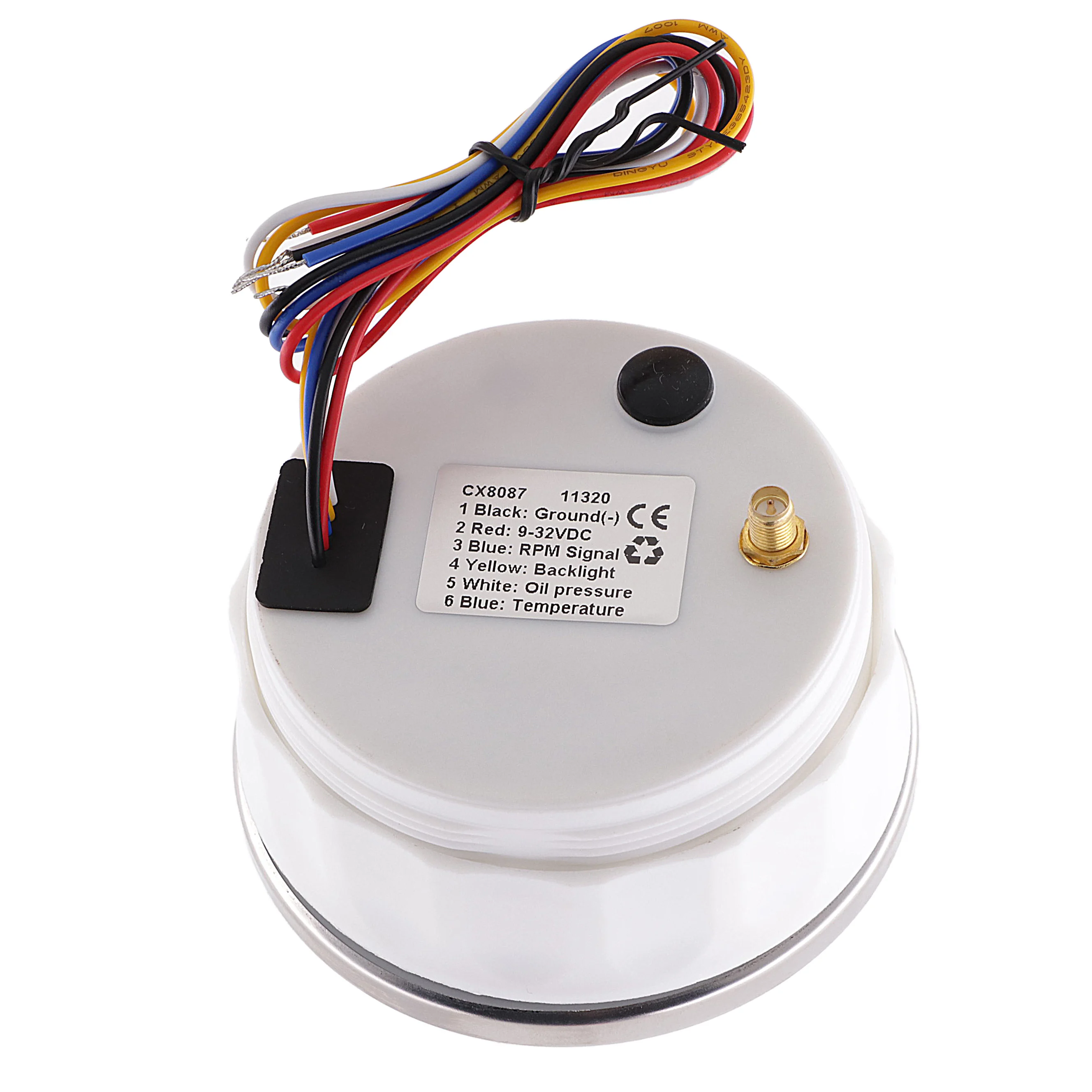

1.Black wire: Negative pole of power supply2.Red wire: 9-32VDC3. Blue wire: RPM signal4. Yellow wire: Water temperature signal5. White wire: Oil pressure signal

Package Included:

1x Gauge1x Users Manual In English
