7" Monitor DVR Sewer Pipe Inspection Video Camera with Auto Self Leveling 512HZ Pipe Locator 22MM IP68 HD 1000TVL Camera 12PCS LED Lights

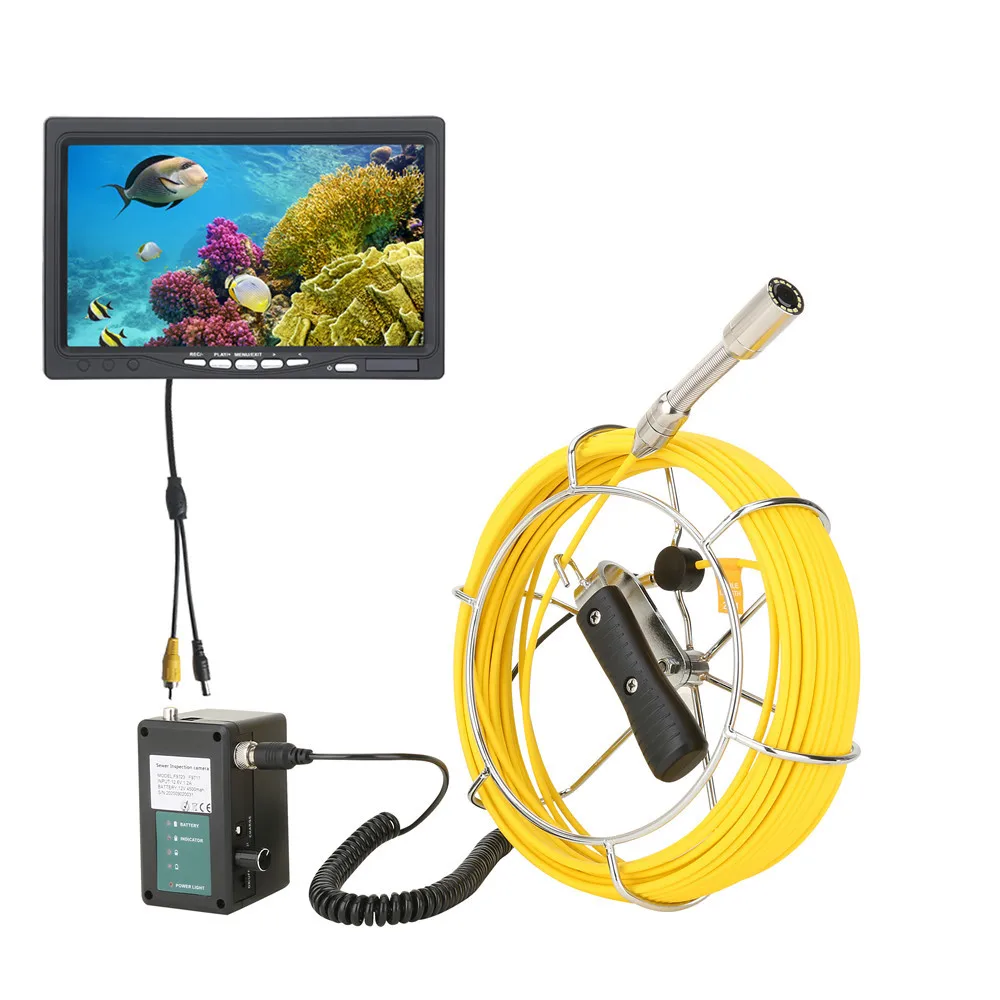

The pipe inspection camera combines a camera-tipped probe with 7" LCD monitor for viewing hard-to-reach inspection area. The deluxe leather sun visor provides clear viewing in outdoor inspection and extra protection for the monitor. It comes with a fully padded case which stores all kits for easy transport and use. It eliminates the needs of tearing drywall to locate leaks and helps to solve pipe problems. It is a must have for any homeowner, contractor and even professional plumbers!
Applications:
Blocked / slow draining plumbing. Wall / wire inspection. Home owners inspection.
PIPE SEWER DRAIN INSPECTION SYSTEM:

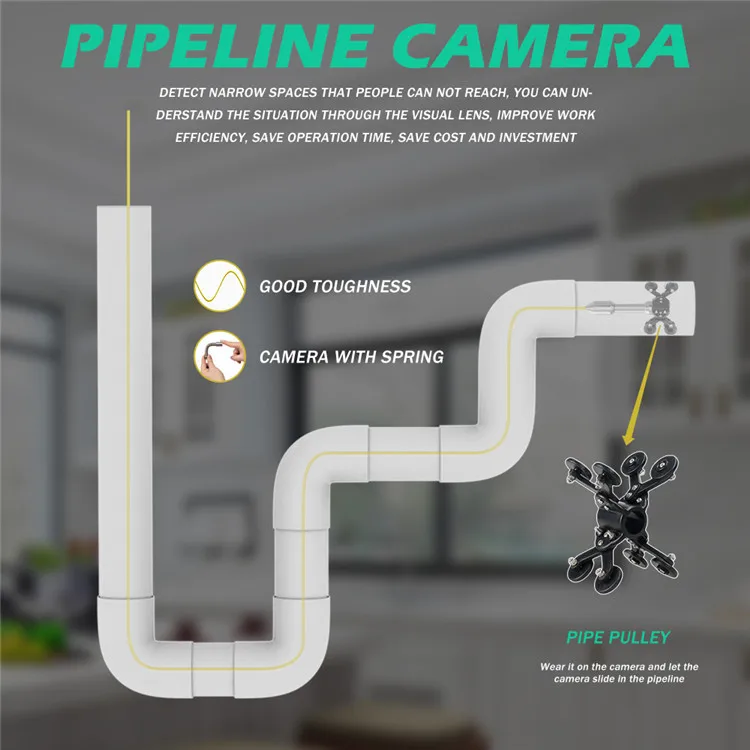

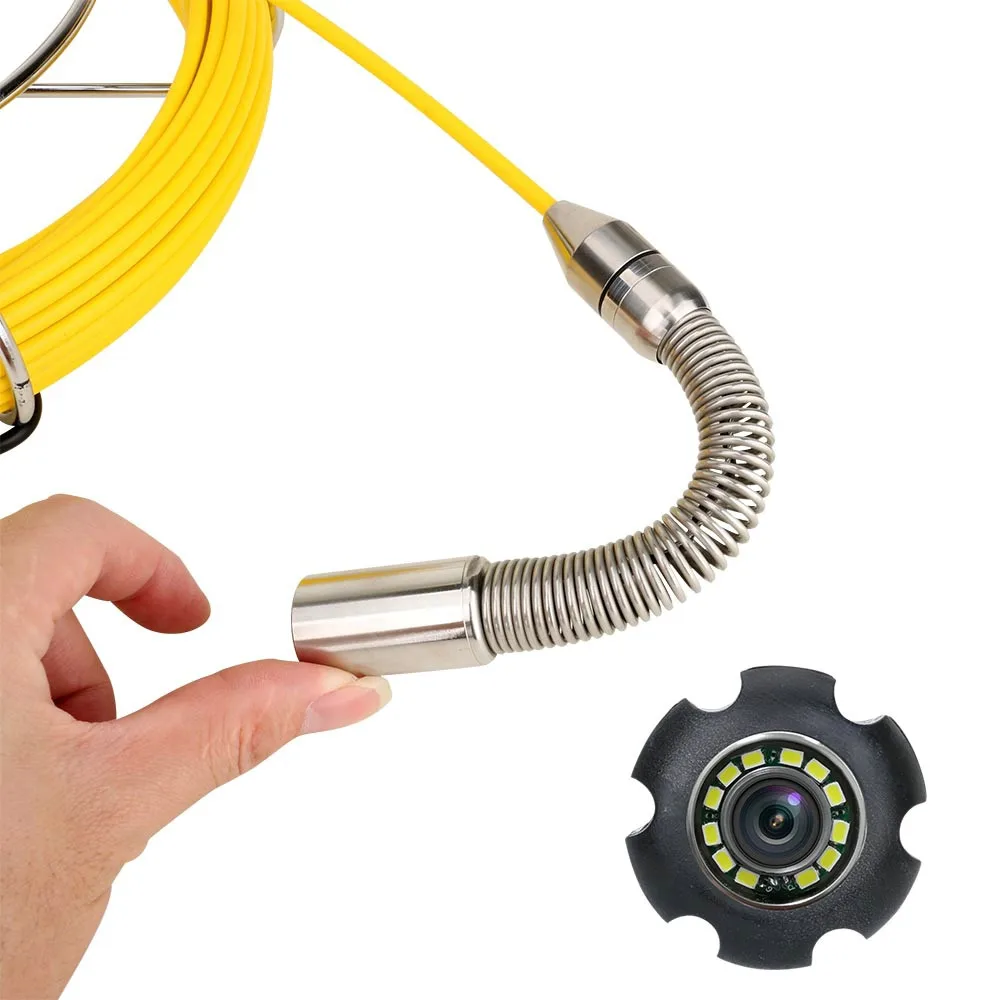

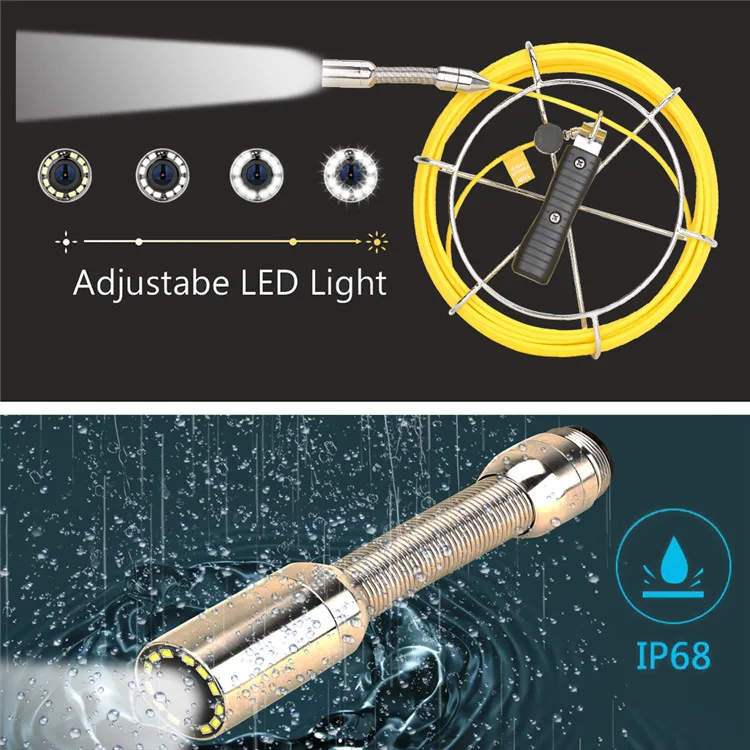

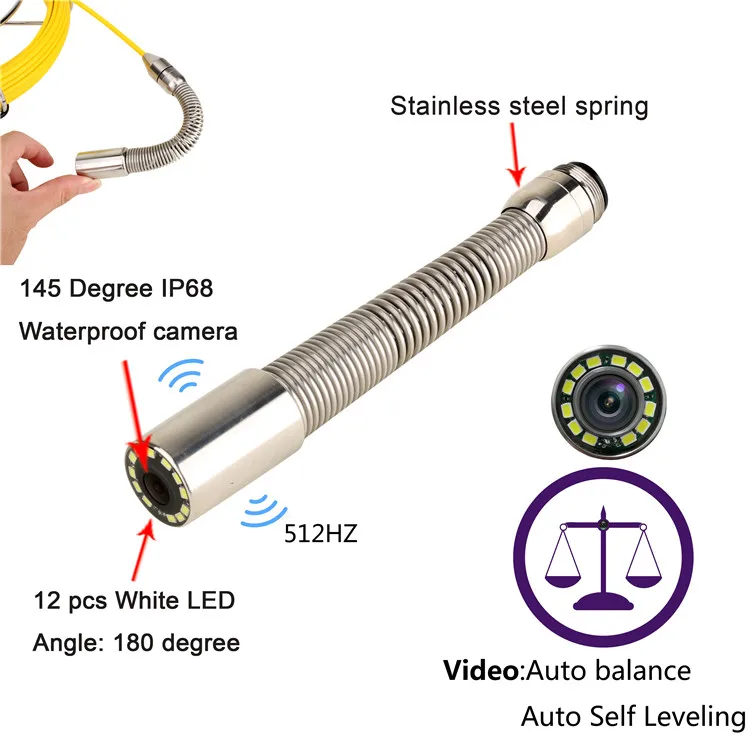

The Drain Sewer Pipeline Industrial Endoscope System with HD 1000TVL high-definition waterproof IP68 #304 stainless steel camera+tipped probe+145°wide viewing angle what make it clear when you inspect some places hard to watch.12 pcs adjustable LEDs to illuminate the hard-to-reach inspection area.Inspections will be seen more clearly in the dark environment.

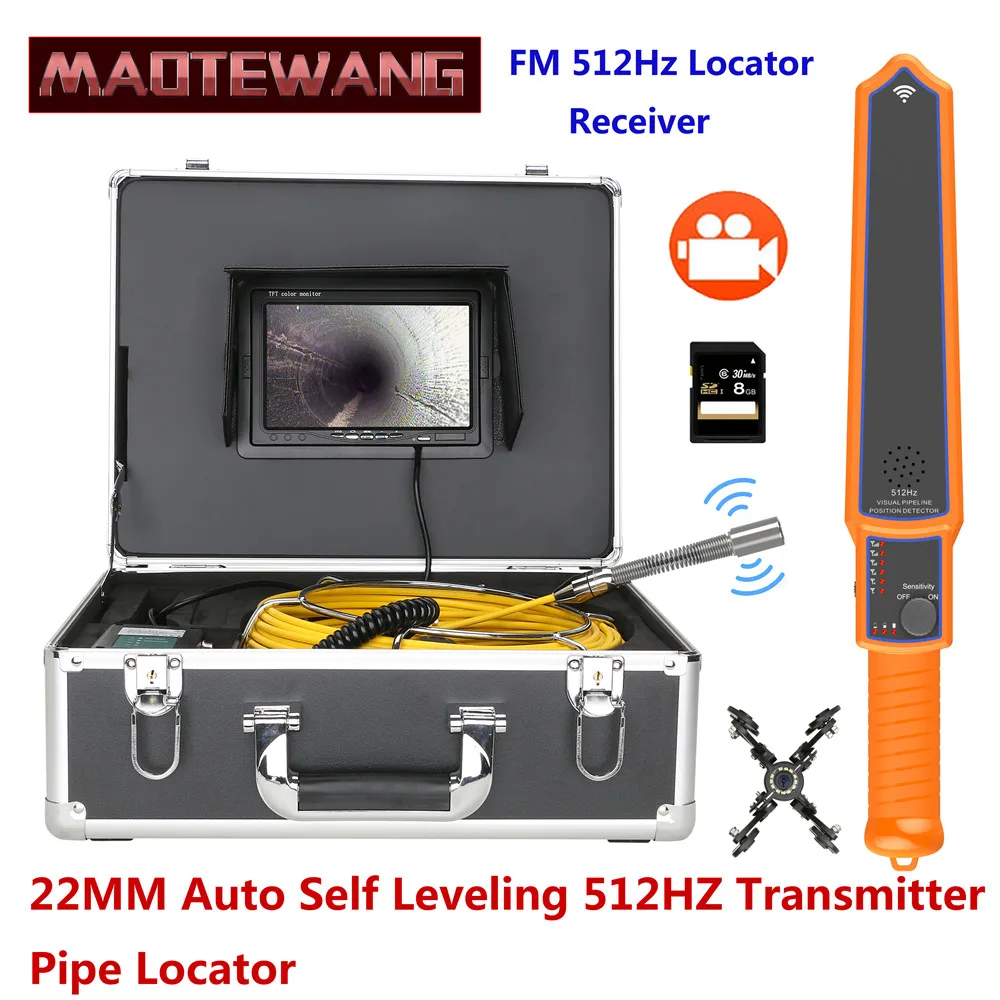

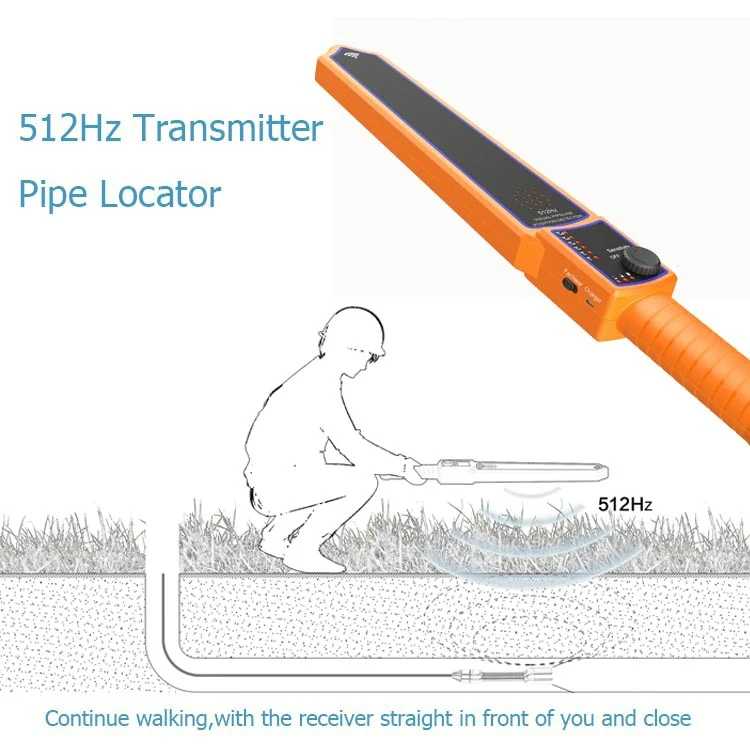

512HZ TRANSMITTER & Receiver:

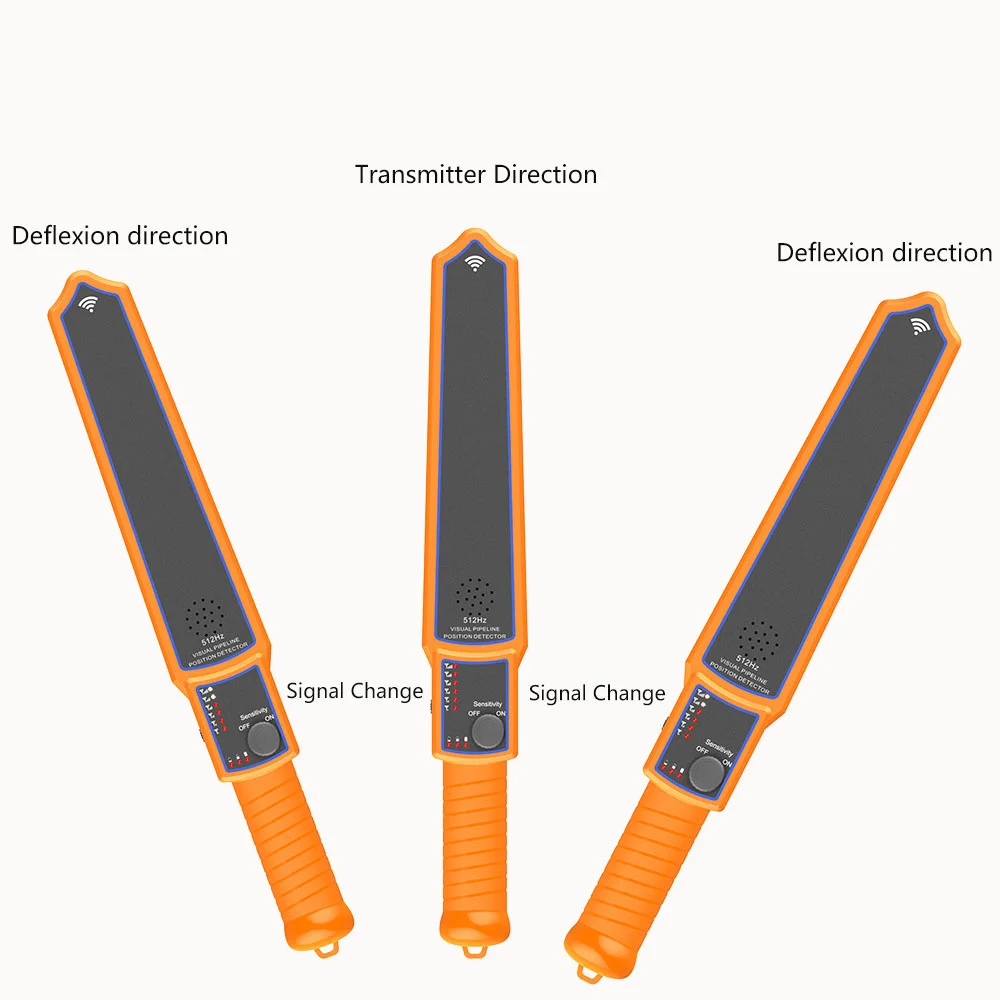

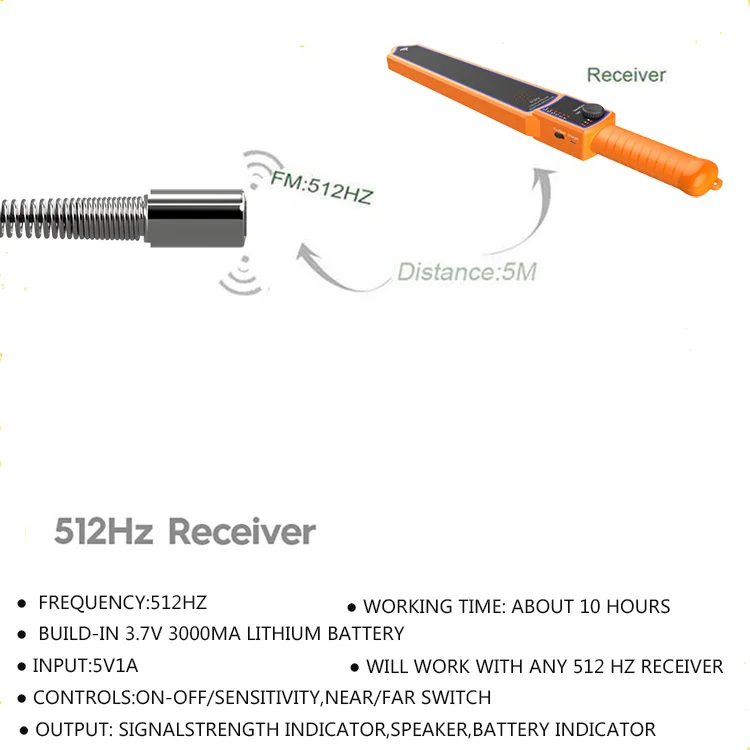

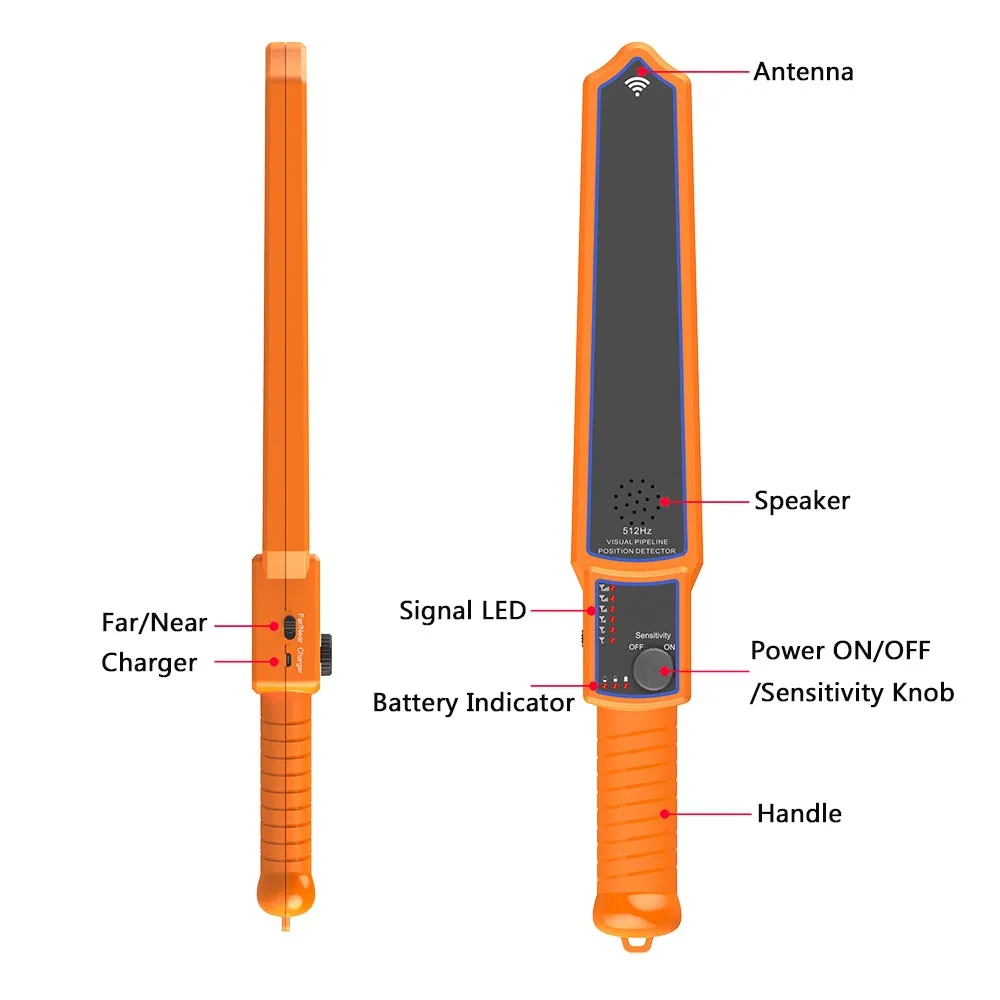

TRANSMITTER :This transmitter is suitable for locating the damage place of underground pipes, air-conditioning pipes and other pipes, Video Auto balance Auto Self Leveling 512HZ Transmitter Pipe Locator.Receiver :Receiver Frequency: 512HZDistance: about 5mBattery: 3.7V 3000MAH built-in lithium batteryCharger: 5V1A Battery Indicator：3 gear,it is flashing when battery is lowBattery working time：about 10 hoursSignal strength：6 gearSpeaker：SupportDetect Mode : Far/ Near
DVR Recording Function：
Pipeline Wall Sewer Inspection Snake Camera built-in SD Card slot,8GB TF card included,it is avialiable to view live video and save video clips and photos.You can record the inspections and playback via the pipe system.（DVR Edition)
MONITOR&CABLE：

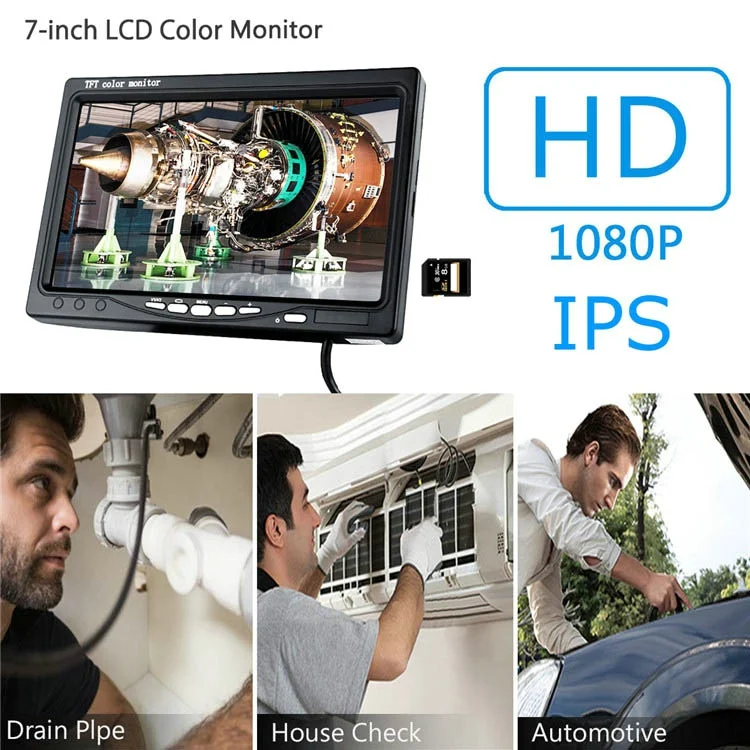

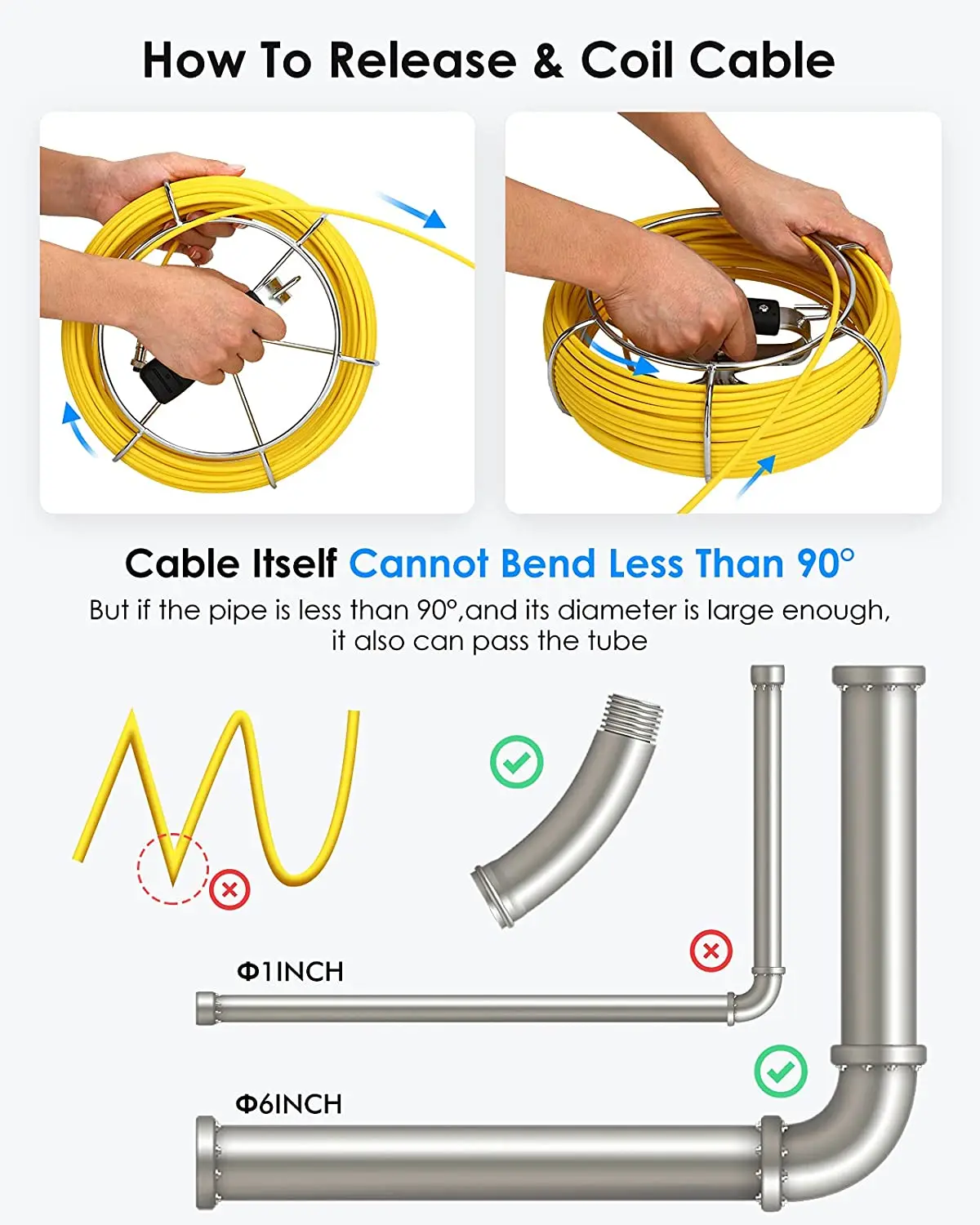

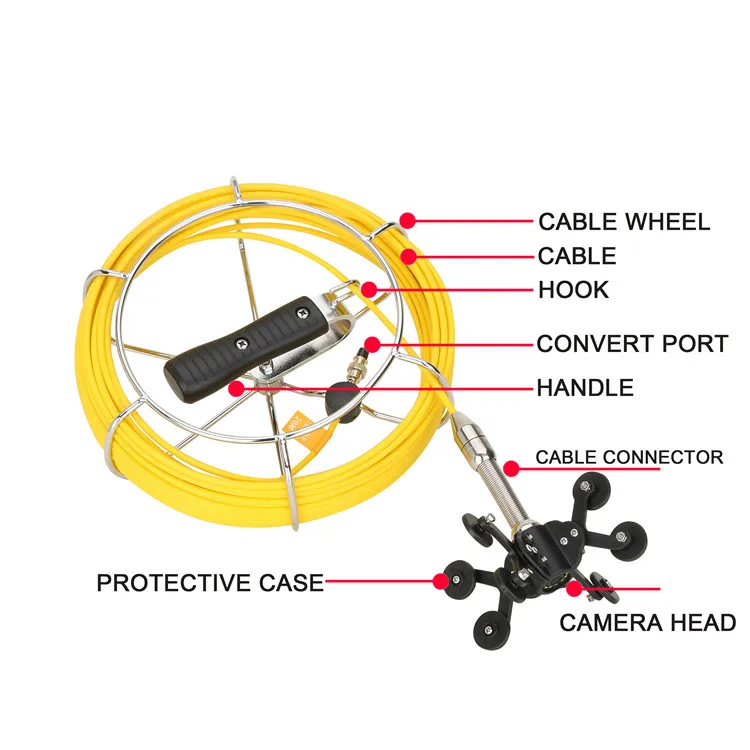

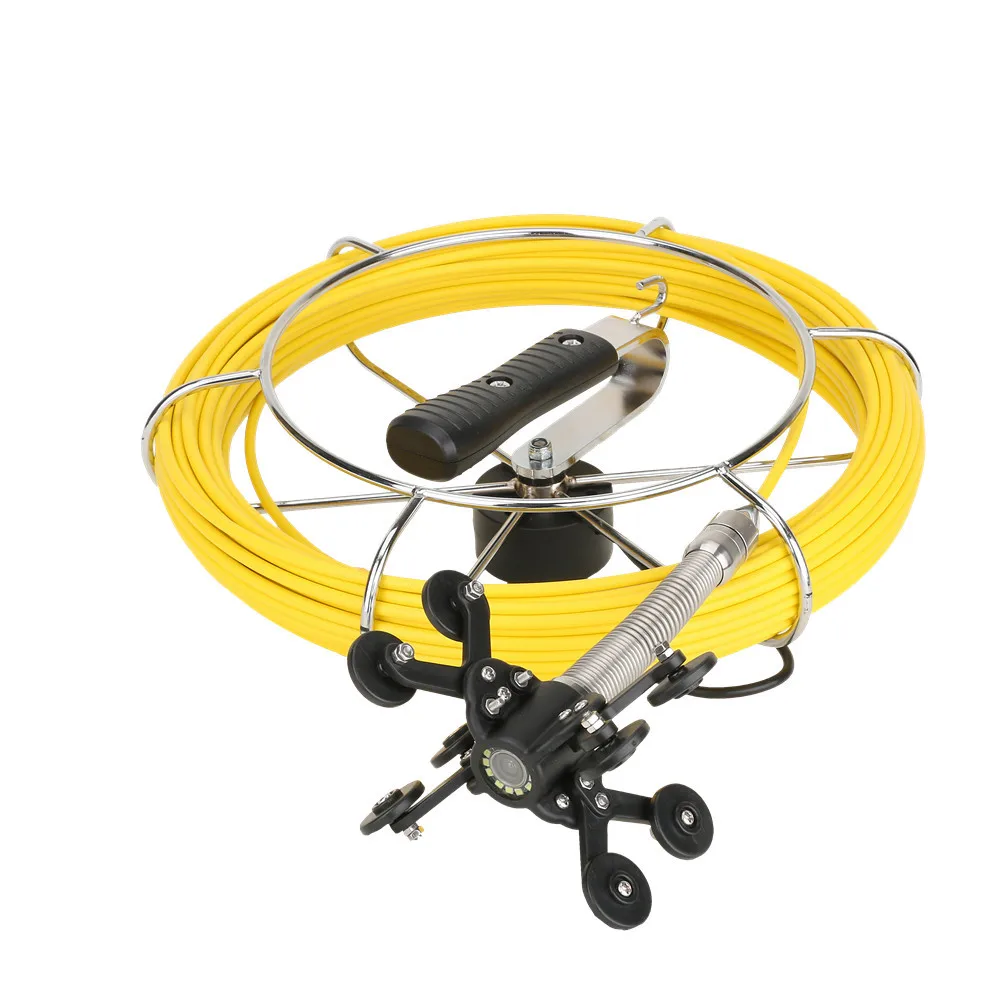

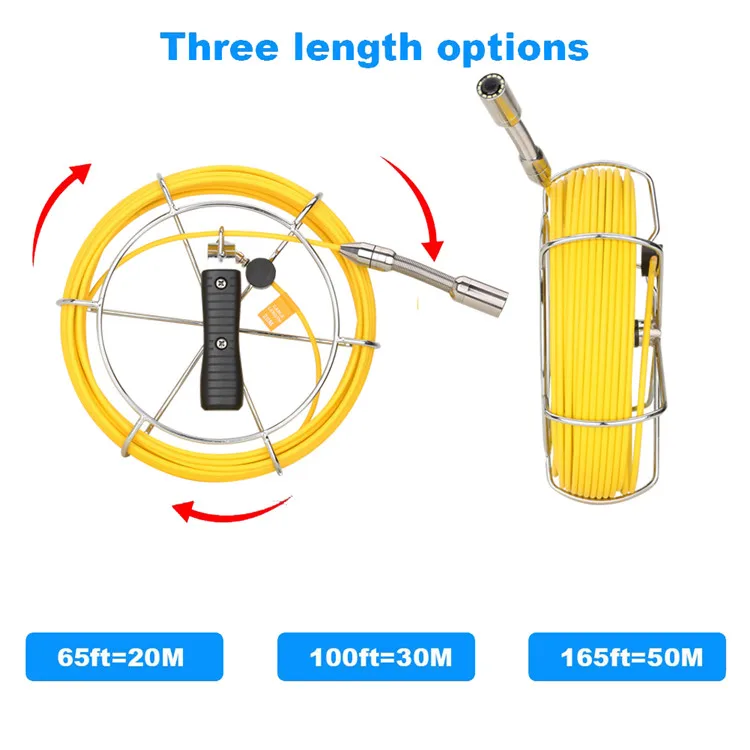

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 7 inches color TFT LCD monitor with a sun-visor for outdoor inspections.The material of wire is fiberglass rod(diameter: 4.9MM),anti-corrosion/cold/tensile.
PORTABLE CARRY CASE&LONG BATTERY：

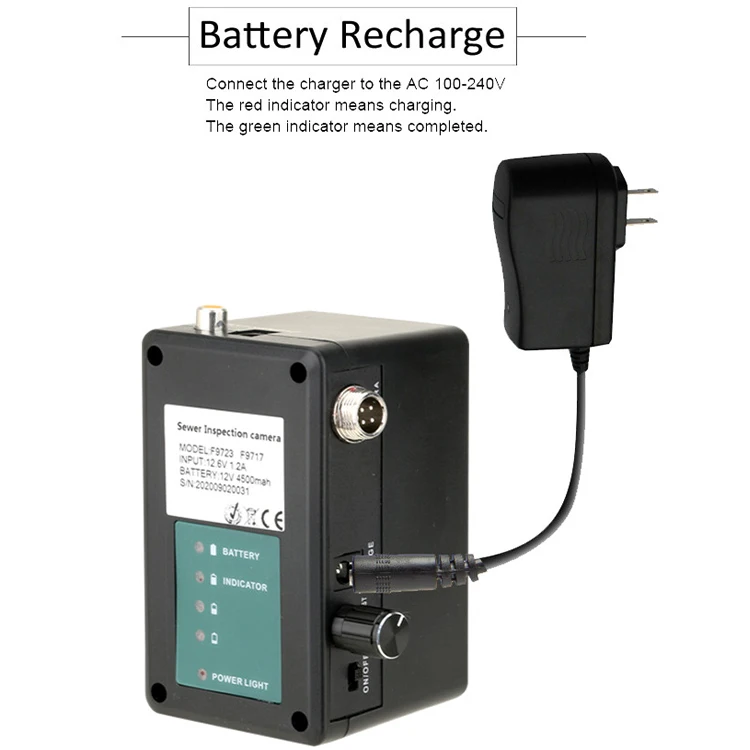

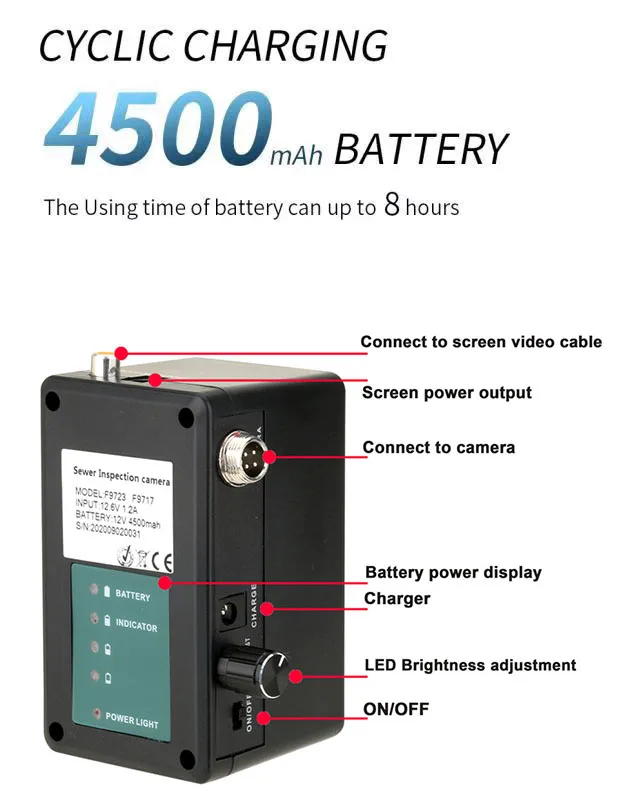

Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around. 12V 4500mAh Li-battery included supports approximate 8 hours of continuous use.
Item: parameter
1. Charger: AC100-240V DC12.6V 2. 512hz:Built in 512hz transmitter3. Receiver Frequency: 512HZ4. Distance: about 5m5. Auto balance:YES6. Battery: Luminal-cell arrester 4.5AH7. Continuous use time for battery: approximate 8h 8. Investigation depth: 20M( selectable line length)9. Material: fiber tube with /high intensity10. Camera light source: 12 PCS LED with high while light(adjustable) 11. Camera viewing angle: 145°12. Camera size/material: 42MM* 22MM /stainless steel13. Camera protective cover parts size/material:38MM* 28MM /plastic-steel14. Camera protective cover parts size/material:90MM* 28MM /plastic-steel with wheel15. Camera picture: color16. Operating temperature: -40-60°17. Aluminum box size: 410*370*180mm18. Package size: 425*415*195mm

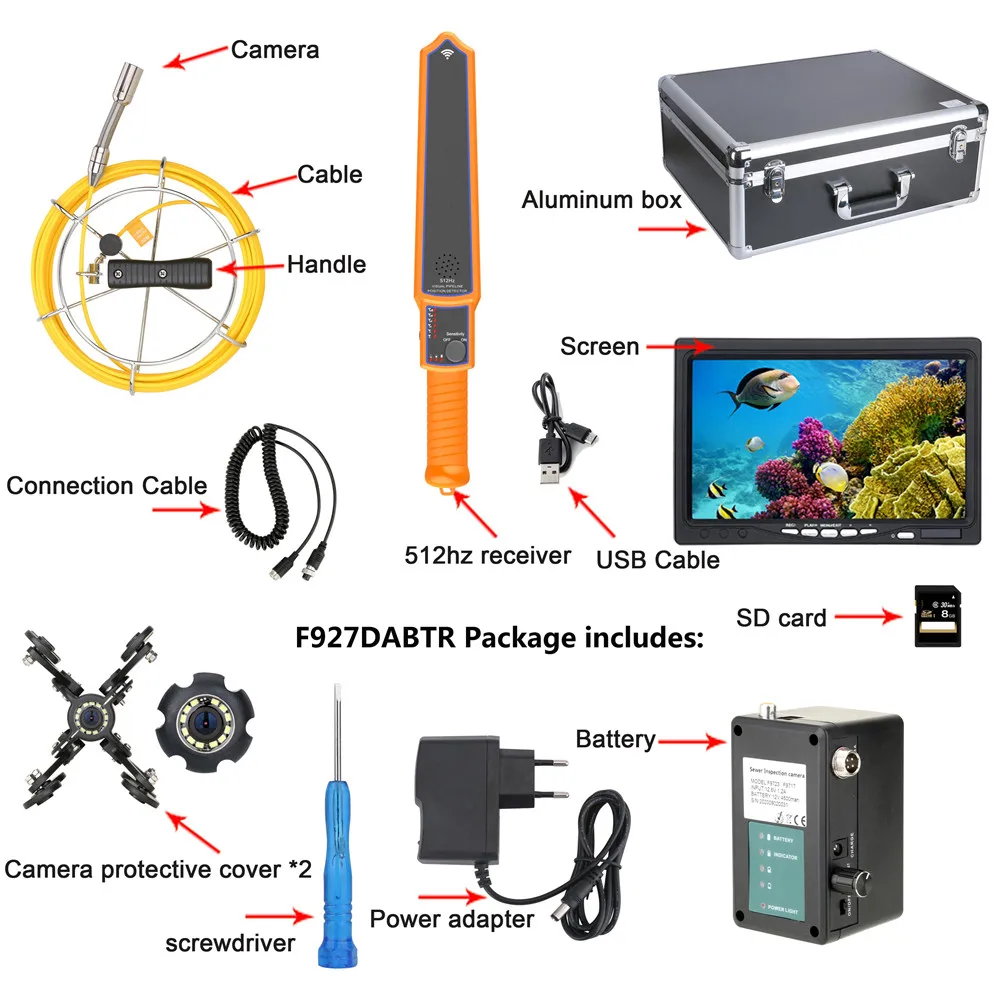

Package List:
1 * 7inch LCD Monitor 1 * 8GB TF Card 1 * HD 1000TVL Camera 1 * 512Hz PIPE Locator 1 * 20M Fiberglass Cable 2 * Camera Proof Cover 1 * 4500mah Battery Box 1 * Charger 1 * Connection Cable 1 * USB Cable 1 * Screw Driver 1 * User Manual (English)
