Лазерный гравер для керамики Ortur OEM ODM cnc
Ortur Outlet Store - Надежность 93.5%
Более 2298 подписчиков, дата открытия магазина 02.05.2018
- Положительные оценки: 96% (24)
- Соответствие описанию: 94%
- Отвечает на сообщения: 92%
- Скорость отправки: 92%
Последнее обновление: 11.05.2022
Ortur OEM ODM cnc mini Craft graveurbois making machine laser engraver for ceramic
please note:a. Freeshipping is not means free duty, AND not included remote area charge. As we all known, import high value goods would be charged import tax in each country;b. Seller's shipping methods are shipping by express company, such as DHL/FedEx/ UPS/ TNT;c. Tax free DDP method to EU countries, but it is slow method, and need 30-45 days to delivery. Please place order with note "Slow DDP Method", and choose seller's shipping method.Any question, welcome to contact with us!

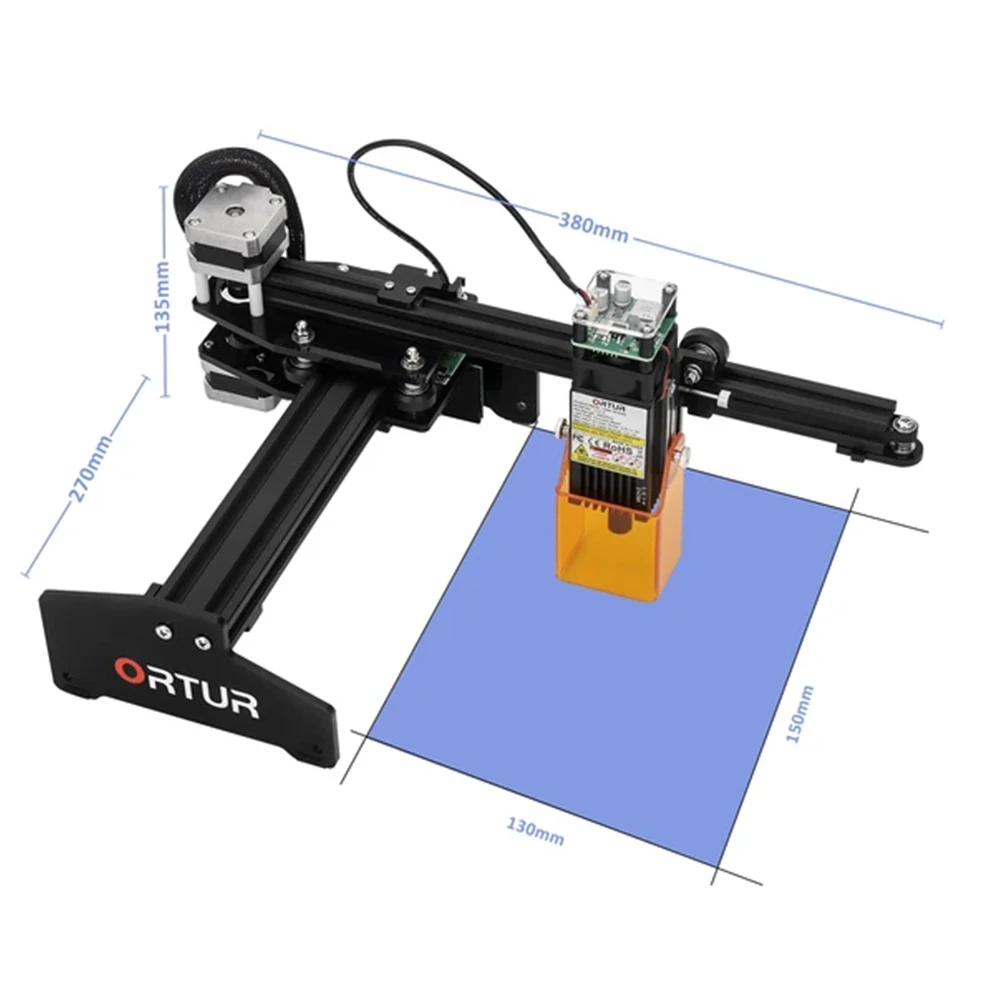

Main Features:●32-bit Motherboard with STM32 chip, more powerful, faster, higher precision Easy to adjust the speed. (0 - 3000mm / min) and power (S0 - S1000) for both engraving and cutting.● Anti-Shifting Protection, there is a G-sensor on the motherboard for active position protection. If the machine detects unauthorized movement, the laser beam will stop.● Laser Beam Safety Guard, if your computer system halted, led to that the laser engraver stop moving, the laser beam will stop.● LaserGRBL is the most popular carving software worldwide, runs well in both of Mac and Windows OS, could import different format images such as BMP, JPG, PNG, NC, DXF, etc. you could perform complex editing in PhotoShop, Inkscape, CAD , etc. and then connect to the laser engraver via LaserGRBL for engraving and cutting.● This laser engraver supports PWM mode.● Compatible with a variety of powerful laser units, such as 445 ± 5nm 7W laser unit, 445 ± 5nm 12W laser unit and 445 ± 5nm 20W laser unit.● Pre-assembled parts, just need several minutes to set up the machine.● It's easy to adjust the lens focus ring to adjust the laser focus to be the smallest light spot.●130 x 150mm engraving area.Specification:● STM32 Motherboard + 32Bits Firmware● Frame Material: Aluminum + Acrylic● Power Adapter Output: 12V 3A● Laser Module Electrical Power: 7W (default option), 15W (optional), 20W (optional)● Laser Wavelength: 445 ± 5nm● Available Image Format: .nc, .dxf, .bmp, .jpg_.webp, .png, etc.● Computer System: Win XP, Win 7, Win 8, Win 10, Mac OS● LightBurn ( paid software, lightburnsoftware dot com ) supports Windows, Mac OS, and Linux. It's the most popular paid carving software in the world, very easy to use.Attention:● Do not operate laser without eye protection (laser goggles)● Please set up this laser engraver in the fireproofing area, with good ventilation.● Please keep minors (especially kids younger than 14 yours old) away from this laser engraver. Minors of any age should not use this laser without direct Adult supervision and proper eye protection● Please avoid strongly impact on the machine.● Please do not touch the laser beam with your hands or any other objects you do not wish to engrave / burn / cut. Serious physical harm is possible if used improperly.● Please do not touch the heat sink, when the laser engraver just stop working, it may scald your hands.● Please take care of the laser engraver when it is working.
Specification
-

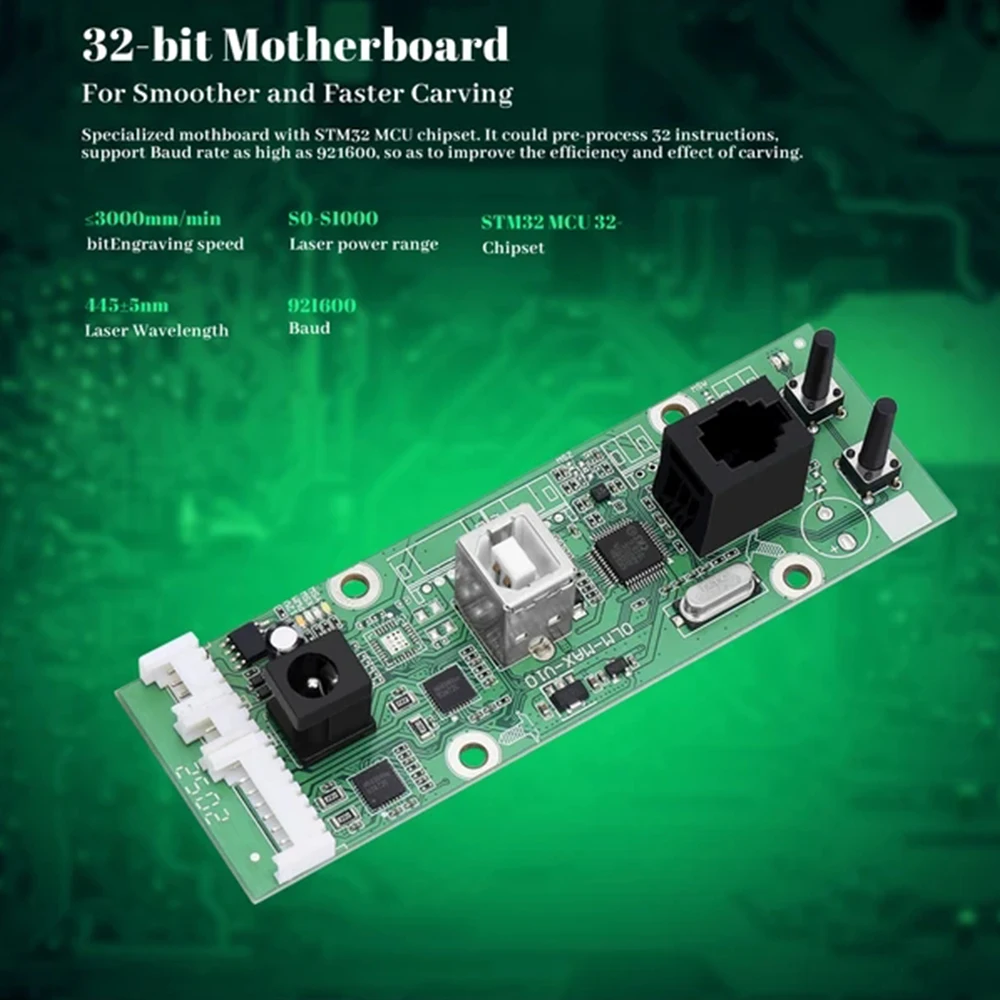

MotherboardOLM-MAX-V10 Motherboard,with 32Bits MCU
-

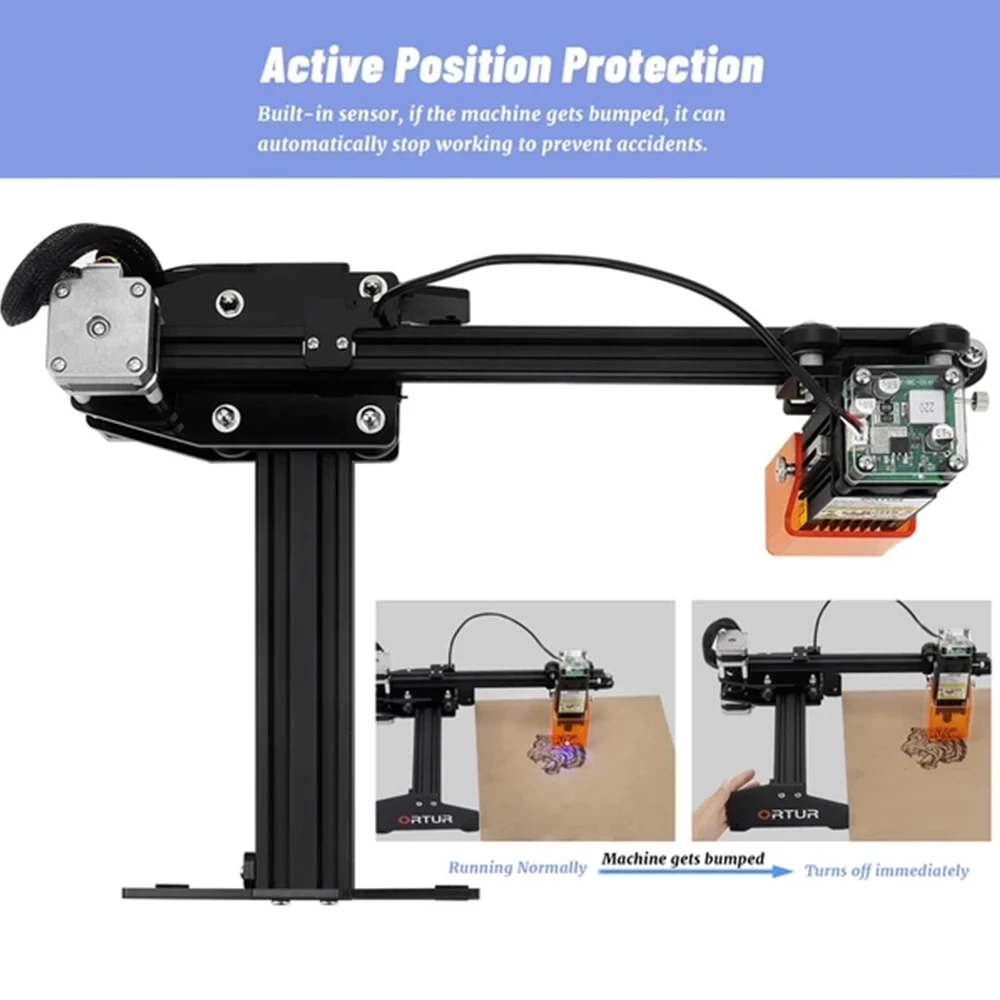

Safety Precautions 1Active Position Protection
-
Safety Precautions 2Exposure Duration Detection and Limitation
-
Safety Precautions 3Laser Beam Safety Guard
-
Вес логистики2.500
-
Каждая упаковка1
-
Минимальная единица измерения100000015
-
Название брендаOrtur
-
Номер моделиOrtur Laser Master
-
Продано Вsell_by_piece
-
ПроисхождениеКитай
-
Размер логистики - высота (см)12
-
Размер логистики - длина (см)59
-
Размер логистики - ширина (см)21
-
СертификацияЕвропейский сертификат соответствия
