3nh портативный цветной ридер CR1 2 в 1, микро-колориметр и цветной ридер для сотовых телефонов, точность 0,1, 8-миллиметровая диафрагма 400 нм

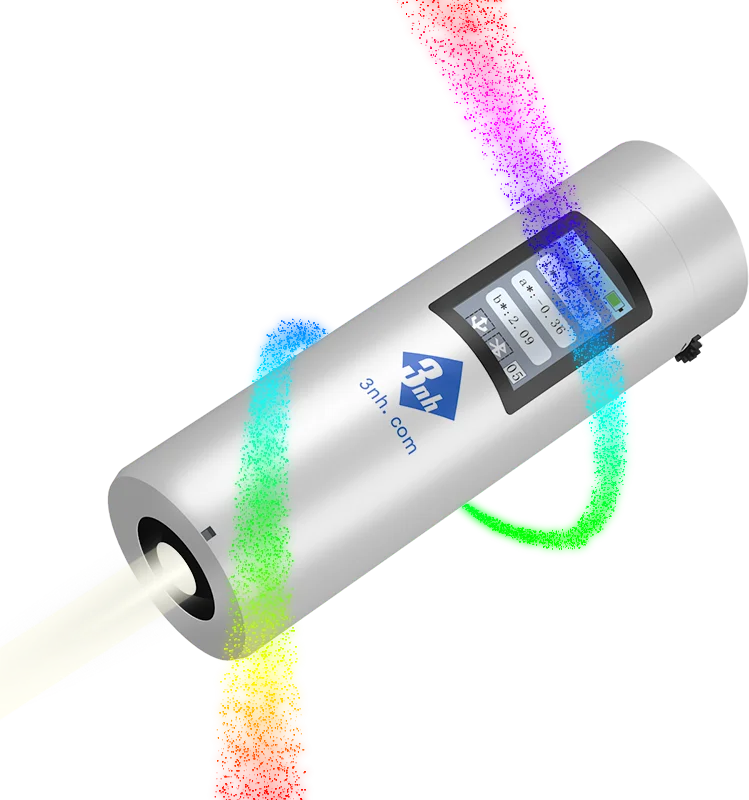

ColorReader CR1 is developed by 3nh adopting advanced color sensor and rich performances APP with special multi-functional "Smart Button" and professionalized non-contact auto white board calibration incorporating micro colorimeter and cellphone colorreader two in one.

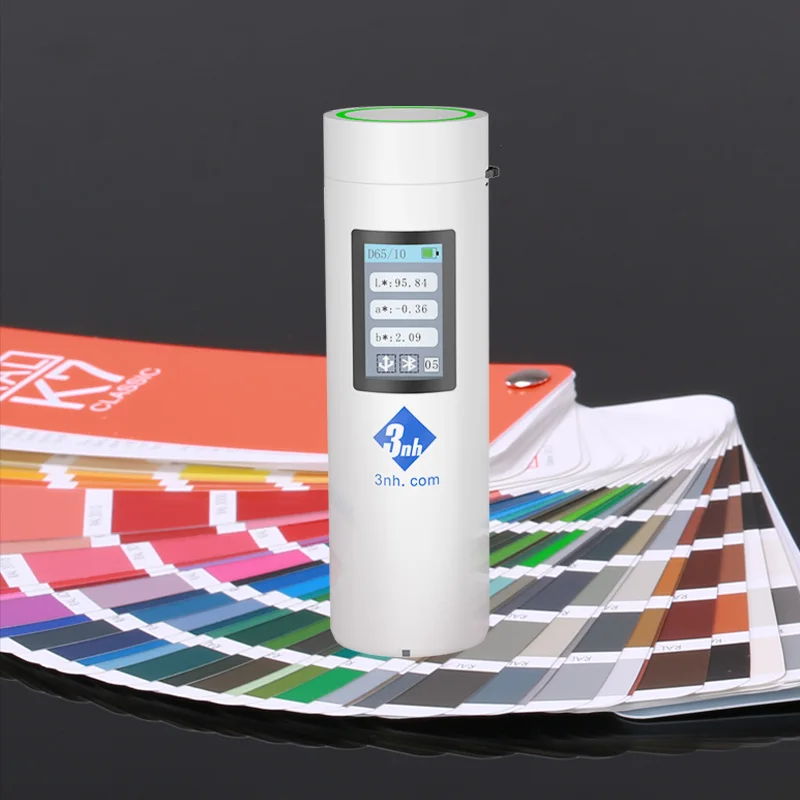

It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food for color difference management. ColorReader CR1 is small and portable, which can identify and search color cards via smartphone APP. Users can use it to capture color inspiration anytime and anywhere.

CR1 Technical Features:

1.Instant and Precise Color Measurement

Repeatability less than 0.1, display accuracy 0.1, one light press can bring you precise color measurement.

2.Non-contact Auto Calibration

The use of professional non-contact automatic black and white board calibration technology to avoid direct transmission of dirt during the measurement process to the whiteboard, completely solves the problem of separation between the whiteboard and the dust cover required internationally, and ensures the zero position of the whiteboard "this starting line" The long-term accuracy of "makes you more at ease and worry-free when using it."

3.Multifunctional "Smart Buttons"

The built-in "smart button" of the instrument can independently complete the measurement function setting or test data review. It does not need to connect a mobile phone and a computer. A single machine can realize all the functions of the color difference meter; and at the same time, it can be connected to the mobile phone APP or computer software, taking into account the various functions of the color difference measurement and color management.

4.Professional integrating sphere dual optical path design

Professional advanced integrating sphere coating, dual optical path sensor and full-spectrum light source ensure the stability and accuracy of the measurement results.

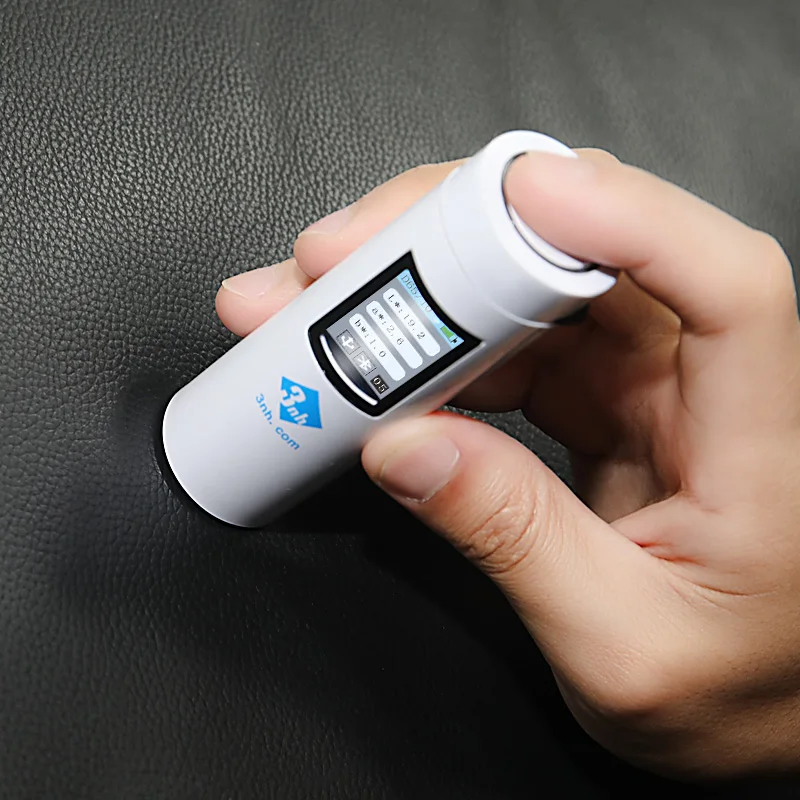

5.Lightweight and Portable

Easily put it in your pocket, carry it with you, worry-free measurement.

6.Rechargeable Lithium Battery

Type-c interface, can do tests continuously for 12,000 times in a single full charge.

7.Higher Quality

Using industrial-grade real-time processing MCU, Bluetooth interface 5.0 transmission is more stable and reliable.

8.Diversified Data Display Modes

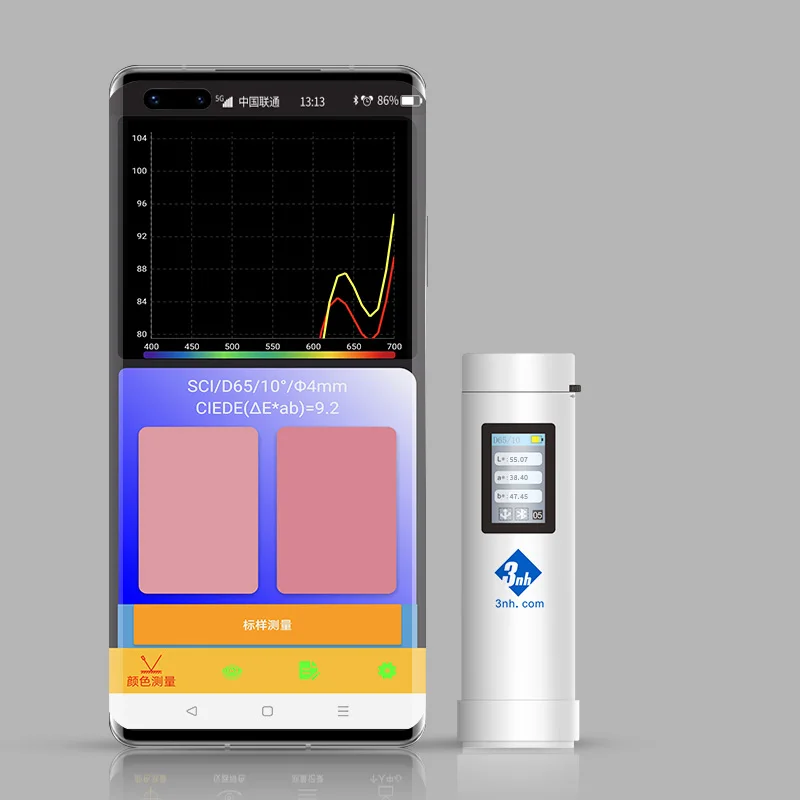

The ColorReader CR1 with APP can directly display the sample color value, color difference value, pass/fail result, color simulation, color deviation, reflectance and other data, which is convenient for viewing and greatly improves the user's work efficiency.

9.Massive Color Card Database with You

APP synchronizes mass storage, which can quickly check color data, analyze and compare.

Use the App to build your private color database in the cloud, without having to carry heavy color cards, you can use CR3 to find the closest color among multiple color cards anytime and anywhere.ColorReader CR1 Technical Specs.

Product Name & Model

CR1（Basic Edition）

Geometry

D/8（Diffuse illuminance, 8°reception, SCI）, Conforms to standards CIE No.15，GB/T 3978.

Features

Used for color difference quality control in plastic electronics, paint and coating, textile and garment printing and dyeing, ceramics and other industries;Small size, easy to carry, search for the color cards through smartphone APP

Integrating sphere size

Φ20mm

Illuminant

Full spectrum LED light source

Spectro device

Filter spectro

Sensor

CMOS Dual light path sensor

Wavelength Range

400～700nm

Measuring Aperture

Φ8mm

SCI/SCE

SCI

Color Spaces

CIE LAB, LCh

Color Difference Formula

ΔE*ab

Other Color Index

/

Display Accuracy

0.1

Observer Angle

10°

Light source

D65

Display

Sample chromaticity value, color difference value, pass/fail result, color simulation, color deviation, reflectance (partly through mobile APP)

Measuring Time

1.0s

Repeatability

Color：ΔE*ab within 0.1（After warm-up calibration, the average value of measuring the whiteboard 30 times at an interval of 5s）

Metrology requirements

Non

Measurement Mode

Single measurement，Average measurement（2~99times）（Implemented through smartphone App）

Dimension

Ø30X100mm

Weight

88g

Battery

Lithium battery, can do tests continuously for 12000 times in a single full charge

Light source lifespan

5years more than 3 million times measurements

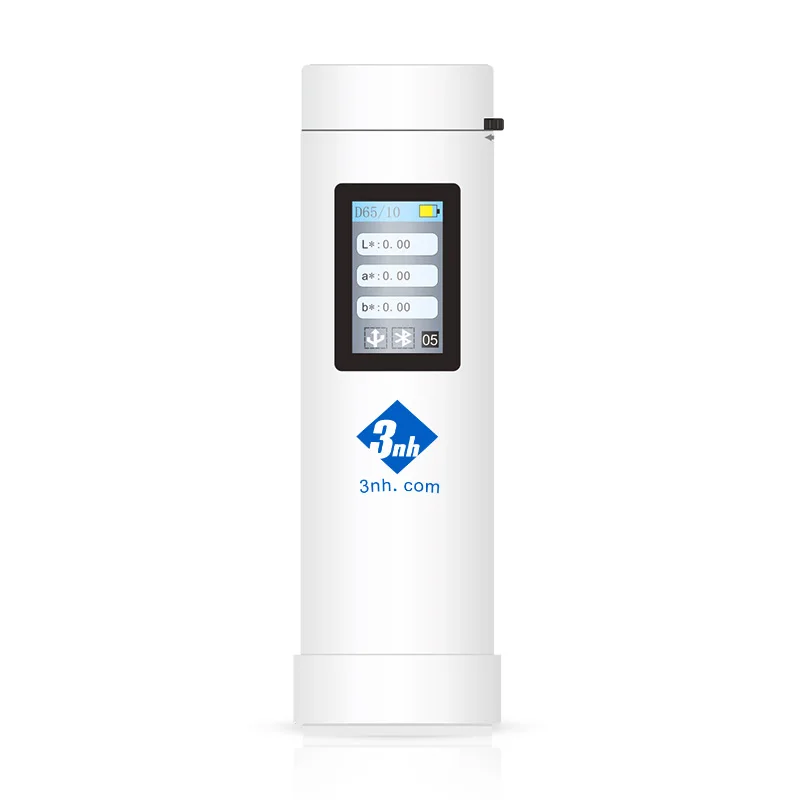

Display screen

IPS full color screen, 1.14 inch

Interface

Type C USB（just for recharge）; Bluetooth 5.0

Data storage

Mass storage can be expanded through mobile APP

Data review

The instrument has no measurement data review function

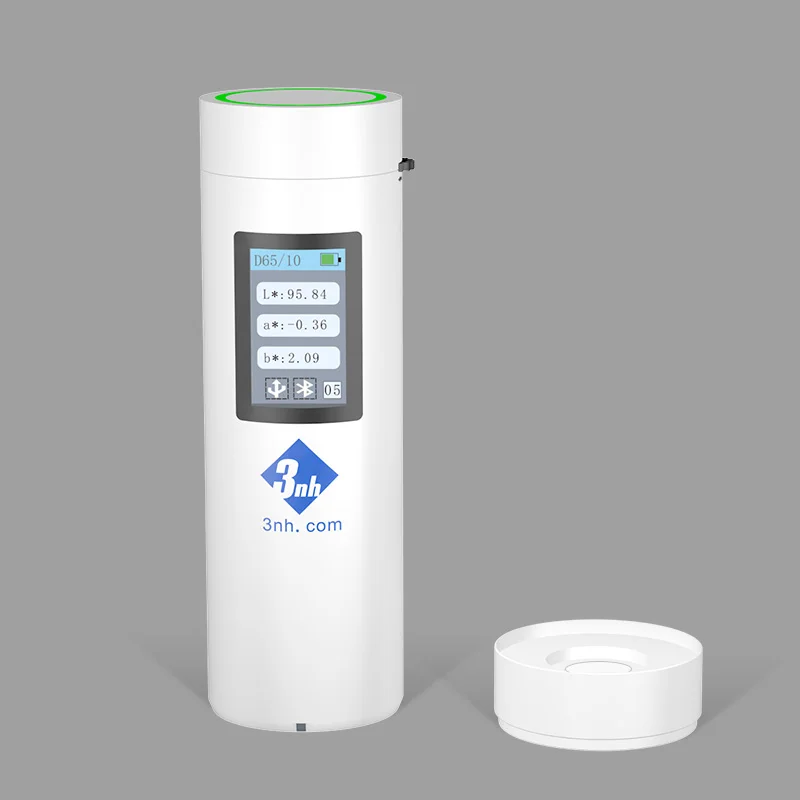

White calibration

Non-contact automatic calibration

Settings

Instrument can set parameters

Language

Chinese，English

Working Temperature range

0~40℃，0~85%RH（No condensation），Altitude：lower than 2000m

Storage Temperature Range

 -20~50℃，0~85%RH（No condensation）

Standard Accessories

Data cable, manual, calibration box, SQCX PC Color quality management software, MOBCCS APP (download from official website)

Optional Accessories

USB mini printer, powder test box

Note：

Technical parameters are for reference only, subject to actual instruments.
