IDOBAO ID80 Кристальный Комплект клавиатуры (Версия крепления прокладки)

Designed by idobao team.

product name

IDOBAO--ID80 Transparent version

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Product description

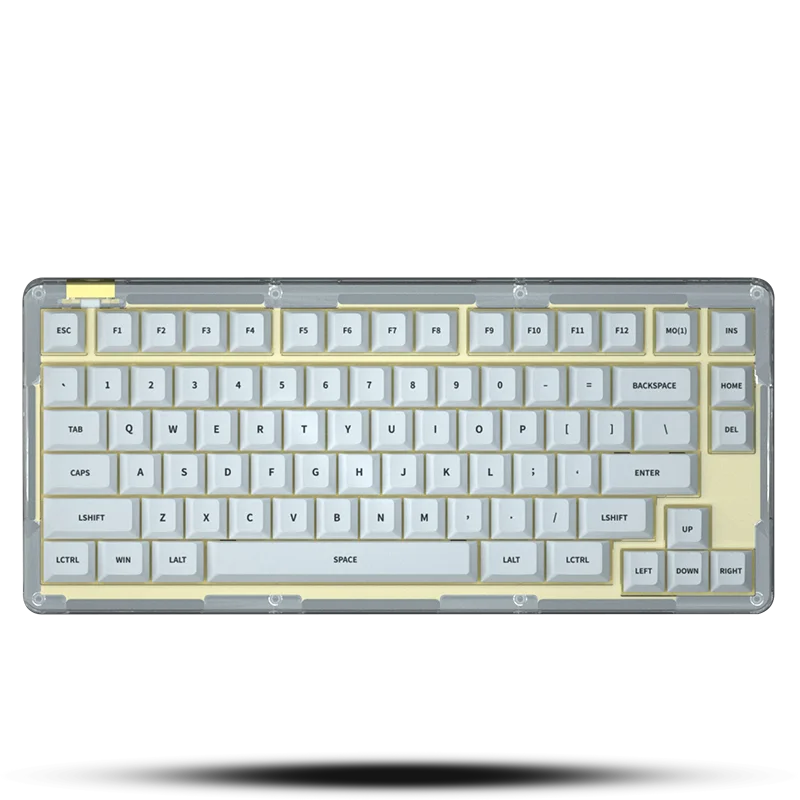

Sized just right at a 75%—a compact configuration to feature the top function row—the ID80 Transparent version mechanical keyboard kit from IDOBAO makes a great fit on any desk.This board is both durable and easy to build. Its PCB also features Kailh hot-swappable sockets, which allow users to quickly change switches without a soldering iron.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Color selection

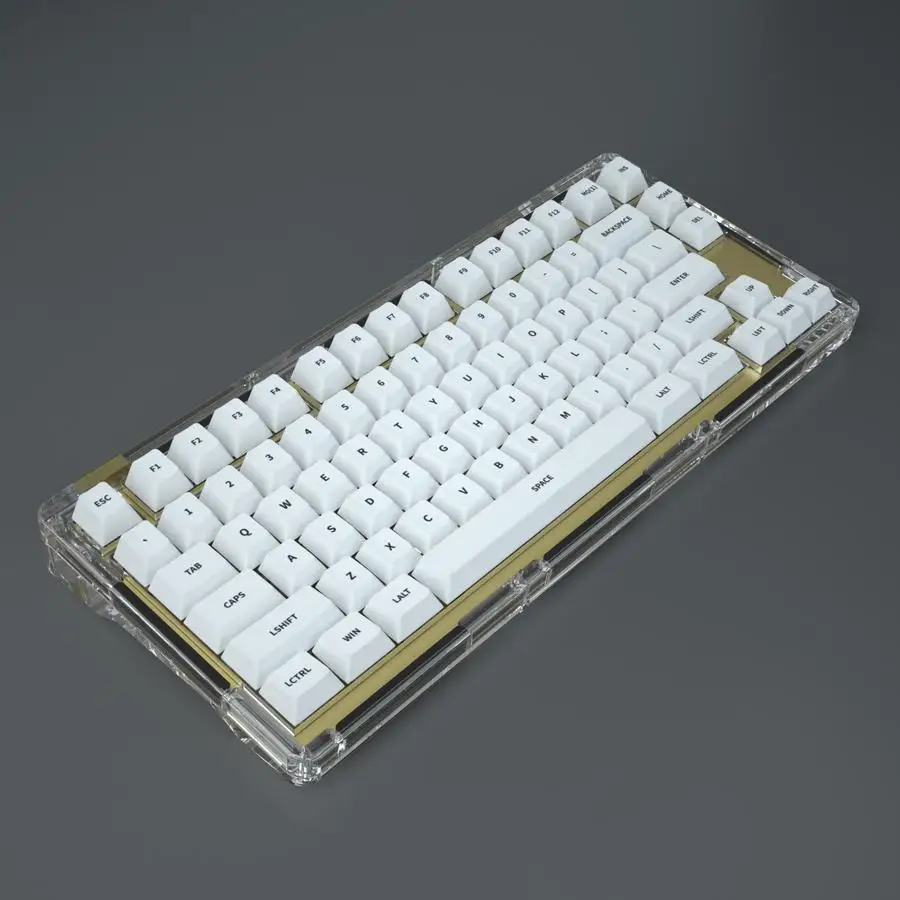

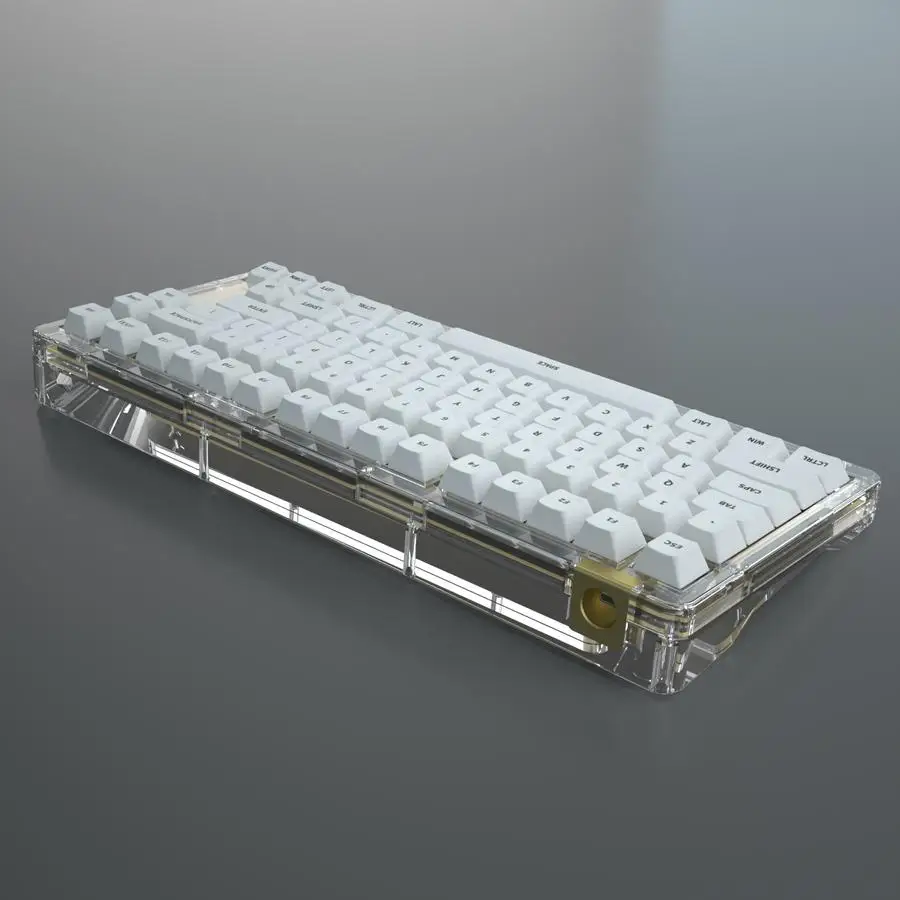

(Acrylic): Transparent version

(PC): smokey

Note: due to the influence of process, the color of pictures and physical products can not be guaranteed to be restored 100%

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Interface

USB Type C connection

Features

Case material: Acrylic or PC

Bottom material: Acrylic or PC

Angle: 6 degrees

Weight: 1.36 kg

Dimensions: Width 14.3cm x length 32.2cm（Manual measurement）

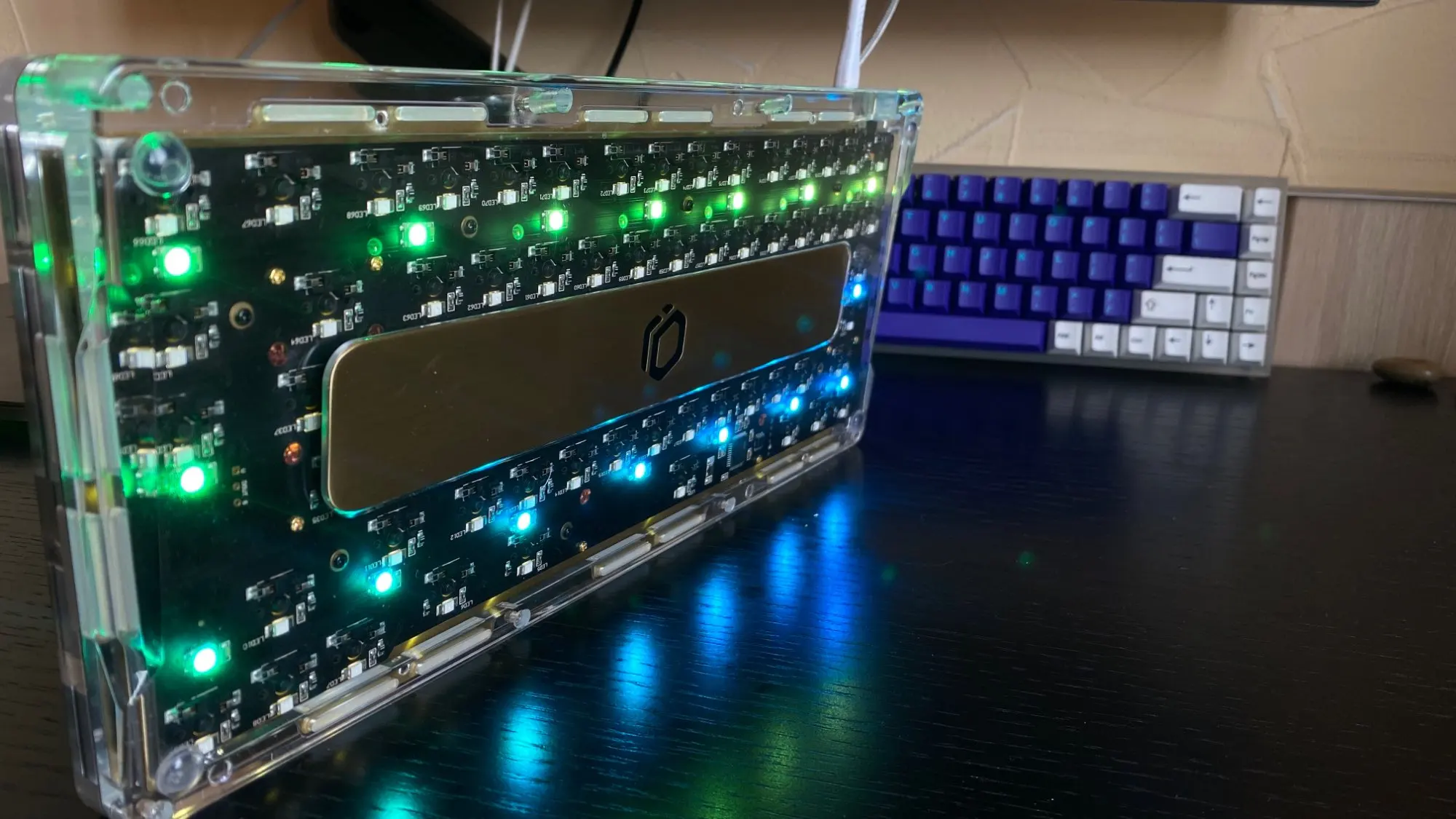

Hot-swappable PCB (Kailh hot-swappable sockets) with White LED

QMK can be programmed via Via

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

only inclue Keyboard kit,Not include switch with Keycaps

Contents

1 * Top case (Acrylic or PC)

1 * Bottom case (Acrylic or PC)

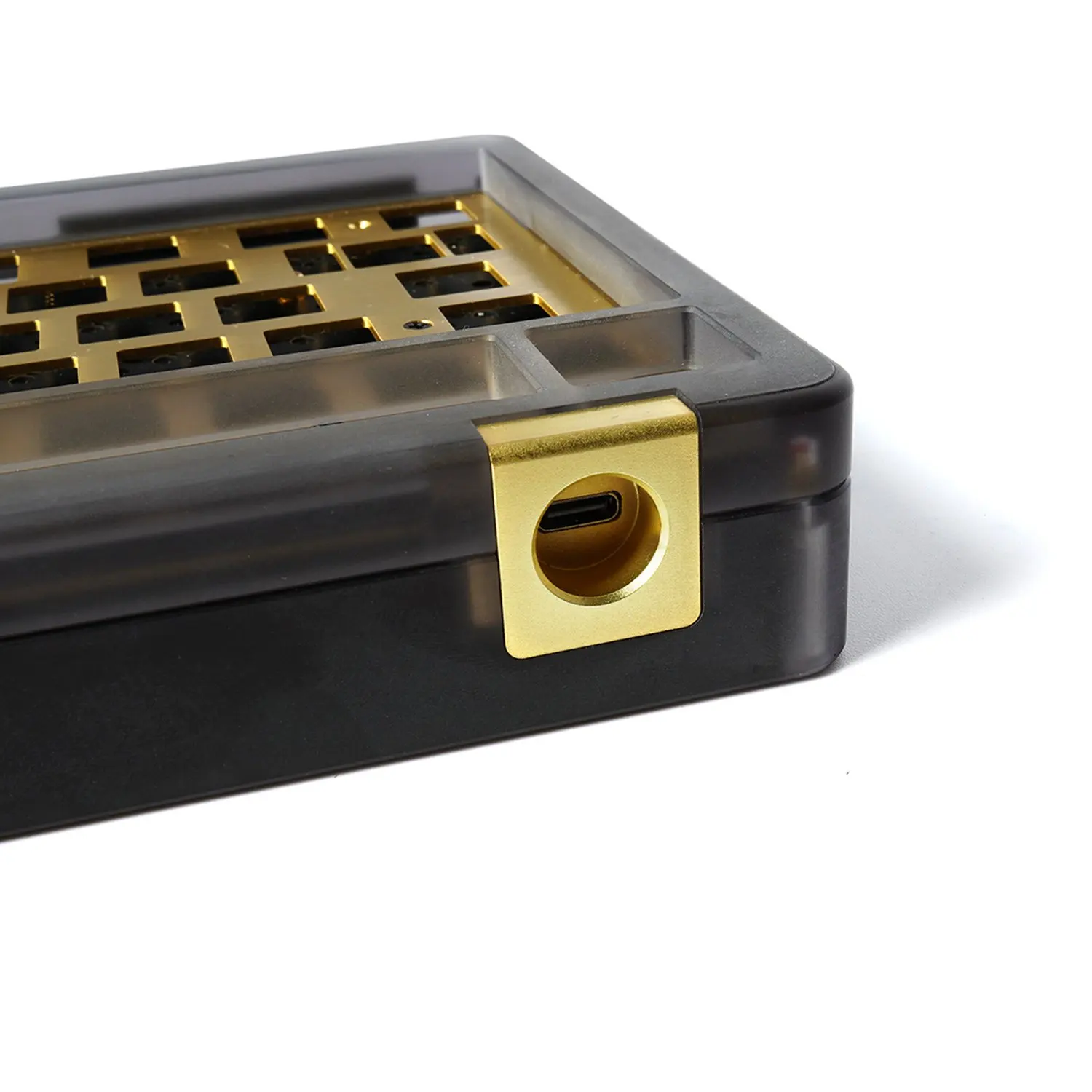

1 * brass usb block

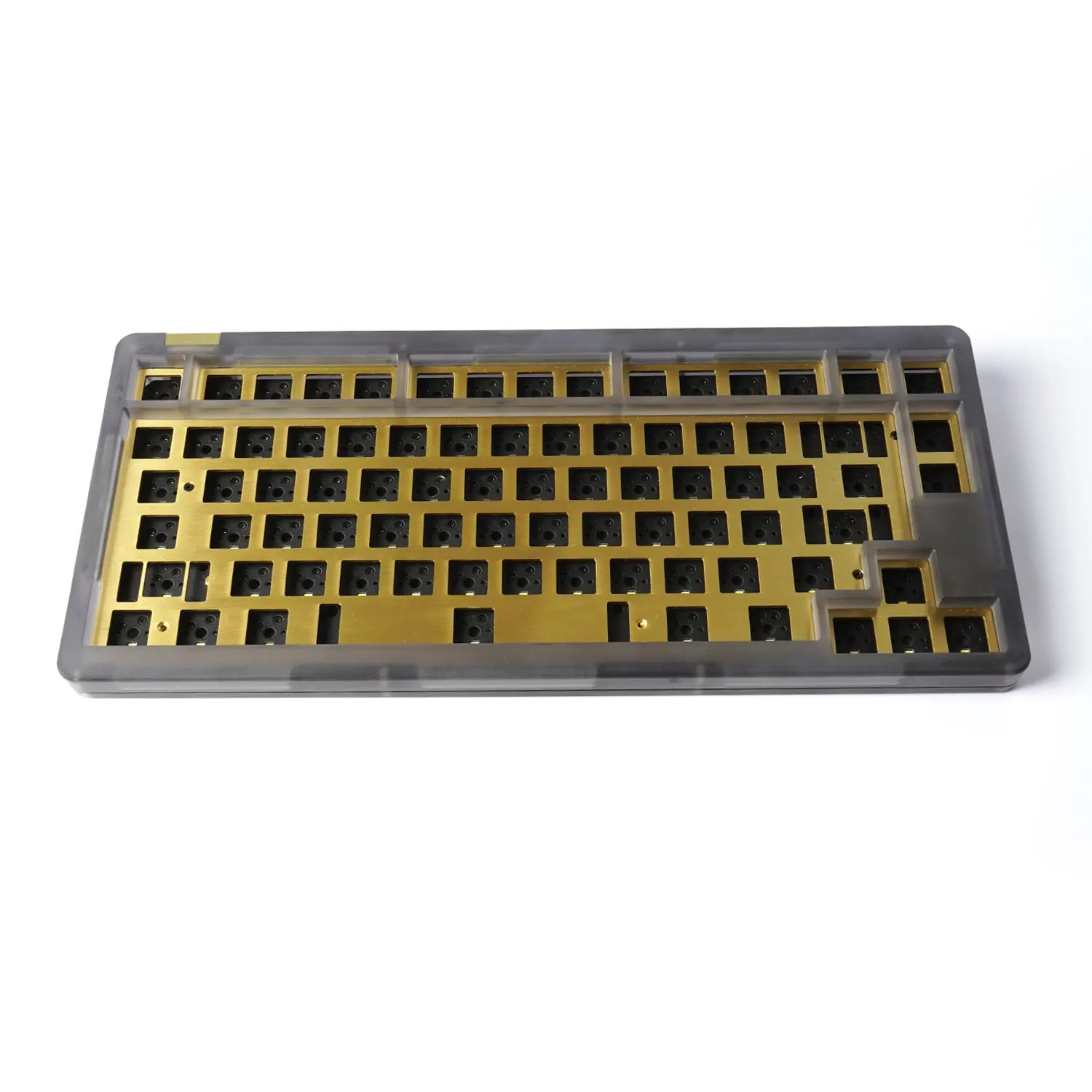

1 * brass Plate

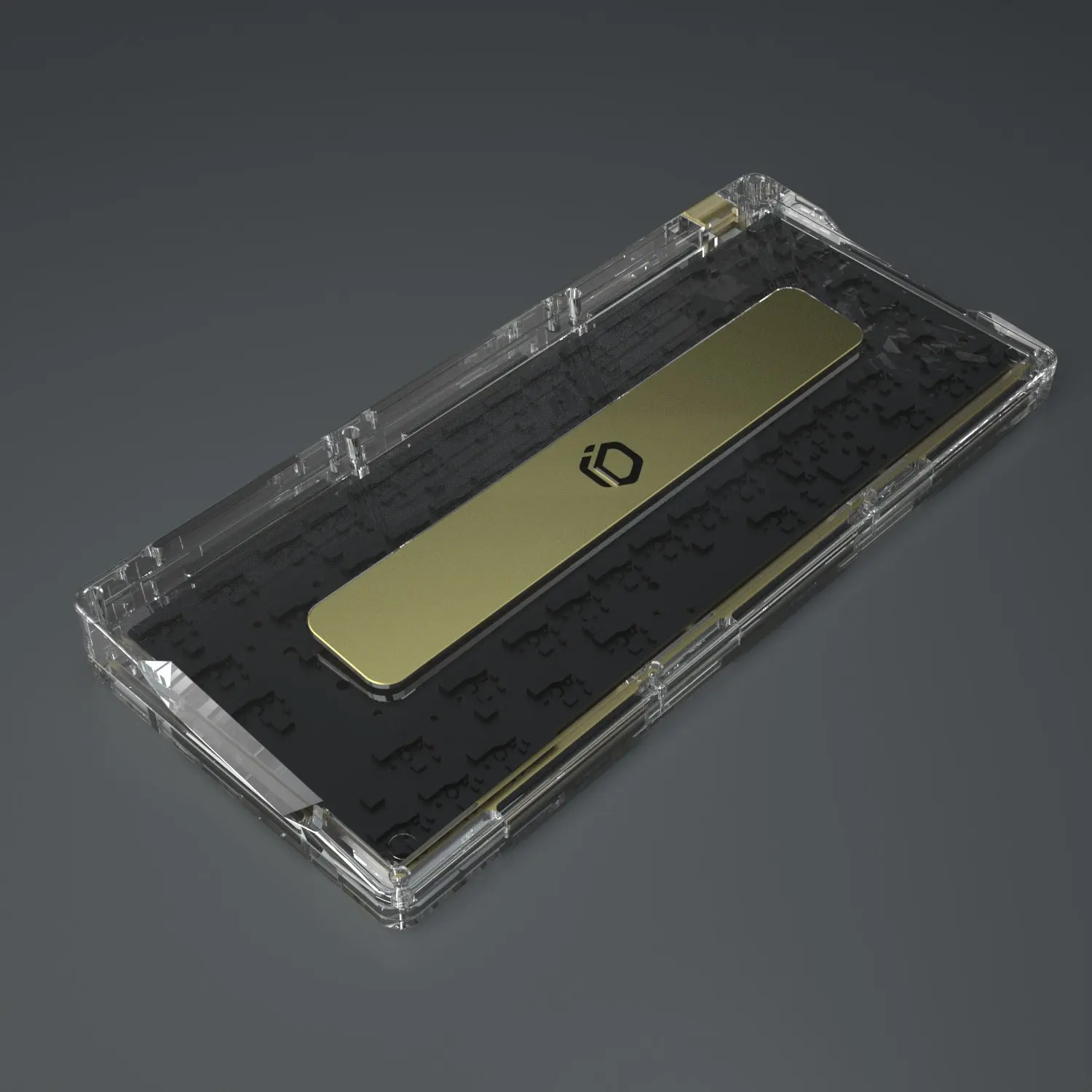

1 * brass weight

1 * Kailh Hot sawp PCBA

11 * brass stud

11 * Black Phillips screws(M2x3)

11 * black flat head cross screw(M2x3)

11 * Black Phillips screws(M2X6)

2 * Phillips screws（M3X6）

4 * PCB Stabilizers

1 * USB Type-c data cable

1 * foot pad

1 * black foam for plate with PCBA

17 * Foam strip
