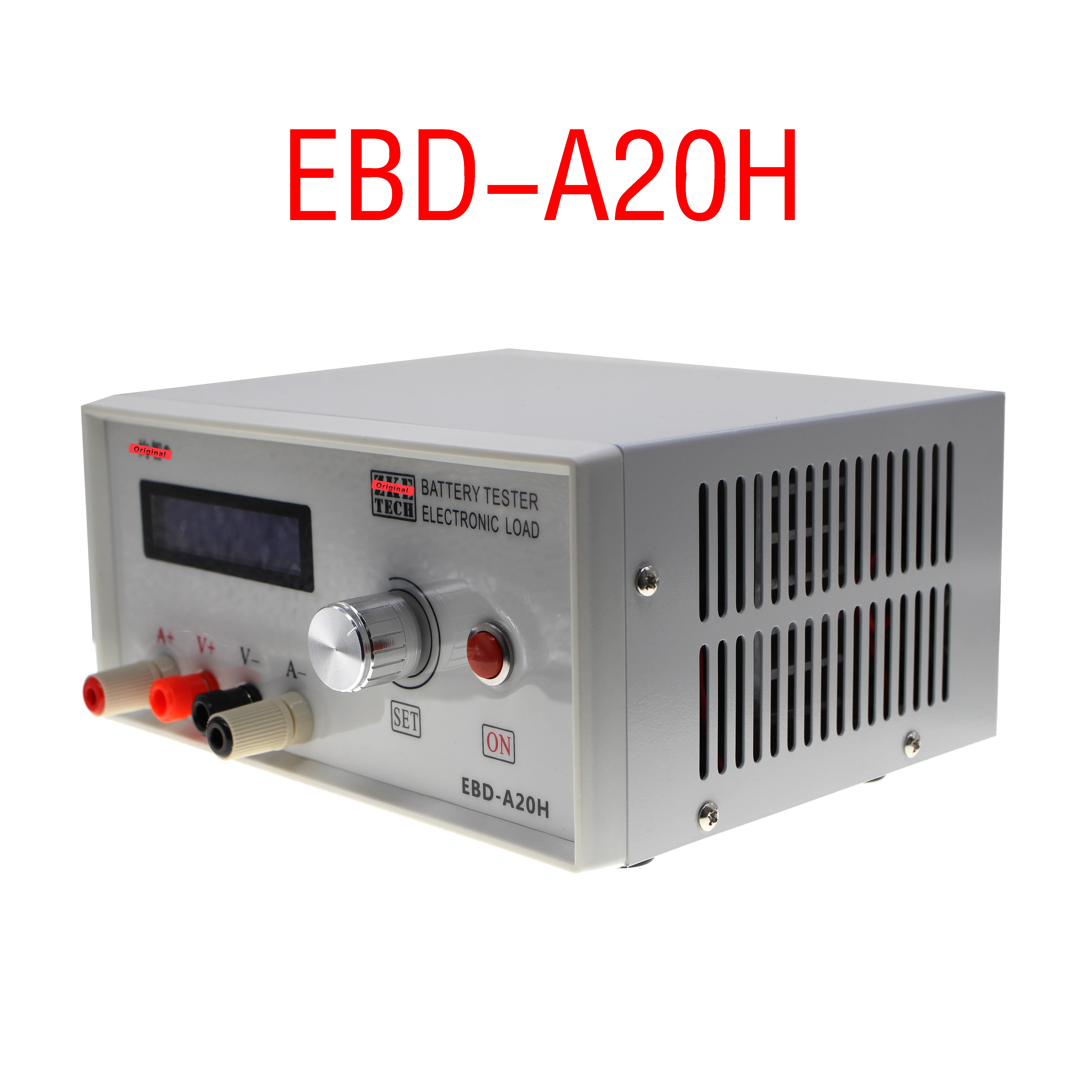

EBD-A20H Battery Capacity Tester Electronic Load Power Tester Discharger 20ANote: The discharge current is limited by the maximum power, less than 20A above 10V, and less than 10A at 20V.
(1):
1.1 Battery capacity test
The tester is designed for the discharge of various batteries, including NiMH, NiCd, LiPo, LiFe and Pb, as well as capacity testing.
1.2 Mobile power test
This tester supports charging and discharging of mobile power supply and capacity test.
1.3 Power performance test
The tester supports performance and aging tests of various DC power supplies.
(2):

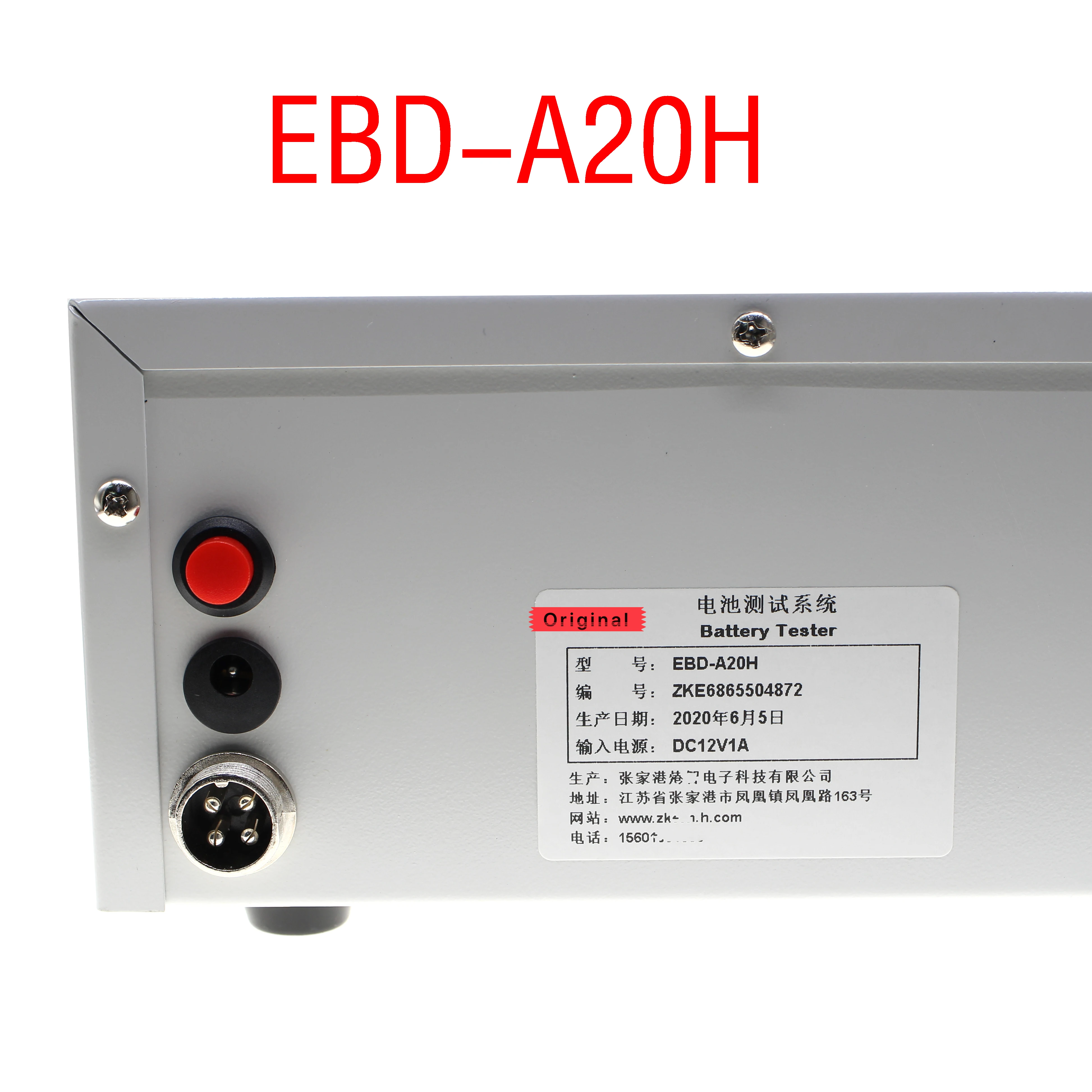

2.1 Power supply: DC 12V/1A
2.2 Voltage range: 0-30.00V, step 0.01V
2.3 Current range: 0.10-20.00A, step 0.01A (the current is automatically adjusted according to the power limit)
2.4 Discharge method:
DSC-CC: Constant current discharge of the battery, which supports testing of battery capacity or power supply current.
DSC-CP: Discharge the battery with constant power for use or test power such as constant power equipment.
2.5 Voltage accuracy: between 0-4.5V, 0.003V, ±0.5%, 4.5-30V, 0.01V, ±0.5%.
2.6 Current accuracy: 0.20-20.00A, 0.01A, ±0.5%.
2.7 Capacity detection: <10Ah, 0.001AH; 10-100Ah, 0.01Ah;> 100Ah, 0.1Ah
2.8 Discharge power: continuous rated power 180W, instantaneous power up to 200W

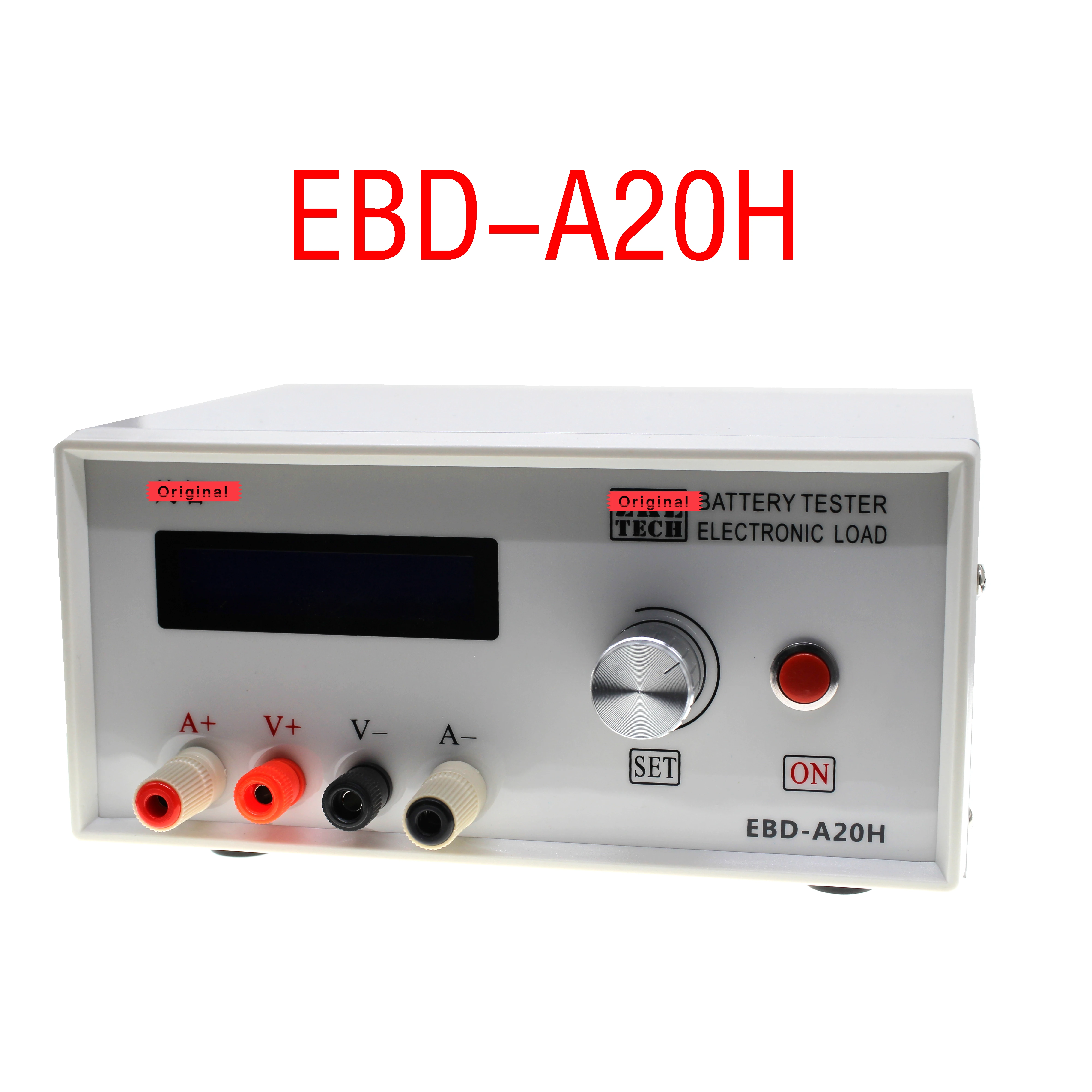

2.9 Four wires: voltage and current channels are separated, with high test accuracy
2.10LCD display: voltage, current, time, capacity, power, electric energy, etc.
2.11PC connection: The tester can be connected to the computer through a designated USB-TTL cable (with a regional socket) to achieve more functions, such as graphics, calibration, firmware upgrades, and test cycles.

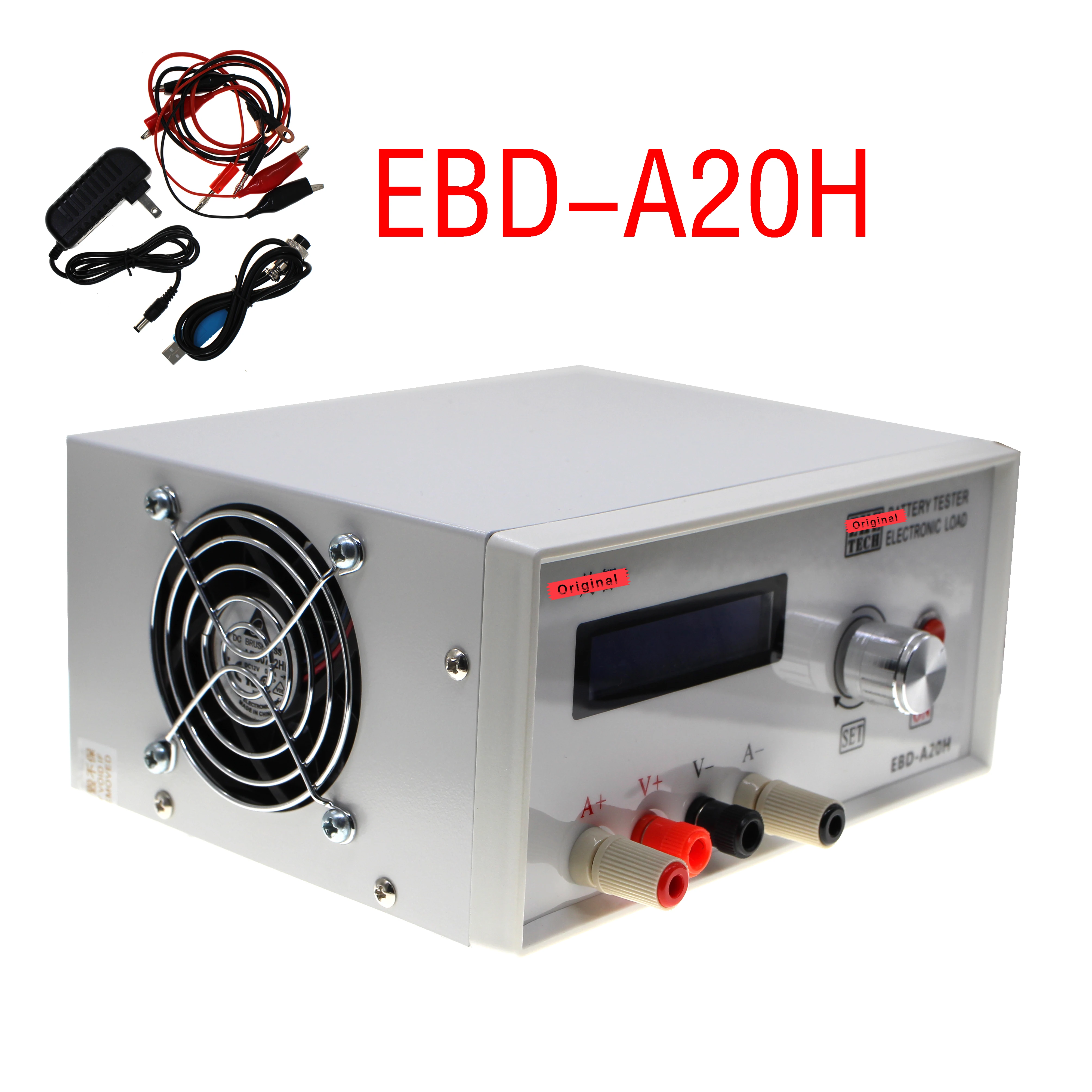

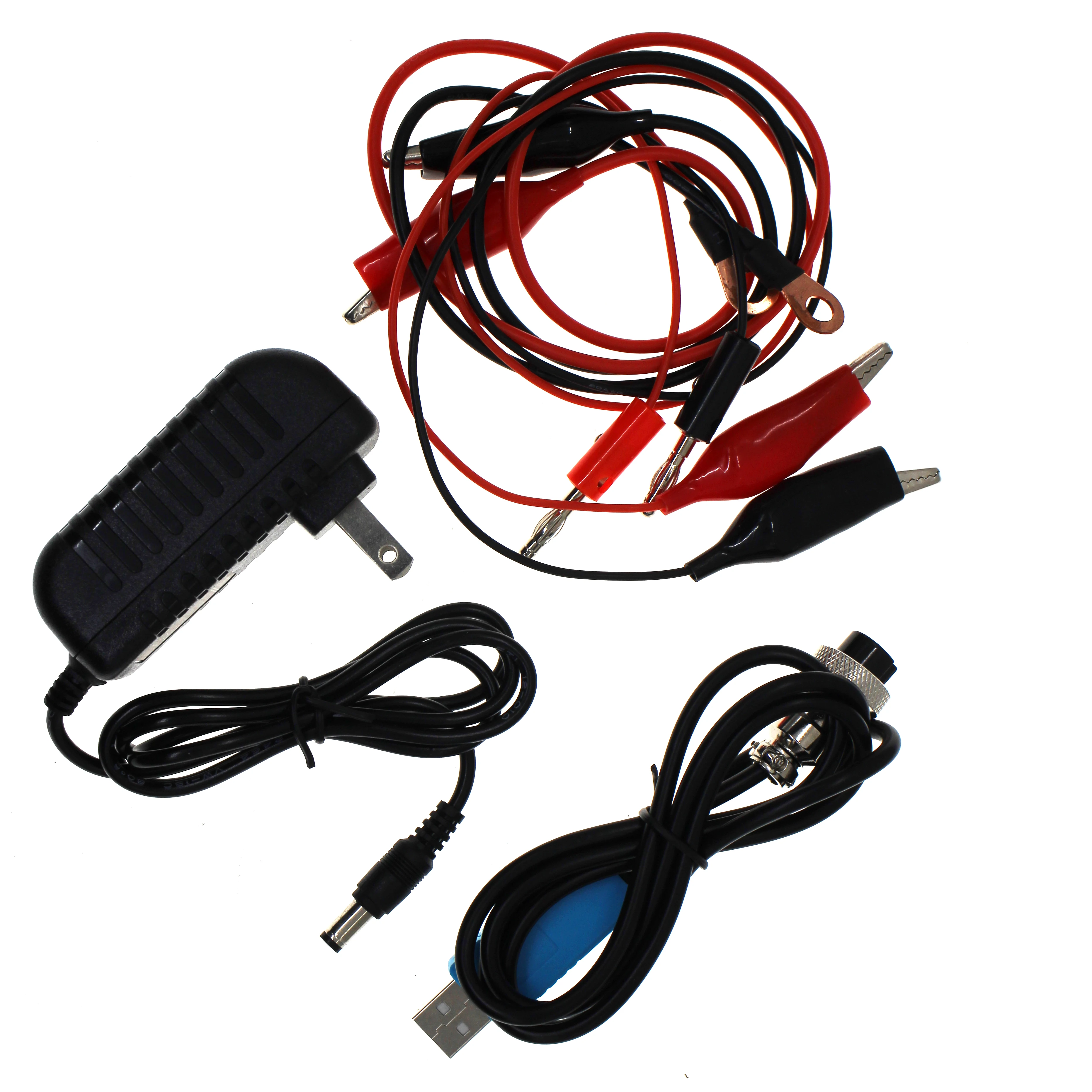

The price includes the following products:
1 x EBD-A20H battery tester
2 x cable
1 x USB to TTL cable
1 x power adapter
