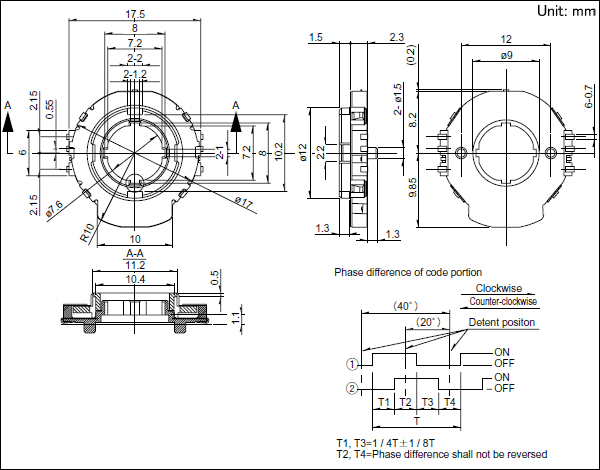

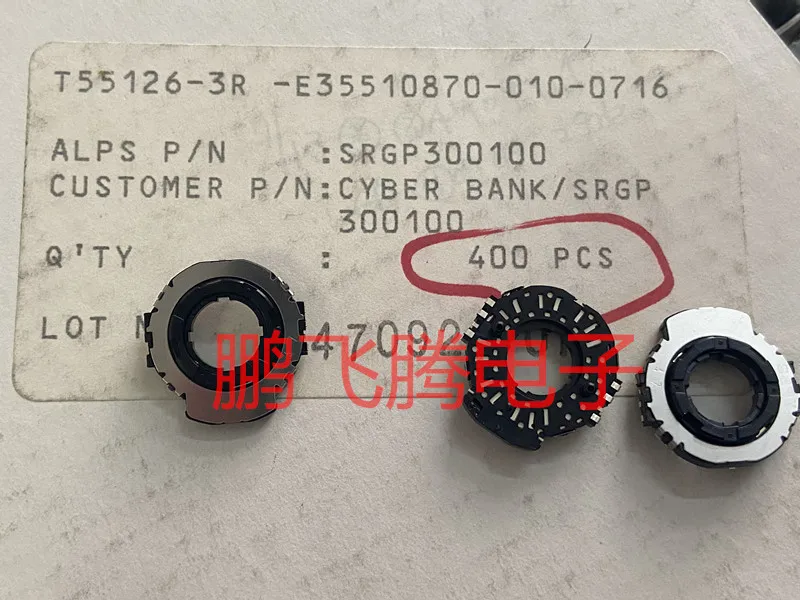

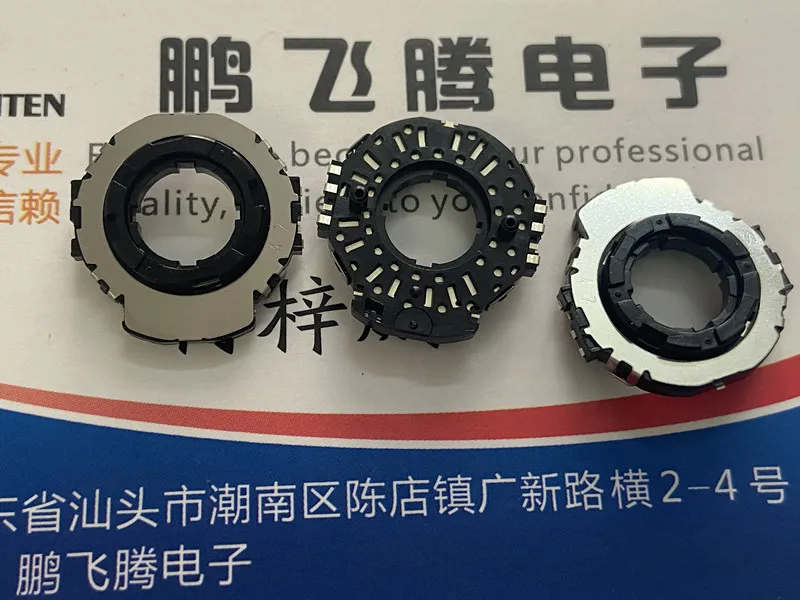

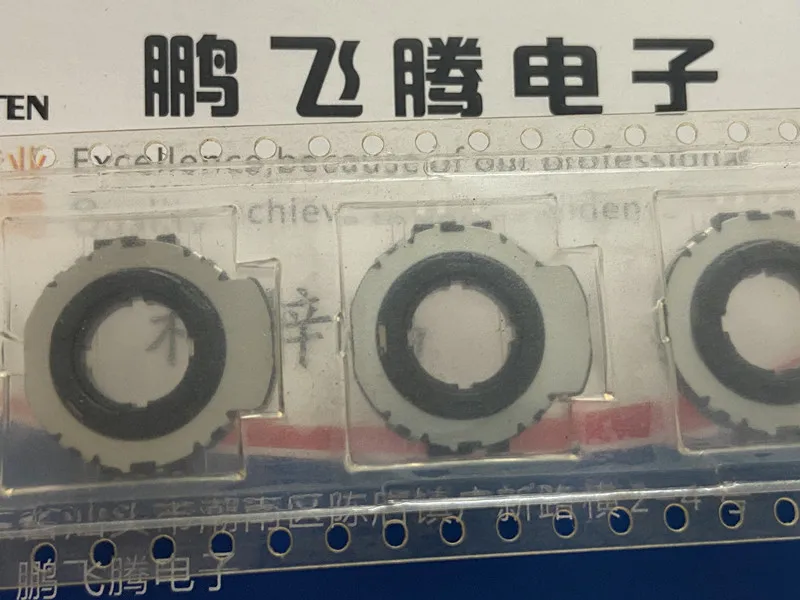

Hollow shaft encoder for Japanese ALPS car audio SRGP300100 encoder rotary switch SMD type taping packaging with detailed data size drawing
Operating temperature range -40℃ to +85℃
Maximum rating/minimum rating (resistive load) 10mA 5V DC/50μA 3V DC
Electrical performance Output voltage 1mA 5V DC (resistive load) at 1V or less
Insulation resistance 100MΩ min. 100V DC
Withstand voltage 100V AC for 1 minute
Mechanical properties Switching angle 20°
Strength of the operating part, according to the direction 20N
Pull direction 20N
Vibration resistance 10 to 55 to 10Hz/min, full amplitude 1.5mm, X.Y.Z 3 directions for 2 hours each
Soldering heat resistance, manual soldering 350±5℃, 3s max.
Reflow soldering Refer to soldering conditions
Endurance performance load 50,000 cycles
No load 50,000 cycles
Environmental resistance performance Cold resistance -40±2℃ for 96h
Heat resistance 85±2℃ for 96h
Humidity resistance 40±2℃, 90 to 95%RH for 96h
