The ideal coverage is 12-15km(radius).
Technical Parameter:
Item
Specification
Working Voltage
220V AC/50Hz
Frequency Range
87~108MHz
Audio type
FM
Frequency Modulation
±75KHZ
Harmonic,clutter radiation
≤－60dB
Output Impedance
50Ω
Frequency Response
30Hz~15000Hz
Audio distortion
0.2%
SNR
70dB
Separation
≥45dB
Environment temperature
-10℃~45℃
Input level
≤15 dBV
RF output power
0~200W
Working Current
﹤2A
Frequency Stability
±10PPM
Frequency Stepping
100KHz
Size
43.5cm（L）*30cm（W）*5cm（H）
Full Set Weight
About 11 kg
-Stereo/Mono optional
- RF output power is continuously adjustable from 0~200watt.

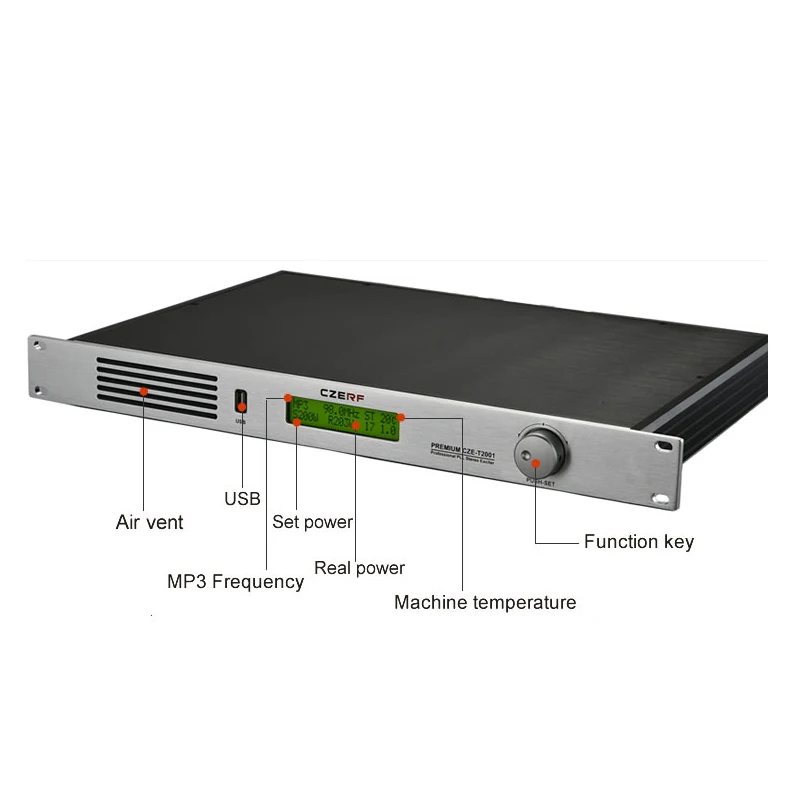

-One button controls all functions.
-Auto volume control function. It can detect and adjust volume automatically and ensure the best modulation.
-SWR protection. When antenna is not well connected, the transmitter will turn to protection mode automatically.
-Temperature protection. When the temperature of transmitter is too high, it will turn to protection mode automatically.

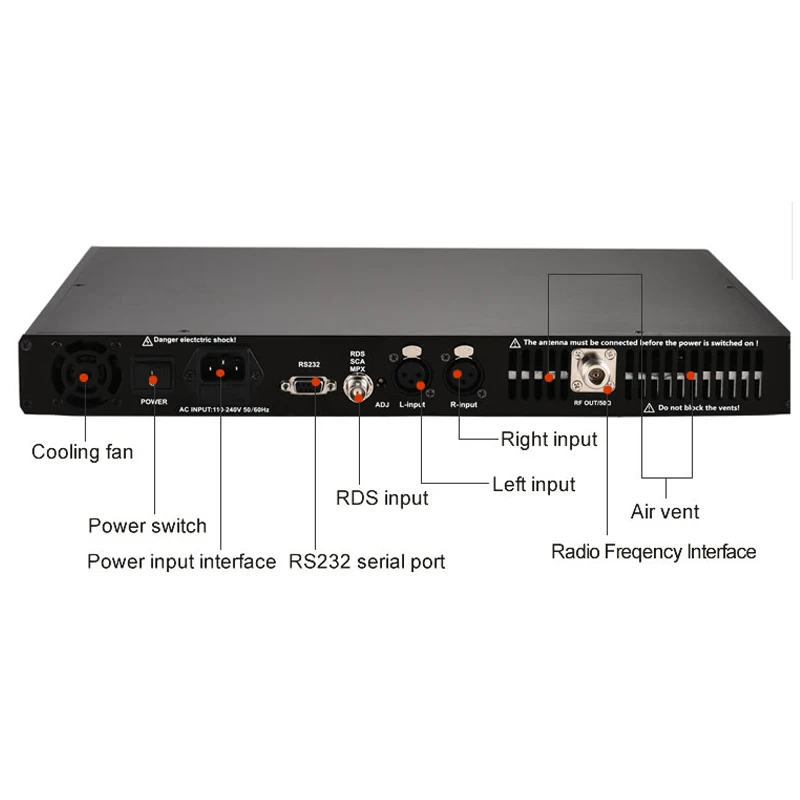

-External encoder input interface (available for SCA or RDS encoder )
