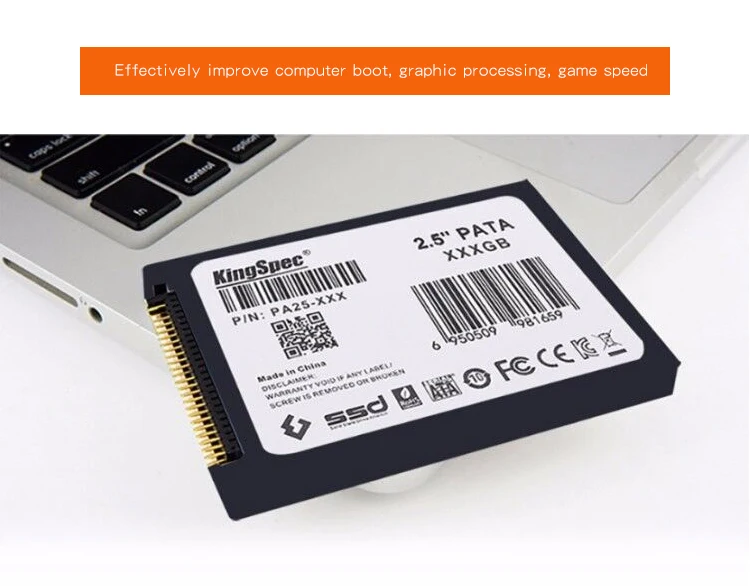

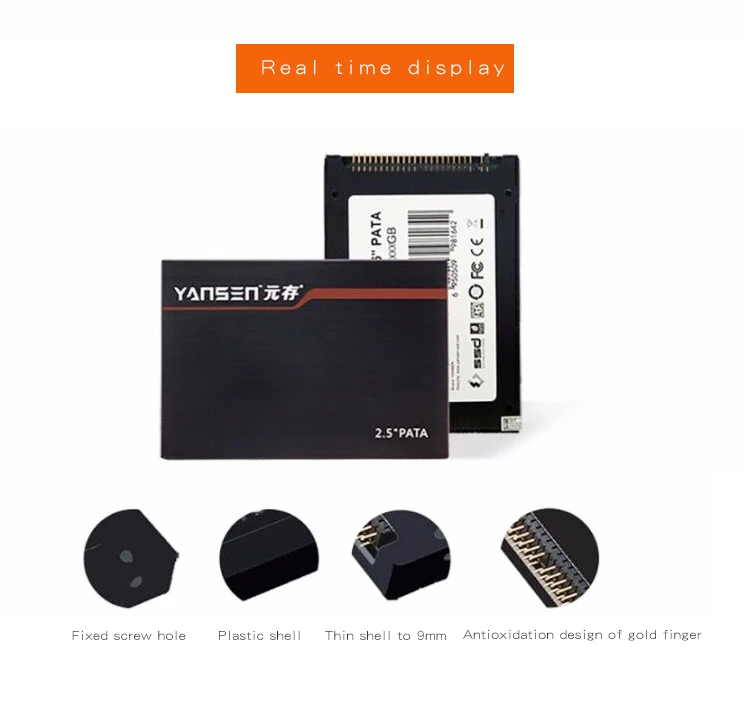

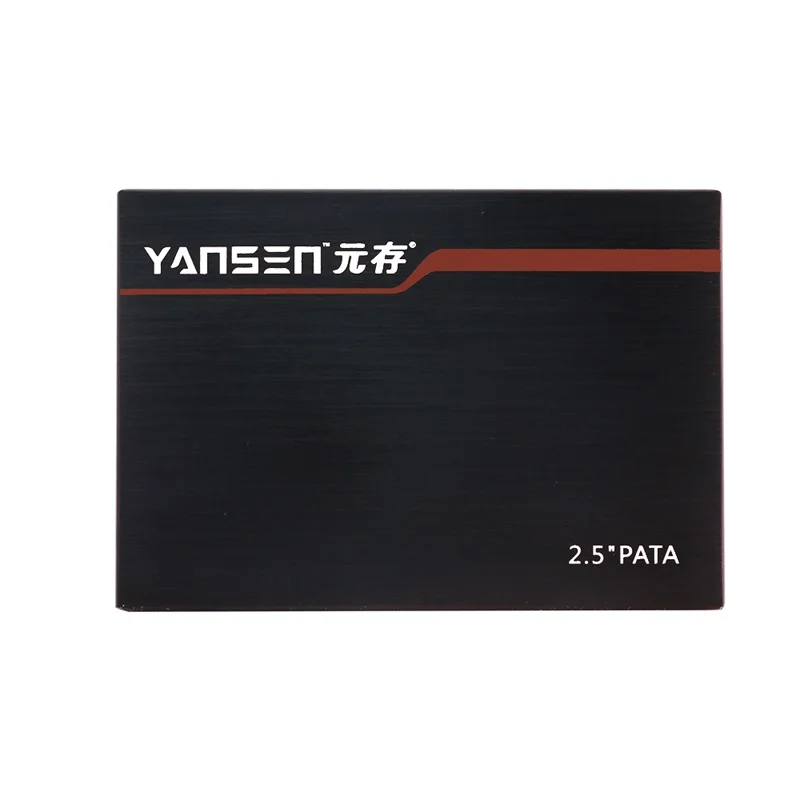

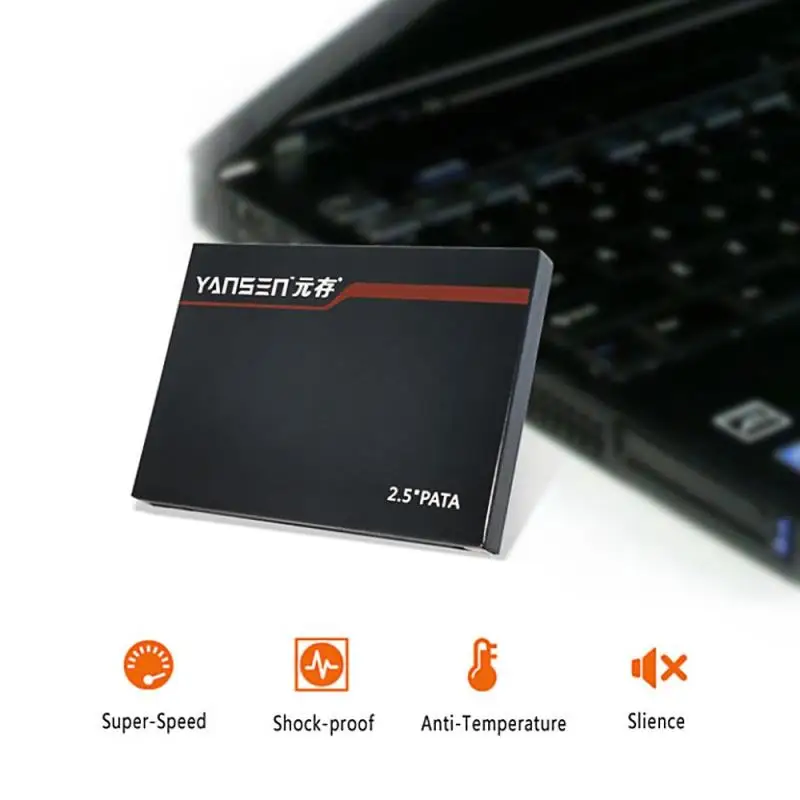

Kingspec 2,5 "SSD PATA IDE SSD 16 ГБ 32 ГБ 64 Гб 128 Гб Твердотельный накопитель MLC SSD внутренние жесткие диски ssd для компьютера

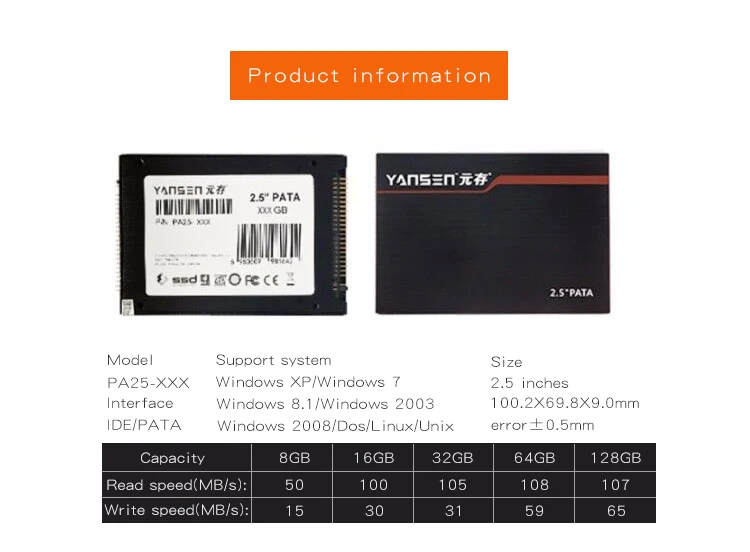

Model

PATA 2.5 MLC

General

Form factor

2.5

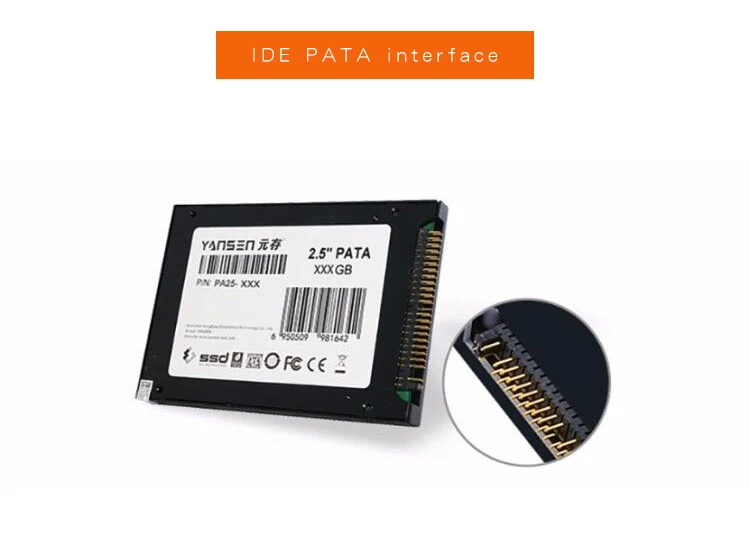

Interface

PATA

Performance

Capacity

8GB | 16GB | 32GB | 64GB | 128GB

Sustained Read

90MB/S | 100MB/S | 105MB/S | 108MB/S | 107MB/S

Sustained Write

26MB/S | 30MB/S | 60MB/S | 59MB/S | 60MB/S

Random IOPS

4KB Random Read IOPS

4KB Random Write IOPS

Average Access time

0.2ms

Storage Media

NAND Flash

MLC- NAND Flash

Power Consumption

input Voltage

5V+/_5%

Idle

0.5W

Active

2.0W

Reliability& Endurance

Write endurance

80 years at 10GBytes write and erase per day at 32GB

Read endurance

unlimited

Wear-Leveling Algorithm

Dynamic and static wear-leveling

Data Retention

10 years at 25ºC

MTBF

1,000,000hours

ECC

Supports BCH ECC 8bits or 15bits in 512 bytes

Bad Block Management

Auto Bad Block Management in system

Environment

Operating Temperature

0~70ºC

Non-operating Temperature

-40~85ºC

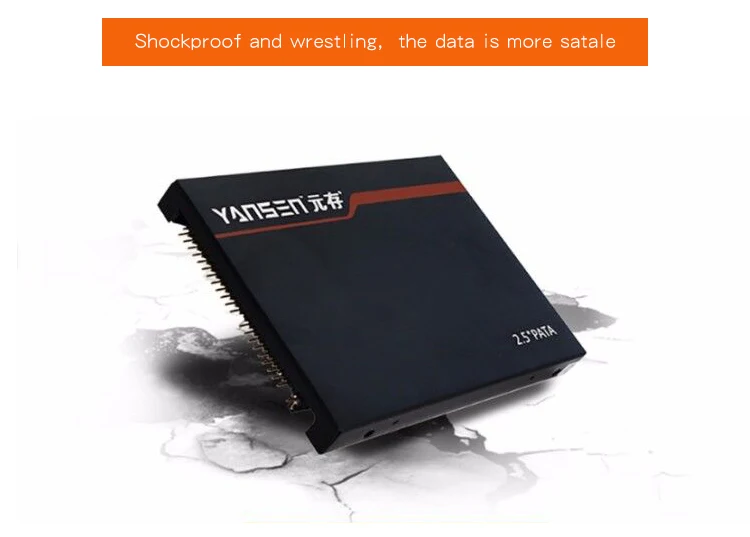

Shock

2,000G(at 0.3ms half sine wave)

Vibration

20G(40-2000HZ)

Ambient Humidity

5-95%

Warranty

3years

Available unit

Available

Available, NO EOL

Testing Platform

CPU: AMD Athlon 64×2 5200+ 2.7GHz,SDRAM:DDR2 800(PC6400) 2048 MB×1PCS, Mainboard:AMD RS780 (ATI Radeon HD 3200 Graphics)System:Microsoft Windows XP Professional SP2

Testing Software

HD Bench3.4.0.3, IOMeter 2006.07.27

Physical Dimensions & Weight

Height(mm)

9.5+/_0.25

Width(mm)

69.8+/_0.25

Length(mm)

100.2+/_0.25

Weight(g)

70±5
