HD 13 МП дюйма SC401 сеть видеонаблюдения с низким освещением H.265 модуль AI IP-камеры CMOS плата ONVIF
Ale YISHUN Electronic CO.,Ltd - Надежность 97%
Более 56 подписчиков, дата открытия магазина 26.02.2014
- Положительные оценки: 100% (14)
- Соответствие описанию: 98%
- Отвечает на сообщения: 92%
- Скорость отправки: 98%
Последнее обновление: 09.03.2022
2 Отзывов
3 Заказов
Supporting Face detection, Humanoid detectionn, and supports customization of other smart functions;
4.0MP HD Low illumination resolution, clear and fine images;
Support 2D/3D noise reduction, digital wide dynamic;
Advanced H.265(Compatible with H.264) video compression,Super low rate,high definition quality of image;
Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5;
Support ONVIF; access third party, Support various mobile monitoring(iPhone, Android);
Provide web, CMS, center platform management software MYEYE, provide SDK development
Support cloud technology, easy to achieve network penetration, fro in-line and alarm information pushed

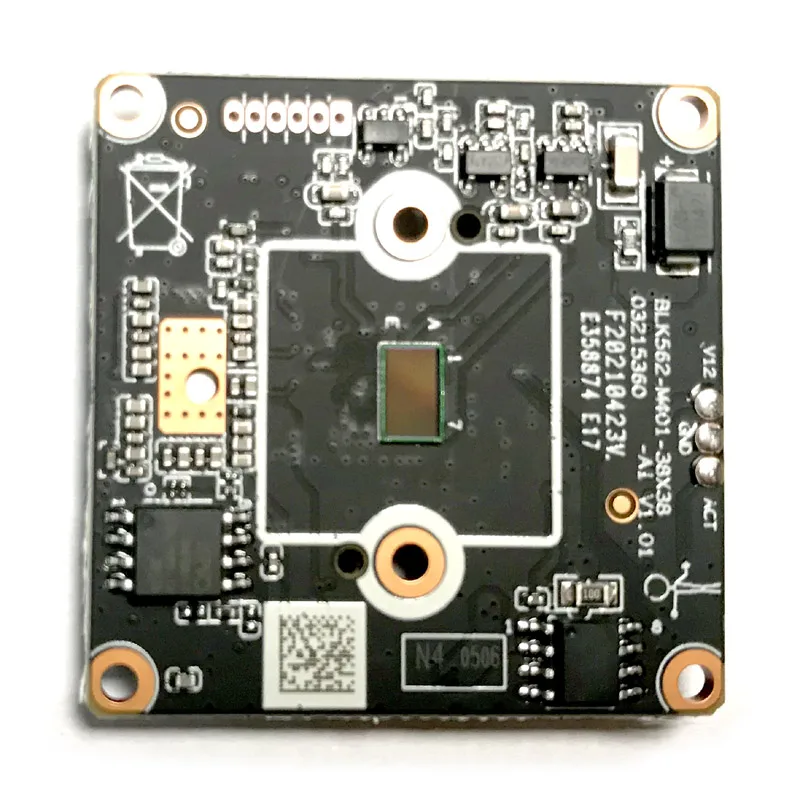

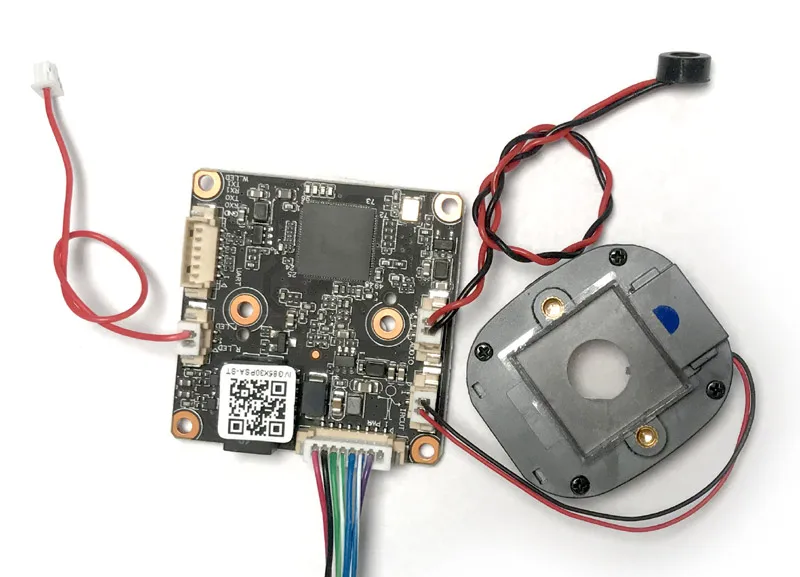

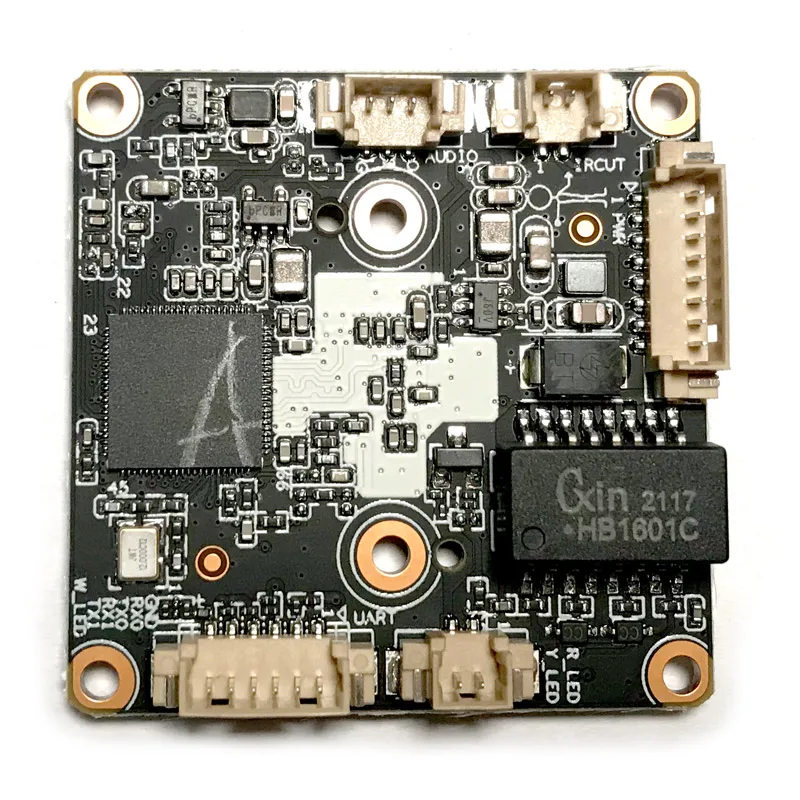

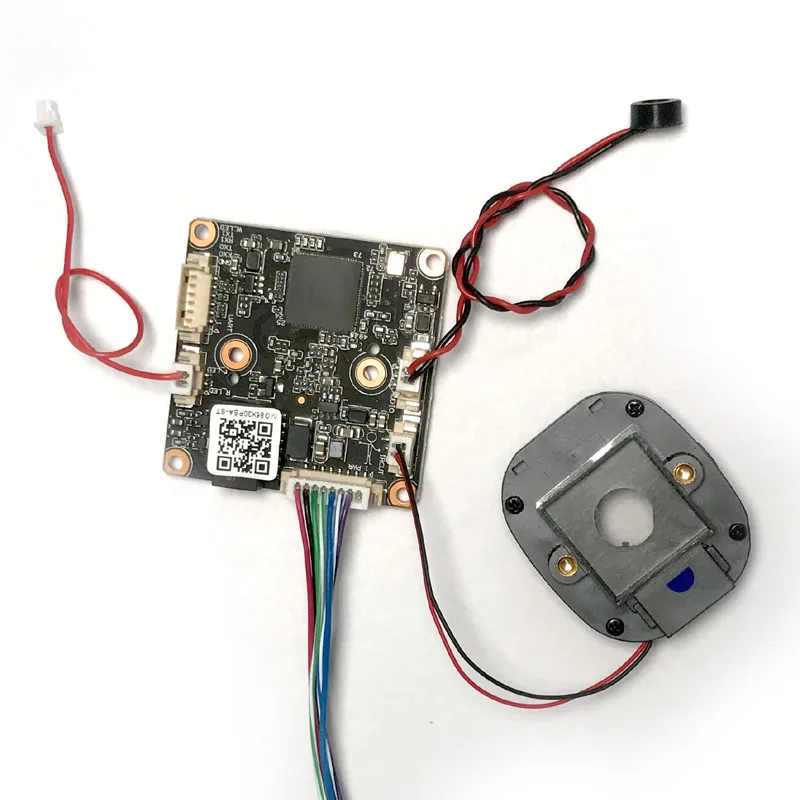

Module 38*38mm size IP PCB Board.
Sensor
4.0MP 1/3" SC401 AI Low illumination CMOS sensor
System structure
Embedded RTOS, dual-core 32bit DSP, pure hard compression,watch dog
Minimum Illumination
color 0.01Lux/F1.2, black/white 0.001Lux/F1.2
Video compression
H.265 (Compatible with H.264), support dual stream, AVI; 0.1M~8Mpbs variable; 1~30f/s variable
Image output
Main stream: 2560*1440/25fps 2304*1296/25fps 1920*1080/25fps;
sub-stream: 800*448/25fps
Wide dynamicNoise reductionDay and night
Support digitalSupport 2D/3DSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Support IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Reliability
Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Network interface
1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Singal interface
One photo resistance interface,one IR-CUT interface,support photo resistance signal and IR-CUT links to IR
Shutter
1/50(1/60)s to 1/10,000s
Audio compression
G.711,support bidrectional talk,audio&video synchronization
Audio interface
1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Other function
Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture; united remote client monitoring sofaware, MYEYE; perfect SDK, Support ONVIF
Intelligence analysis
Supporting human detection, face detection, and support to customize other intelligent functions
Mobile monitoring
Support multiple mobile monitoring (iOS, Android)
Power
DC12V/2A input, power consumption:≤3W,
Other
Support POE power supply (optional),The drive voltage of the light board is at 3.3V
Warranty Term: Two Years Warranty
