Пистолет-распылитель из пенополиуретана высокой плотности, пистолет-распылитель из пенополиуретана

SPC:

Max.fluid working pressure

24Mpa

Air inlet pressure

0.4-0.8mpa

Cleaning method

self cleaning with air

Working flow

2-9kg/min

Mix Chamber Size

1.3mm (0.8mm or 1.0mm or 1.5mm could select)

Spray nozzle size

1.6mm (1.3mm or 1.8mm or 2.0mm could select)

Spray gun parts

Could send the total part list about the spray gun for extra select

Gross weight

2.0kg

Packing size

210*100*100mm

Remark:

1. Standard polyurethane spray gun mix chamber is 1.3mm, nozzle, 1.6mm.

2. When spray polyurea, the mix chamber could 0.8 mm and 1.0mm.

3. Also could fix extra special nozzle, filling nozzle and fan nozzle.

Features:

1. The pipe joint Angle, reduce the gun load, make operation easy.

2. Gas valve can prevent trigger is stuck.

3. Gas auxiliary spring can quickly cut into the mixing head of raw materials.

4. Jet linear continuous and smooth, no field control.5. Pneumatic wrench can reduce the labor intensity of operators.

6. All steel hybrid head, output, precise control of spraying position, reduce the waste of raw materials, particularly applicable to residential construction between two walls of spraying.

7. Single valve device can prevent ISO material and POLY material flow back, and not apart gun, which can check the gun inside most of the seal.

8. Use manual switch valve, no tool can quickly and easily switch gun.

9. High pressure vacuum mixed to ensure the best

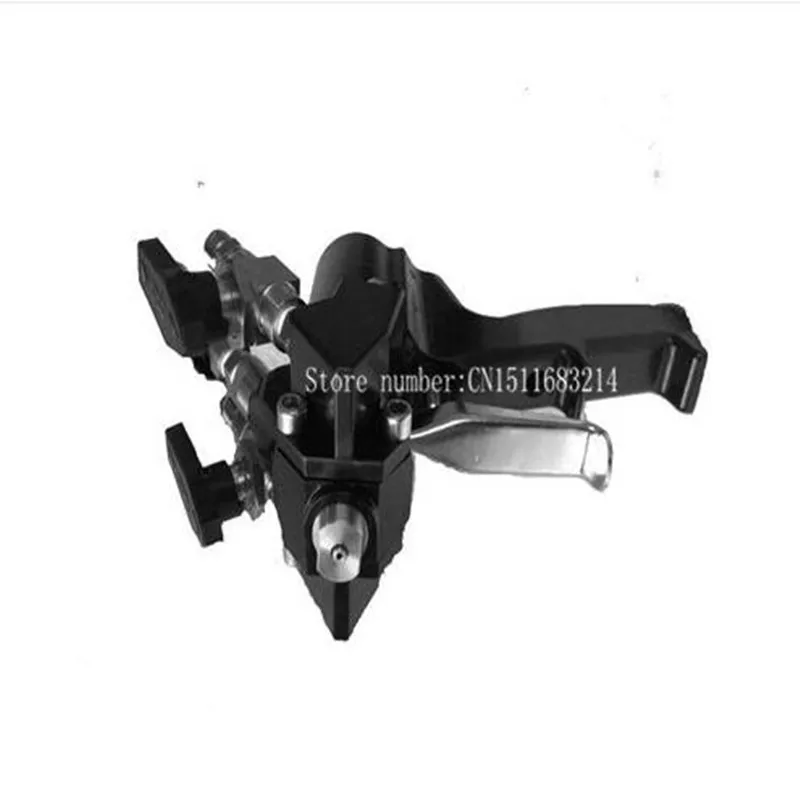

P2 gun lightweight, easy to handle , even in the difficult position of spray can and spray ease of operation , its excellent production efficiency has been widely recognized by the industry . At the end of the work day , maintenance is simple. P2 gun with one-way valve to separate the wet area of the gun .

trigger rapid response - double piston provides a powerful driving force .

replacement of the mixing chamber can insert , without replacing the entire mixing chamber .

Anti- crossover design to virtually eliminate the possibility of material fleeing into the air piston.

ergonomic handle design for peace and comfort , compact , and lightweight.
