CROSSOVER-RX AR3201G-A2(FLYSKY-AFHDS-2A) Built-in 2 brushless ESCs/6CH MicroRX/TELEM/SR3X/GYRO
FLYSKY-AFHDS-2A

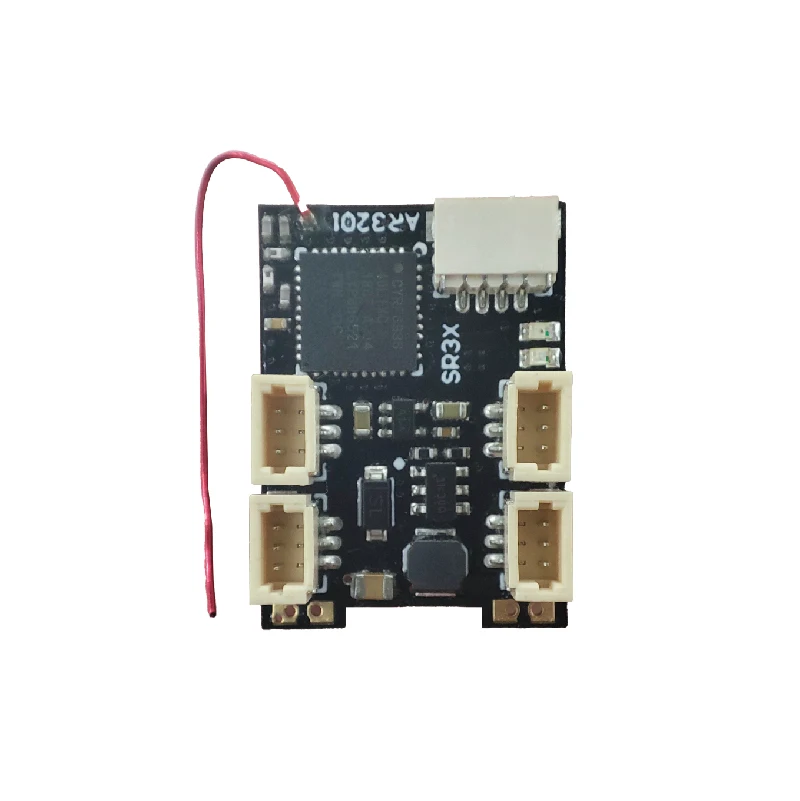

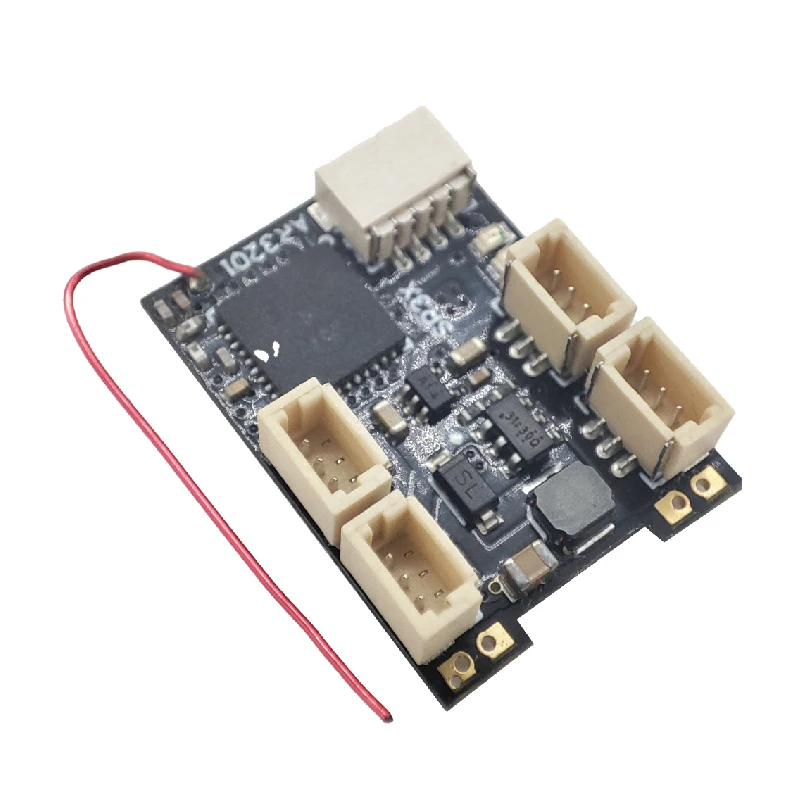

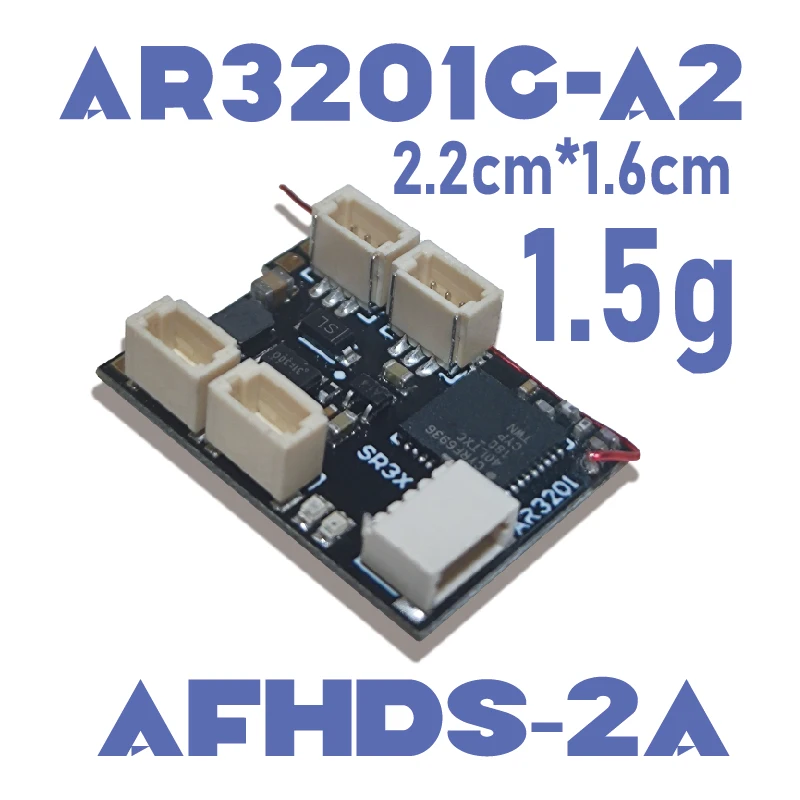

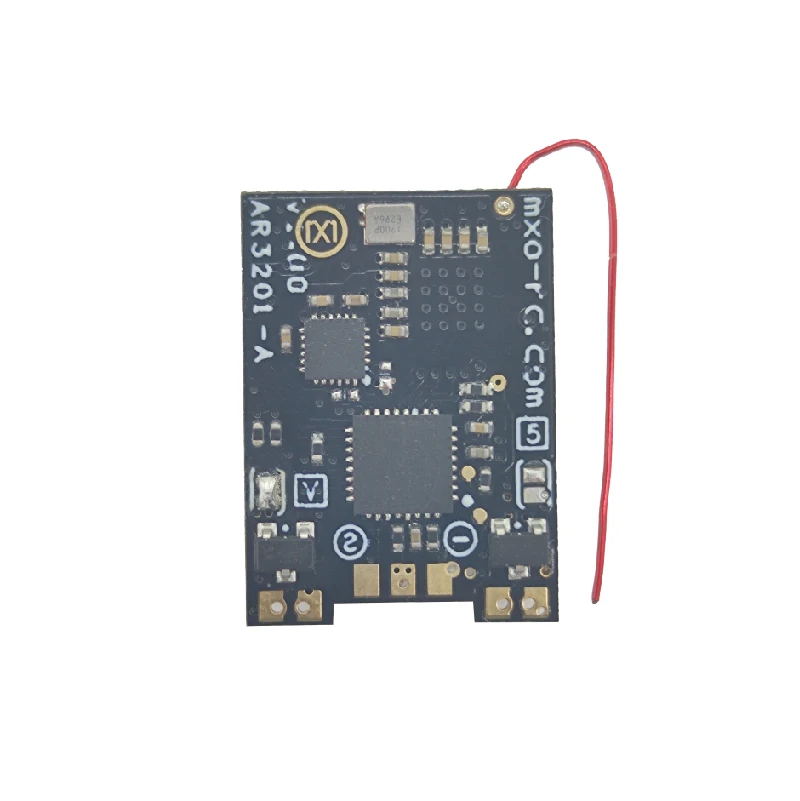

AR3201G-A2 is a kind of highly integrated receiver(built-in two brush 5A ESCs, one receiver, SR3X 3-axis(option), DCDC-5A/1A boosting power). It is very helpful for DIY or rebuilding model airplanes weight between 25-100g.
Features

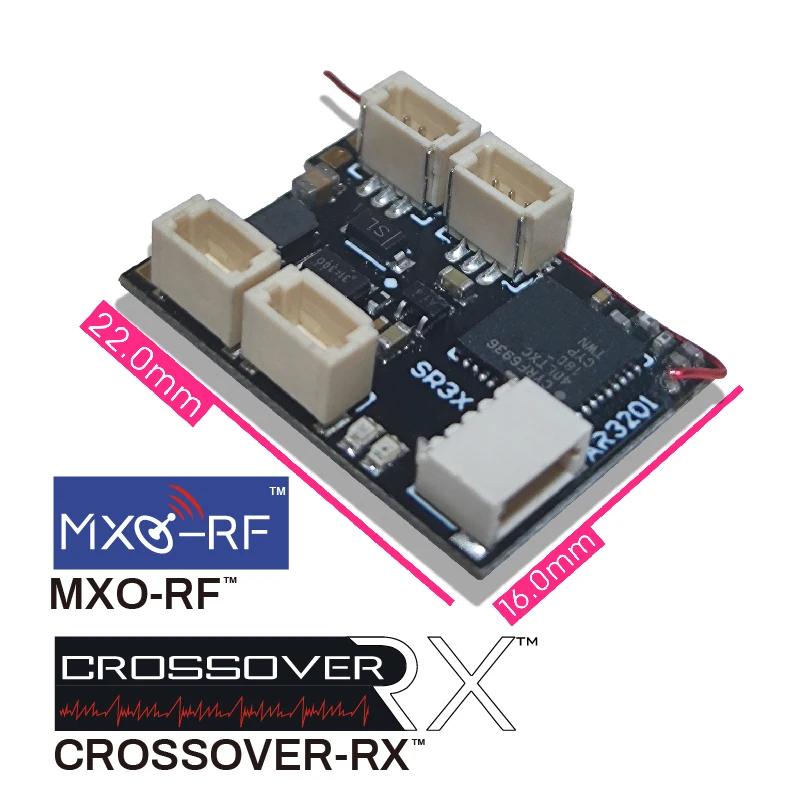

1)Modulation:Compatible FLYSKY AFHDS-2A 2)Small size: 22.0*16.0*6.2mm(not including antenna) 3)Super light: 1.5g(including antenna) 4)Working voltage:3.0~5.0V 5)DCDC-5V/1A boosting power 6)With built-in 2 brushless ESCs (5A/1S , Lock starting function) 7)Integrated with SR3X 3-AXIS function (for option, can turn off, sensitive adjustable) 8)Binding automatically 9)Support TELEM function( voltage message returns to transmitter) 10)Support online updating 11)Support GUI setting function 12)Supports differential speed mode

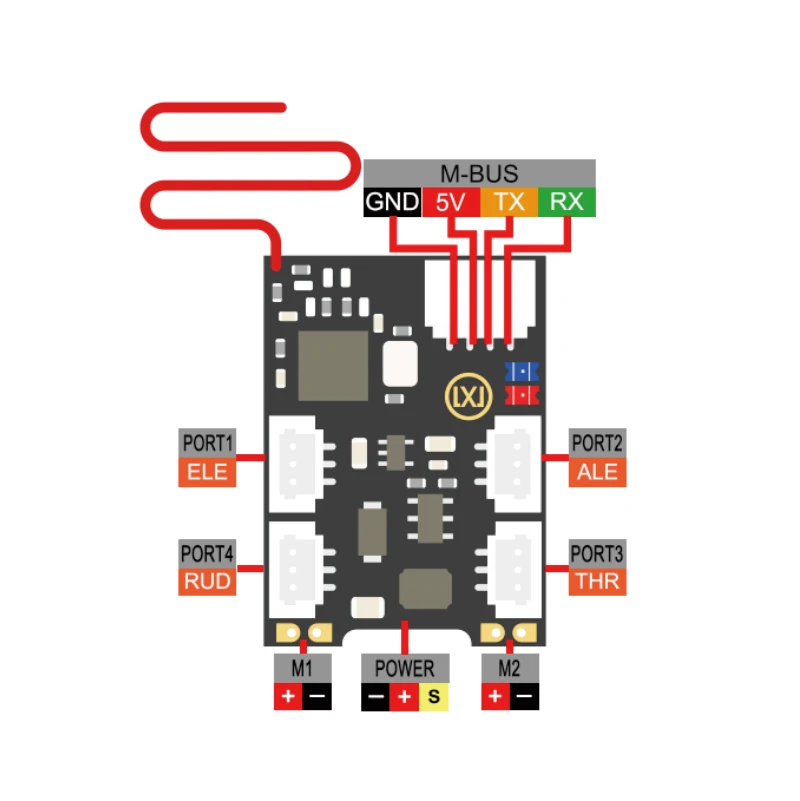

Connection Diagram
M-BUS Equipment port
M-BUS Equipment port is multi-functional: 1) firmware updating/function set up; 2) output CH5 signal; 3) output SBUS signal; 4) Bypass working mode port
Start-Lock Function
Start-Lock Function is the onboard brush ESC function of preventing brush motor from starting by mistake. It can protect the brush motor from starting even throttle stick not at the lowest position when the receiver is powered. As soon as the receiver gets the signal and the throttle stick on your transmitter is at the lowest position for 2 seconds the first time, Start-Lock will be released then, the brush motor will run when the throttle stick is pushed.
Auto binding
As it is difficult to reach the binding button when the receiver has been installed inside the plane, we developed self-binding function, it works like this: The receiver will enter binding mode automatically after powered and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual.
TELEM function
TELEM function is useful on monitoring battery voltage, receiver working voltage and its signal strength as well as its working temperature in real time, through which customer can get working state of receiver and battery discharging state under control, so flying out of control range and over discharging will rarely happen ( for brushless motor rotation speed or flight height monitoring, customer needs to choose a more advanced receiver) NOTE: The effective control range of TELEM function depends on transmitter, it is possible that this would happen: the working range of the receiver is far more than TELEM function effective range, it is normal and alright!
SR3X 3-AXIS function
SR3X is a flight assistance system developed specially on fixed wing model airplanes. It can not only help the beginner control model airplane, but also help the senior pilots get better and stable flight attitude. SR3X 3-axis gets three working modes: shut off; low sensitive working mode, high sensitive working mode. Customer can set up CH5 on the 3-gear switch of the transmitter through which decides its working mode. The blue LED on AR5202 is for indicating the working mode: 1) blue LED light is shut off indicates SR3X 3-axis is turned off. 2) Solid bright blue LED indicates low sensitive mode. 3) blinking LED indicates high sensitive mode.
GUI software download address
Download link： update.crossover-rx.com/mxo.zip
How to connect RX to GUI software
The user needs a USB programmer (USB MX-PG02, when using the MXL-RX62E-XG, the switch on the programmer is set to the II position) before using the GUI software to configure the receiver function or upgrade the firmware, and set the USB programmer’s ribbon cable Connect one end to the M-BUS interface of the receiver, and the other end to the PC. After opening the GUI software, select the correct port, click "Connect", and then each configurable function module on the receiver will load and display the current setting information of the receiver.

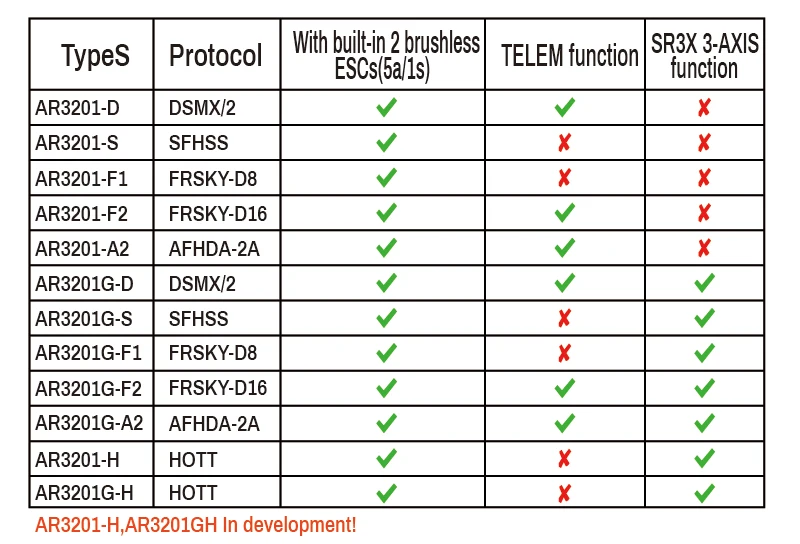

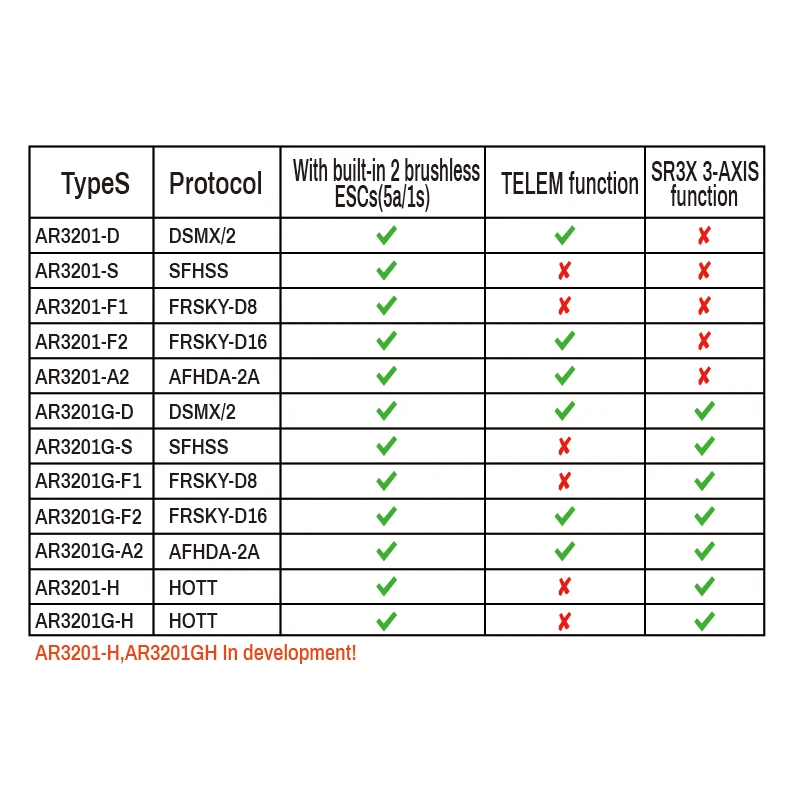

AR3201 series receivers have the following 12 versions
