Новинка, Автомобильный сканер OP COM 2021 200603a для Opel CAN BUS OPCOM 1,95 Real PIC18F458 FTDI FT232RL Chip Opcom 2018 170823C OBD2

OP-COMspecial diagnosisOPEL200603awith the real

chipPIC18F458FTDI FT232RQSupport CarsTill 2021.

MULTILINGUALSOFTWARE 2021

OP-COM Professional Diagnostic Tool forOpel OP-COMAuto Scanner

Work on, Windows 7 32-bit/64-bit Only

Latest OP COM V2021 OPCOM For Opel Cars To 2021 Opcom2018 170823C For Opel CAN BUS Car OPCOM 1.70 Flash Firmware Update Real PIC18F458 FTDI FT232RL Chip OBD2 Auto Scanner Tool

This link has 3 Type software Item:

1.Software 2014(120319a,For Year2014.02; 2012; 201008)

Hardware Opcom 1.95 can update FW

2.Software 2018(170823c,For year 2004-2018)

Hardware opcom 1.95 can update FW

3.Software 2021(200603a,For Year 2011-2021)

Hardware opcom 1.95 can update FW

1) We have newest softwareprofessional 200603a. can support cars to 2021.

NOTE: the better use in WIN 7

2) professional 200603a MUST be use with real pic18F458 chip OPCOM.

if your device not pic18F458 chip, please choose our device+software. Otherwise it will not work. Nor can it be after-sales because the hardware does not support.

3) Support Language

OP COM 2018 For OPEL 170823c Car List

Top 10 Reasons to get OPCOM 2018 170823C

1. Covers almost all Opel cars, even new cars with CAN-BUS-based diagnostics, such as Vectra-C, Astra-H, Zafira-B.

2. The program allows you to read and delete error codes, shows data in real time.3. The program supports many control units, such as Engine, Automatic Transmission, ABS, Airbag, Engine Cooling Module, Instrument Panel, Electronic Climate Control, Body Control Unit.4. Because Opel uses many pins in the OBD connector, the diagnostic interface works as a multiplexer and selects the appropriate pin for communication.PIN3, PIN7, PIN8, PIN12 - Serial link (ISO9141, KW81, KW82, KWP2000)5. Error codes with all available information are displayed:Description complete error code text, errorfull status information (Present, Not Present, Intermittent)

6. You can print, save, or copy error codes in any other application. From the Error code window, you can directly access the Measurement Blocks window.7. The program shows the measurement block information on many control modules, you can choose anything from the list by yourself.8. The program is able to show 8 measurement block parameters at the same time. The sampling rate depends mainly on the communication protocol. For example, the older system, such as Omega-B X 25 DT Engine (ISO-9141-2) can be very slow during communication, while new Multitech or Bosch units are faster (using KWP-2000) and the latest CAN-based control units are very fast!You can also run output tests on many controllers.PIN6 - PIN14 - PIN3 - PIN11 - PIN1HSCAN - CAN-BUShigh-speed double-wire, 500 kbpsMSCAN - CAN-BUSA two wires, average speed, 95 kbpsSWCAN - CAN-BUSa single conductor, at low speed, 33.3 kbps9. You will receive feedback on the status of the activated output. With OP-COM, you can learn the keys on the immobilizer and remote keys to the central port block.10. È inoltre possibile ripristinare e programmare i seguenti oggetti relativi all'immobilizzatore:ECM, BCM, IPC.Avrai bisogno del codice di sicurezza del veicolo, che può essere trovato sulCAR-PASS.È inoltre possibile ripristinare e programmare il promemoria "Intervallo di assistenza" su Astra-G, Zafira, Corsa-C, MerivaYou can encode airbagsSAB6eSAB8con il software.(non tutti i modelli di auto possono supportare queste funzioni.)

CERCHIAMO IN TUTTI I MODI DI FARE AL MEGLIO IL NOSTRO LAVORO, PERTANTO SIETE PREGATI DI NON GIUDICARCI MALE.I TEMPI DI CONSESNA DIPENDONO DAL METODO DI SPEDIZIONE SCELTA.

QUALSIASI PROBLEMA SIAMO SEMPRE A DISPOSIZIONE.

OPCOM 2018 Advantages:

1.OPCOM 2018SupportCars to 2018, others only support to 2014 year,

2. Op com is a special PC Based diagnostic interface especially forOPEL.

3. Software Version: 2018

4. Firmware: V1.95

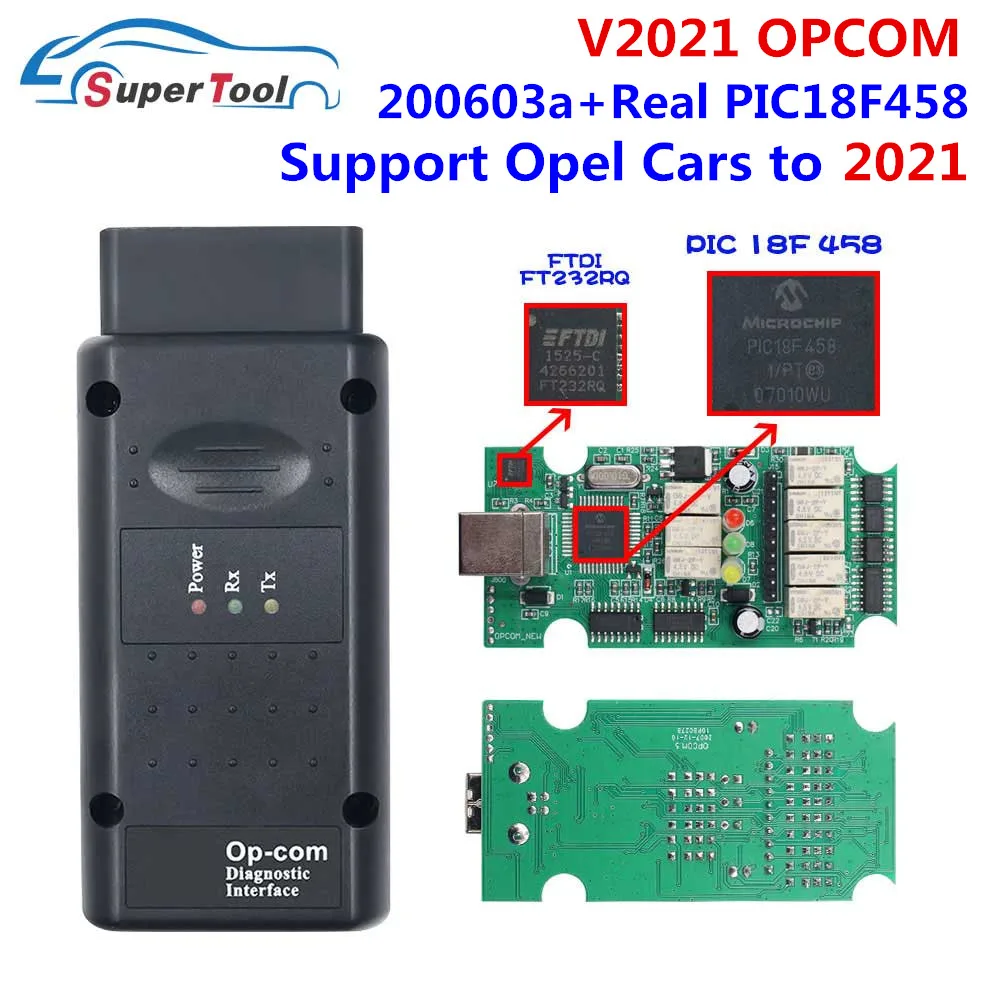

5. Chipset:RealPIC18F458 + FTDI FT232RL Chip

OPCOM OP-COM Function:

1. It covers almost for all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.

2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.

3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

4. Since for Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

5. Fault codes will be shown with all available information:

Note：

1.OP-COM V1.99 can not support Flash Firmware update and can not support some old cars，and software only support Windows XP/7 32bits by default

2.Our driver chip is FTDI FT232RQ better than FTDI FT232RL

3.OPCOM 2018Can not support all cars for Opel，if you have any problem when you received OPCOM or want to order OPCOM，please contact us first

Attention for Latest Opcom Software VAUX-COM_120309a.exe:

1. If you run it on XP or Win7, please make sure you install dotnetfx35_SP1 system patch, or Opcom software can't perform well

2. When you install on Win7 and open software, please choose Run as administrator, and read the installation video on CD carefully

Full Fault Code Text Description:

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

OPCOM OP-COM for Opel Features:

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bo-sch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

You can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

FAQ:

Q: Does this product has any other language other than English?A: This product have only English version.

Q:What we can do with this device?A:1. You will get a feedback on the state of the activated output. This will helps you to find the failed. Components more easily. With OP-COM, you can learn keys to immobiliser, and remote keys to the central door locking.2. You can also reset, and program the following immobiliser related items: ECM, BCM, IPC.3. You will need the vehicle security code, which can be found on the CAR-PASS.4. You can also reset, and program the Service interval reminder for Astra-G/Zafira/Corsa-C/Meriva5. You can code SAB6, and SAB8 airbags with the software.6. The diagnostic inteface is USB port based, so there will be NO COMPATIBILITY ISSUES, with serial to USB converters.7. The speed of the communication over the USB-BUS is enough to handle the awesome speed of the High-Speed CAN-BUS systems, which is currently 500kbps. This is the main reason, why only the USB port based interface is available for CAN-BUS.8. Compared to the TECH2, which is the dealers tool (with a 32 MB Card+CANdi interface), the price of OP-COM is quite affordable.

Attention:

It is better to use WIN7 32bit or WIN XP computer system. Other systems would be difficult to install or incompatible.

Language:

In the201008 softwarethat supports car model in and before 2010, there are19 languagesavailable in the setting!!

（English, Magyar, Romanian, Danish, German, Turkish, Slovakian, Netherlands, French, Spanish, Portuguese, Bosnian-Groatian-Serbian, Polish, Swedish, Russian, Dutch, Czech, Greek）

For2012and2014software, English only.

Function:

1. It covers almost for all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.

2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.

3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

4. Since for Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

5. Fault codes will be shown with all available information:

Full Fault Code Text Description:

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or for Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

You can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

Package list:

1 x OP COM Interface

1 x USB Cable

1 x CD
