INTRODUCTION

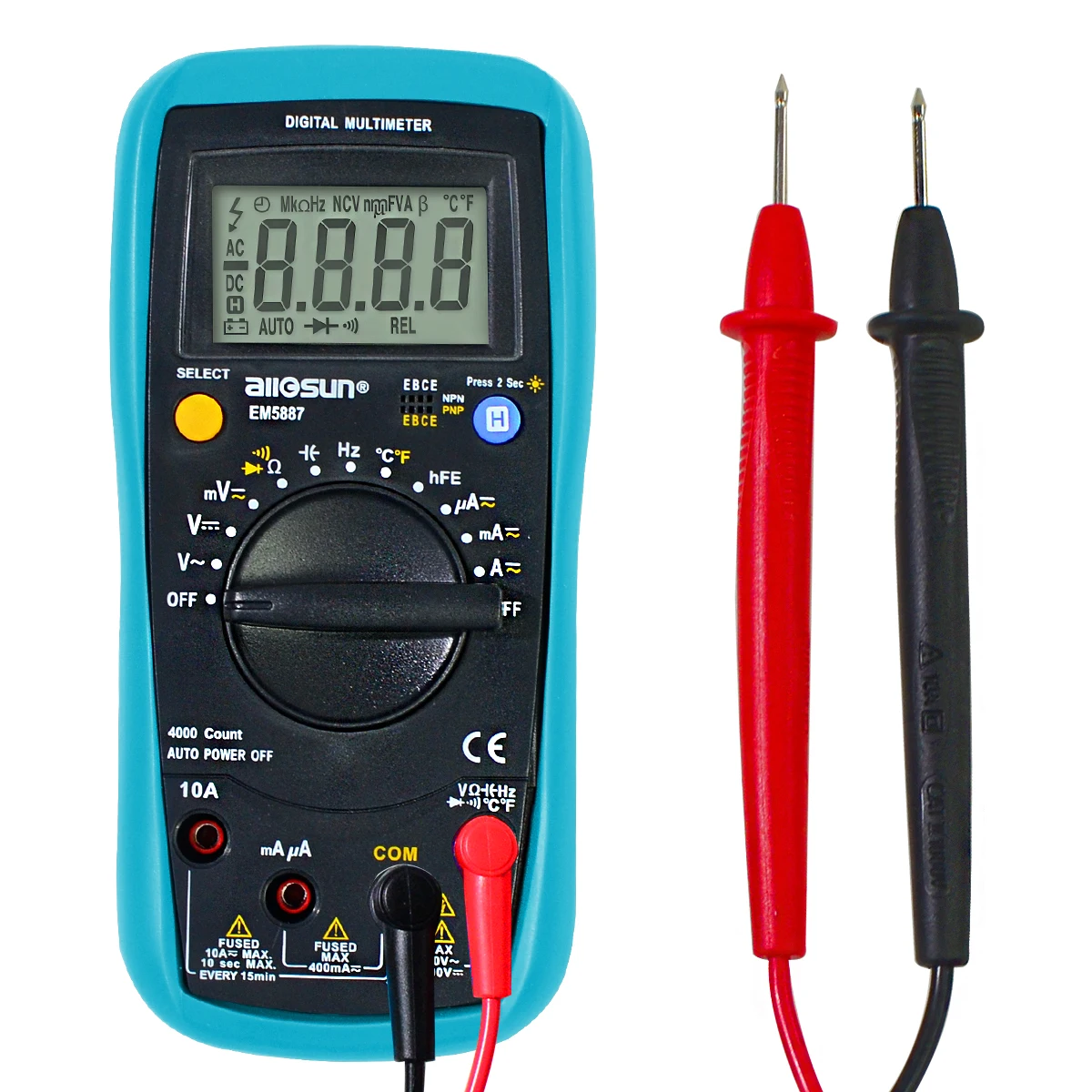

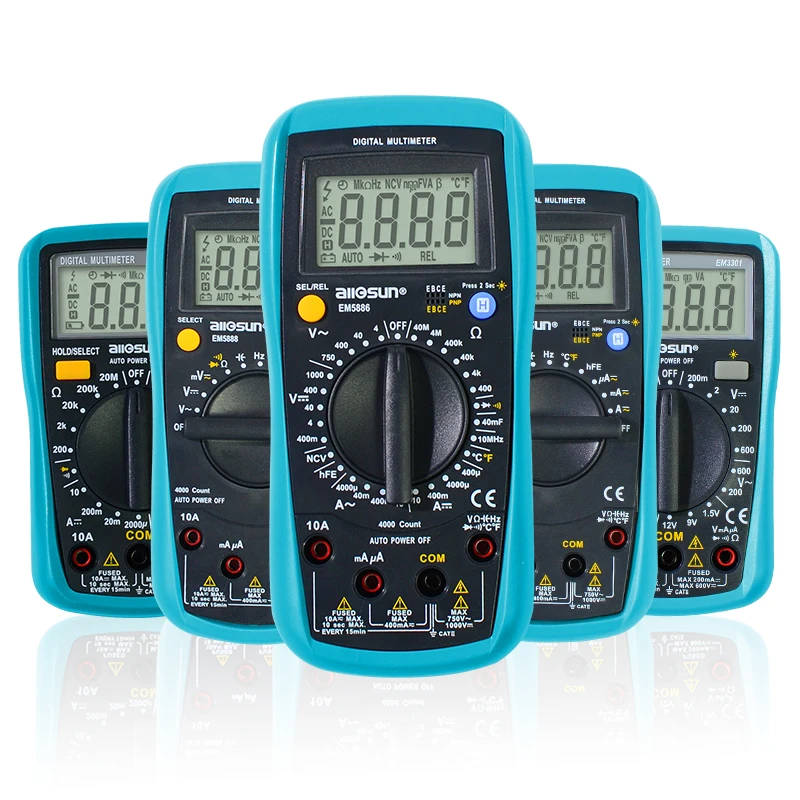

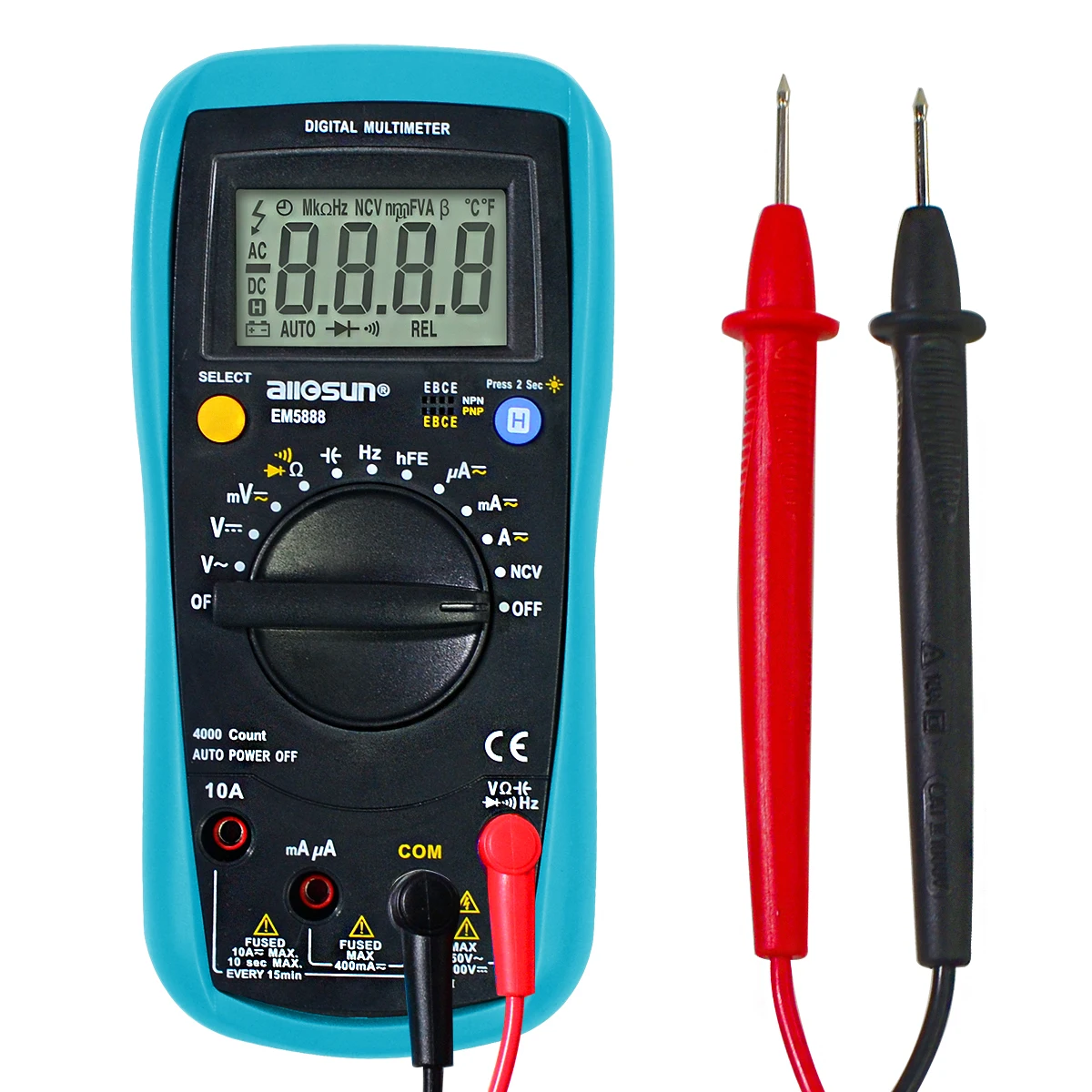

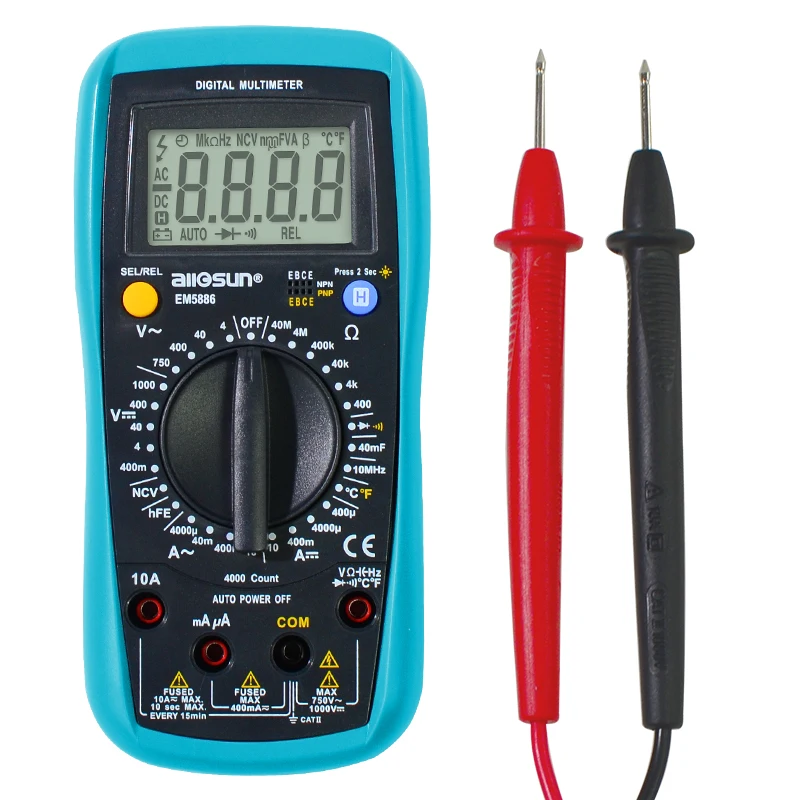

This series multimeters are compact 3 3/4 digits digital multimeters designed to measure DC and AC voltage, DC and AC current, resistance, diode, continuity, transistor hFE, capacitance and frequency.
In addition, some models also have temperature measurement function, non-contact ac voltage detection function, or relative measurement function.
This series multimeters are easy to operate and are useful test tools.

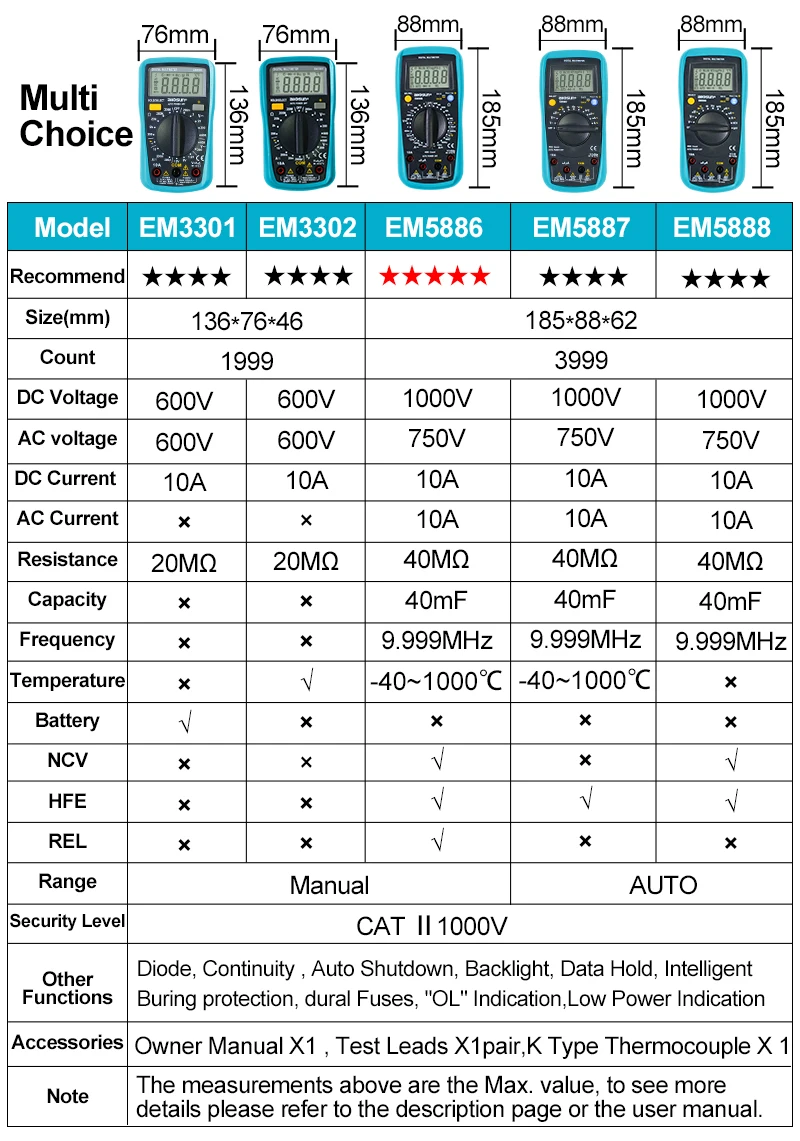

Different models have different functions, see the following table:
DCV
ACV
DCA
ACA
OHM
hFE
Hz
TEMP
NCV
REL
EM5886
√
√
√
√
√
√
√
√
√
√
√
√
√
EM5887
√
√
√
√
√
√
√
√
√
√
√
EM5888
√
√
√
√
√
√
√
√
√
√
TIP:1. " NCV " stands for non-contact ac voltage detection function.
2. " REL " stands for Relative mode.
GENERAL SPECIFICATIONDisplay: 3 3/4 digits LCD, 3999 counts
Overrange Indication: " OL " shown on the display
Negative Polarity Indication: Negative sign " - " shown on the display automatically
Sampling Rate: About 2 to 3 times/sec
Battery: 9V battery, 6F22 or equivalent, 1 piece
Low Battery Indication
IP Degree: IP20
Operating Altitude: 0 to 2000 meters
Operating Environment: Temperature: 0°C to 40°C, Relative Humidity: < 75%
Temperature Coefficient: 0.1 x (specified accuracy)/°C (< 18°C or> 28°C)
Storage Environment: Temperature: -10°C to 50°C, Relative Humidity: < 85%
Size: 185 X 88 X 62 (mm)
Weight: About 393g ( including battery and holster )
