TC-T7-H TCR-T7 LCR-TC1 прибор для проверки транзисторов мультиметр красочные Дисплей для Диод Триод MOSPNPNPN конденсатор с алюминиевой крышкой, резистор транзистор
Последнее обновление: 30.05.2022
TC-T7-H TCR-T7 LCR-TC1 Transistor Tester Multimeter Colorful Display For Diode Triode MOS/PNP/NPN Capacitor Resistor Transistor
Description:
What's the difference between 3 versions?
T7 / TC1:color screen / M644 chip, two functions are the same! T7 is slightly faster! The TC1 screen is slightly larger and they are all powered by lithium batteries. In addition to measuring resistance, capacitance, inductance, diodes, MOS transistors, thyristors, it can also measure additional voltage regulators, infrared decoding (limited to for Hitachi format)
T7H:is an upgraded version of T7, Up-to-date / fastest version

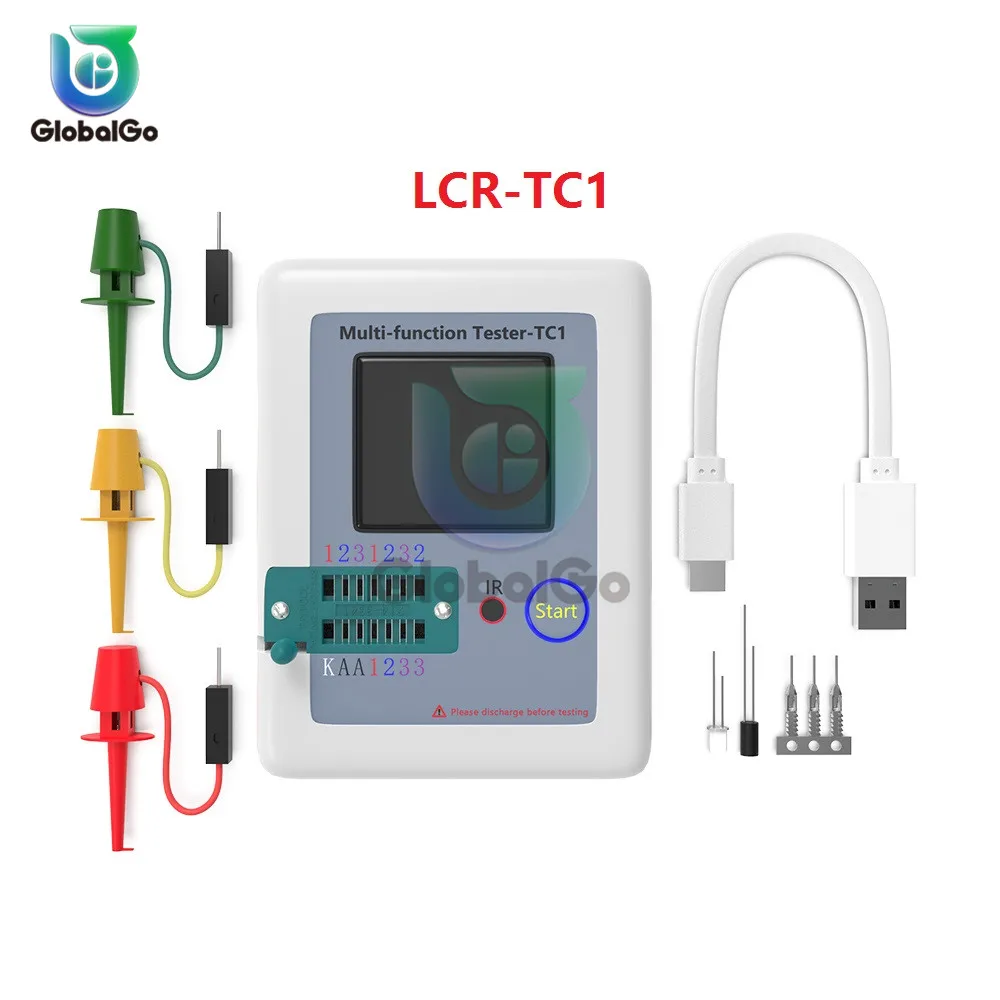

LCR-TC1
160x128 TFT display
- Multi function key
- Transistor test area
- Zener Diode test area
- IR receiver window
- Micro USB Charging Interface
- Charge indicator LED
1.1 FeaturesTC-V2.12k is a TFT graphic display Multifunction Tester.
l Transistor Tester
-
- Automatic detection of zener diode0.01-30V
- Self test with automatic calibration
l IR decoder
- Support Hitachi IR coding
- IR waveform display
- Infrared receiving instruction
l Other
- Measurement results using TFT graphic display(160x128)
- One key operation
- Auto Power Off(Timeout Settable)
- Built-in high capacity rechargeable Li-ion Battery
- Li-ion Battery voltage detection- 160x128 TFT display
- Multi function key
- Transistor test area
- Zener Diode test area
- IR receiver window
- Micro USB Charging Interface
- Charge indicator LED
1.1 FeaturesTC-V2.12k is a TFT graphic display Multifunction Tester.
l Transistor Tester
-
- Automatic detection of zener diode0.01-30V
- Self test with automatic calibration
l IR decoder
- Support Hitachi IR coding
- IR waveform display
- Infrared receiving instruction
l Other
- Measurement results using TFT graphic display(160x128)
- One key operation
- Auto Power Off(Timeout Settable)
- Support Chinese and English
Warning: Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!
Warning: For your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!
Multi-function key has two actions:
l Short press: Press the key and not less than 10 ms, release key within 1.5 seconds
l Long press: Press the key more than 1.5 seconds
In the power off state, short press the multifunction key, the tester is turned on and automatically measured.
l Power on & measurement interface
Inthe power off state or the test is completed, put the test element intothe transistor test area of test seat, and press the locking handle,short press the multifunction key, the tester automatically measure,graphical display of measurement results when testing is complete.
Warning: Always be sure toDISCHARGEcapacitors before connecting them to the tester! The tester may be damaged before you have switched it on!
Warning:We do not recommend using the tester to measure the battery! Thebattery voltage must be less than 4.5V, otherwise the tester may bedamaged!
l Component placement
Test seat are divided into transistors and zener diode test area, detailed in 1.1 Description.

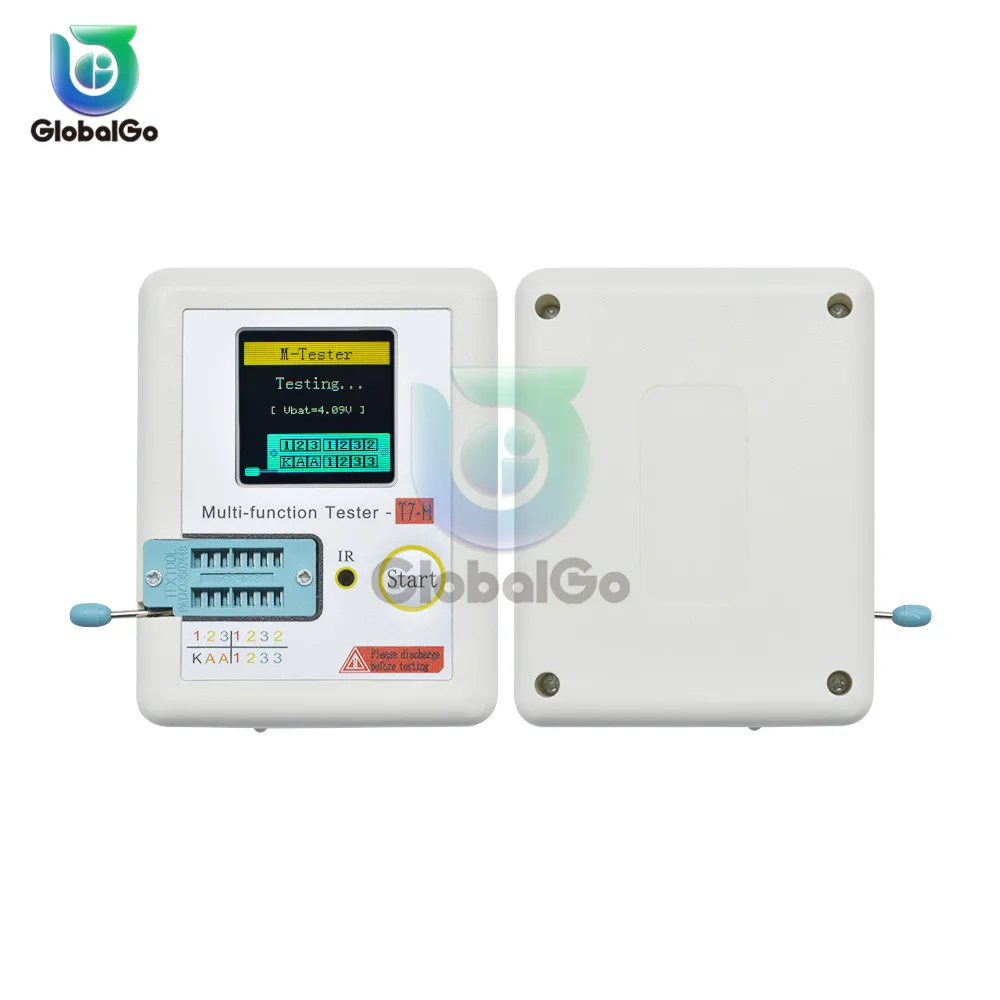

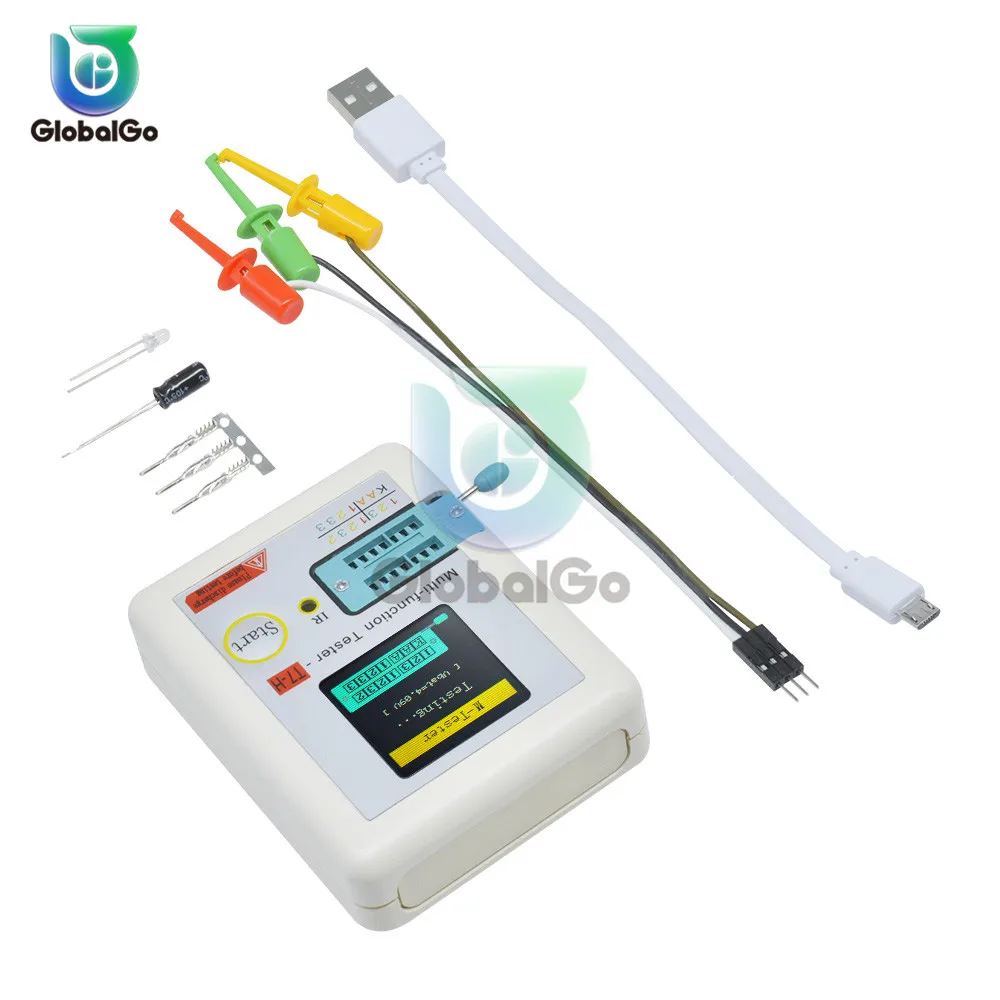

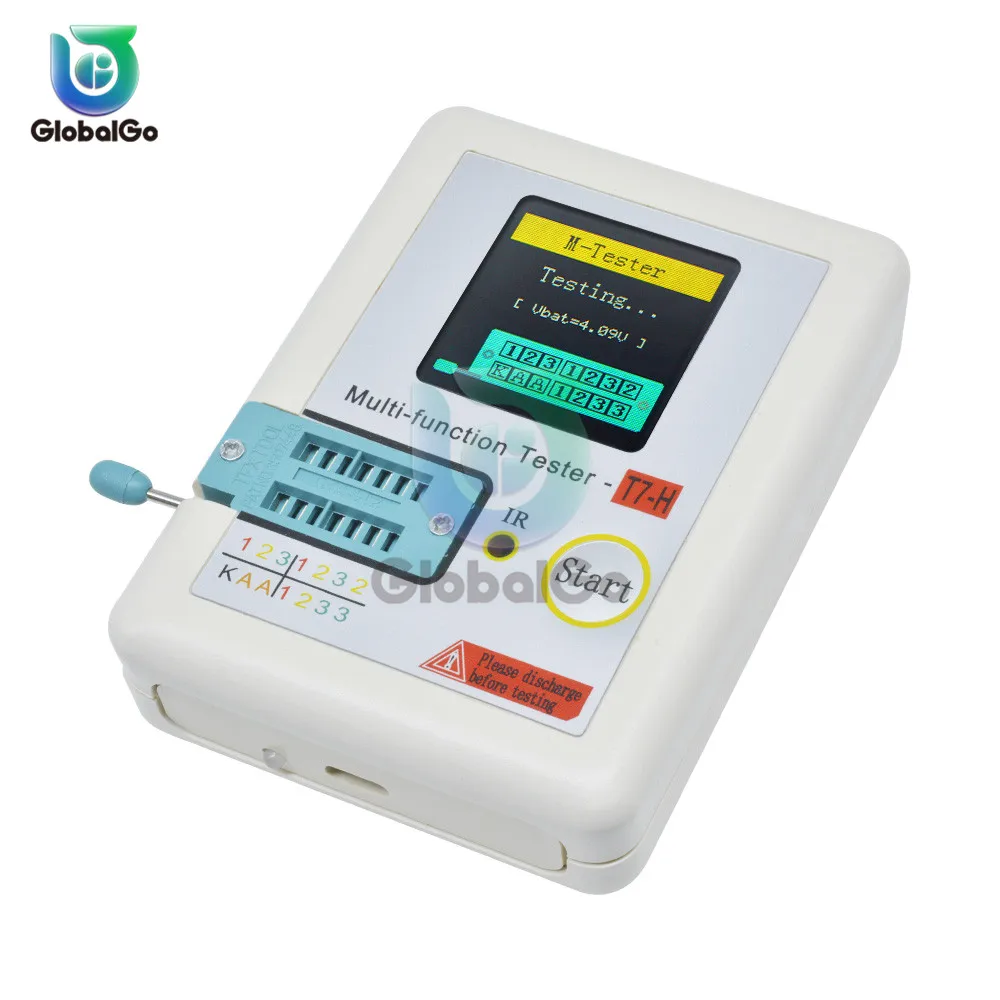

TC-T7-H
1 - 128x128 TFT display
② - Multi function key
③ -Transistor test area
④ - Zener Diode test area
⑤ - IR receiver window
⑥ - Micro USB Charging Interface
⑦ - Charge indicator LED
1.2 FeaturesTC-T7-H is a TFT graphic display Multifunction Tester.
l Transistor Tester
Automatic detection of NPN and PNP bipolar transistors, N-channeland P-channel MOSFETs, JFETs, diodes (including double diodes), N- andP-IGBTs, resistors (including potentiometers), inductors, capacitors,thyristors, triacs and battery (0.1-4.5V)
- Automatic detection of zener diode(0.01-20V)
- Self test with automatic calibration
l IR decoder
- Support Hitachi IR coding
- IR waveform display
- Infrared receiving instruction
l Other
- Measurement results using TFT graphic display(160x128)
- One key operation
- Auto Power Off(Timeout Settable)
- Built-in high capacity rechargeable Li-ion Battery
- Li-ion Battery voltage detection
- Support Chinese and English
Warning: Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!
Warning: For your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!
Multi-function key has two actions:
l Short press: Press the key and not less than 10 ms, release key within 1.5 seconds
l Long press: Press the key more than 1.5 seconds
2.2 Power onIn the power off state, short press the multifunction key, the tester is turned on and automatically measured.
l Power on & measurement interface
In the power off state or the test is completed, put the testelement into the transistor test area of test seat, and press thelocking handle, short press the multifunction key, the testerautomatically measure, graphical display of measurement results whentesting is complete.
Warning:Always be sure to DISCHARGE capacitors before connecting them to thetester! The tester may be damaged before you have switched it on!
Warning:We do not recommend using the tester to measure the battery! Thebattery voltage must be less than 4.5V, otherwise the tester may bedamaged!
l Component placement
Test seat are divided into transistors and zener diode test area, detailed in 1.1 Description.

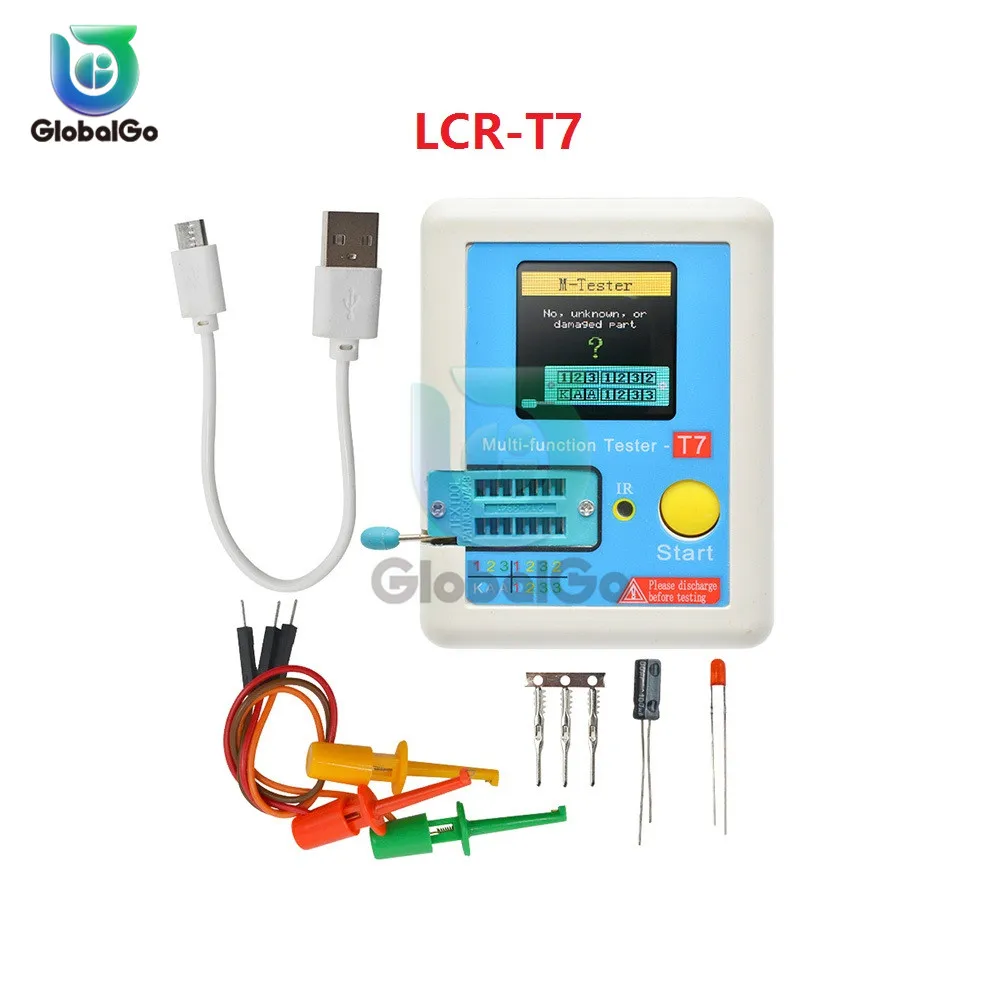

l No, unknown, or damaged part
l Battery
Отзывы покупателей

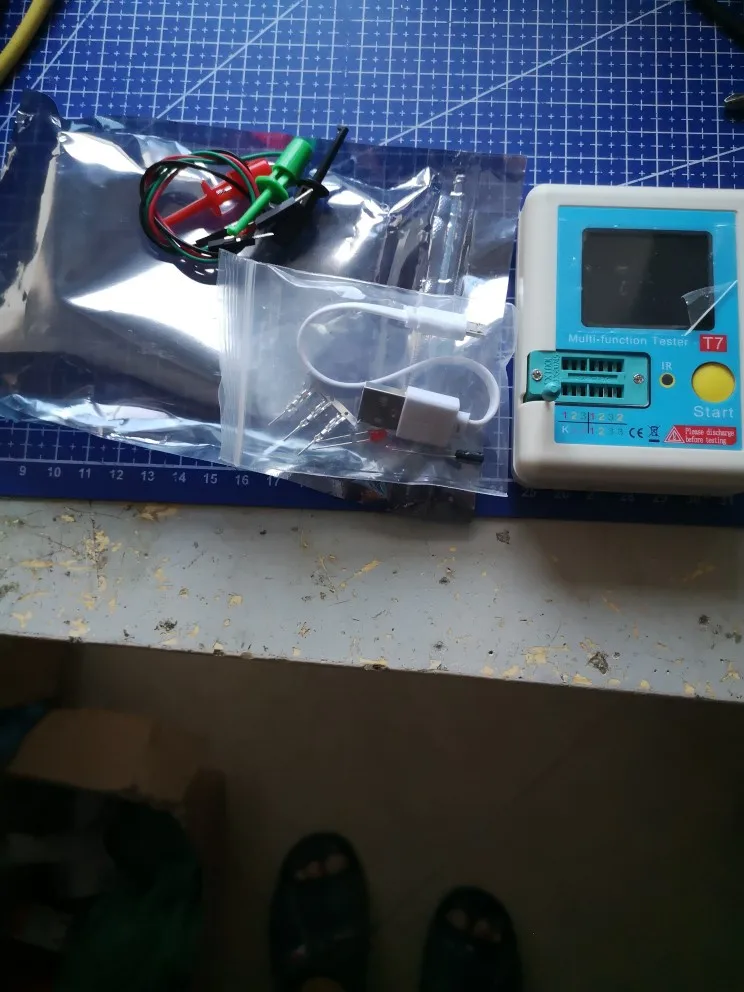

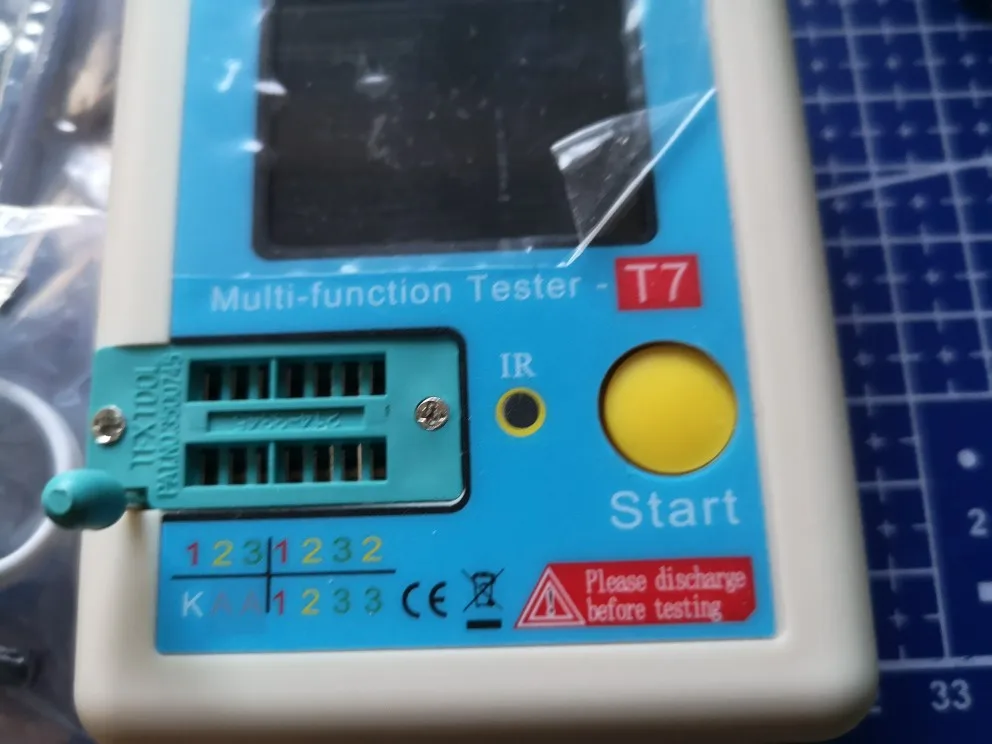

Страна: ES Color: LCR-T7 Ships From: SPAIN Доставка: CAINIAO WAREHOUSE STANDARD SHIPPING 30.07.2021
