Название продукта

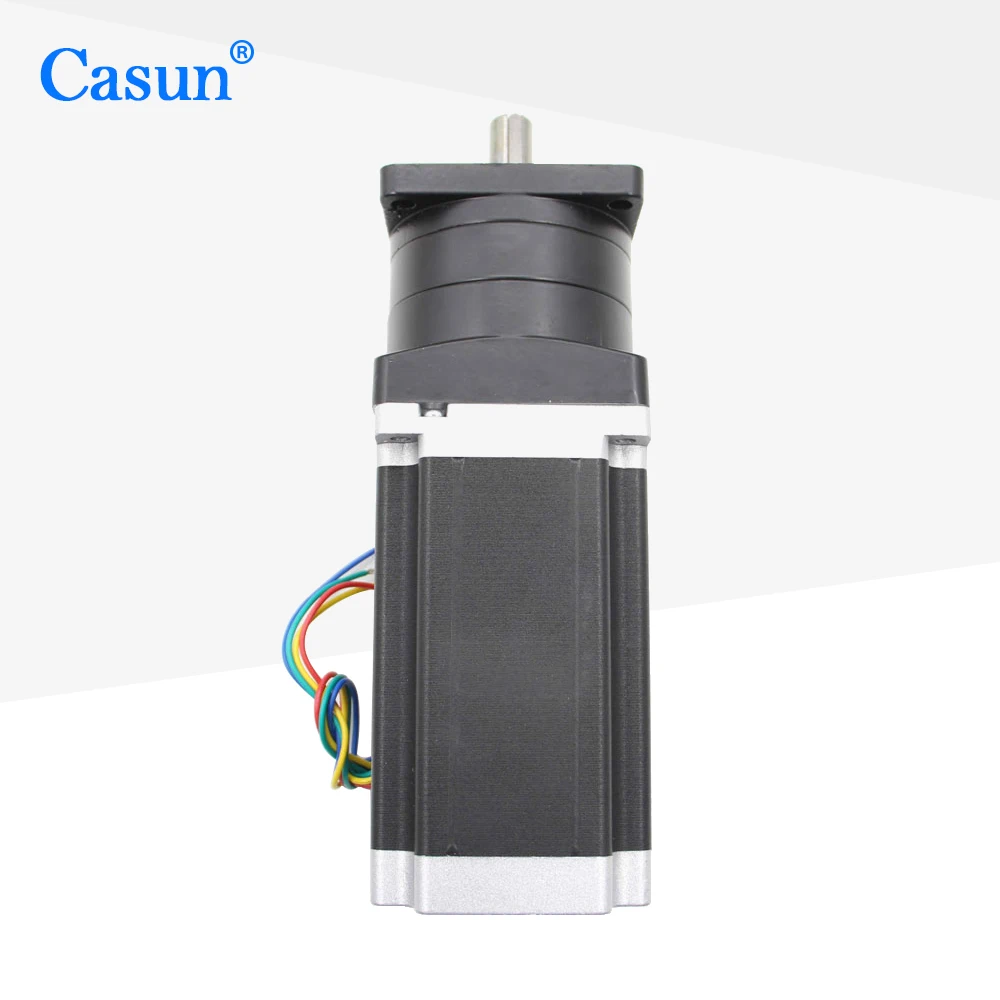

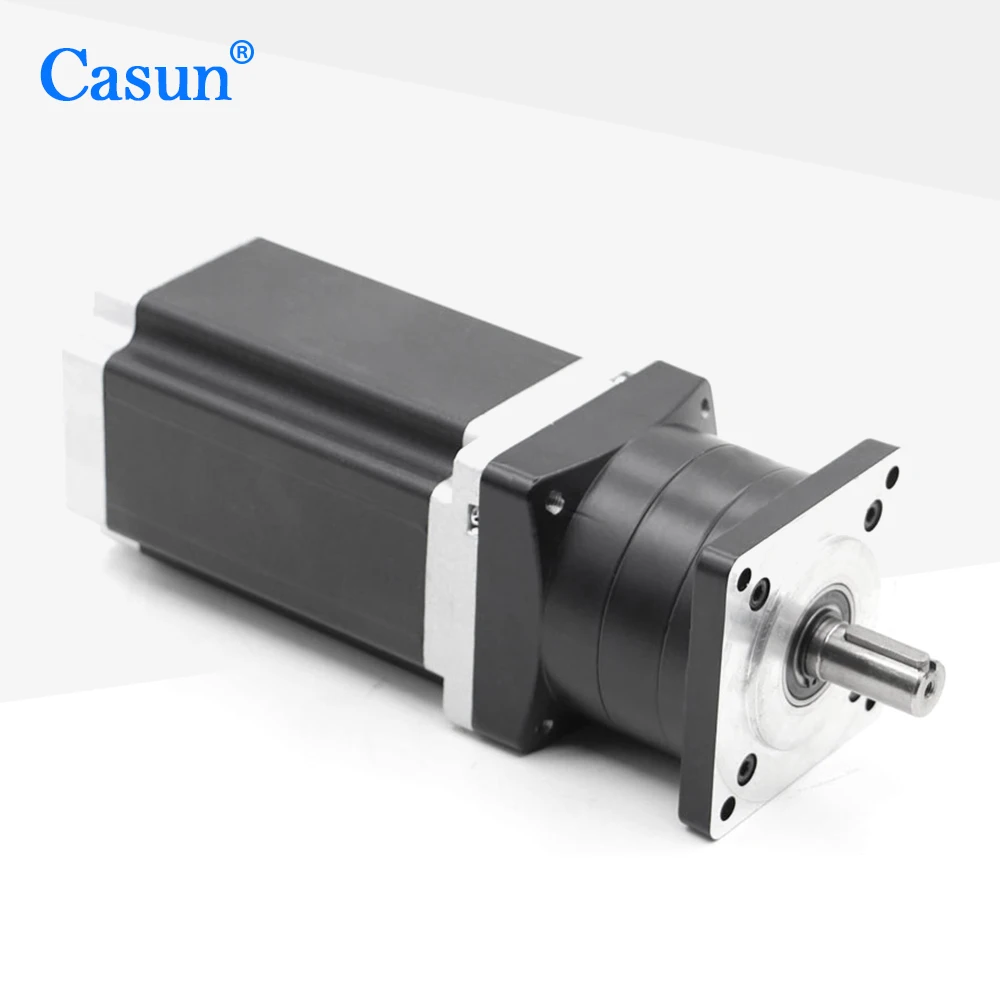

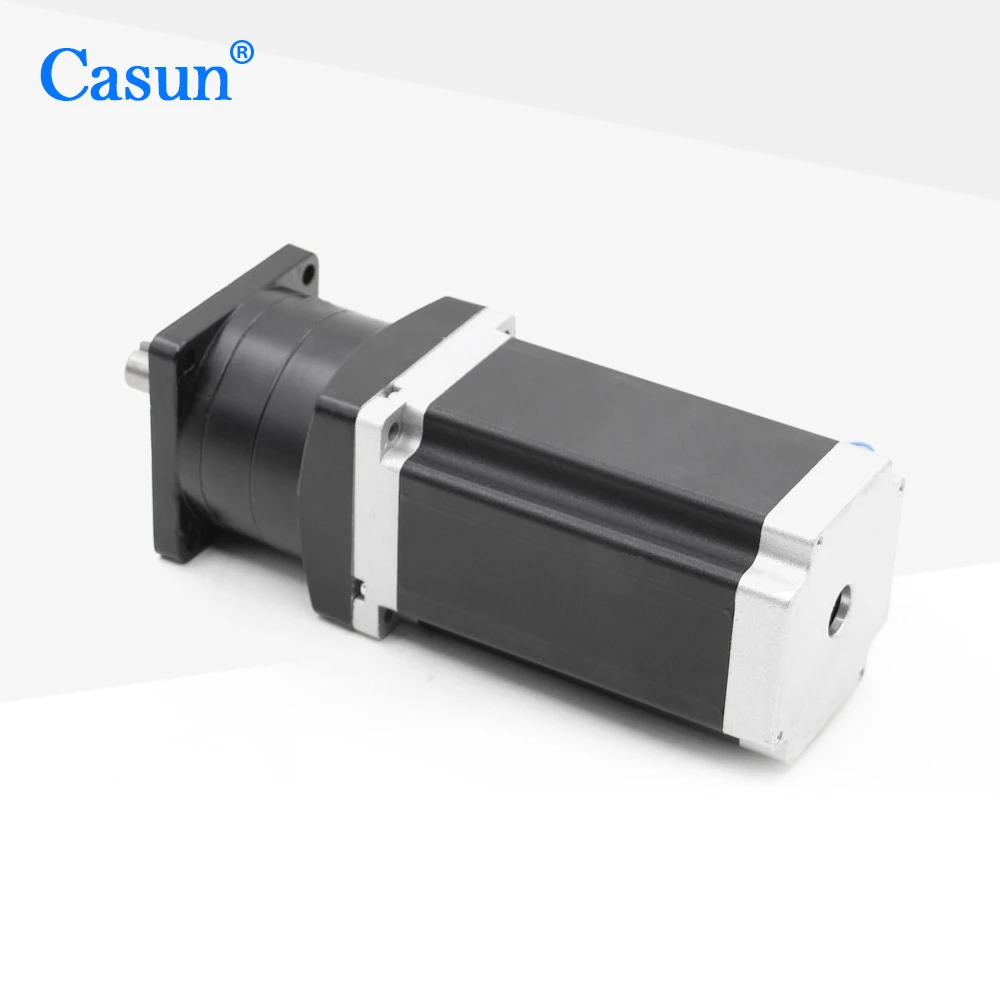

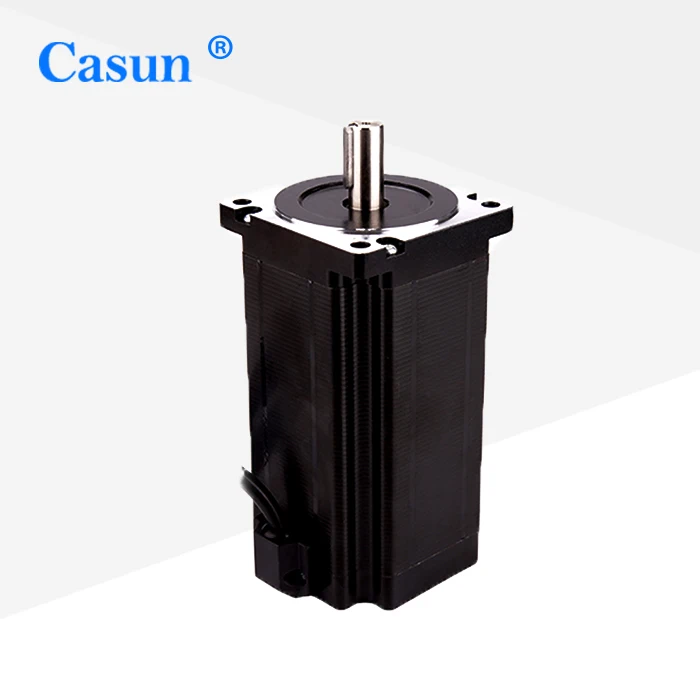

NEMA34 Гибридный шаговый двигатель с высоким крутящим моментом

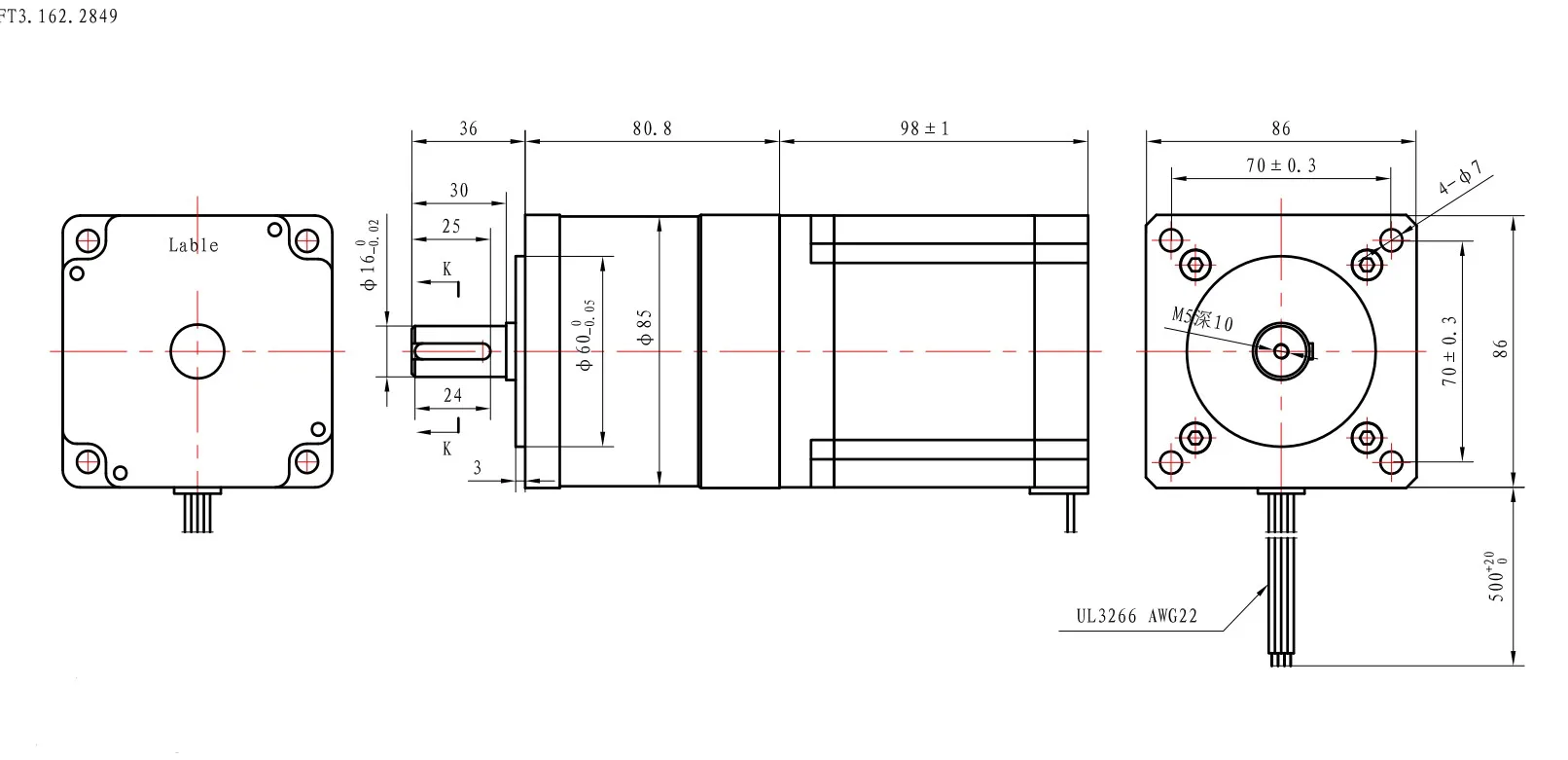

Размер
86x86x214мм
Вал
D вал
Бренд
Casun
Модель
86SHD4201-5G
ОБЩАЯ СПЕЦИФИКАЦИЯ
Электрическая спецификация
Угол шага
1,8 градусов
Рабочее напряжение
48 В постоянного тока
Количество фаз
2.
Номинальный ток
3 ампер
Сопротивление изоляции
100 MΩmin. (500 В постоянного тока)
Сопротивление на фазу
1,5 Ω ± 10% (под углом 20 °C)
Класс изоляции
Класс B
Индуктивность на фазу
15 м Н ± 20%
Инерция ротора
1700 г. См²
Удерживающий крутящий момент
5,6 Н. М
Масса
2,9 кг
Крутящий момент
0,23 Н. М
Описание продукции
Сопутствующие товары
Модель Casun
Общая модель
Размер
Угол обзора
Номинальный ток
Удерживающий крутящий момент

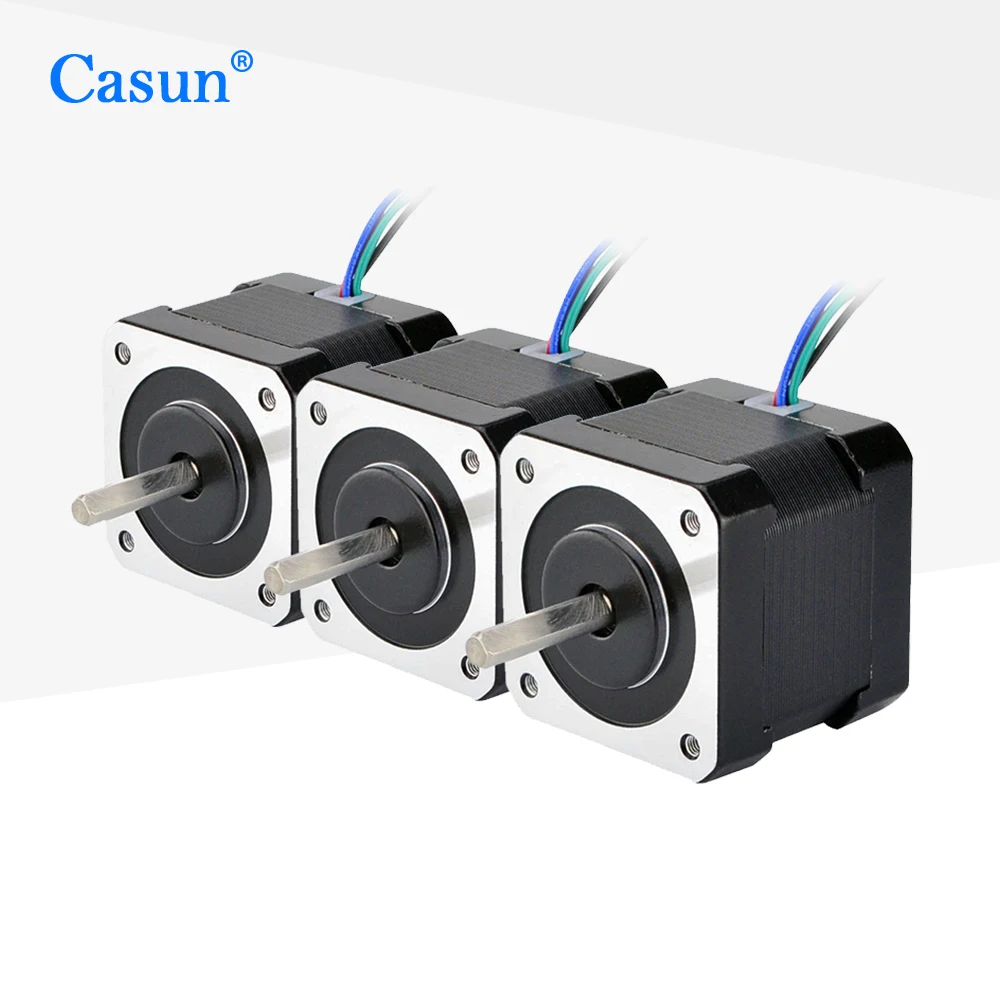

42SHD4950-20B
17HS08-1004S
42x42x20
1,8 °
1.0A
0.13н. М
42SHB4002-17
17HM08-1204S
42x42x20
0,9 °
1.2A
0.11N.m
42SHD0008-24
17HS-0316S
42x42x34
1,8 °
0.3A
0,16 Н. М
42SHD4003-20B
17HS13-0404S1
42x42x34
1,8 °
0.4A
0.26н. М
42SHD4046-24
17HS13-1334S
42x42x34
1,8 °
1.33A
0.22N.m
42SHD0217-24B
17HS4401
42x42x40
1,8 °
1.5A
0.5н. М
42SHD0192-24B
17HS15-1504S1
42x42x40
1,8 °
1.5A
0.45н. М
42SHD0134-22B
17HS15-1704S
42x42x40
1,8 °
1.7A
0.44н. М
42SHB0509-24B
17HM15-0904S
42x42x40
0,9 °
0.9A
0.35н. М
42SHD0285-24B
17HS15-0404S
42x42x40
1,8 °
0.4A
0.4н. М
42SHD0287-24B
17HS15-1504S-X1
42x42x40
1,8 °
1.5A
0.45н. М
42SHD4425-24B
17HS19-2004S1
42x42x48
1,8 °
2.0A
0.59N.m
42SHD4463-24B
42BYGHW811
42x42x48
1,8 °
2.5A
0.48N.m
42SHB4608-24B1
17HM19-2004S
42x42x48
0,9 °
2.0A
0,46н. М
42SHD4813-24B
17HS24-2104S
42x42x60
1,8 °
2.1A
0.65N.m
Другие серии

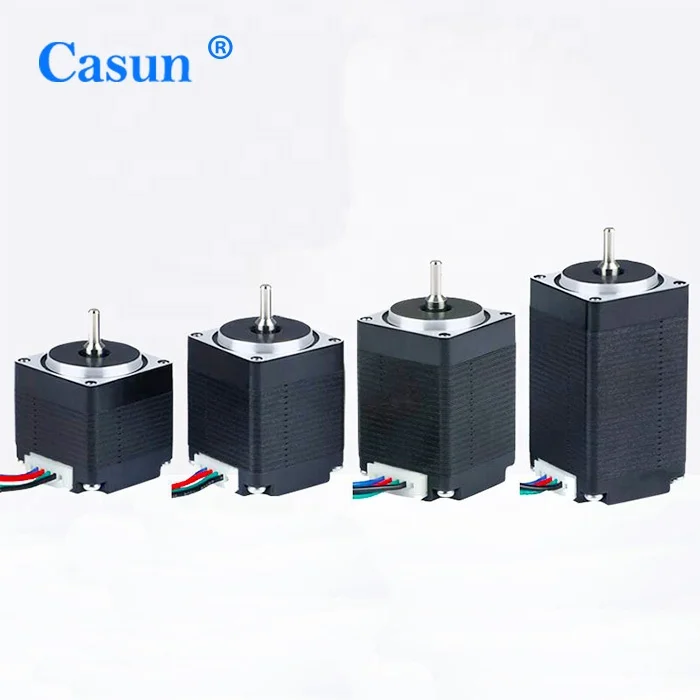

NEMA8
NEMA11
NEMA14
NEMA17

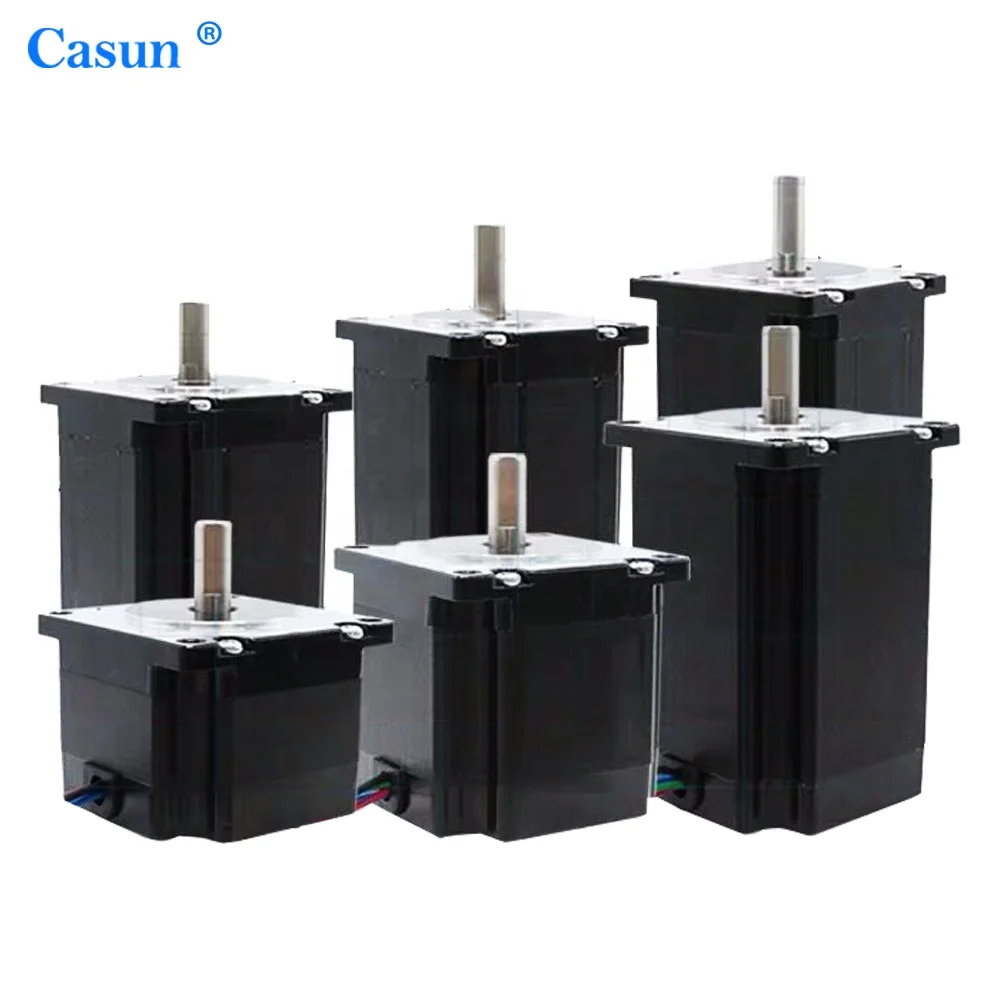

NEMA23
NEMA34

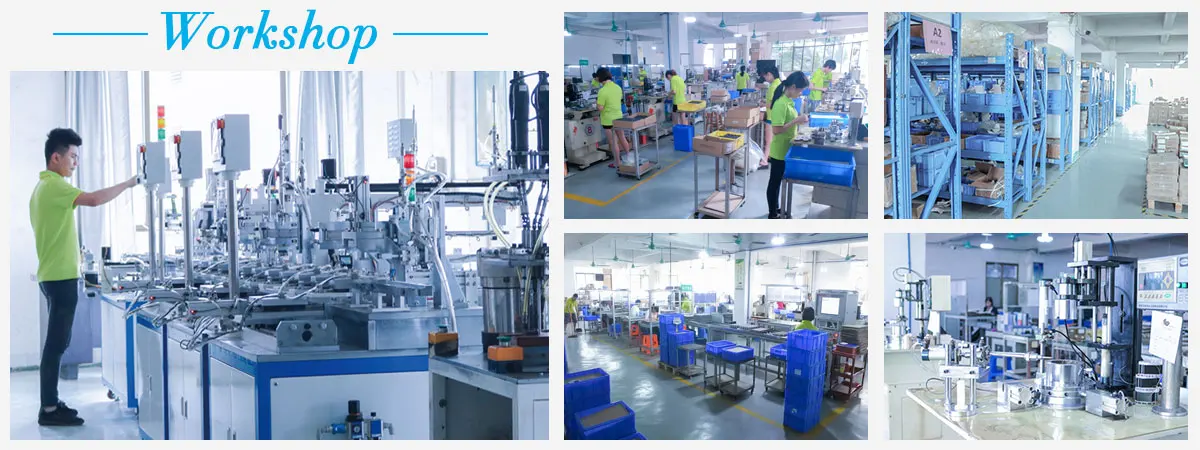

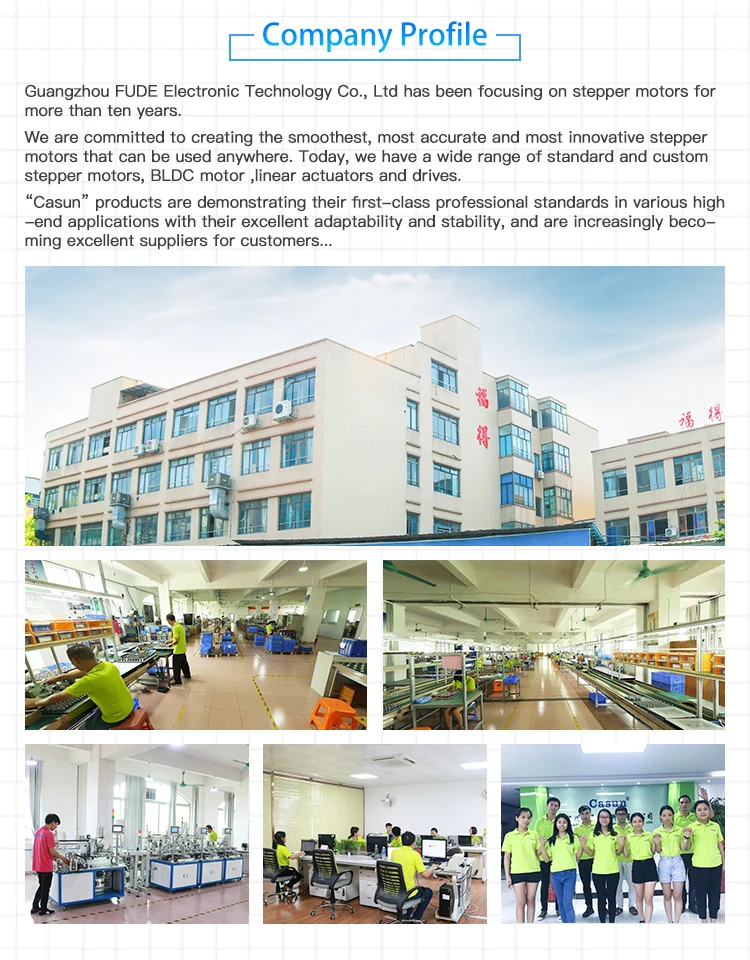

Профиль компании
Компания Casun является профессиональным производителем шагового двигателя более 10 лет.Наши клиенты приезжают со всего мира. -Заводская цена-Строгий отдел контроля качества-Диверсификация продукции-Клиент в первую очередь
Вот почему мы стали все более популярными среди клиентов за последние десять лет.
Вопросы и ответы
В1. Как мы можем узнать качество продукции?
A1: мы предлагаем вам заказать образец. Кроме того, вы можете отправить нам электронное письмо для детальных фотографий для проверки, если вы не можете получить достаточно информации на странице продукта.
В2. Можем ли мы получить бесплатный образец?
A2: это зависит от нашего запаса. И, пожалуйста, Оплатите стоимость доставки самостоятельно.
Вопрос 3. Это ваша окончательная цена? Могу ли я получить скидку?
A3: Наша цена-это заводская цена, и если ваше количество больше, мы предоставим вам скидку.
В4. Можем ли мы посетить вашу фабрику?
А4: Да, добро пожаловать.
В5: есть ли у вас какие-либо сертификаты?
A5: Да, у нас есть. Все двигатели были одобрены CE и Rohs.
В6: предоставляете ли вы услуги OEM и ODM?A6: Да. Мы можем поставить OEM и сделать индивидуальный дизайн для любого конкретного применения.
В7: какое время доставки?
A7: за исключением специального заказа. Для образцов обычно 10-14 рабочих дней. Для заказа партии. Обычно 17-25 дней. Для моторов на складе обычно 1-2 дня.
