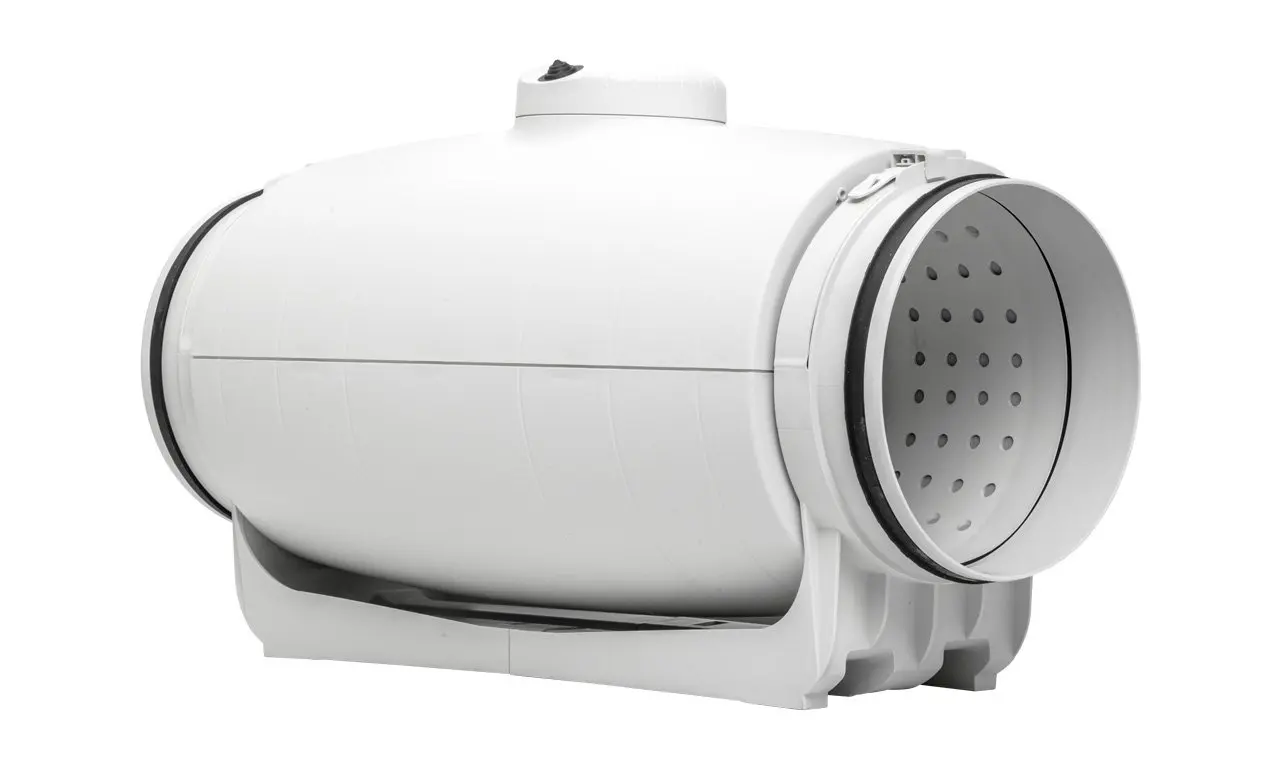

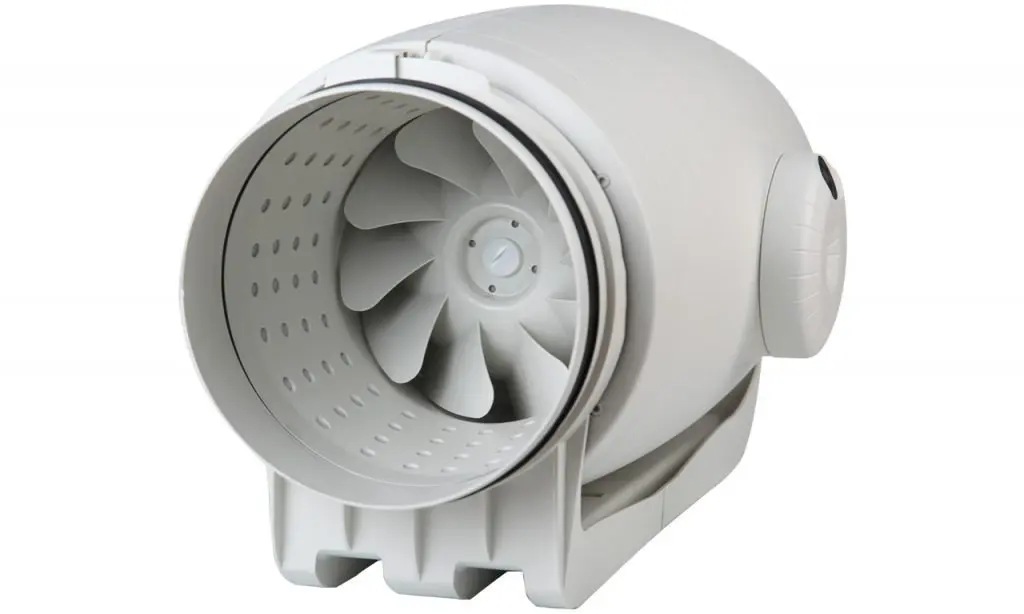

Low profile “Mixed-flow” fans soundabsorbent with insulation. Extremely quiet.
Certified Approval of Noise Abatement Society (TD-350, TD-500, TD-800 and TD-1000 models).
Manufactured in plastic material, with a specifically designed internal skin to direct the sound waves at the right angle for them to be captured the the sound-absorbent material by (1). Fitted with rubber gaskets on the inlet to outlet and absorb vibrations, a body that can be dismantled. Connection box can be rotated 360 °, to facilitate easy connection of power cable.
MotorsSpeed controlable 230V-50Hz motor, 2-speed or of 3-speed motors (depending on models). IP44.
Motors are class B, with ball bearings and safety thermal overload protection.
(1) Except the TD-160 SILENT, that is fitted with the special floating motor system patented by S & P.
Additional informationThe models offer solutions to ventilation problems, especially in places where people work and low sound level is required.
TD-SILENT-T modelsTD-SILENT versions fitted with a run-on-timer adjustable within 1 and 30 minutes and 1-speed or 3-speed motors not suitable for speed control.
Models 1300 and 2000Low profile “Mixed-flow” fans soundabsorbent with insulation. Extremely quiet.
Certified Approval of Noise Abatement Society (TD-2000 model). Constructed of from sheet steel with epoxy polyester paint, acoustic insulation (MO) glass fiber within the outer shell.
Aerodynamic inlet to improve airflow and reduce sound. Detachable fan unit without demounting duct connections. IP44. External terminal box IP55. Removeable fan body with 3 speed motor, single phase 230V-50/60Hz speed controlable, Class F, external rotor aluminium motor capacitor with and thermal protection.
Additional informationThe models offer solutions to ventilation problems, especially in places where people work and low sound level is required.
