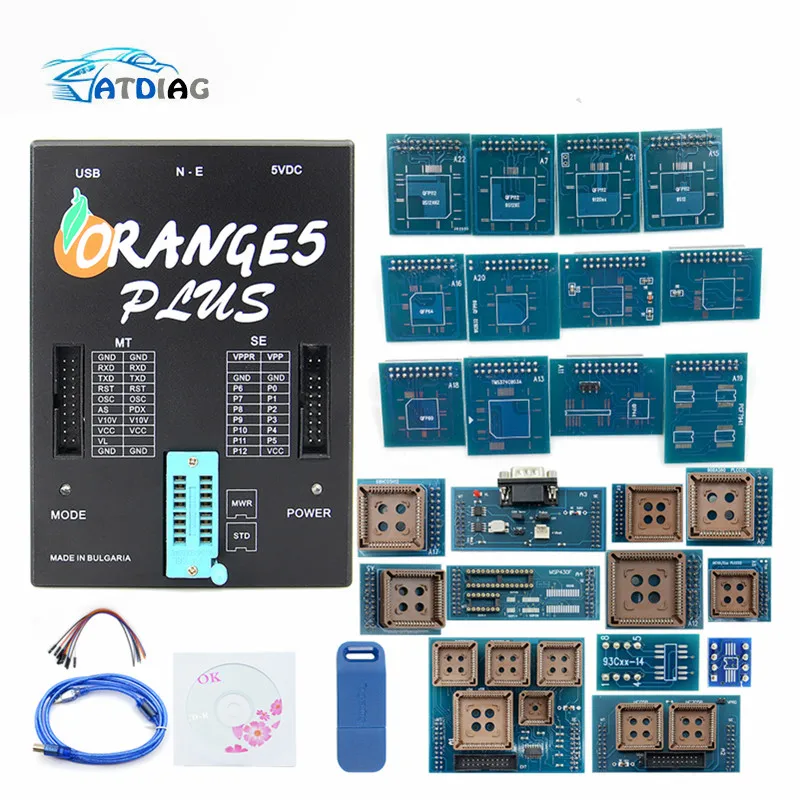

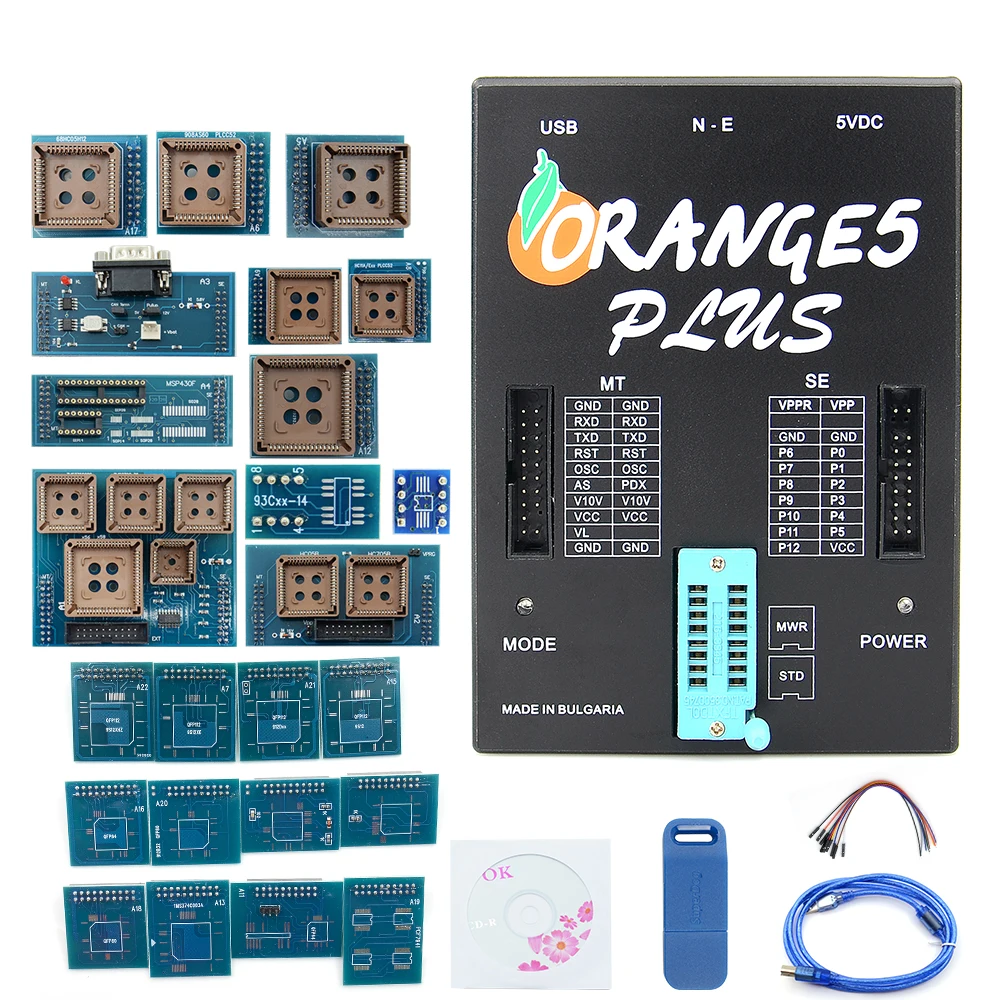

OEM Orange5 Professional Programming Device With Full Packet Hardware + Enhanced Version Software

Get Four Additional Software Free

Software Version: V1.36, Software Does not Support Update.

Language: English and Russian

Systems: XP WIN7 WIN8

Software Licenses:

MTRK (Included in Orange-5 base)

TMS (Included in Orange-5 base)

M08V NEW

Immo HPX 9V0

NEC V850ES/SJ3 V850ES/SG3 UART

NEC V850E2 NEW

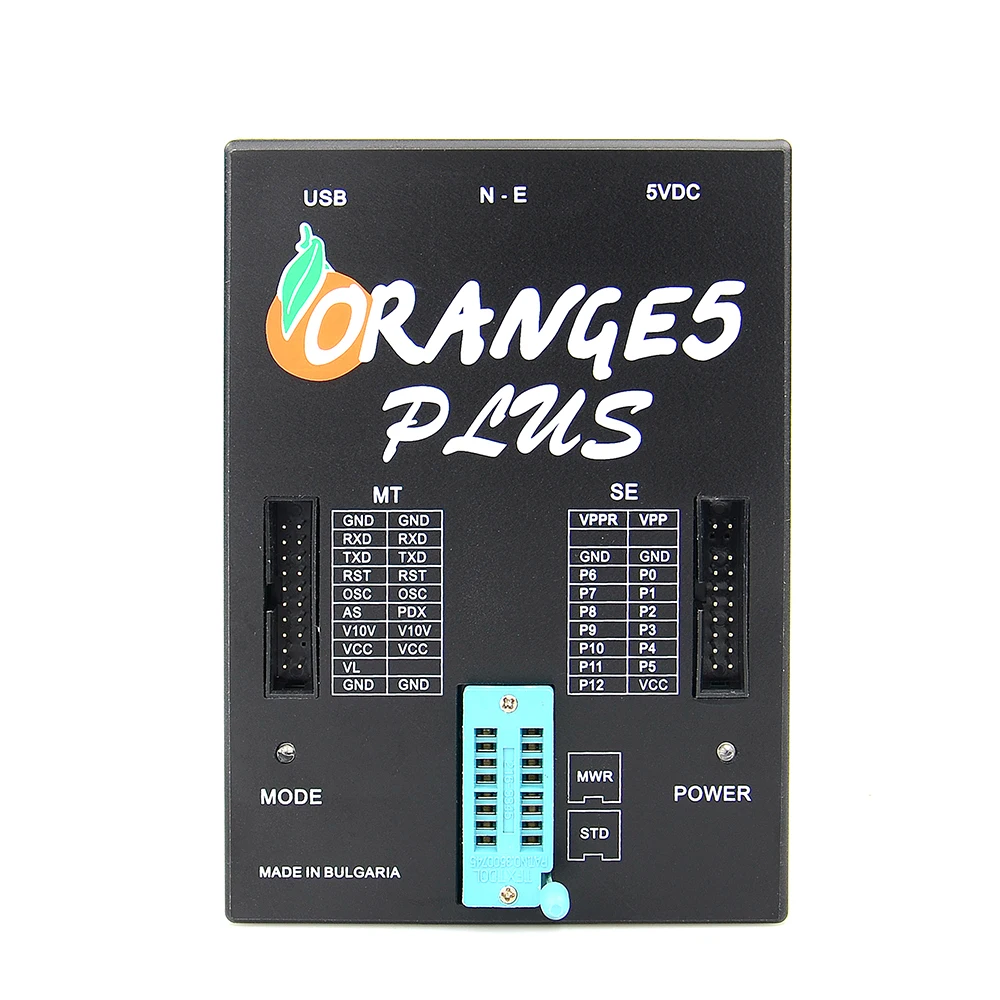

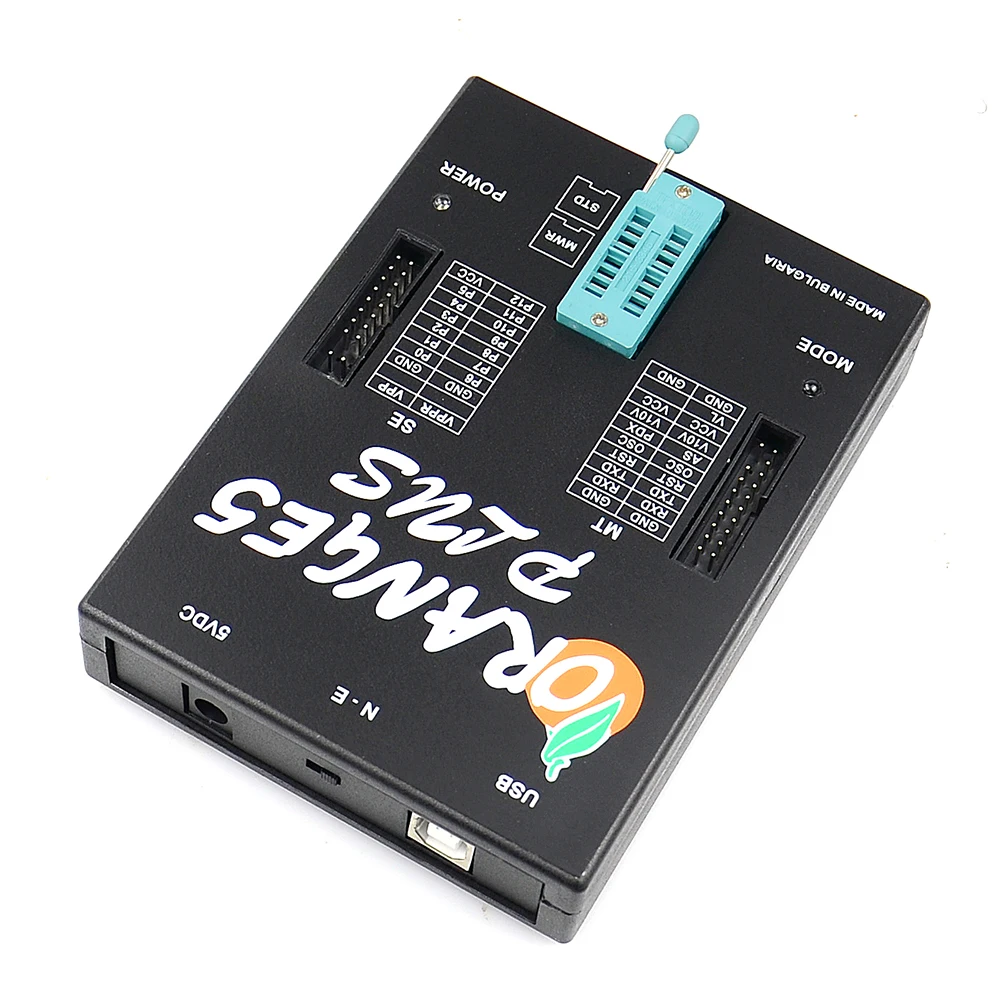

Orange5 Technical Info:

* USB power supply (USB2.0/3.0)

* Universal easy to plug panel ZIF16 for EEPROM

* Control of contacts in the sockets

* Two expansions compatible with Orange4 and Omega MTRK

* Protection against overcurrent

* Overload voltage protection

* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)

* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers

* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)

* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment

* Capability of functional emulation of class CDC USB devices

* Built-in 32-bit virtual machine

* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)

* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]

- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1

CnCterm - Terminal program for work with COM ports.

Feature:

Supports any COM ports, incuding virtual ones from 1 to 20

Works with text (ASCII) and HEX mode

Creating a list of commands that allows editing and fast sending

Fine-tuning the exchange rate

Saving files including command and port settings.

Saving incoming data in binary files

File transfer via serial port.

Delay settings for bytes and blocks

"Echo" mode

Delay settings between incoming data

Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI

Program doesn't need to be installed

Supports Orange5 programmer in emulation mode.

Orange-5 Chip list v1.34 [November 2015]

Immo HPX 9V0

PCF

PCF7941 Reset

Alfa Romeo

BSI

147

Audi

BCM2

Ver.1 uPD70F3239

Ver.1 uPD70F3380

Ver.2 uPD70F3380

Ver.1 uPD70F3634

Dash

A2 VDO crypto 93C86

A3 UKNSI 93C56

A3 VDO '97/99 93C66

A3 VDO crypto 93C86

A3 MM 912DG128

A4 UKNSI 0012-003 93C56

A4 UKNSI 0014-001 93C56

A4 UKNSI 0016-001 93C56

A4 UKNSI '97/98 93C56

A4 VDO '97/99 93C66

A4 VDO '99/01 93C86

A4 MM 912DG128

A6 UKNSI 0012-001 93C56

A6 UKNSI 0014-001 93C56

A6 UKNSI 0016-001 93C56

A6 VDO '97/99 93C66

A6 VDO '99/01 93C86

A6 VDO crypto 93C86

A6 MM 912DG128

S3/S6 MM 912DG128

TT MM 912DG128

Immo

'94/97 4A0 953 234 93C46

Delphi 8D0 953 234 93C46

ECU

'00/04 ECU EDC15 24C04

A3 1.8T 0261204678 24C02

A4 1.8T 0261204778 24C02

A4 '02 8E0 909 xxx 95040

ELV

MC68HC908GR16A[4L35K]

MC68HC908GR16A[0M76Z]

BMW

Dash

Dash with M35080

Immo

EWS-3 HC11EA9 clips [0D46J]

EWS-3 HC11EA9 wires [0D46J]

EWS-3 HC11EA9 adap [2D47J]

EWS-3+ HC11EA9 clip [0D46J]

EWS-3+ HC11EA9 adap [2D47J]

Chery

All Chery with 0L72A

All Chery with 0L59X

Chevrolet

Immo

Captiva MC9S08DZ60 [3M05C]

Chrysler

Immo

SKIM immobox 24C02

Ram uPD70F3626

Citroen

BSI

Berlingo 03/06 BSI v1 95160

Berlingo 03/06 BSI v2 95160

Berlingo 03/09 BSI v3 95160

C2 '03/04 BSI 95160

C3 '02/04 BSI v1 95160

C3 '02/04 BSI v2 95160

C5 '01/04 BSI 912DG128

C5 '02/04 BSI 95160

C8 '03/04 BSI 912DG128

Picasso '03/04 BSI 95160

Xsara II '01/03 BSI 95040

Immo

Berlingo Valeo 93C46

Jumper '99/06 Delphi 93C56

Jumpy 705E6 [F82B]

Relay Delphi 93C56

ECU

Xsara ECU EDC15C2 95P08

DAF

Immo

MC68HC908AZ60 [2J74Y]

MC68HC08AZ32A [2L52H]

Dodge

Immo

SKIM immobox 24C02

Fiat

Automotive K/CAN

IMM 009.10

BSI

Albea 912DG128 [3K91D]

Panda '02 BSI [1L40K]

Stilo 912DG128 [3K91D]
