Полный адаптер для профессионального программирующего устройства Orange5, без основного устройства orange 5, работает с оригинальным блоком

Hot selling OEM Orange5 Professional Programming Device With Full Packet Hardware + Enhanced Function Software with best price

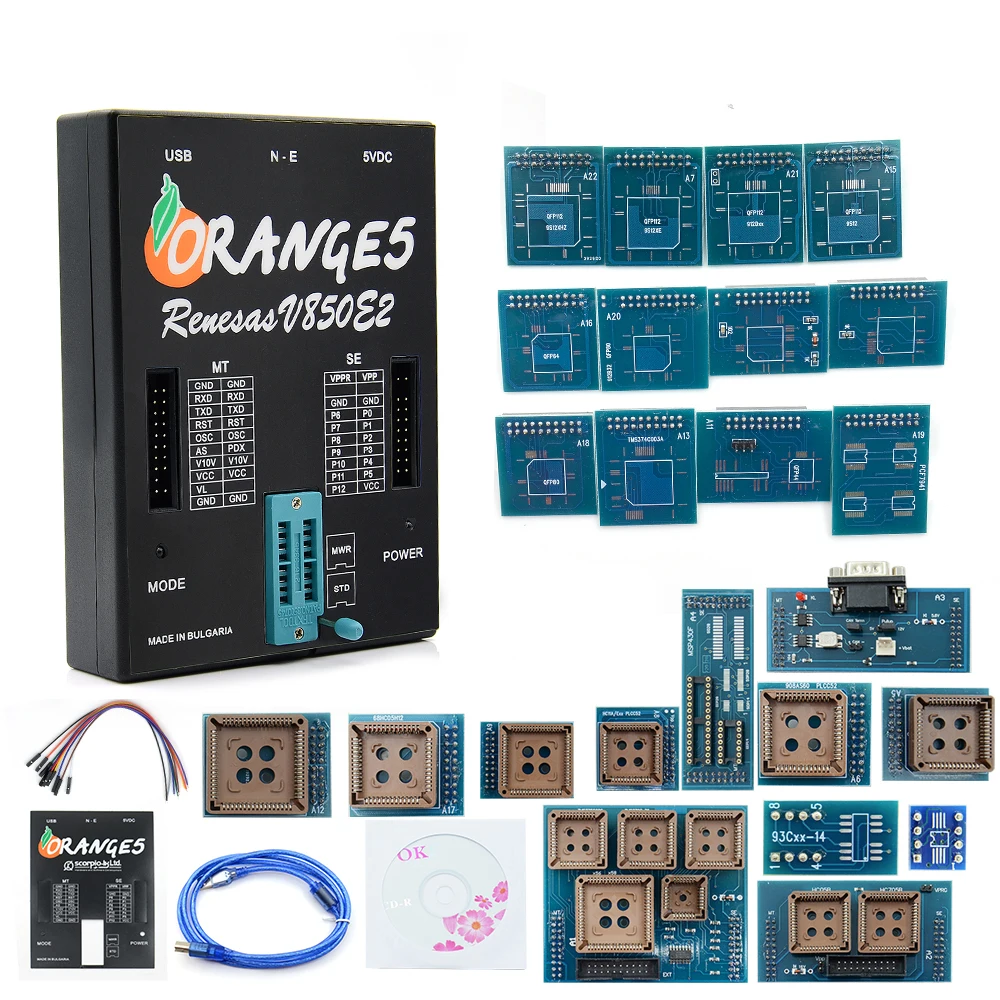

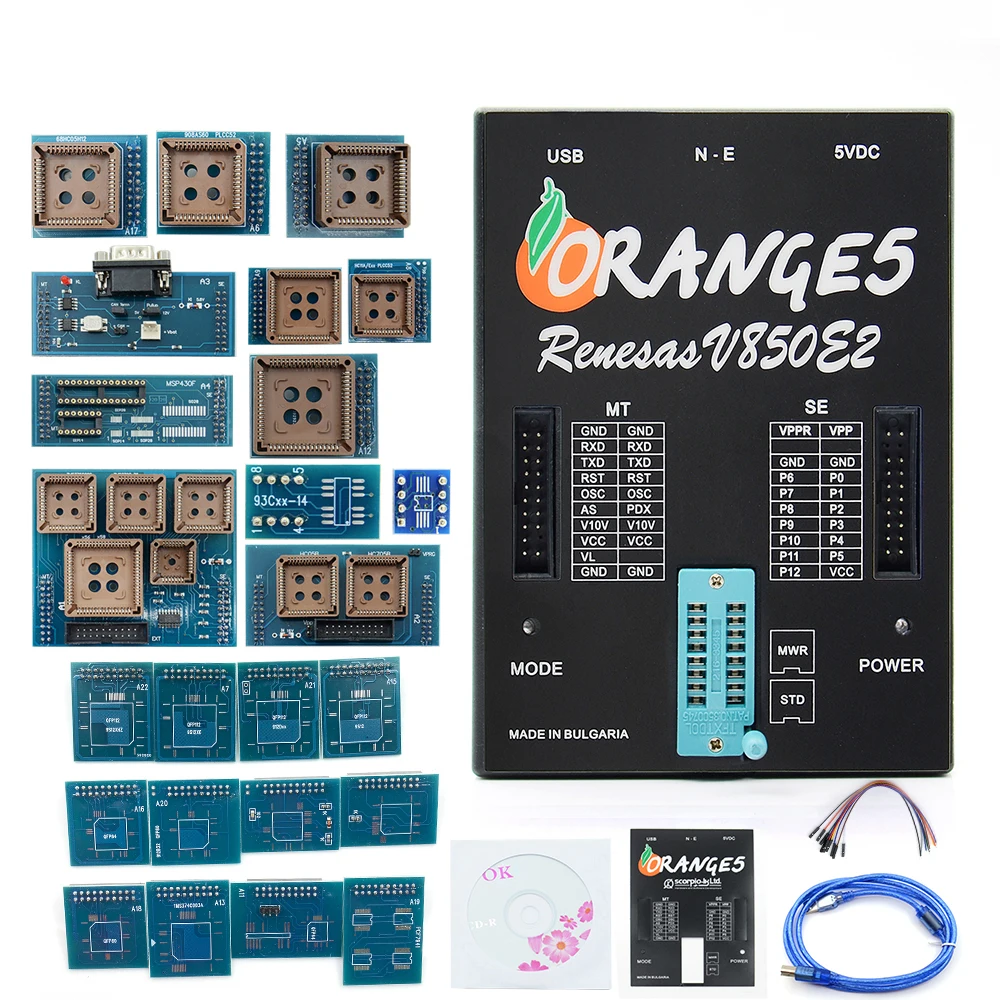

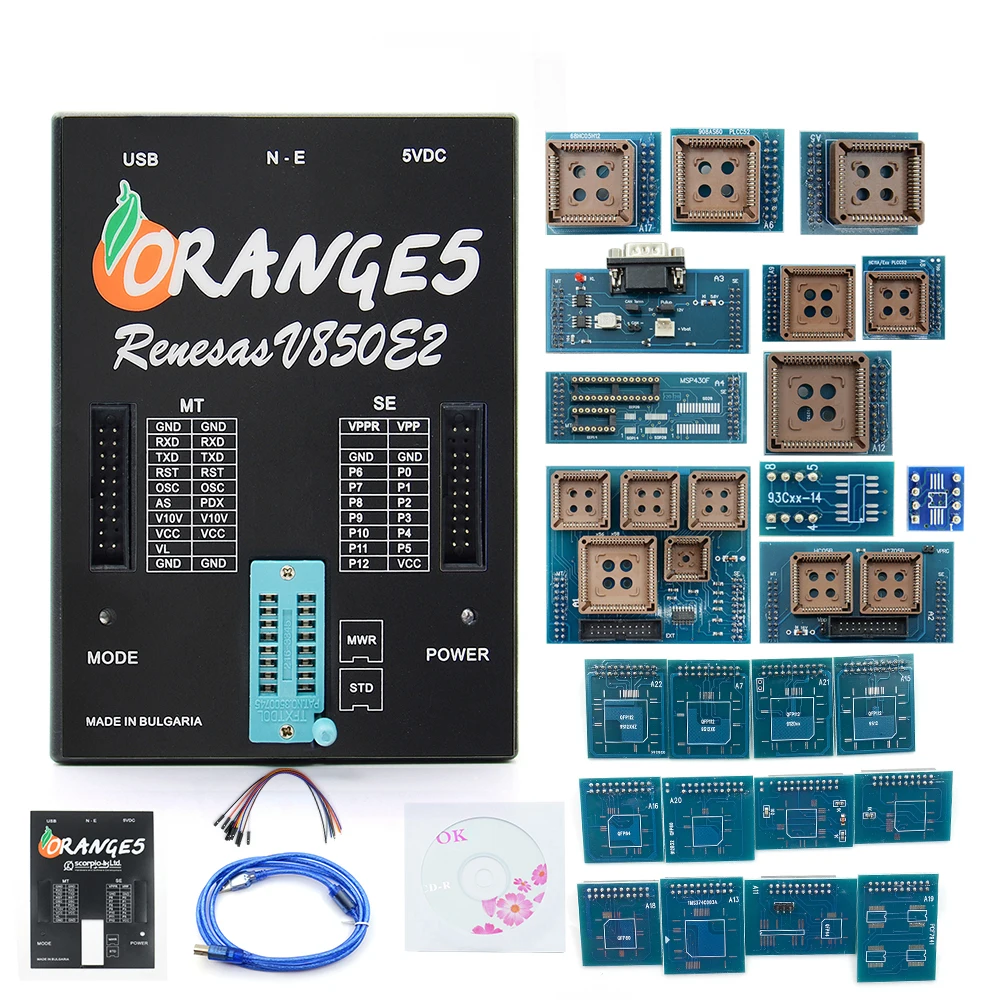

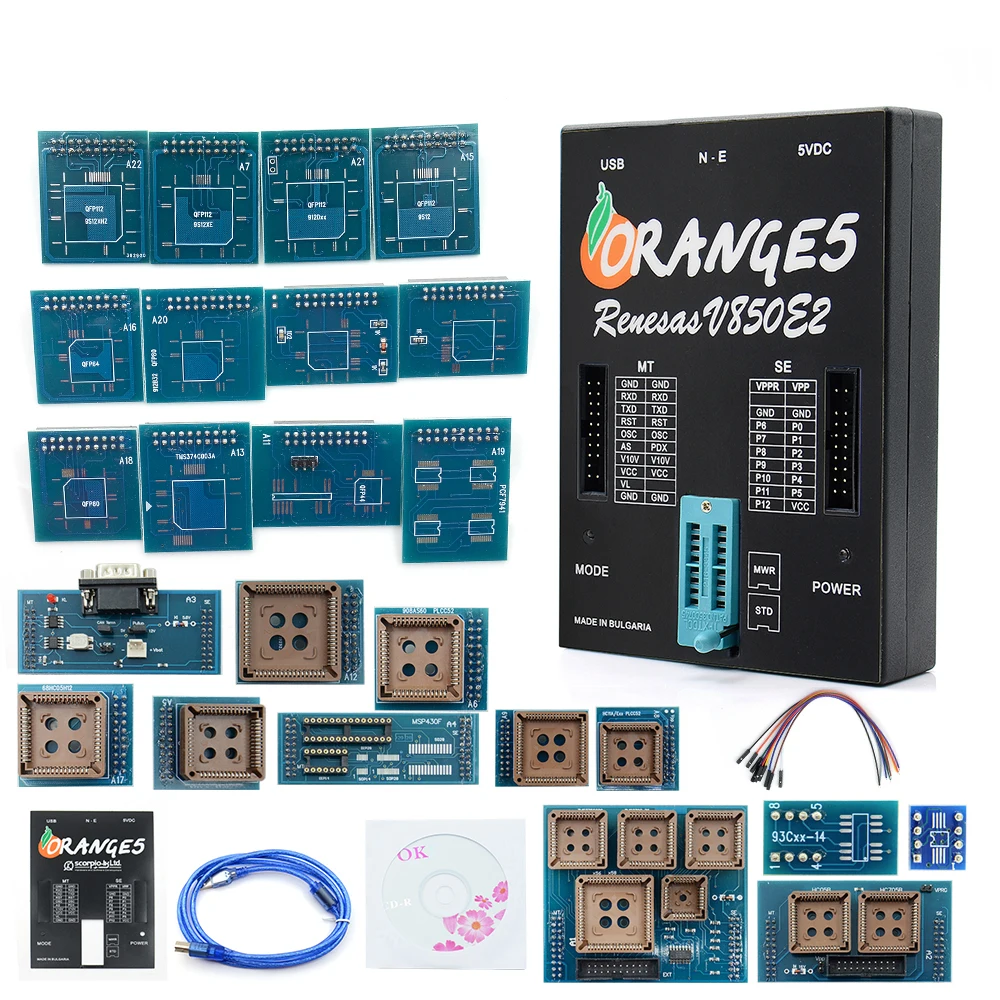

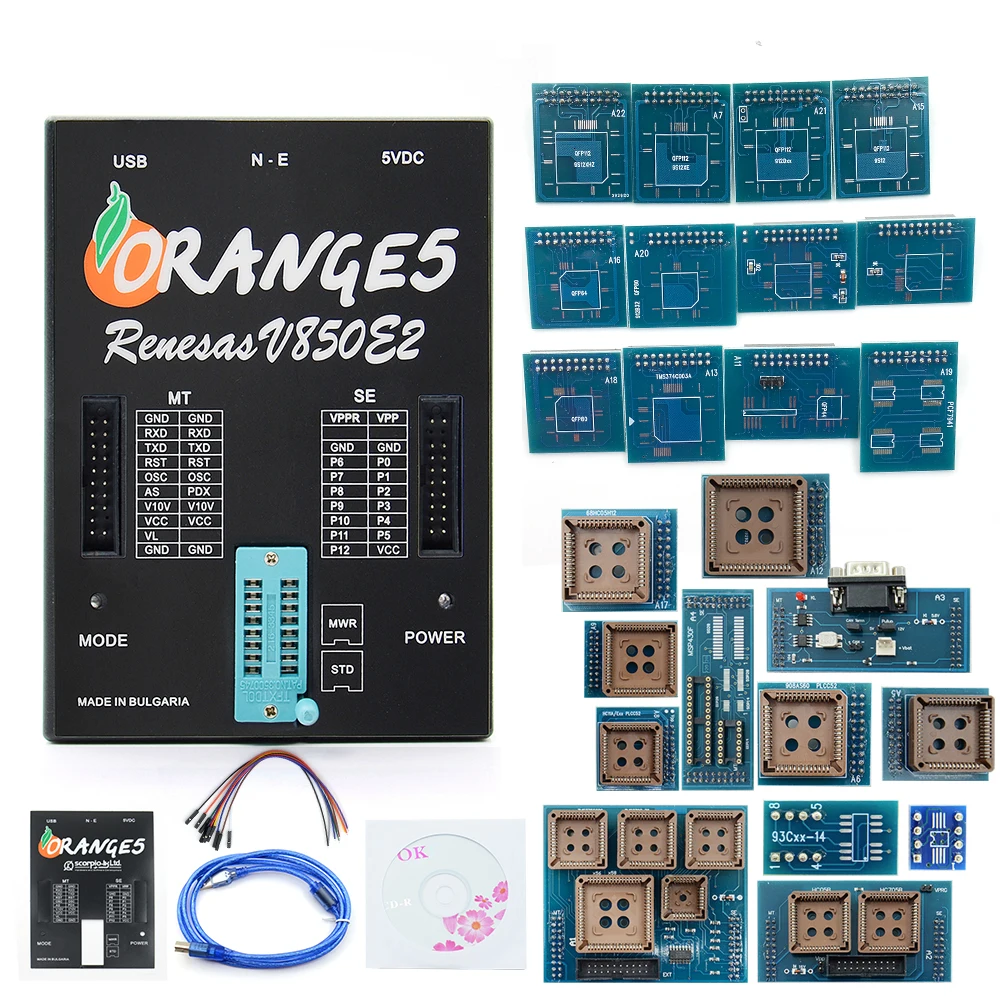

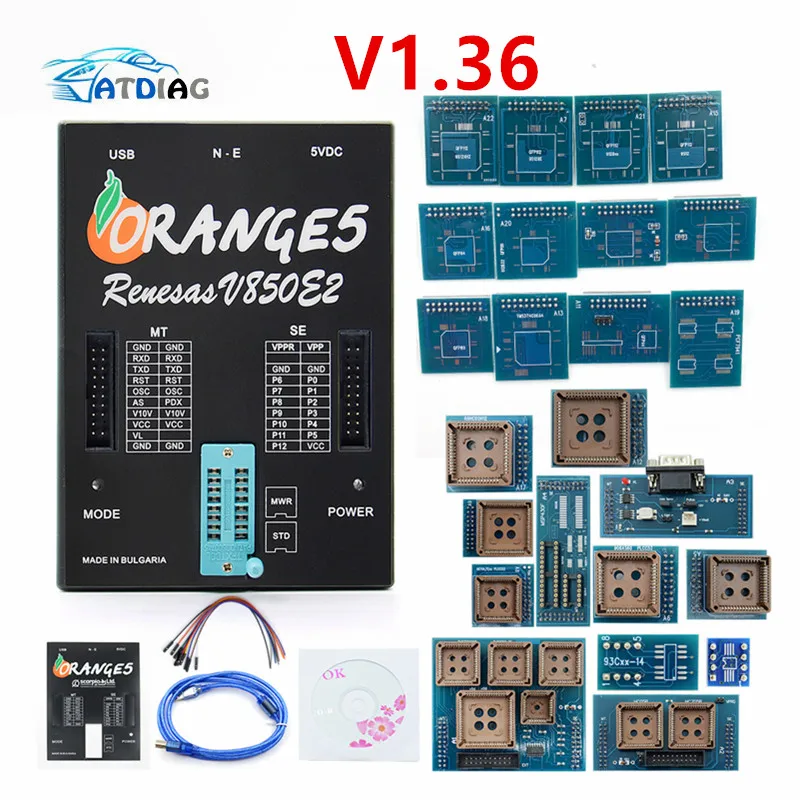

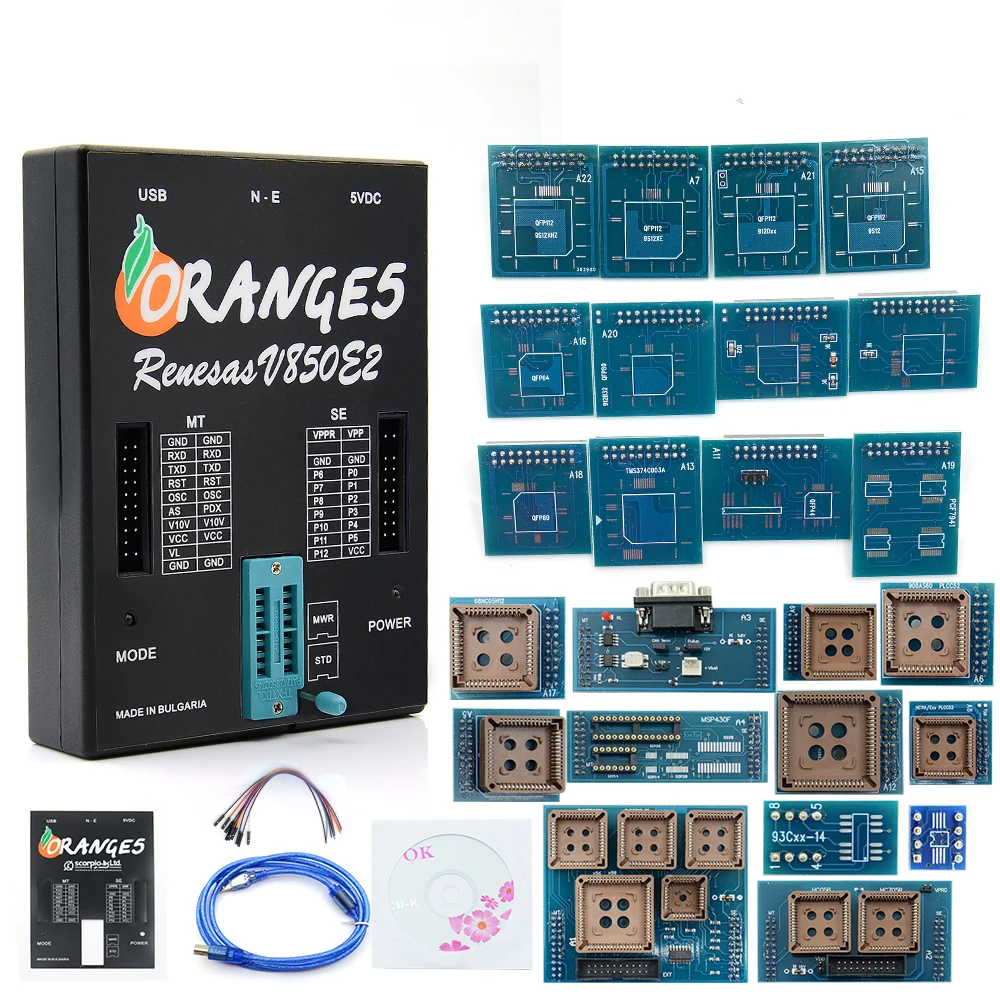

OEM Orange5 Professional Programming Device With Full Packet Hardware + Enhanced Version Software

Get Four Additional Software Free

Software Version: V1.36, Software Does not Support Update.

Language: English and Russian

Systems: XP WIN7 WIN8

Software Licenses:

MTRK (Included in Orange-5 base)

TMS (Included in Orange-5 base)

M08V NEW

Immo HPX 9V0

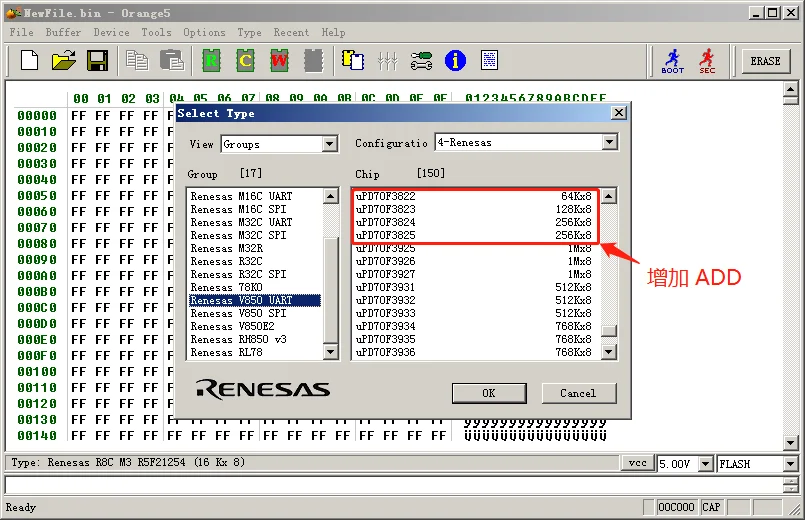

NEC V850ES/SJ3 V850ES/SG3 UART

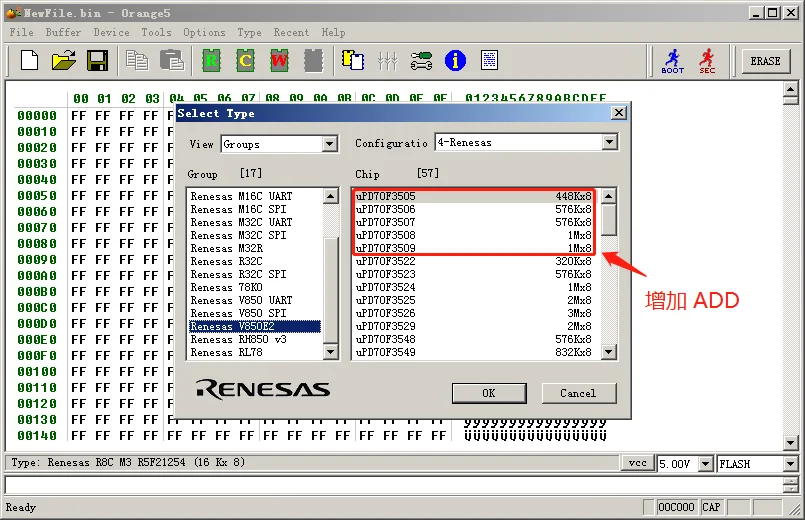

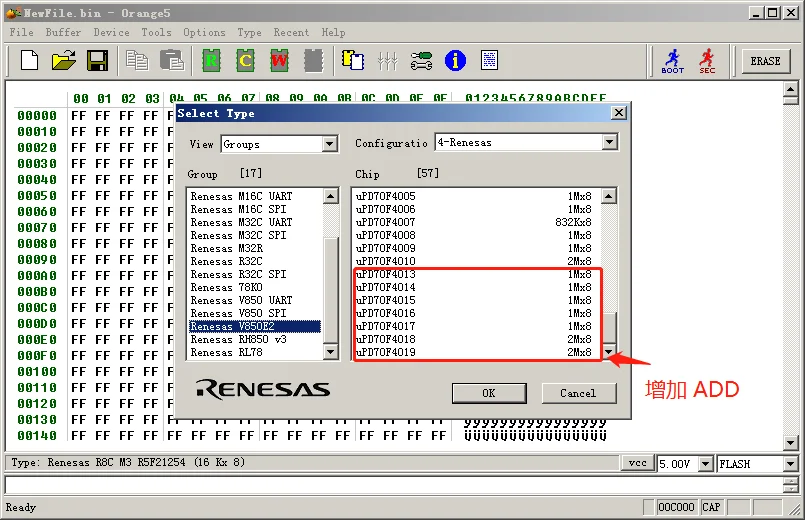

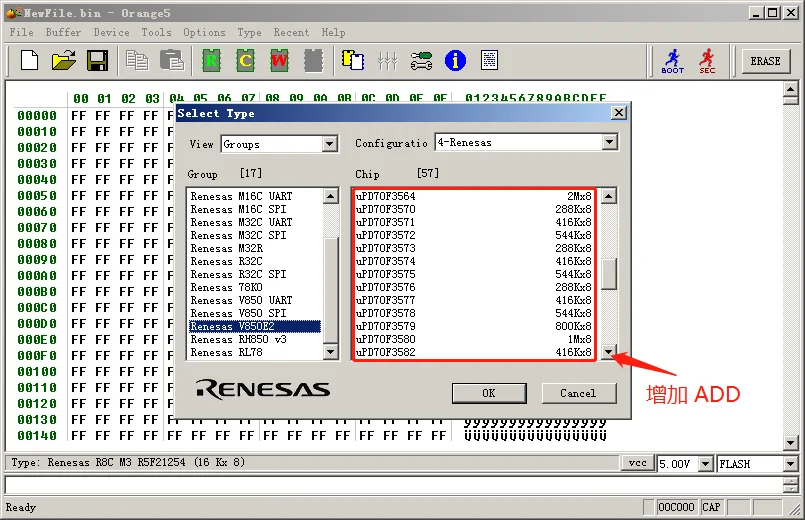

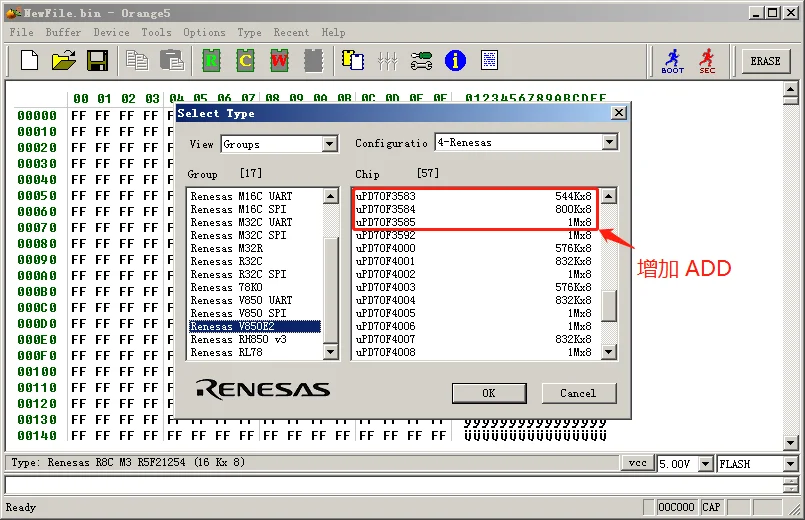

NEC V850E2 NEW

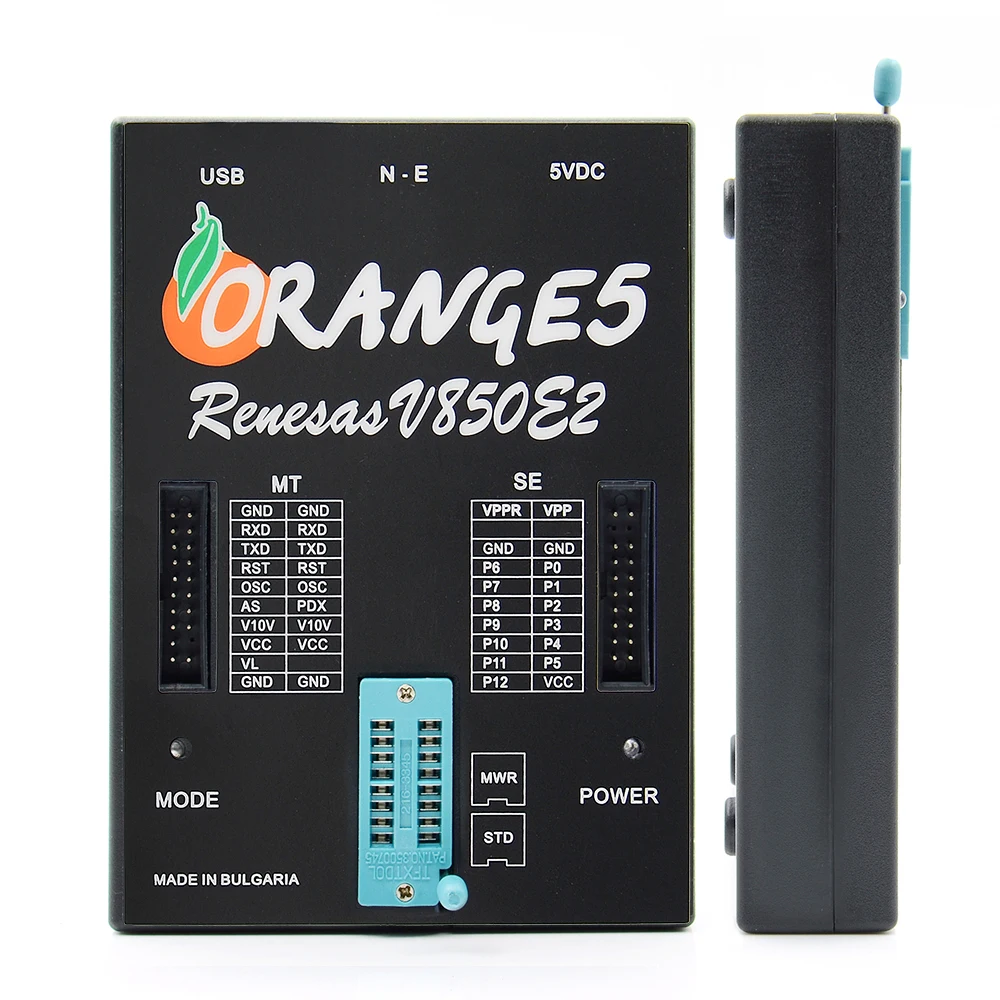

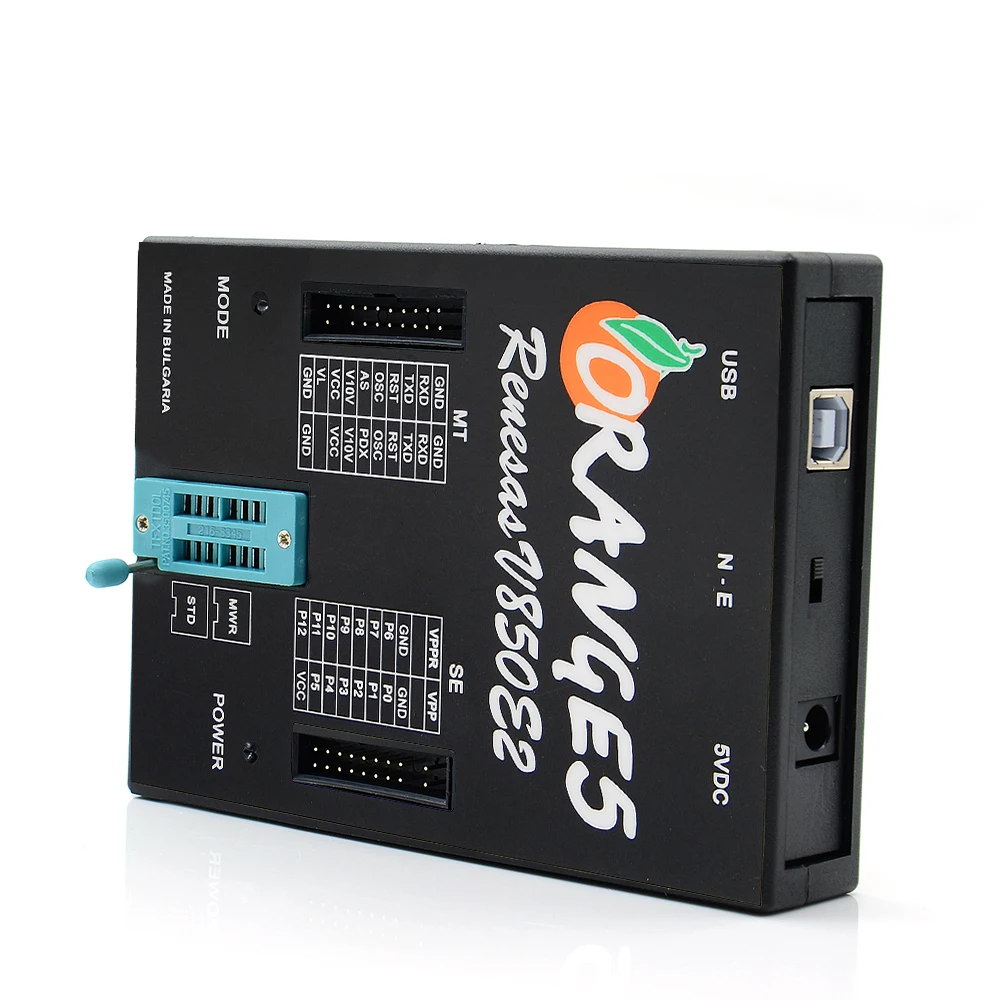

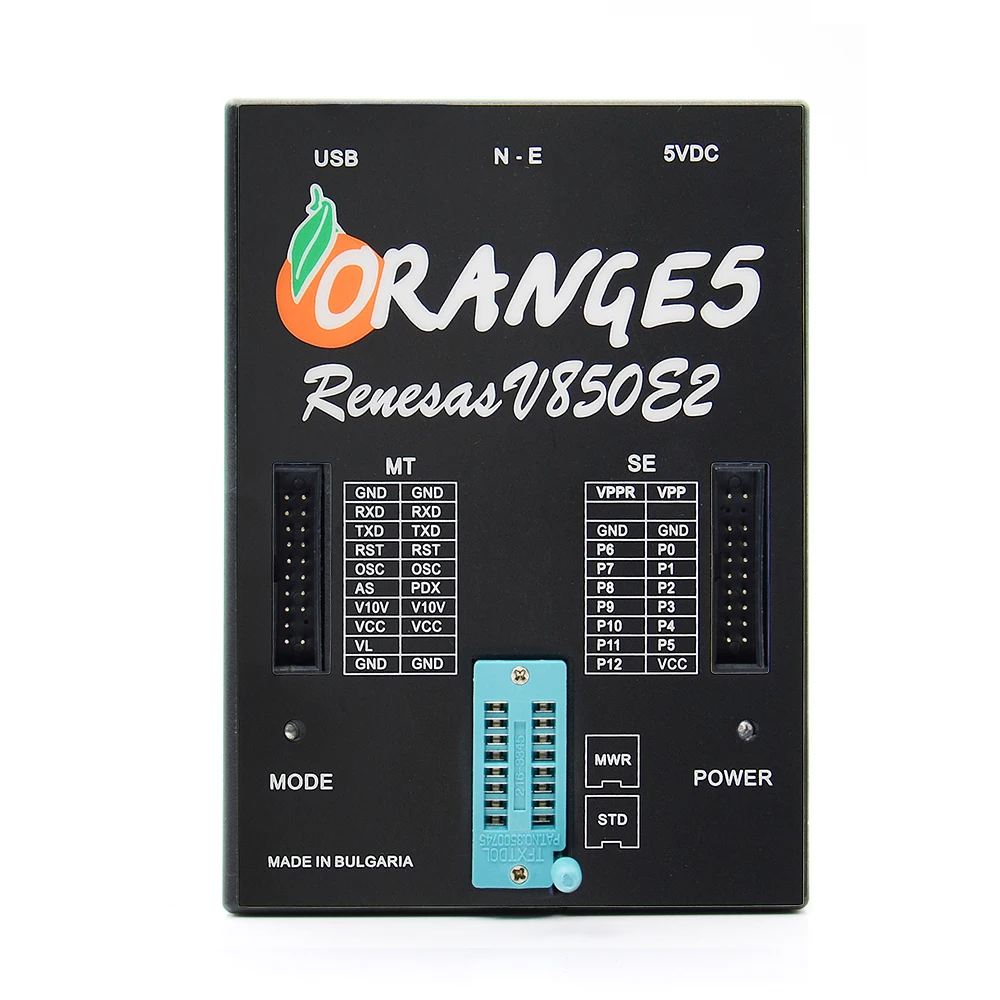

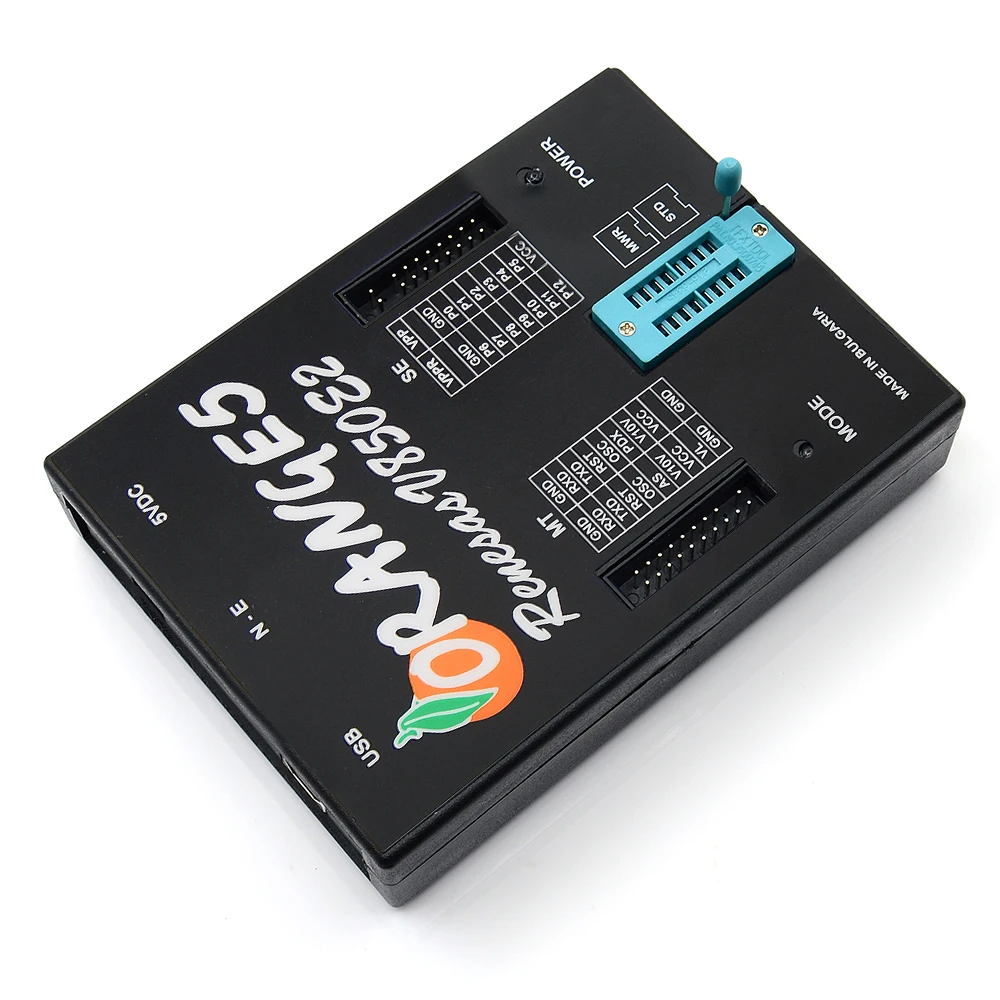

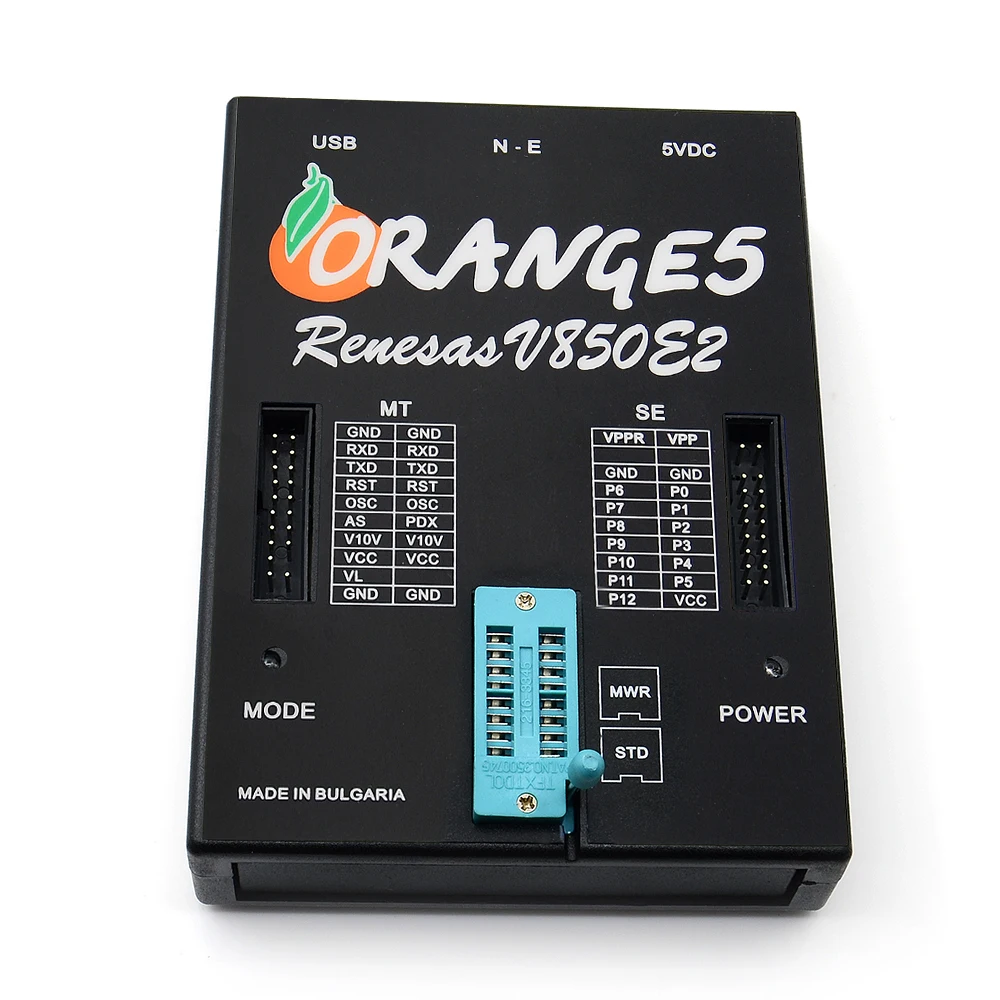

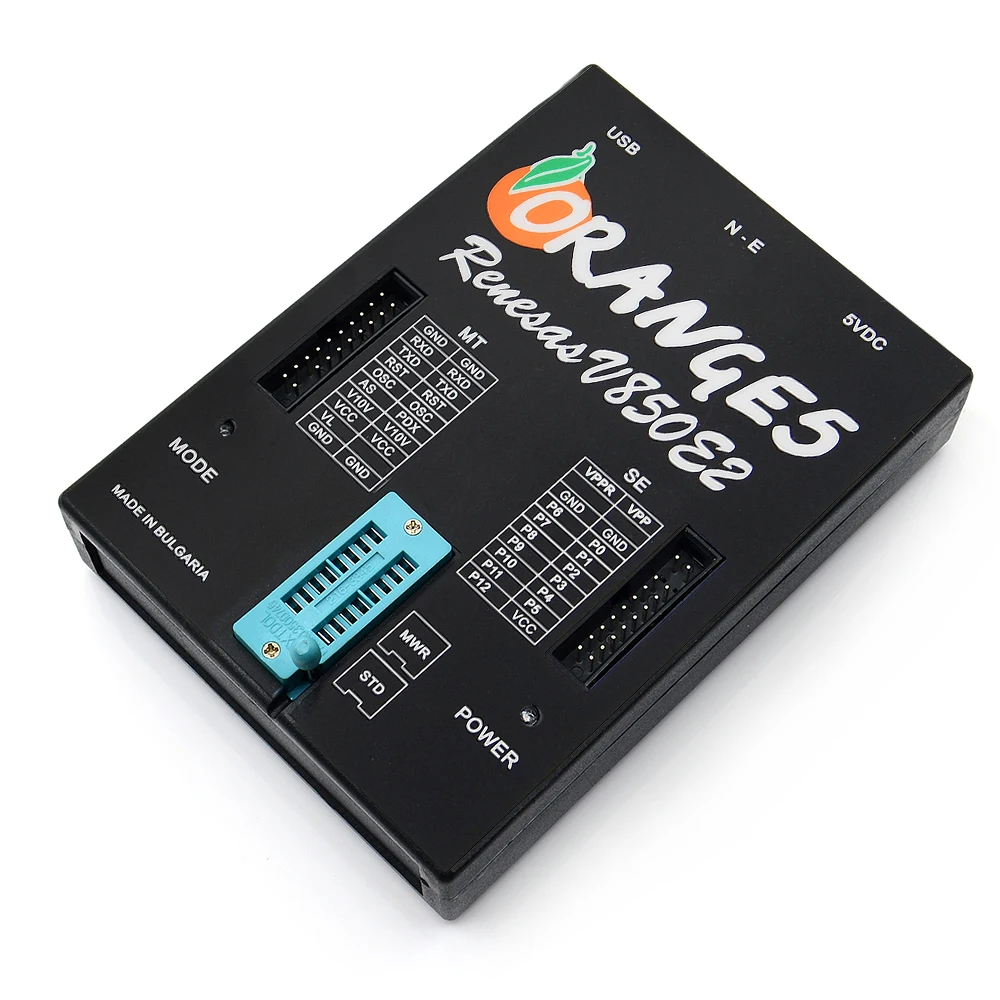

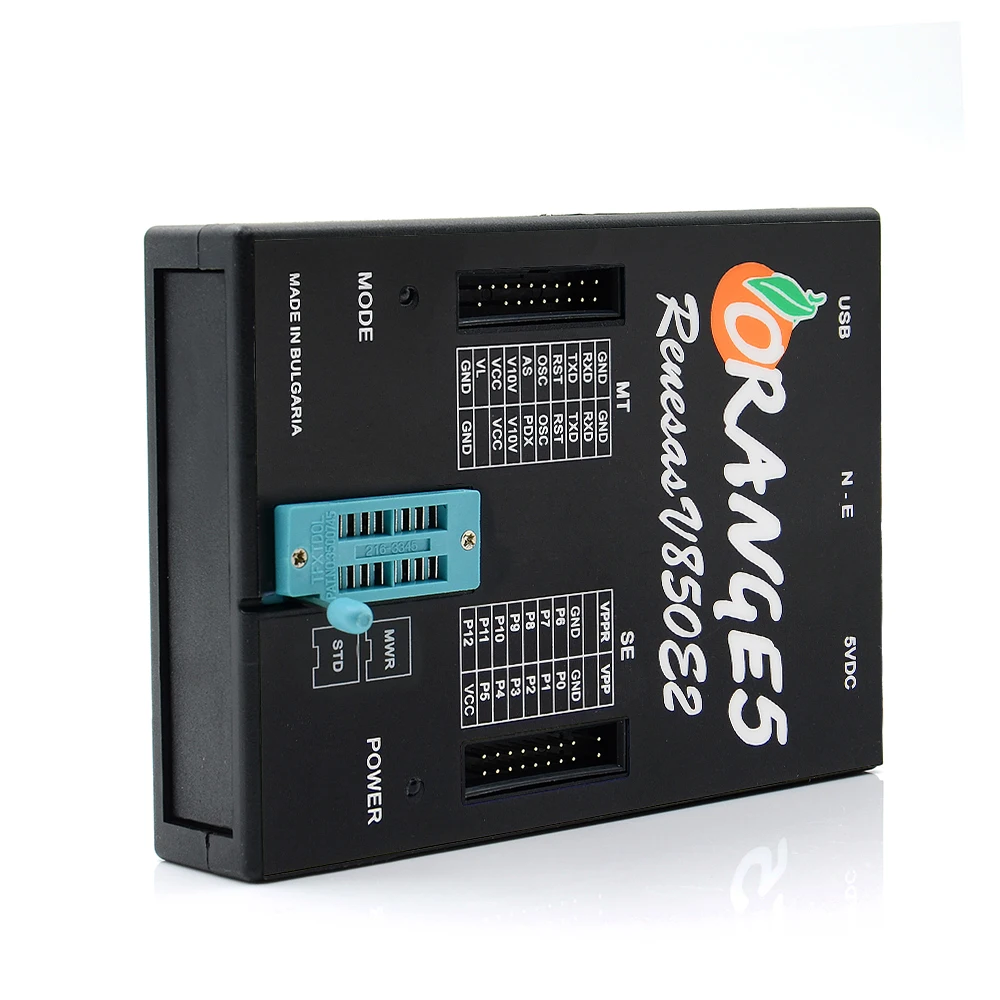

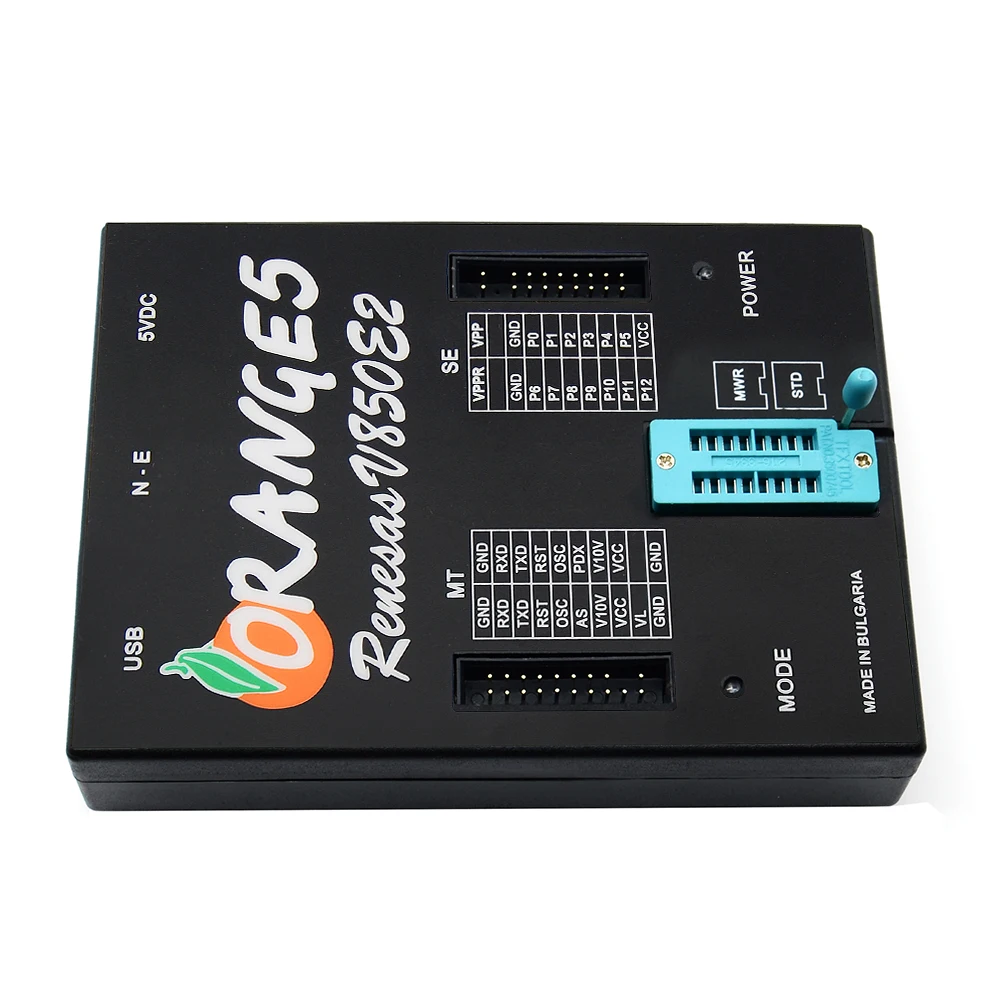

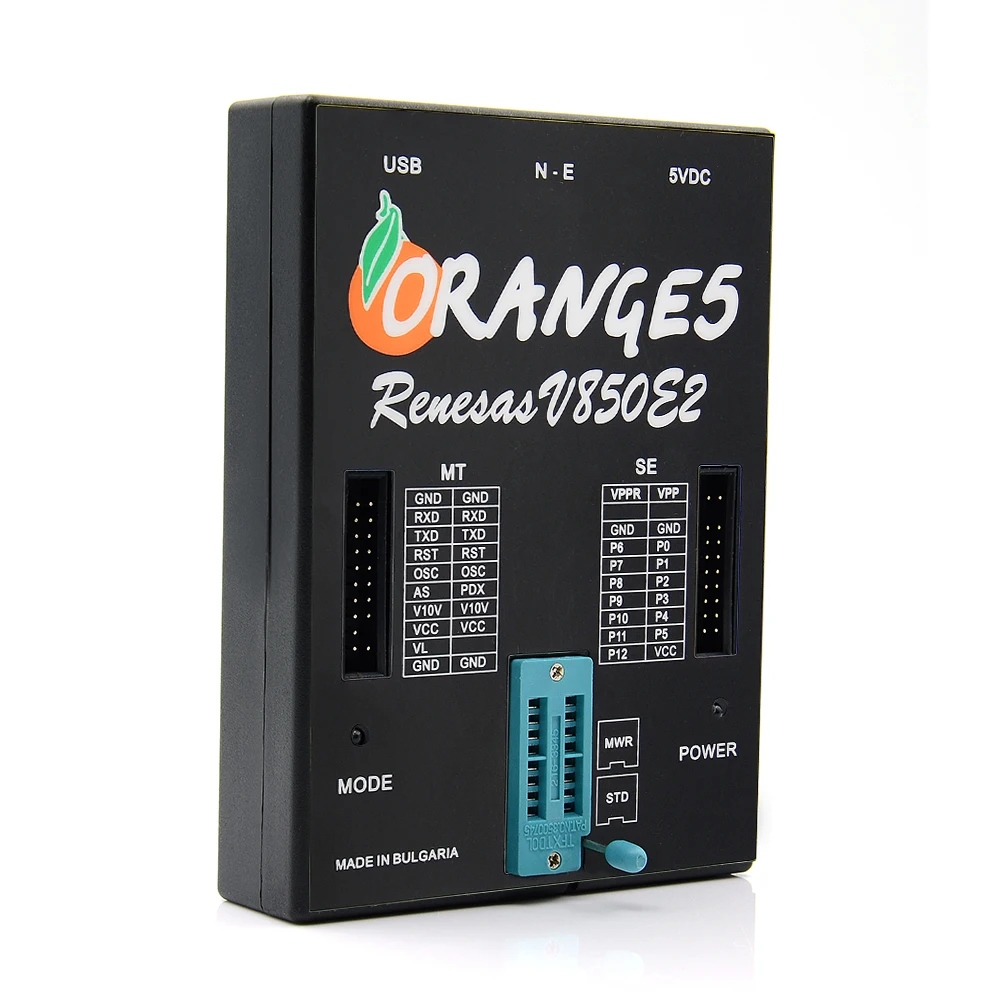

Orange5 Technical Info:

* USB power supply (USB2.0/3.0)

* Universal easy to plug panel ZIF16 for EEPROM

* Control of contacts in the sockets

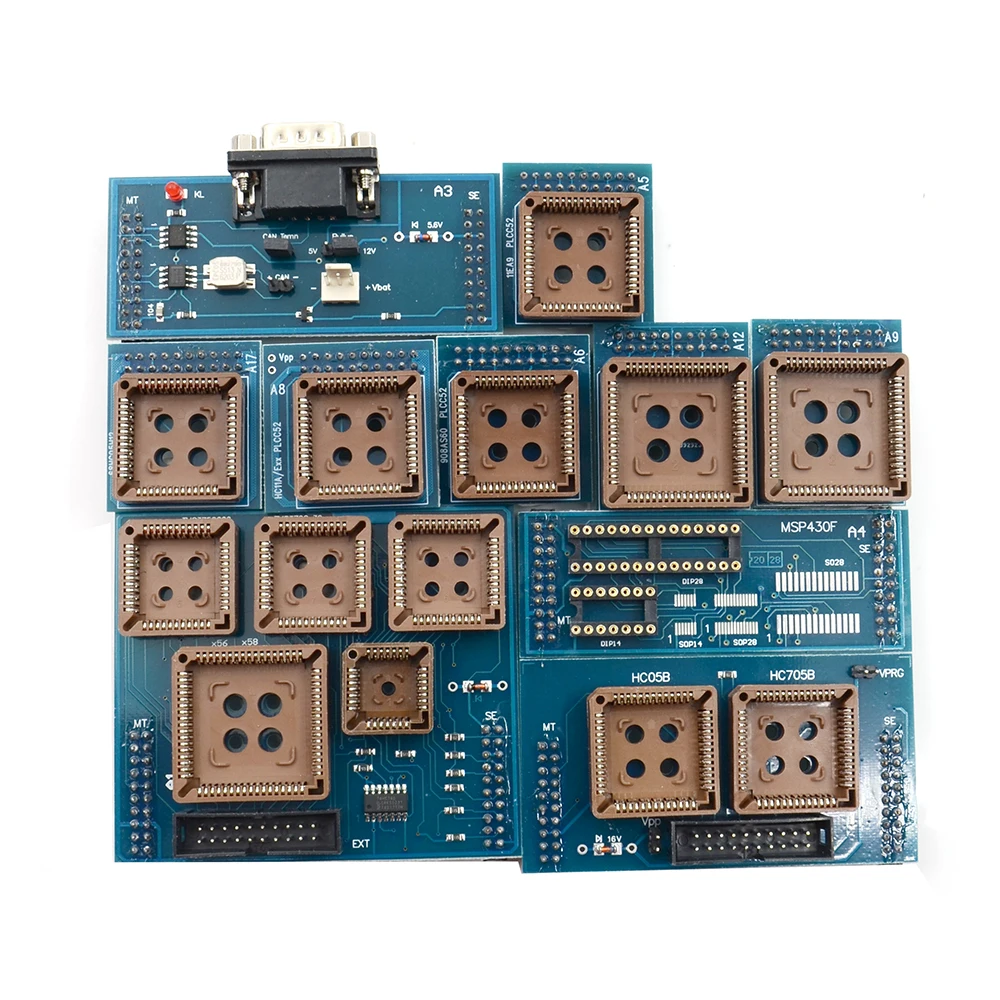

* Two expansions compatible with Orange4 and Omega MTRK

* Protection against overcurrent

* Overload voltage protection

* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)

* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers

* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)

* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment

* Capability of functional emulation of class CDC USB devices

* Built-in 32-bit virtual machine

* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)

* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]

- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1

CnCterm - Terminal program for work with COM ports.

Feature:

Supports any COM ports, incuding virtual ones from 1 to 20

Works with text (ASCII) and HEX mode

Creating a list of commands that allows editing and fast sending

Fine-tuning the exchange rate

Saving files including command and port settings.

Saving incoming data in binary files

File transfer via serial port.

Delay settings for bytes and blocks

"Echo" mode

Delay settings between incoming data

Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI

Program doesn't need to be installed

Supports Orange5 programmer in emulation mode.

Orange-5 Chip list v1.34 [November 2015]

Immo HPX 9V0

PCF

PCF7941 Reset

Alfa Romeo

BSI

147

Audi

BCM2

Ver.1 uPD70F3239

Ver.1 uPD70F3380

Ver.2 uPD70F3380

Ver.1 uPD70F3634

Dash

A2 VDO crypto 93C86

A3 UKNSI 93C56

A3 VDO '97/99 93C66

A3 VDO crypto 93C86

A3 MM 912DG128

A4 UKNSI 0012-003 93C56

A4 UKNSI 0014-001 93C56

A4 UKNSI 0016-001 93C56

A4 UKNSI '97/98 93C56

A4 VDO '97/99 93C66

A4 VDO '99/01 93C86

A4 MM 912DG128

A6 UKNSI 0012-001 93C56

A6 UKNSI 0014-001 93C56

A6 UKNSI 0016-001 93C56

A6 VDO '97/99 93C66

A6 VDO '99/01 93C86

A6 VDO crypto 93C86

A6 MM 912DG128

S3/S6 MM 912DG128

TT MM 912DG128

Immo

'94/97 4A0 953 234 93C46

Delphi 8D0 953 234 93C46

ECU

'00/04 ECU EDC15 24C04

A3 1.8T 0261204678 24C02

A4 1.8T 0261204778 24C02

A4 '02 8E0 909 xxx 95040

ELV

MC68HC908GR16A[4L35K]

MC68HC908GR16A[0M76Z]

BMW

Dash

Dash with M35080

Immo

EWS-3 HC11EA9 clips [0D46J]

EWS-3 HC11EA9 wires [0D46J]

EWS-3 HC11EA9 adap [2D47J]

EWS-3+ HC11EA9 clip [0D46J]

EWS-3+ HC11EA9 adap [2D47J]

Chery

All Chery with 0L72A

All Chery with 0L59X

Chevrolet

Immo

Captiva MC9S08DZ60 [3M05C]

Chrysler

Immo

SKIM immobox 24C02

Ram uPD70F3626

Citroen

BSI

Berlingo 03/06 BSI v1 95160

Berlingo 03/06 BSI v2 95160

Berlingo 03/09 BSI v3 95160

C2 '03/04 BSI 95160

C3 '02/04 BSI v1 95160

C3 '02/04 BSI v2 95160

C5 '01/04 BSI 912DG128

C5 '02/04 BSI 95160

C8 '03/04 BSI 912DG128

Picasso '03/04 BSI 95160

Xsara II '01/03 BSI 95040

Immo

Berlingo Valeo 93C46

Jumper '99/06 Delphi 93C56

Jumpy 705E6 [F82B]

Relay Delphi 93C56

ECU

Xsara ECU EDC15C2 95P08

DAF

Immo

MC68HC908AZ60 [2J74Y]

MC68HC08AZ32A [2L52H]

Dodge

Immo

SKIM immobox 24C02

Fiat

Automotive K/CAN

IMM 009.10

BSI

Albea 912DG128 [3K91D]

Panda '02 BSI [1L40K]

Stilo 912DG128 [3K91D]

Stilo BSI [1K79X]

Strada BSI [1K79X]

Immo

IMM001.11 [1K59H]

IMM009.01 [1K59H]

IMM009.01 [0L72A]

IMM100.01 [1K59H]

IMM110.01 [1K59H]

Bravo 705E6 [G72G]

Bravo 705E6 Clips [G72G]

Bravo 08AZ32 [1H56A]

Cinquecento '96 93C46

Coupe '96 immobox BOSCH 93C46

Ducato Delphi 93C56

Marea 08AZ32 [1H56A]

Punto 93C46

Punto Delphi 93C66

Scudo 705E6 [F82B]

Palio '09 [0L72A]

Seicento Delphi 93C56

ECU

Scudo '01 JTD EDC15C2 95P08

Ford

BSI

Focus '03- 9S12XEP768 [5M48H]

Dash

4M5T MC9S12H128[1K78X]

8VT4 MC9S12XHZ256[1M80F]

ECU

Focus '00 ECU 77012

Gilera

ECU

Fouco 500 [ST10F269]

Great Wall

Immo

With 0L72A

Hyundai

ECU

Accent KEFICO ECU M95160

Elantra KEFICO ECU M95160

Honda

Immo

Acord '06 Immo HIS-5 93C46

Legend '07 Immo HIS-5 93C46

Valeo HC05B6 [0F10V]

Valeo HC05B8 [3D33J]

Valeo HC705B16 [0D28J]

KEIHIN 38770-MFJ-D04 93C66

Jeep

Immo

Grand Cherokee 08AZ32 0J66D

Grand Cherokee '13 uPD70F3626

Grand Cherokee '09 uPD70F3629

SKIM immobox 24C02

KIA

Immo

'99/01 Immobox 93C46

ECU

Cerato KEFICO ECU M95160

Lancia

Immo

Kappa immobox BOSCH 93C46

Mahindra

Automotive K/CAN

XYLO

Mazda

Immo

Lucas 19AS HC05B8 [3D33J]

SKLC

2 '09- MC9S12XDT384

Demio '09- MC9S12XDT384

ECU

6 ECU 93A66

Mercedes Benz

Immo

Sprinter 05X16 [0D62J]

Sprinter/Vito 08AZ32 [0J66D]

Sprinter/Vito 08AZ32A [L52H]

EZS

W203 908AZ60 [1J35D]

W203 908AZ60 [1J35D]

W203 908AZ60 [4J74Y]

W220 908AZ60 [1J35D&4J74Y]

W639 Vito '03/up [1L02M]

W639 Vito '03/up [3K85K]

W639 Vito '03/up [4J74Y]

Nissan

Immo

Immobox with TMS370Cx2x

BSI

Skyline [1L15Y] Wires

Automotive K/CAN

NATS-2 (Motorola)

NATS-2+ 5WK4 652

NATS-4 (TMS)

NATS-5 (TMS)

NATS-5 (ST)

NATS-5 (TMS in 5WK48645)

Opel

Immo

Immo HC05B6 [0F10V]

Immo TMS370C002 (PLCC28)

Immo 5WK4 7631[0L72A]

Peugeot

BSI

307 '01/03 BSI 912DG128

307 '01/03 BSI 912DG128A

307 '02/05 BSI 95160

807 '04/05 BSI 912DG128

807 '05/06 BSI 95128

Immo

Boxer Delphi 93C56

106 Valeo 93C46,

Partner Valeo 93C46

Piaggio

Immo

Vespa '95 AEC302C 705E6 [0F82B]

Renault

Immo

Clio-I immobox Sagem 93C46

Clio-II '98 BMT Sagem 93C46

Kangoo immobox Sagem 93C46

Master '99-01 immobox Sagem 93C46

UCH

Clio III Sport [3L91N]

Megane [4L91N]

IR key

Clio key with MC68HC05K3

Rover

Immo

Valeo HC05B6 [0F10V]

Valeo HC05B8 [3D33J]

Valeo HC705B16 [0D28J]

EWS 9S12DG128 [3L40K]

Seat

Dash

Cordoba VDO '99/01 93C86

Cordoba VDO '03/05 93C86

Cordoba MM 9S12H256

Ibiza VDO '00 93C66

Ibiza VDO '99/01 93C86

Ibiza VDO '03/04 93C86

Ibiza VDO crypto 93C86

Ibiza MM 9S12H256

Ibiza 6J0 920 801A 24C32

Ibiza 6J0 920 802H 24C64

Ibiza 6J0 920 804L 24C64

Leon VDO v.1 93C86

Leon VDO v.2 93C86

Leon VDO v.3 93C86

Leon VDO v.4 93C86

Toledo VDO v.1 93C86

Toledo VDO v.2 93C86

Toledo VDO v.3 93C86

ECU

EDC15 '00/04 24C04

EDC16U1 '04/06 95320

EDC16U31 '03/05 95320

Skoda

Dash

Fabia VDO '00/01 v1 93C86

Fabia VDO '00/01 v2 93C86

Fabia VDO '04 93C86

Fabia VDO crypto 93C86

Felicia VDO 93C66,

Felicia VDO '01/02 93C86

Oktavia VDO 93C66

Oktavia VDO '00/05 93C86

Oktavia VDO crypto 93C86

Roomster VDO crypto 93C86

SuperB VDO '02/04 93C86

SuperB VDO crypto 93C86

ECU

'00/04 ECU EDC15 24C04

'05/06 ECU EDC16U1 95320

SsangYong

Immo

87110-0930 MSP430F1232

87110-0910 MSP430F1232

MSP430F1232 (universal)

VDO MC68HC05B16 [0D60J]

Suzuki

Immo

Baleno '99- 93C66

Swift '99- 93C66

Alto 24C01

Ignis 24C01

Jimny 24C01

SX4 [0L72A]

Toyota

Immo

Immobox 89780-12070 93C66

Immobox 89780-20010 24C04

Immobox 89780-42030 93C66

ECU

ECU 89661-50440 93C56

VW

BCM2

uPD70F3634

VW Beetle dash

Beetle 912D60

Beetle '03/05 912DG128

Beetle 03/05 912DG128C L05H

Beetle 05/06 9S12H256 K78X

VW Beetle ECU

Beetle EDC16U31 95320

VW Bora dash

Bora MOT'99/00 24C02

Bora VDO 93C66

Bora VDO '99/00 93C86

Bora VDO '01 93C86

Bora VDO '01/03 93C86

Bora VDO '03/05 93C86

VW Caravelle ECU

T5 '04/06 EDC16U1 95320

T5 '04/06 EDC16U31 95320

VW Fox dash

Fox MM 9S12H256

VW Golf dash

G4 MOT 24C02

G4 MOT '01/03 24C08

G4 BOSCH '02/03 24C08

G4 VDO 93C66

G4 VDO '99/00 93C86

G4 VDO '01 93C86

G4 VDO '01/03 93C86

G4 VDO '02/03 93C86,

G4 MOT addr.line 24C02

G6 5K0 920 870C 24C32

G6 5K0 920 872A 24C64

G6 5K0 920 873A 24C64

VW Jetta dash

Jetta VDO '00 93C66

Jetta VDO '99/01 93C86

Jetta VDO '01 93C86

VW Passat dash

Passat B5 MM HC11KG4

B5 VDO 93C66

B5 VDO '99/01 93C86

B6 VDO '01/02 93C86

B6 VDO '03/04 93C86

MOT addr. line 24C02

VW Pointer dash

Pointer '05/06 93C66

VW Polo dash

Polo VDO '01/02 93C86

Polo VDO '01/04 93C86

Polo VDO crypto 93C86

VW Polo ECU

Polo '04 ECU 1.4 MM 95320

VW Sharan ECU

Sharan '00/04 EDC15 24C04

Sharan 06/07 EDC16U31 95320

VW Touran ECU

ECU EDC16U34 '06/07 95320

VW Transporter dash

T4 VDO '01/03 93C86

T5 VDO '03/07 93C86

VW Transporter ECU

'00/04 ECU EDC15 24C04

'03/06 ECU EDC16U1 95320

'03/07 ECU EDC16U31 95320

Immo

Fox '08 Brazil 93LC56

Immo HC05B6 [0F10V]

Immo HC05B6 [0B91T]

Immo HC05B8 [3D33J]

Immo TMS370C002 (PLCC28)

ECU

00/04 ECU EDC15

03/06 ECU EDC16U1

03/07 ECU EDC16U31

06/07 ECU EDC16U34

EEPROM

I2C

24C01

24C02

24C04

24C08

24C16

24C32

24C65

24C128

24C256

24C512

24LC21

MicroWire

93C06

93S06

93C46

93C46

93S46

93C56

93C56

93S56

93C66

93C66

93S66

93C76 WP0

93C76 WP1

93C76 WP0

93C76 WP1

93C86 WP0

93C86 WP1

93C86 WP0

93C86 WP1

4Wire

59C11

59C22

64C10

64C20

64C40

64C80

SPI

25C010

25C020

25C040

25C080

25C160

25C320

25C650

25C128

25C256

Adesto

AT25SF041

AKM

AK6410

AK6420

AK6440

AK6480

AK93C55

AK93C65

Altera

EPCS1

EPCS4

EPCS16

EPCS16

EPCS128.......
