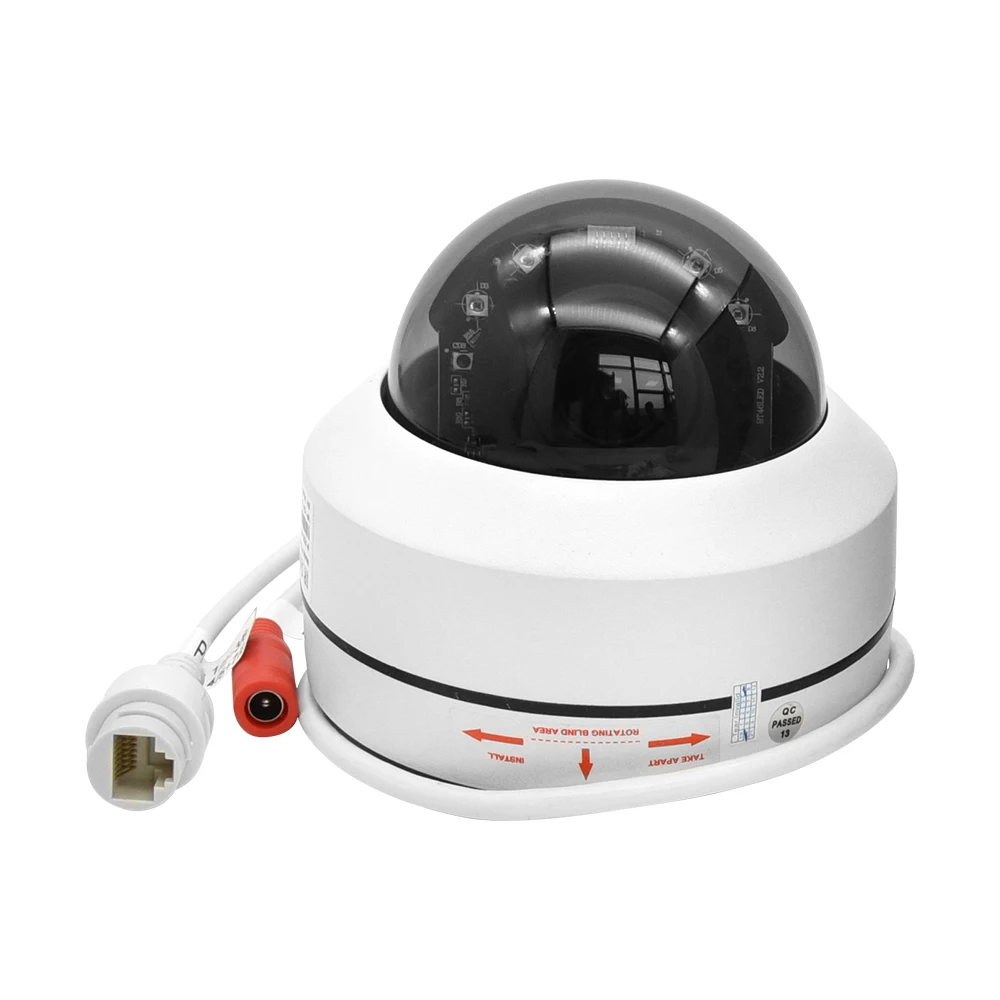

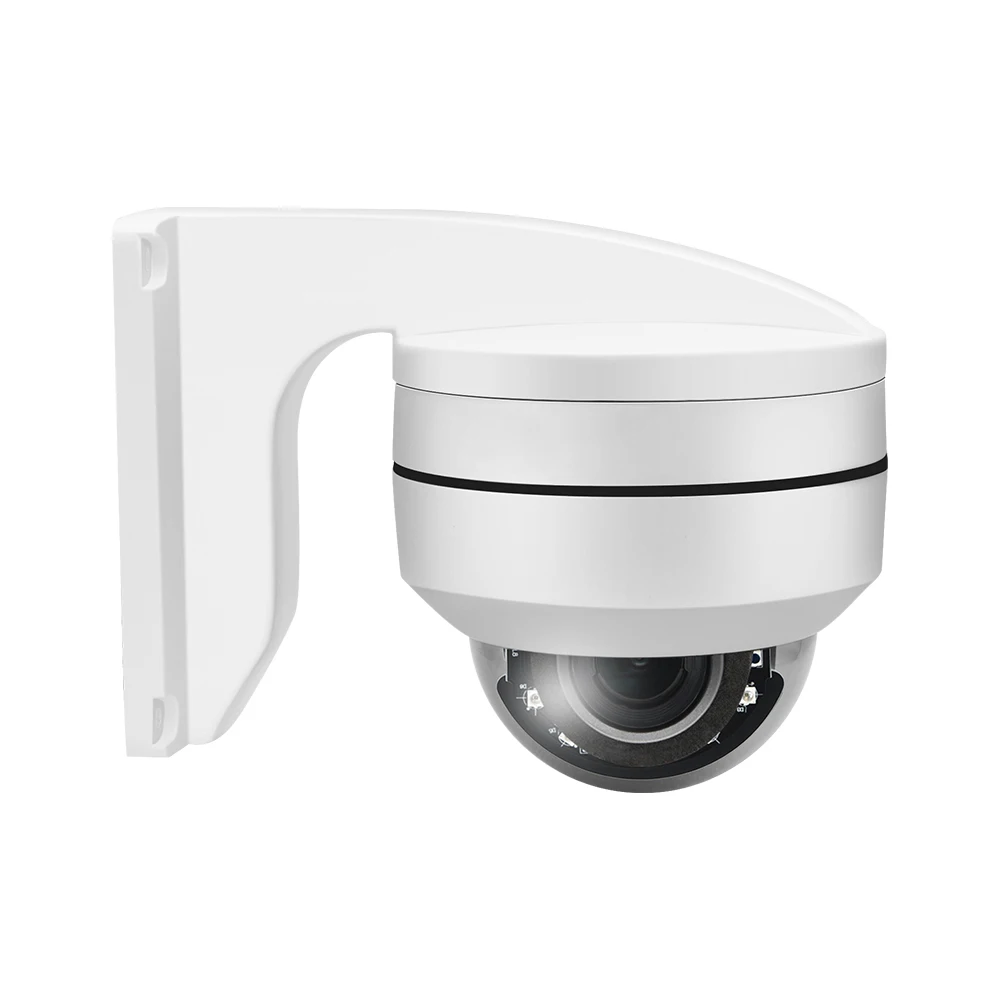

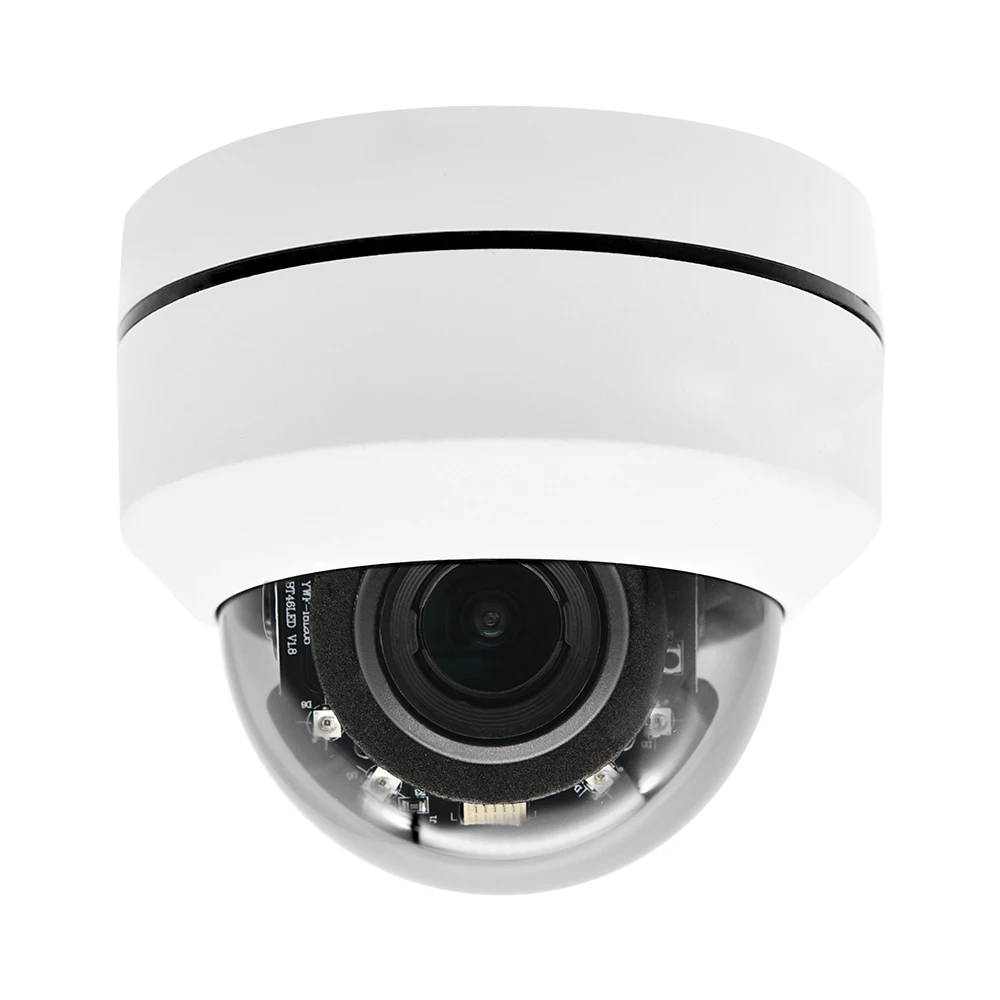

Купольная IP-камера видеонаблюдения, 5 МП, 4 шт., PTZ, POE, 2,8-12 мм, ИК, Поддержка Plug Play, Hikvision

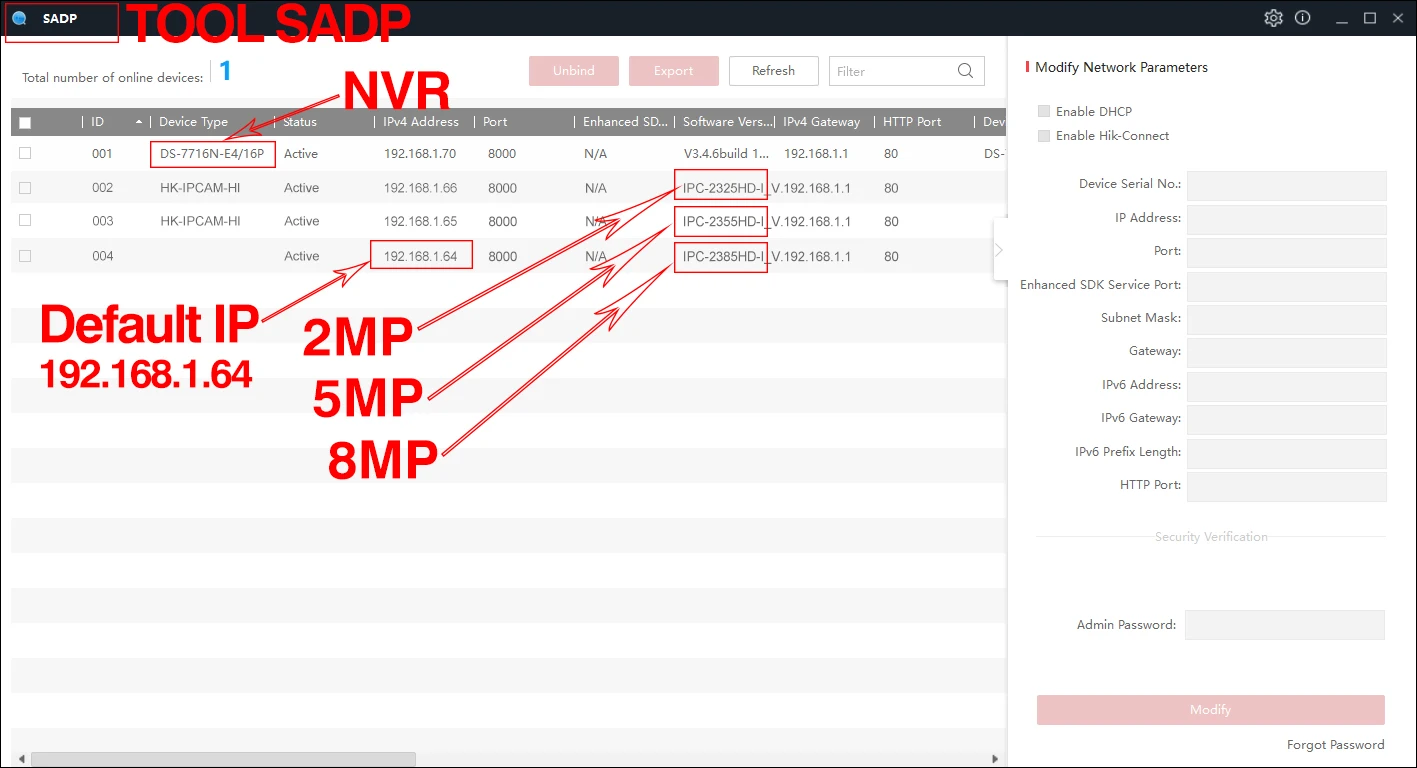

https://www.hikvision.com/content/dam/hikvision/en/support/download/tools/sadp/for-windows/v3-0-2-4/firmware/SADP-Tool-for-Window.zip

http://www.anjvision.com:8021/client/AjDevTools_V5.2.1_20210108.exe

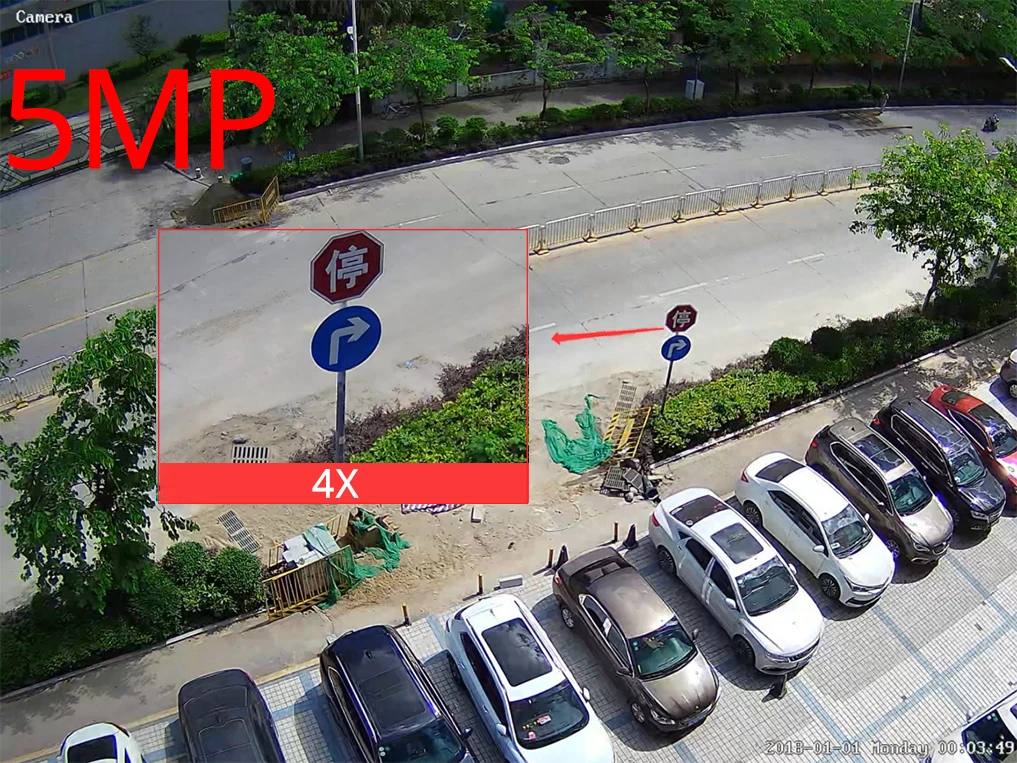

 IPC:PTZ-2504X-IZ· 1/3” 5Megapixel CMOS· Powerful 4x optical zoom· WDR, Day/Night(ICR), Ultra DNR· Max. 15fps@5MP/25fps@4MP· Pan Range：0° to 355°，Tilt Range：0° to 90°· Support PoE· Compatibility: HIKVISION,ONVIF· IP67, IK10

 Camera ModuleImage Sensor1/3” 5Megapixel progressive scan Sony CMOSColor: 0.1 Lux @(F1.2, AGC ON) B/W:0.01 Lux @(F1.2, AGC ON)Min. Illumination0 Lux with IRWhite BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/FluorescentLamp/Sodium LampGainAuto/ManualShutter Time50Hz: 1/25 s to 1/30,000 sDay & NightIR Cut FilterDigital Zoom16 ×Privacy Mask3 programmable privacy masksFocus ModeAuto/Semi-automatic/ManualWDR120 dB WDRLensFocal Length2.8 mm to 12 mm, 4 × optical zoomZoom SpeedApprox. 2 s (optical lens, wide-tele)Horizontal field of view: 96.7° to 31.6° (Wide-Tele)Field of ViewVertical field of view: 51.1° to 17.7° (Wide-Tele) Diagonal field of view: 115.1° to 36.3° (Wide-Tele)Working Distance10 mm to 1500 mm (wide-tele)Aperture RangeF1.2 to F2.7PTZMovement Range (Pan)0° to 355°Pan SpeedConfigurable, from 0.5°/s to 60°/s. Preset speed: 60°/sMovement Range (Tilt)0° to 90°Tilt SpeedConfigurable, from 0.5°/s to 60°/s. Preset speed: 60°/sProportional ZoomYesPresets255Power-off MemoryYesCompression StandardMain Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEGVideo CompressionH.264 TypeBaseline profile/main profile/high profileH.264+YesH.265+YesEventBasic EventMotion DetectionIRIR Distance50 mIR LED4PCSImageMax. Resolution2592 × 1944Main Stream15fps@5MP(2592x1944),20fps@4MP(2592x1520)25fps@3MP/1080P/720PSub-StreamVGA/640x360/480X360P/CIF@25fps, etcImage Enhancement3D DNR, EIS, Regional Exposure, Regional FocusNetworkEthernetRJ-45 (10/100Base-T)ProtocolsIPv4/IPv6, HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP/TCP/IP, etc.APIONVIF (Profile S, Profile G, Profile T),HIKVISIONSimultaneous Live ViewUp to 20 channelsClientSADP, Danale, Blue Iris , ISpyWeb BrowserIE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+InterfaceNetwork Interface1 RJ45 10 M/100 M Ethernet, PoEPower12 VDCGeneralLanguage (Web Browser Access )6 languages:Chinese, English, Russian, German, Italian, , TurkishPower12 VDC, 1.5 A (Max. 10.9 W, including Max. 4.2 W for IR)PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 12.2 W, including max. 4.2 W for IR)Working EnvironmentTemperature: -20°C to 60°C (-4°F to 140°F), humidity: ≤ 90%Protection LevelIP67 standard, IK 10, surge protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5MaterialAluminum alloyDimensionΦ 110 mm × 87.5 mm (Φ 4.33" × 3.44")WeightApprox. 0.59 kg (1.3 lb.)
