Dahua IPC-HDW3549H-AS-PV 5MP полноцветная активная сдерживающая способность WizSense IP-камера Сигнализация вводавывода 2-полосная аудио тепласветодиодный светодиодная AI IVS SD-карта IP67

1. This model is Dahua original IP Camera , it support upgrade .

2. Our store support shipping from different warehouse , Products shipped from Spain / Russia / United States / Australia warehouse are Free Import Tax , from China are not free .

3. Please contact us if you can't find the models you need , we can order from Dahua Factory for you ( MOQ>1000USD ) .

4. Please contact us if you are an installer or local agent .

5. 'With Logo' means 100% original , 'NO Logo' means OEM Version (function same but no logo) .

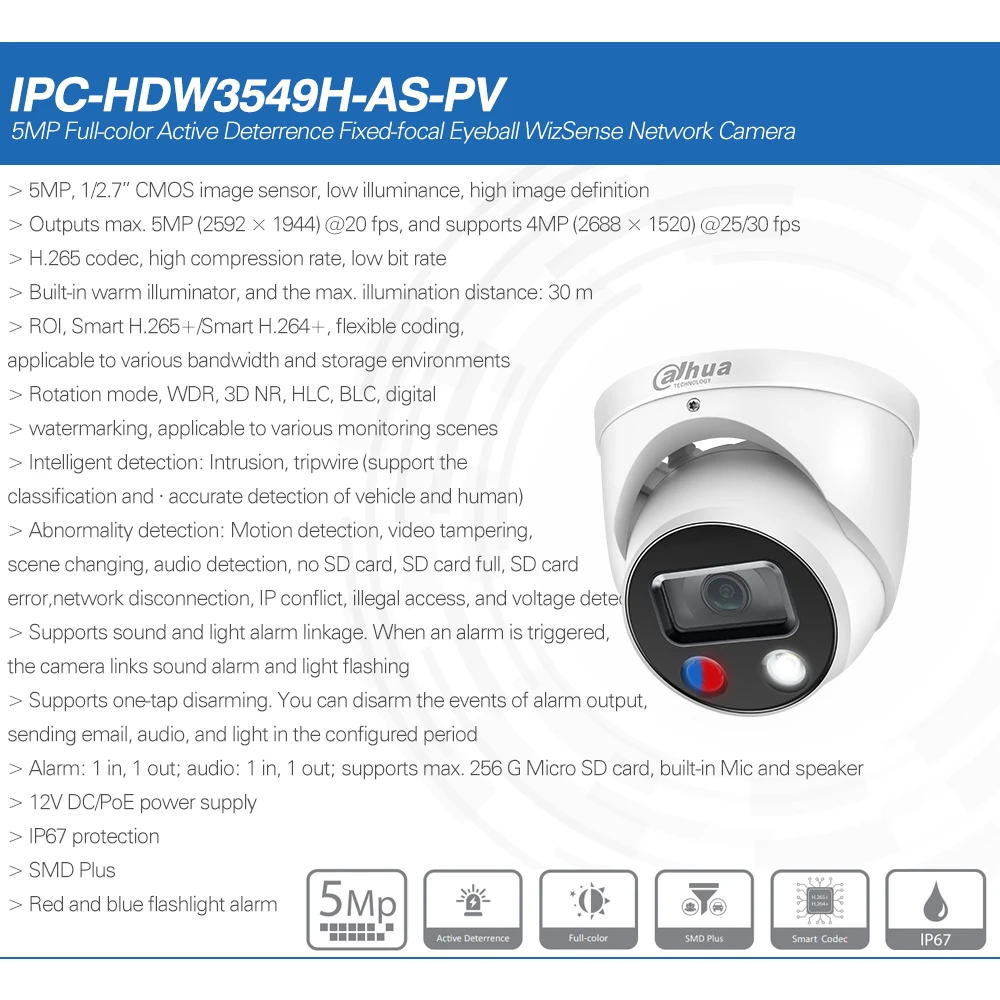

IPC-HDW3549H-AS-PV  5MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera > 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition> Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps> H.265 codec, high compression rate, low bit rate> Built-in warm illuminator, and the max. illumination distance: 30 m> ROI, Smart H.265+/Smart H.264+, flexible coding, applicable to various bandwidth and storage environments> Rotation mode, WDR, 3D NR, HLC, BLC, digital> Rotation mode, digital watermarking, applicable to various monitoring scenes> Intelligent detection: Intrusion, tripwire (support the classification and · accurate detection of vehicle and human)> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error,network disconnection, IP conflict, illegal access, and voltage detection> Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing> Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker> 12V DC/PoE power supply> IP67 protection> SMD Plus> Red and blue flashlight alarm

  Model ：IPC-HDW3549H-AS-PV1.Camera ：Image Sensor ：1/2.7”5Megapixel progressive CMOSMax. Resolution ：2592 (H) × 1944 (V)ROM ：128 MBRAM ：512 MBScanning System ：ProgressiveElectronic Shutter Speed ：Auto/Manual 1/3 s–1/100,000 sMin. Illumination ：0.003 Lux @ F1.0S/N Ratio ：> 56 dBIllumination Distance ：30 m (98.4 ft)Illuminator On/Off Control ：Auto/ManualIlluminator Number ：1 (Warm light)Pan/Tilt/Rotation Range ：Pan: 0°–360°;Tilt: 0°–78°;Rotation: 0°–360°2.Lens ：Lens Type ：Fixed-focalMount Type ：M12Focal Length ：2.8 mm; 3.6 mmMax. Aperture ：F1.0Field of View ：2.8 mm: Horizontal 103° × Vertical 53° × Diagonal 122°;3.6 mm: Horizontal 81° × Vertical 43° × Diagonal 95°Iris Type ：FixedClose Focus Distance ：2.8 mm: 1.2 m (3.9ft);3.6 mm: 2.1m (6.9ft)3.Professional, intelligent ：IVS (Perimeter Protection) ：Tripwire; intrusion (support the classification and accurate detection of vehicle and human)Intelligent Search ：Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.4.Video ：Video Compression ：H.265; H.264; H.264H; H.264B; MJPEG(only supported by the sub stream)Smart Codec ：Smart H.265+/Smart H.264+Video Frame Rate ：Main stream: 2592 × 1944 @1-20 fps 2688 × 1520 @1-25/30 fps;Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps;Third stream: 1920 × 1080 @1-25/30 fpsStream Capability ：3 streamsResolution ：5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)Bit Rate Control ：CBR/VBRVideo Bit Rate ：H.264: 32 kbps–8192 kbps；H.265: 12 kbps–8192 kbpsDay/Night ：Color/B/WBLC ：YesHLC ：YesWDR ：120 dBScene Self-adaptation (SSA) ：YesWhite Balance ：Auto/natural/street lamp/outdoor/manual/regional customGain Control ：Auto/ManualNoise Reduction ：3D NRMotion Detection ：OFF/ON (4 areas)Region of Interest (RoI) ：Yes (4 areas)Smart Illumination ：YesImage Rotation ：0°/90°/180°/270° (Support with 1920 × 1080 resolution and lower)Mirror ：YesPrivacy Masking ：4 areas5.Audio ：Built-in MIC ：YesAudio Compression ：PCM; G.711a; G.711Mu; G.726; G.7236.Alarm ：Alarm Event ：No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)importing)7.Network ：Network ：RJ-45 (10/100 Base-T)SDK and API ：YesProtocol ：IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMPCyber Security ：Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgradeInteroperability ：ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2PUser/Host ：20 (Total bandwidth: 80 M)Storage ：FTP; SFTP; Micro SD card (support max. 256 G); NASBrowser ：IE: IE8 and later/Chrome/Safari: Safari 12 and later/FirefoxManagement Software ：Smart PSS; DSS; DMSSMobile Phone ：IOS; Android8.Certification ：Certification ：CE-LVD: EN62368-1;CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B9.Port ：Audio Input ：1 channel (RCA port)Audio Output ：1 channel (RCA port)Alarm Input ：1 channel in: 5mA 3V–5V DCAlarm Output ：1 channel out: 300mA 12V DC10.Power ：Power Supply ：12V DC/PoE (802.3af)Power Consumption ：Basic power consumption: 2.5W (12V DC); 3.0W (PoE);Max. power consumption (WDR + H.265 + red and blue lights flashing alternately + warm light + sound alarm): 7.3W (12V DC); 8.0W (PoE)11.Environment ：Operating Conditions ：–40°C to +60°C (–40°F to +140°F)/Less than 95% RHStorage Conditions ：–40°C to +60°C (–40°F to +140°F)Protection Grade ：IP6712.Structure ：Casing ：MetalDimensions ：Φ122.0 mm × 110.9 mm (4.8" × 4.4")Net Weight ：754 g (1.7 lb)Gross Weight ：915 g (2.0 lb)

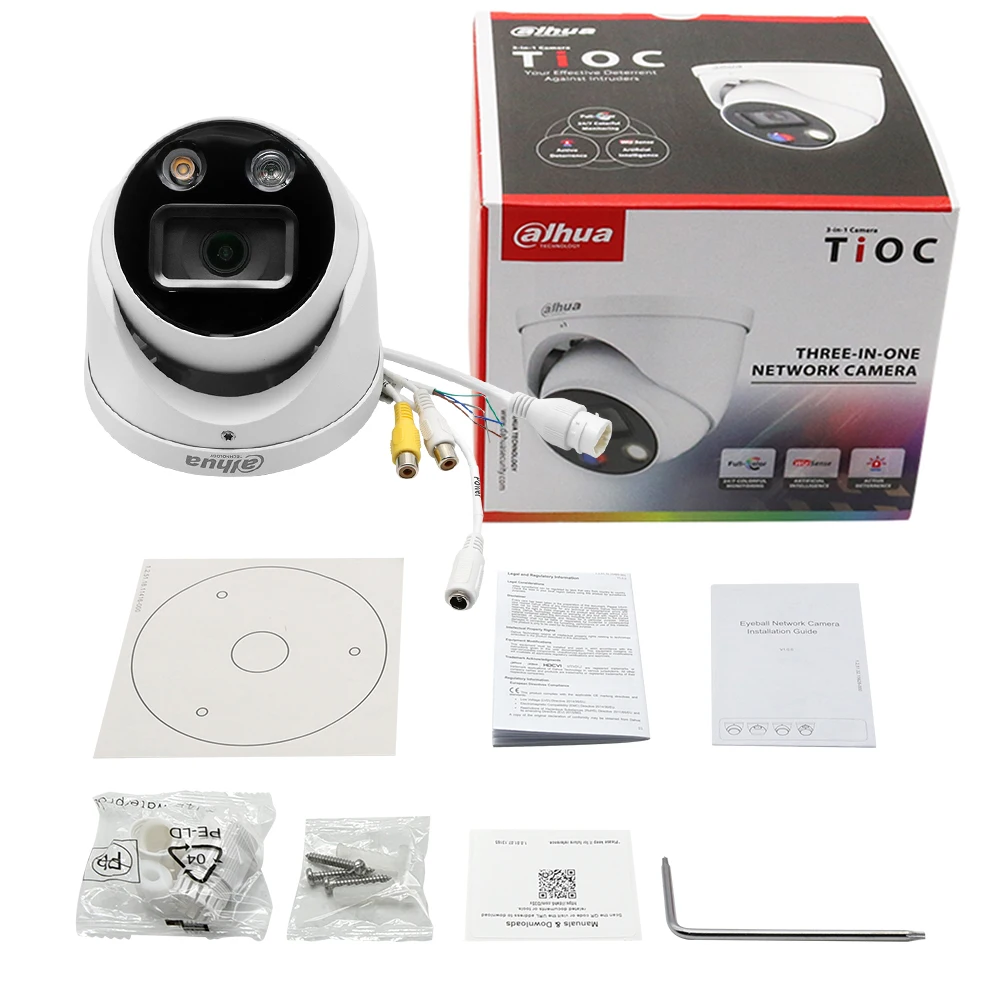

2. 1x User manual .

3. 1x Waterproof plug .

4. Installation tool .

5. 1x screws bag.

6. 1x Drill Template .

Hikvision DS-3E0106P-E (4POE+2CH) DS-3E010SP-E (8POE+2CH) POE Switch support Extend mode DC 51V IN for CCTV POE IP Camera System 44.99ece /lot 1

Hikvision DS-2FA1202-B(C)-B DC 12V Power AC 170-220V in DC 12V 2A out for CCTV 11.99ece /lot 1

Hikvision NVR DS-7104NI-Q1/4P DS-7108NI-Q1/8P 4/8CH POE NVR 4MP Record H.265+ SATA for POE IPC Security Network Video Recorder 119.99ce /lot 1

CCTV Accessories bag : DC 12V 2A Power + LAN Cable 1M + Warning Sticker 20*25cm for CCTV IP Cameras Kits Systems EU/US/AU/UK 9.99iece /lot 1

1.Question : What's the difference between 'With Logo' and 'NO Logo' ?

Answer :

'With Logo' means is Original products for buyer who need devices with logo.

'NO Logo' means we can't find any logo on device/box or firmware but same function as original one , and also search the model on Hikvision official website , this is special offer for the installers or local agents who don't want his or her customers get any info about the device .

2.Question : which shall I choose ,'With Logo' or 'NO Logo' ?

Answer : You can choose a model 'With Logo' if you use it yourself , or choose a model 'NO Logo'  for business use .

3.Question : What's the logo on the camera and box ?

Answer :

'With Logo': Camera comes with 'Dahua' logo, Package box is original box from hikvision factory .'NO Logo': Camera comes with no logo, Package box also no logo .

4.Question : What client does this camera work with ?

Answer : Client: Config tool ( Search and manage) / Smart PSS (Device connection)5.Question : How about mobile view on the smart phone?

Answer : Mobile view: IOS iDMSS / Android iDMSS 6.Question : I do business on Dahua products and I need more discount !

Answer : For bulk purchases and kit customize, please kindly contact us before buying .

Please click the video to know more about this model.

About Ship from China

1. Kindly Reminding : Make sure to fill in the correct Personal Tax number or Passport Information on your Aliexpress Account info before shopping . Otherwise shipping may delay.

2. City & Zip Code : To rise the probability of successful delivery of packages, please be sure to complete the correct city name & zip code before place your order .

3. Remote Fee : If the address is defined as remote area if shipped by International Express, buyer need to pay extra 35-45usd remote shipping fee. Or you can provide us another  address that is not remot. Thanks for your cooperation!

4. About Tax&Duty : We offer free shipping for most countries , ' Free shipping ' don't contain any tax & duty. Buyers need pay for the tax & duty once it charged by buyer's customs , we'll provide related commercial invoice to help customs clearance if necessary , DO NOT LEAVE ANY BAD FEADBACK BECAUSE OF TAX.

We are partners of many top security enterprises in the world. We have been trading globally online and offline for more than 10 years. All products we sell come directly from factories, and we can provide any customers with the latest security equipment they want. Please contact us and hope to establish a long-term relationship We hope to have a friendly relationship of mutual cooperation!
